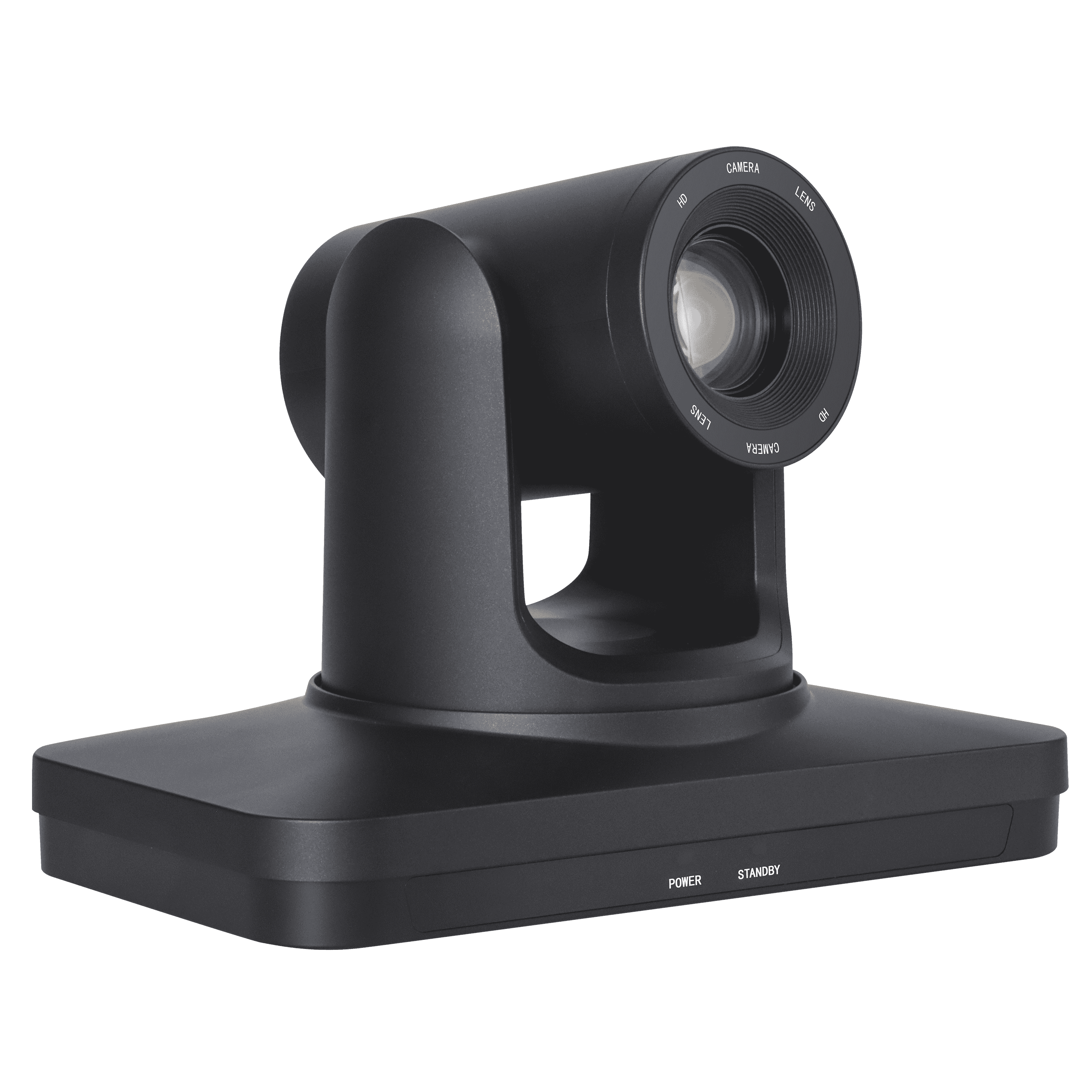

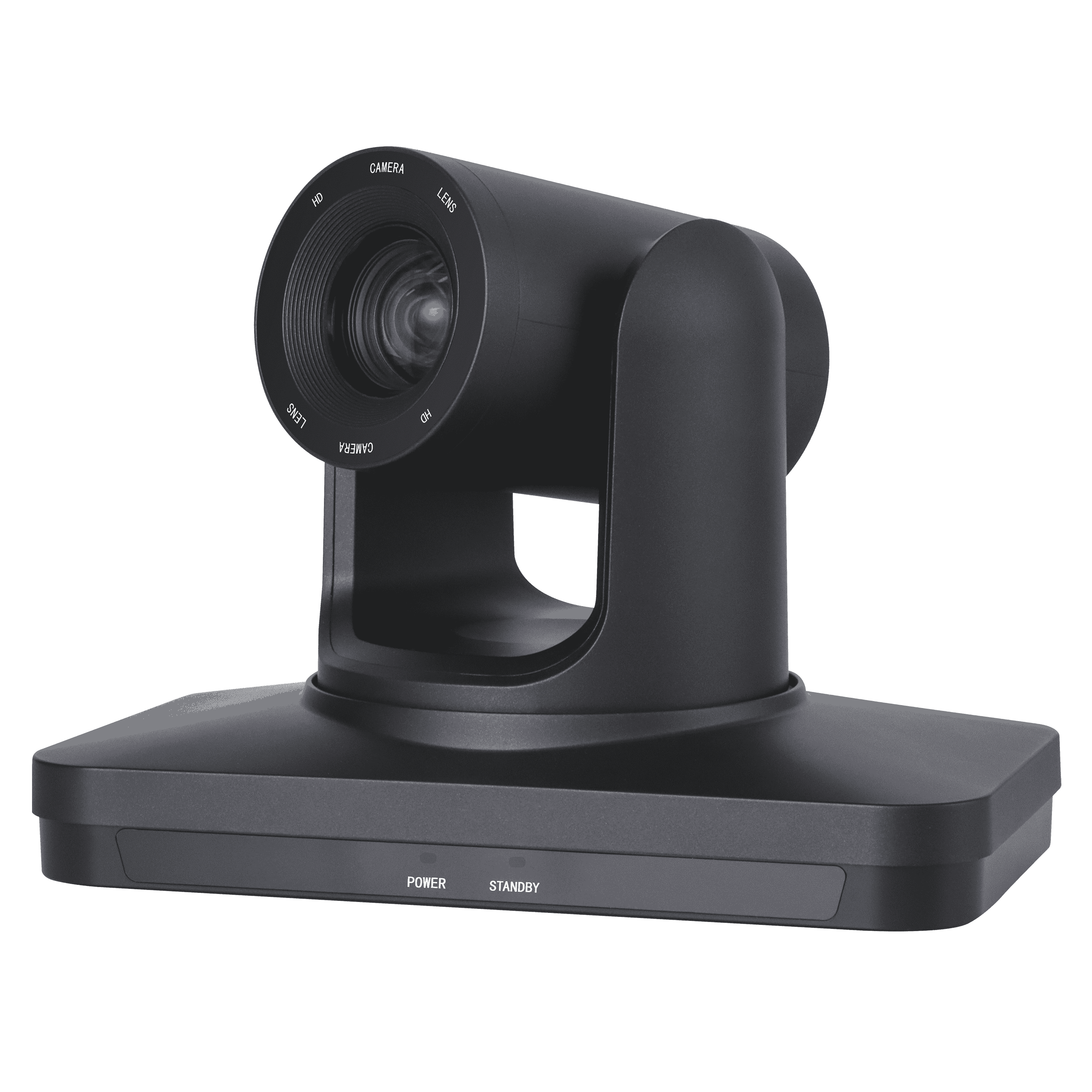

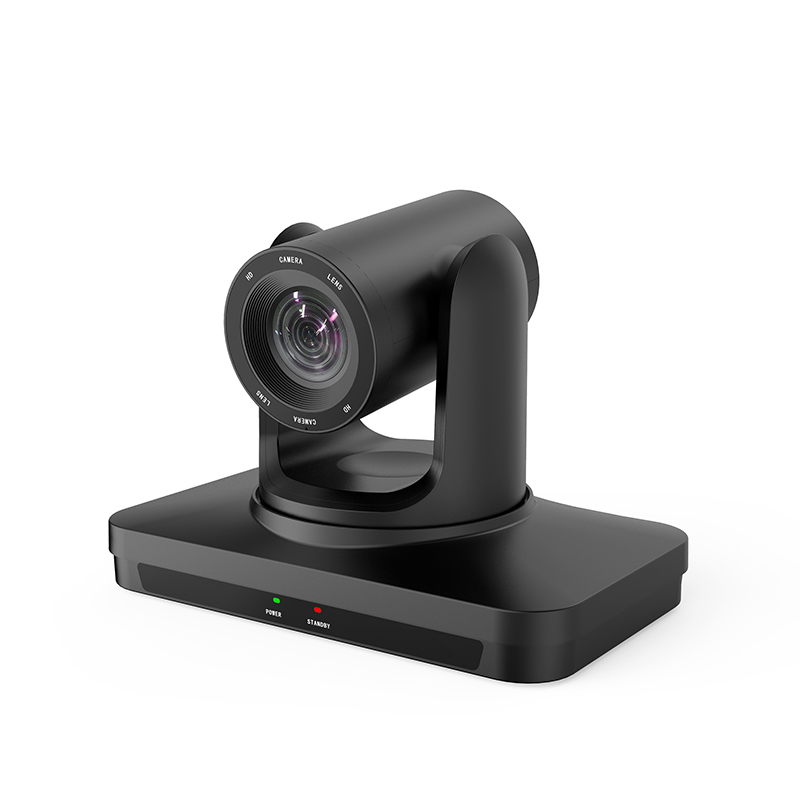

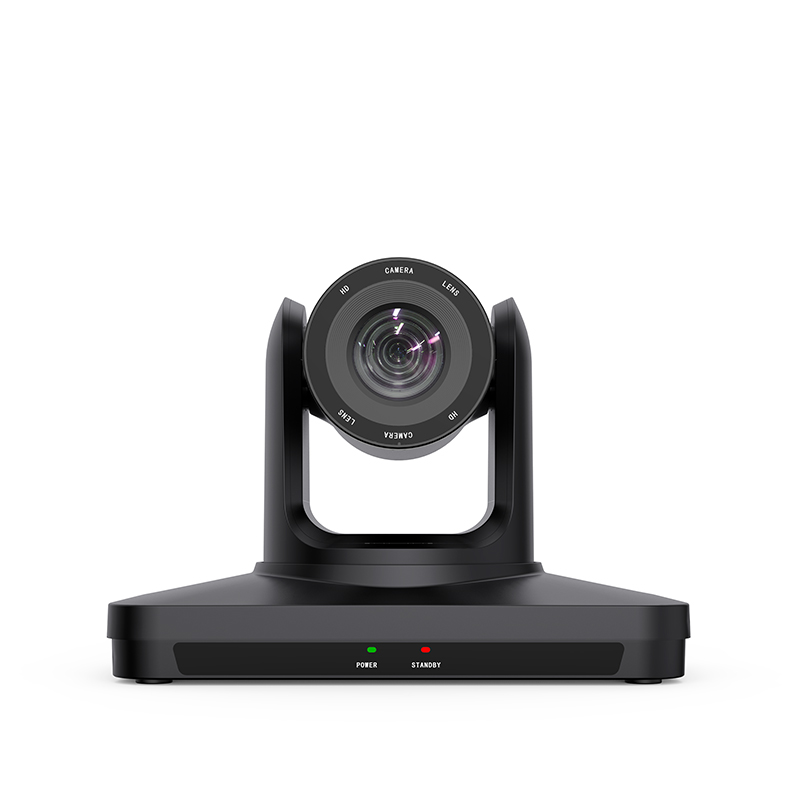

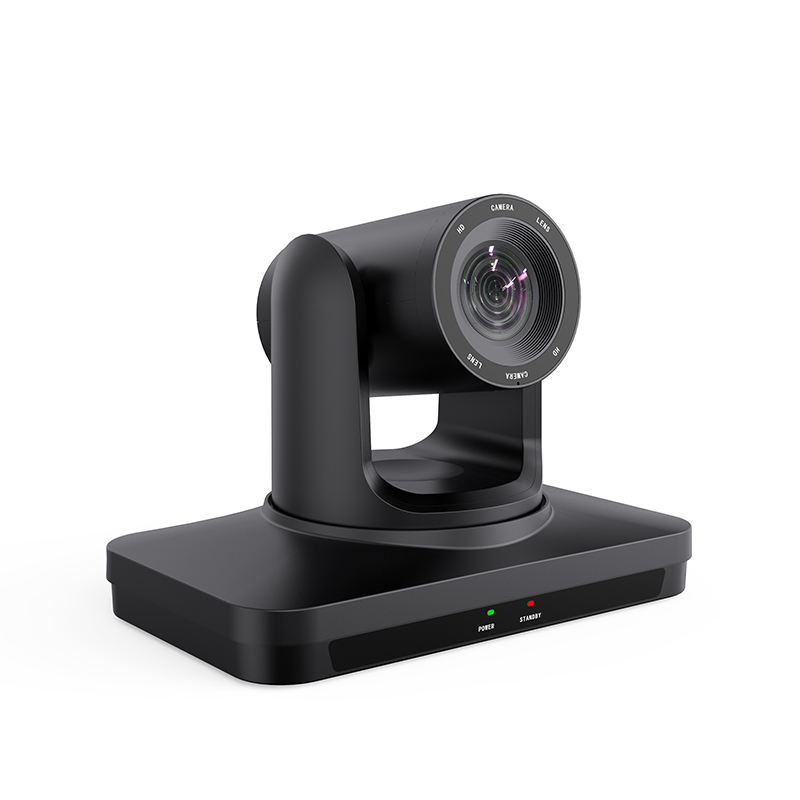

KT-HD43DA/43DB
Download
Features
1.1080P HD resolution:
Apply SONY 1/2.8” Progressive CMOS sensor, 2.07 Megapixels, can reach max.1920x1080 high resolution with frame rate up to 60fps.
2.30x and 20x optical zoom lens optional:
HD43DA: 20x optical zoom+16x digital zoom, supports a horizontal viewing angle of 58.7°.
HD43DB: 30x optical zoom+16x digital zoom, supports a horizontal viewing angle of 58.1°.

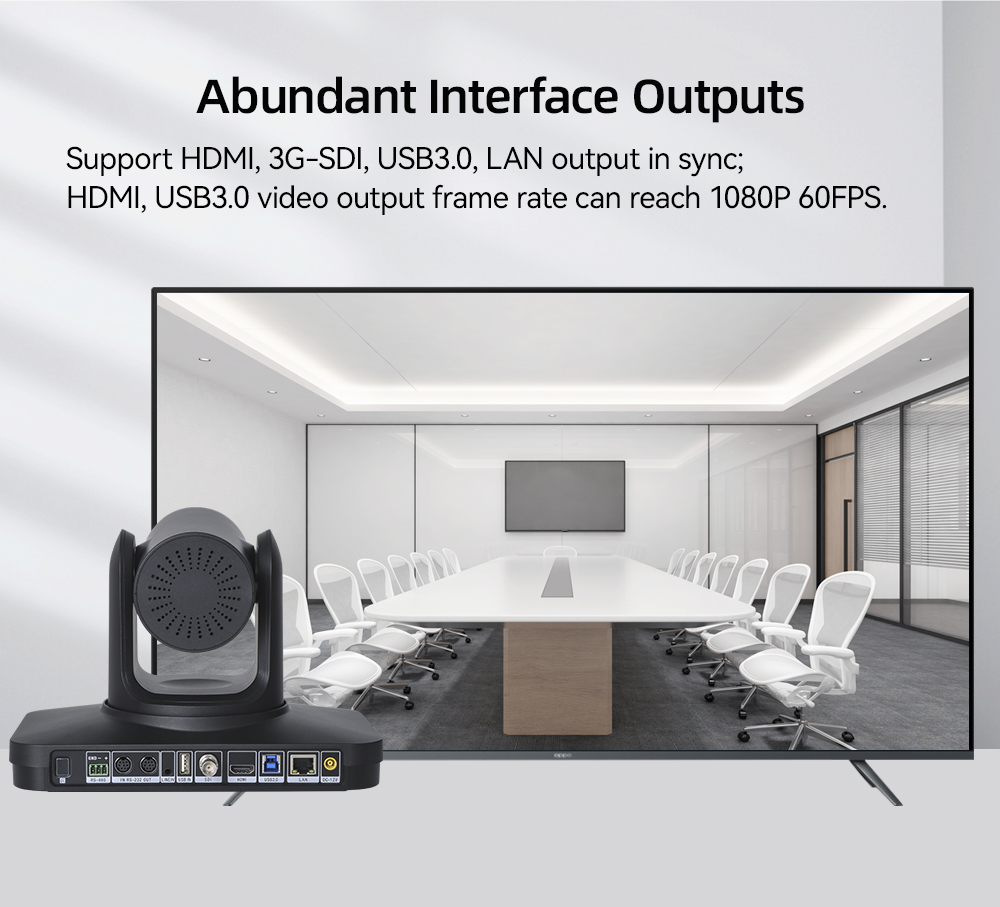

3.HDMI+3G-SDI+USB3.0+IP multi-interface, rich application scenarios:
Compatible with all current mainstream video output interfaces, and supports simultaneous output function.
4.Remote control:

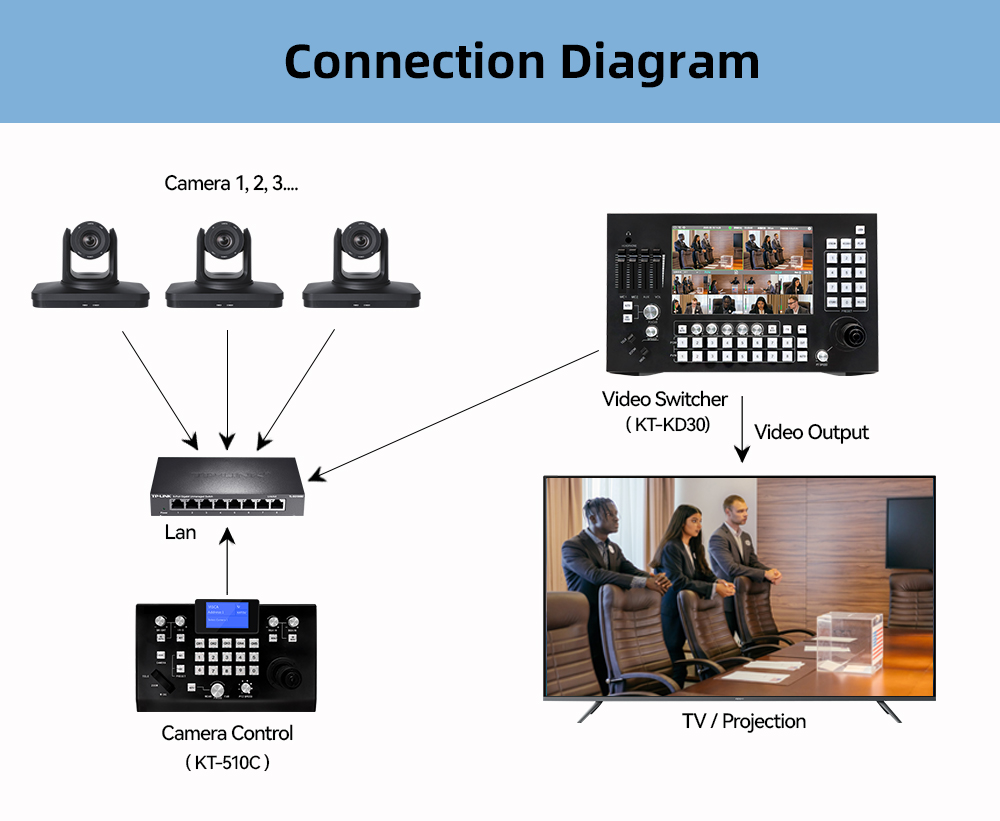

Use RS232 and RS485 serial ports to control multiple cameras.

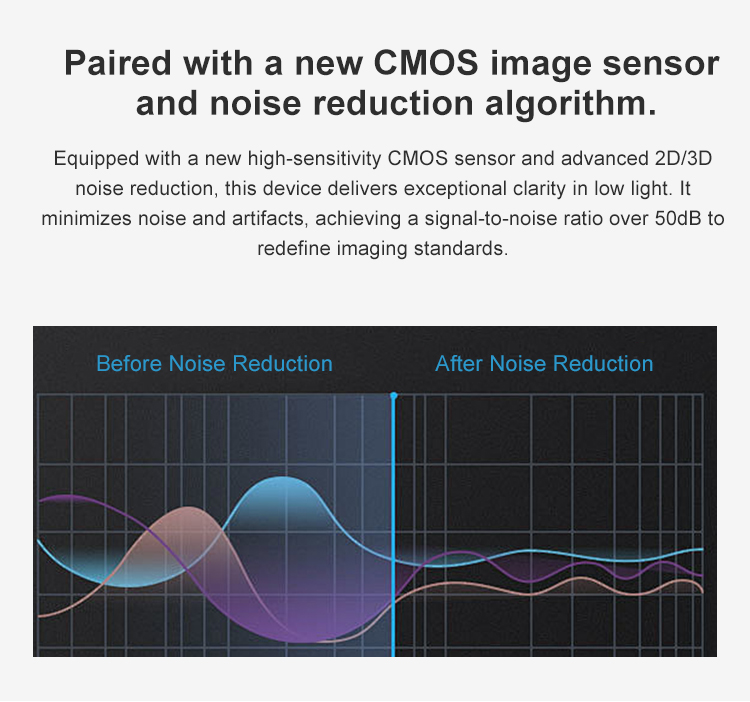

5. Low light:
Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applying 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 50dB.
6.Infrared transparent transmission:
In addition to being able to receive its own dedicated remote control signal, it can also receive the user's infrared remote control signal and send it to the video conference terminal through the VISCA IN port.
7.Contains multiple control protocols such as:
Support VISCA, PELCO P/D, Onvif multiple control protocols, support automatic identification protocol.
8.Various video compression standards:
Different interfaces support YUY2, H265, MJPG, H264 multiple video compression formats.
9.Various network protocols:
Support ONVIF, SRT, RTSP, RTMP, RTMPS and other network protocols.
10.Multiple Control Protocols:
Support VISCA (including VISCA Over IP), PELCO P/D protocol, support automatic identification protocol.

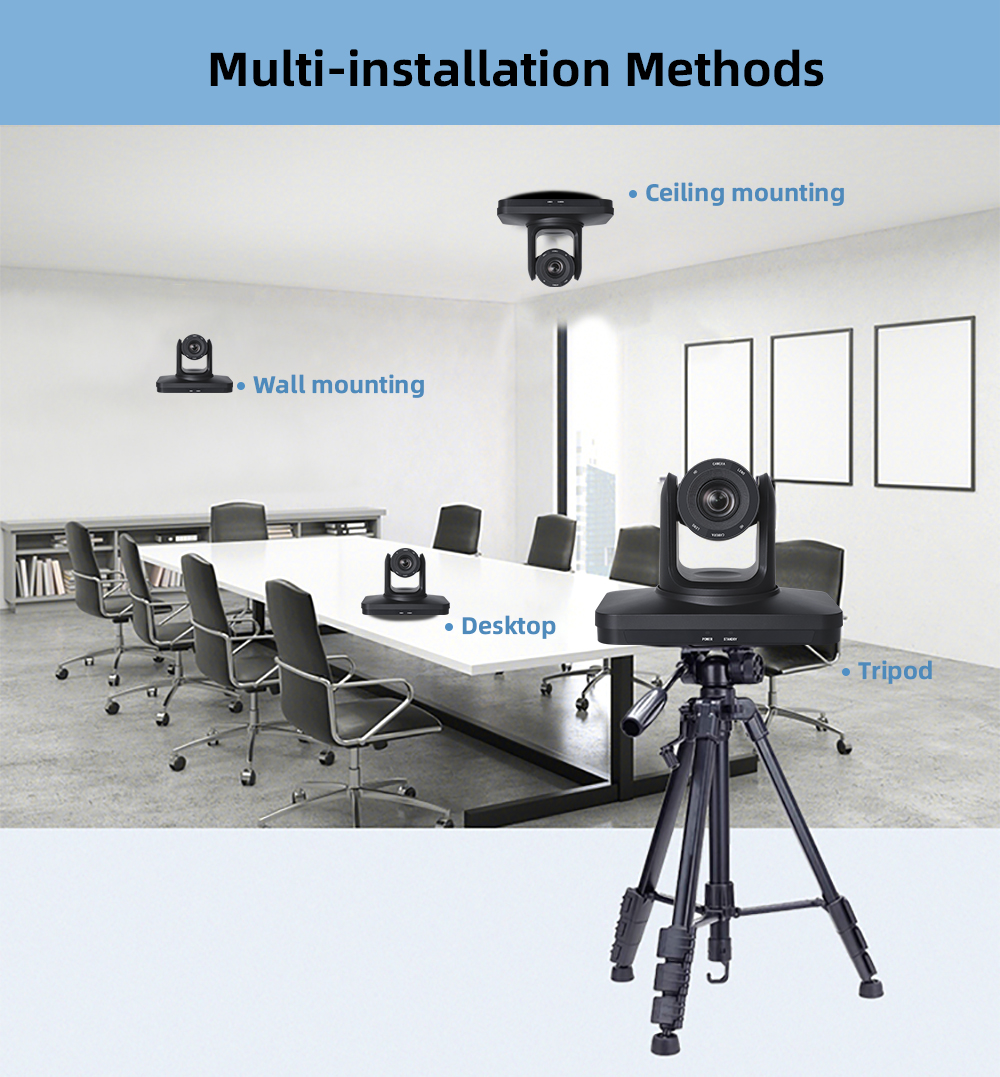

11. Various installation methods:
A variety of installation methods, desktop, ceiling, wall installation
|
Image Parameters |
|
|
Resolution |
HDMI: 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
3.50 Megapixels, 2.07 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
HD43DA: 20X Optical Zoom, f=5.2mm(W)~104mm(T), F1.55~F3.13 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
HD43DA: 58.7°(W)~3.2°(T) |
|
Vertical View Angle |
HD43DA: 32.2°(W)~1.8°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
HD43DA: 0.1 Lux @ (F1.5, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
±168° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~90°/s |
|
Tilt Speed |
1°~90°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
1920*1080, 1280*960, 1280*720, 720*576, 720*480, 640*480 |
|
Sub Stream Resolution |
640*480, 640*360, 480*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

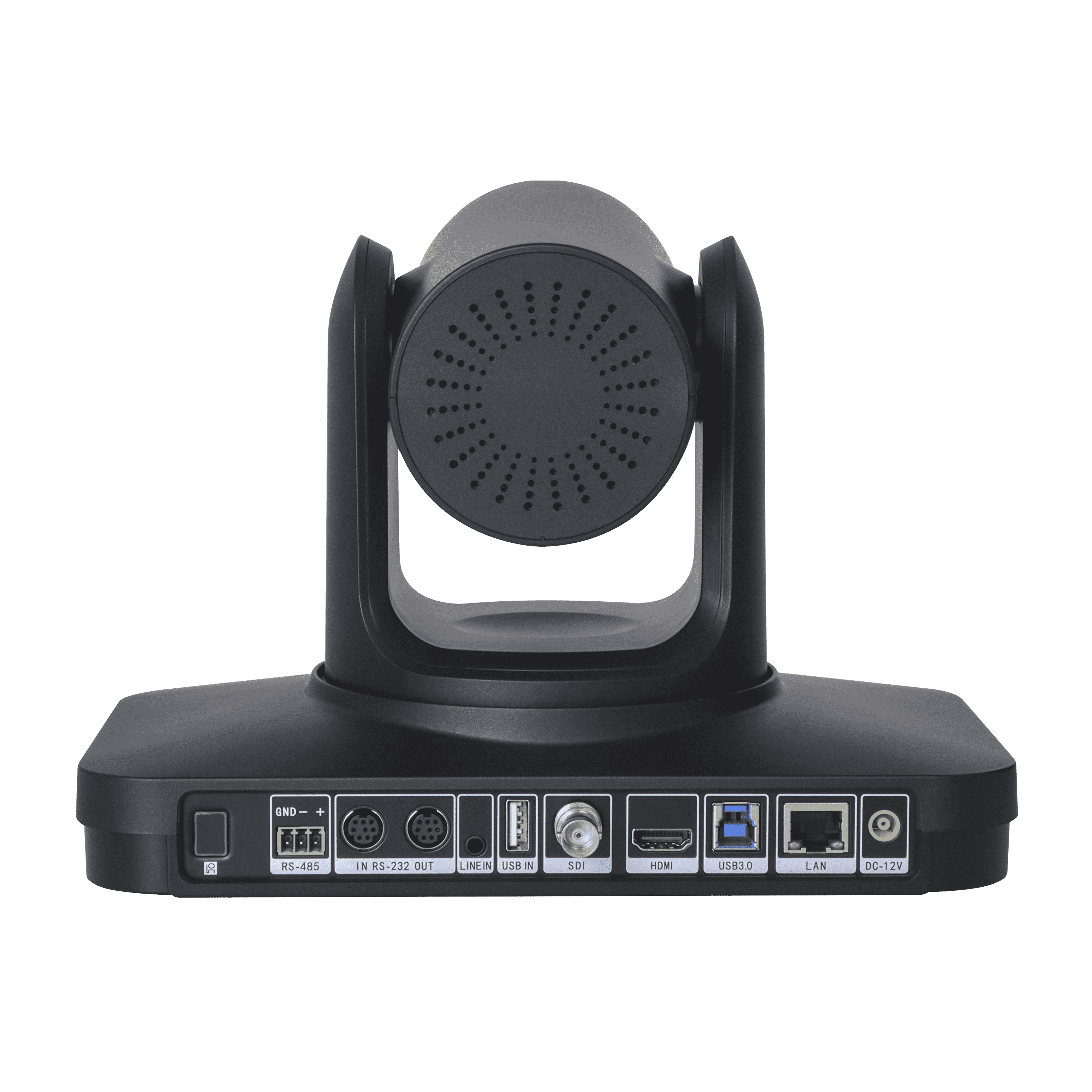

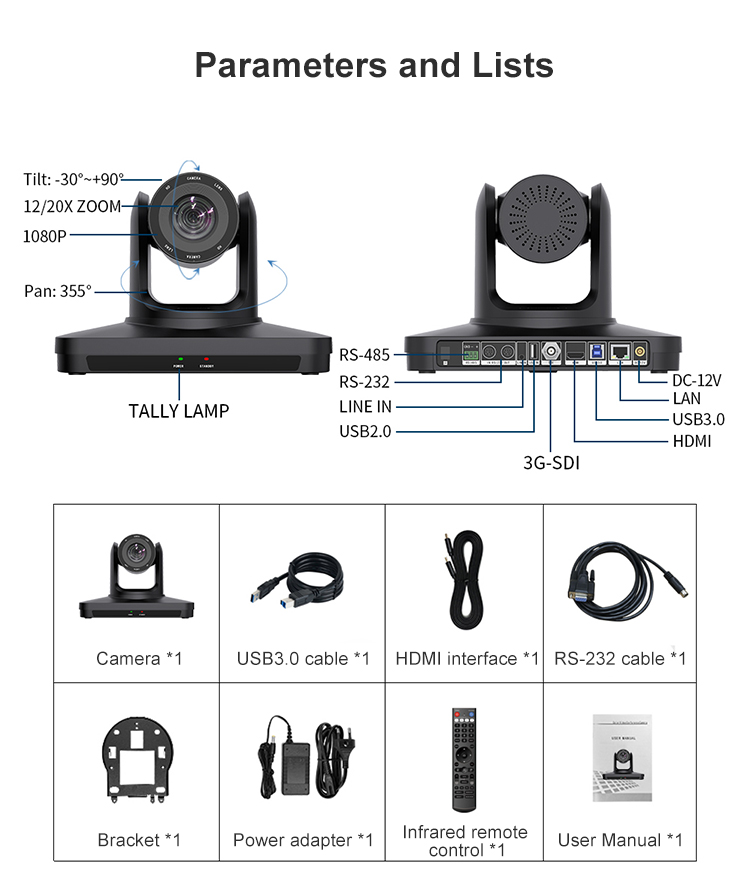

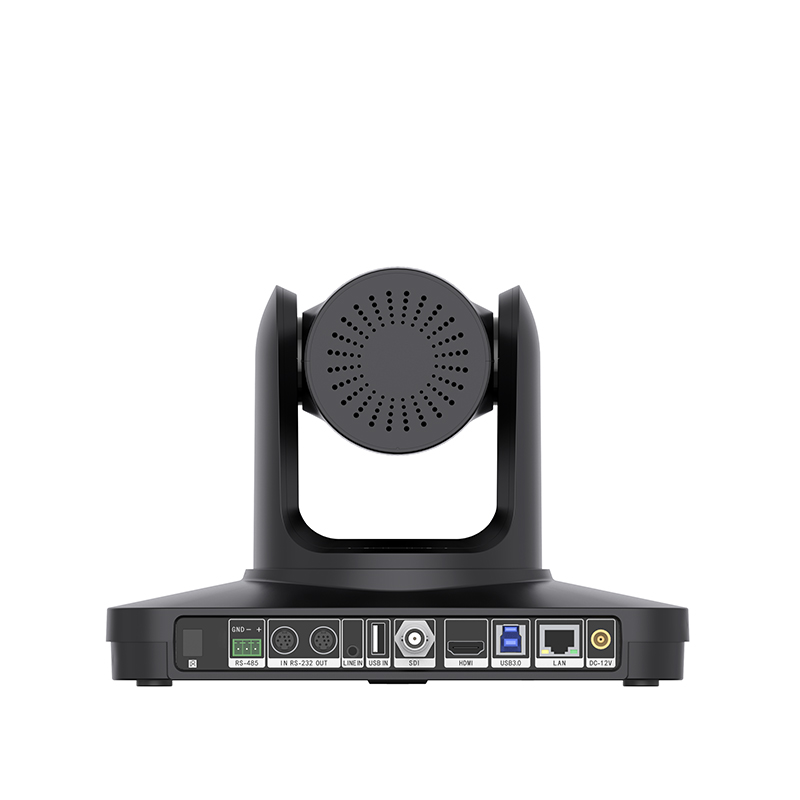

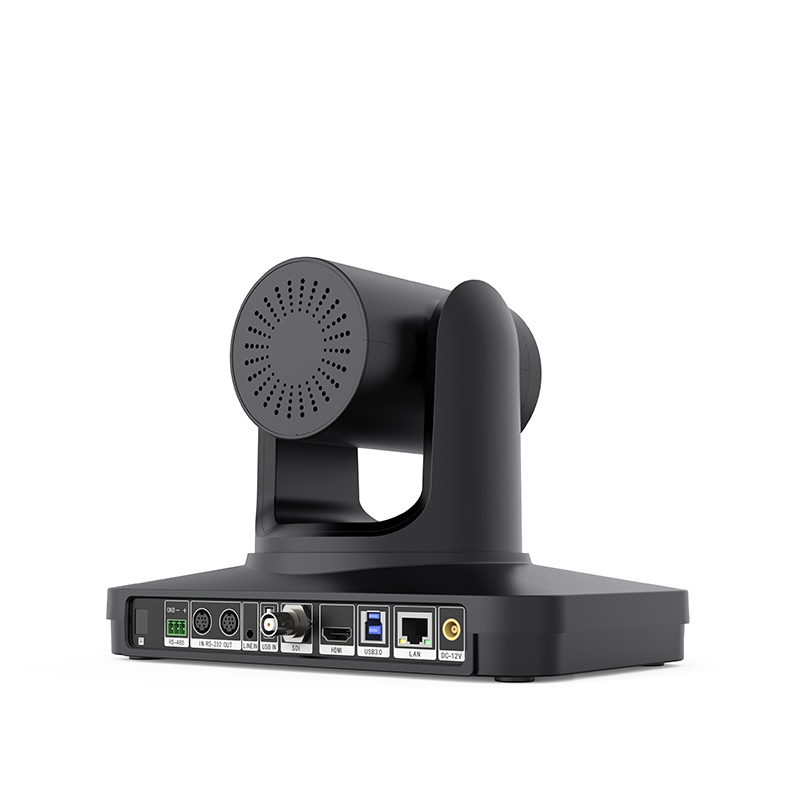

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 3G-SDI |
|

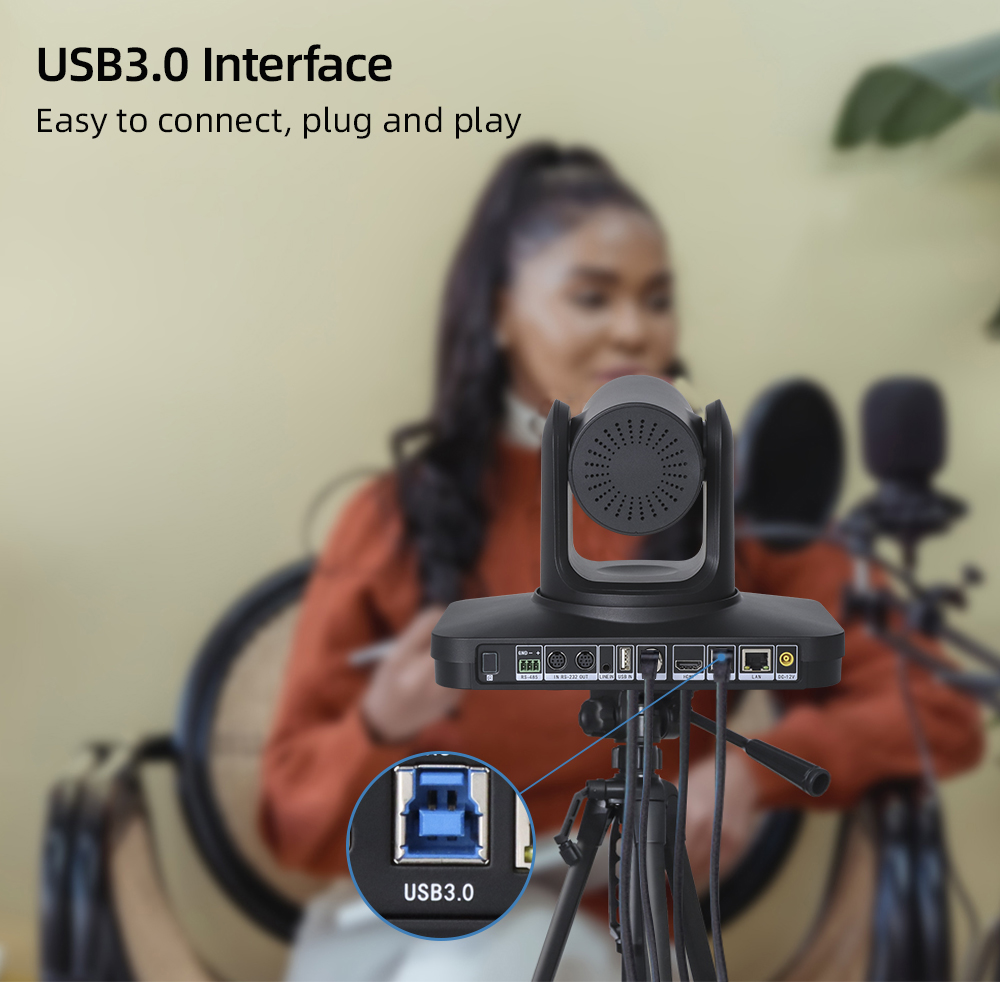

USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power Consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
(W)240*(D)162*(H)173mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
