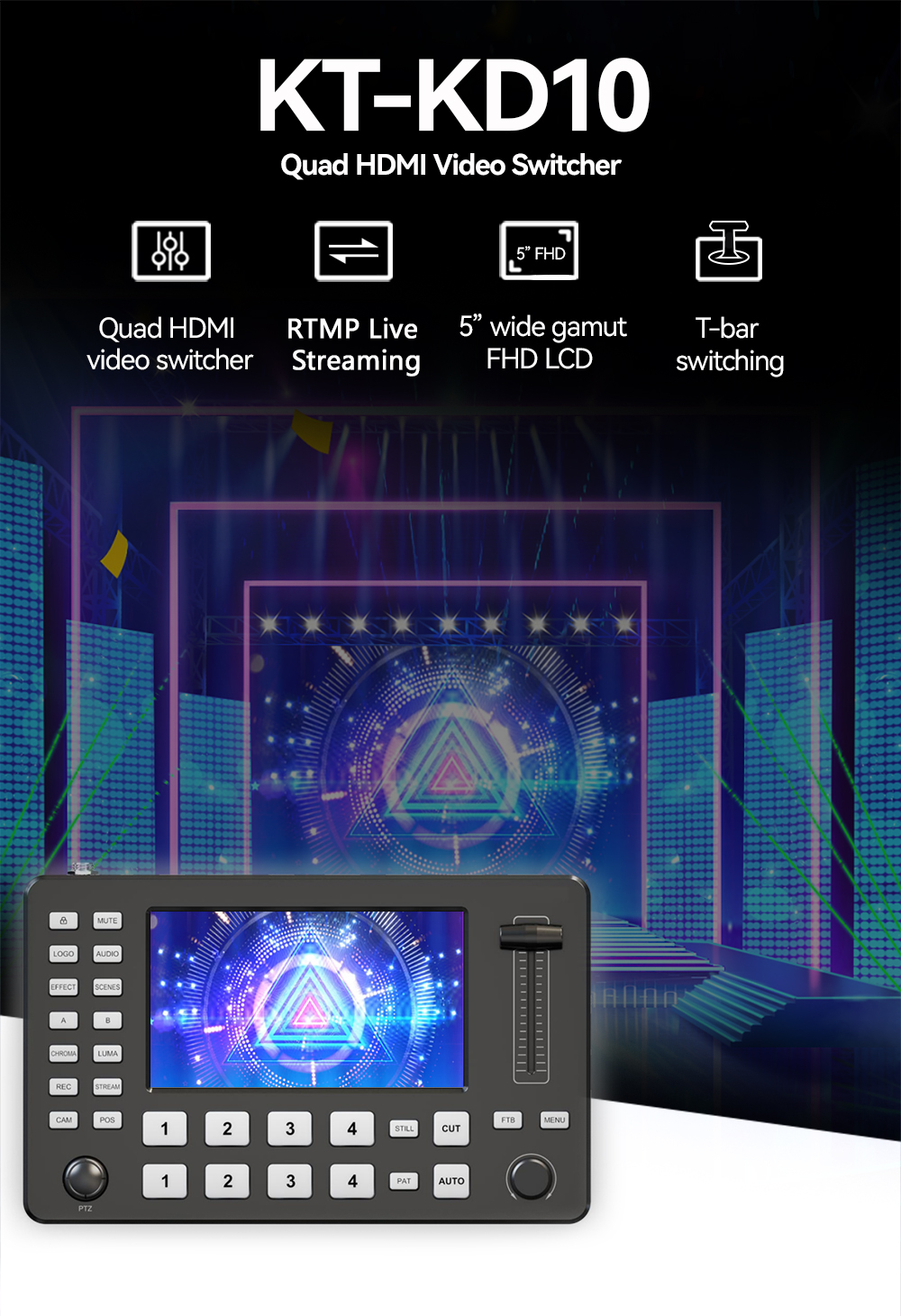

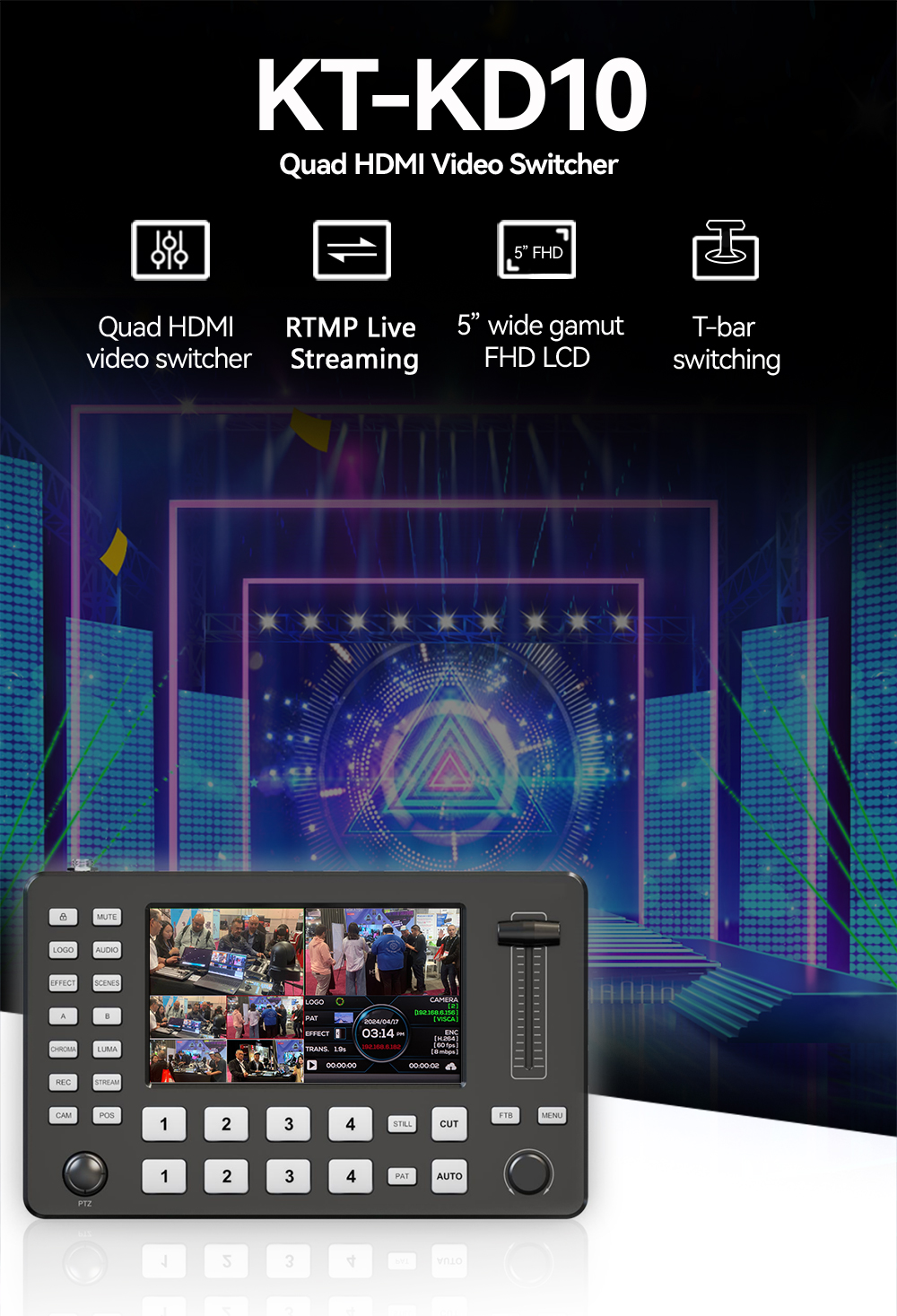

Features

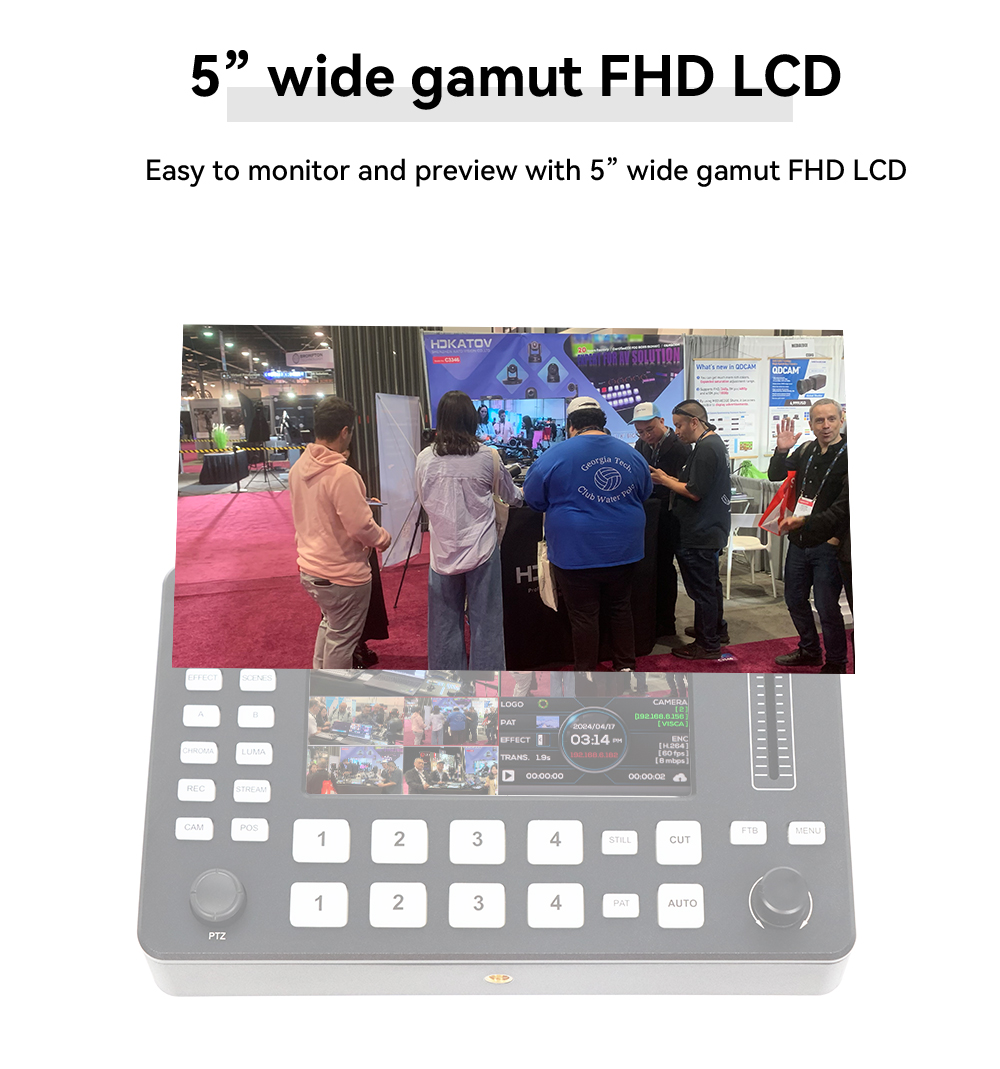

1.5-inch full HD LCD display:

Built-in 5-inch HD screen, Integrates live streaming and monitoring functions.

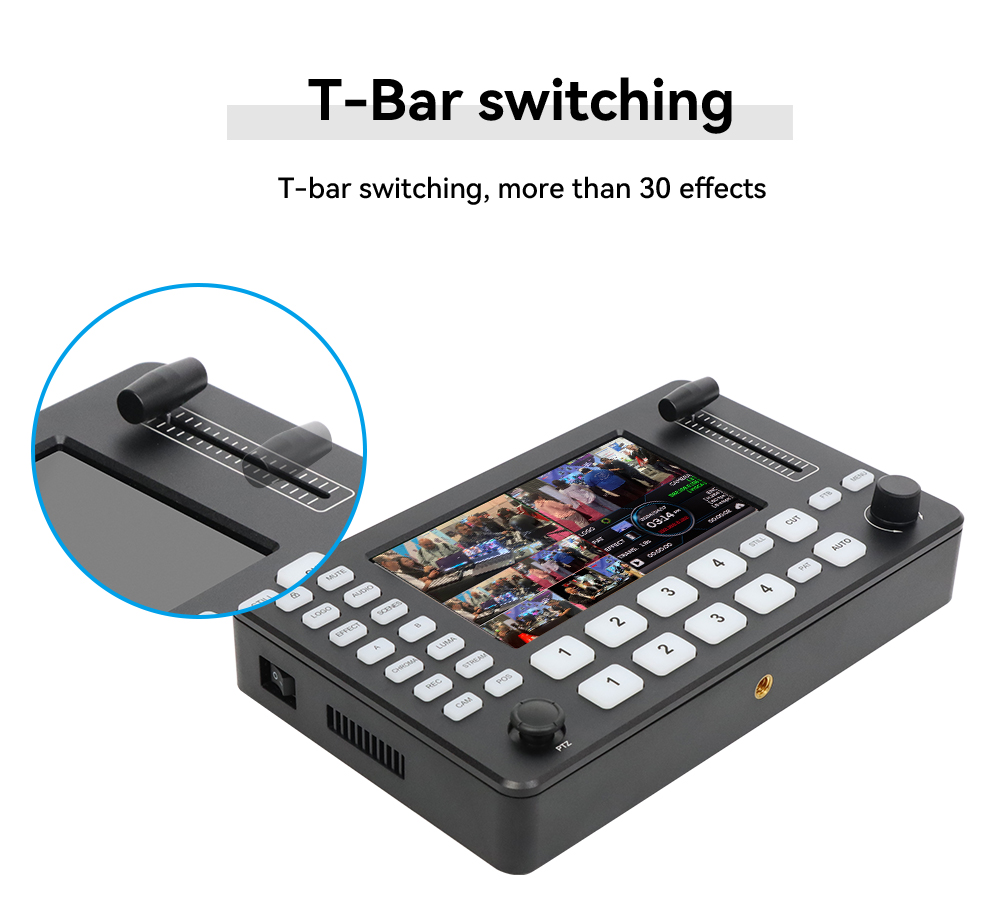

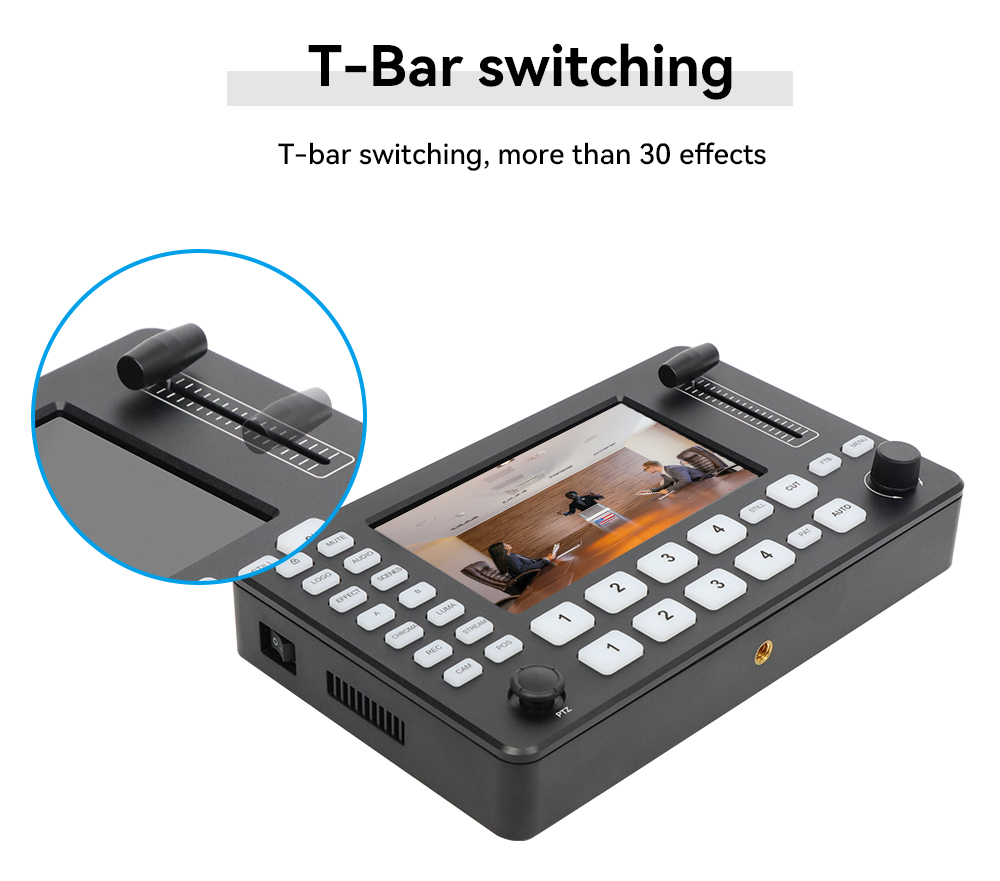

2.Support T-shaped fader switching video output control:

Damping feel fader, supports 30 switching effects.

3.4 HDMI input video sources, 2 PGM HDMI output:

Supports up to 4 video inputs and 1080P60 image input.

1 channel UVC video signal output.

4.Supports RTMP streaming protocol, live broadcast at any time:

Supports RTMP and RTMPS streaming media protocols to implement streaming; supports stream size setting and simultaneous streaming from 2 addresses.

5.Dual HDMI outputs:

Both channels can output PGM

6.A variety of PIP layouts and transition effects, which can be freely converted according to needs:

Supports multiple PIP and POP layouts and multiple transition functions.

7.MP4 video recording, retains wonderful works:

Supports MP4 format video recording and saving.

Supports USB mobile hard disk storage.

8.Convenient and fast camera control functions:

2D joystick PTZ control; supports VISCA Over IP control protocol.

9. Powerful WEB control background:

Supports remote control of broadcasting and parameter configuration through the WEB background, and supports WEB equipment upgrades.

10.Supports multiple language operation interfaces in Chinese and English:

Supports Simplified Chinese and English operation interfaces for easy switching.

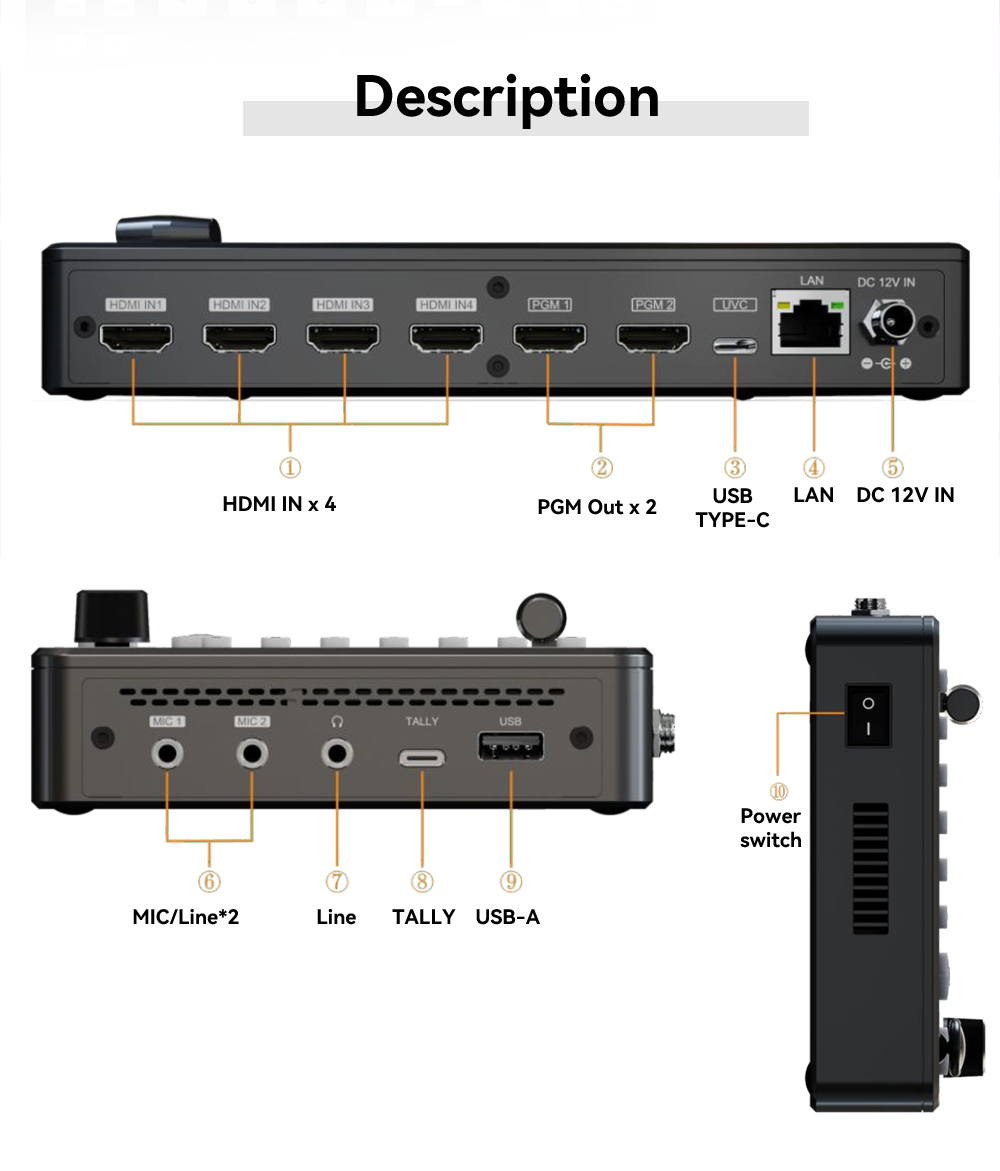

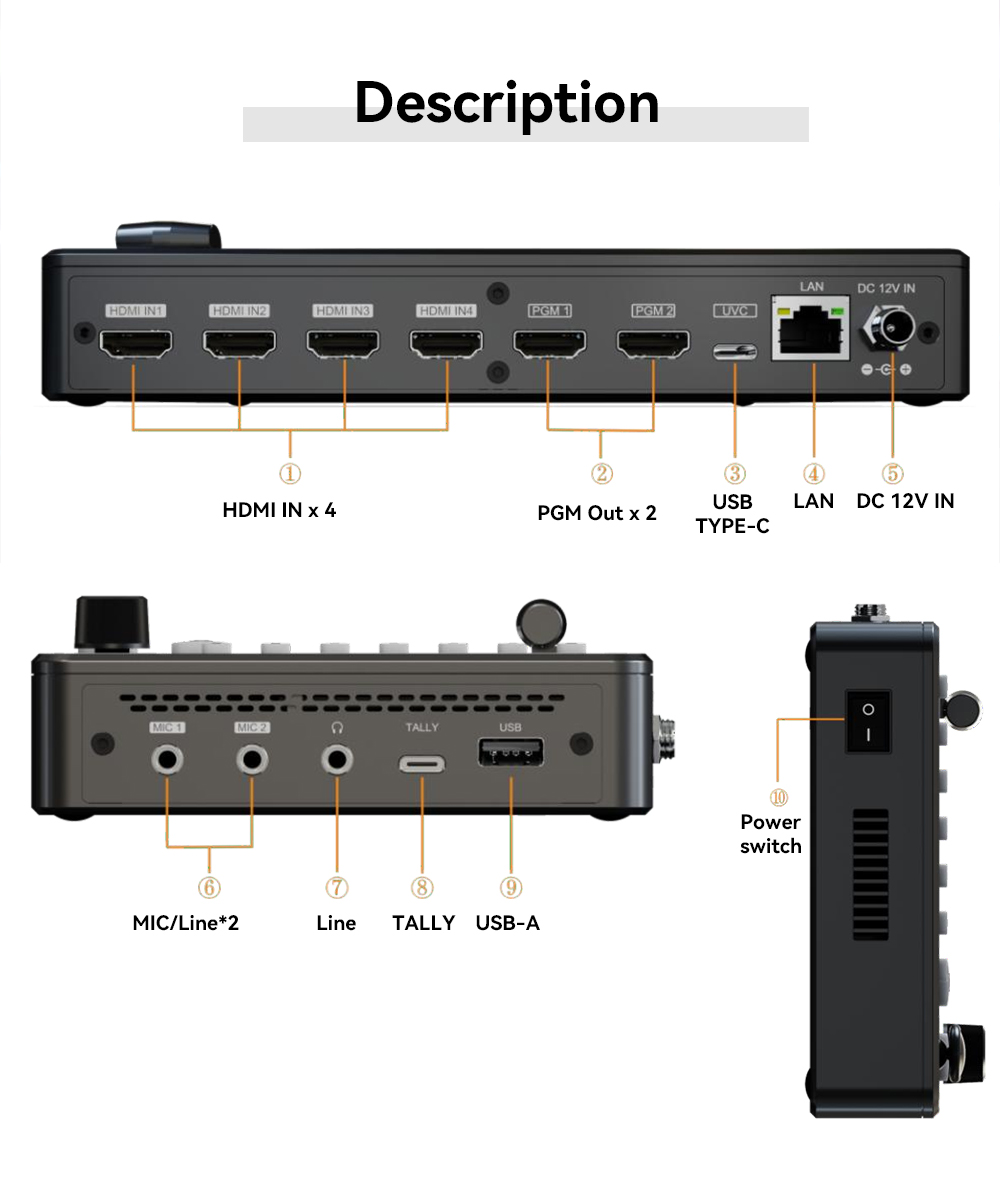

Device Interface

Video Input Interface

4 channels HDMI

Video Output Interface

2 Channels HDMI outputs simultaneously, supports PGM



1 Channel USB output, USB supports audio and video output



1Channel IP output, supports RTMP, RTMPS



Support UVC and IP simultaneous output

Audio Input Interface

4 sets of HDMI audio inputs



2 channels 3.5mm MIC IN input

Audio output Interface

1 set of 3.5mm headphone monitoring jack

RJ45 Ethernet

RJ45x1, Ethernet supports 10/100/1000 BaseT, which can be used for live streaming, background settings, and software updates

Computer Interface

1xUSB TYPE C for UVC video output



1xUSB TYPE A; external USB storage (FAT32, NTFS, exFAT)

Format Parameters

Video Input Format

1080p 60/59.94/50/30/29.97/25/24/23.98



1080150/1080i60



720p 60/59.94/50/30/29.97/25/24/23.98



576i/480i/576p/480p

Video Output Format

1080p 60/50/30/25/24



1080i50/1080i60

HDMI Color Space

RGB/YUV

USB Acquisition Output

Max: 1080P60support USB audio output

Local File Playback

Video file formatMP4



Image file formatPNGJPGBMP

File Recording Format

MP4

Storage Media

Support U disk storageFAT32,NTFS,exFAT

File Recording Resolution

1920×1080

File Real-time Playback

Support

Specifications

Video System

FULL HD

Monitor Screen

5 inches

Monitor Minimum Resolution Requirements

1920x1080 pixels

LOGO

1 set

Clock Display

Support

Operating Mode

Horizontal screen(16:9)

Tally

Support

Stunt Switch

CUT & AUTO

Special Effects

36 kinds of stunts, the switching duration can be set

PIP Model

Support8 channels PIP and POP model

Layers

Background, A, B, LOGO multiple layers



Layer editing support: size, position, graphics mask, area mask

Keying

Chroma key Luma Key

Language Mode

Simplified Chinese, English

Audio

Mixer

4-channel audio virtual mixer with switch and mode settings for each channel

Analog Audio Input

2 channels of 3.5mm MIC IN input, gain range-60-24db)

Analog Input Delay

0-500ms

Analog Audio Output

1 Channel unbalanced stereo output line out



1 Channel headphone monitoring output

Audio Input Level Range

0dB~60dB

Audio Sample Rate

48kHz

Audio Format

AAC encoding; streaming and recording 2 channels, 16bit, compression bit rate support: 128k (default), 48k, 64k, 96Kbps;

PTZ Control

PTZ Control

VISCA Over IP control protocol

PTZ Control Quantity

4 Channels

PTZ Camera Control Method

2D Joystick

PTZ Aperture Control

Support

PTZ Focus Control

Support, manual/automatic

PTZ Exposure Control

Support, manual/automatic

PTZ Exposure Mode

Red gain value, blue gain value adjustment

TALLY Instruct

Equipped with the tally control box (DB-15), the camera can be switched and controlled synchronously with tally lights.

Remote Control

Support mobile phone and WEB web page control

Software Update

Firmware Upgrade

Connect directly to a Windows computer using the Ethernet interface.

Power Supply

Input Voltage

External 12V2A power supply

Input Current

3AMax

POE

Nonsupport

Rated Power

36WMax

General Specifications

Usage Environment

Indoor

Operating Temperature

0 degrees 50 degrees Storage temperature: -30 degrees to 70 degrees

Storage Temperature

-10 degrees-60 degrees

Color

Black

Dimension

(W)354* (D)165* (H)50mmnot include rocker height

Weight

1kg
