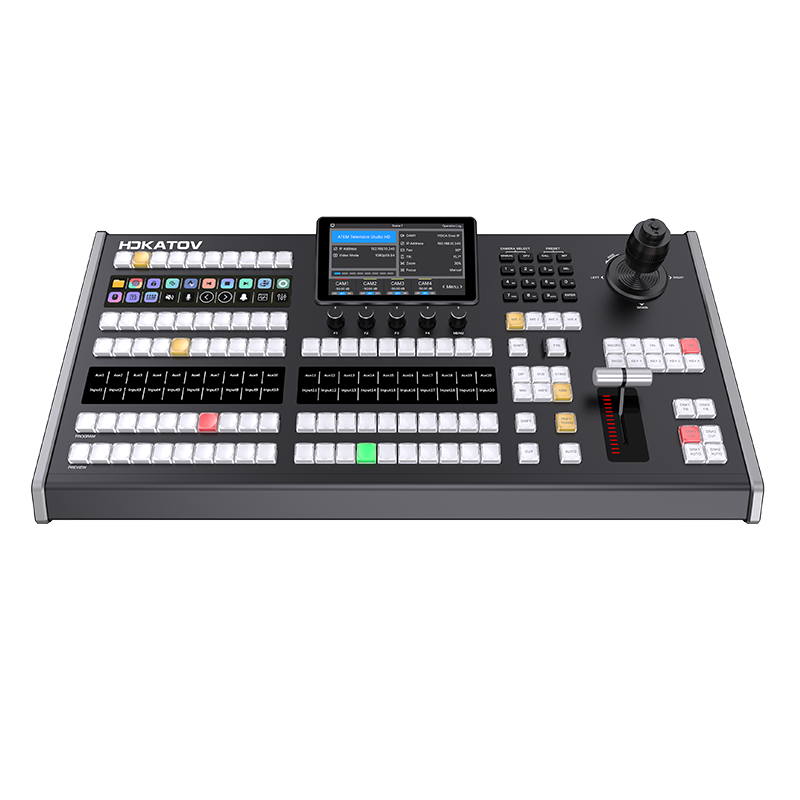

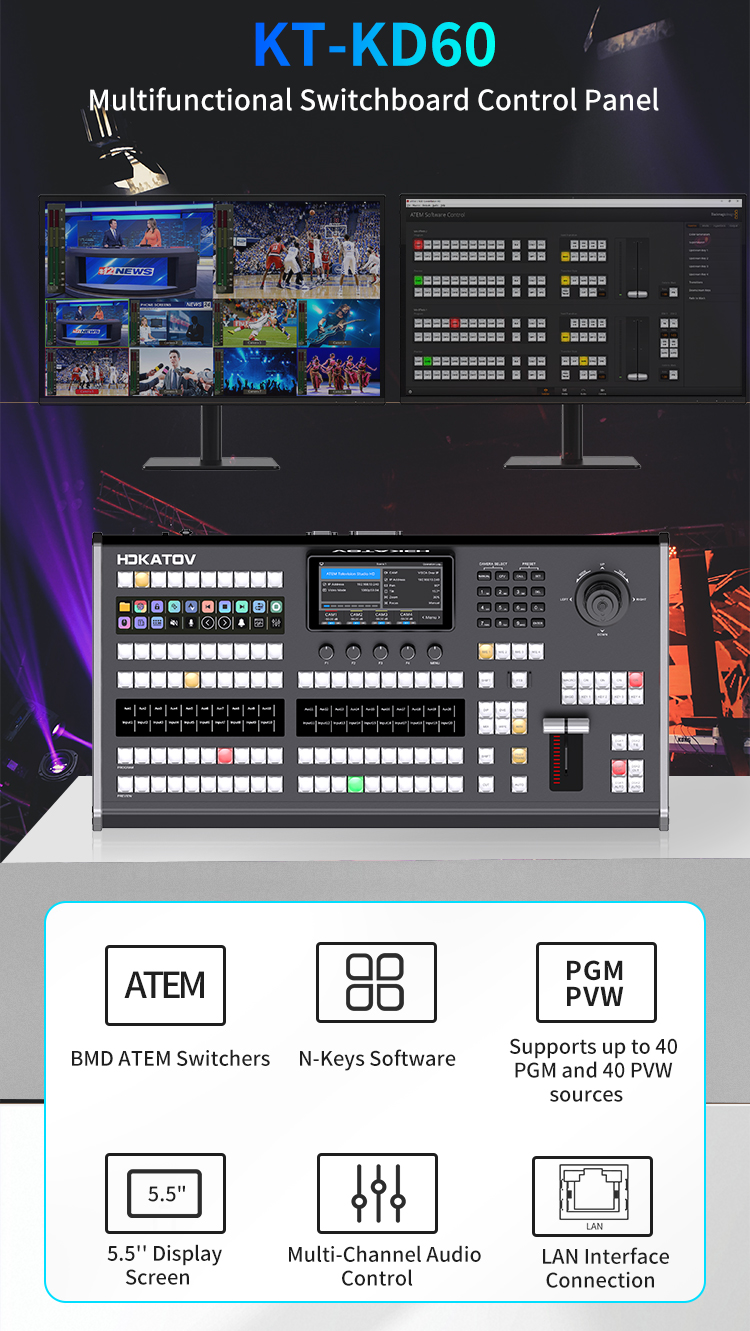

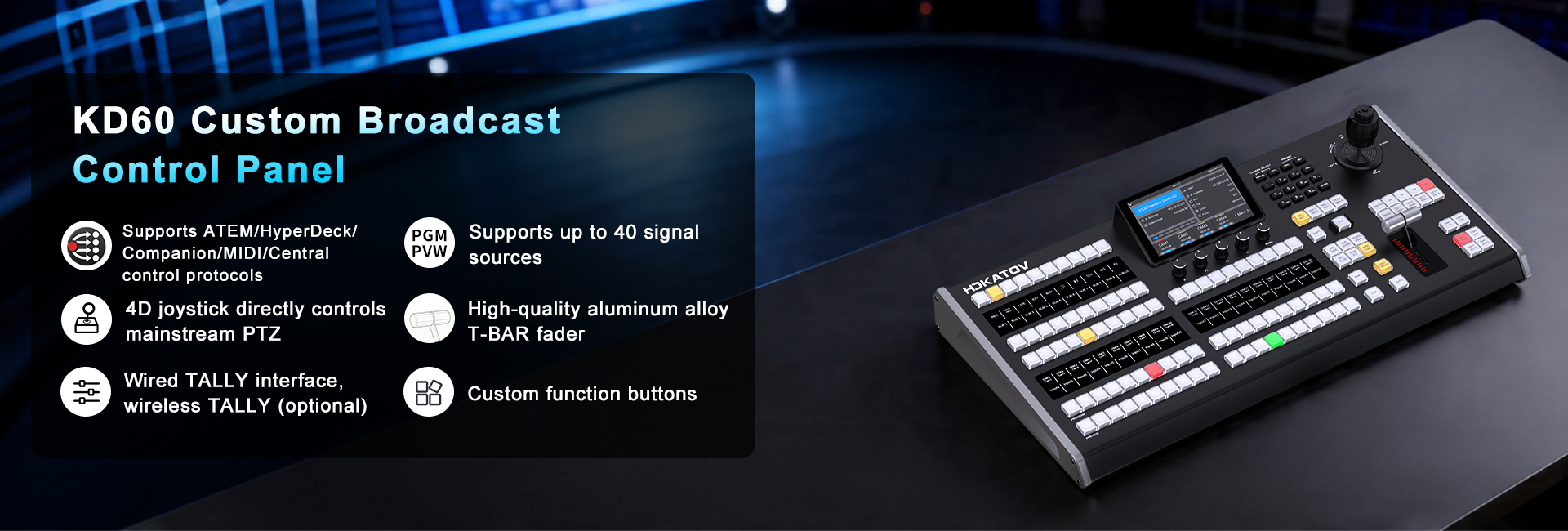

KD60
Download

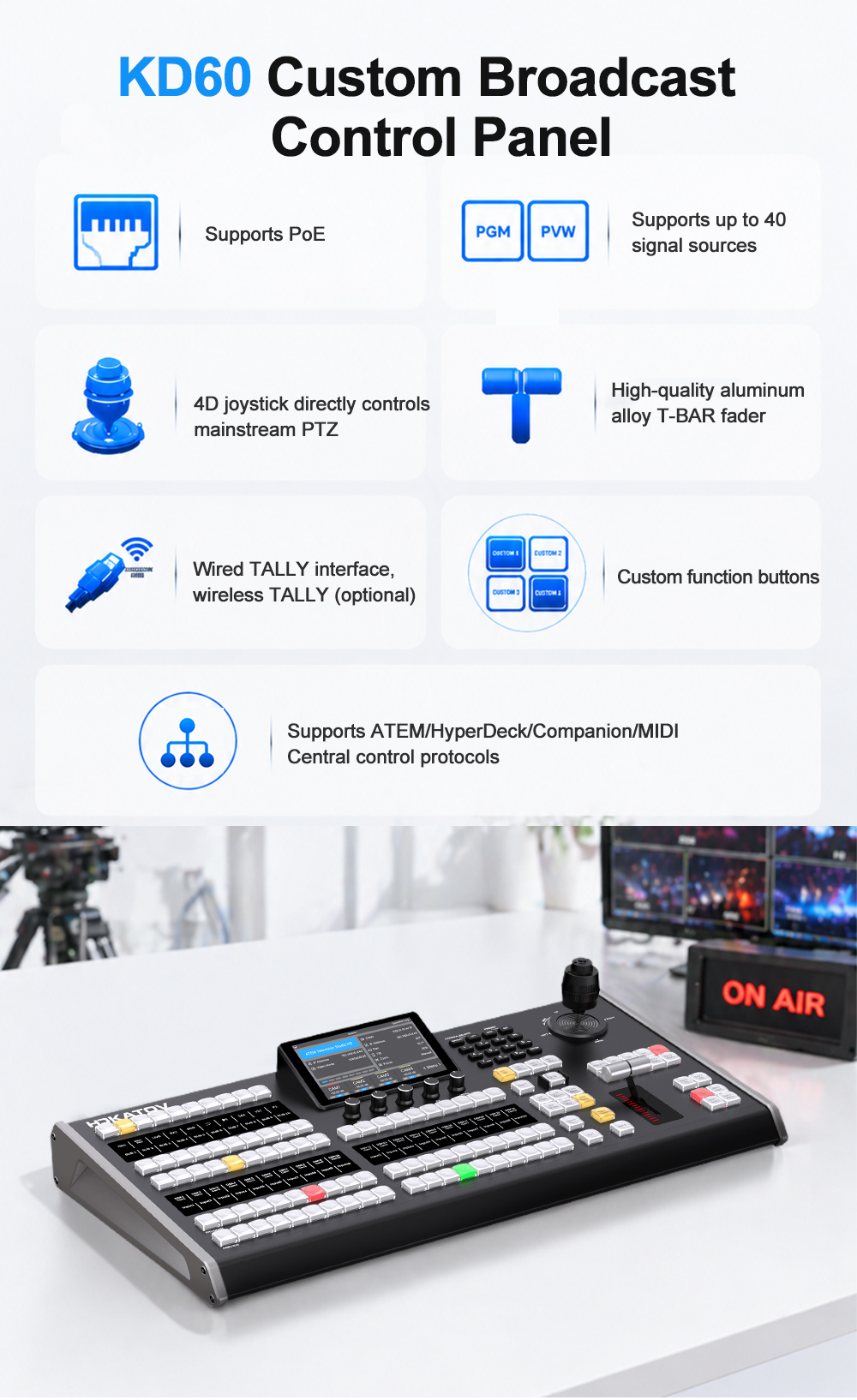

Features
1.Integrated hardware design:
An easy-to-use fully embedded system with a streamlined structure, integrates director switching, audio adjustment and stunt transitions.

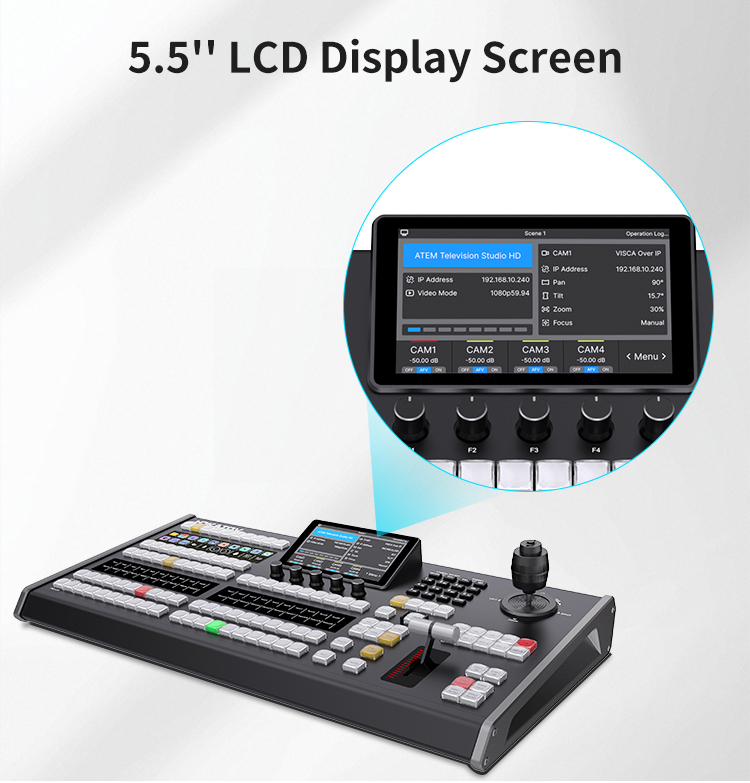

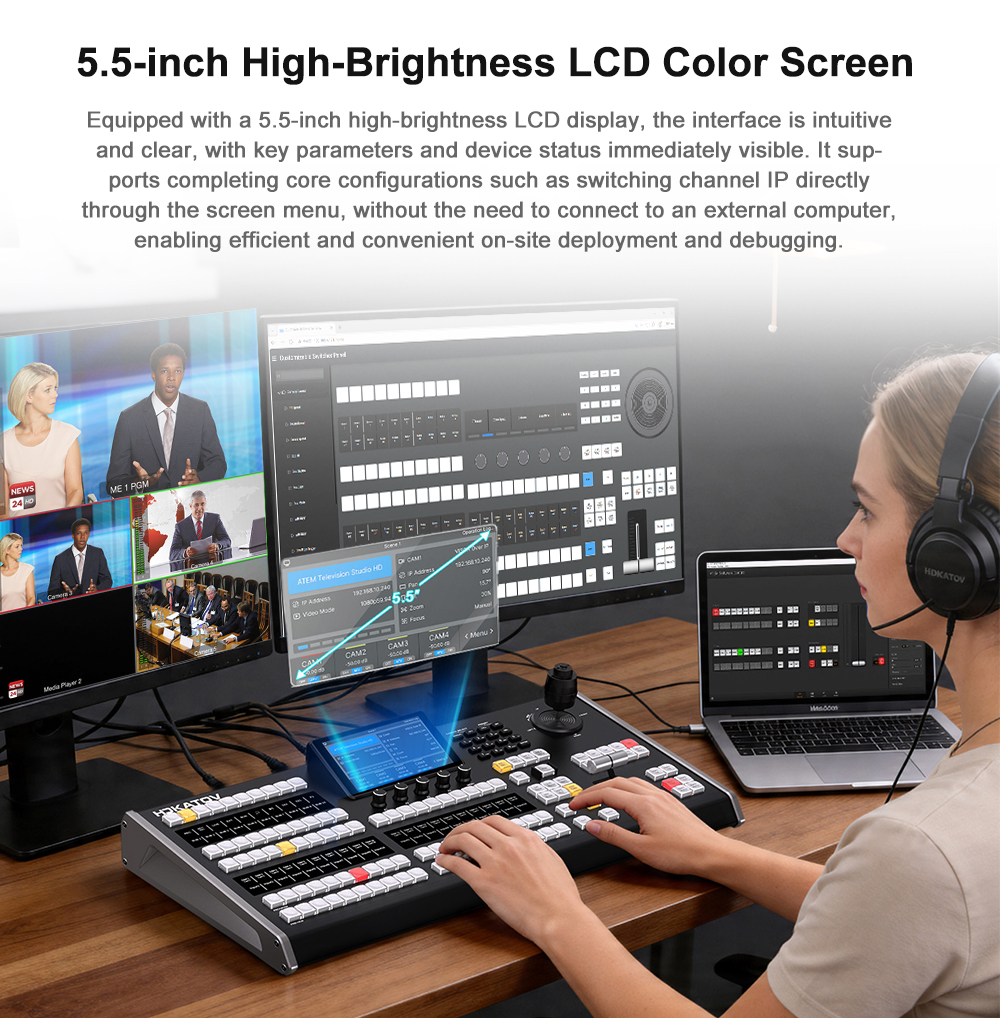

2.5.5″ Full HD LCD display：
Built-in 5.5″ LCD color screen, new UI operation menu design. Parameters and status are clear at a glance.

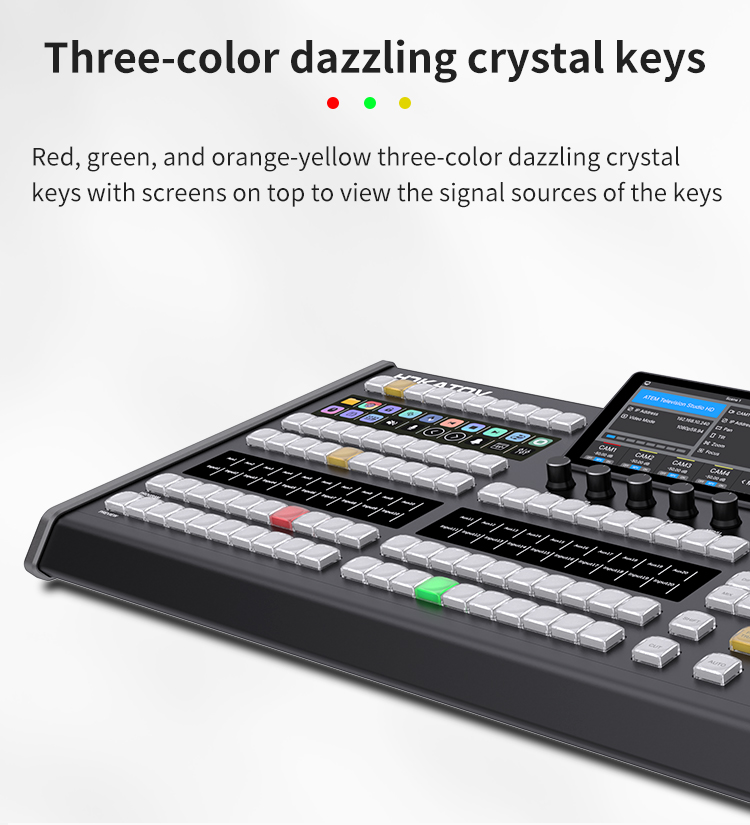

3.Multi-function system control integration, two-color colorful crystal buttons：

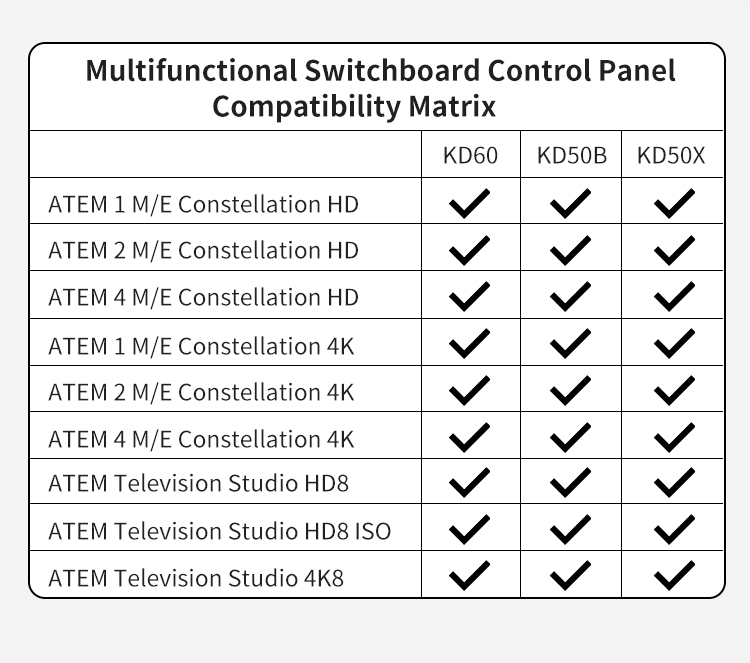

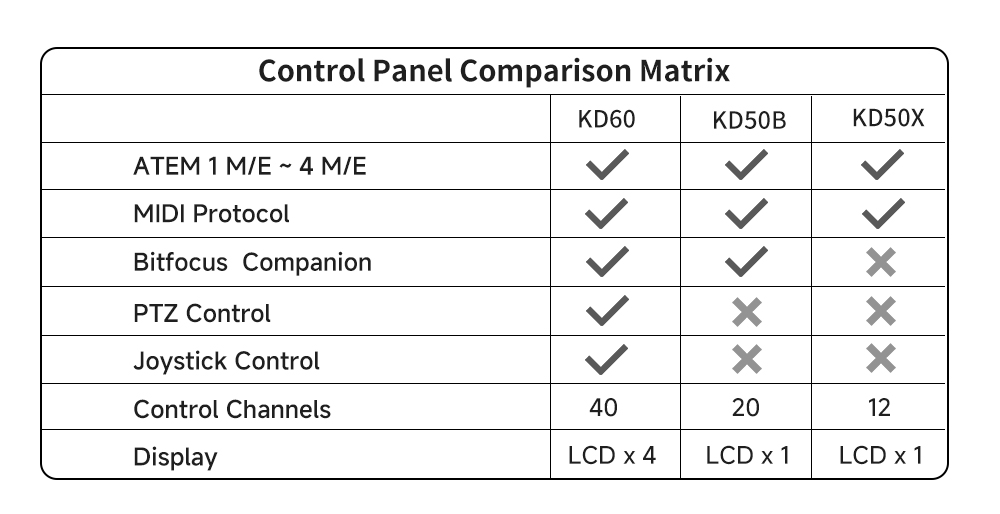

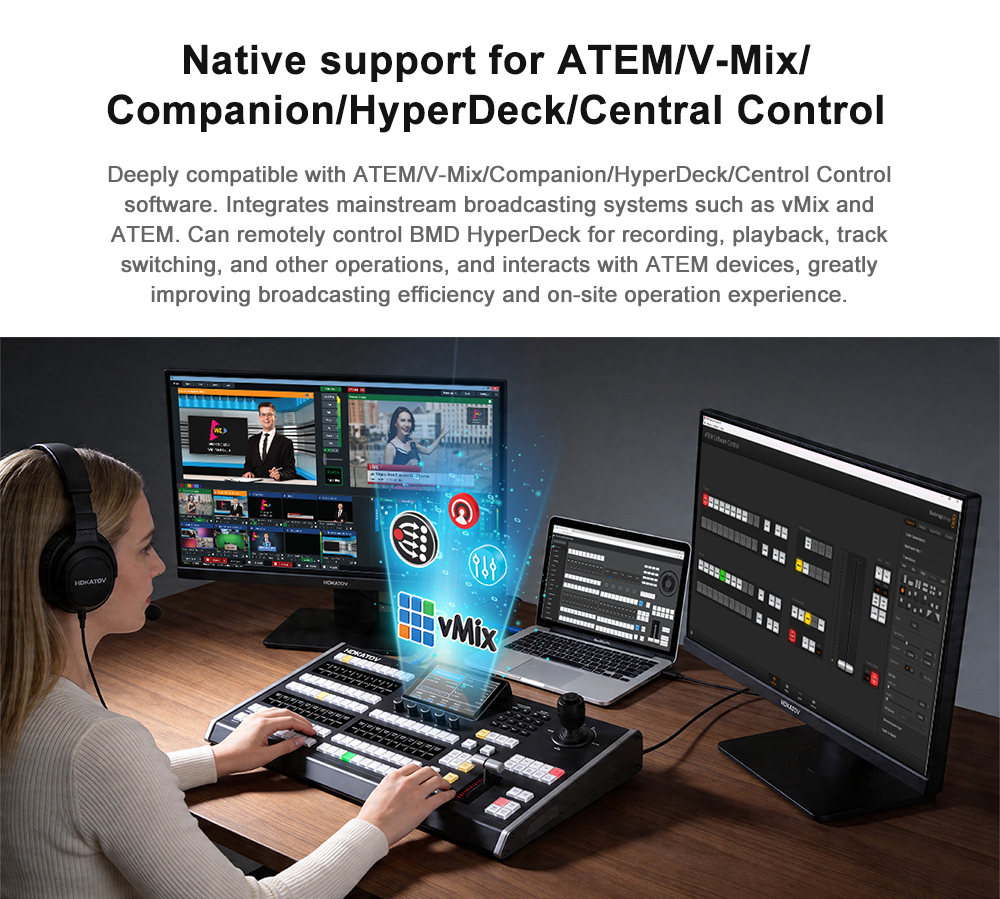

Supports the basic corresponding functional operations of BMD ATEM's Constellation and Television Studio series 1 M/E - 4 M/E products, with red and green two-color crystal buttons, and LCD display button functions around the buttons.

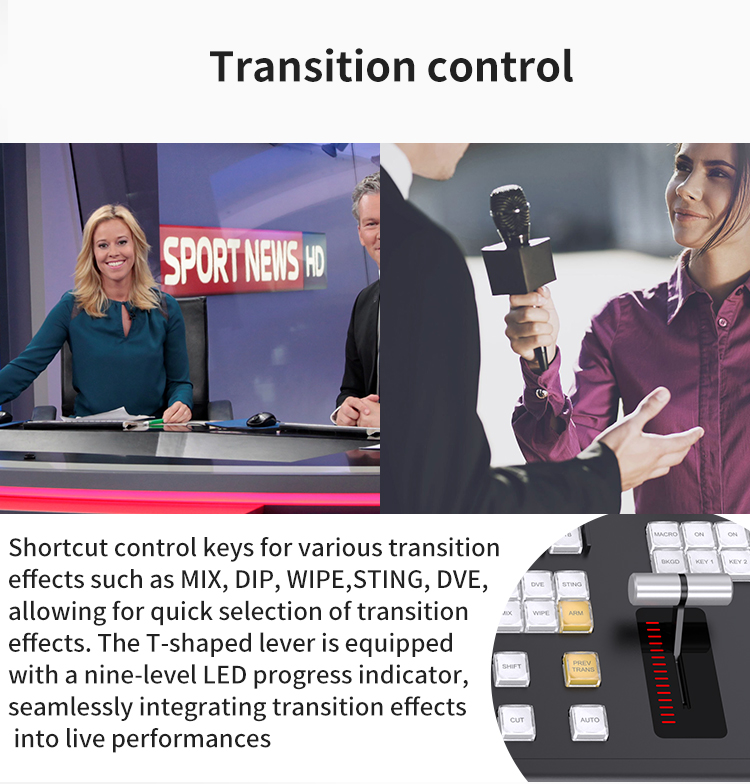

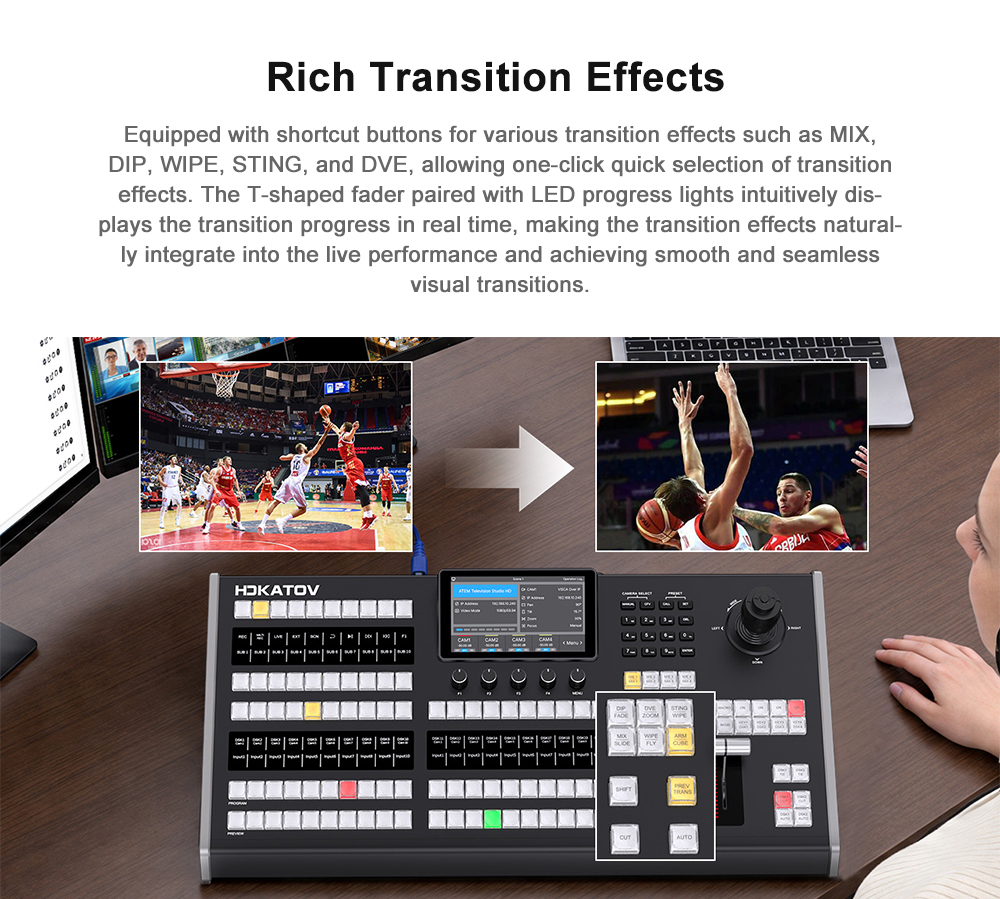

4.High quality aluminum alloy T-BAR:
Aluminum alloy high-quality T-BAR, combined with nine-level LED light progress bar, has a great broadcast style;

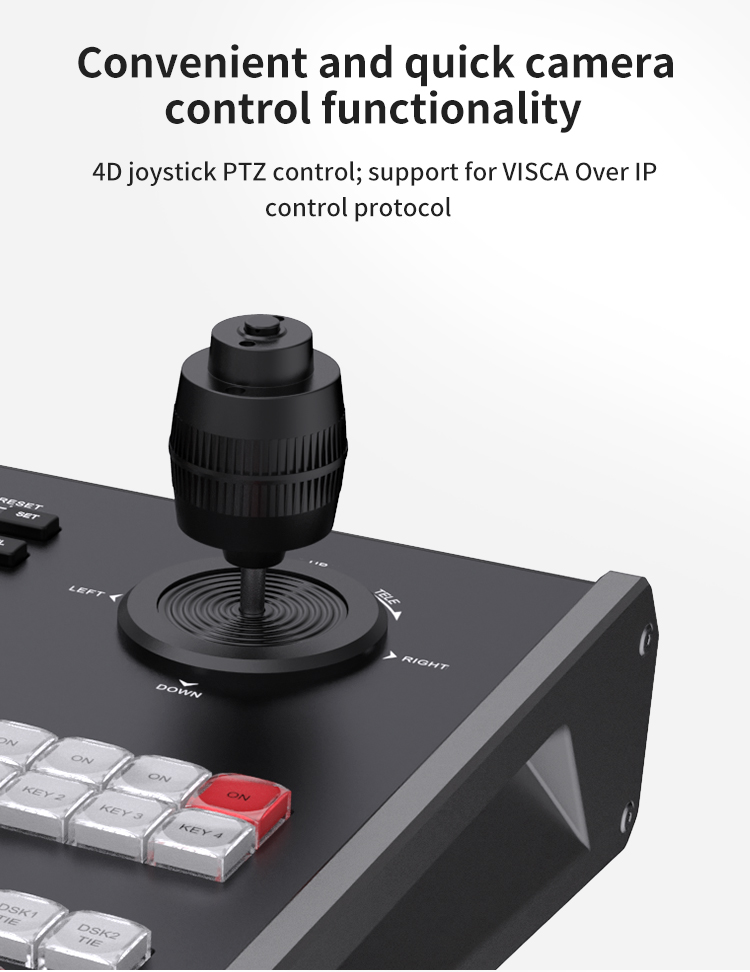

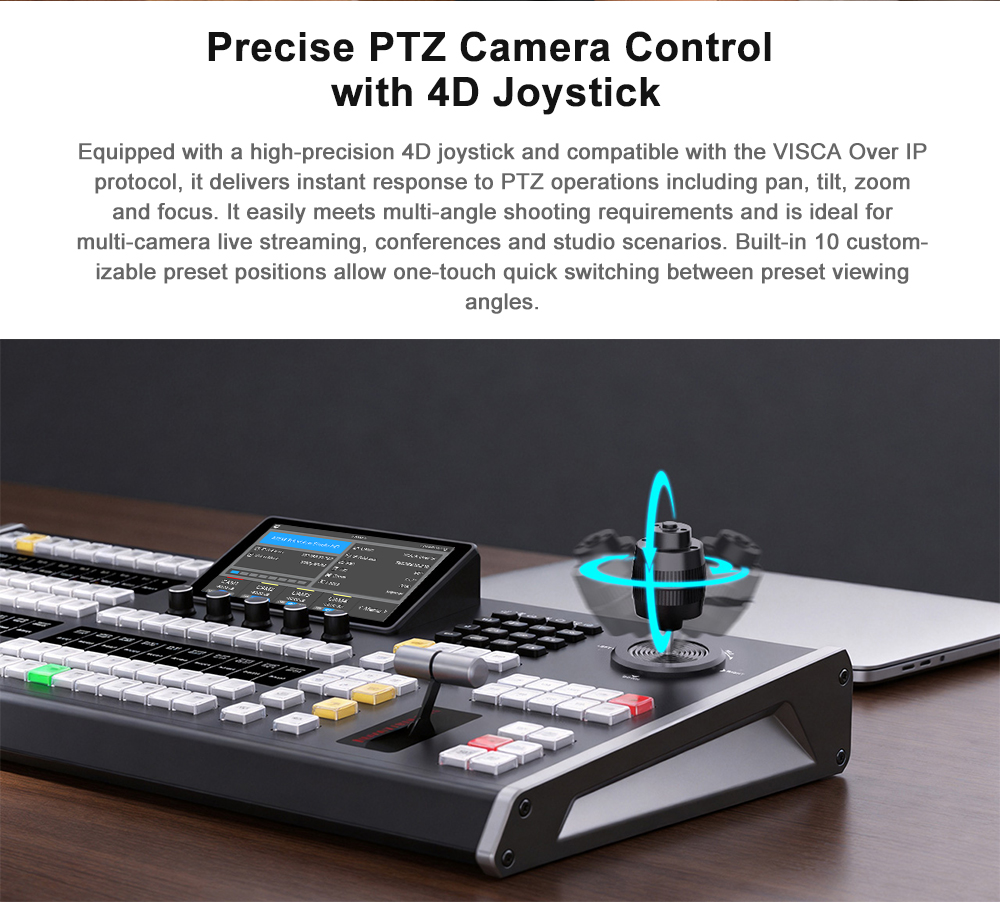

5.Convenient and fast camera control functions:
4D joystick PTZ control; supports VISCA Over IP control protocol;

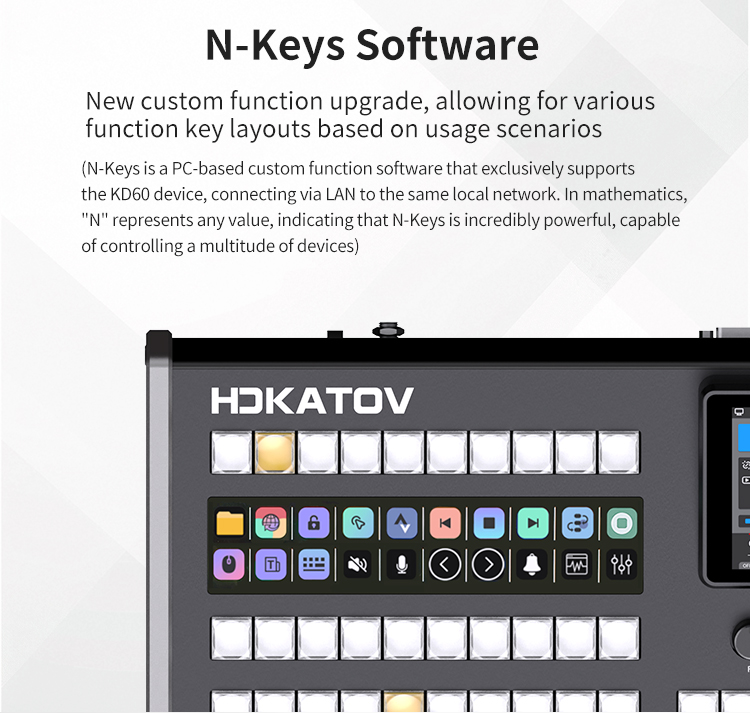

6.Brand new N-Keys software customizable keys, more effects:

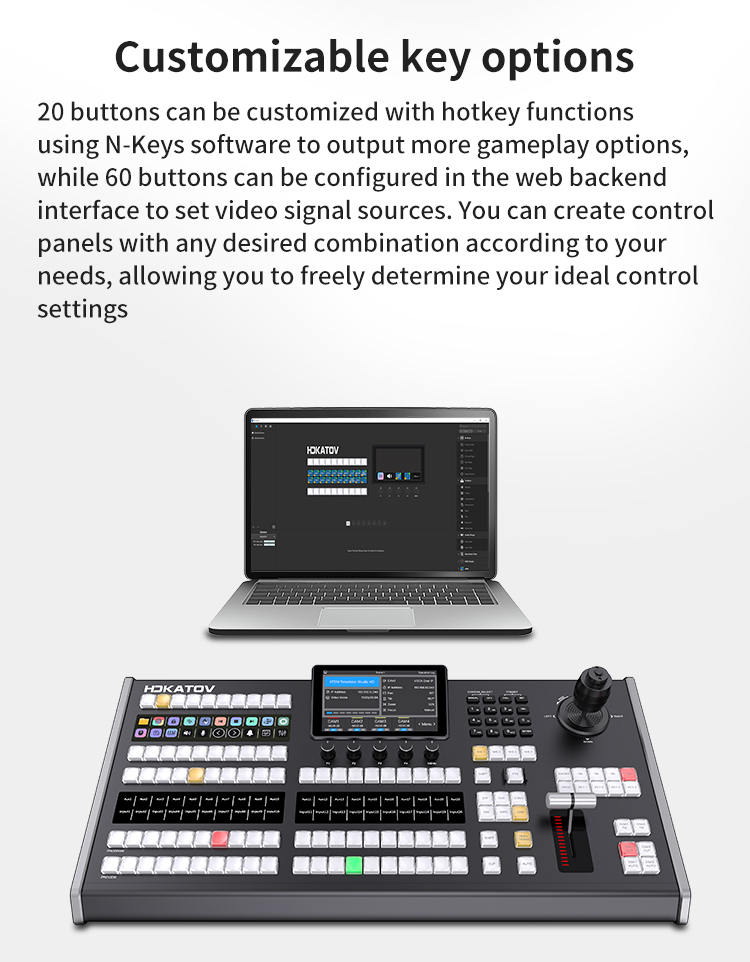

New custom function upgrades, setting multiple function button layouts according to usage scenarios. The 80 buttons can be customized with popular functions through N-Keys software installation plug-ins to output more gameplay. 60 of the buttons support custom signal source settings, the button functions support LCD display prompts, and N-Keys can set up to 6 customized button function layout options;
Supports shortcut key operations for PREV TRANS, FTB, MACRO, and M/E functions;

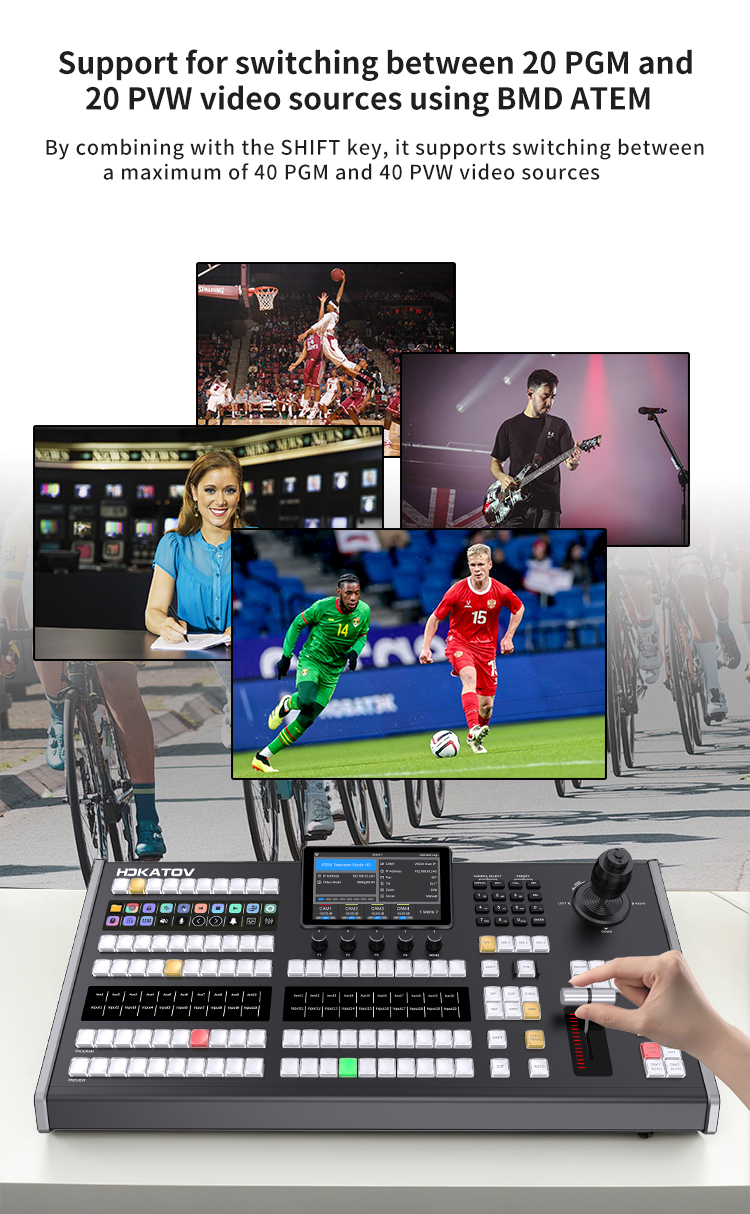

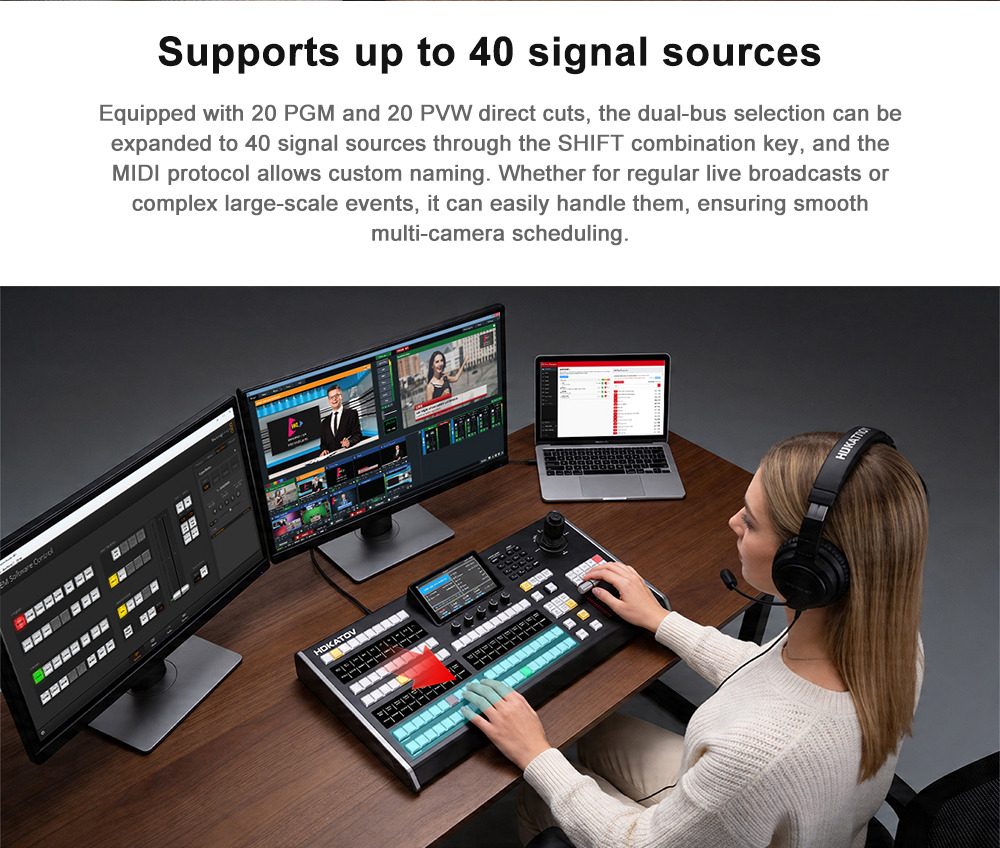

7. Supports up to 80 channels of video signal source live switching:
ATAM can support conventional 40-channel PGM+40-channel PVW live broadcast switching, and supports PGM and PVW selection of up to 80 signal sources through SHIFT key combination;

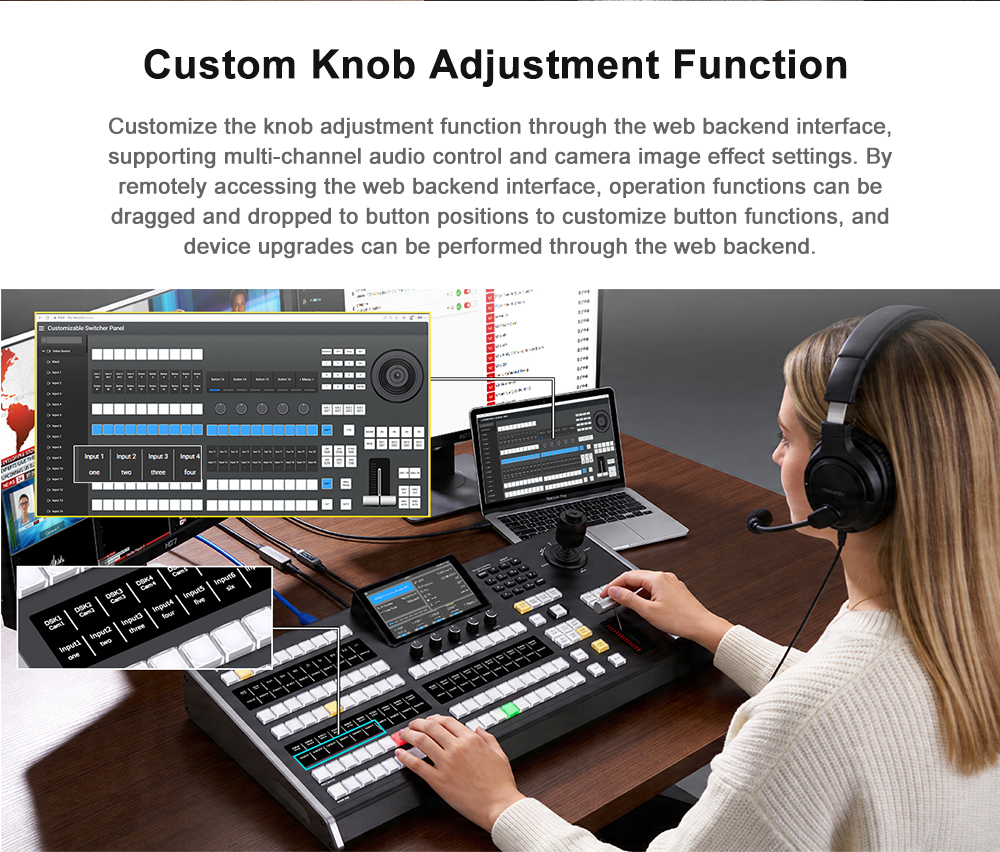

8.Custom knob adjustment function:
Customize the knob adjustment function through N-Keys software to support multi-channel audio control and camera image effect setting functions.

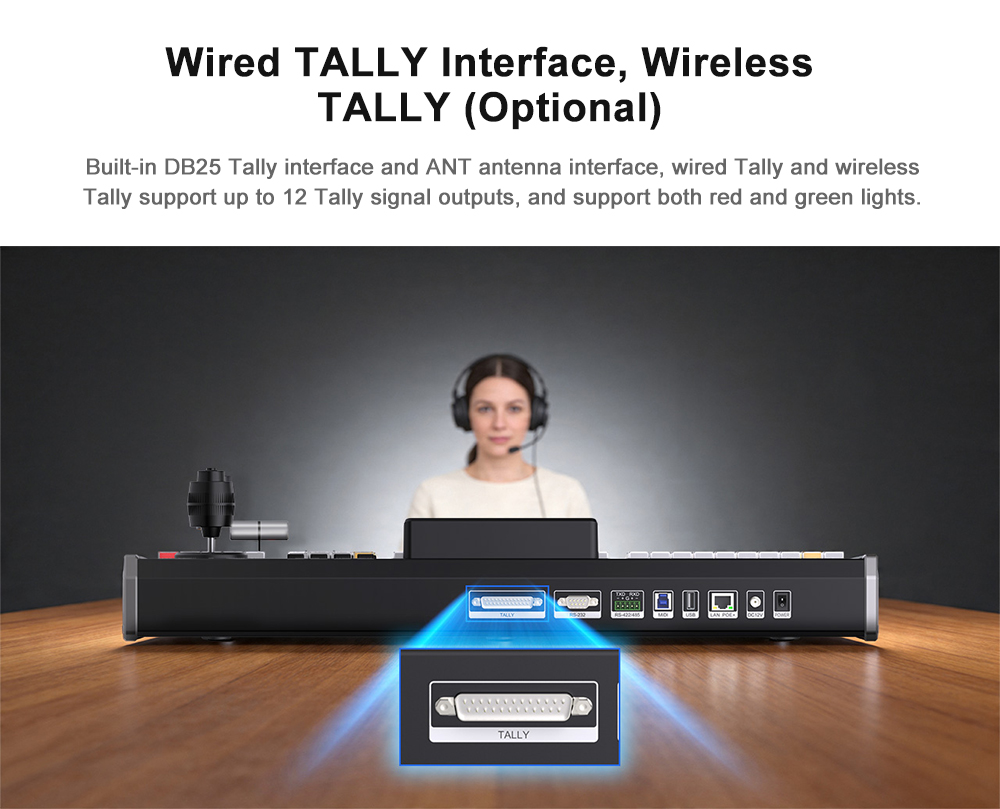

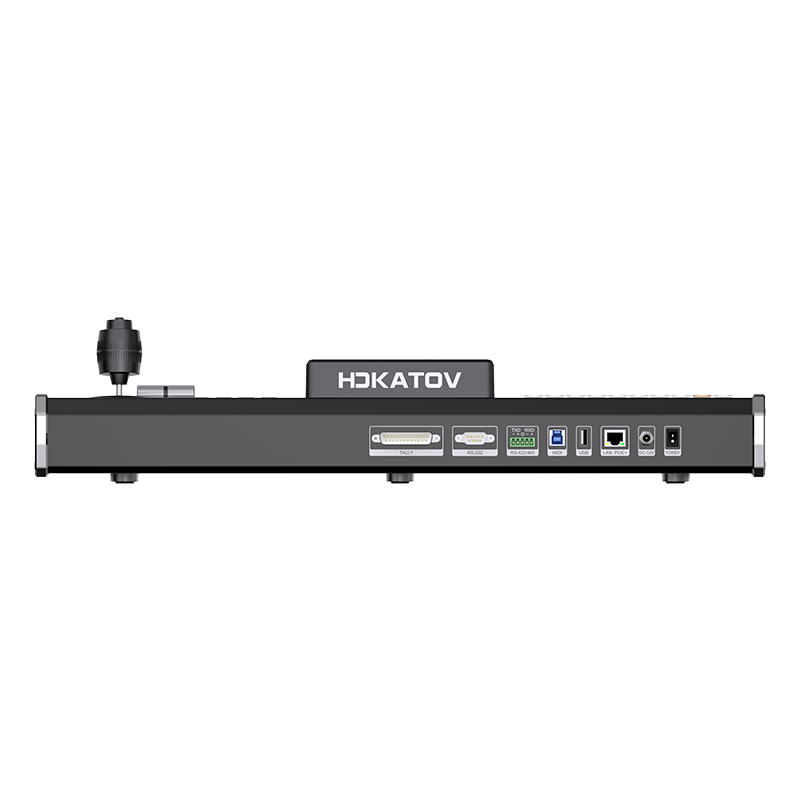

9.Supports wireless tally and wired tally output functions:
Built-in ANT antenna interface and DB25 Tally interface, wired tally supports up to 24 tally signal output functions, and wireless tally supports up to 16 tally lights, supporting both red and green lights.

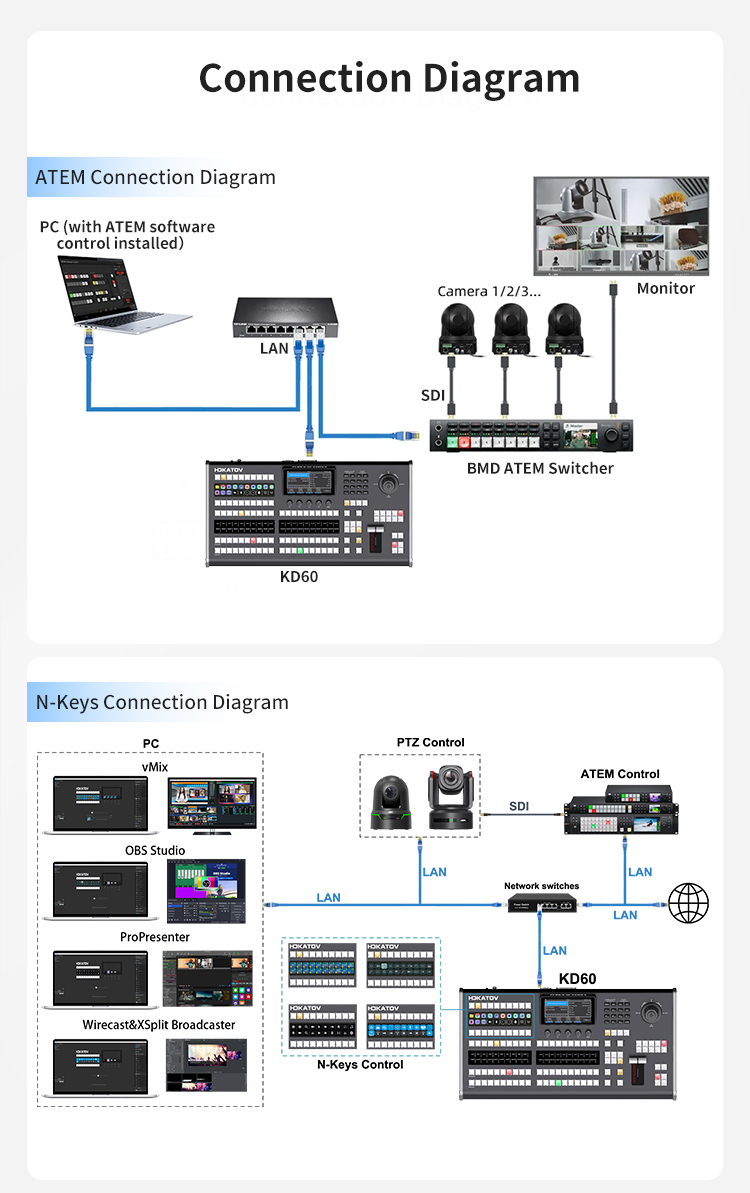

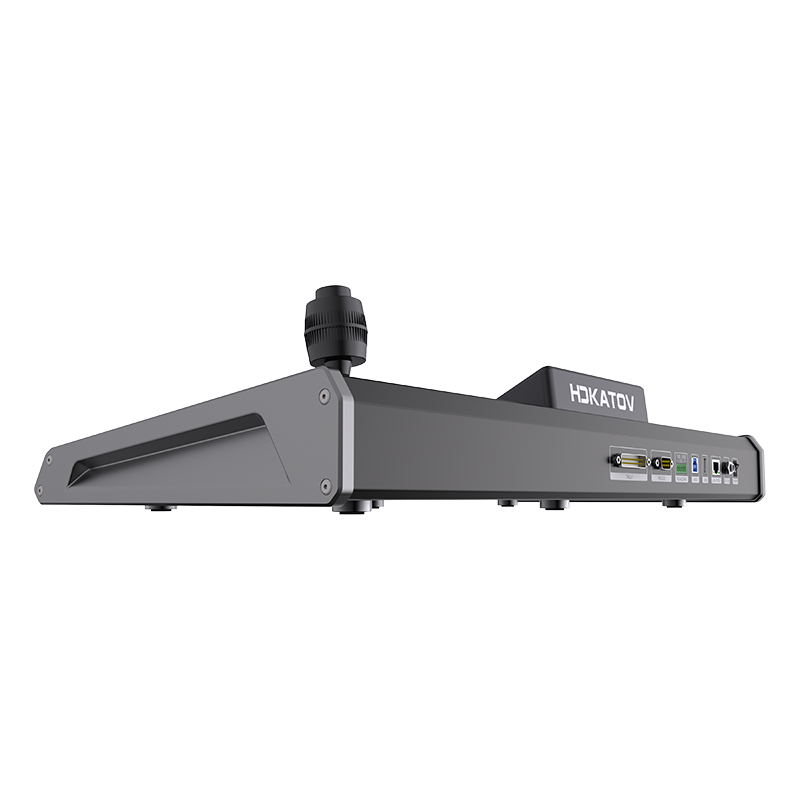

10.USB 3.0, LAN dual interface connection method, simple and convenient:
Supports LAN and USB 3.0 driver-free connections (Note: ATEM and N-Keys only support LAN connections), and can transmit video signals to computers and live video production software without a capture card, which is simple and convenient;
11.All aluminum alloy panel:
Anodized aluminum alloy panel process shows product quality.
12.Intuitive WEB backend interface:
Through remote access to the WEB background interface, drag and drop the operation function to the key position to customize the key function, and support device upgrades through the WEB background
|
Main function |
|
|
Signal source |
40-channel PGM+40-channel PVW |
|
Transition control |
Automatic transition, hard cut, T-Bar |
|
LCD display |
Set device parameters |
|
Status light |
Red and green two-color indicator light |
|
Wired Tally |
12-channel PGM+12-channel PVW |
|
Wireless Tally |
16 Tally lights |
|
Keyboard Parameters |
|
|
Joystick |
Four-dimensional precision joystick |
|
Button |
Two-color colorful crystal buttons |
|
Screen |
5.5-inch LCD color display |
|
T-BAR |
Aluminum alloy high quality T-BAR faders |
|
Knob |
Three-dimensional knob supports scale rotation to adjust parameters |
|
ATEM related functions |
|
|
Connection method |
100M LAN, support POE 802.3af |
|
Video control |
40 channels inputs |
|
Transition effects |
MIX/DIP/WIPE/STING/DVE/ARM |
|
Upstream key |
4 |
|
Downstream key |
2 |
|
FTB |
Support |
|
PREV TRANS |
Support |
|
MACRO |
Support |
|
BKGD |
Support |
|
SHIFT |
Support |
|
M/E |
Support |
|
AUX |
Support |
|
Clean Feed |
Support |
|
N-Keys related functions |
|
|
Connection method |
LAN |
|
Custom buttons |
Support |
|
Custom knob |
Support |
|
Touchbar |
Support |
|
Operation flow |
Support |
|
OBS Studio |
Support |
|
vMix |
Support |
|
YouTube |
Support |
|
Control |
|
|
Control interface |

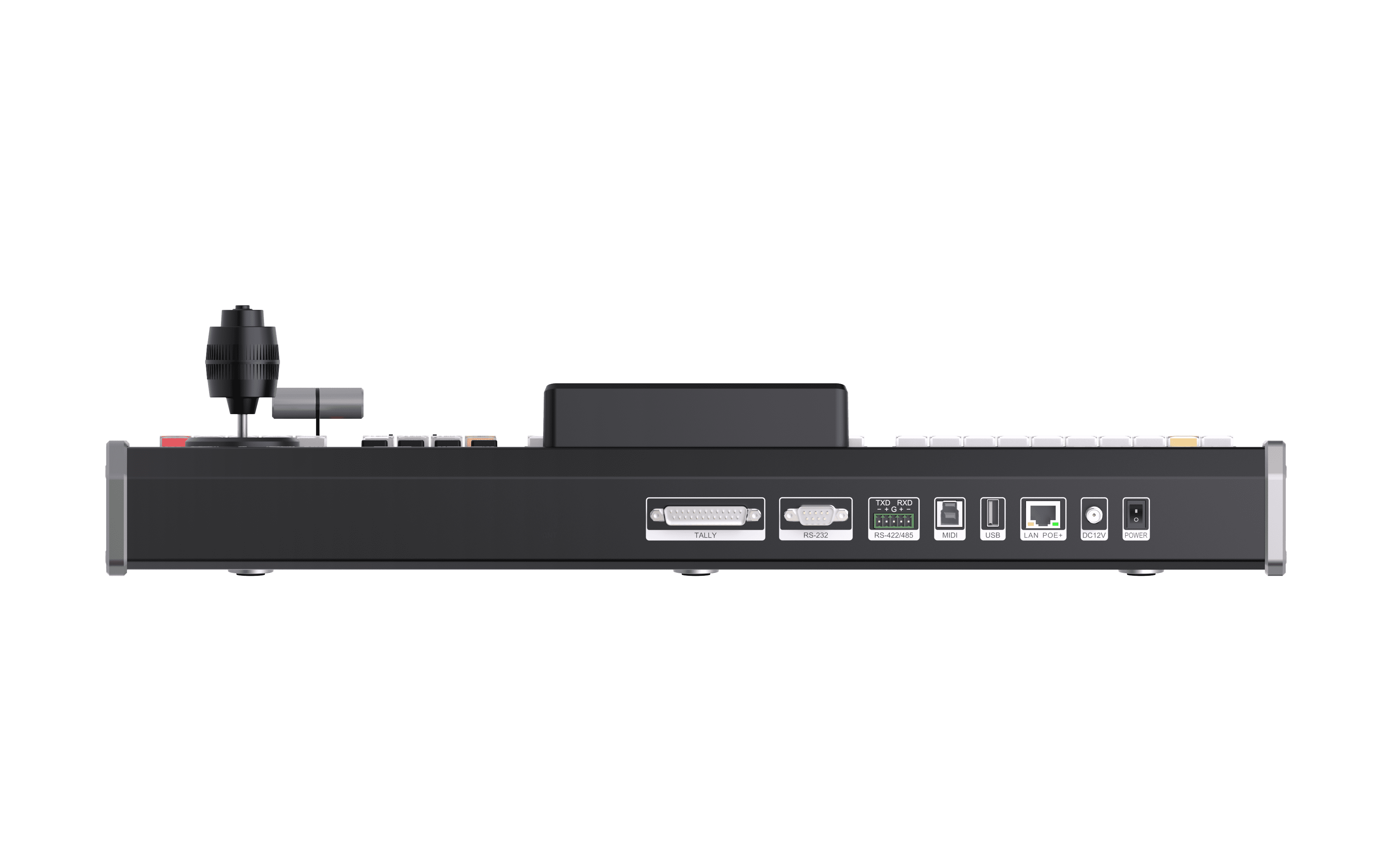

RJ45（support POE+）、RS-232、RS-422/485、USB |
|
PTZ control |
|
|
PTZ control |
Support |
|
Control quantity |
40 Channels |
|
Camera control method |
4D joystick |
|
Aperture control |
Support |
|
Focus control |
Support, Manual / Auto |
|
Exposure control |
Support, Manual / Auto |
|
Exposure mode |
Red gain value, blue gain value adjustment |
|
Number of preset positions |
9 |
|
Number key mode |
|
|
Select camera |
Support |
|
Set preset position |
Support |
|
Call preset position |
Support |
|
Delete preset position |
Support |
|
Power supply |
|
|
Input voltage |
DC 12V |
|
Input Current |
A |
|
Rated power |
W |
|
POE power supply |
Optional POE 802.3af |
|
Other |
|
|
Usage environment |
Indoor |
|
Operating temperature |
-10°-40° |
|
Storage temperature |
-20°-60° |
|

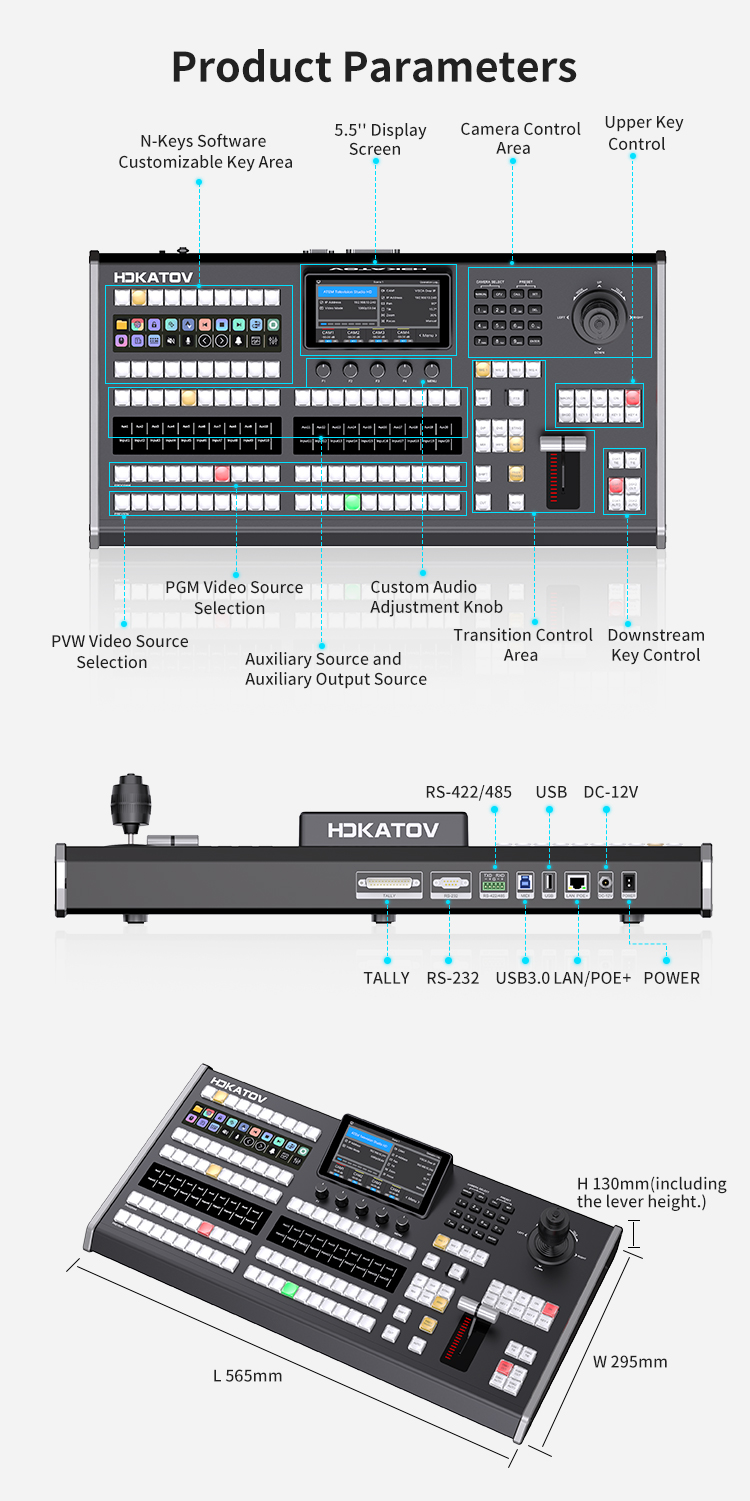

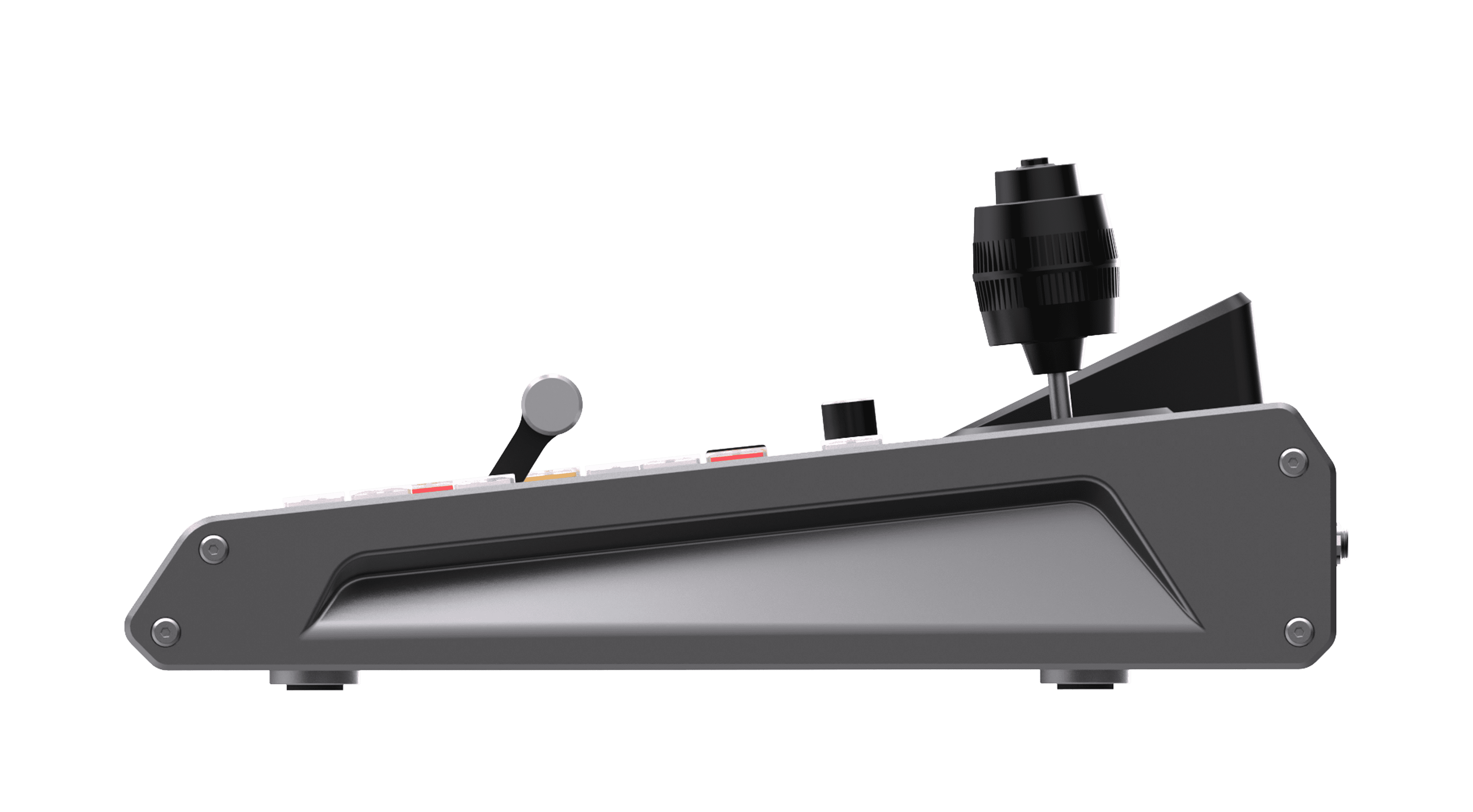

Dimensions |

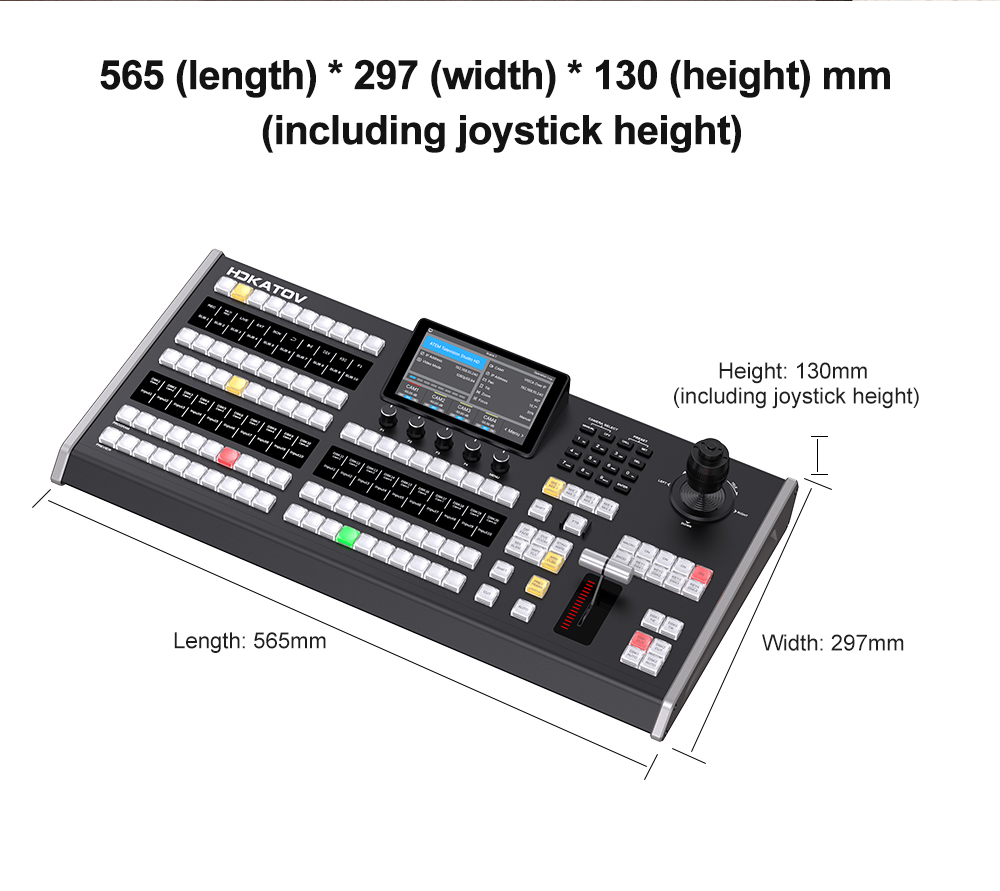

565（L）*295（W）*130（H）mm（including rocker height） |
|
Quality |
6.8Kg |
