Features

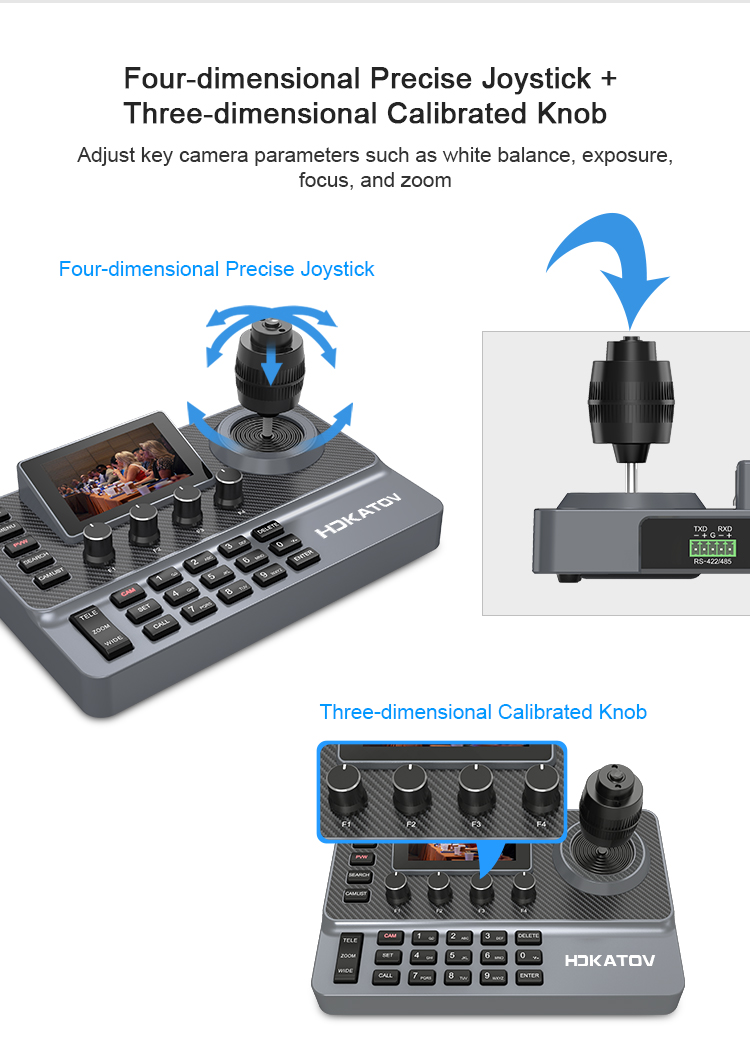

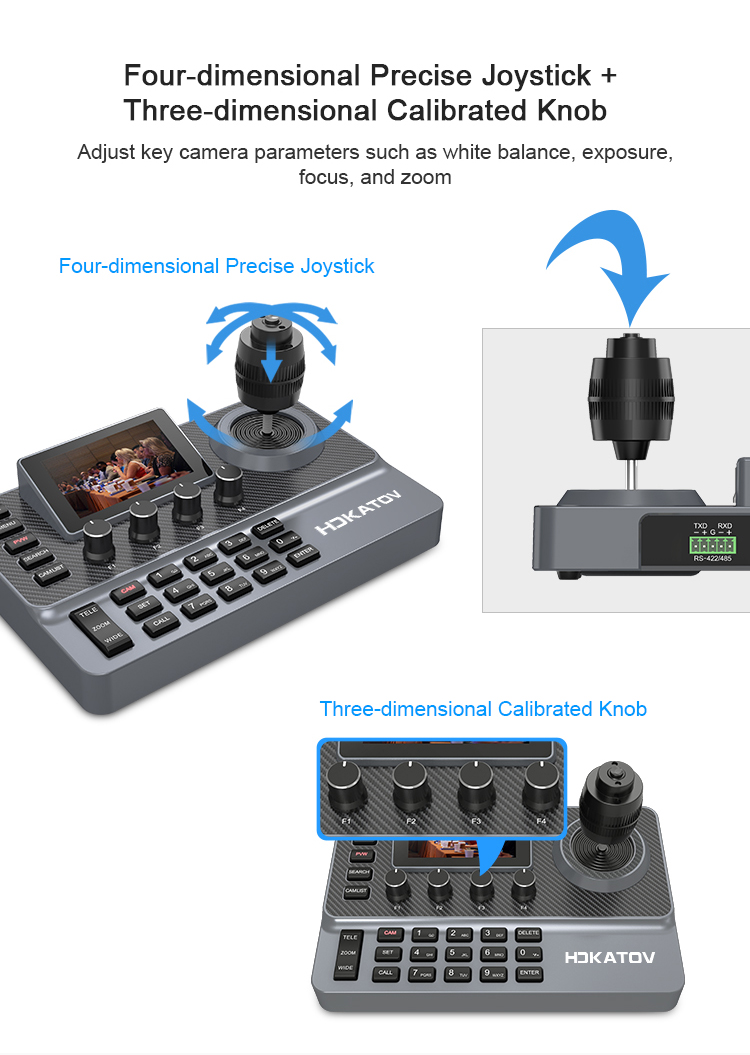

4D precise Joystick+3D knobs+ergonomic zoom button:

Camera parameters control such as white balance, exposure, focus and zoom etc.

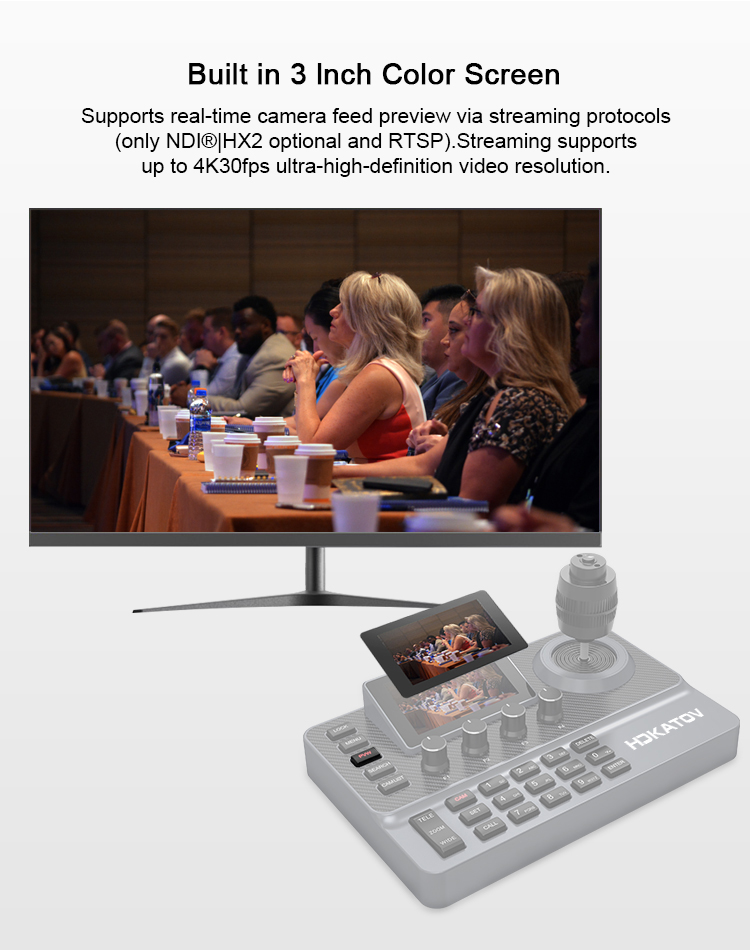

Built-in 3-inch color screen:

Support real-time PVW of current camera viewing through up streaming (NDI|HX2 and RTSP only).

Supports HDMI output for large screen display (Not standard version):

Real-time preview through the HDMI interface, supporting up to 4KP30 ultra high definition resolution;

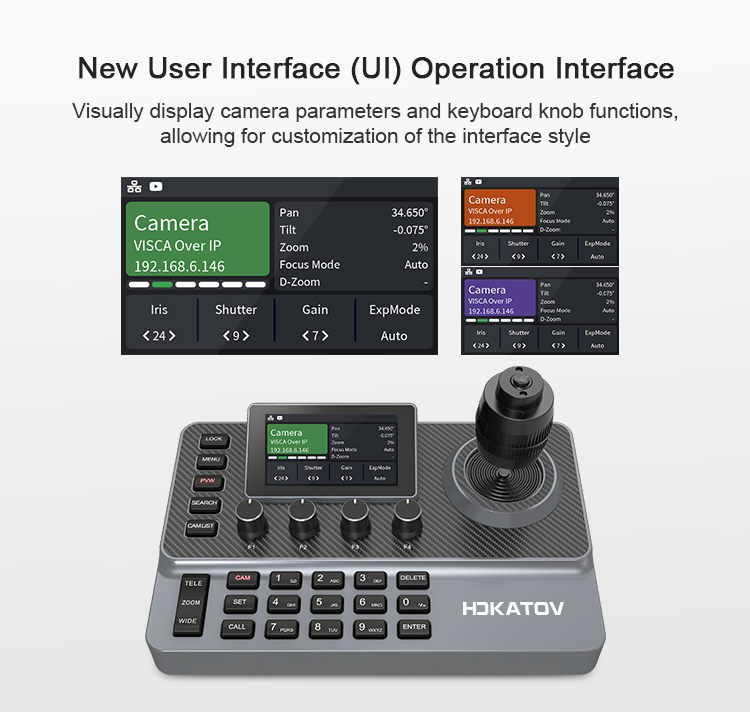

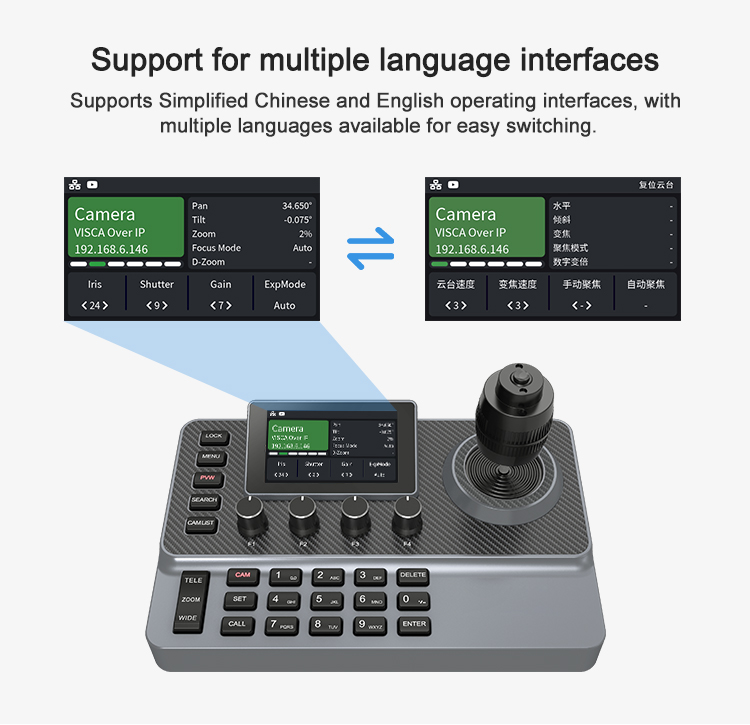

Newly upgraded UI operation interface:

Display main parameters of cameras directly, personalize stylish interface casually.

Remote control of PTZ camera menu:

Open camera’s menu quickly and combine PVW screen or image screen to control.

* This function is recommended to be used with our camera.

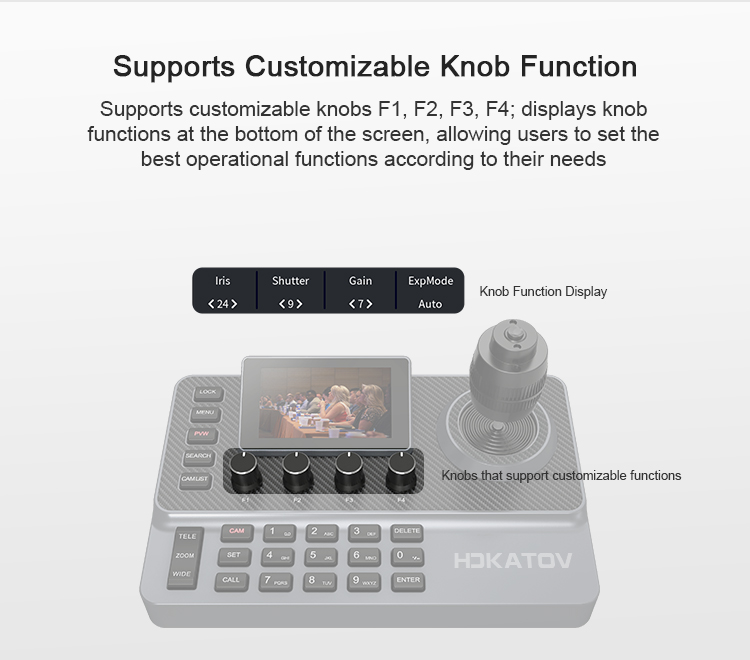

Support customizable buttons:

Support customizable buttons F1, F2,F3, F4, can set the best operation function according to requirement

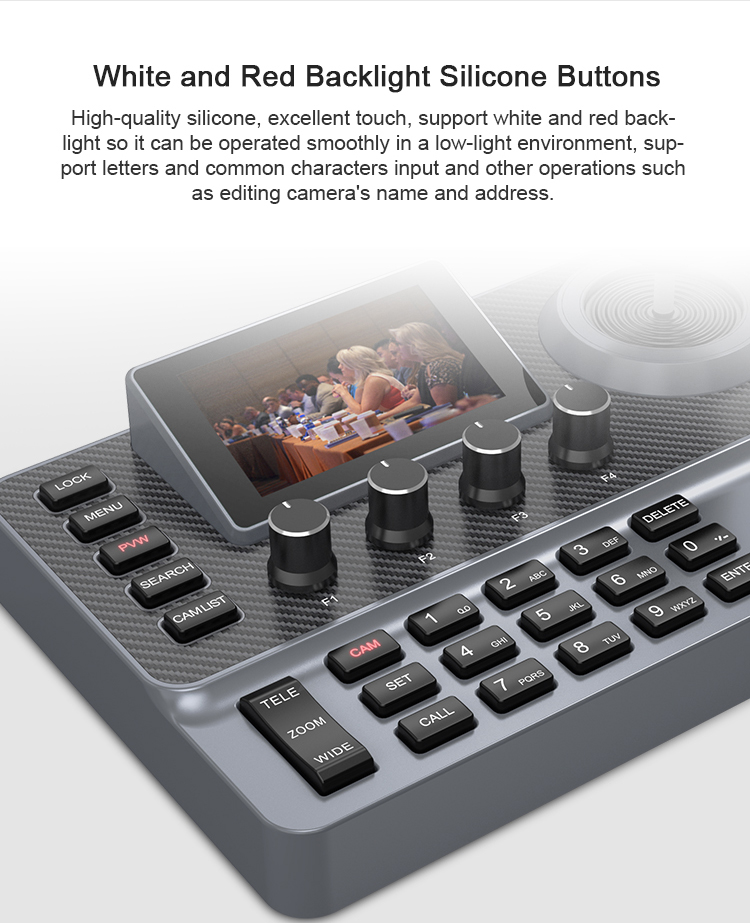

White and red backlight silicone buttons:

High-quality silicone, excellent touch, support white and red backlight so it can be operated smoothly in a low-light environment; support letters and common characters input and other operations such as editing camera’s name and address.

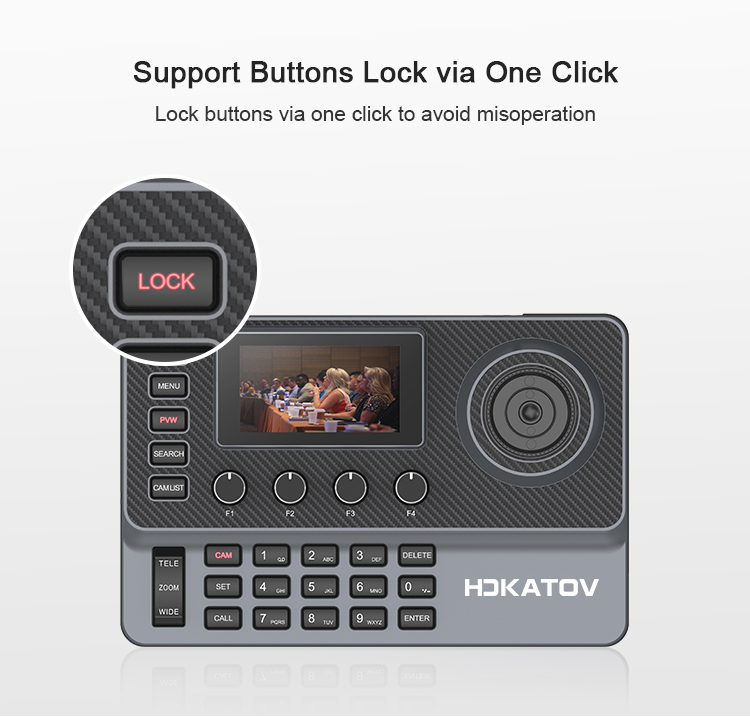

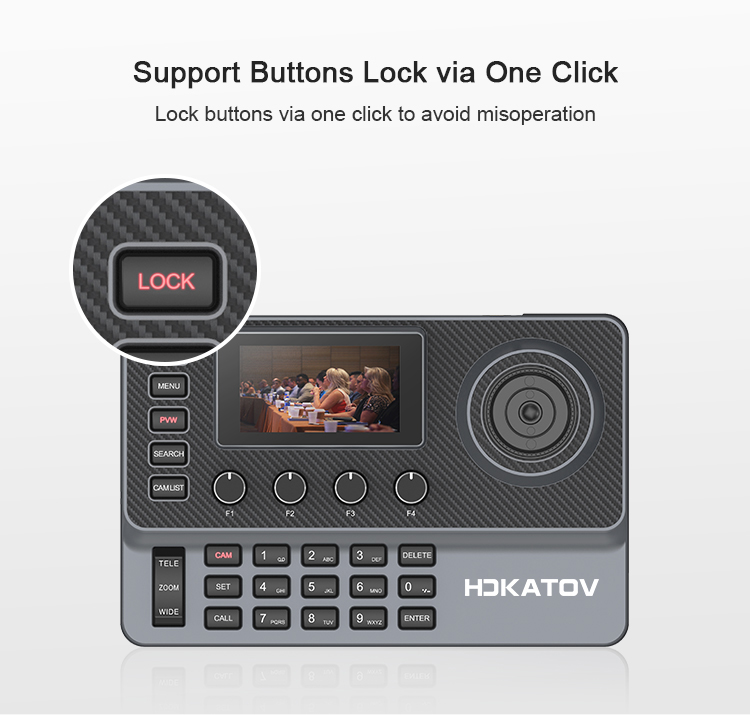

Support buttons lock via one click:

Lock buttons via one click to avoid misoperation.

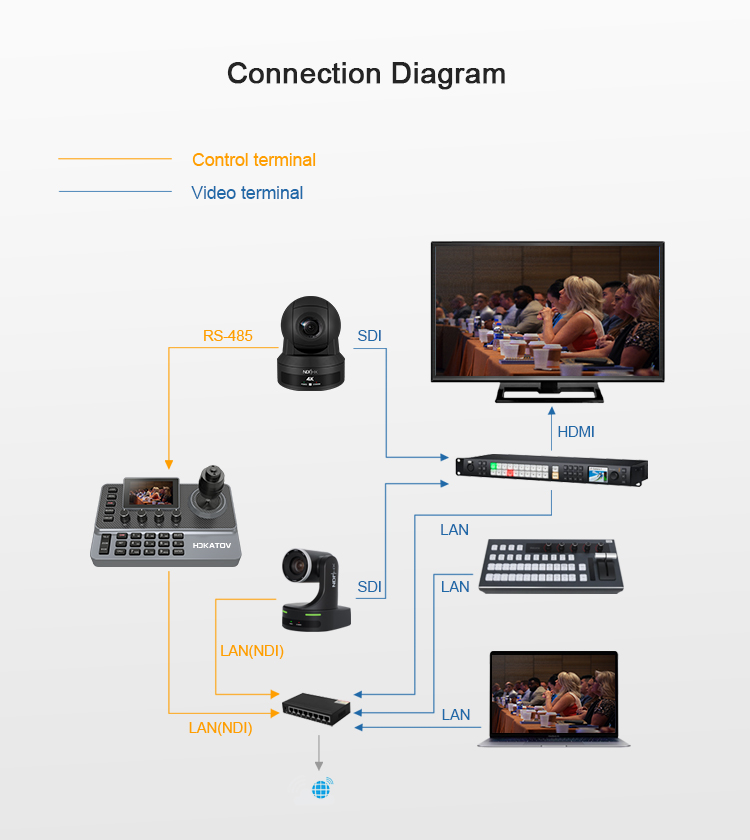

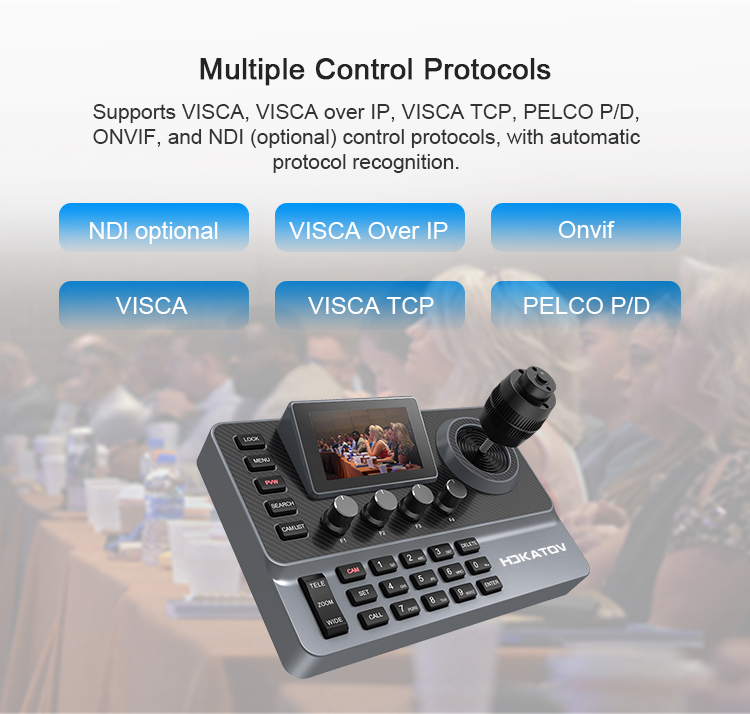

Multiple control protocols, apply to abundant venues:

Support VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, Onvif and NDI, support automatic protocol recognition.

* Additional licenses are required to upgrade the NDI function, please consult the manufacturer for details.

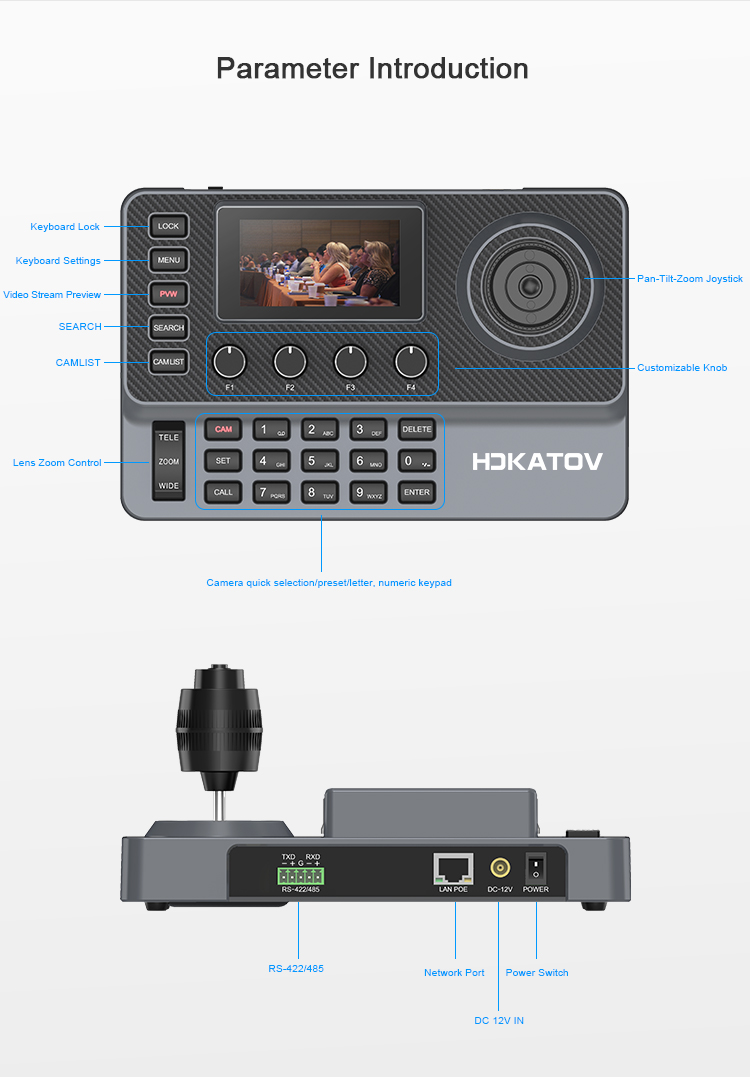

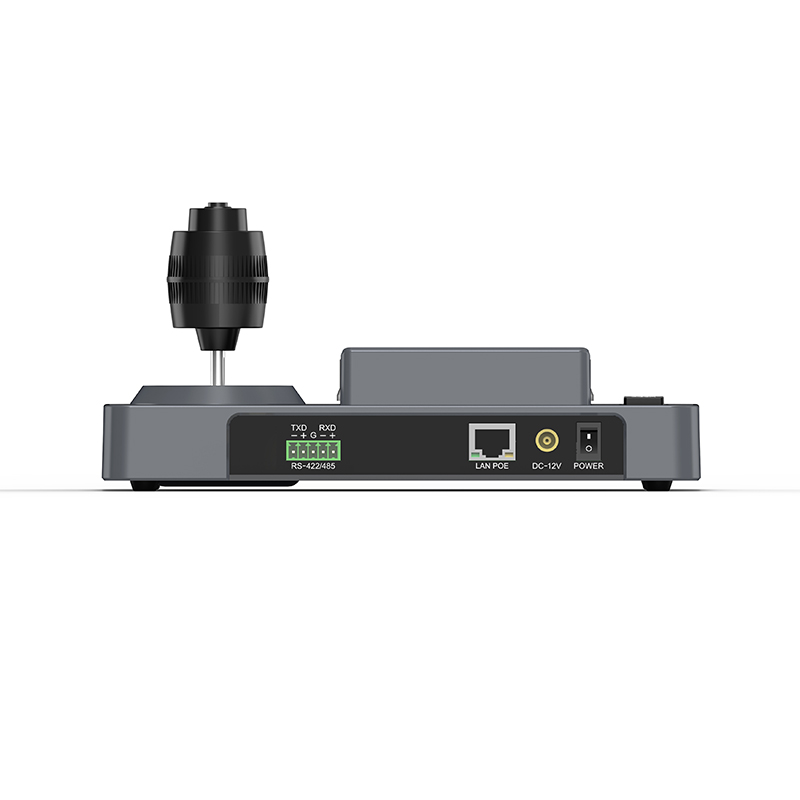

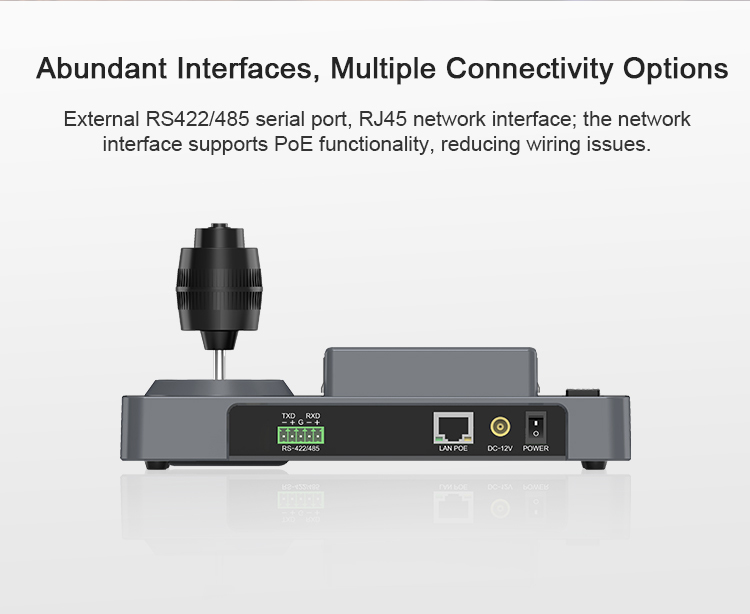

Abundant interfaces, multiple connection methods:

External RS422/485 serial port and RJ45 network interface. The network interface supports POE function, thereby reducing wiring trouble.

Keyboard Parameters

Joystick

4D precision Joystick

Knobs

3D knobs, support scale rotation to adjust parameters, support button function to select mode

Buttons

High-quality silicone buttons, support white and red two-color backlight

Screen

3″ LCD color display

Display

HDMI 4K@30 video output display (Not standard version)

Button Prompt Tone

Button sound prompt On/Off

Lock Button

Support one-key lock function

Max. Control Quantity

1000

Max.Preset Position

255

Customized Knob

Horizontal Speed

Support

Tilt Speed

Support

Zoom Speed

Support

Aperture

Support

Shutter

Support

Gain

Support

Exposure Mode

Support

Red Gain

Support

Blue Gain

Support

Keying

Support

Wb Mode

Support

Wb Speed

Support

Gain Limit

Support

Maximum Shutter Speed

Support

Minimum Shutter Speed

Support

Auto Exposure Speed

Support

Exposure Compensation

Support

Blc

Support

Ir Filter

Support

Nd Filter

Support

Gamma Curve

Support

Gamma Offset

Support

Gamma Pattern

Support

Anti-Flicker

Support

Noise Reduction Mode

Support

Noise Reduction Value

Support

Ptz Reset

Support

Digital Zoom

Support

Auto Focus

Support

Manual Focus

Support

Camera

Support

User Instructions

Support

Control

Control Interface

RJ45(support POE and NDI HX2), RS-422/485

IP Control Protocol

Onvif, VISCA Over IP, VISCA TCP, NDI®

Serial Port Protocol

VISCA, Pelco D, Pelco P

Power Supply

Input Voltage

12V

Input Current

1.5A

POE

802.3af

Rated Power

18W

General Specifications

Operating Environment

Indoor

Operating Temperature

-10 -40

Storage Temperature

-20-60

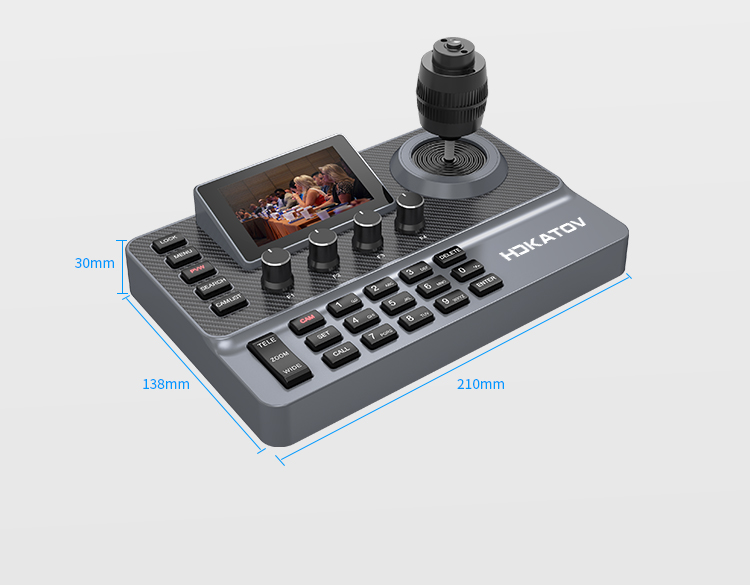

Dimension

(W)210*(D)138*(H)101mm (Joystick height is included)

Weight

0.8 kg
