Features

Integrated Hardware Design:

Easy-to-use, fully embedded system with simplified structure, integrating director

switching, audio adjustment and special effects & transitions all

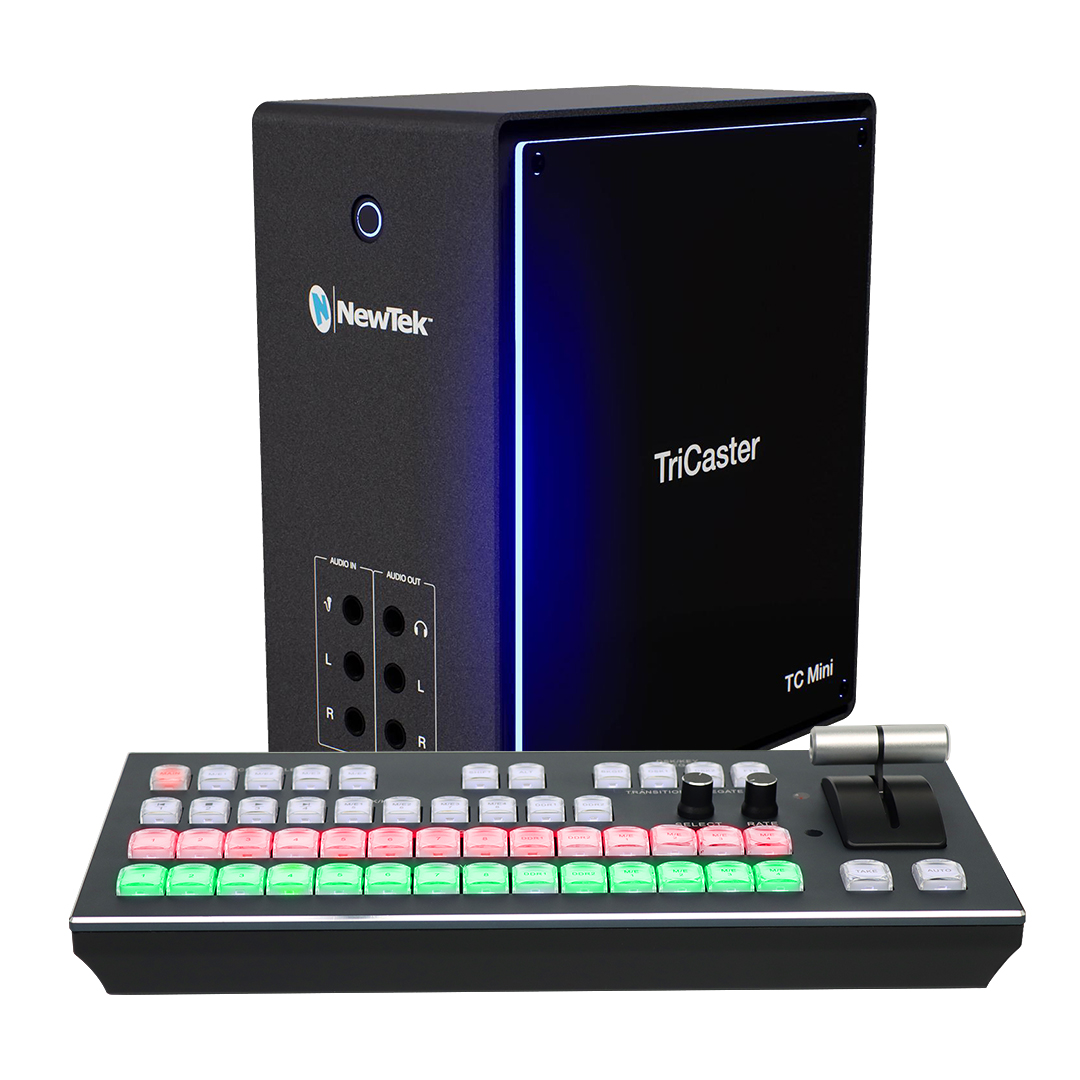

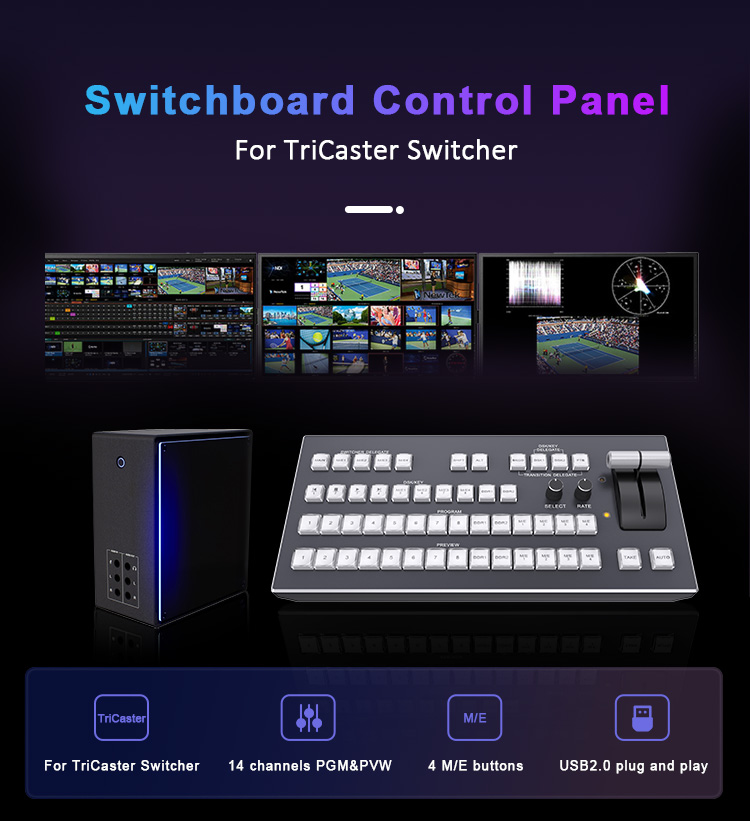

  Support TriCaster Live Production Systems:

Supports to control TriCaster MINI live production systems. Red, green and orange crystal LED buttons display working status at a glance.

  High-quality A luminum T-BAR:

High-quality aluminum T-BAR, features variable LED lighting for visual feedback of effect status and live streaming progress

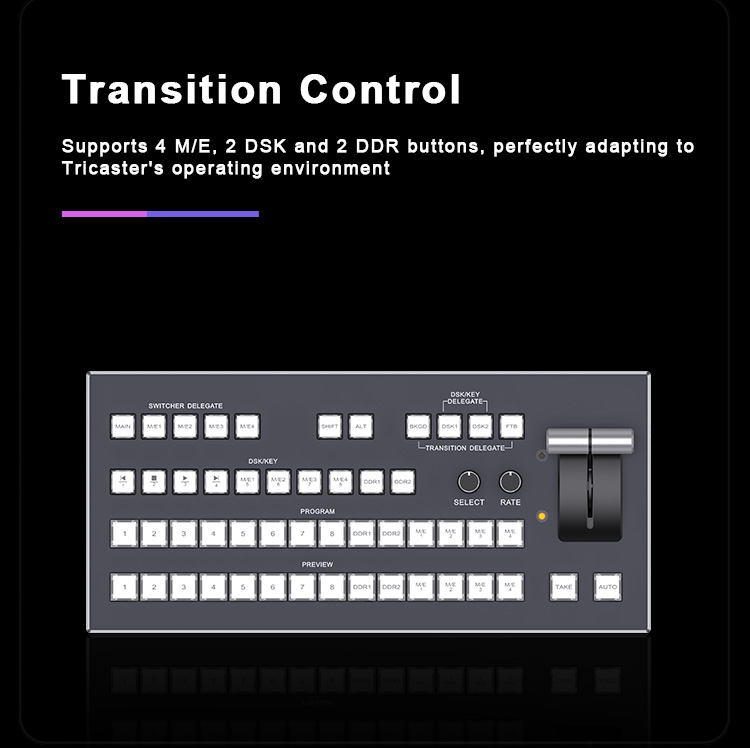

  Newest Upgraded Function:

Supports Max. 4 M/E, 2 DSK and 2 DDR, completely suitable for TriCaster operation.

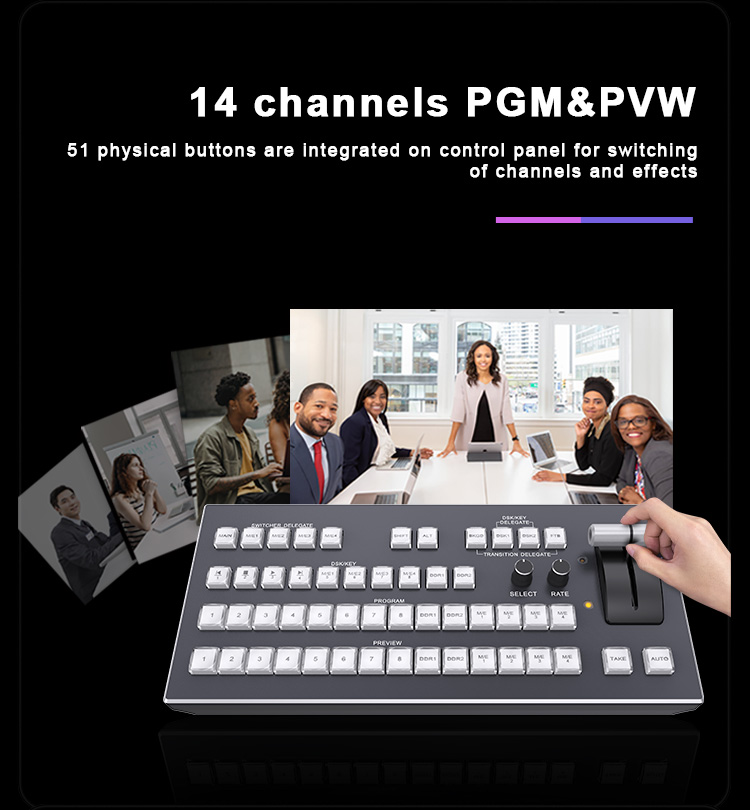

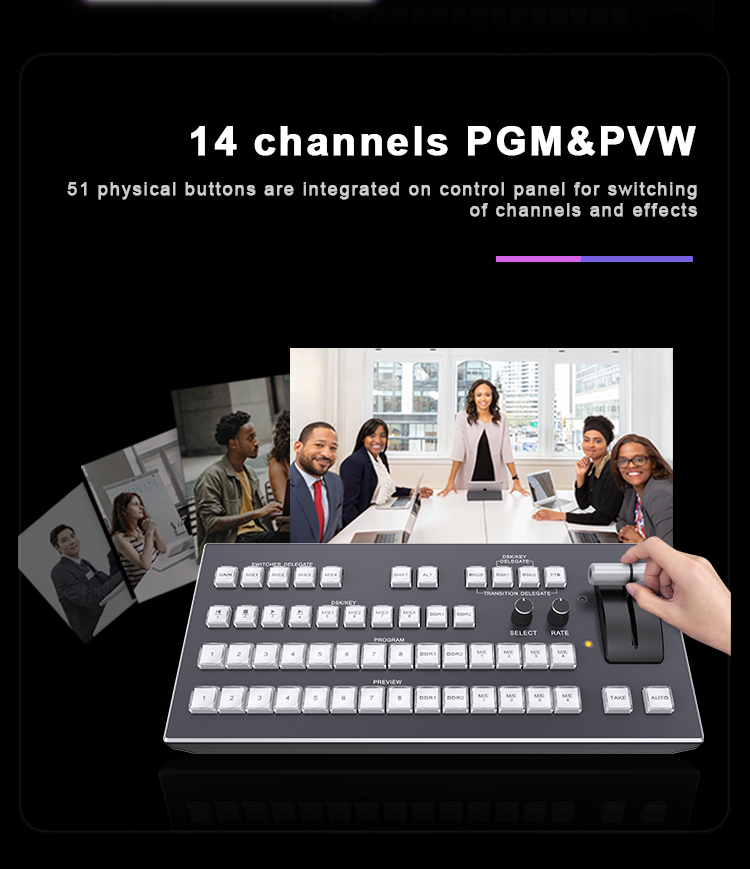

  Max. 8 Channels Video Sources Can Be Switched in Live Streaming:

14-channel PGM and PVW can be switched in live streaming.

  High-quality Knobs:

Two high-quality knobs support transition effects choices and time settings, suitable for different live scenes.

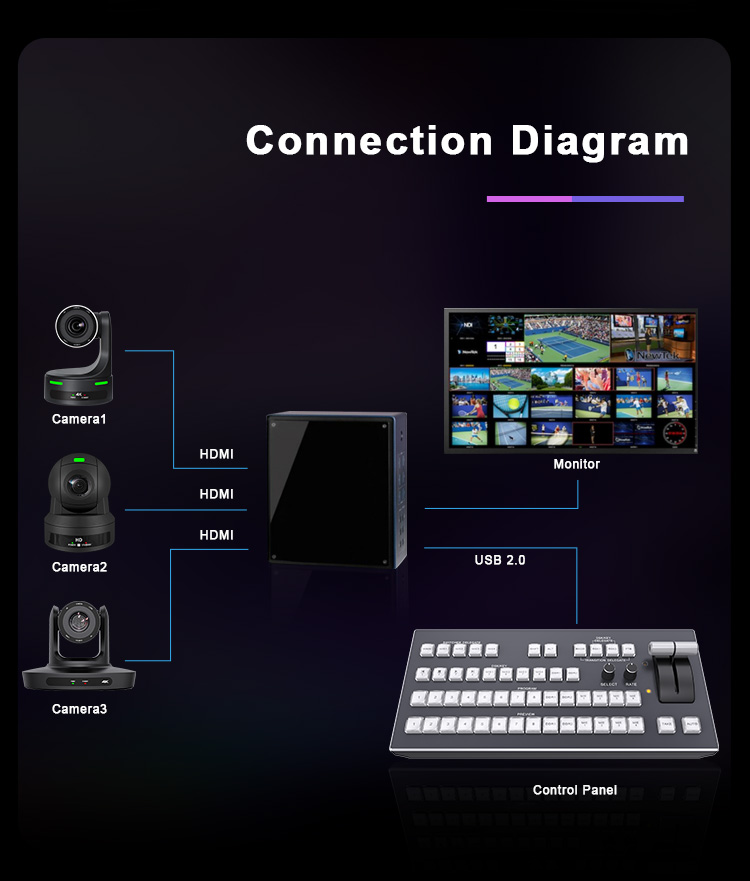

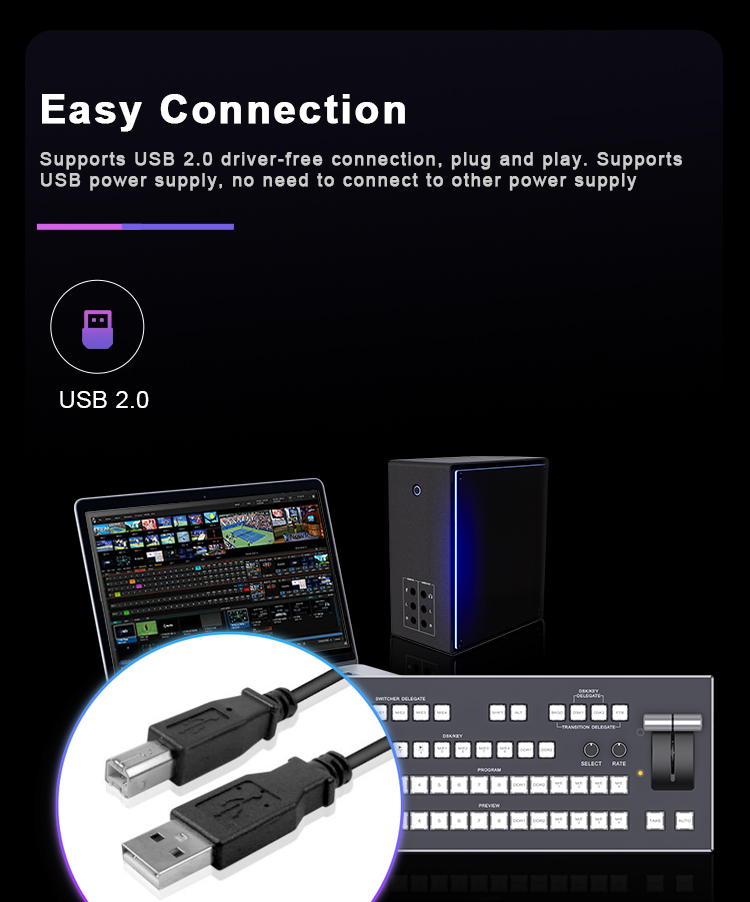

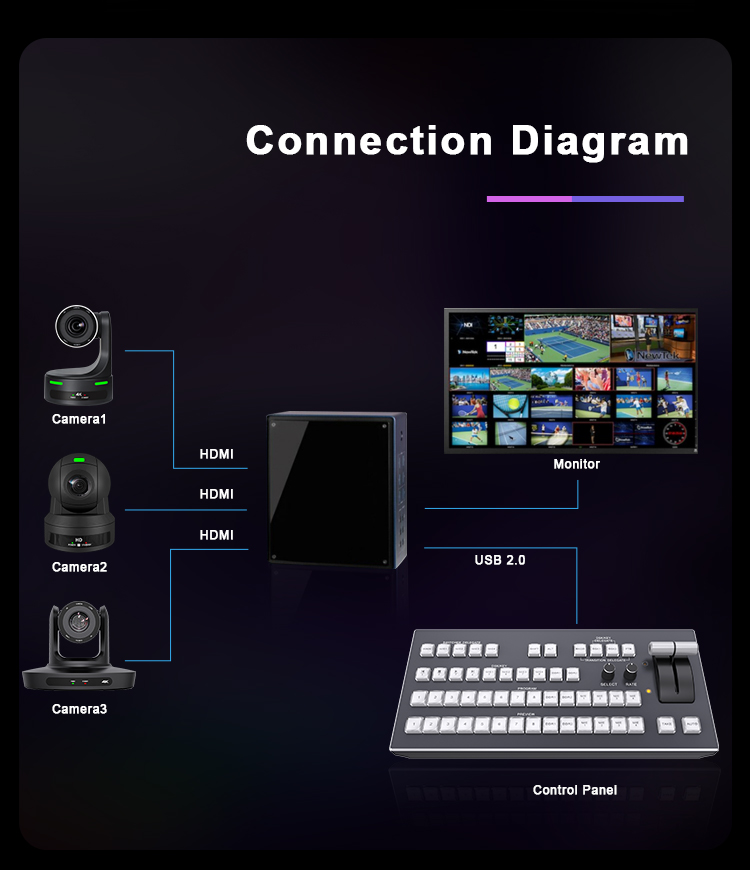

  USB2.0 Connection, Plug and Play:

Supports drive-free USB2.0 connection, plug and play. USB supplies power, no need other power supplies.

  All Aluminum Alloy Body:

Anodized aluminum alloy panel process treatment, outstanding quality.

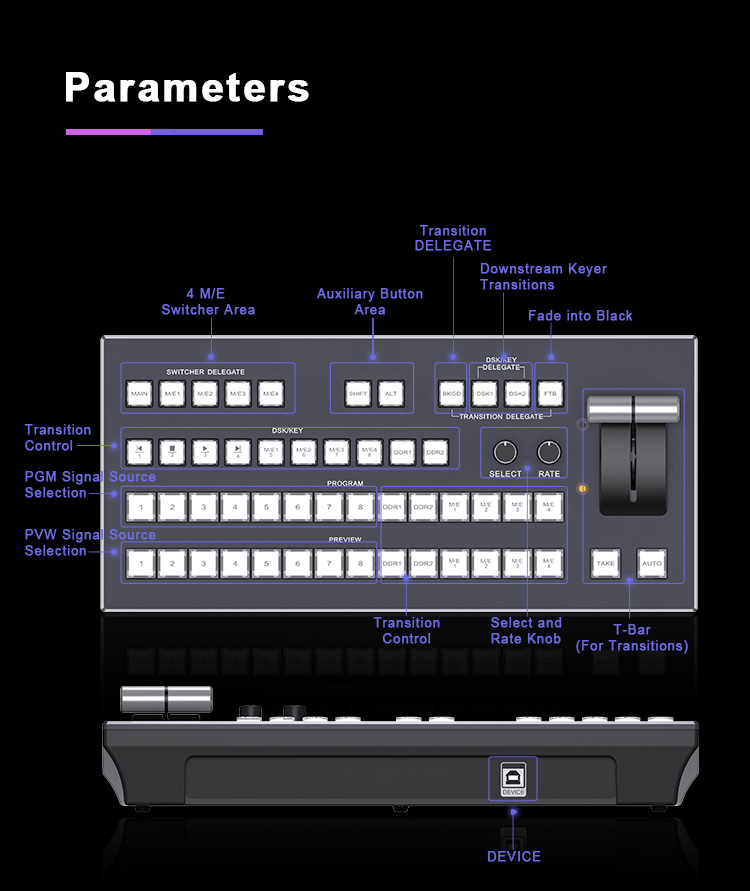

Main Parameters

Signal Source

14-channel PGM+14-channel PVW

Transition Control

Auto transition, cut, T-Bar, special effect choices knobs, transition time setting knobs

Indicator

Red, green, orange, three-color indicators

M/E

Support Max. 4 M/E

DDR

Support 2 DDR

DSK

Support 2 DSK

Power Supply

Input Voltage

DC 12V

Input Current

0.3A

Rated Power

4W

Powered by USB

Support ( rely on the USB power supply capability of the computer )

Others

Use Environment

Indoor

Operating Temperature

0℃-40℃

Storage Temperature

-20℃-60℃

Dimension

354*165*67mm

Weight

1.5Kg

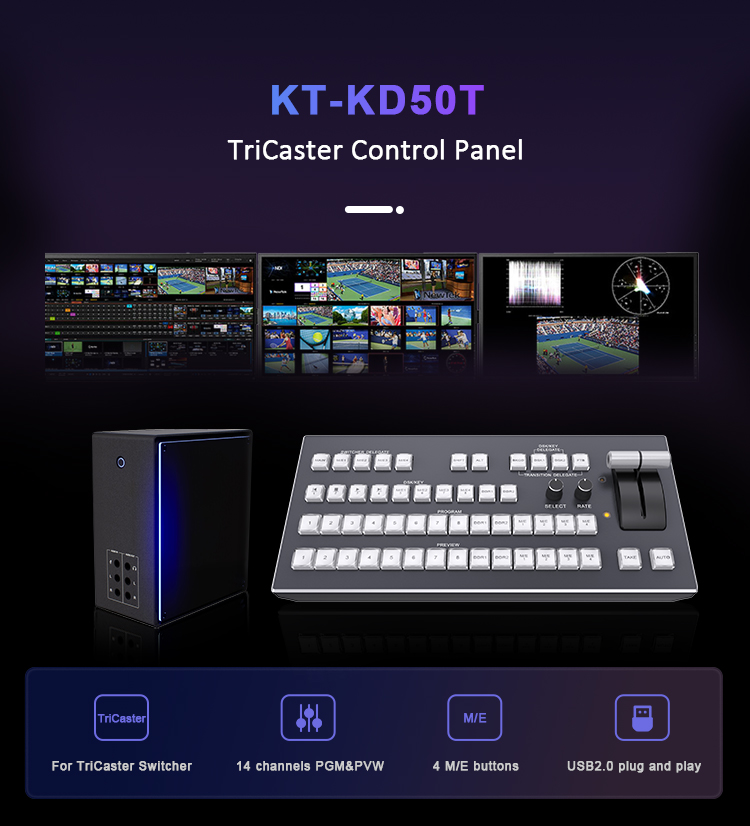

Specifications
KT-KD50T
