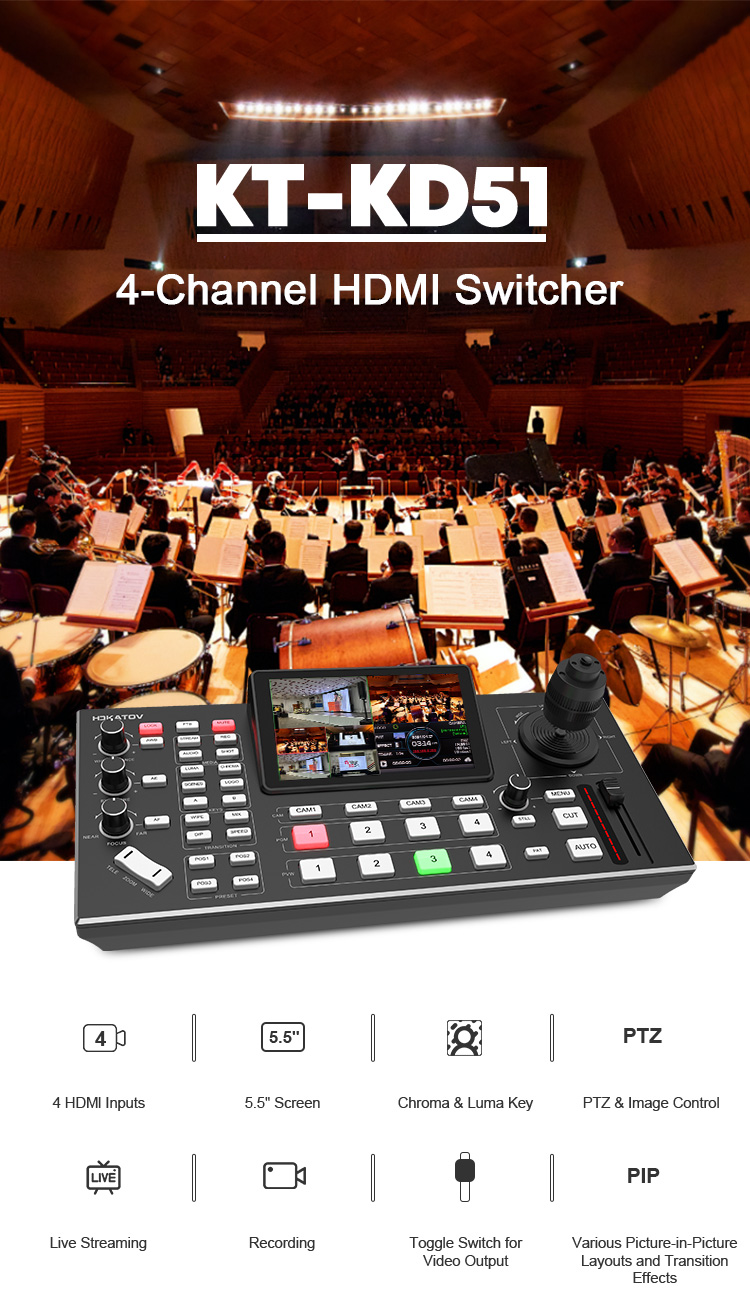

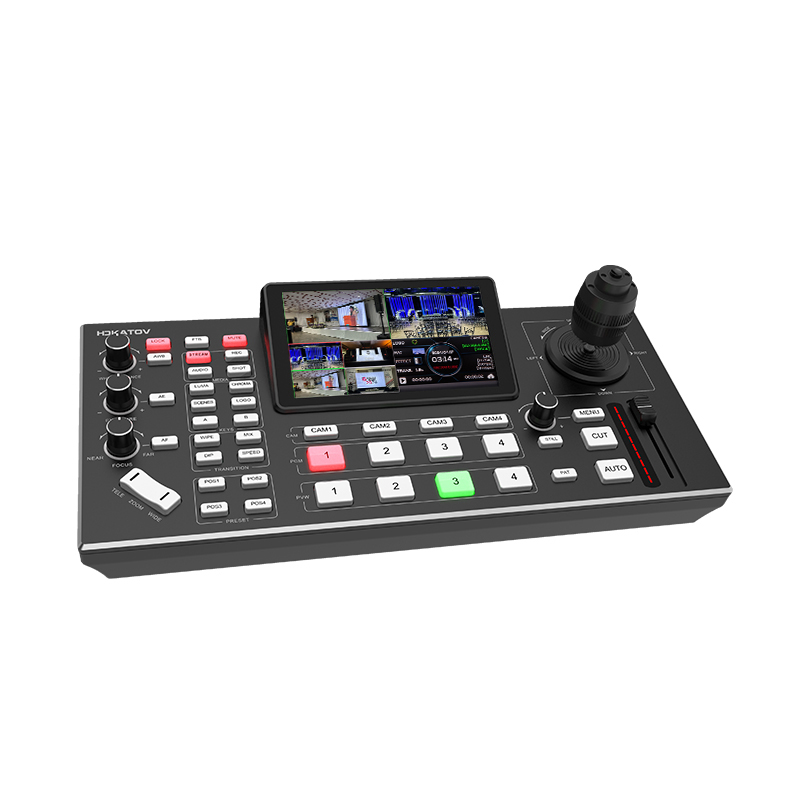

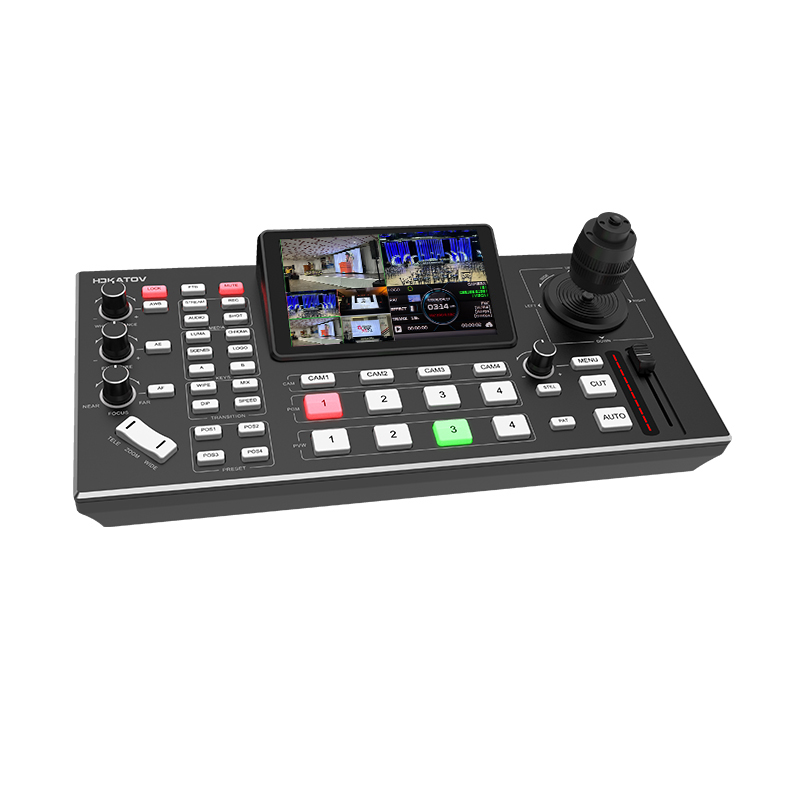

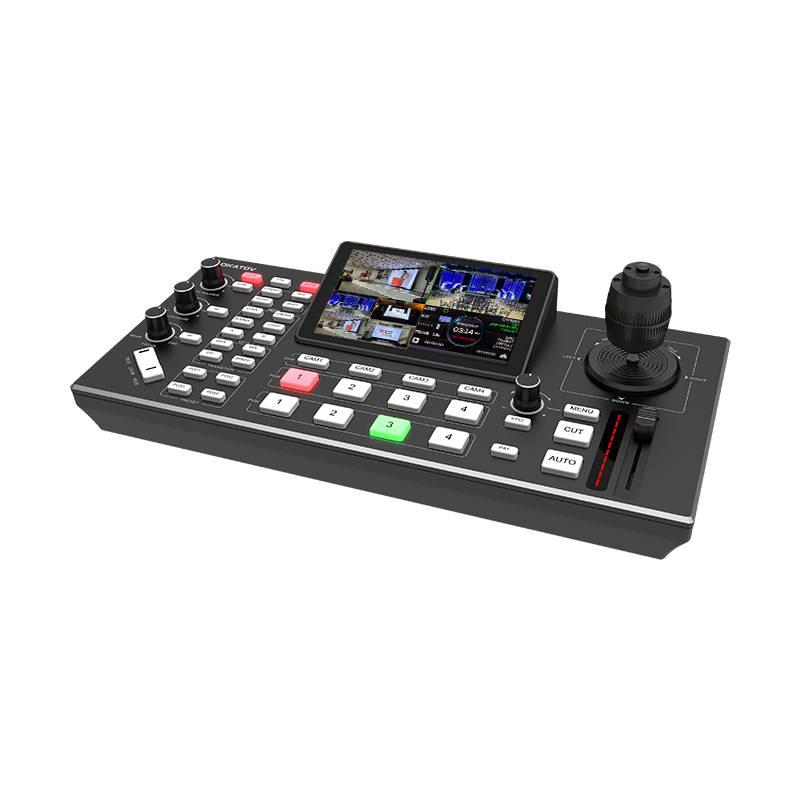

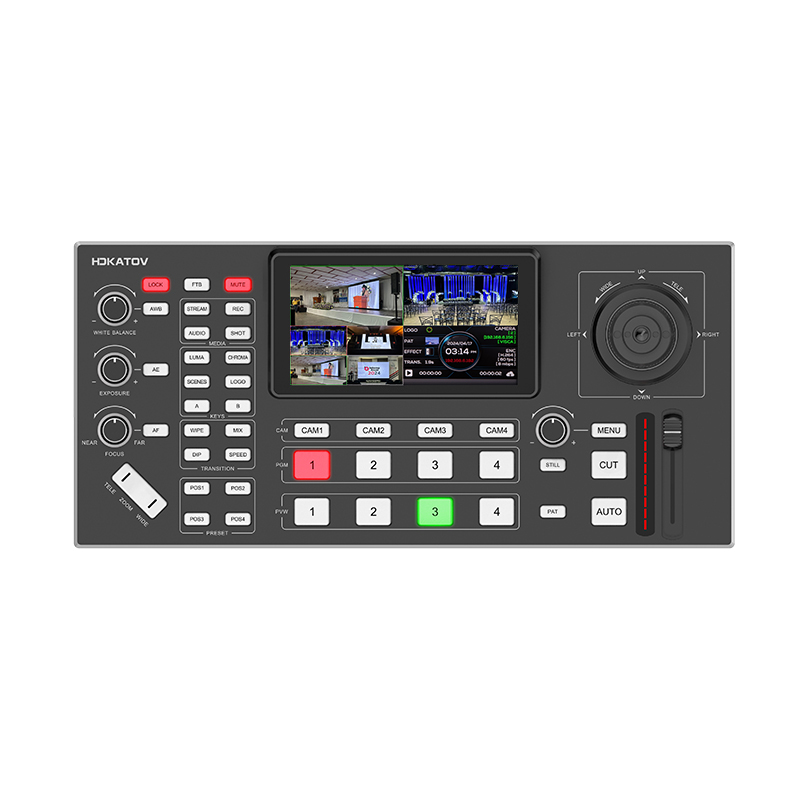

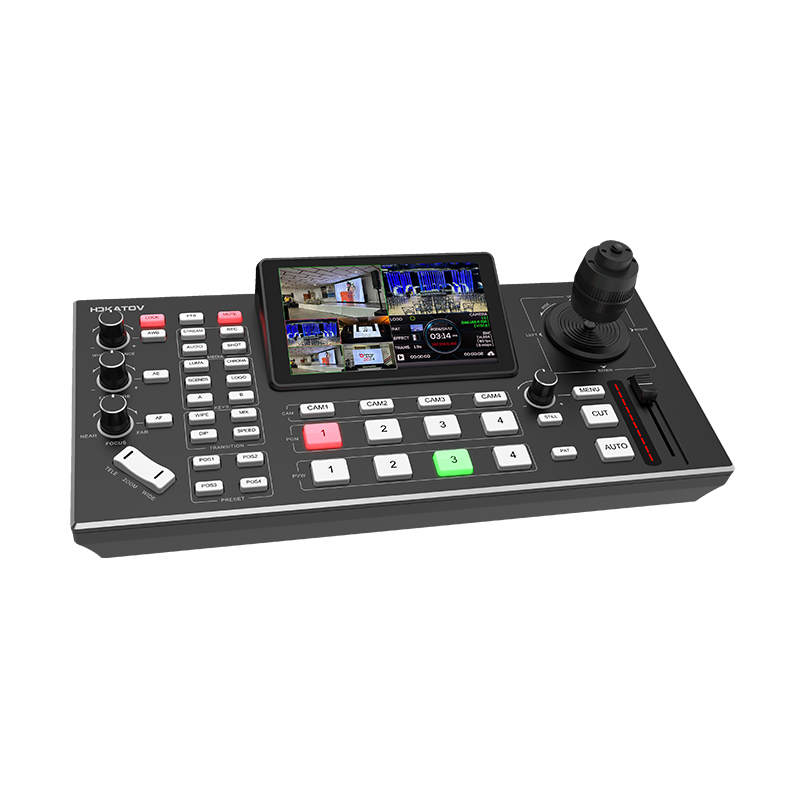

HDKATOV 4 Channels HDMI Video Mixer Switcher With PTZ Camera Control 5.5 Inch Screen Live Streaming Broadcast Switcher
Products Description

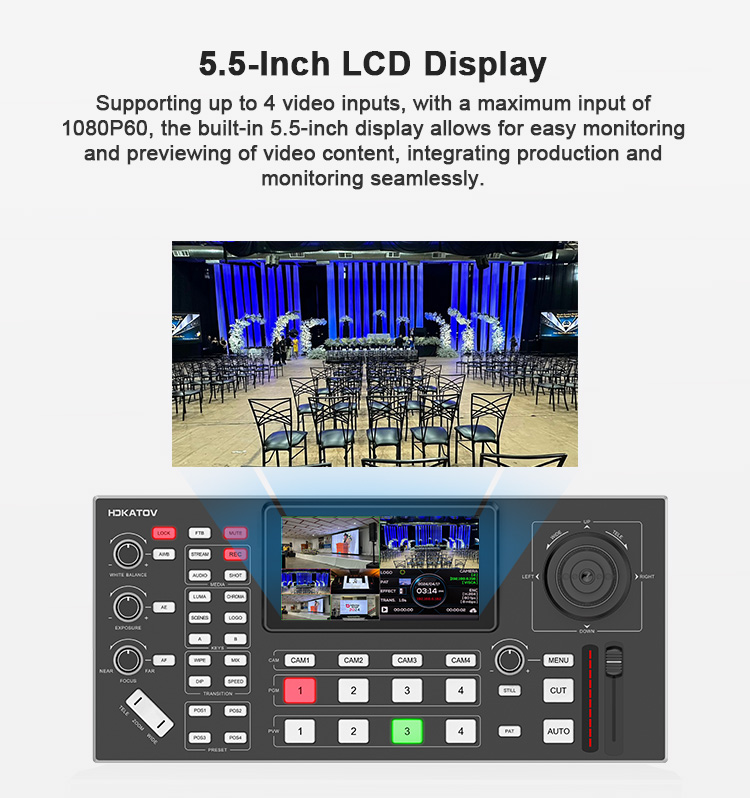

【5.5-inch Full HD LCD Display】
Built-in 5.5-inch HD screen, Integrates live streaming and monitoring functions.

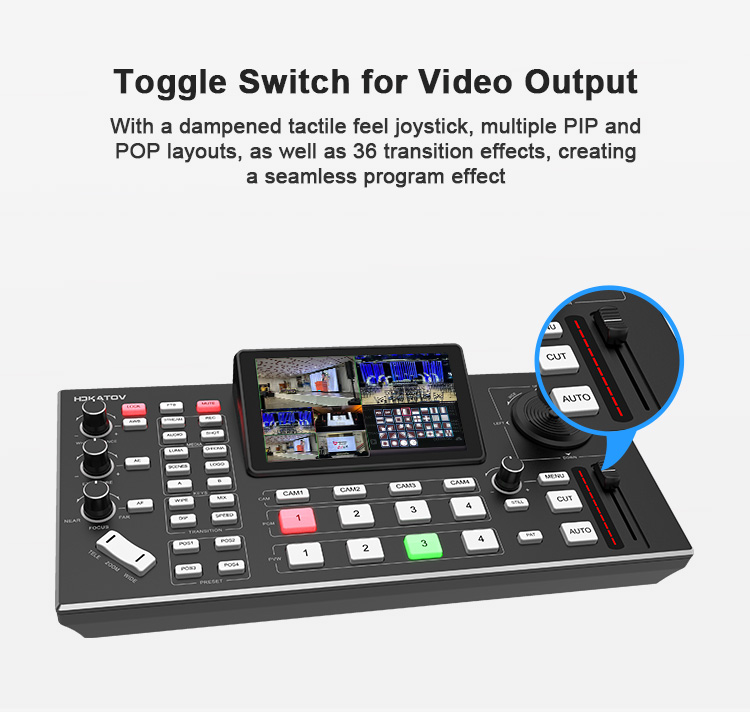

【Support T-shaped fader switching video output control】
Damping feel fader, supports 36 switching effects.
【4 HDMI input video sources, 2 PGM HDMI output】
Supports up to 4 video inputs and 1080P60 image input.
【1 channel UVC video signal output.

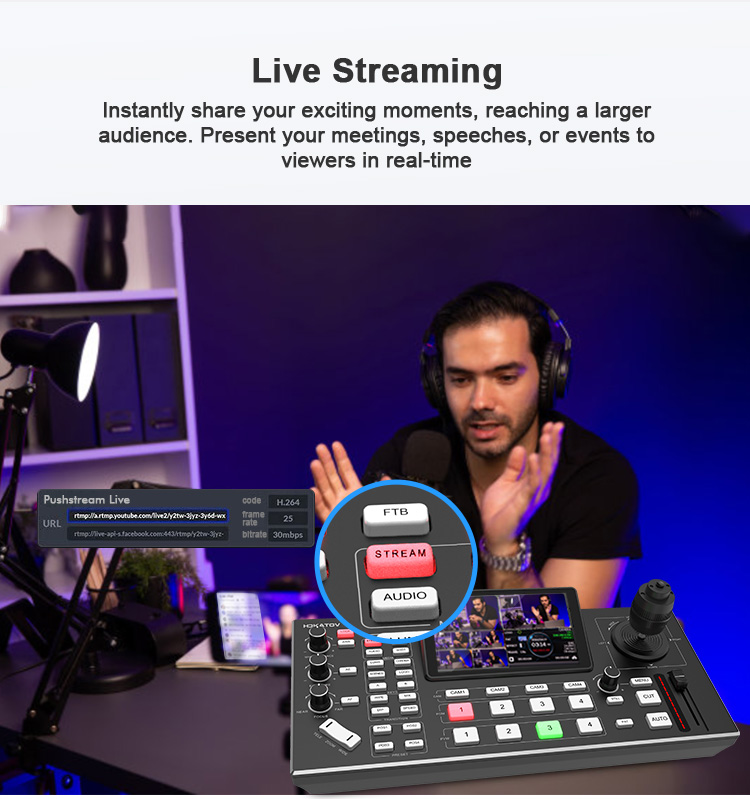

【Supports RTMP streaming protocol, live broadcast at any time】
Supports RTMP streaming media protocols to implement streaming; supports stream size setting and simultaneous streaming from 2 addresses.
【Dual HDMI outputs】
Both channels can output PGM
【A variety of PIP layouts and transition effects, which can be freely converted according to needs】
Supports multiple PIP and POP layouts and multiple transition functions.

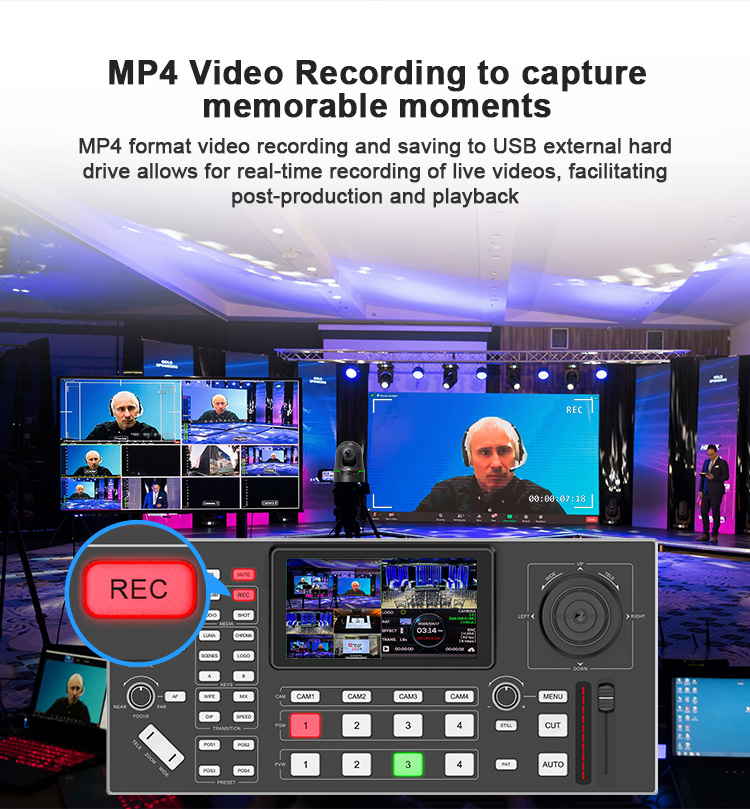

【MP4 video recording, retains wonderful works】
Supports MP4 format video recording and saving.
Supports USB mobile hard disk storage.

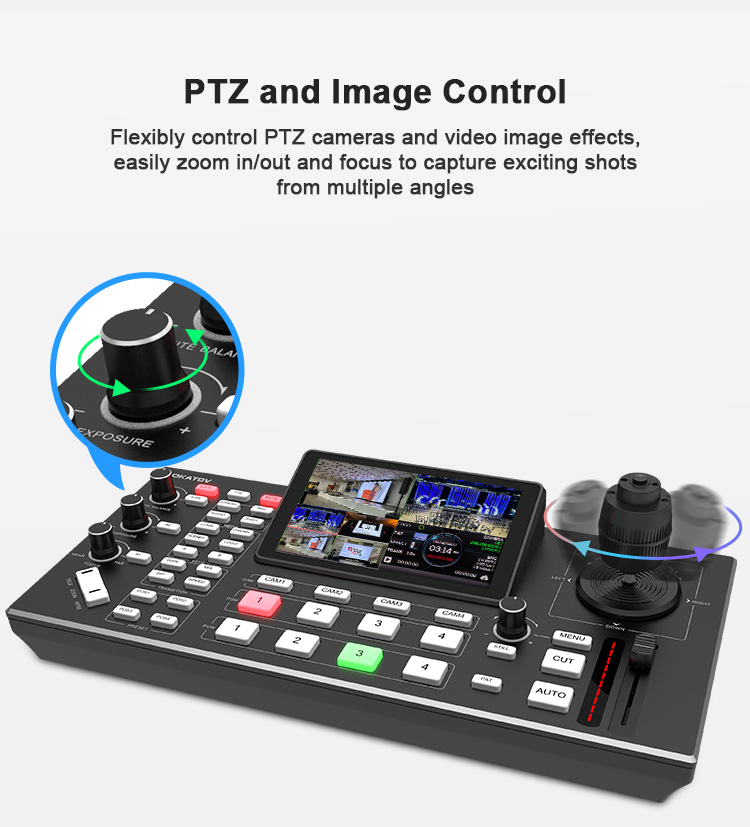

【Convenient and fast camera control functions】
4D joystick PTZ control; supports VISCA Over IP control protocol.
【Powerful WEB control background】
Supports remote control of broadcasting and parameter configuration through the WEB background, and supports WEB equipment upgrades.
Details Images
Core Keywords
Video Switcher,HDMI Switcher,Live Streaming Switcher,PTZ Camera Switcher,Professional Video Switcher,Church Video Switcher,Education Video Switcher,Broadcast Video Switcher,4 Channel Switcher,Best Video Switcher,Live production switcher,Video mixer,PTZ controller,4 input video switcher,Esports video switcher
Application Field
Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,
Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.
Related Category
4K PTZ Camera,FHD PTZ Camera,NDI PTZ Camera,Webcam,Education Tracking Camera,Video Conferencing System,
Live HD Camera,Integrated Audiovisual Intelligent Endpoint,Integrated HD Camera,Speakerphone,Cam Controller,
Video Switcher,Ptz Controller,Control Panel
|

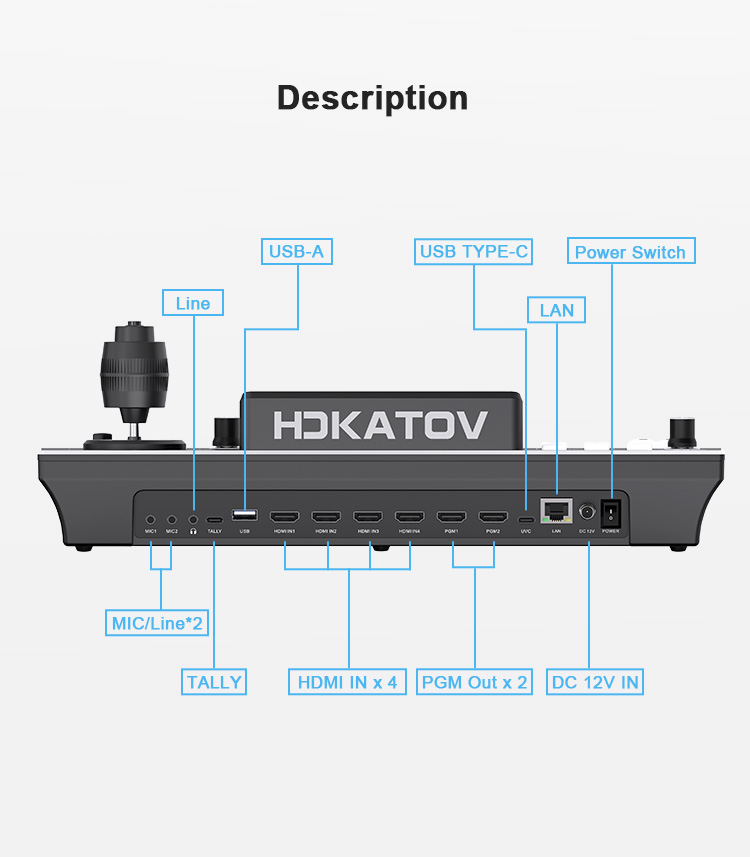

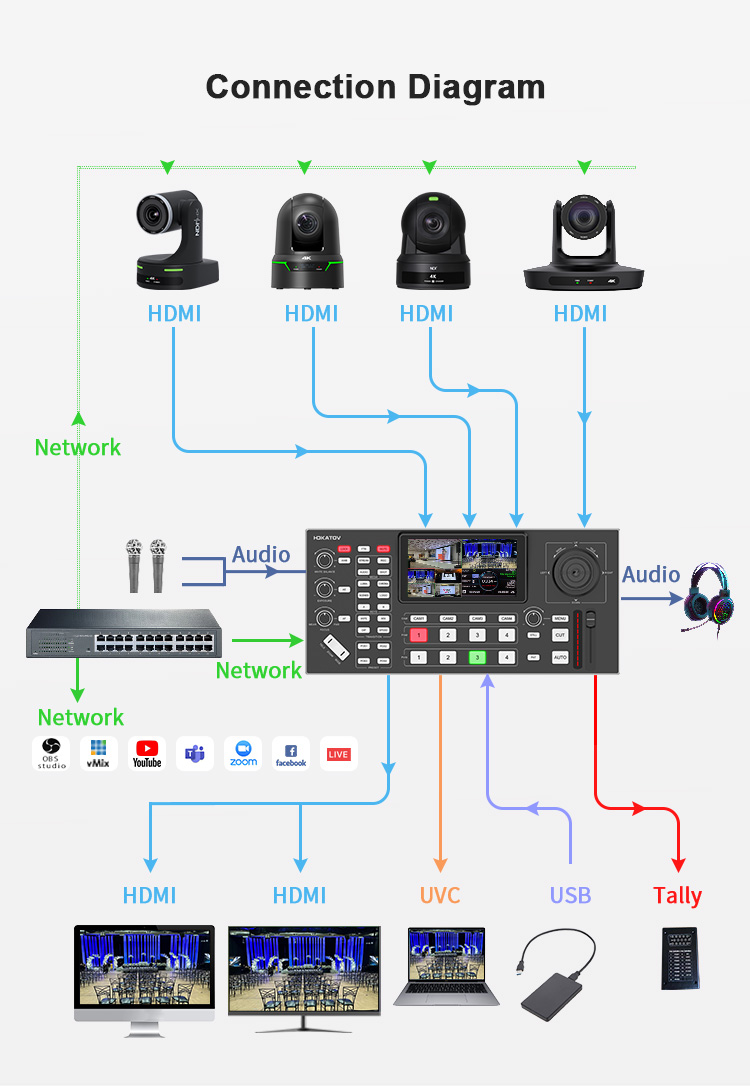

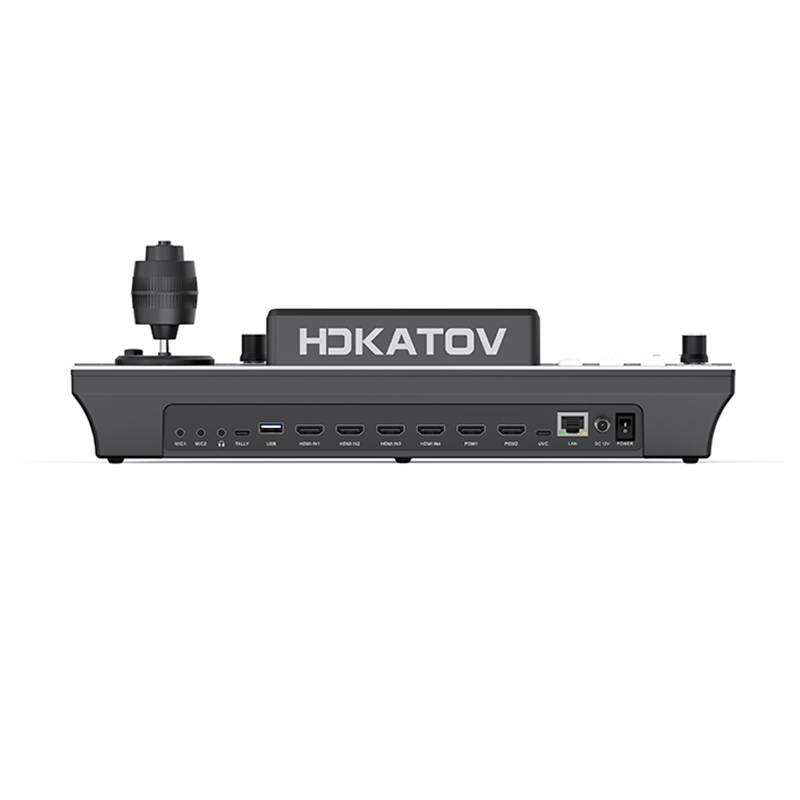

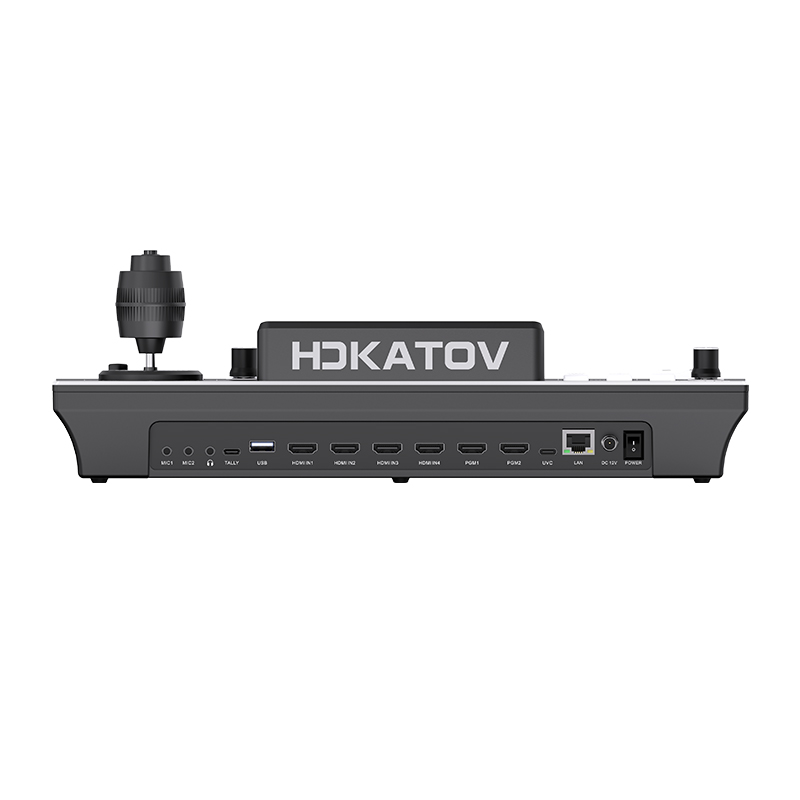

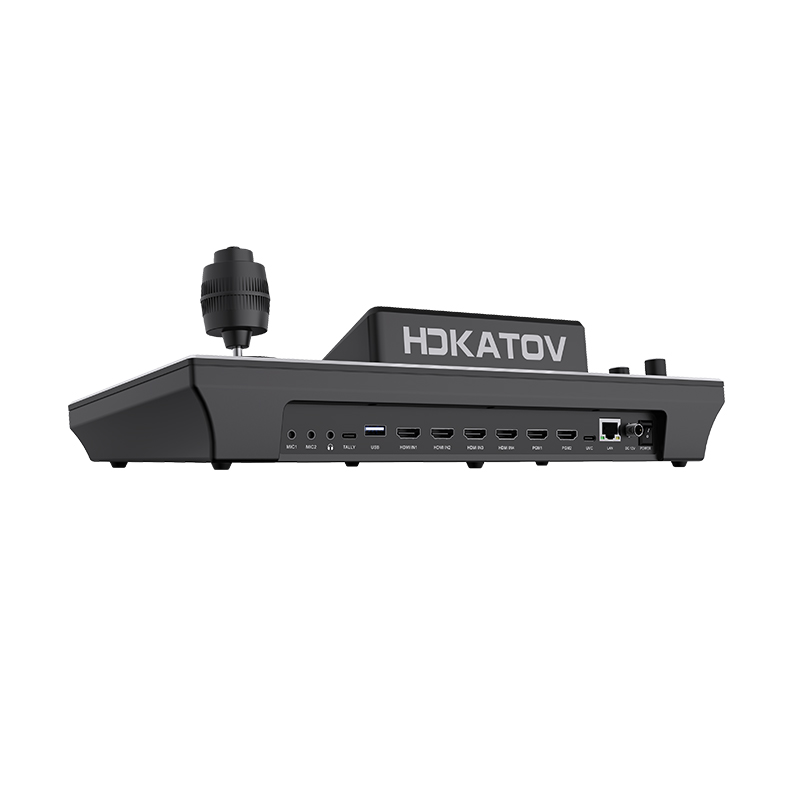

Device Interface |
|
|
Video Input Interface |
4 channels HDMI |
|
Video Output Interface |
2 Channels HDMI outputs simultaneously, supports PGM |
|
1 Channel USB output, USB supports audio and video output |
|
|
1Channel IP output, supports RTMP, RTMPS |
|
|
Support UVC and IP simultaneous output |
|
|
Audio Input Interface |
4 sets of HDMI audio inputs |
|
2 channels 3.5mm MIC IN input |
|
|
Audio output Interface |
1 set of 3.5mm headphone monitoring jack |
|
RJ45 Ethernet |
RJ45x1, Ethernet supports 10/100/1000 BaseT, which can be used for live streaming, background settings, and software updates |
|
Computer Interface |
1xUSB TYPE C for UVC video output |
|
1xUSB TYPE A; external USB storage (FAT32, NTFS, exFAT) |
|
|
Format Parameters |
|
|
Video Input Format |
1080p 60/59.94/50/30/29.97/25/24/23.98 |
|
1080 i50/1080 i60 |
|
|
720p 60/59.94/50/30/29.97/25/24/23.98 |
|
|
576i/480i/576p/480p |
|
|
Video Output Format |
1080p 60/50/30/25/24 |
|
1080i50/1080i60 |
|
|
HDMI Color Space |
RGB/YUV |
|
USB Acquisition Output |
Max: 1080P60，support USB audio output |
|
Local File Playback |
Video file format: MP4 |
|
Image file format: PNG，JPG，BMP |
|
|
File Recording Format |
MP4 |
|
Storage Media |
Support U disk storage（FAT32, NTFS, exFAT） |
|
File Recording Resolution |
1920×1080 |
|
File Real-time Playback |
Support |
|
Specifications |
|
|
Video System |
FULL HD |
|
Monitor Screen |
5.5inches |
|
Monitor Minimum Resolution Requirements |
1920x1080 pixels |
|
LOGO |
1 set |
|
Clock Display |
Support |
|
Operating Mode |
Horizontal screen(16:9) |
|
Tally |
Support (Tally control box needs to be purchased separately) |
|
Stunt Switch |
CUT & AUTO |
|
Special Effects |
36 kinds of stunts, the switching duration can be set |
|
PIP Model |
Support（8 channels PIP and POP model） |
|
Layers |
Background, A, B, LOGO multiple layers |
|
Layer editing support: size, position, graphics mask, area mask |
|
|

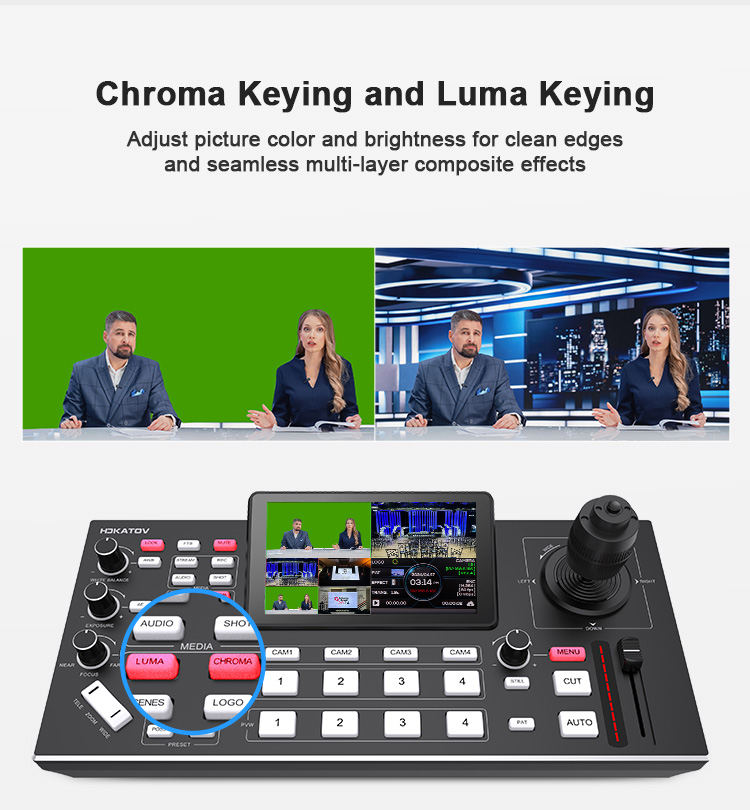

Keying |
Chroma key Luma Key |
|
Language Mode |
Simplified Chinese, English |
|
Audio |
|
|
Mixer |
4-channel audio virtual mixer with switch and mode settings for each channel |
|
Analog Audio Input |
2 channels of 3.5mm MIC IN input, gain range（-60-24db) |
|
Analog Input Delay |
0-500ms |
|
Analog Audio Output |
1 Channel unbalanced stereo output line out |
|
1 Channel headphone monitoring output |
|
|
Audio Input Level Range |
0dB~60dB |
|
Audio Sample Rate |
48kHz |
|
Audio Format |
AAC encoding; streaming and recording 2 channels, 16bit, compression bit rate support: 128k (default), 48k, 64k, 96Kbps; |
|
PTZ Control |
|
|
PTZ Control |
VISCA Over IP control protocol |
|
PTZ Control Quantity |
4 Channels |
|
PTZ Camera Control Method |
4D Joystick |
|
PTZ Aperture Control |
Support |
|
PTZ Focus Control |
Support, manual/auto |
|
PTZ Exposure Control |
Support, manual/auto |
|
PTZ Exposure Mode |
Red gain value, blue gain value adjustment |
|
TALLY Instruct |
Equipped with the tally control box, the camera can be switched and controlled synchronously with tally lights. |
|
Remote Control |
Support mobile phone and WEB web page control |
|
Software Update |
|
|
Firmware Upgrade |
Connect directly to a Windows computer using the Ethernet interface. |
|
Power Supply |
|
|
Input Voltage |
External 12V2A power supply |
|
Input Current |
0.8A（Max） |
|
POE |
Non support |
|
Rated Power |
10W（Max） |
|
General Specifications |
|
|
Usage Environment |
Indoor |
|
Operating Temperature |
0℃-40℃ |
|
Storage Temperature |
-10℃-60 degrees |
|
Color |
Black |
|
Dimension |
(W)354* (D)165* (H)121mm（Including rocker height） |
|
Weight |
2.0kg |
