KT-HD3500E
Download
|

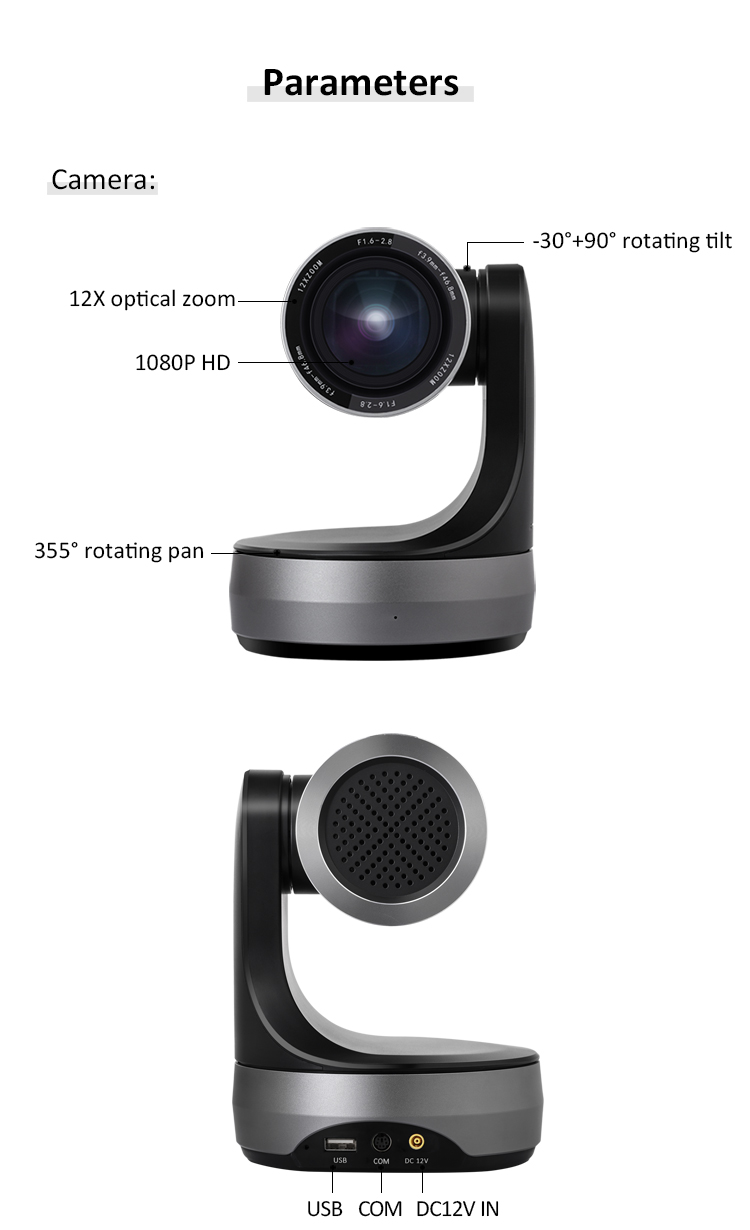

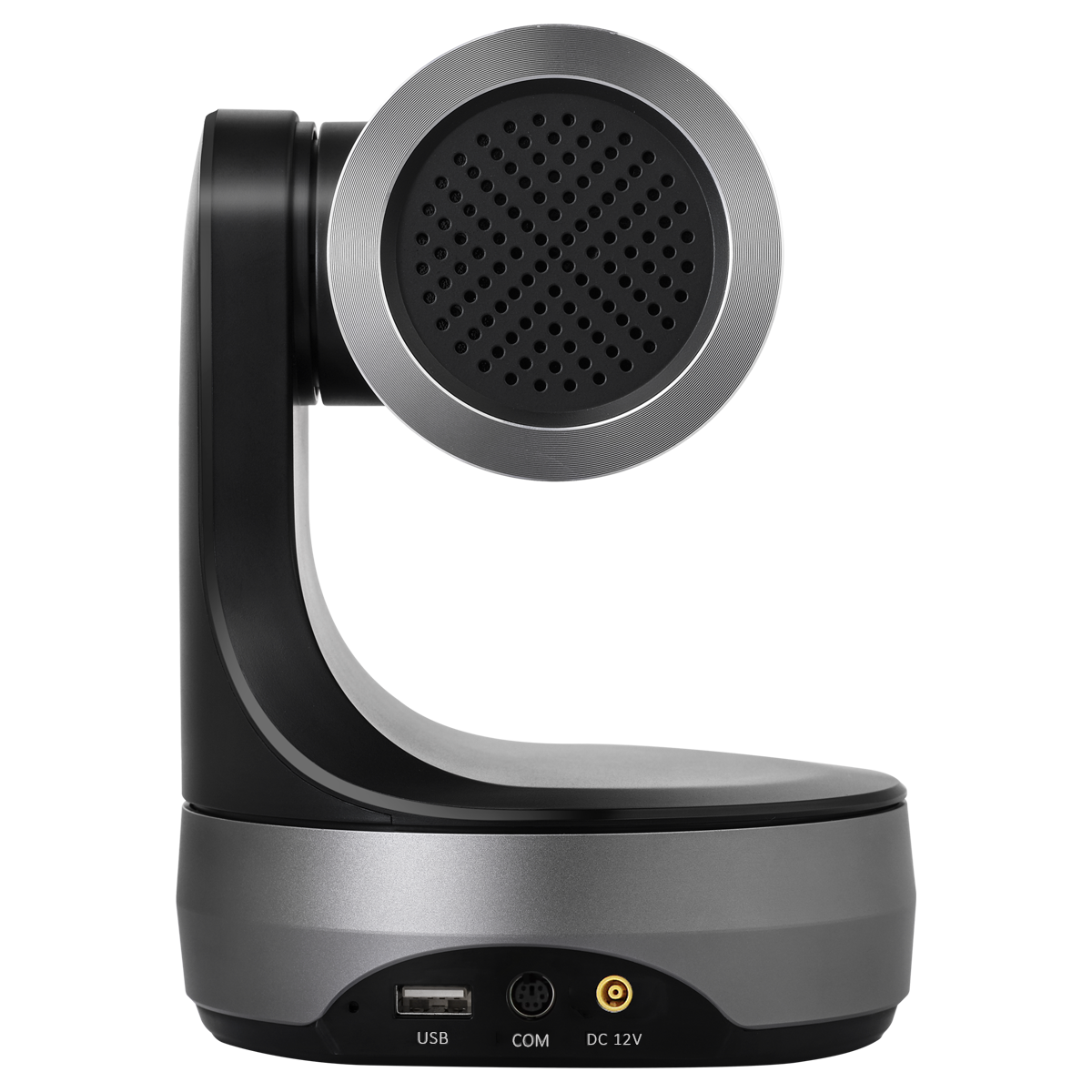

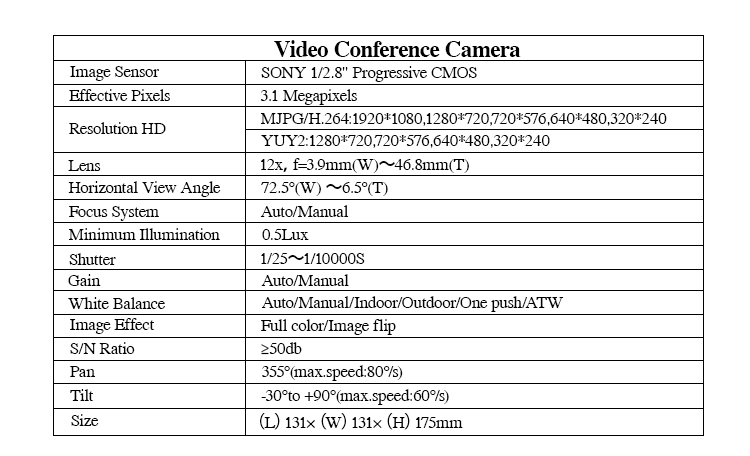

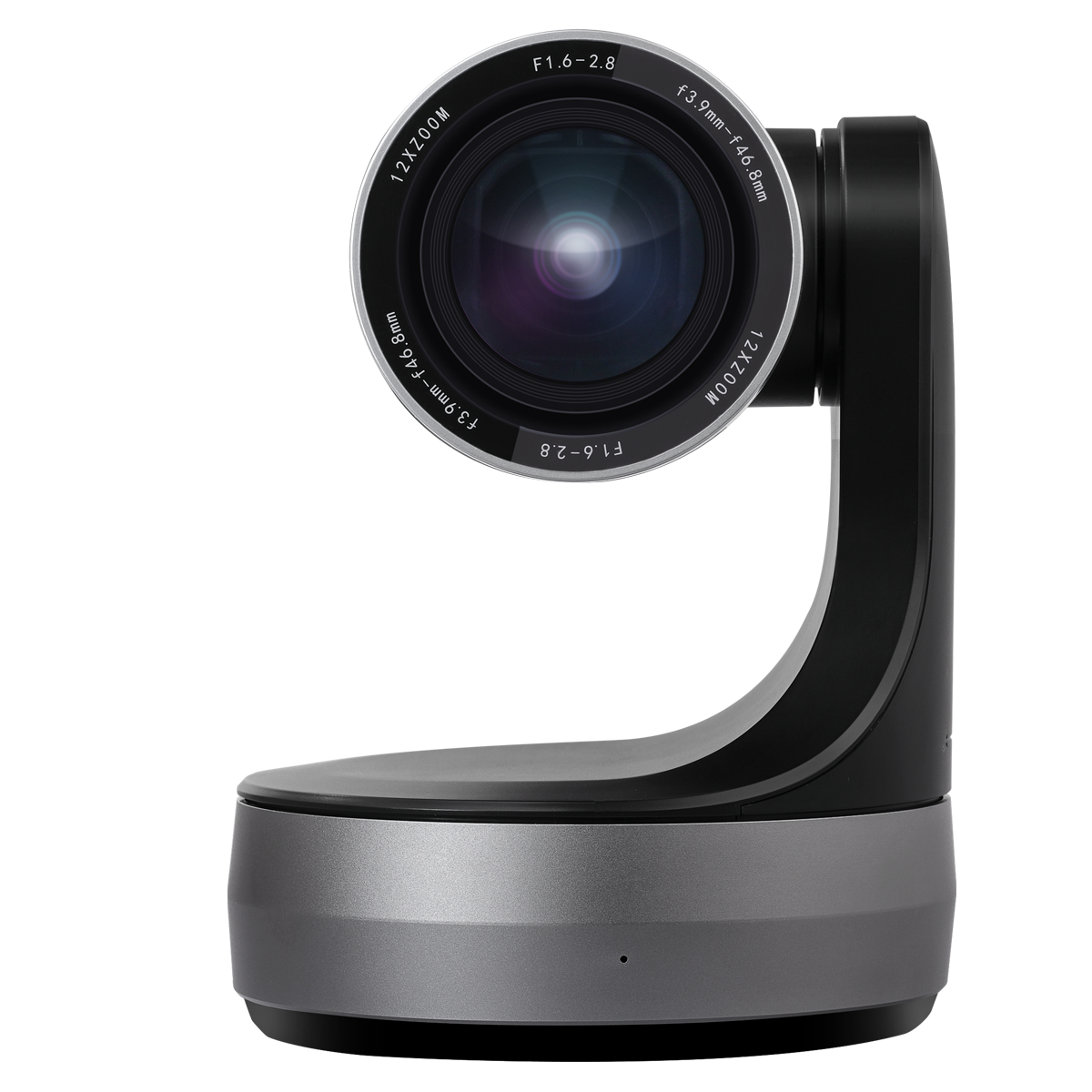

Camera |
|
|
Resolution |
MJPG/H.264:320*240,640*480,720*576,1280*720,1920*1080 YUY2:320*240,640*480,720*576,1280*720 |
|
Image Sensor |
SONY 1/2.8” Progressive CMOS |
|
Effective Pixels |
3.1 Megapixels |
|
Signal |
PAL/NTSC |
|
Lens |
12x，f=3.9mm(w)～46.8mm(T) |
|
Horizontal View Angle |
72.5°(W)~6.5°(T) |
|
Focus System |
Auto/Manual |
|
Minimum Illumination |
0.5 Lux |
|
Shutter |
1/25~1/10000s |
|
Gain |
Auto/Manual |
|
White Balance |
Auto/Manual/ Indoor/Outdoor/One push/ATW |
|
lmage Effect |
Full color/Image flip |
|
S/N Ratio |
≥50db |
|
Pan |
355°(max.speed:80°/s) |
|
Tilt |
-30° to +90°(max. speed: 6o°/s) |
|
Size |
(L)131×(W)131×(H)175mm |
|

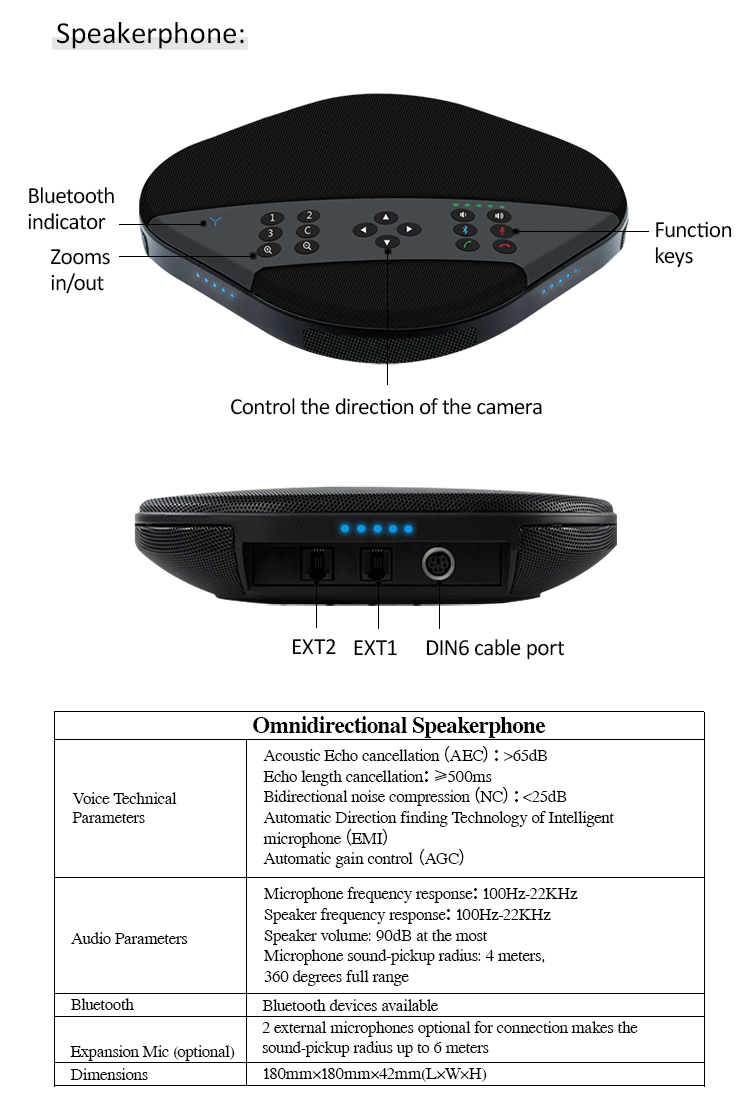

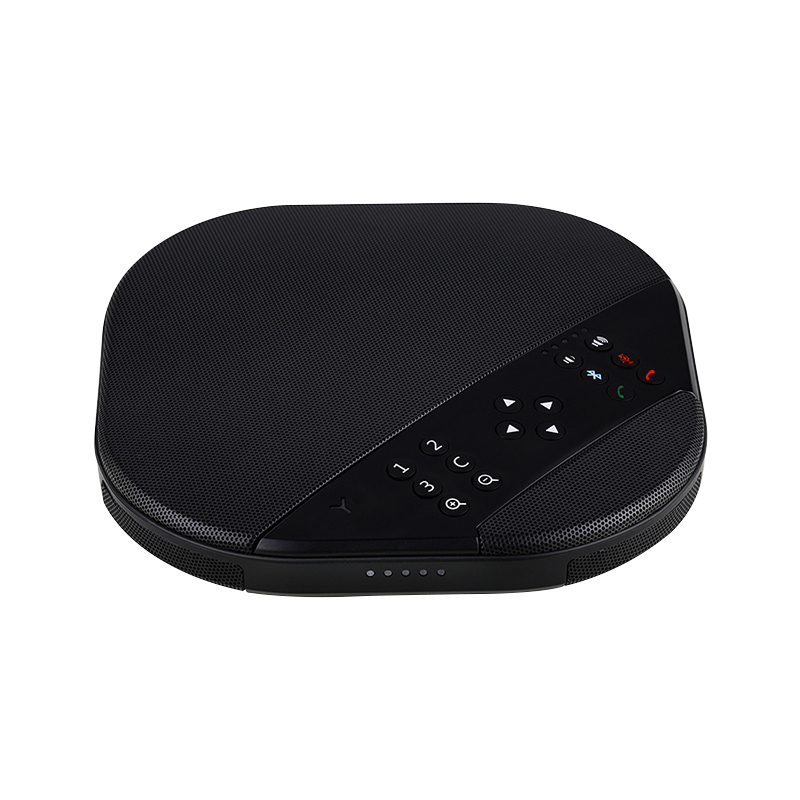

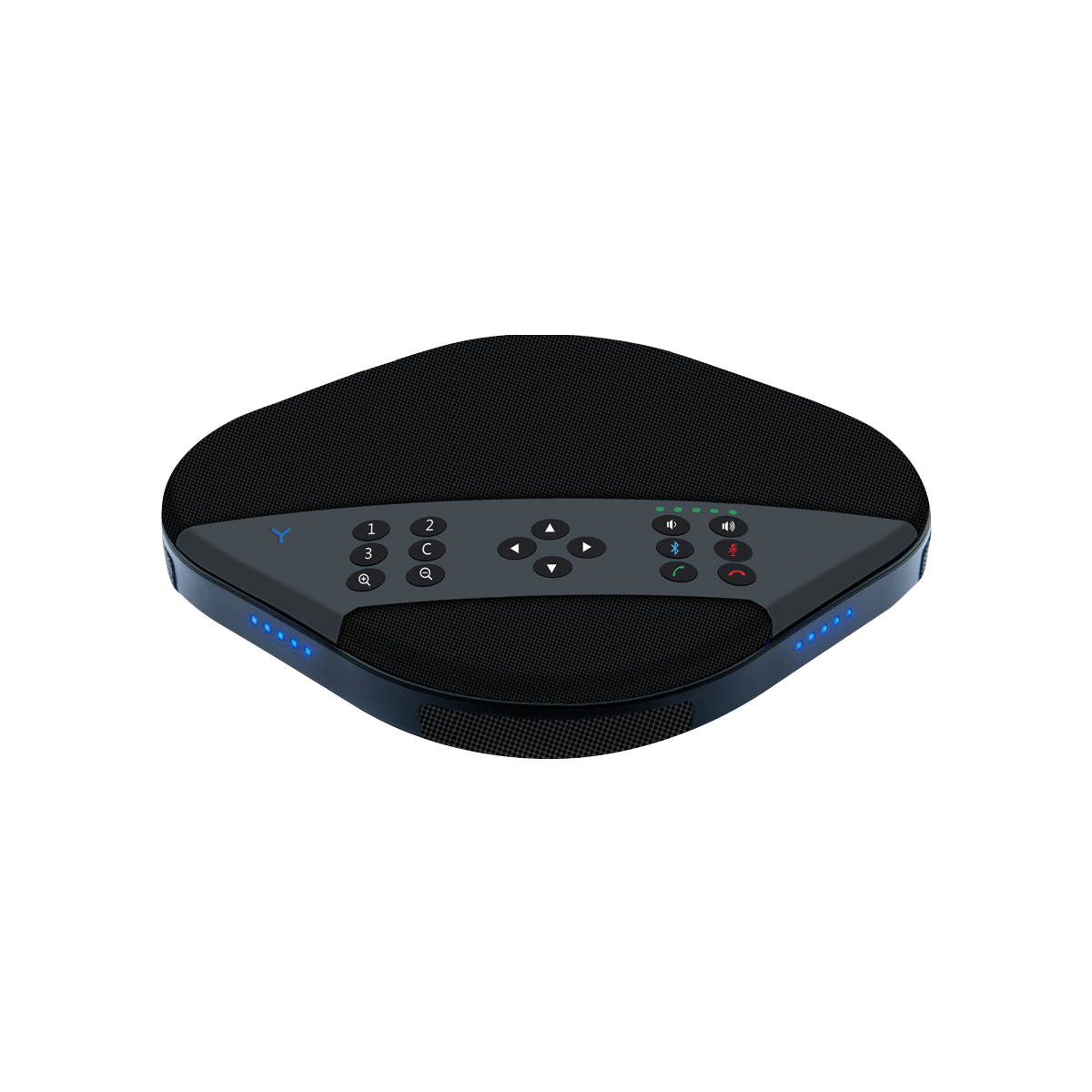

Omnidirectional Speakerphone |
|
|
Voice Technical Parameters |
Acoustic echo cancellation（AEC）：>65dB Echo length cancellation：≥500ms Bidirectional noise compression（NC）：<25dB Automatic direction finding Technology of Intelligent microphone（EMI） Automatic gain control（AGC） |
|
Audio parameters |
Microphone frequency response：100Hz-22KHz Speaker frequency response：100Hz-22KHz Speaker volume: 90dB at the most Microphone sound-pickup radius: 4 meters 360 degrees full range |
|
Protocol |
UVC 1.1 |
|

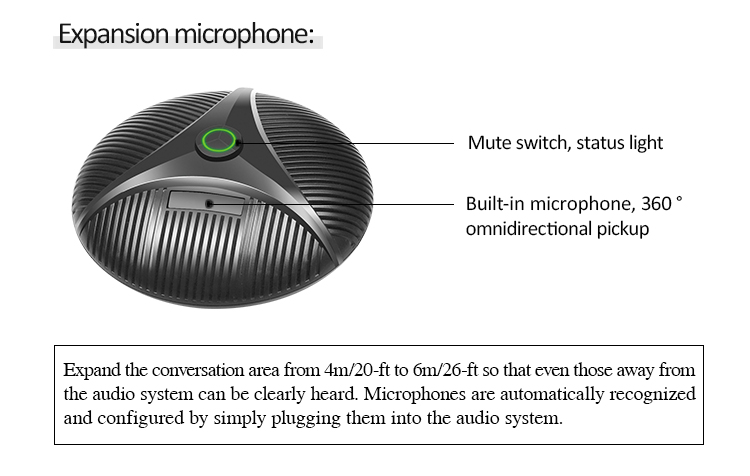

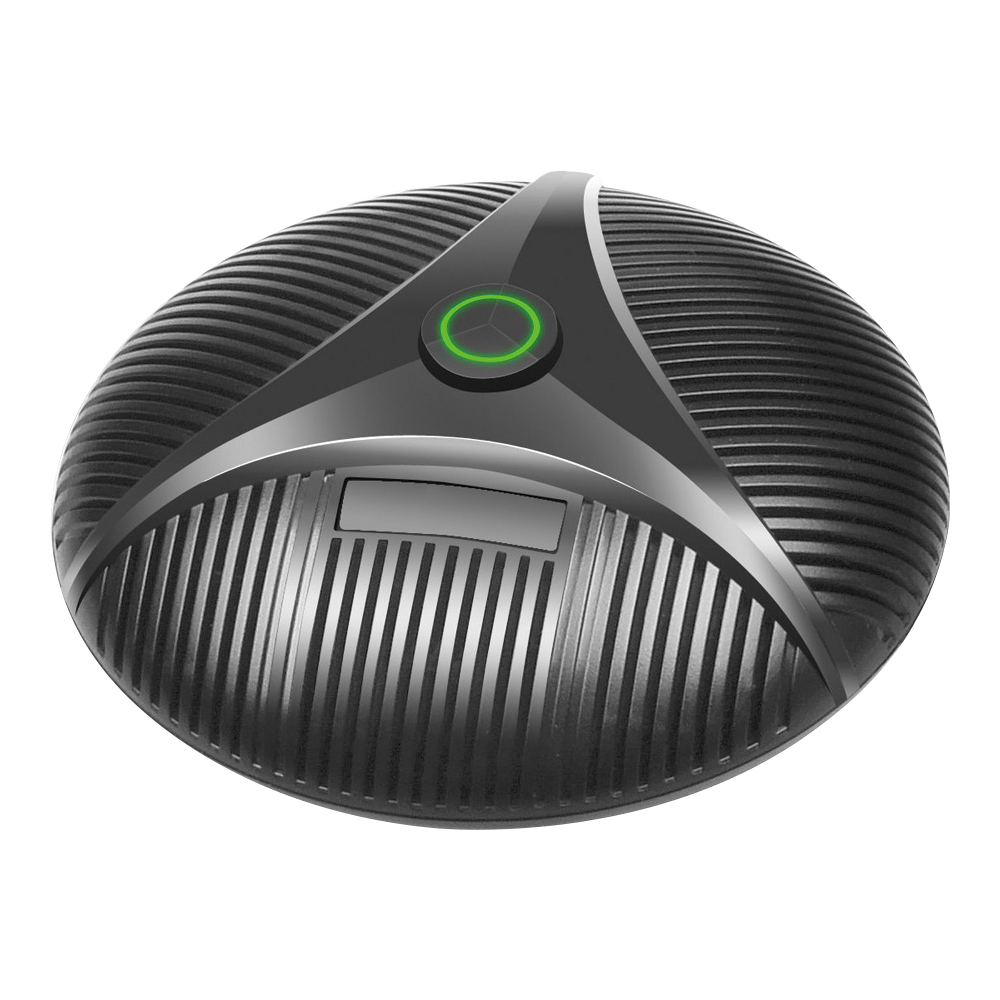

Expansion Mic (optional) |
2 external microphones optional for connection makes the sound-pickup radius up to 6 meters |
|
Dimensions |
180mm×180mm×42mm(L×W×H) |
|

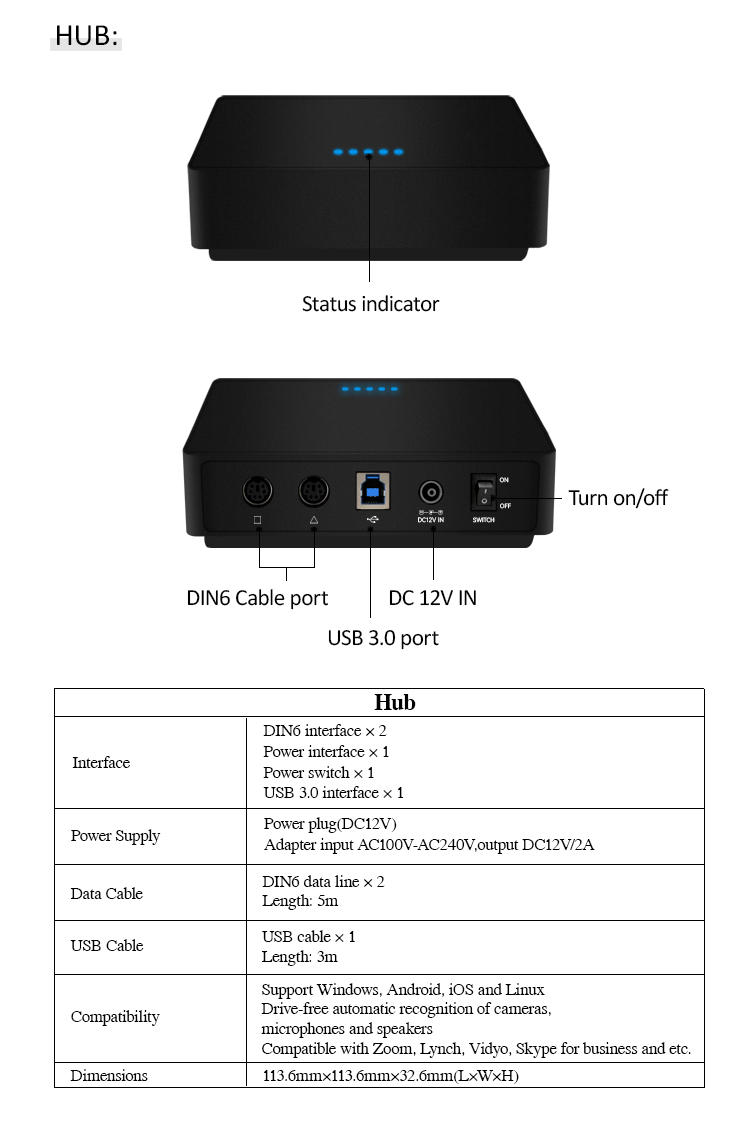

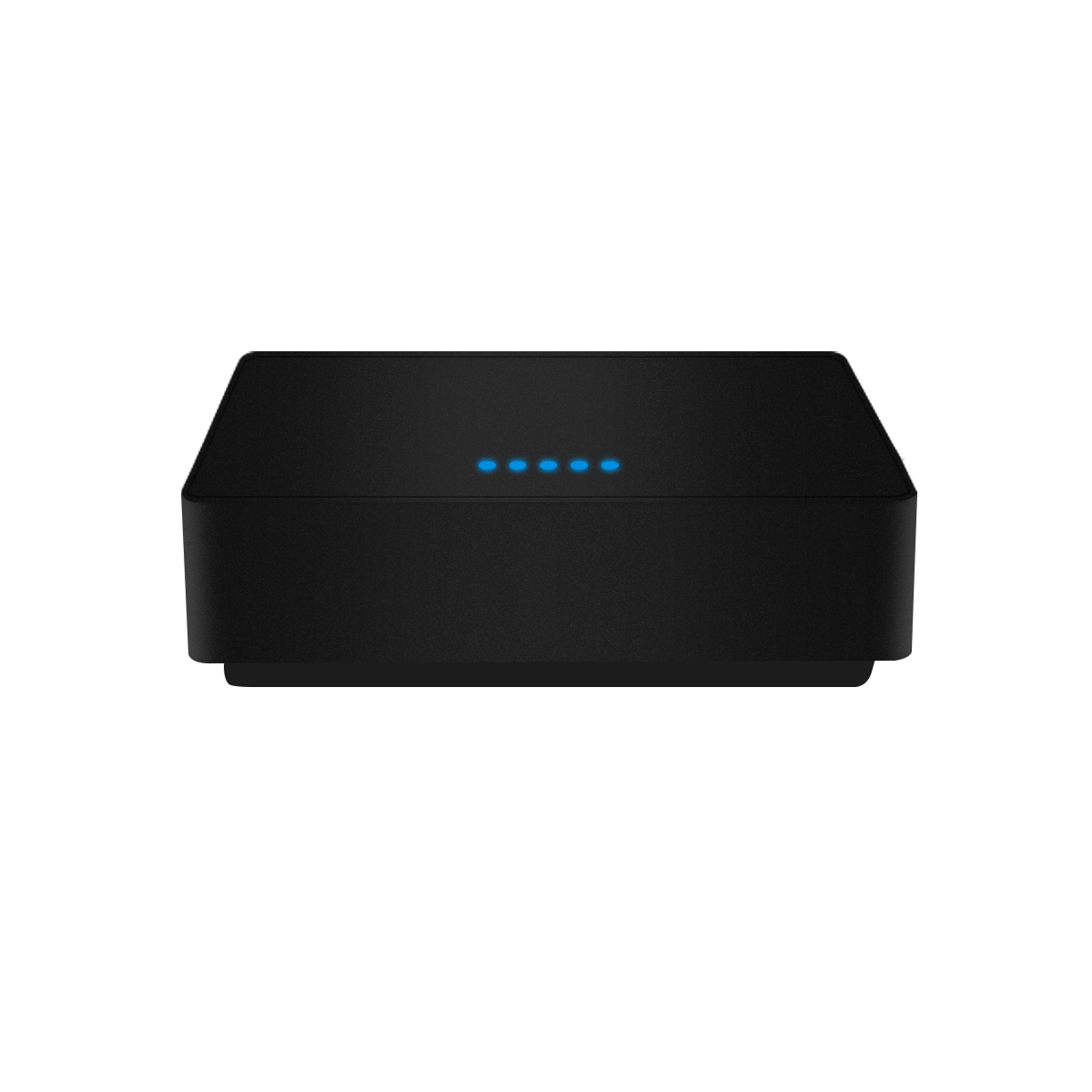

Hub |
|
|
Interface |
DIN6 interface × 2 Power interface × 1 Power switch × 1 USB interface × 1 |
|
Power supply |
Power plug(DC12V) Adapter input AC100V-AC240V,output DC12V/2A |
|
Data Cable |
DIN6 data line × 2 Length: 5m |
|

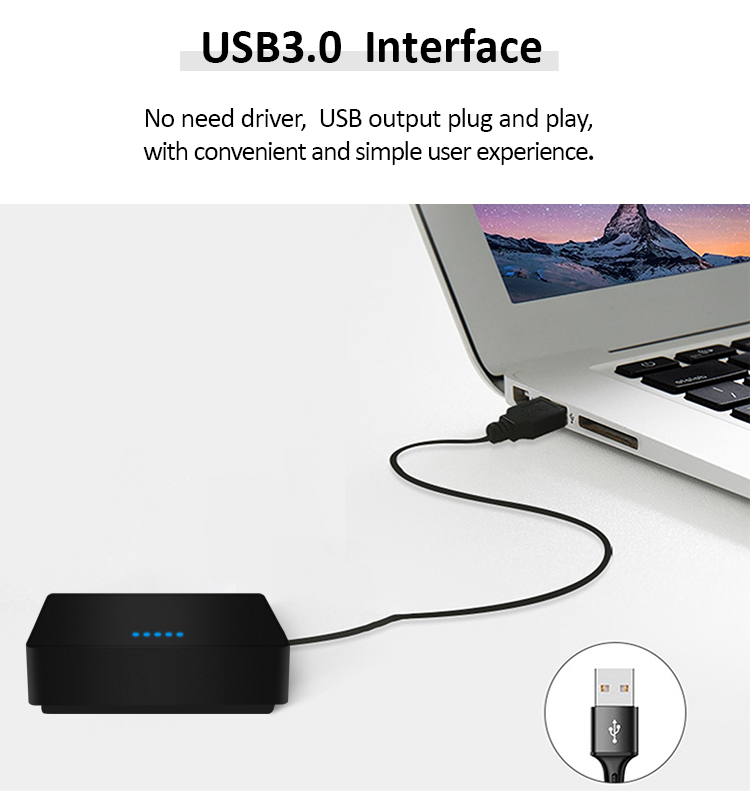

USB cable |
USB cable × 1 Length: 3m |
|
Compatibility |
Support Windows, Android, iOS and Linux Drive-free automatic recognition of cameras, microphones and speakers Compatible with Zoom, Lynch, Vidyo, Skype for business and etc. |
|
Dimensions |
113.6mm×113.6mm×32.6mm(L×W×H) |
