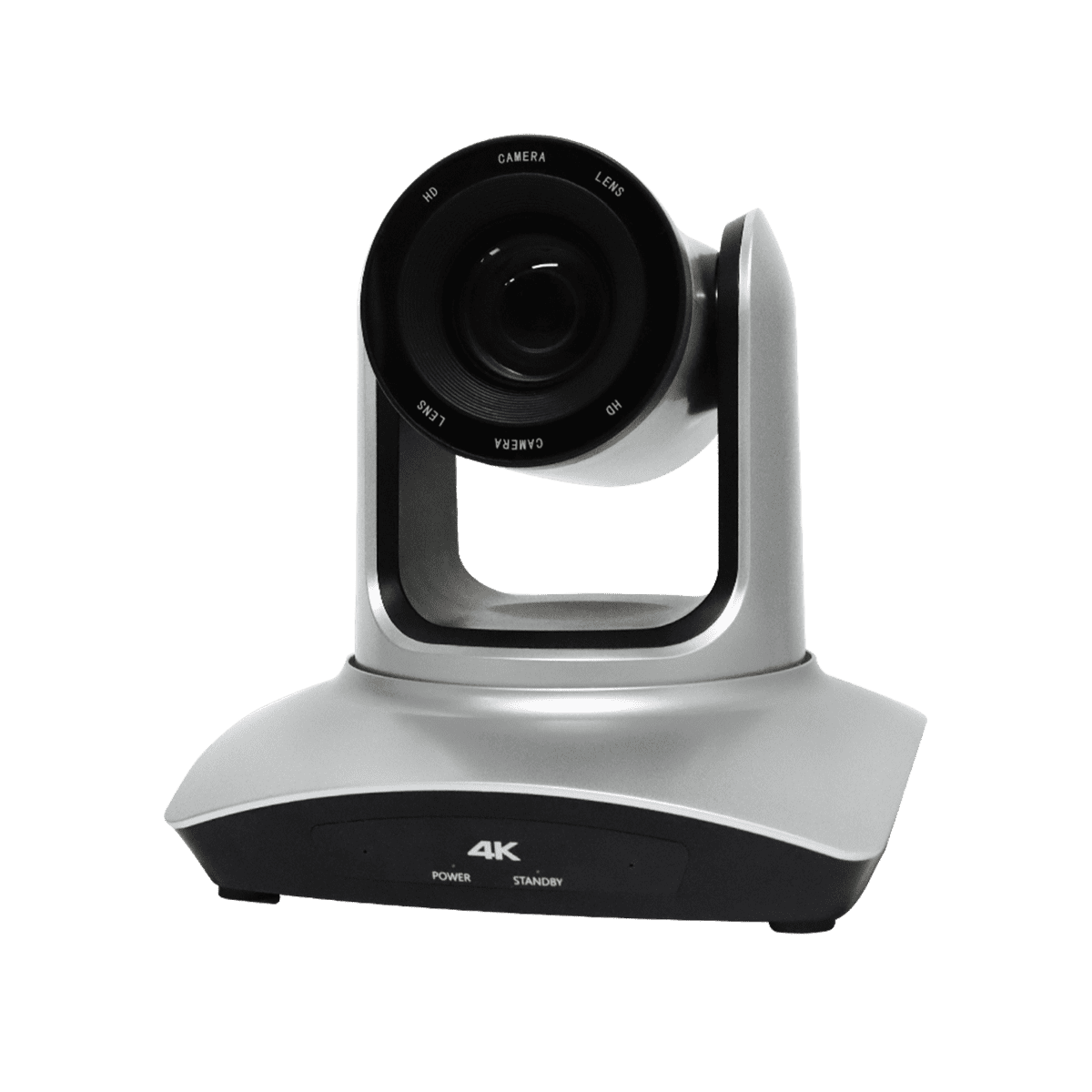

KT-UH40MF/40MH
Download
Studio Equipment 4K PTZ NDI HX POE 12X 20X Camera HDMI USB Zoom Video Conference Camera With Speaker Microphone
Products Description

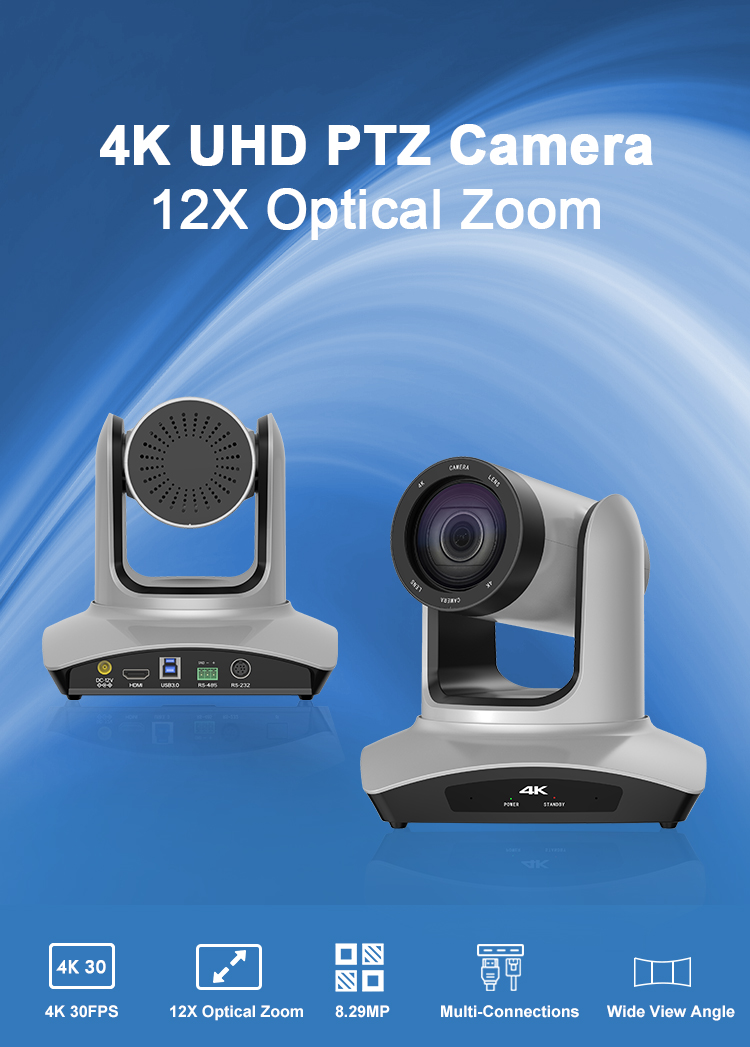

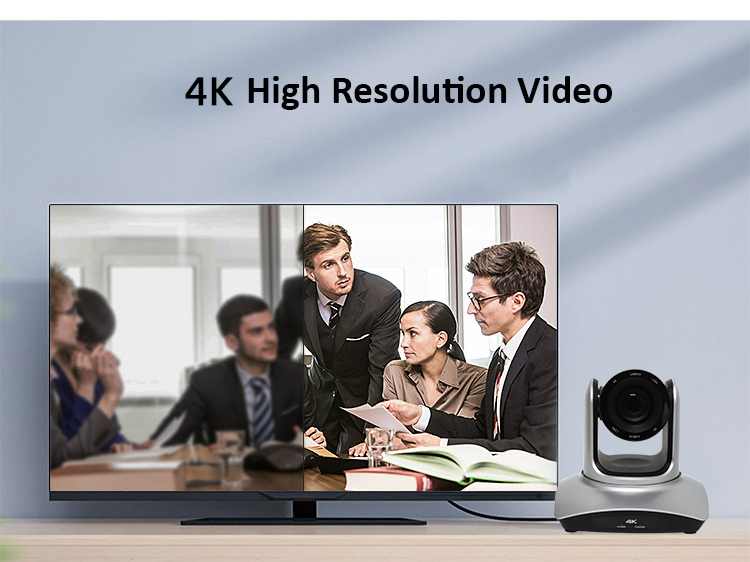

4K Ultra HD Resolution:
Apply SONY 1/2.8” Progressive CMOS sensor, 8.50 Megapixels, can reach 4K (3840x2160) high resolution with frame rate up to 4K 30fps.

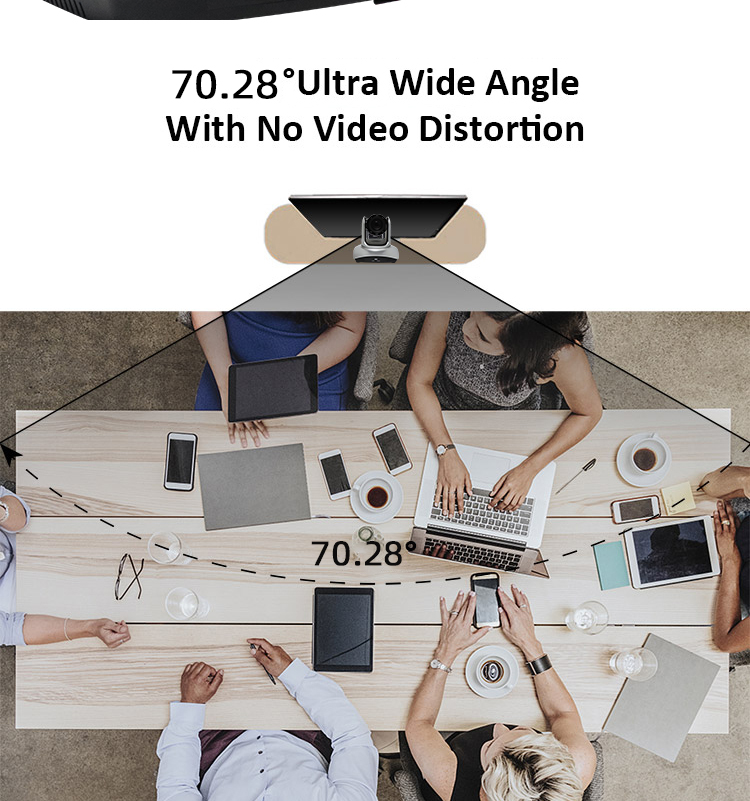

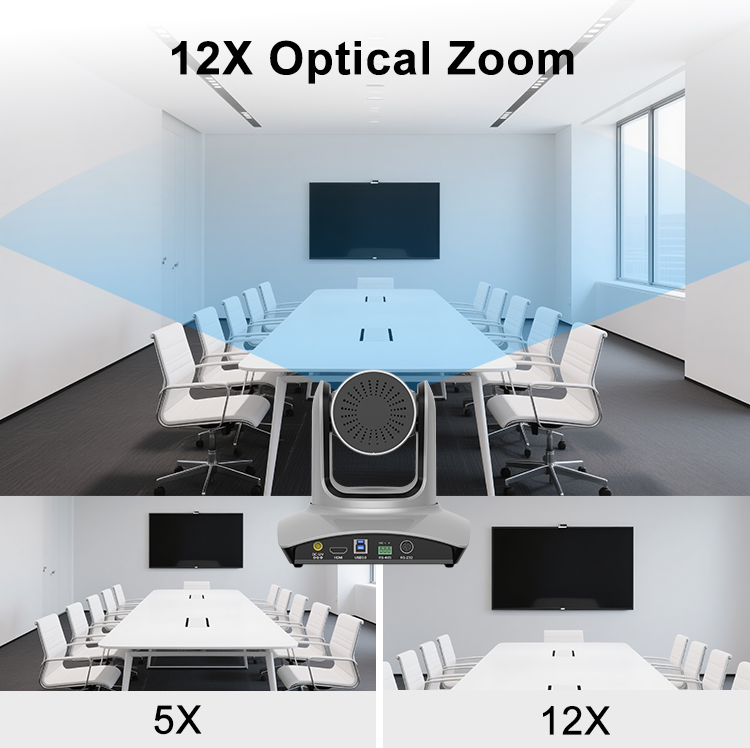

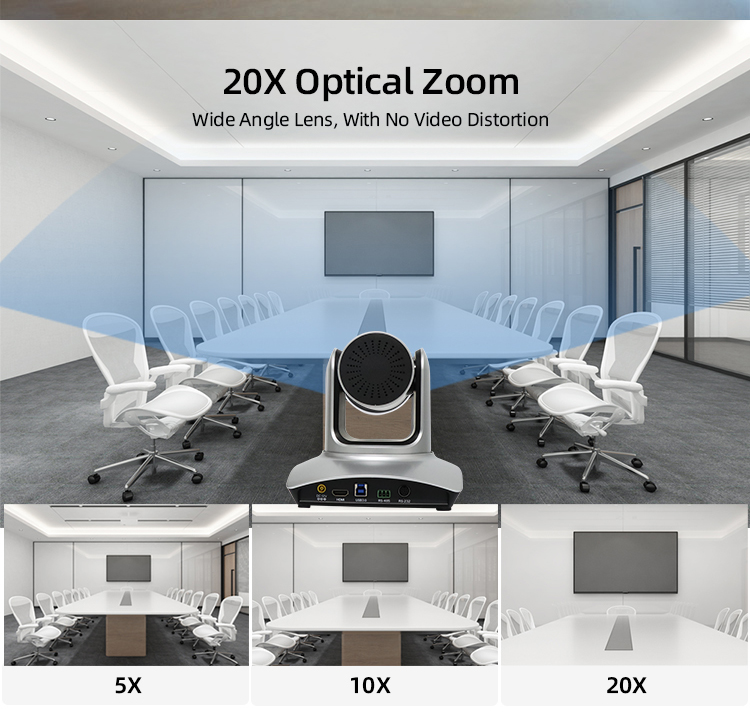

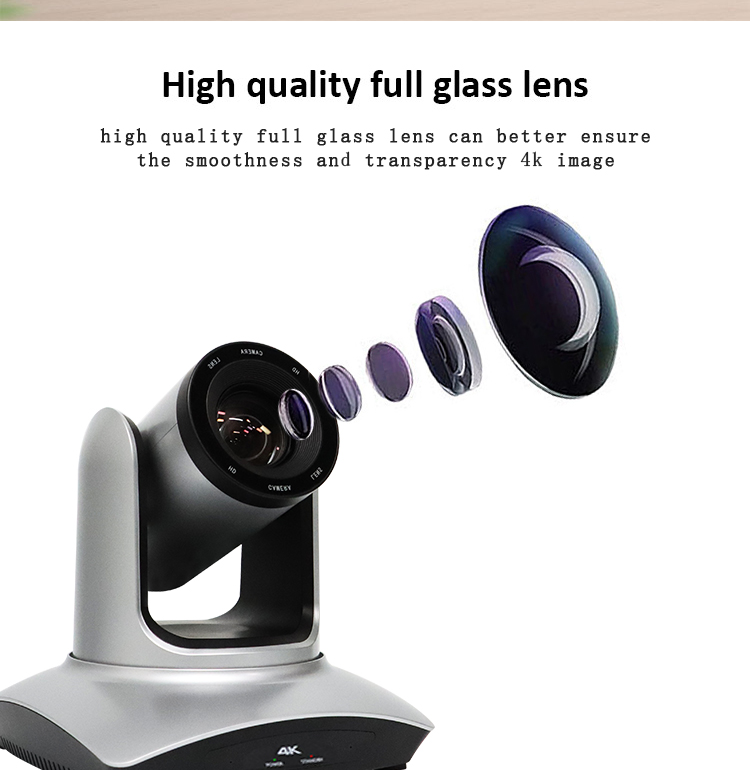

20x, 12x Optional Optical Zoom Lens:

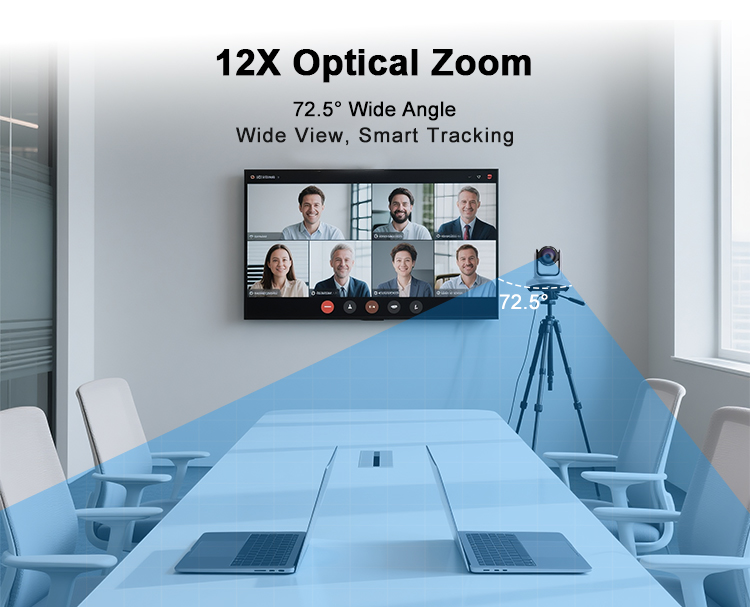

UH40MF: 72.5 degrees 12x optical zoom
UH40MH: 58.7 degrees 20x optical zoom

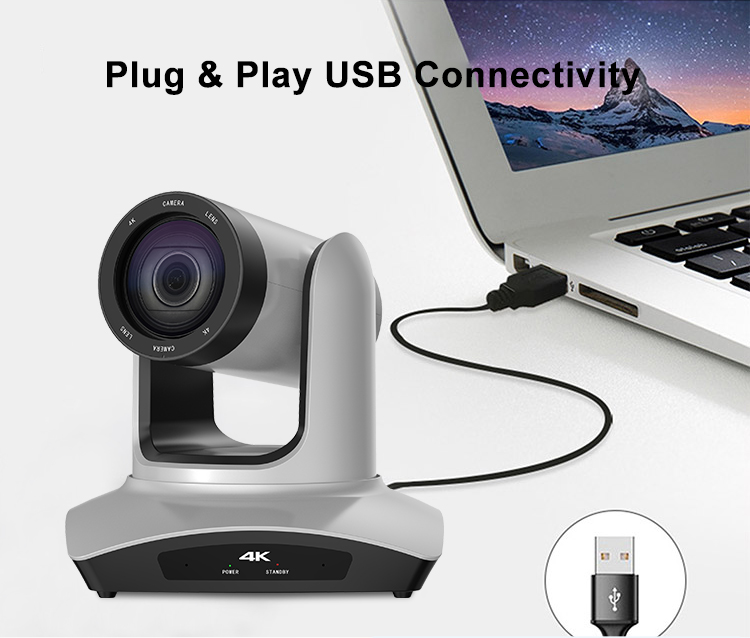

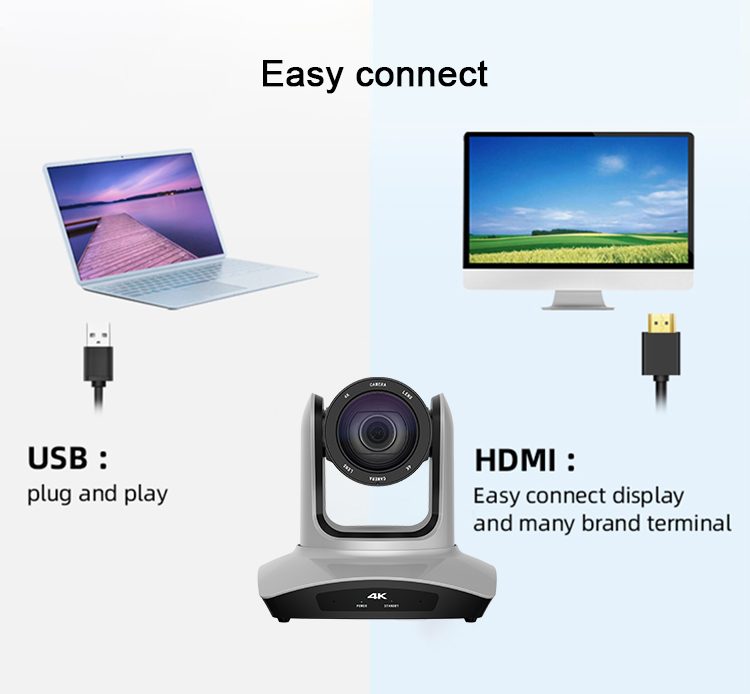

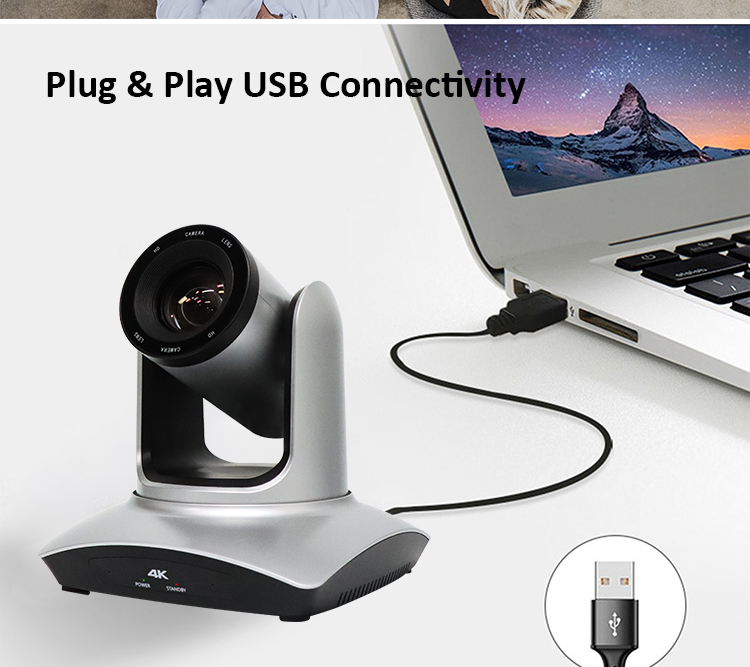

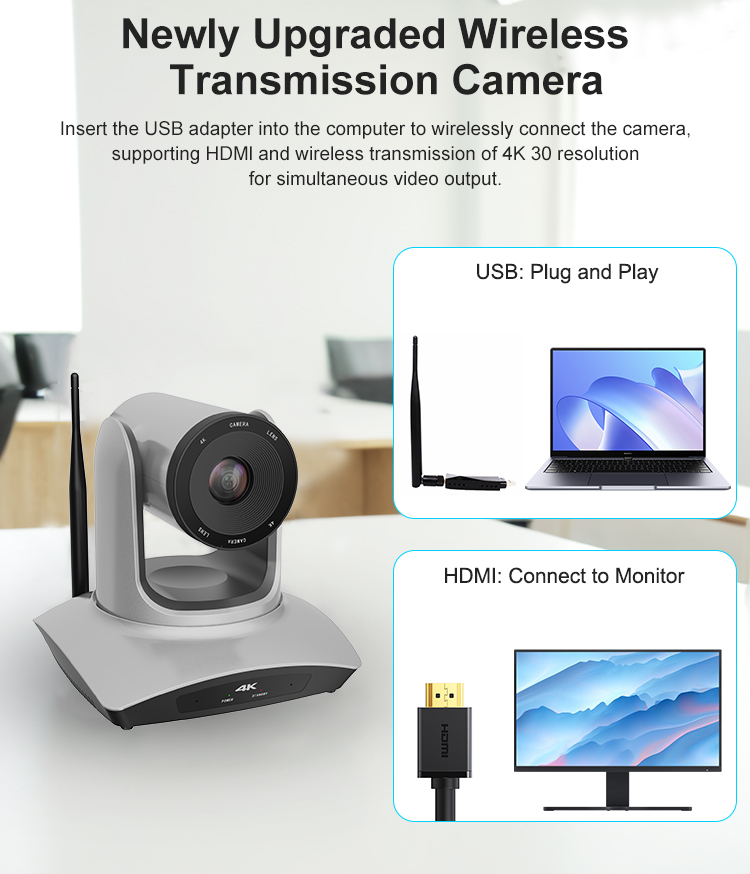

USB3.0+HDMI Dual Interfaces, Rich Application Scenarios:
Supports HDMI and USB3.0 ultra-high definition 4K simultaneous output.
Low Light:
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. At the same time, 2D & 3D digital noise reduction is applied to significantly reduce image noise. Even under ultra-low light conditions, the image can still be kept clean and clear, and the image signal-to-noise ratio is higher than 50dB.
Remote Control:
Multiple cameras can be controlled using RS232 and RS485 serial ports.
Infrared Remote Control Signal Transparent Transmission Function:
In addition to receiving its own infrared remote control signal, it can also receive signals from consumer infrared remote controls and send them to the video conferencing terminal through the VISCA port.
Multiple Video Compression Standards:
Different interfaces support multiple video compression formats such as YUY2, MJPG
Multiple Control Protocols
Supports VISCA , PELCO P/D protocols, and automatic identification protocols.
New generation intelligent AI algorithms(Next version):
Supports single person tracking and Auto Framing intelligent framing functions;

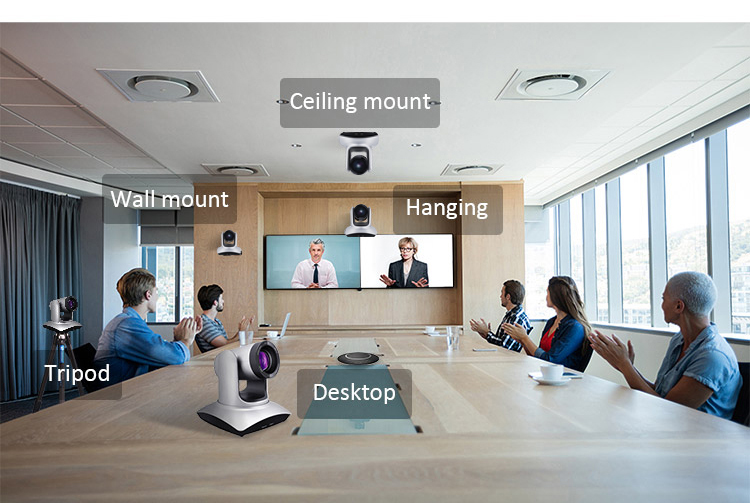

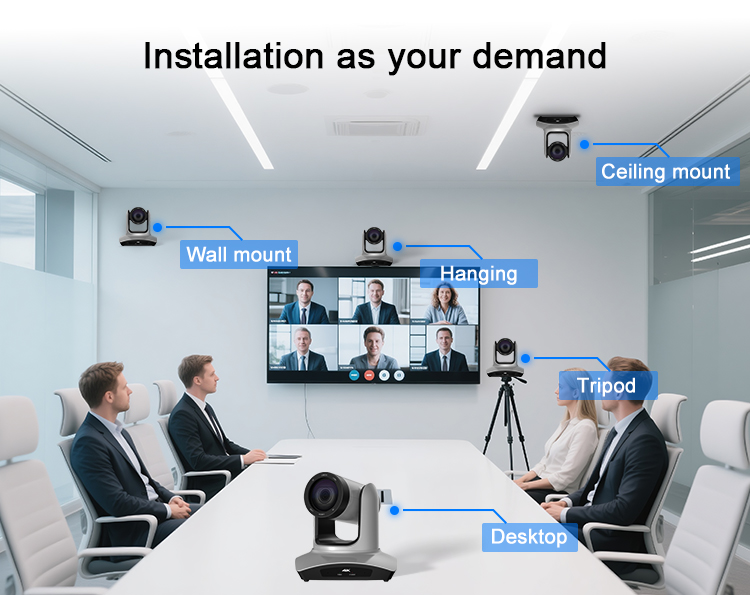

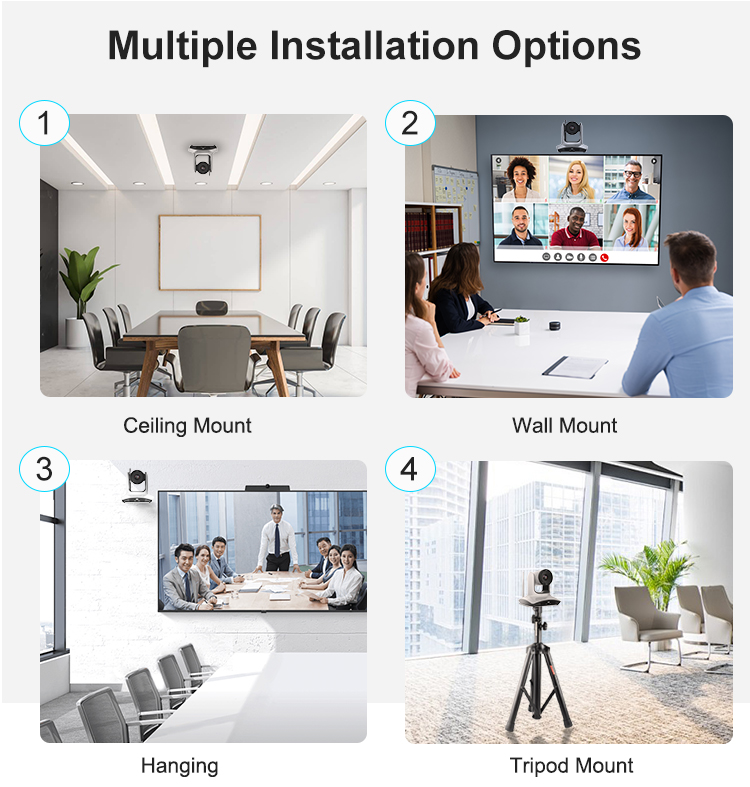

Various Installation Methods
Multiple installation methods, can be installed on desktop, ceiling, or wall.
New generation AI human tracking algorithm:
Supports AI tracking and Auto framing functions.

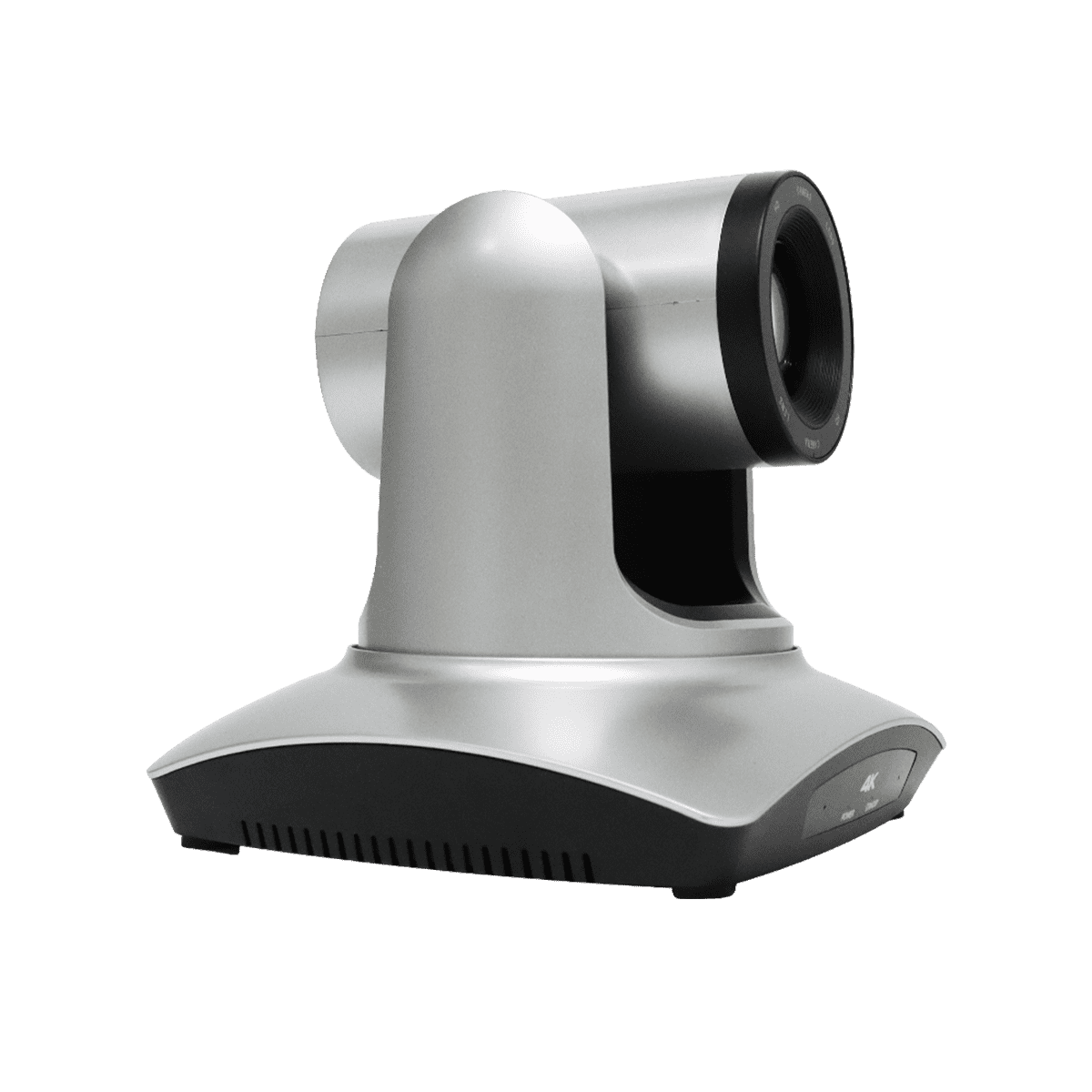

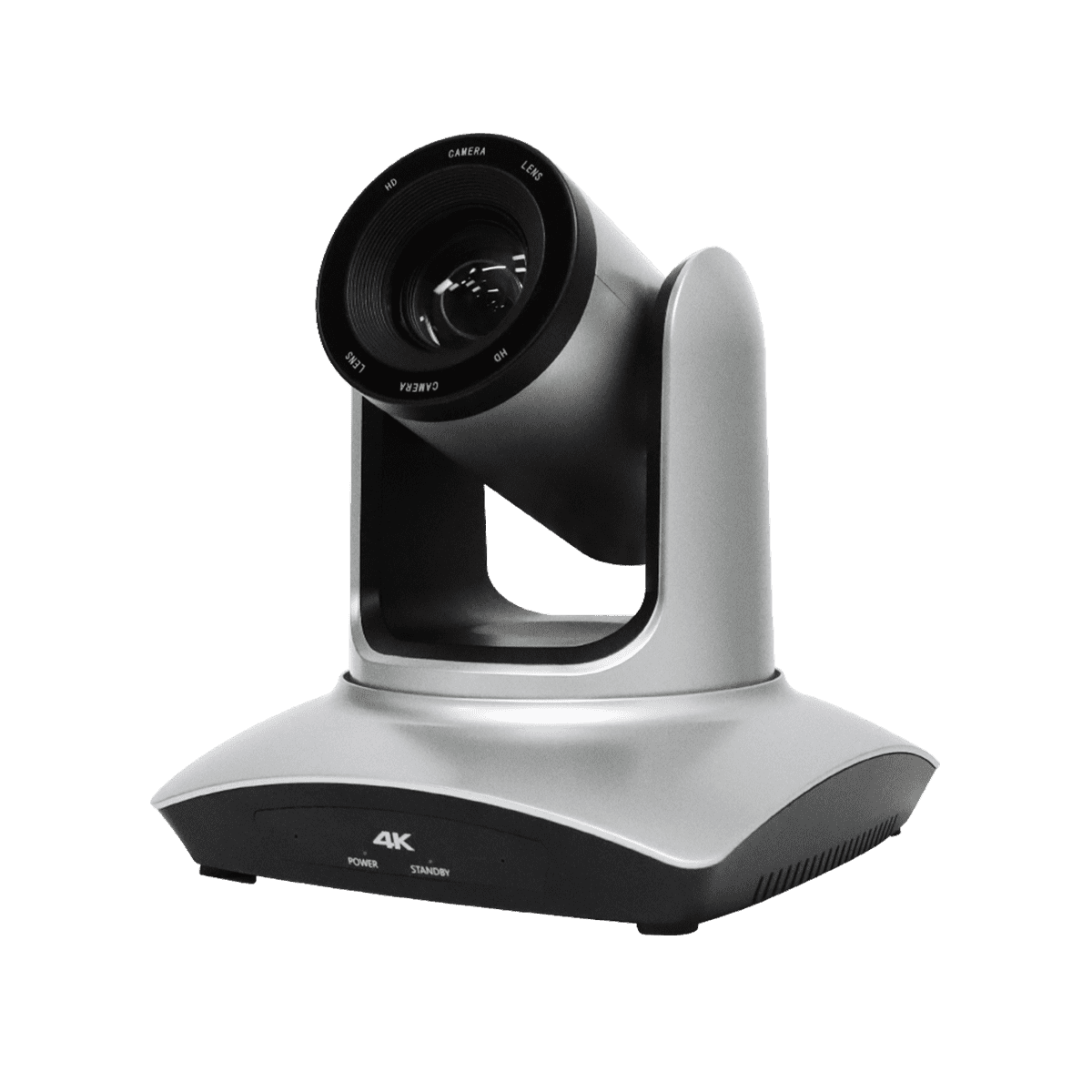

Details Images

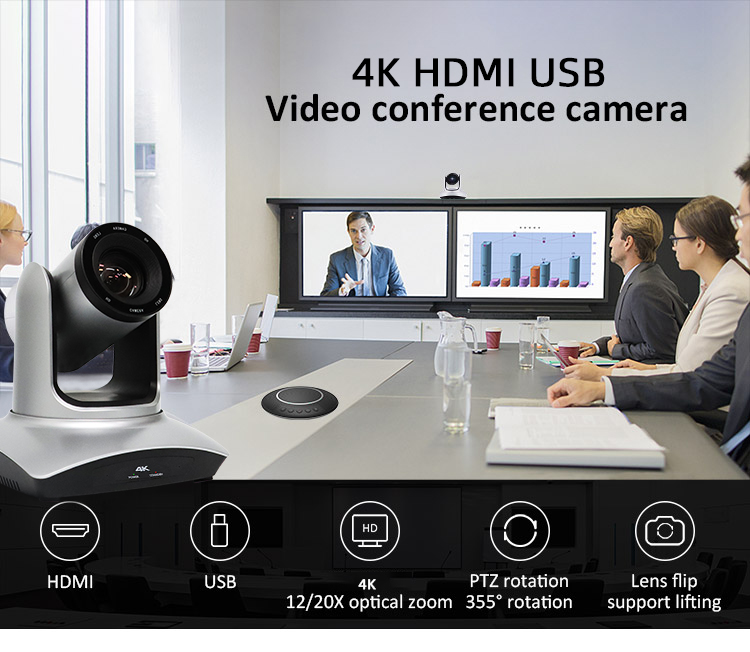

Application Field
Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,
Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.
Related Category
4K PTZ Camera,FHD PTZ Camera,NDI PTZ Camera,Webcam,Education Tracking Camera,Video Conferencing System,
Live HD Camera,Integrated Audiovisual Intelligent Endpoint,Integrated HD Camera,Speakerphone,Cam Controller,
Video Switcher,Ptz Controller,Control Panel
|

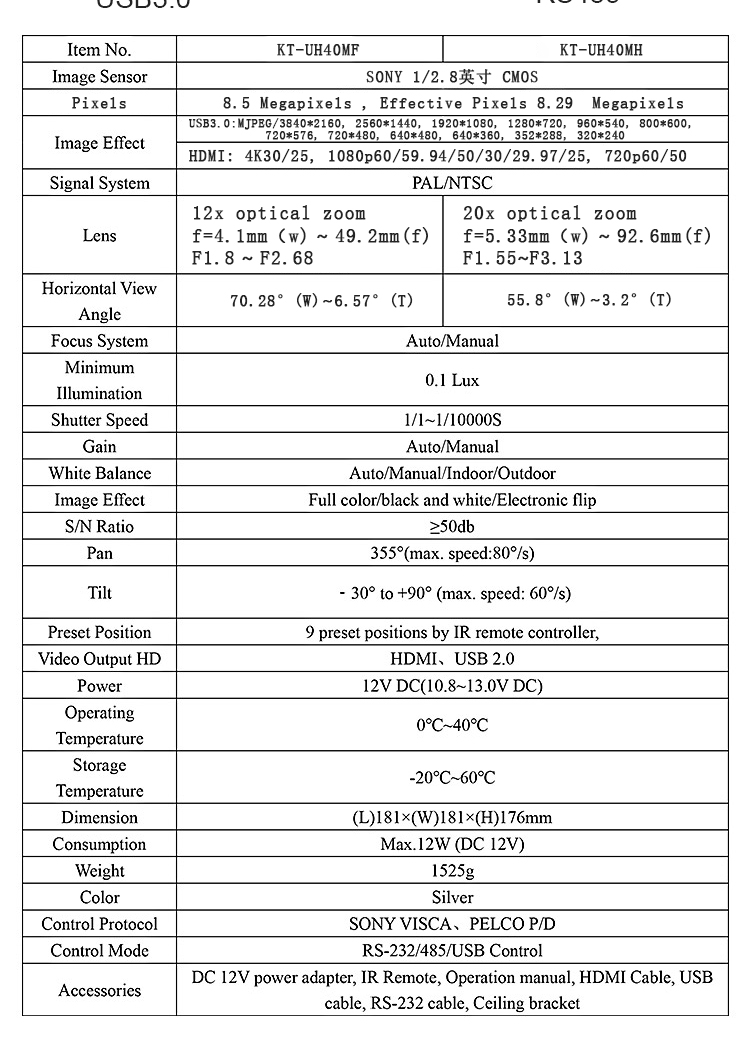

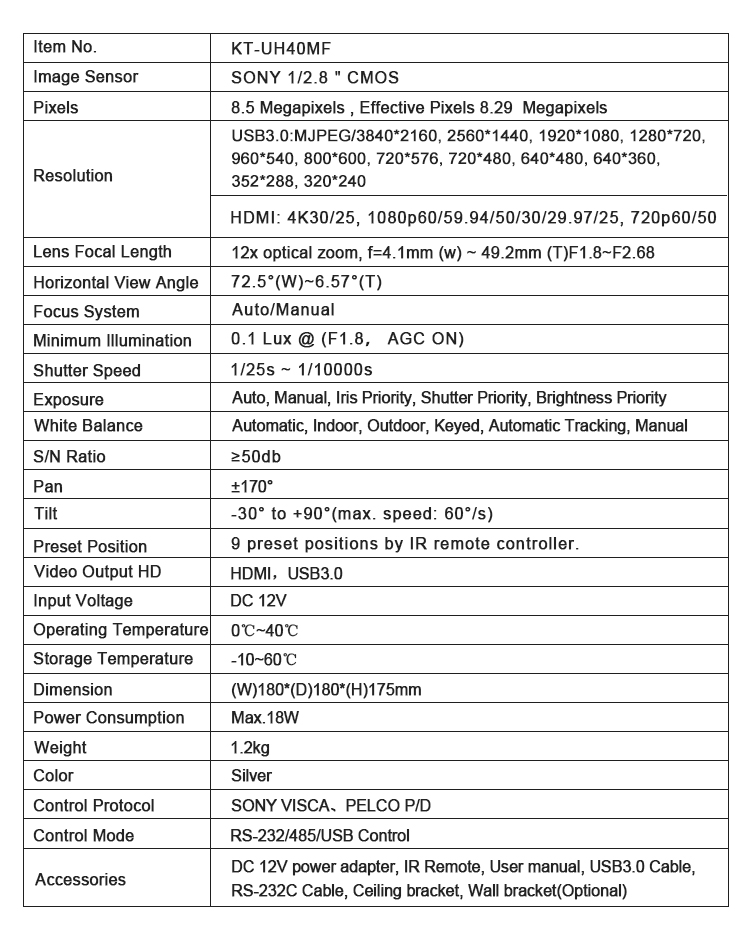

Camera |
|
|
Video Format |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8 " CMOS |
|
Pixels |
8.5 Megapixels , Effective Pixels 8.29 Megapixels |
|
Scanning Method |
Line by Line |
|
Lens Focal Length |
UH40MF: 12x optical zoom, f=4.1mm (wide angle) ~ 49.2mm (narrow angle)F1.8~F2.68 UH40MH: 20x optical zoom, f=5.33mm (wide angle) ~ 92.6mm (narrow angle) F1.55~F3.13 |
|
Horizontal Field of View |
UH40MF：72.5°(W)~6.57°(T) UH40MH：58.7°(W)~3.2°(T) |
|
Vertical Field of View |
UH40MF：42.06°(W)~3.76°(T) UH40MH：32.2°(W)~1.8°(T) |
|
Focus Method |
Automatic / Manual |
|
Shutter |
1/25s ~ 1/10000s |
|
Minimum Illumination |
0.1 Lux @ (F1.8， AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness Priority |
|
White Balance |
Automatic, Indoor, Outdoor, Keyed, Automatic Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
Signal-to-Noise Ratio |
≥50dB |
|

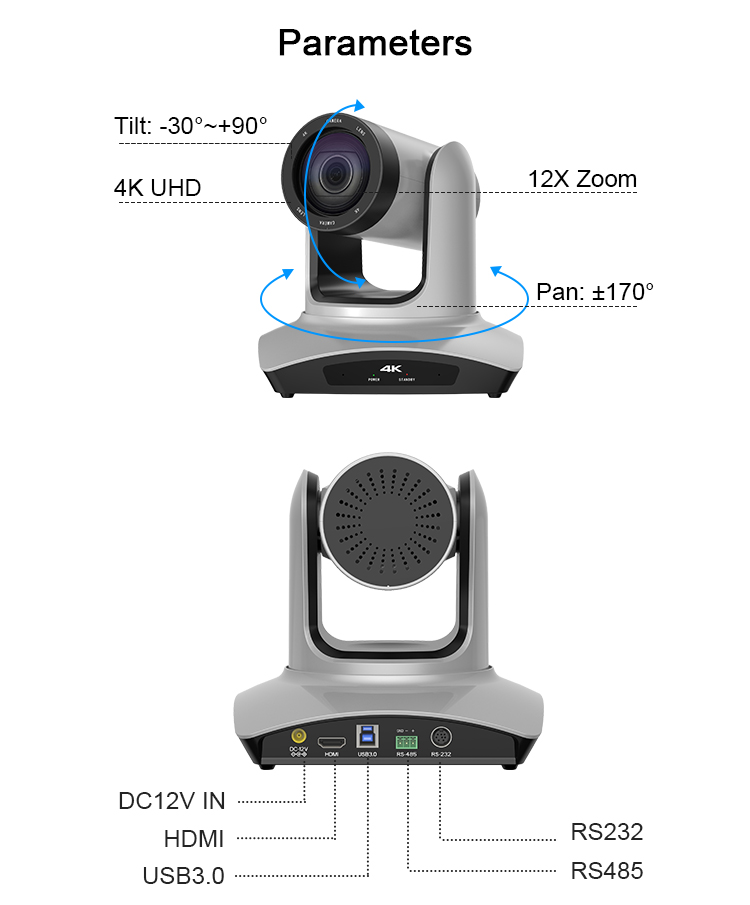

Pan/Tilt |
|
|
Pan Range |
±168° |
|
Tilt Range |
-30°~+90° |
|
Pan Speed |
1°~60°/s |
|
Tilt Speed |
1°~60°/s |
|
Number of Preset Positions |
The remote control can be set to 9, and the keyboard can be set to up to 255 preset positions. |
|
Preset Position Accuracy |
0.1°±10% |
|
Flip |
Support |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Encoding Format |
YUY2, MJPEG |
|
Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Video Frame Rate |
Up to 30 |
|
UVC PTZ control |
Support |
|

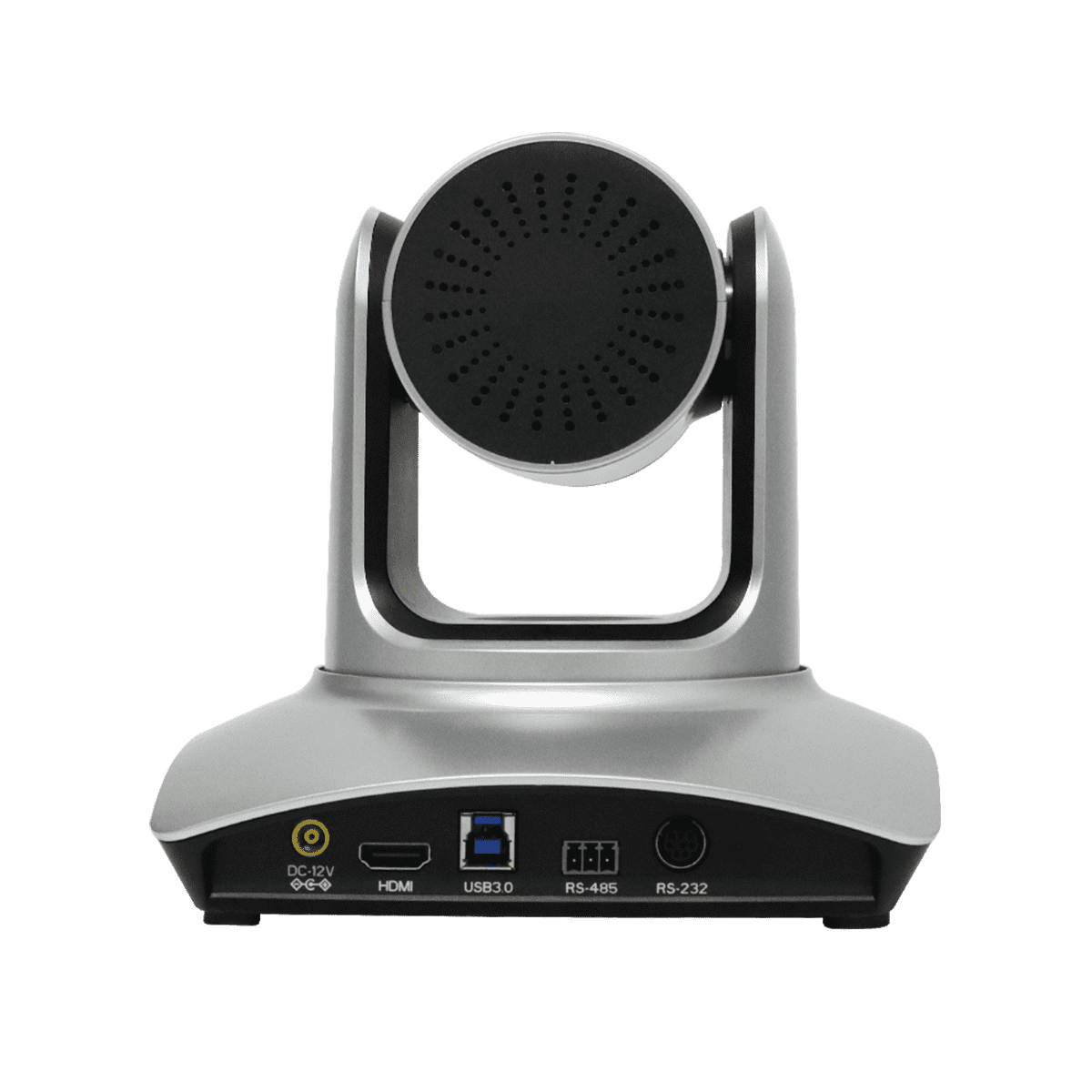

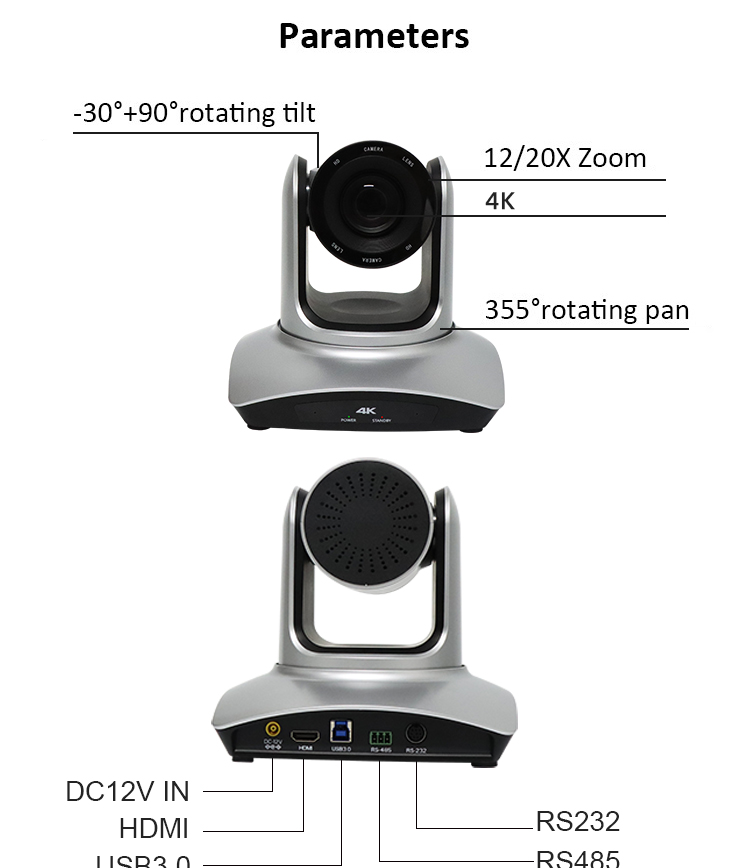

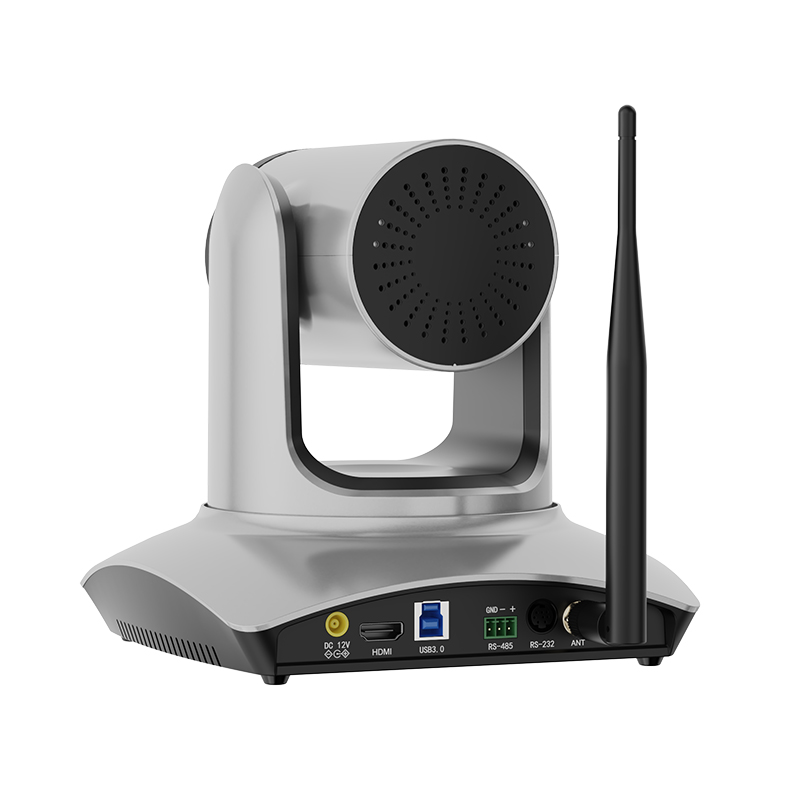

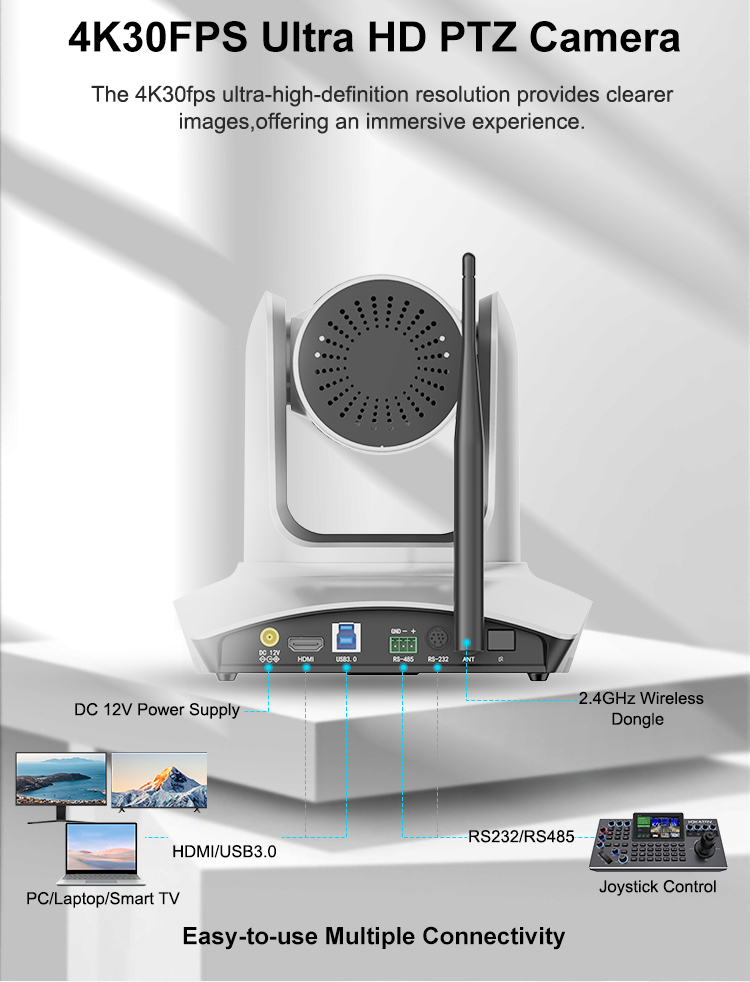

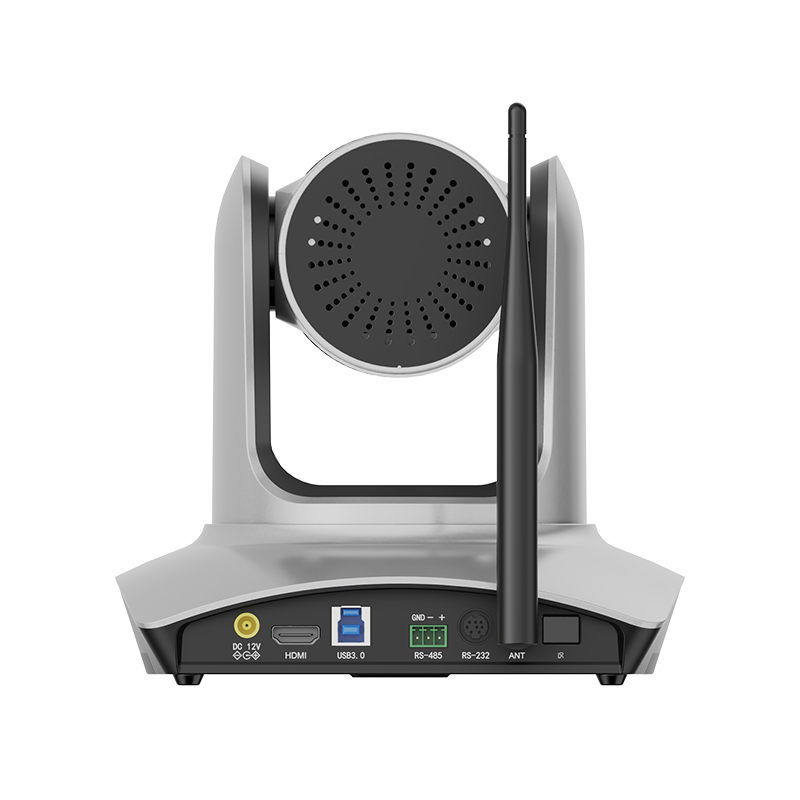

Input and Output Interface |
|
|
HDMI Interface |
1 way, HDMI: version 1.4 |
|
USB Interface |
1 way, USB3.0, Type-B socket |
|
Communication Interface |
1 channel, RS232 IN: 8-pin small DIN, maximum distance 30 meters, VISCA/Pelco-D/Pelco-P protocol 1 channel, RS485 IN: 3-core Phoenix port, maximum distance 1200 meters, VISCA/Pelco-D/Pelco-P protocol |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
Others |
|
|
Input voltage |
DC 12V |
|
Input Current |
Maximum 0.8A |
|
Power consumption |
Maximum 10W |
|
Operating Temperature |
0~40℃ |
|
Stored Temperature |
-10~60℃ |
|
Color |
Silver |
|
Size |
(width) 180* (depth) 180* (height) 175mm |
|
Weight |
1.2kg |
|

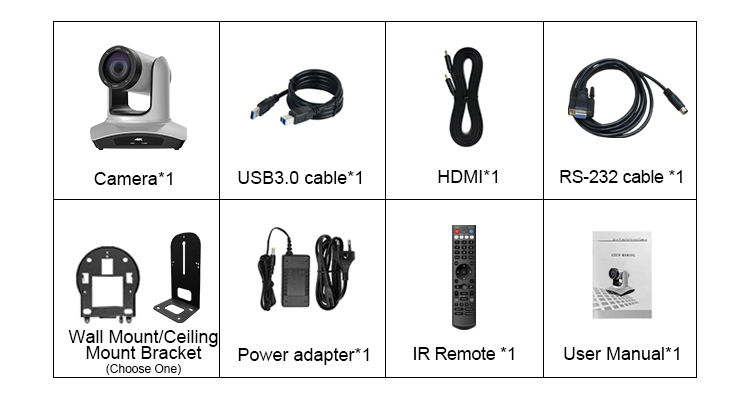

Accessories |
DC12V power adapter, IR remote control, operating instructions, USB3.0 video cable, RS-232 serial cable, bracket |
