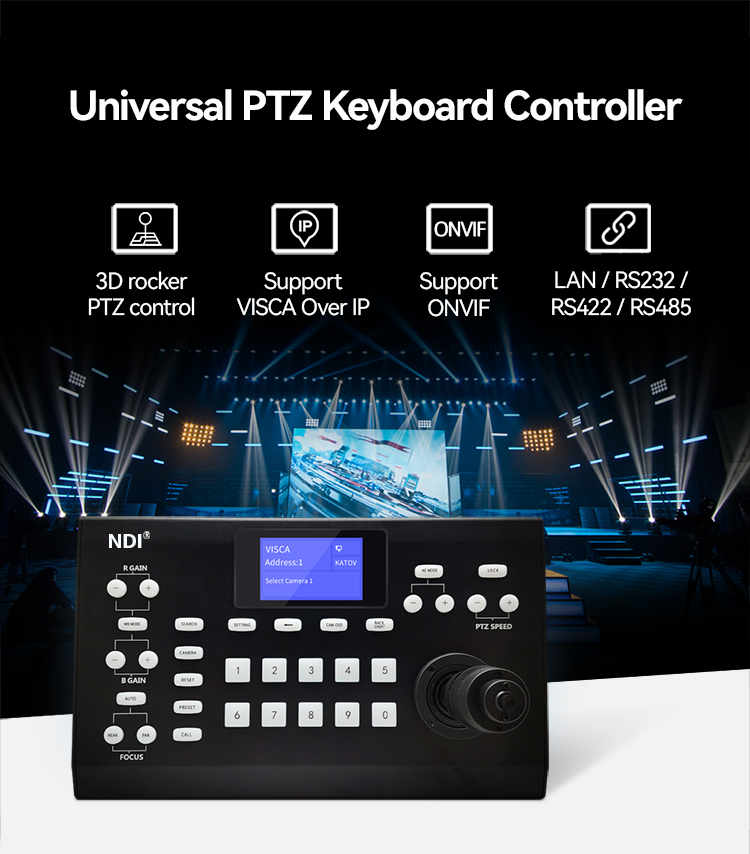

Features

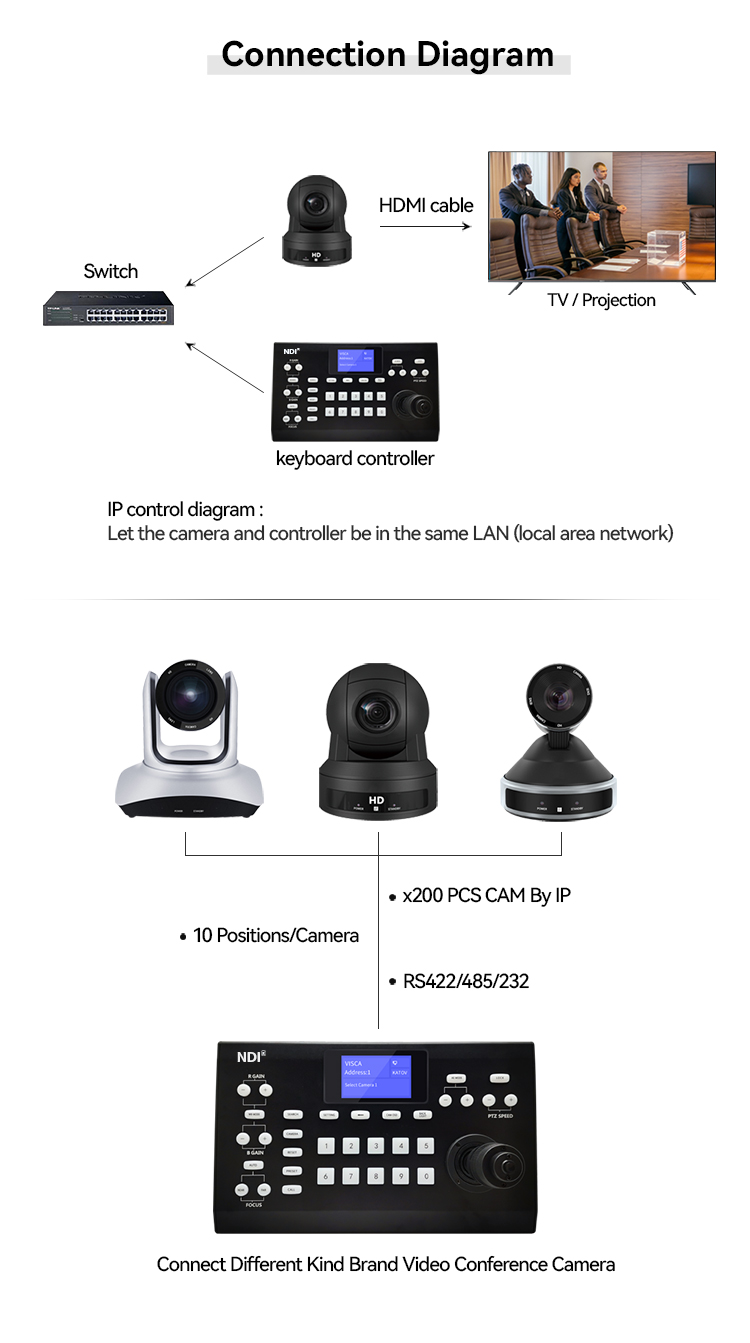

1.Support multiple connection methods: LAN/RS232/RS422/RS485 at the same time.
2.Network protocol support VISCA Over IP, ONVIF, NDI.
3.Serial port protocol support VISCA, Pelco D, Pelco P.
4.Support multiple baud rates: 2400, 4800, 9600, 19200, 38400, 115200.
5.VISCA protocol supports automatic address allocation and can display the number of cascaded cameras in serial connection.

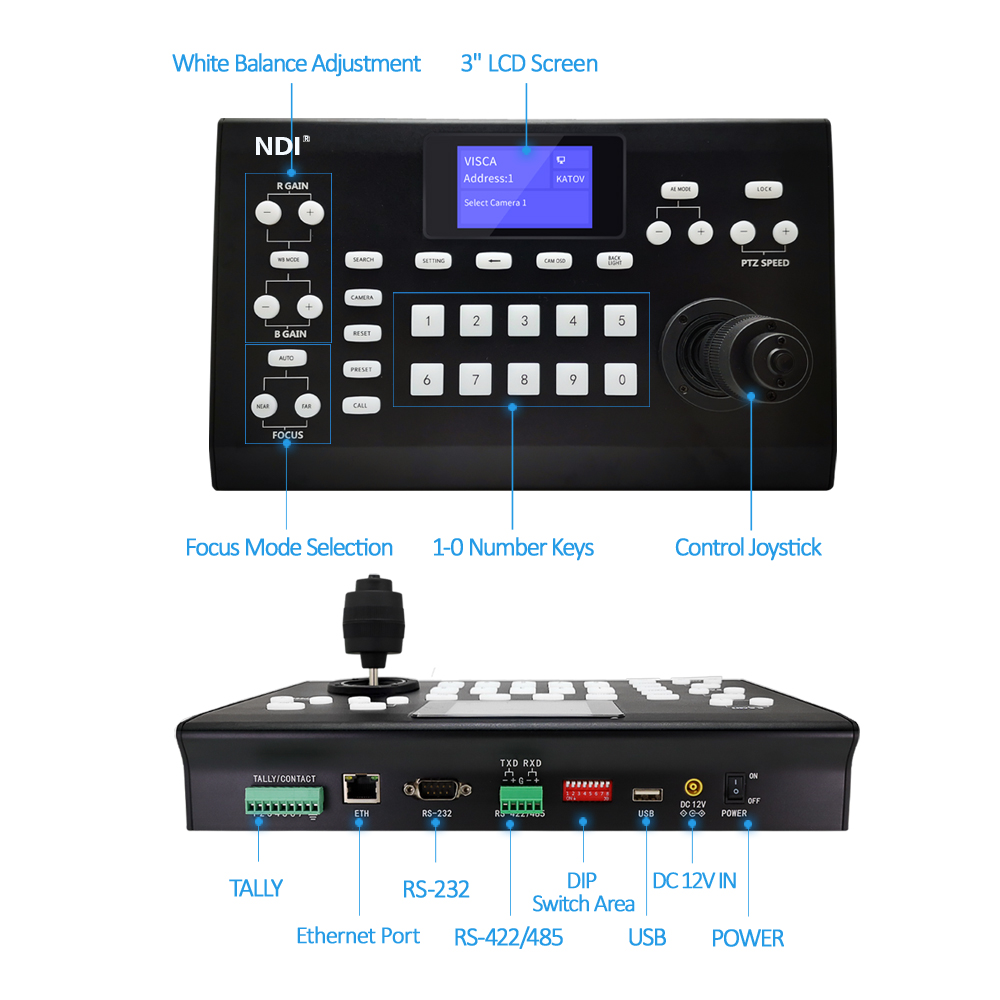

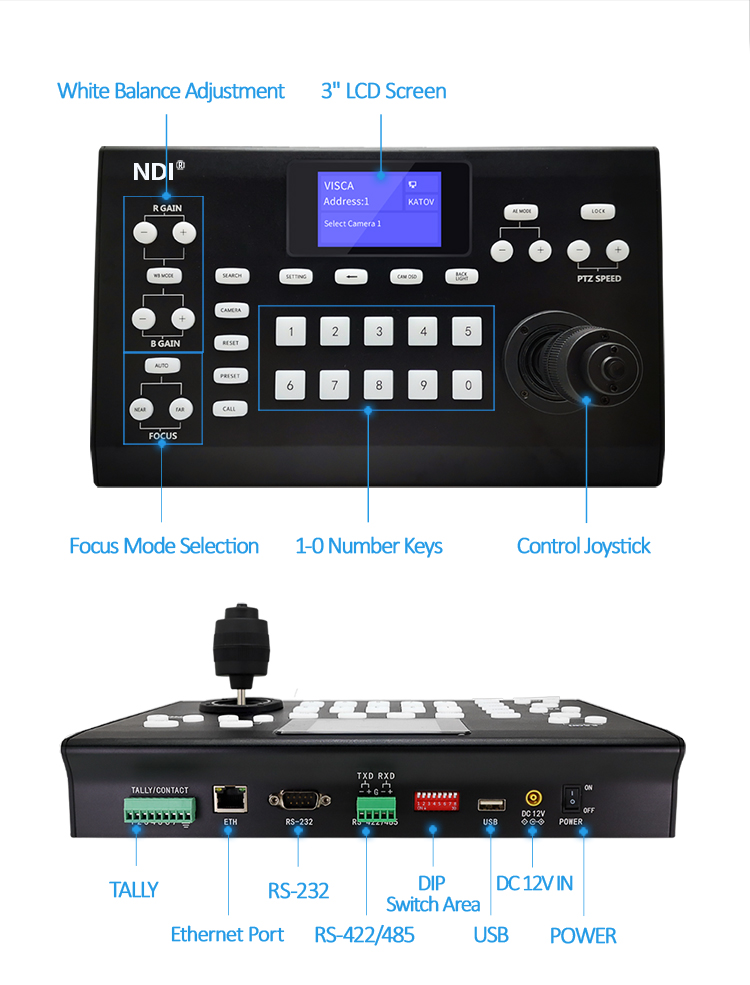

6.Quickly control the camera focus, exposure, WBC, backlight compensation and other functions through panel buttons.

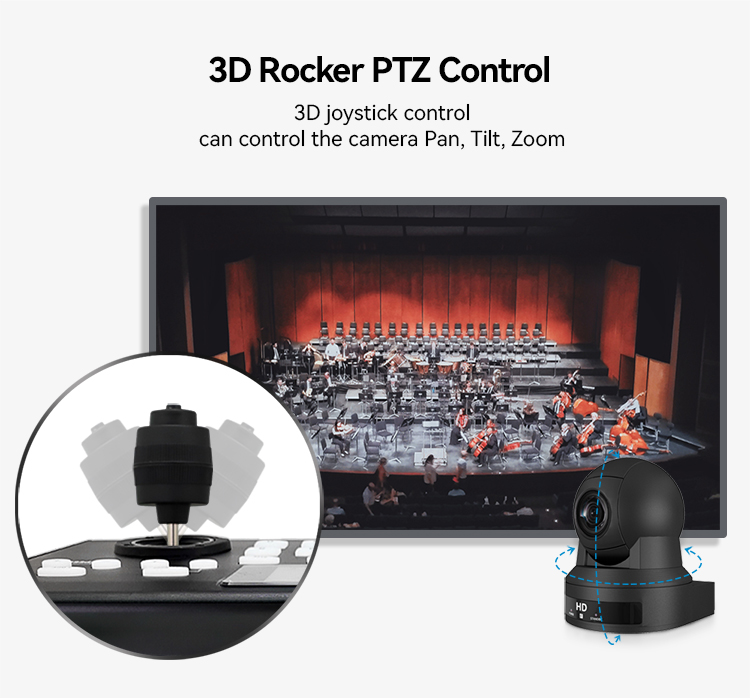

7.Integrated 3D joystick, can control the camera : Pan, Tilt, Zoom.
8.Integrated 3” LCD screen to visually display the current status.
9.Integrated Tally interface.
|
Main Parameters |
|
|
Input And Output |

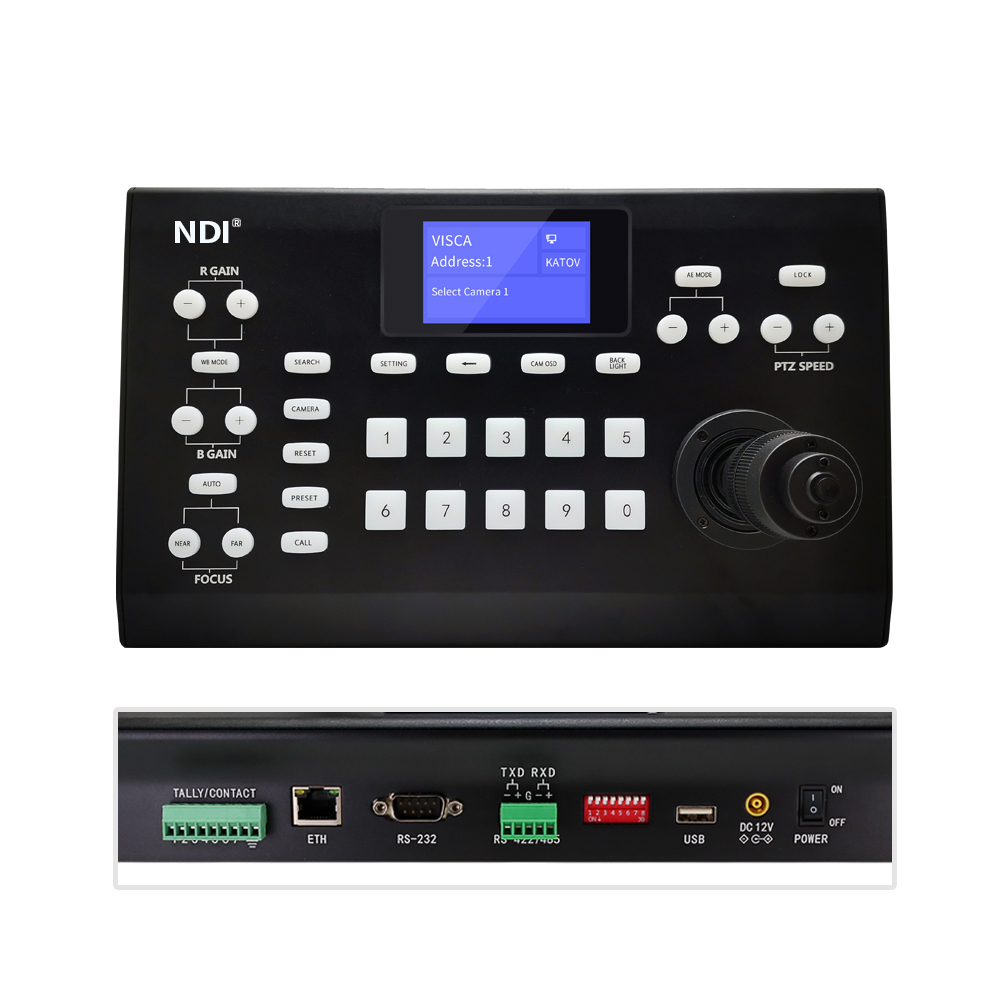

RS-232: DB9 x1 RS422: 5pin x1 LAN: RJ45 x1 |
|
Serial Port Baud Rate |
2400/4800/9600/19200/38400/115200(Apply to RS-232/RS-422) |
|
Monitor |
3 inch LCD, support Chinese and English display |
|
Speed Control |
Buttons control(corresponding to PTZ, zoom) |
|
3D Joystick |
Yes, support PTZ control |
|
Camera Control |
|
|
Maximum Control Quantity |
IP：255, VISCA：7, Pelco P/D：255 |
|
Control Protocol |
IP：Visca Over IP, Onvif, NDI(Optional) RS-232/RS-422/485：Visca, Pelco P/D |
|
Exposure Mode Selection |
Support |
|
Aperture Value Adjustment |
Support |
|
Brightness Value Adjustment |
Support |
|
Shutter Speed Adjustment |
Support |
|
Backlight Compensation switch |
Support |
|
White Balance Mode Selection |
Support |
|
R, B Gain Adjustment |
Support |
|
Focus Mode Selection |
Support |
|
Manual Focus |
Support |
|
General Indicators |
|
|
Input Voltage |
DC 12V (10.8V~13.2V),POE（IP） |
|
Power Consumption |
2W |
|
Operating Temperature |
0°C~40°C,（32°F~104°F） |
|
Storage Temperature |
-20°C~60°C,（-4°F~140°F） |
|
Size |
296mm x 180mm x 115mm |
|
Weight |
1.5kg |
|

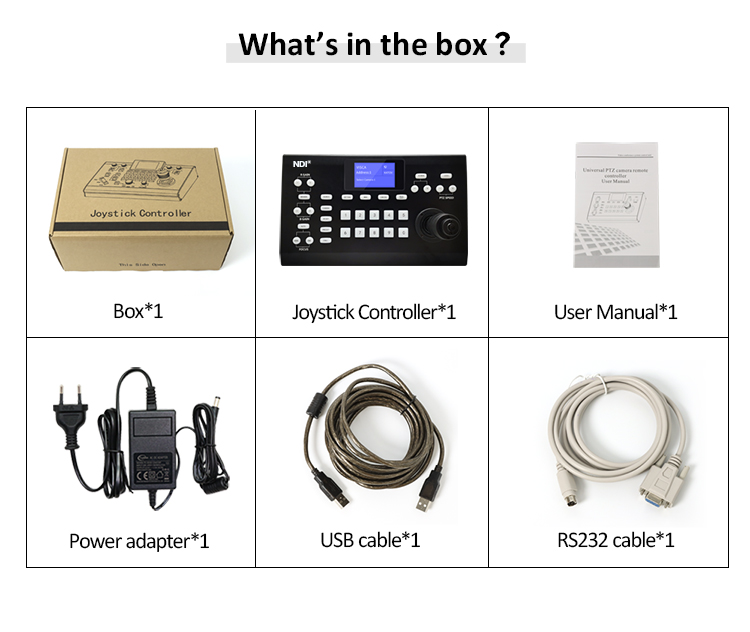

Standard Accessories |
Power Adapter（110V AC~220V AC to 12V DC) x1,RS232 cable x1,user manualx1, USB2.0 Connection cable |
