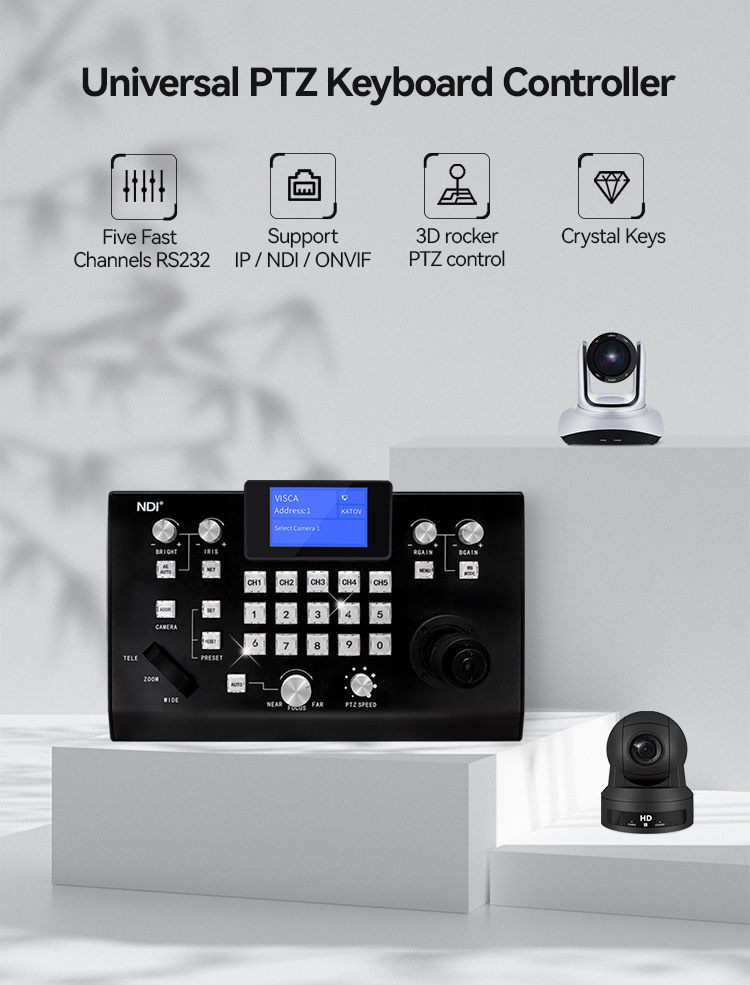

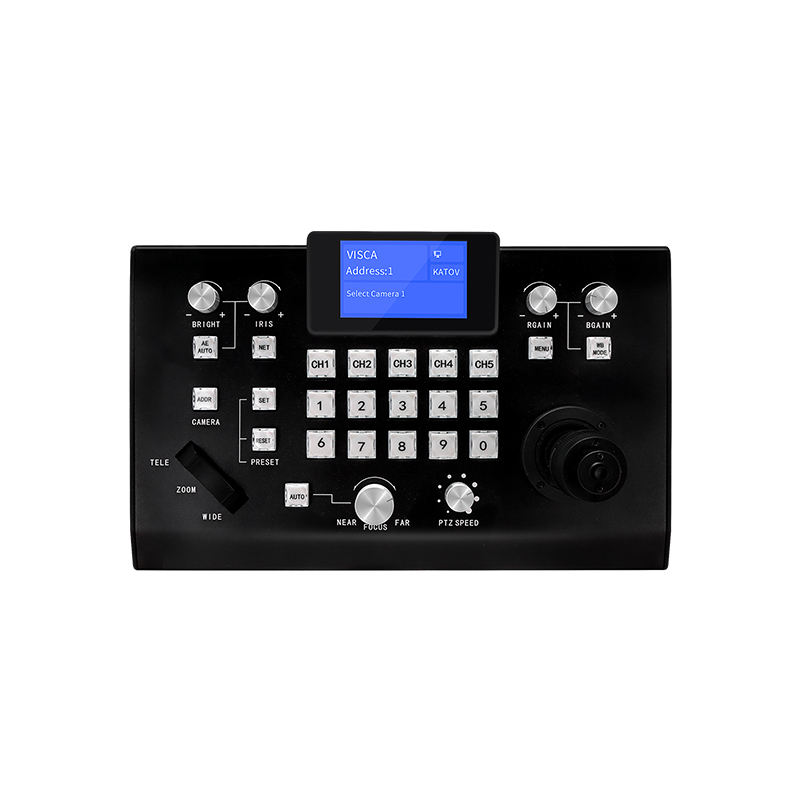

KT-510C
Download
Features

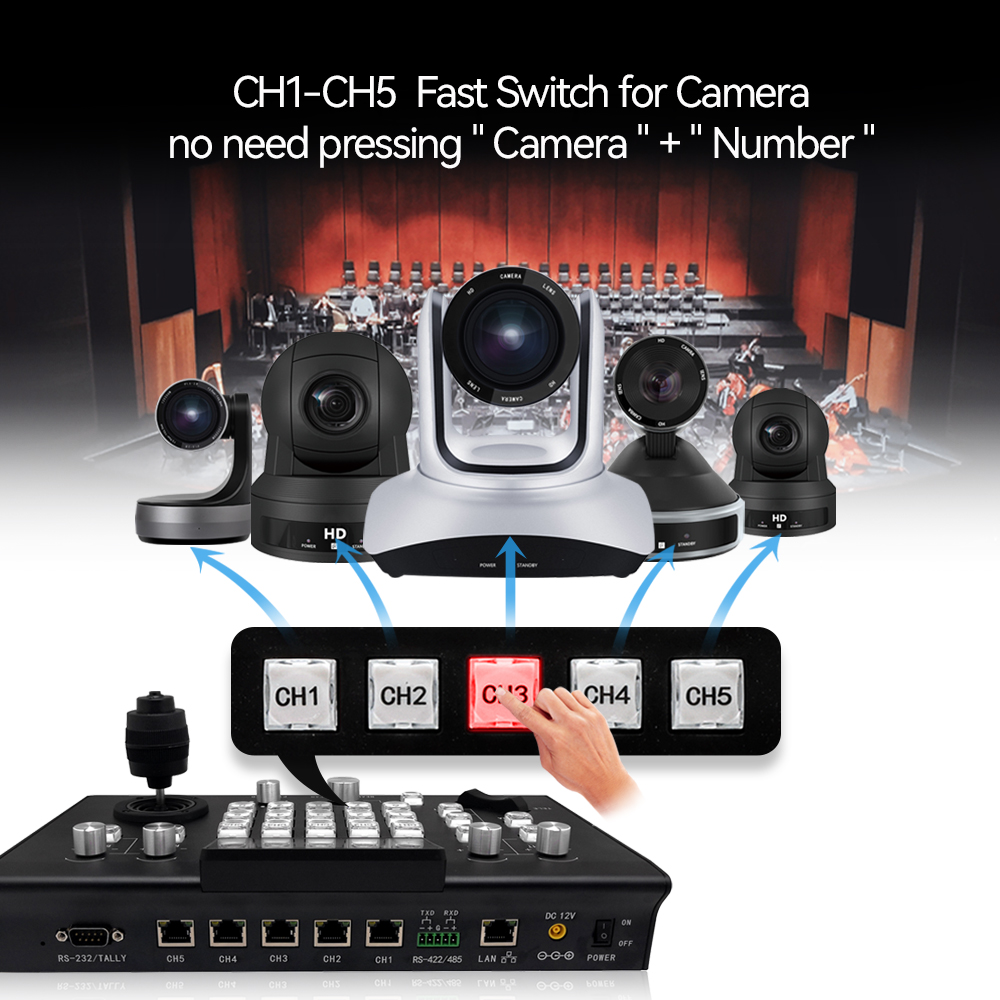

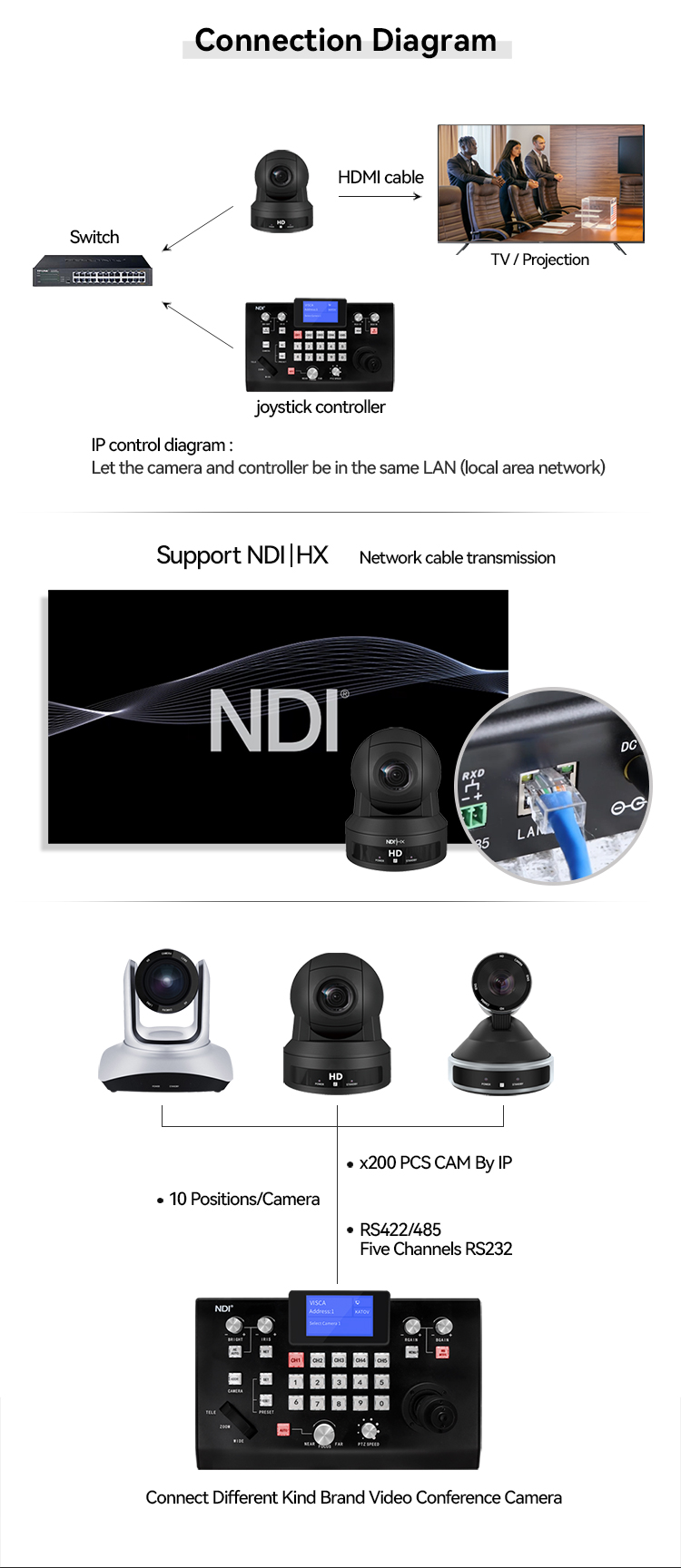

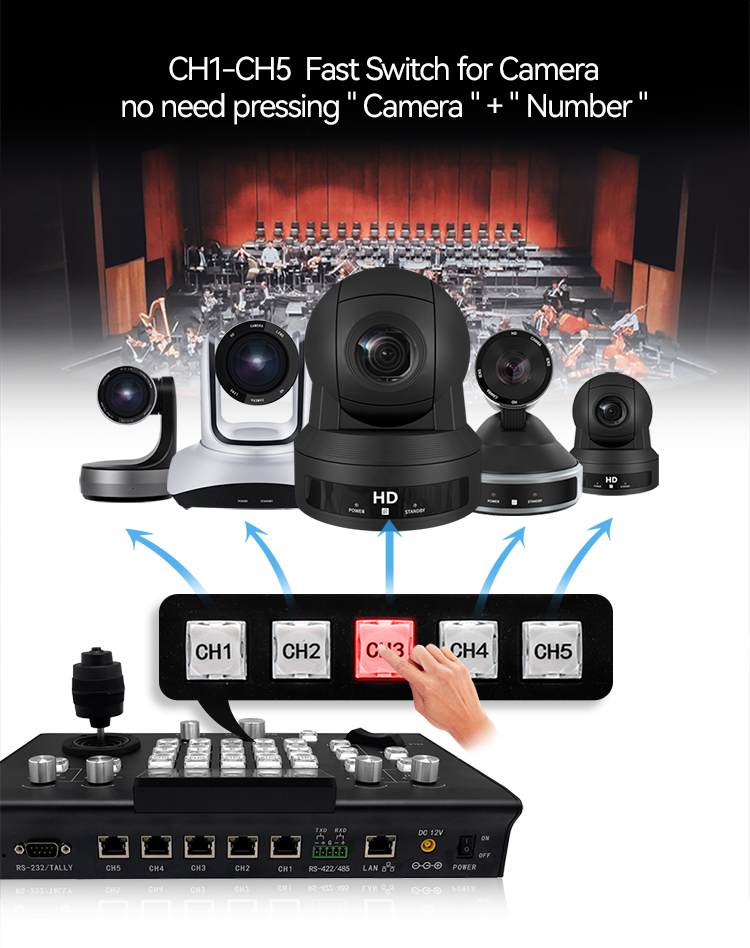

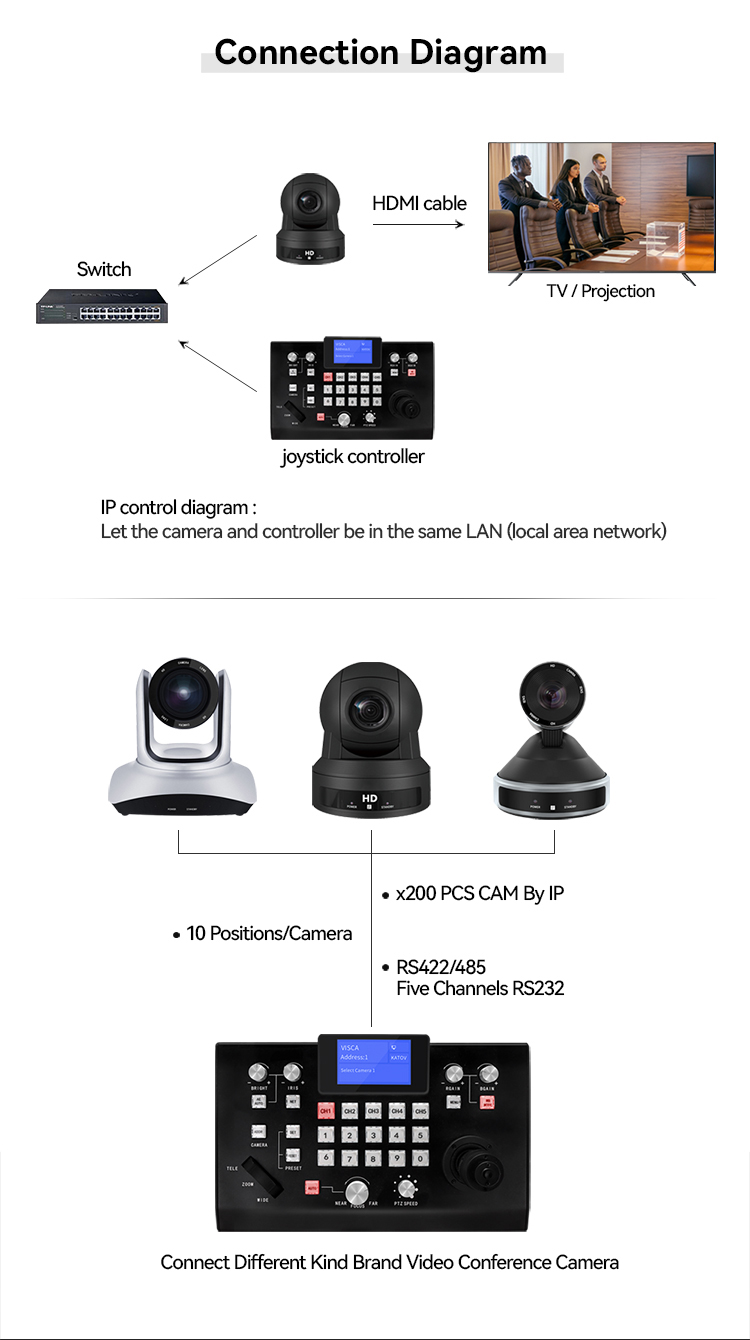

5 channels RS232, 5 channels IP shortcut, fast camera selection, support multiple connection methods: LAN / RS232 / RS422 / RS485 at the same time.

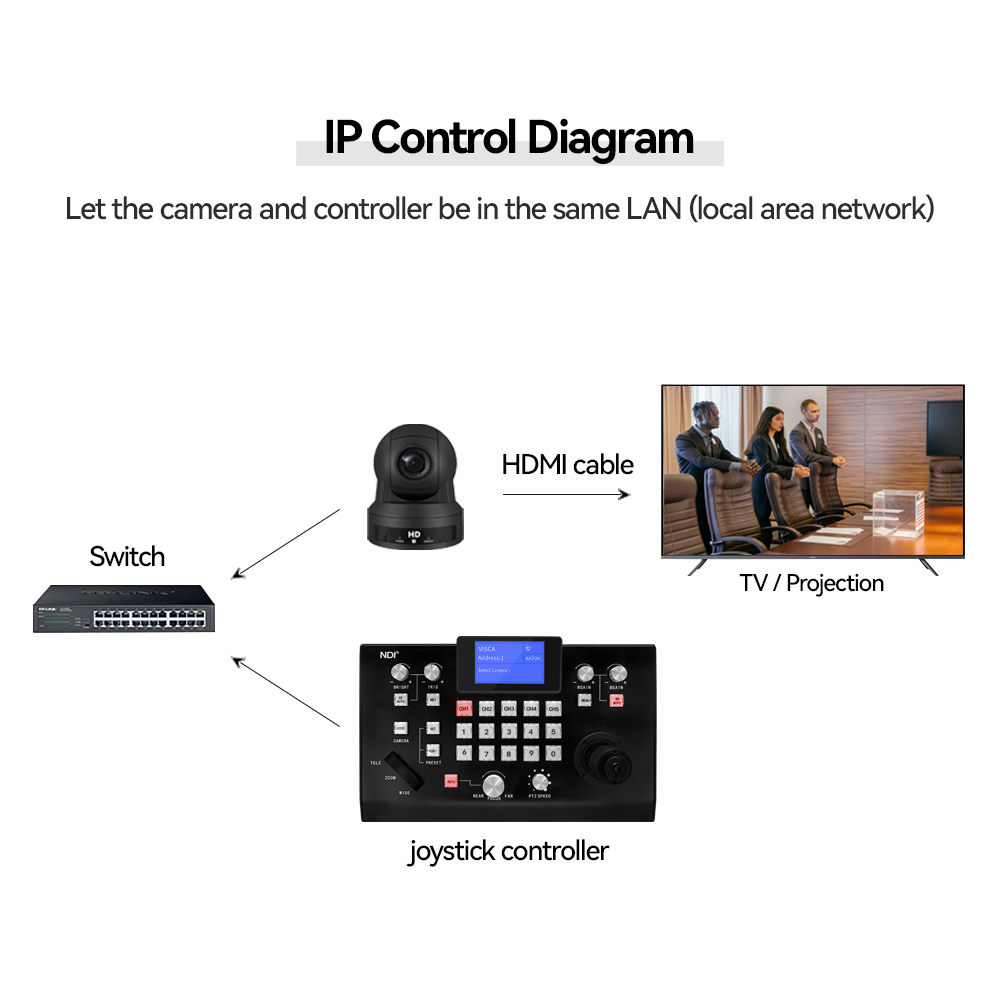

Network protocol support VISCA Over IP, ONVIF(NDI optional).
Serial port protocol support VISCA, Pelco D, Pelco P.
Support multiple baud rates: 2400, 4800, 9600, 19200, 38400, 115200.
VISCA protocol supports automatic address allocation and can display the number of cascade cameras.
Quickly control the camera focus, exposure, white balance, backlight compensation and other functions by professional broadcast knobs.

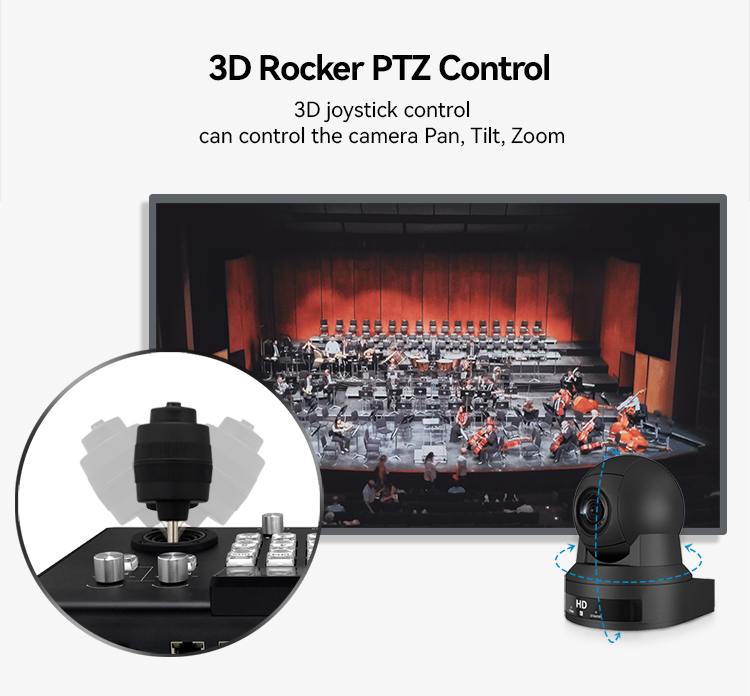

Integrated 3D joystick, can control the camera: Pan, Tilt, Zoom.

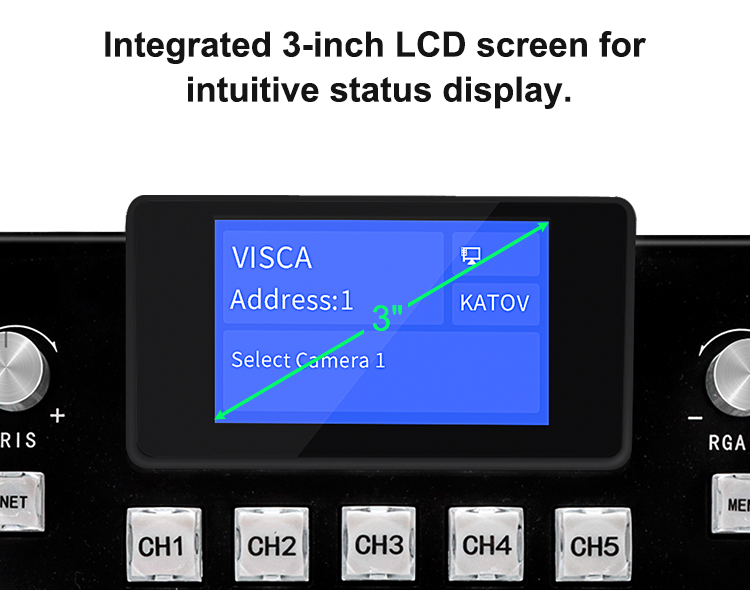

Integrated 3” LCD screen to visually display the current status.
Integrated Tally interface.
|
Main Parameters |
|
|

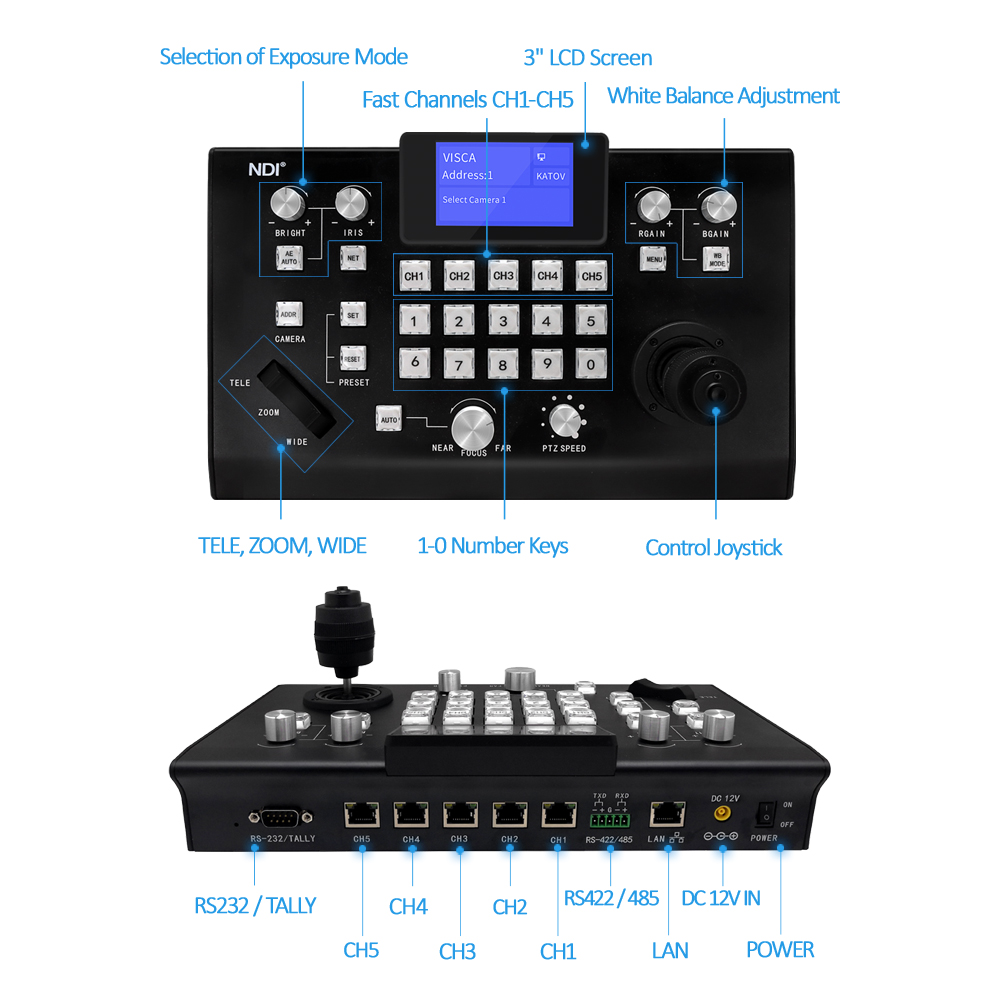

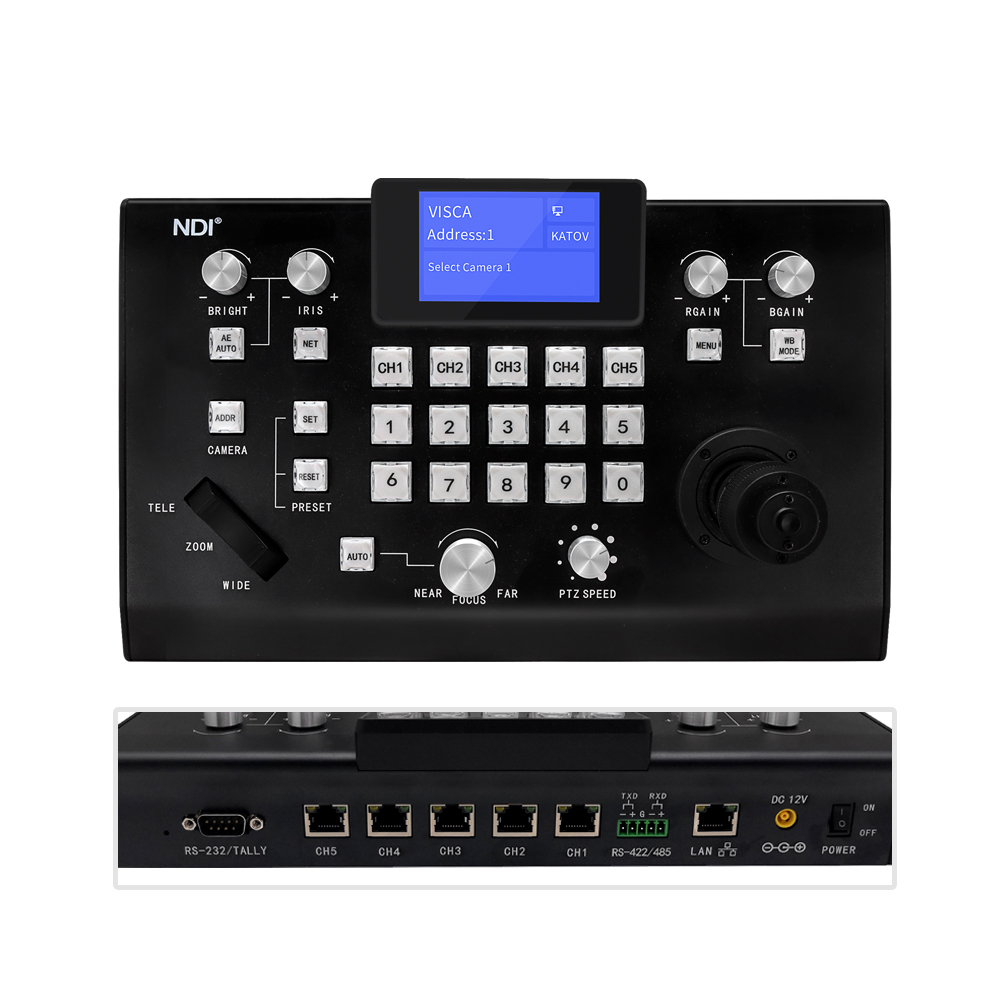

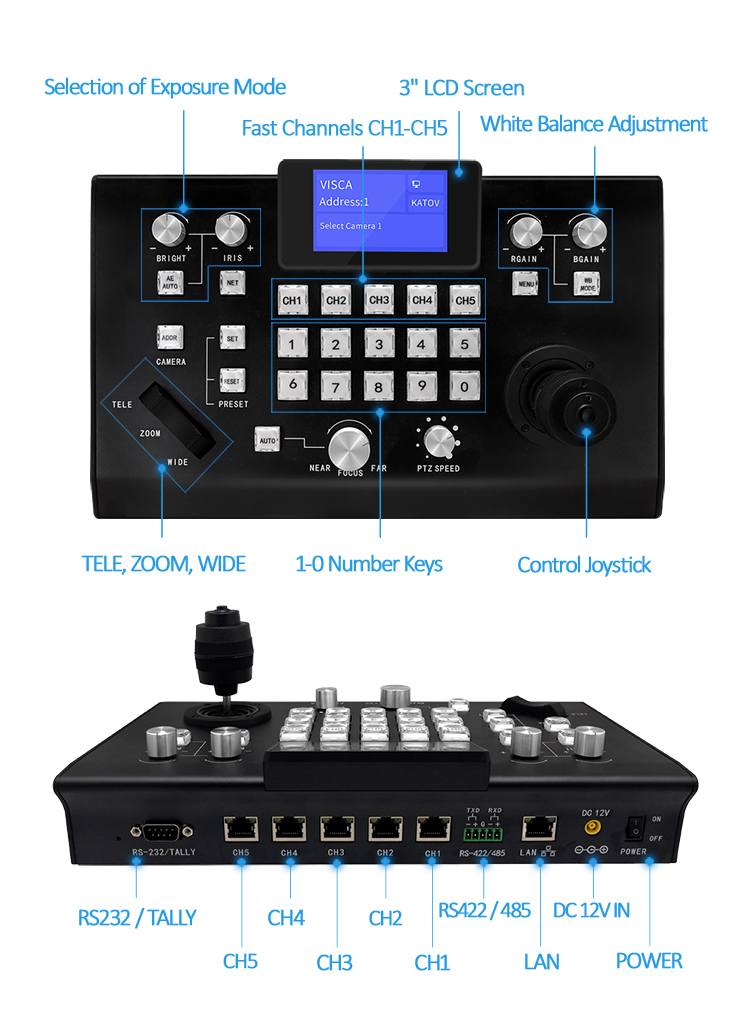

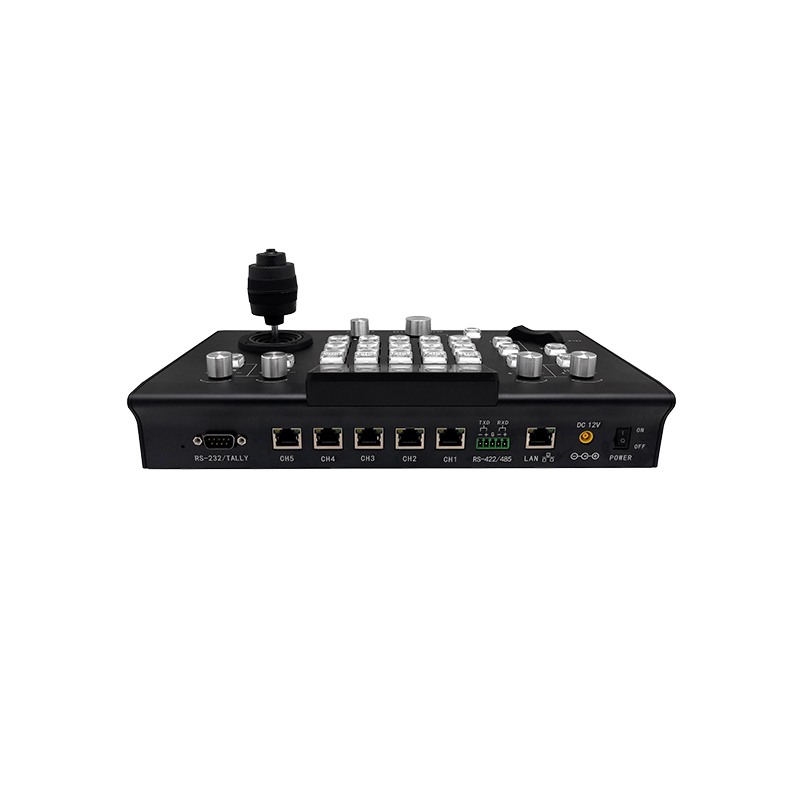

Input And Output |
RS232/485: RJ45 x5(CH1-CH5) |
|
RS-232: DB9 x1 |
|
|
RS422: 5pin x1 |
|
|
LAN: RJ45 x1 |
|
|
Serial Port Baud Rate |
2400/4800/9600/19200/38400/115200(Apply to RS-232/RS-422) |
|
Monitor |
3 inch LCD, support Chinese and English display |
|
Speed Control |
Buttons control(corresponding to PTZ, zoom) |
|
3D Joystick |
Yes, support PTZ control |
|
Camera Control |
|
|
Maximum Control Quantity |
IP: 255, VISCA: 7 x5, Pelco P/D: 10 x5 |
|
Control Protocol |
IP: Visca Over IP, Onvif, NDI |
|
RS-232/RS-422/485：Visca, Pelco P/D |
|
|
Exposure Mode Selection |
Support |
|
Aperture Value Adjustment |
Support |
|
Brightness Value |
Support |
|
Adjustment |
|
|
Shutter Speed |
Nonsupport |
|
Adjustment |
|
|
Backlight Compensation |
Support |
|
switch |
|
|
White Balance Mode Selection |
Support |
|
R, B Gain Adjustment |
Support |
|
Focus Mode Selection |
Support |
|
Manual Focus |
Support |
|
General Specifications |
|
|
Input Voltage |
DC 12V (10.8V~13.2V),POE（IP） |
|
Power Consumption |
2W |
|
Operating Temperature |
0°C~40°C,（32°F~104°F） |
|
Storage Temperature |
-20°C~60°C,（-4°F~140°F） |
|
Dimension |
(W)296*(D) 180*(H)115mm |
|
Weight |
1.5kg |
|

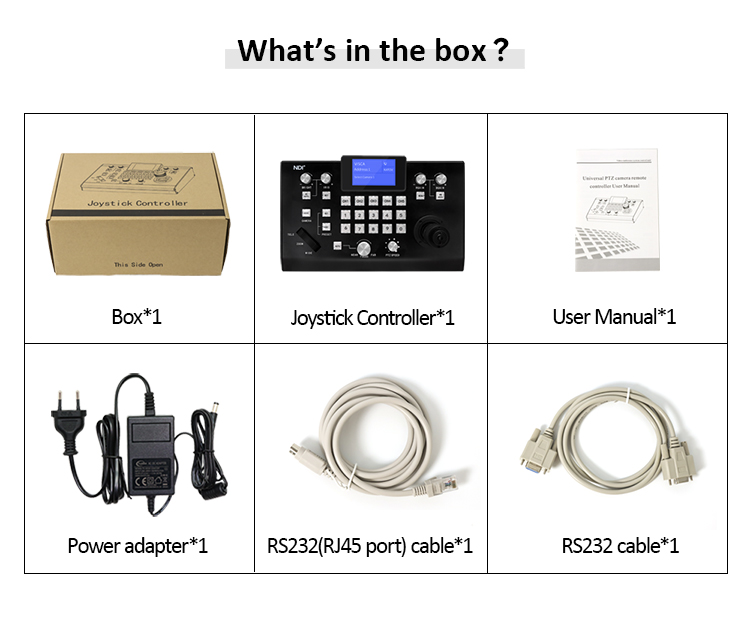

Standard Accessories |
Power Adapter(110V AC~220V AC to 12V DC) x1, RS232 cable x1, RJ45 to DB9 RS232 cable, user manualx1 |
