Main Parameters

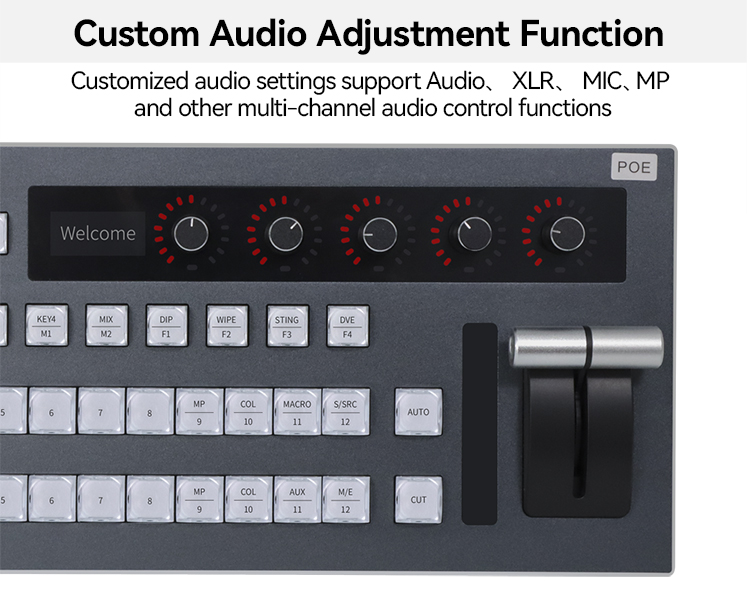

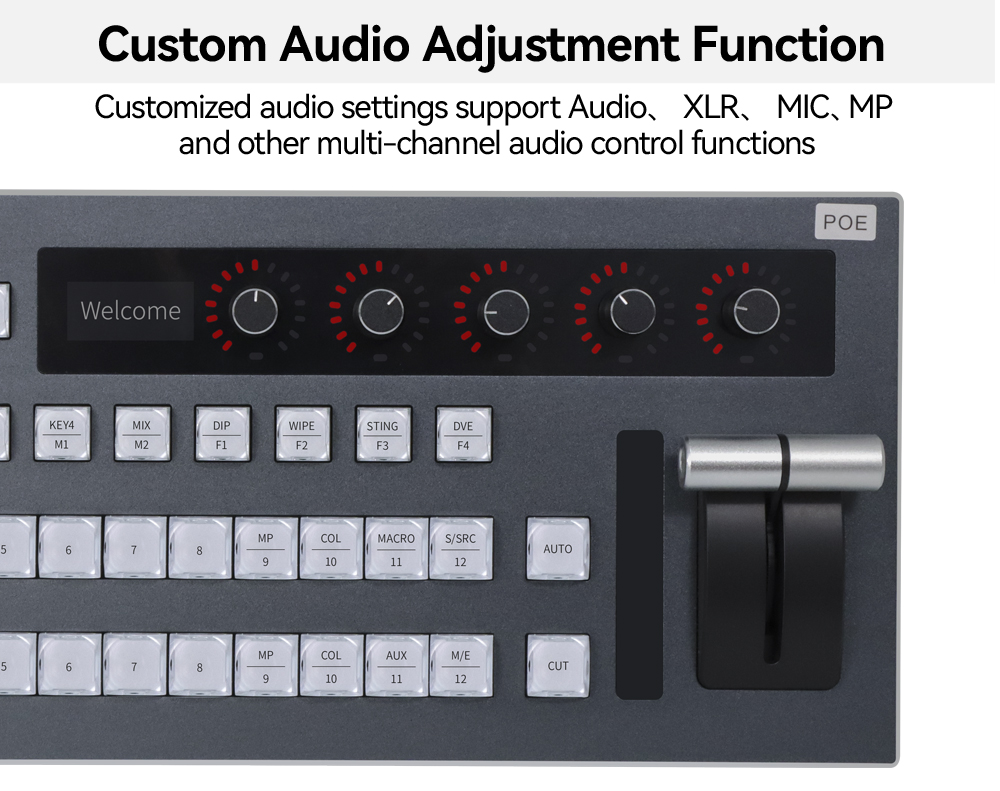

Audio Control

1ch master+4ch input

Transition Control

Auto transitions, hard cuts, T-Bar

OLED Display

Set device parameters

Indicator Light

Indicate switcher status

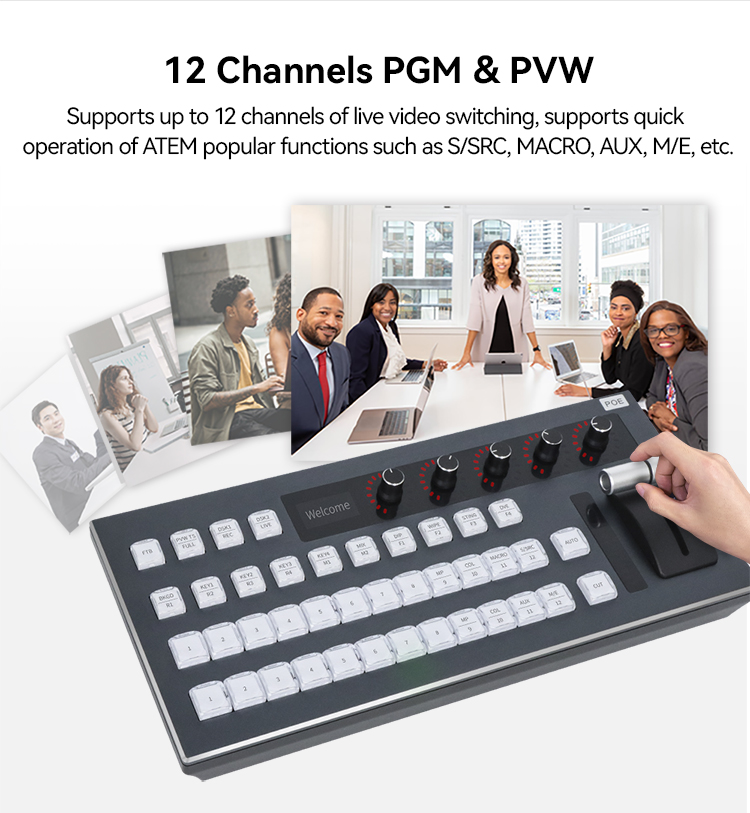

Tally

12ch PGM+12ch PVW

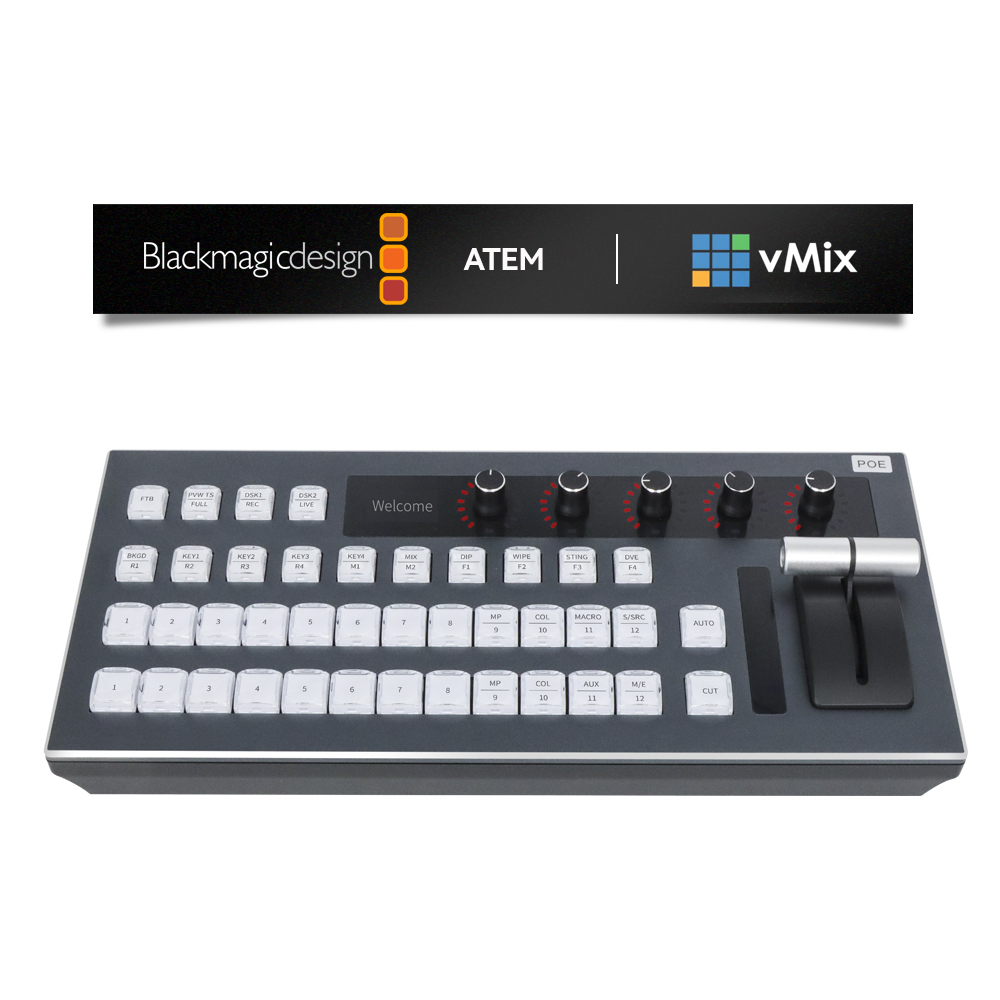

ATEM Functions:

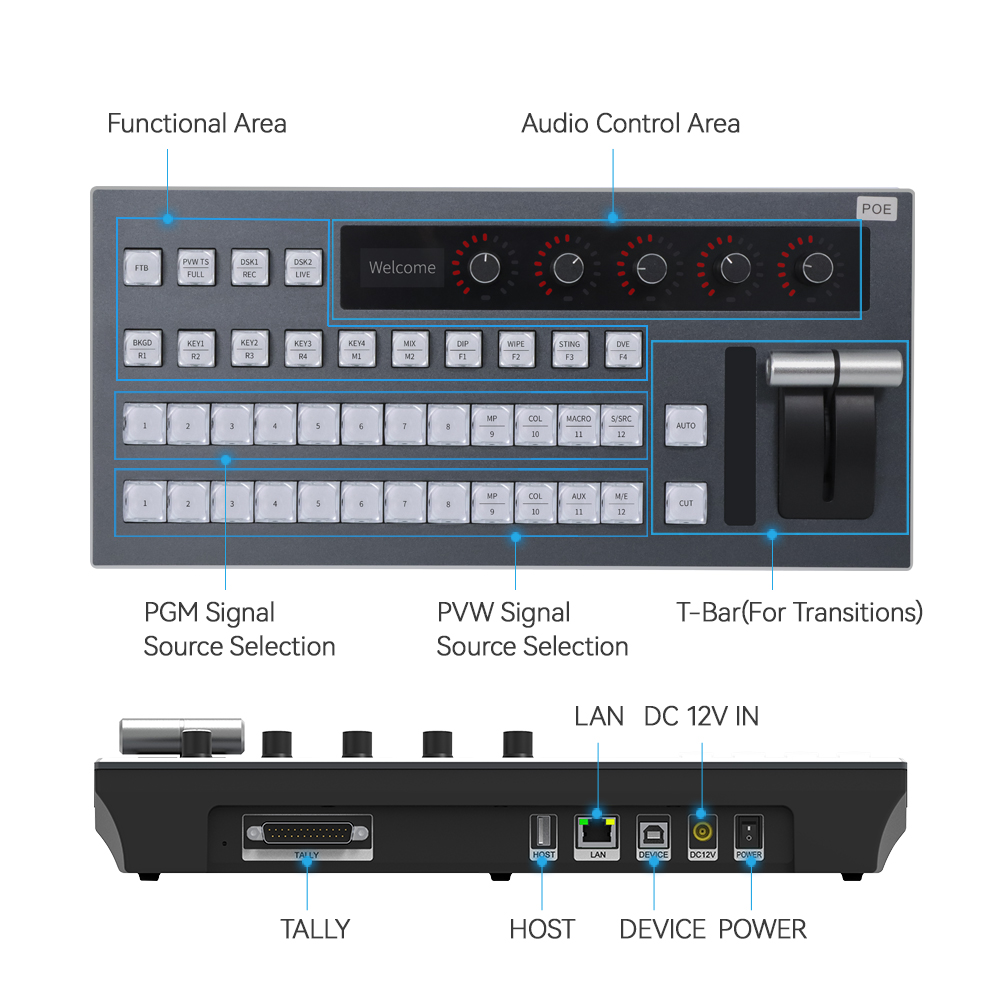

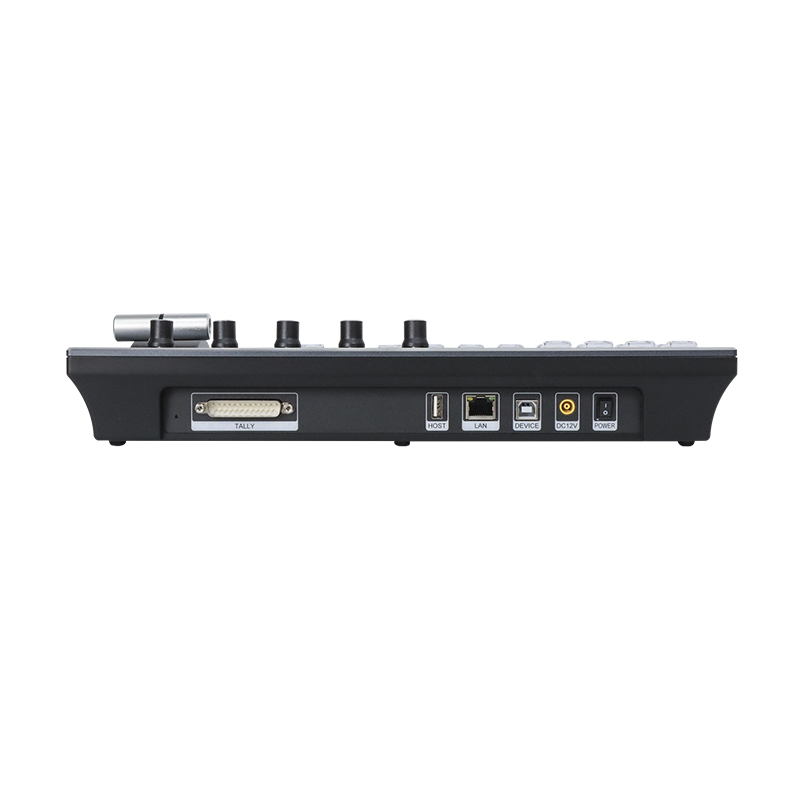

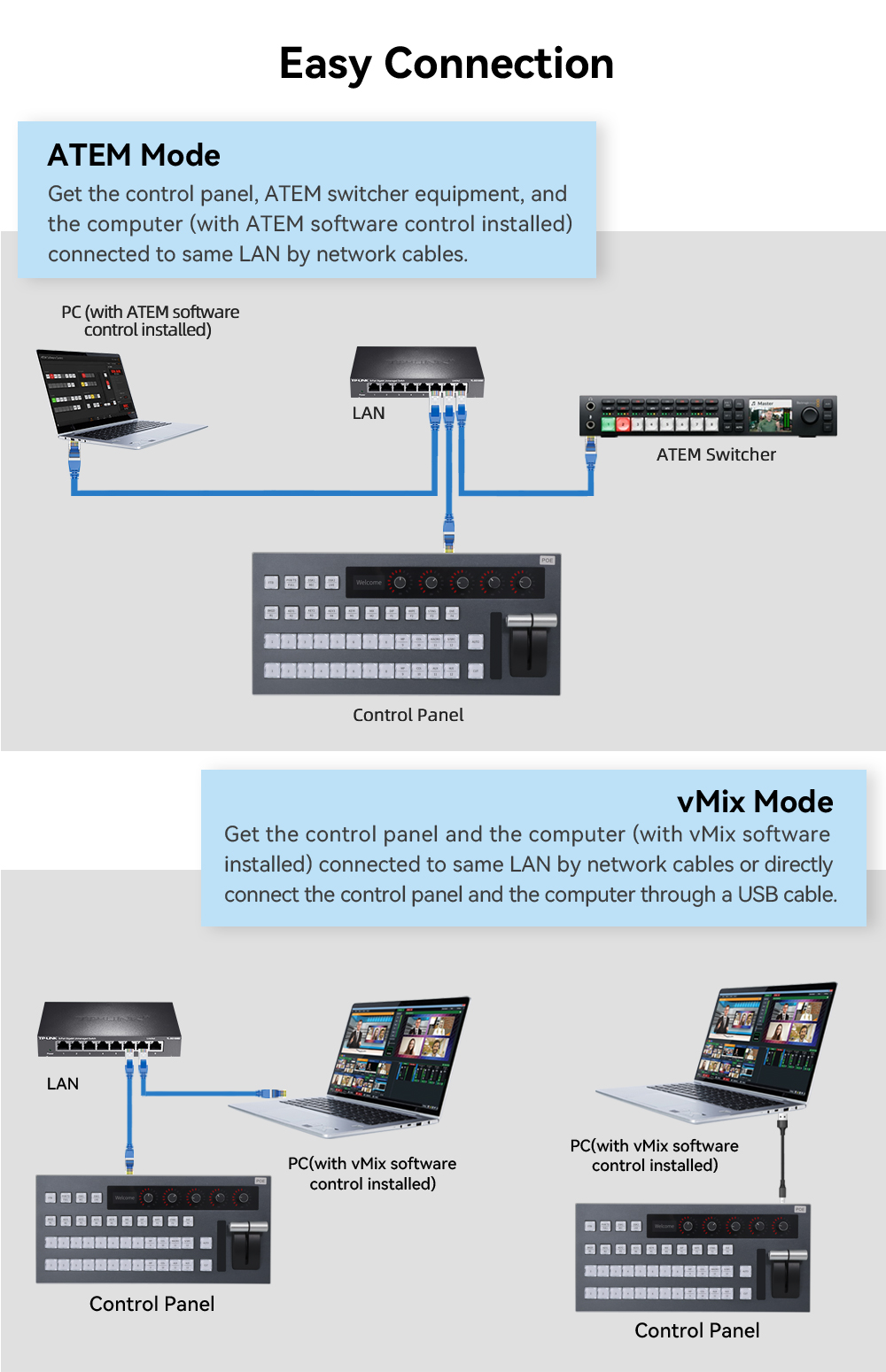

Connection Method

100M LANsupport POE 802.3af

Video Control

12ch inputs

Transition Effects

MIX / DIP / WIPE / STING / DVE

Upstream Keyboard

BKGD / KEY1 / KEY2 / KEY3 / KEY4

Downstream Keyboard

DSK1 / DSK2

FTB

Support

PREV TRANS

Support

MACRO

Support

S/SRC

Support

M/E

Support

AUX

Support

vMix Functions:

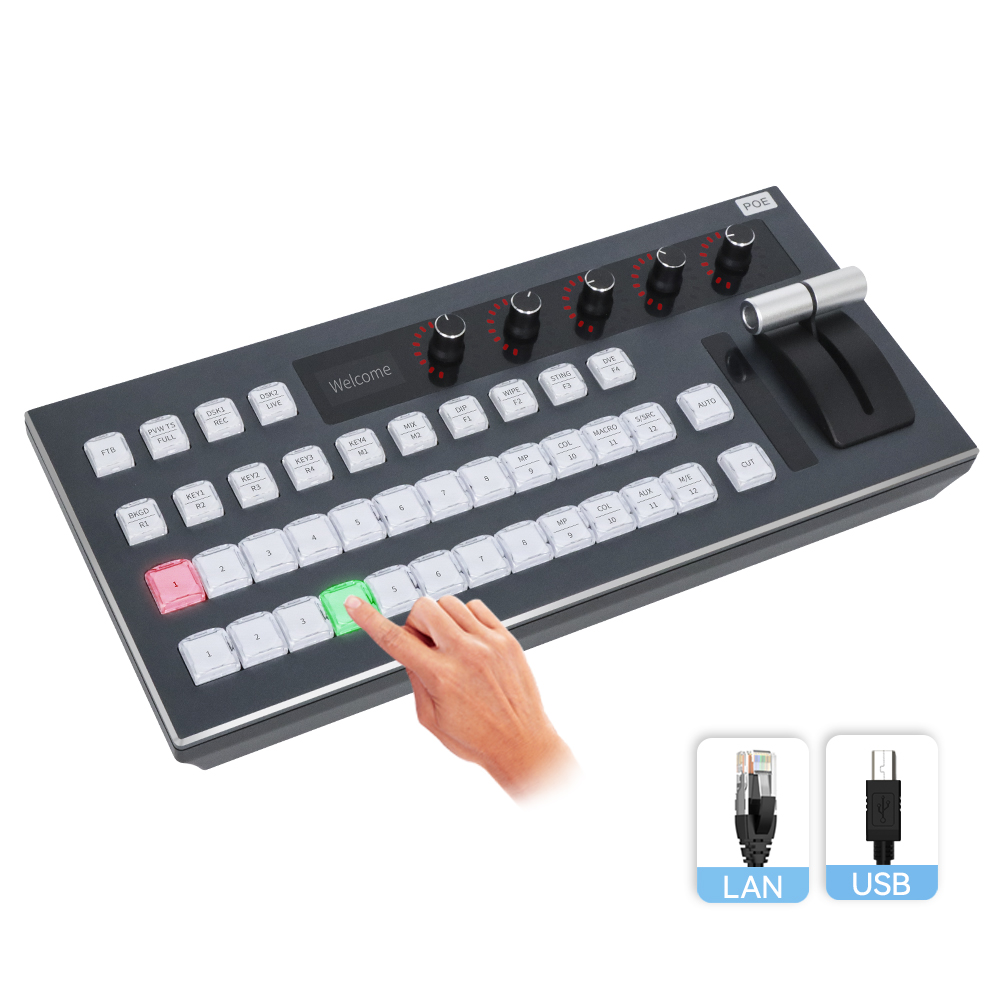

Connection Method

100M LANsupport POE 802.3afUSB

Video Control

12ch inputs

Transition Effects

4 kinds

Picture-in-picture Function

R1 / R2 / R3 / R4

Playback Setting

M1 / M2

REC

Support

LIVE

Support

T-BAR

Support

Power Supply

Input Voltage

DC 12V

Input Current

0.3A

Rated Power

4W

POE

POE 802.3af for optional

Powered by USB

Support  ( rely on the USB power supply capability of the computer )

General Specifications

Use Environment

Indoor

Operating Temperature

-10~40

Storage Temperature

-20-60

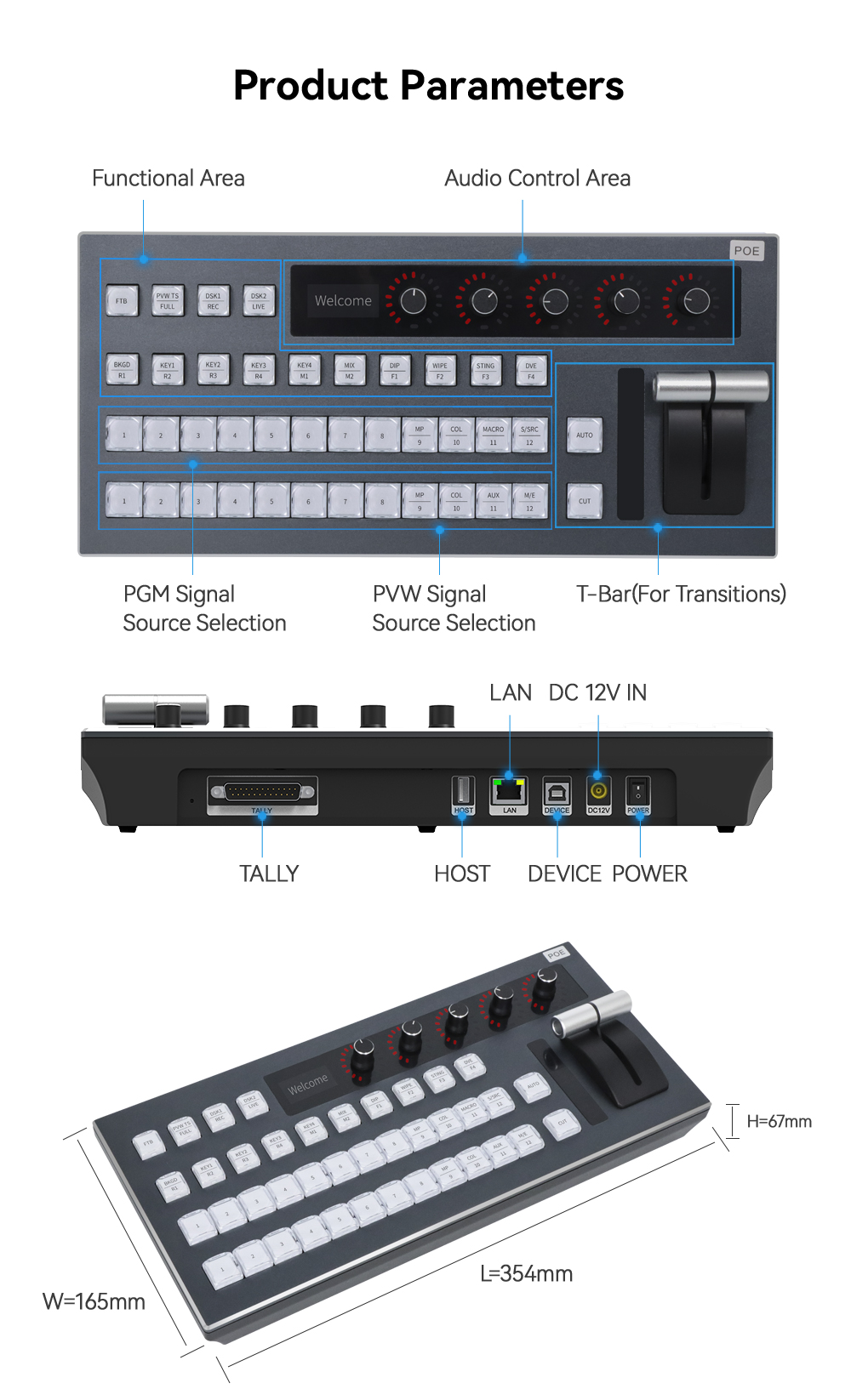

Dimension

(W)354*(D)165*(H)67mm

Weight

1.5kg

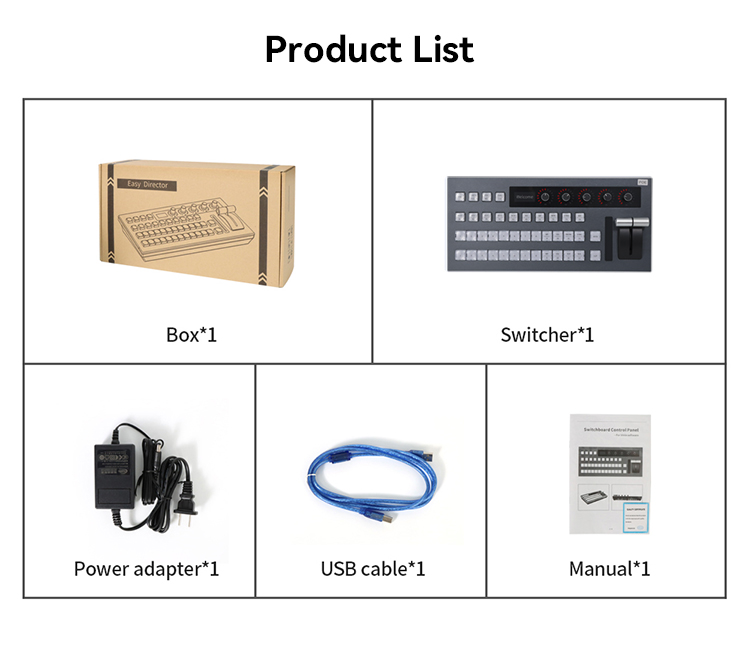

Accessories

Power adapter*1, USB cable*1, User manual*1
