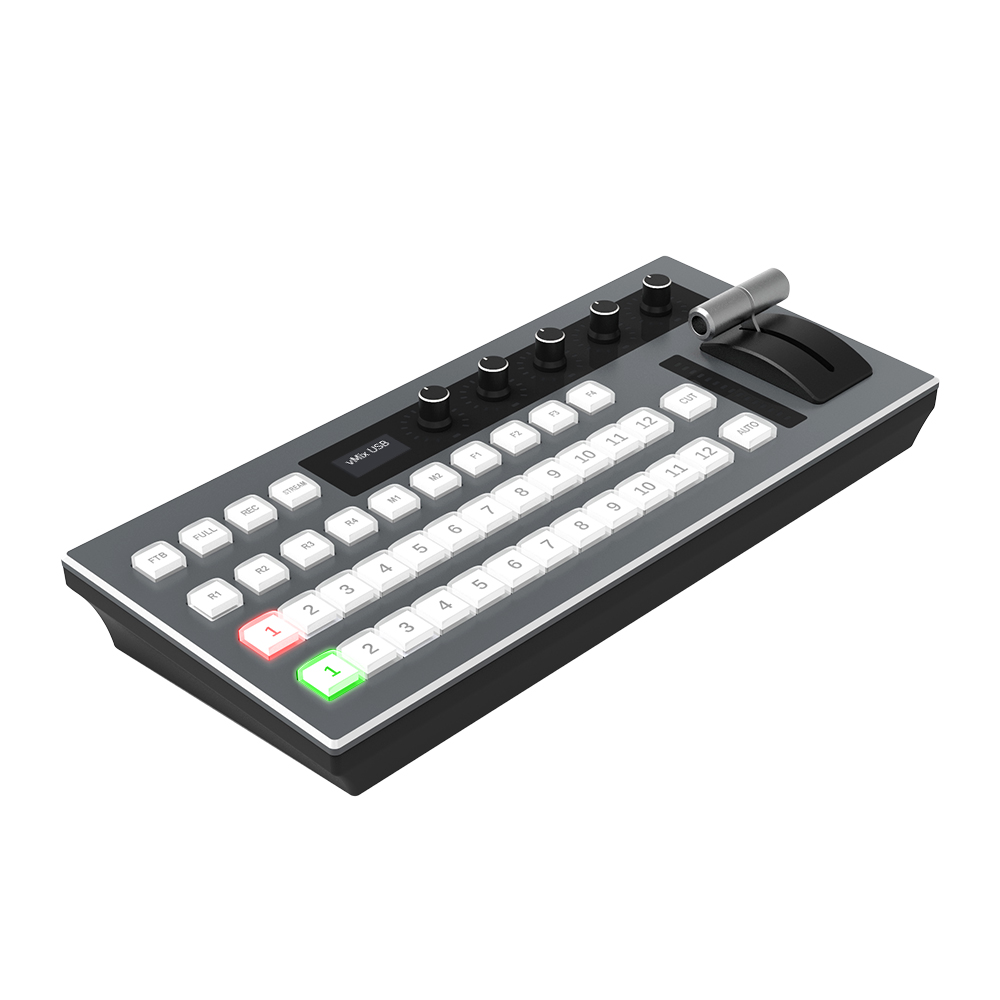

Features

vMix main function mapping, custom function:

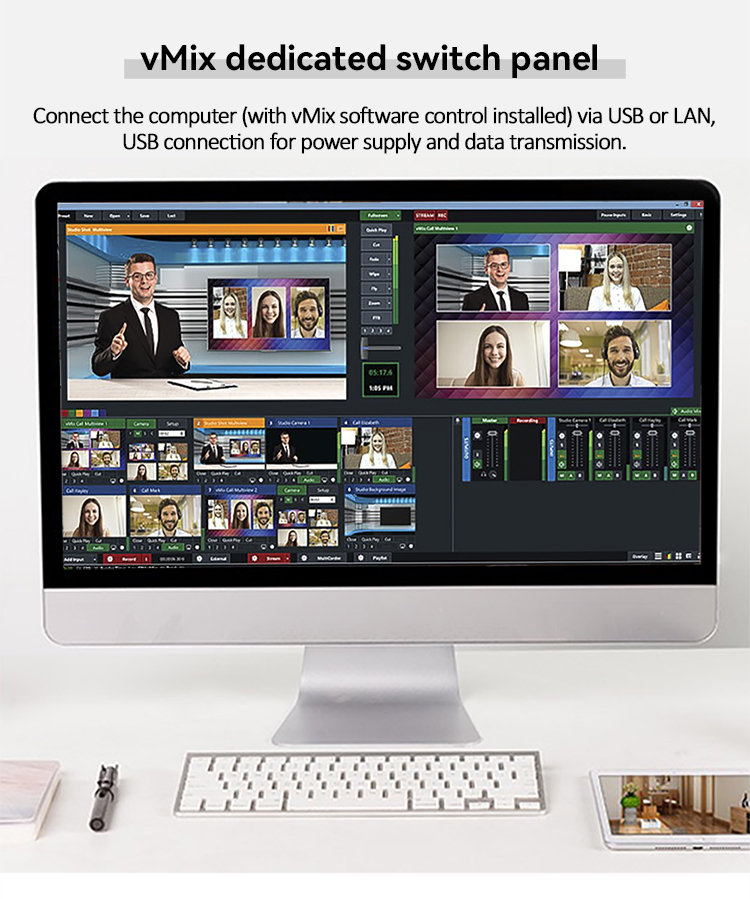

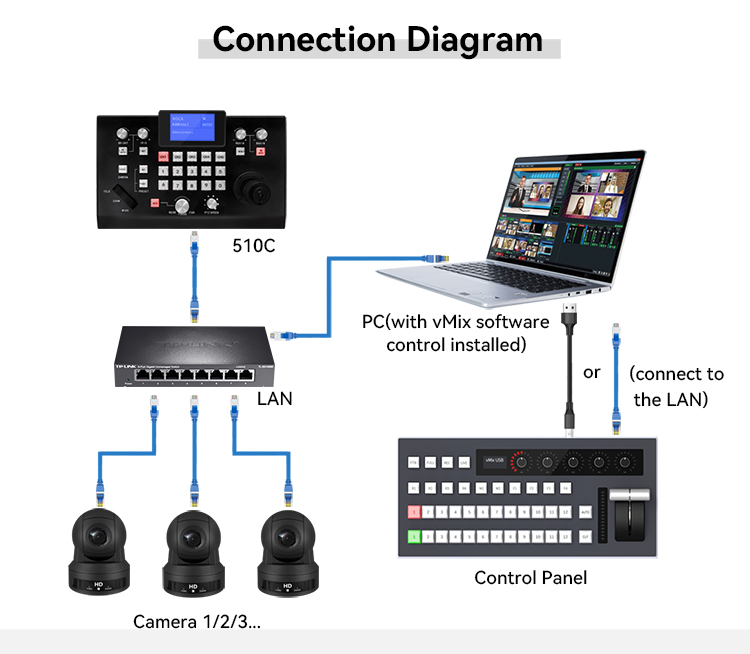

Compatible with vMix software via USB and LAN connections.

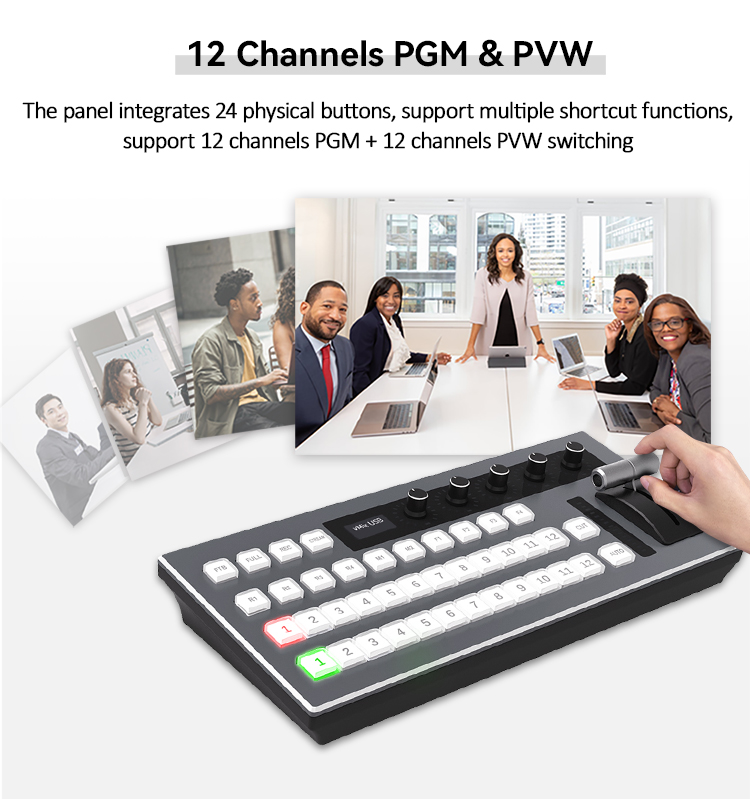

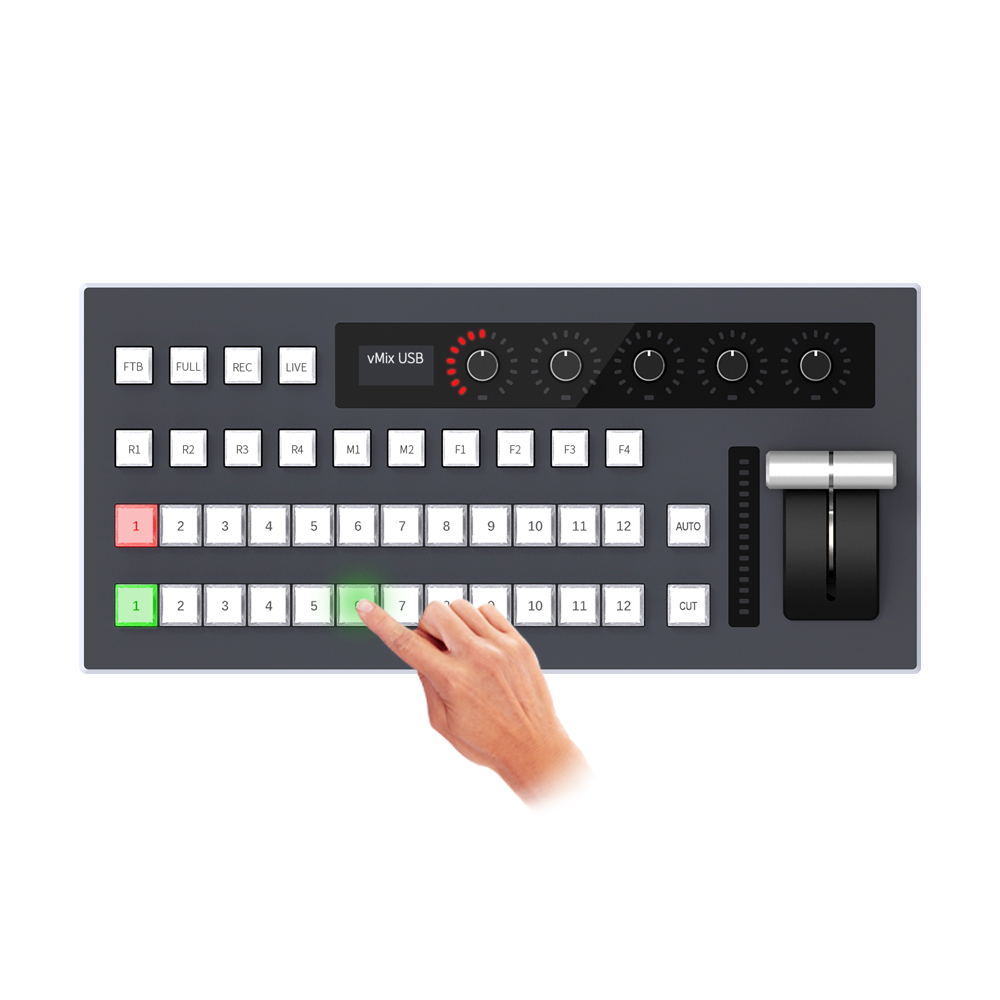

  12-channel broadcast guide, 24 crystal buttons integrated on the panel:

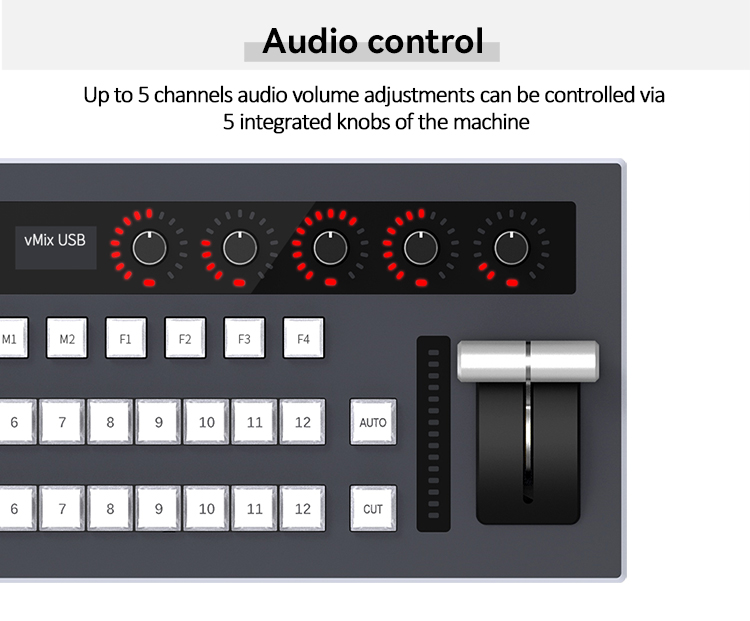

Can control up to 5 channels of audio volume control through the 5 integrated knobs on the body.

Audio control knob:

Aluminum alloy high-quality T-BAR fader, combined with nine-level LED light progress bar, has a very directing style.

Various function shortcut keys:

Support quick operation of common functions of vMix.

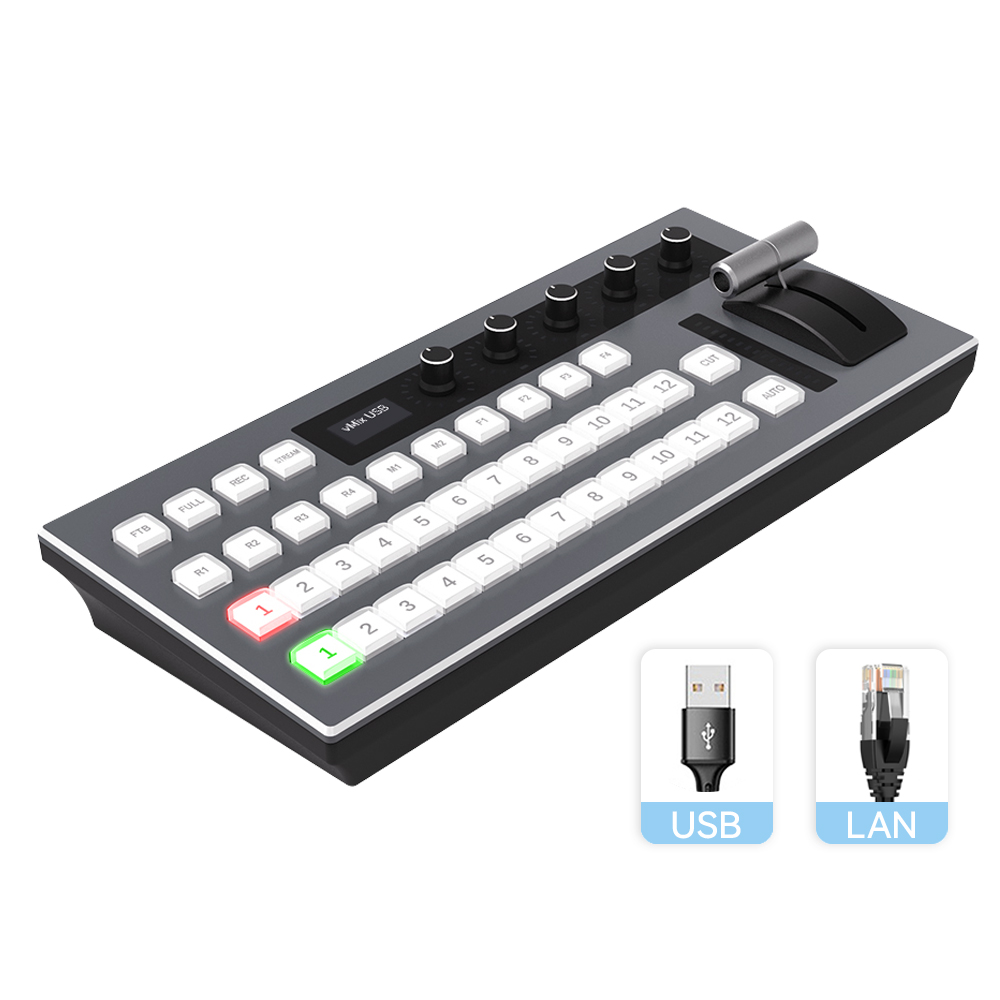

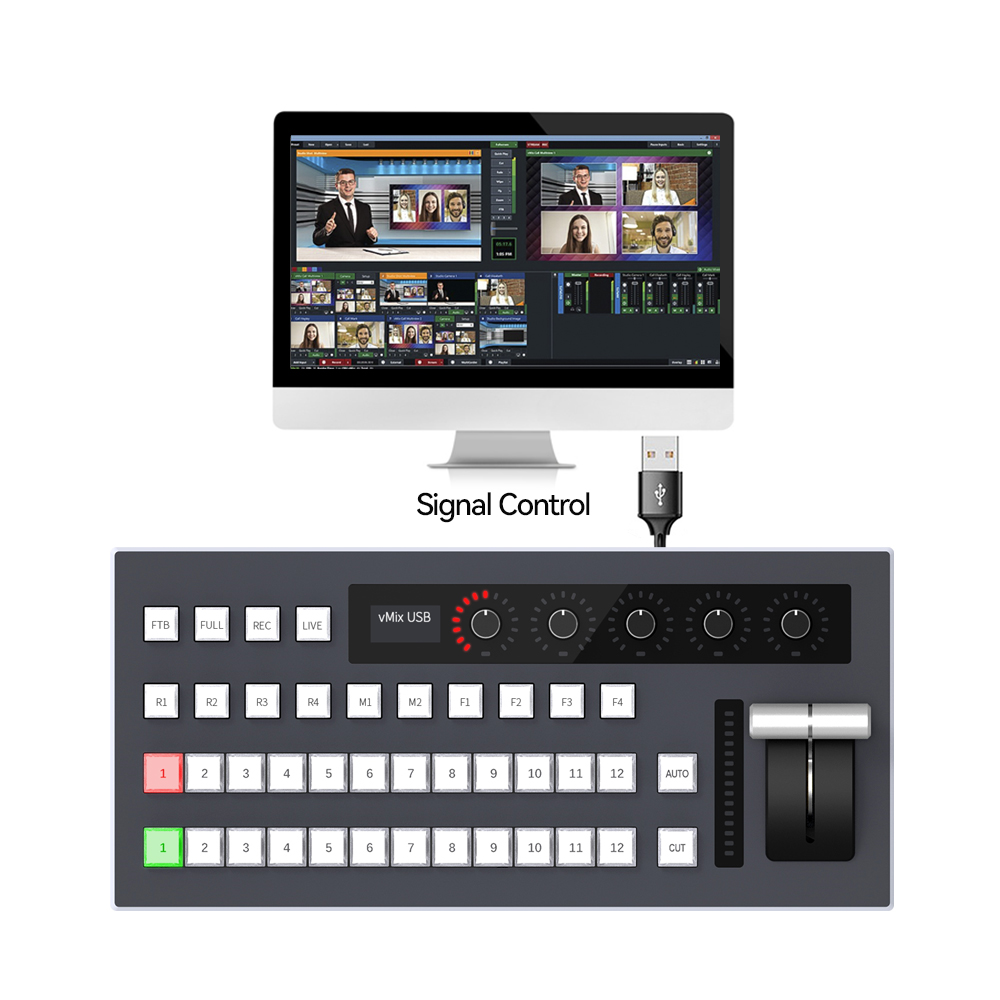

USB 2.0, easy connection, plug and play:

Only one USB2.0 cable is needed for power supply and data transmission.

Fashionable appearance:

Anodized aluminum alloy panels can be adapted to various environments.

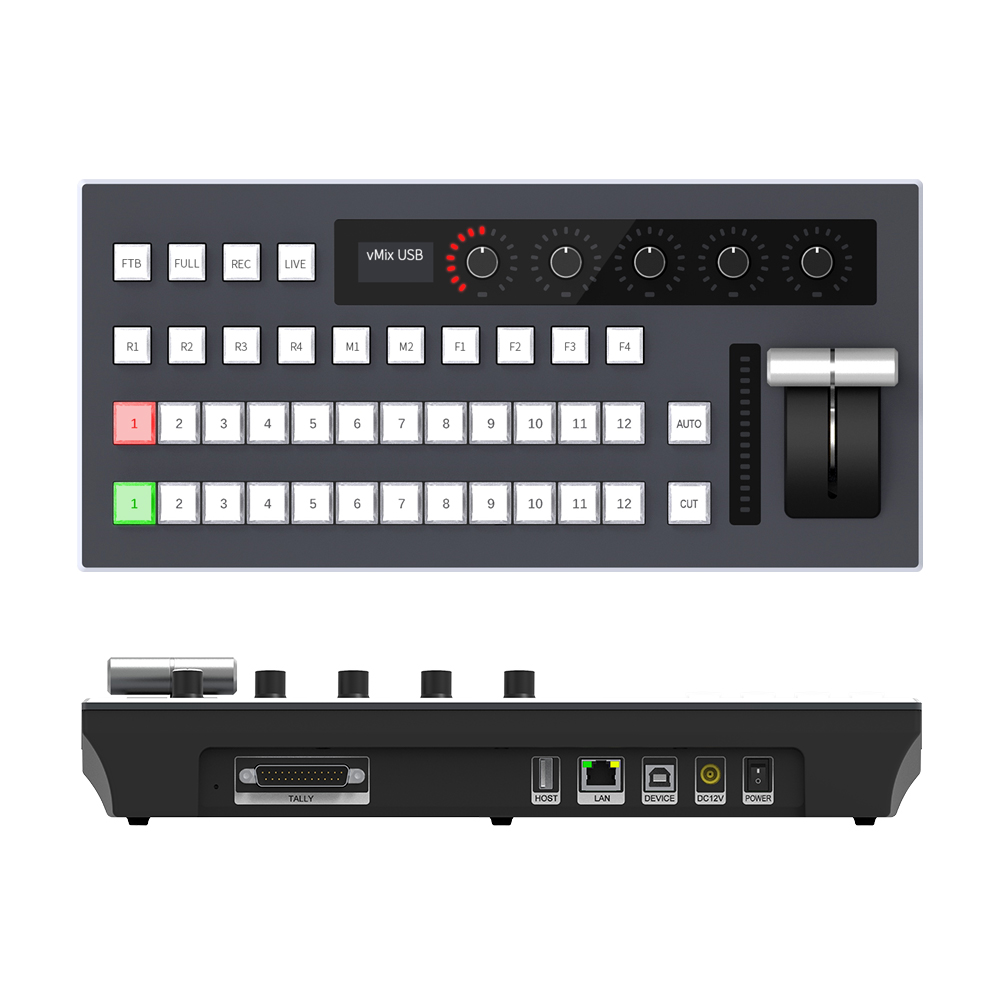

Supports 24 channels Tally signals:

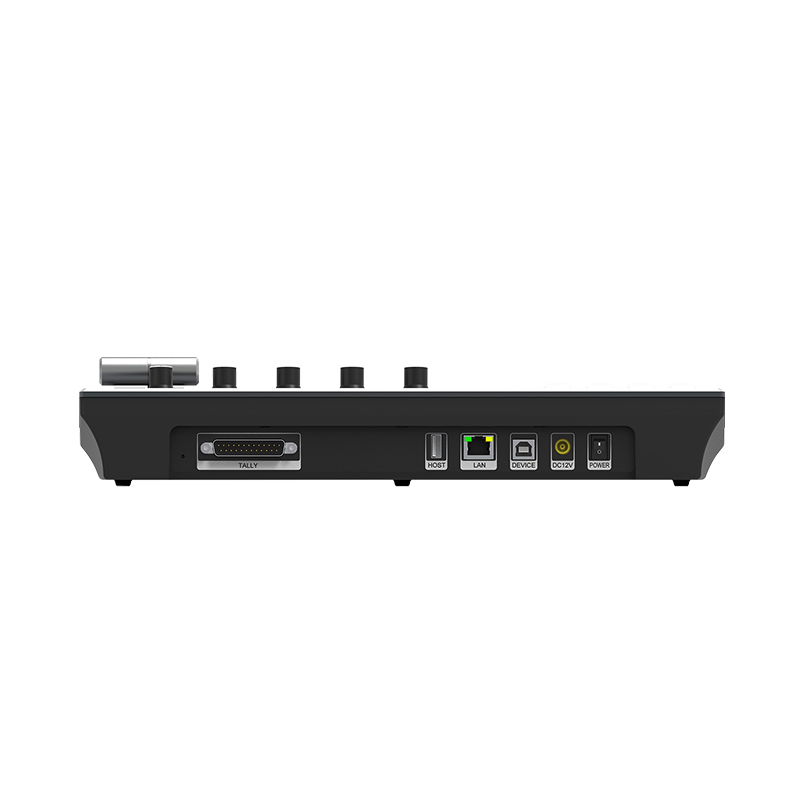

Support (12 channels PGM +12 channels PVW) total 24 channels of Tally signal outputs by DB25 interface.

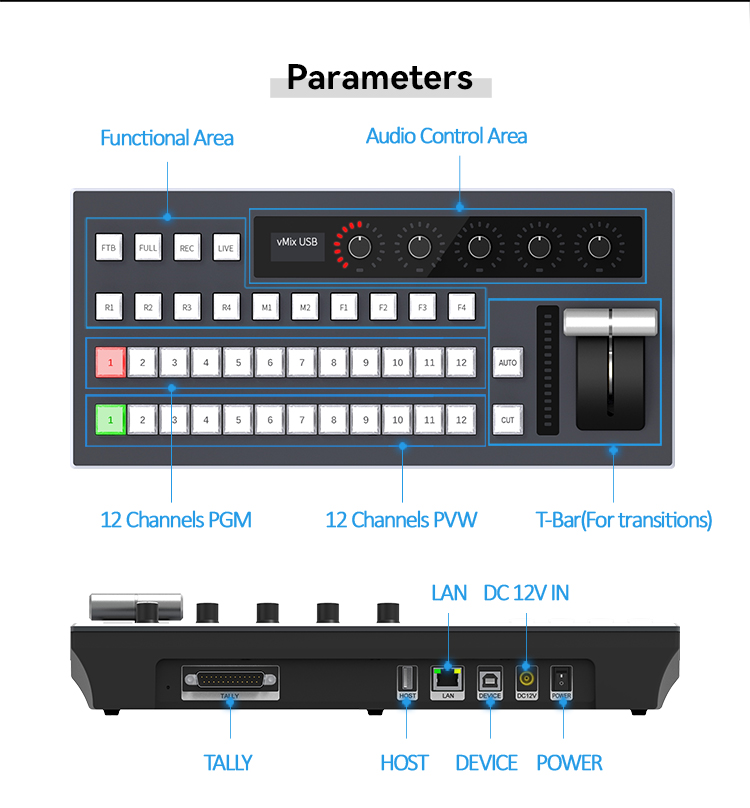

Main Parameters

Compatible Device

vMix series software

Connection Method

USB(Support power supply, LAN(POE optional)

Channel

12 channels

Volume Control

1 input + 4 output

Transition Control

Automatic transition, hard cut, T-Bar

Transition Effects

Support

Status Light

Support

Display Screen

Support

Tally

12-channel PGM+12-channel PVW

Power Supply

Input Voltage

DC 12V

Input Current

0.3A

Rated Power

4W

POE

Standard802.3AF

General Specifications

Use Environment

Indoor

Operating Temperature

0~40

Storage Temperature

-10-50

Dimension

(W)354*(D)165*(H)67mm

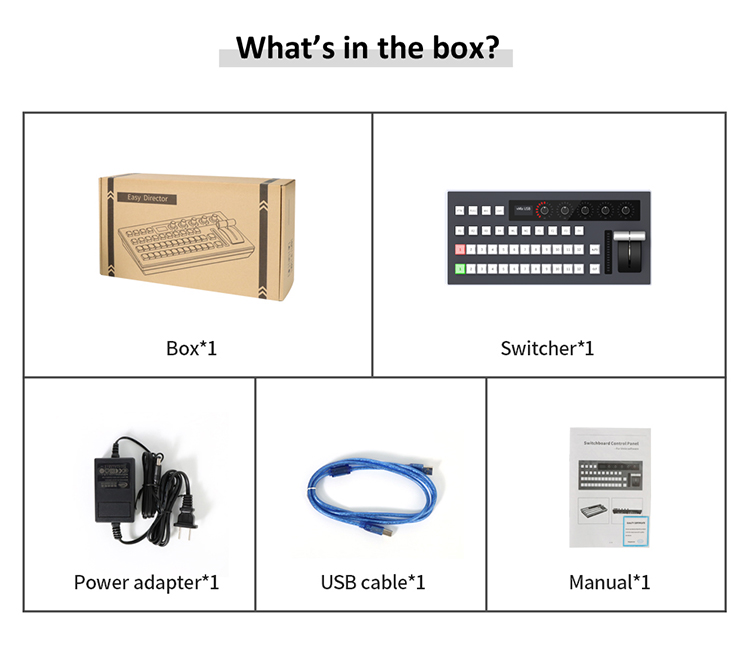

Accessories

Power adapter*1, USB cable*1, User manual*1

User Manual
KT-KD50V
Download
