KT-610CN
Download
|
Main Parameters |
|
|
Input And Output |
RS-232: DB9 x1 |
|
RS422: 5pin x1 |
|
|
LAN: RJ45 x1 |
|
|
Serial Port Baud Rate |
2400/4800/9600/19200/38400/115200(Apply to RS-232/RS-422) |
|
Monitor |
3 inch LCD, support Chinese and English display |
|
Speed Control |
Buttons control(corresponding to PTZ, zoom) |
|
3D Joystick |
Yes, support PTZ control |
|
Camera Control |
|
|
Maximum Control Quantity |
IP: 255, VISCA: 7, Pelco P/D: 255 |
|
Control Protocol |
IP: Visca Over IP, Onvif, NDI |
|
RS-232/RS-422/485: Visca, Pelco P/D |
|
|
Exposure Mode Selection |
Support |
|
Aperture Value Adjustment |
Support |
|
Brightness Value Adjustment |
Support |
|
Shutter Speed Adjustment |
Support |
|
Backlight Compensation Switch |
Support |
|
White Balance Mode Selection |
Support |
|
R, B Gain Adjustment |
Support |
|
Focus Mode Selection |
Support |
|
Manual Focus |
Support |
|
General Specifications |
|
|
Input Voltage |
DC 12V (10.8V~13.2V),POE（IP） |
|
Power Consumption |
2W |
|
Operating Temperature |
0°C~40°C,（32°F~104°F） |
|
Storage Temperature |
-20°C~60°C,（-4°F~140°F） |
|
Dimension |
(W)296*(D) 180*(H) 115mm |
|
Weight |
1.5kg |
|

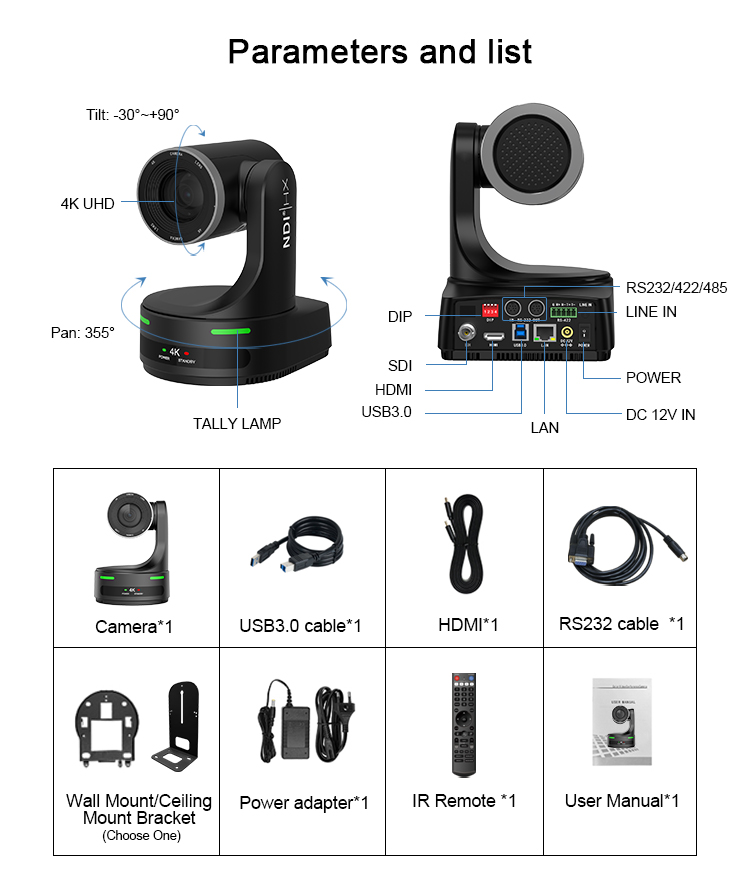

Standard Accessories |
Power Adapter（110V AC~220V AC to 12V DC) x1,RS232 cable x1,user manualx1, USB2.0 Connection cable |
Specifications
