Main Parameters

Input And Output

RS232/485: RJ45 x5(CH1-CH5)

RS-232: DB9 x1

RS422: 5pin x1

LAN: RJ45 x1

Serial Port Baud Rate

2400/4800/9600/19200/38400/115200(Apply to RS-232/RS-422)

Monitor

3 inch LCD, support Chinese and English display

Speed Control

Buttons control(corresponding to PTZ, zoom)

3D Joystick

Yes, support PTZ control

Camera Control

Maximum Control Quantity

IP: 255, VISCA: 7 x5, Pelco P/D: 10 x5

Control Protocol

IP: Visca Over IP,  Onvif,  NDI

RS-232/RS-422/485：Visca, Pelco P/D

Exposure Mode Selection

Support

Aperture Value Adjustment

Support

Brightness Value

Support

Adjustment

Shutter Speed

Nonsupport

Adjustment

Backlight Compensation

Support

switch

White Balance Mode Selection

Support

R, B Gain Adjustment

Support

Focus Mode Selection

Support

Manual Focus

Support

General Specifications

Input Voltage

DC 12V (10.8V~13.2V),POE（IP）

Power Consumption

2W

Operating Temperature

0°C~40°C,（32°F~104°F）

Storage Temperature

-20°C~60°C,（-4°F~140°F）

Dimension

(W)296*(D) 180*(H)115mm

Weight

1.5kg

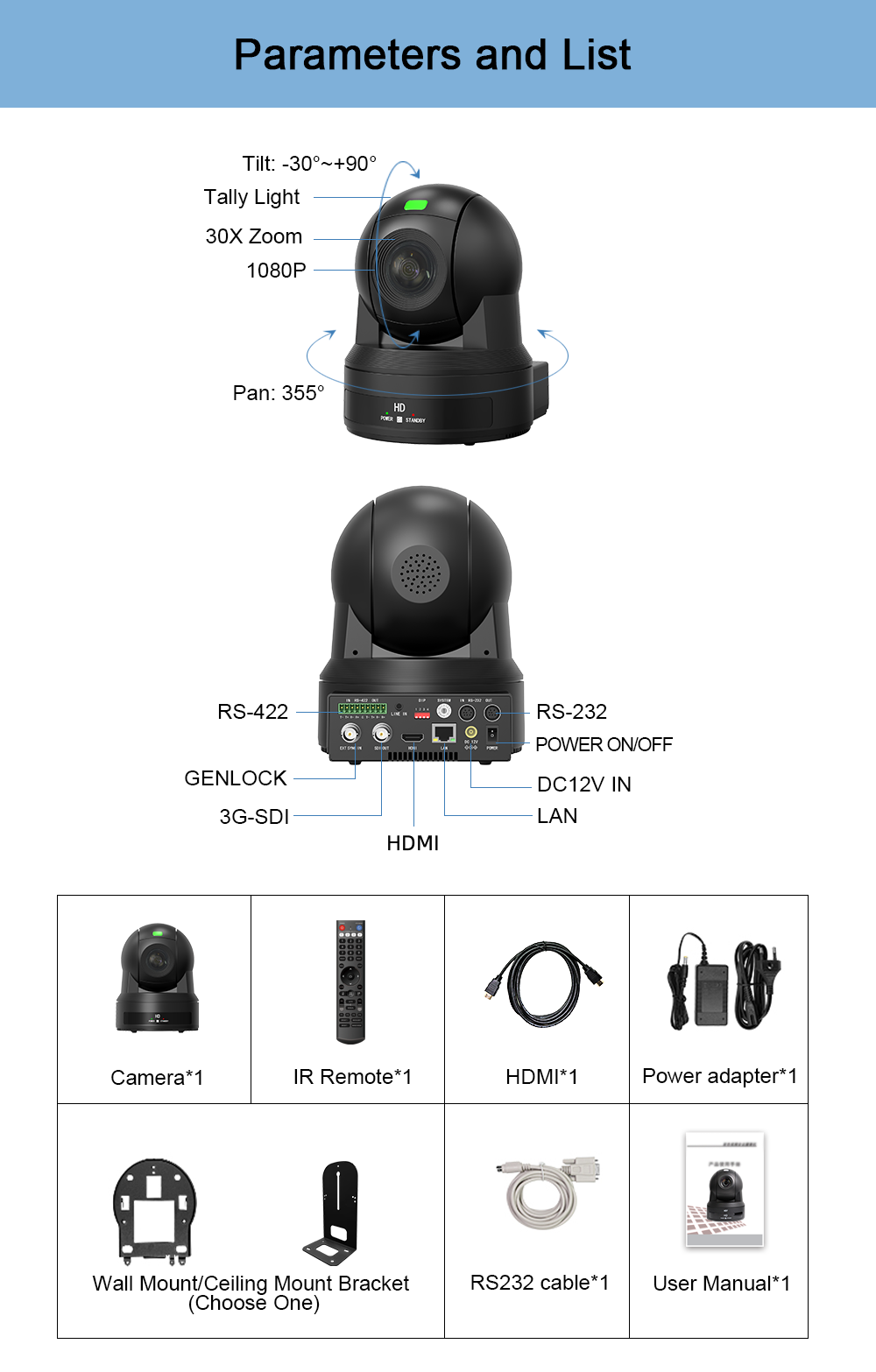

Standard Accessories

Power Adapter(110V AC~220V AC to 12V DC) x1, RS232 cable x1, RJ45 to DB9 RS232 cable, user manualx1
