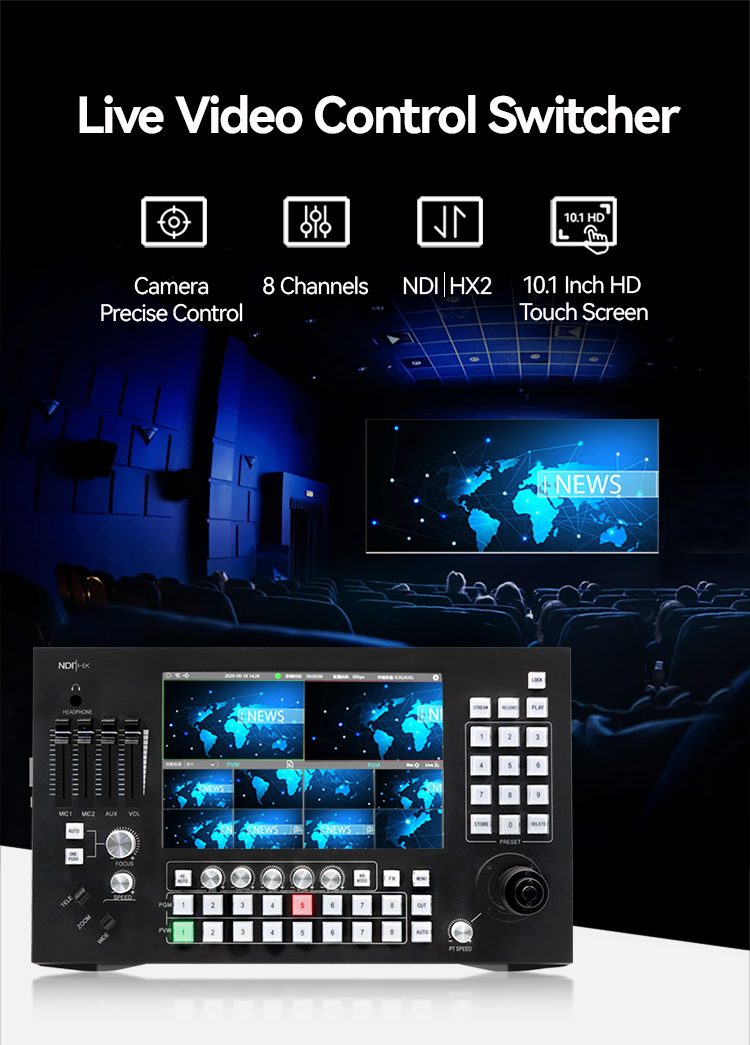

KT-KD30N
Download
Features

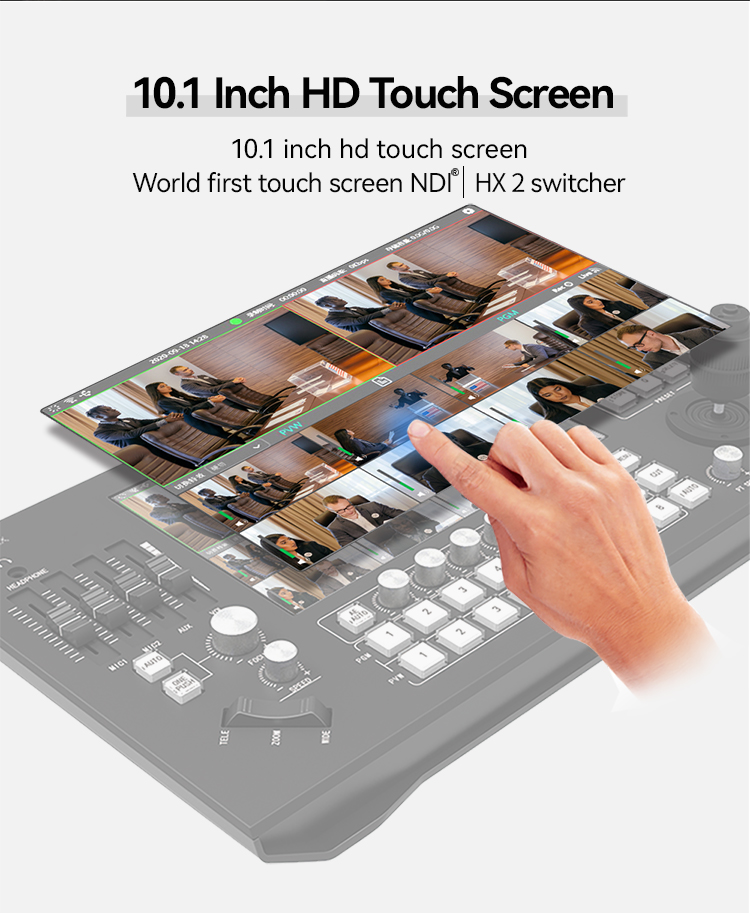

10.1”Super large touch screen, integration of director and monitoring:
Built-in 10.1”touch screen, integration of director and monitoring.

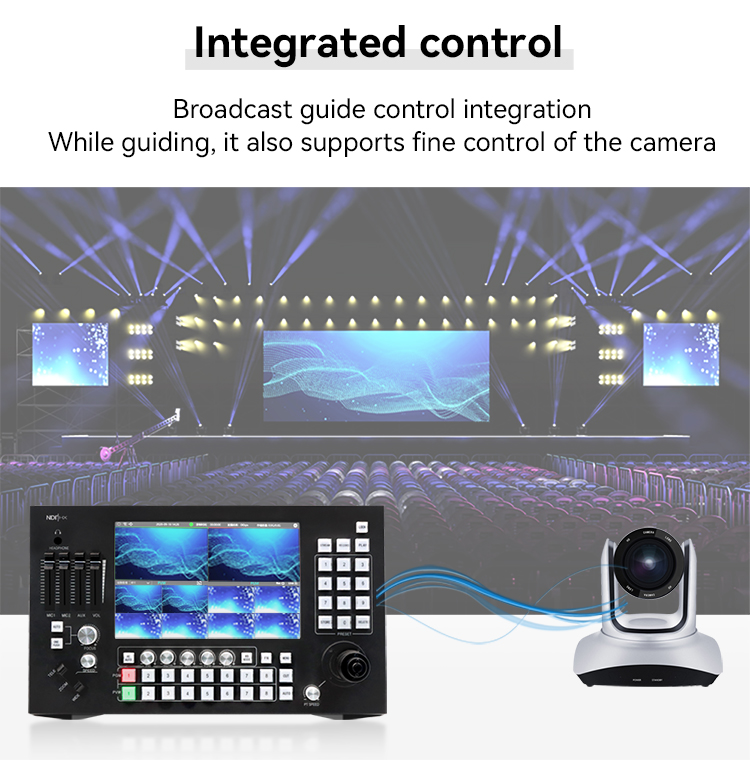

PTZ control, highly integrated, one-stop solution:
Integrates video guidance, audio adjustment and PTZ control in one, with powerful functions.

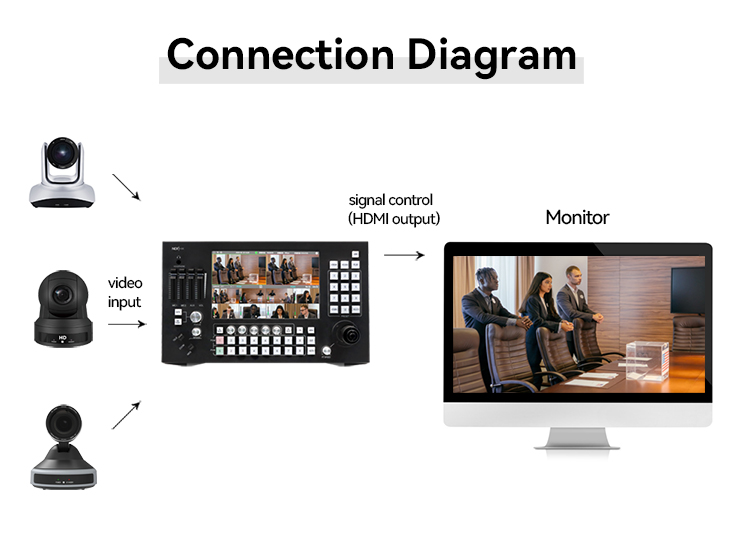

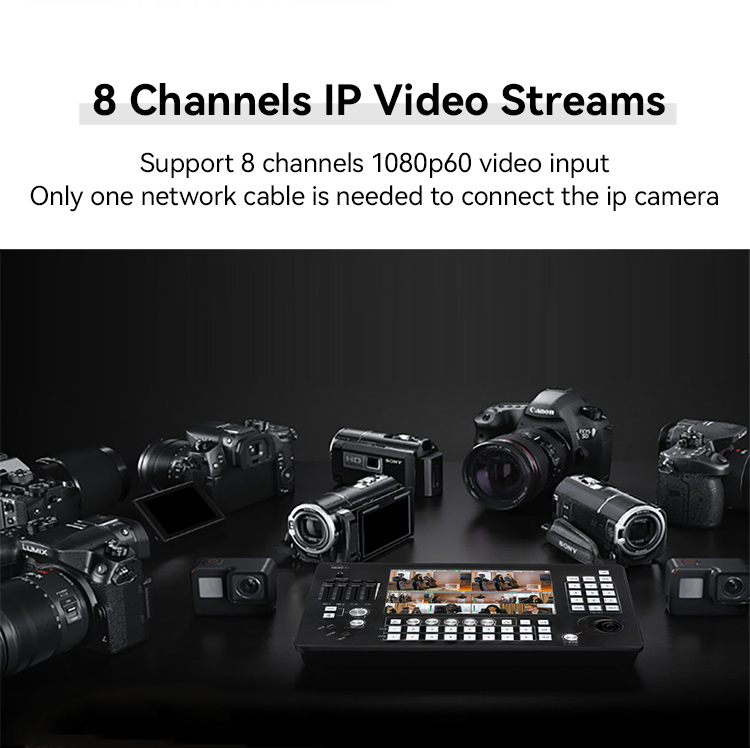

8-channel video source, support NDI|HX 2, simple connection, convenient wiring:
Support up to 8 channels of IP (NDI|HX 2) video input and 1 channel of HDMI 1.4 video input signal, support up to 1080p60 picture input.
PGM output:
1 channel PGM-HDMI video output signal, support 1080p60 screen display.
Multi streaming protocols, live streaming at any time:
Support RTMP (2 channels), RTSP, RTMPS, NDI HX and SRT and other streaming media protocols to achieve push and pull streaming.
A variety of PIP layouts and transition effects, free to switch according to needs
Support 8 PIP layouts and multiple transition functions.
MP4 video recording
Support MP4 format video recording and saving.
Support Chinese and English multiple language operation interface
Support Simplified Chinese, Traditional Chinese and English operation interface, multiple languages, easy to switch.
|

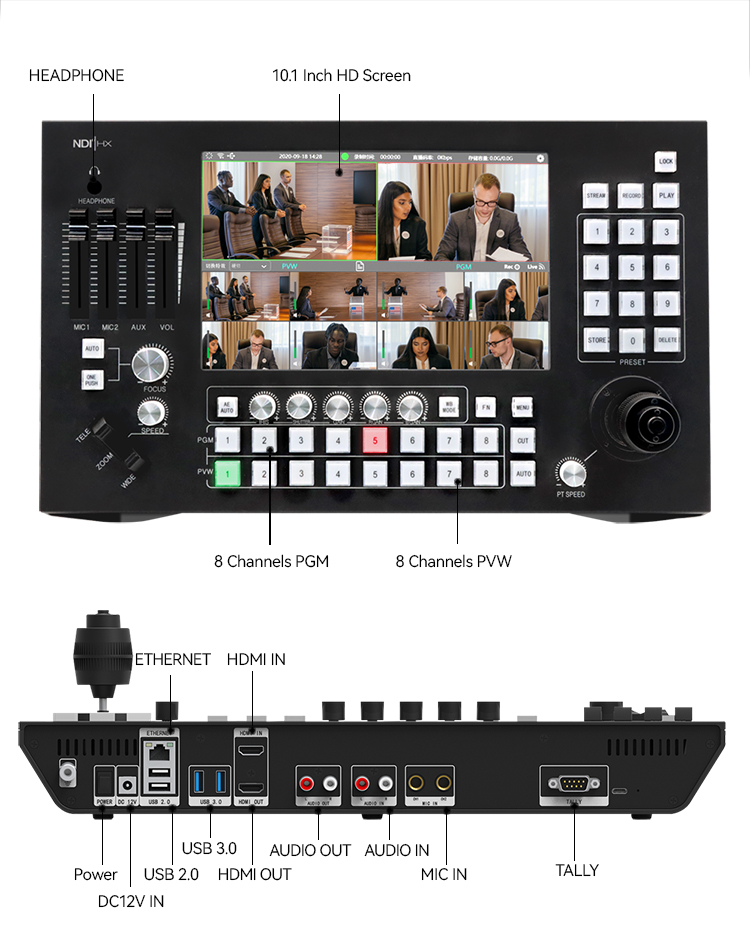

Device Interface |
|
|
Video Input Interface |
8CH NDI|HX 2, 1CH HDMI Type A 1.4 |
|
Video Output Interface |
1CH PGM-HDMI Type A 1.4 |
|
Audio Input Interface |
1 group x RCA; 1 group x6.5mm stereo mini jack |
|
Audio Output Interface |
1 group x RCA; 1x3.5mm stereo mini jack |
|
RJ45 Ethernet |
RJ45x1, Ethernet support 10, 100, 1000 BaseT, can be used for live streaming, background setting, software update |
|
Computer Interface |
2xUSB-A 3.0; 2xUSB-A 2.0; support external U disk (FAT32, NTFS, exFAT), external mouse and keyboard |
|
Format Parameter |
|
|
HD Video Input Format |
1080P25, 1080P30, 1080P50, 1080P60 |
|
HD Video Output Format |
1080P60 |
|
Video Sampling |
4:2:2 YUV |
|
Color Accuracy |
10bit |
|
Color Space |
Rec 709 |
|
HDMI Input Resolution From Computer |
1280x720p 50Hz,59.94Hz,60Hz |
|
|
1920x1080p 29.97, 30, 50, 59.94,60Hz |
|
Color Space Conversion |
Hardware real time |
|
Play Local Files |
Video file format: MP4 |
|
|
Image file format: PNG，JPG，BMP |
|
File Recording Format |
MP4 |
|
File Recording Bit Rate |
512KB, 1MB, 3MB, 5MB, 8MB, 12MB, 16MB, 20MB |
|
File Recording Resolution |
1920×1080, 1280×960, 960×540 |
|
File Playback In Real Time |
Support |
|
Product specification |
|
|
Video System |
HD |
|
Number of Function Keys |
40 |
|
Number of Adjustment Knobs |
8 |
|
Monitor Screen |
10.1” |
|
Monitor Minimum Resolution Requirements |
1920x1080 pixels |
|
LOGO |
1 set |
|
Clock Display |
Support |
|
Operating Mode |
Landscape (16:9) |
|
Subtitle |
Horizontal subtitle x1; scrolling subtitle x1 |
|
Video Keying |
Support Chroma Key green screen keying (optional) |
|
Tally |
Support |
|
Stunt Switch |
CUT & AUTO |
|
Stunt Effects |
Cut,4 special effects |
|
PIP Mode |
Support (8 PIP and POP modes) |
|
Language Model |
Simplified Chinese, Traditional Chinese, English |
|
Audio |
|
|
Mixer |
8-channel mixer with 8 inputs |
|
|
Each channel is equipped with selectable disable, follow, lock, and the channel can have independent gain control |
|
Analog Input |
Unbalanced stereo, support independent gain control |
|
Analog Input Delay |
Max 500ms |
|
Audio Input Level Range |
0dB~50dB |
|
Audio Sample Rate |
48kHz |
|
Audio Format |
AAC |
|
Audio Connection |
1 set of RCA; 1 set of TRS 6.3mm |
|
Stream media |
|
|
Streaming Output |
Up to 2 channels of streaming media addresses can be output at the same time, and streaming media can be directly broadcast live through Ethernet |
|
Streaming Output Protocol |
RTMP, RTMPS, RTSP, NDI HX |
|
Streaming Input |
Up to 8 channels of streaming media signals can be input at the same time |
|
Streaming Input Protocol |
RTSP, NDI HX, SRT |
|
Streaming Address |
Support 1 stream address preset |
|
PTZ Camera Control |
|
|
PTZ Control |
Support |
|
PTZ Control Quantity |
8 channels |
|
PTZ Camera Control Mode |
4D joystick |
|
PTZ Aperture Control |
Support |
|
PTZ Focus Control |
Support, Manual, Automatic |
|
PTZ Exposure Control |
Support, Manual, Automatic |
|
PTZ Exposure Mode |
Red gain value, blue gain value adjustment |
|
PTZ Preset Number |
9 |
|
Software Update |
|
|
Firmware Upgrade |
Direct connection to Windows, Linux computers using the Ethernet interface |
|
Power Supply |
|
|
Input voltage |
External 12V 3A power supply |
|
Input Current |
3A(Max) |
|
POE |
not support |
|
Rated Power |
36W(Max) |
|
General Specifications |
|
|
Operating Environment |
Indoor |
|
Operating Temperature |
5°-40° |
|
Storage Temperature |
-10°-60° |
|
Color |
Black |
|
Dimension |
(W)420*(D)257.5*(H)55.3mm（Without rocker height） |
|
Weight |
1.2kg |
