Keyboard Parameters

Joystick

4D precision Joystick

Knobs

3D knobs, support scale rotation to adjust parameters, support button function to select mode

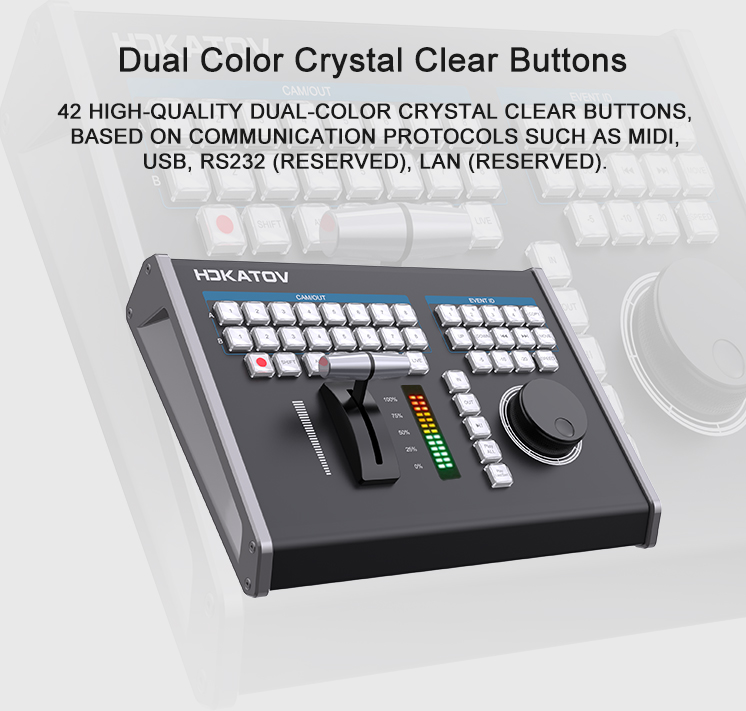

Buttons

High-quality silicone buttons, support white and red two-color backlight

Screen

3″ LCD color display

Shortcut Button

Support 7 camera shortcut button settings

Button Prompt Tone

Button sound prompt On/Off

Lock Button

Support one-key lock function

Max. Control Quantity

1000

Max.Preset Position

255

Control

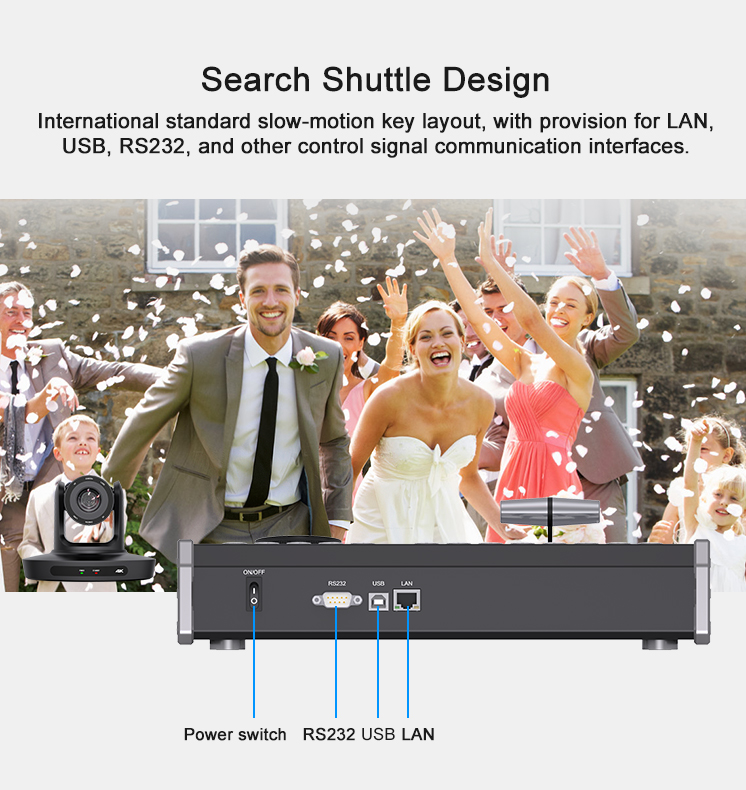

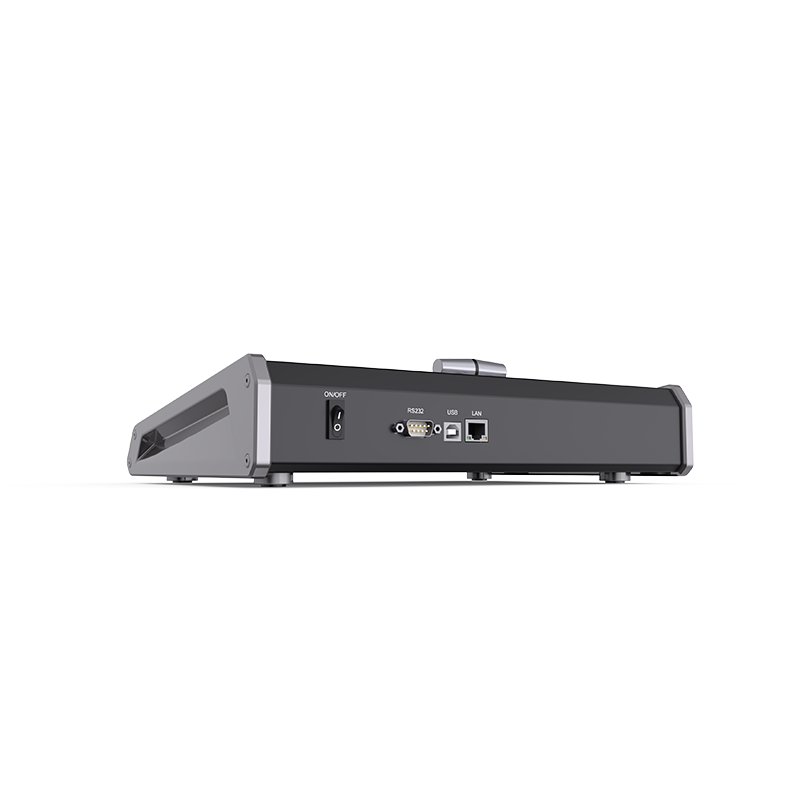

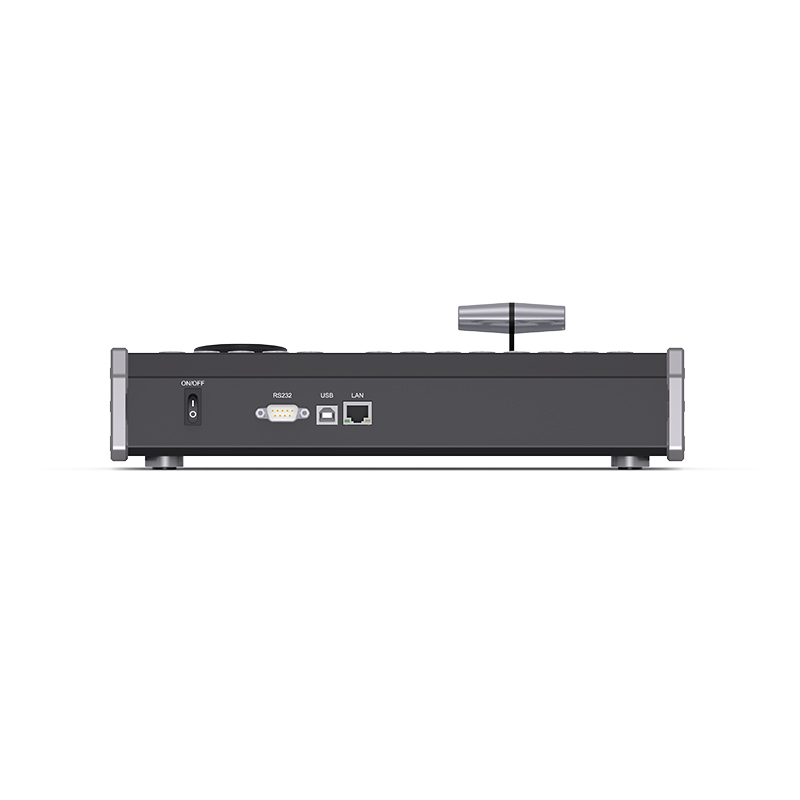

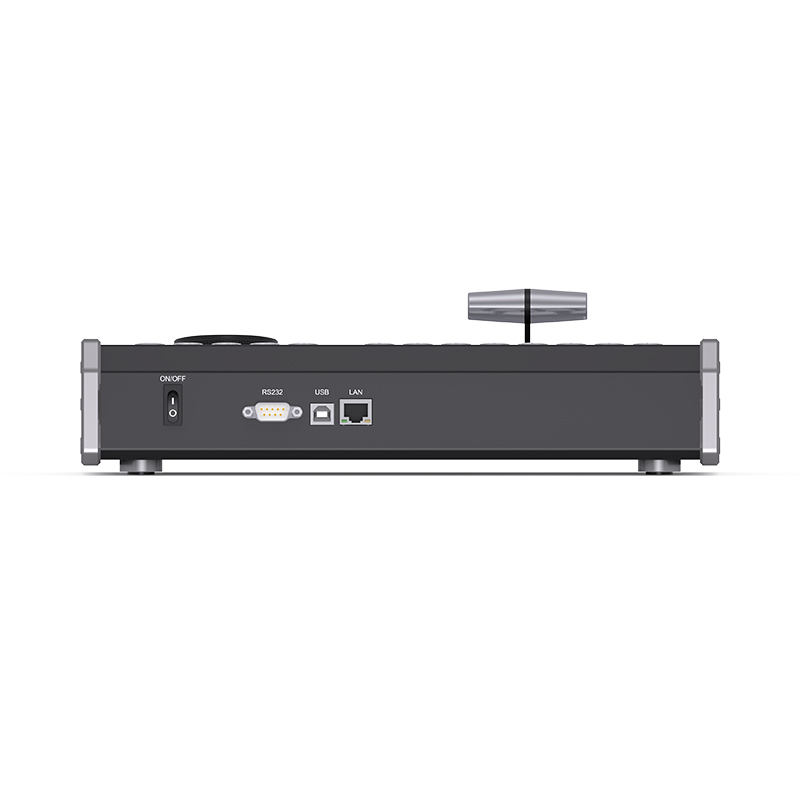

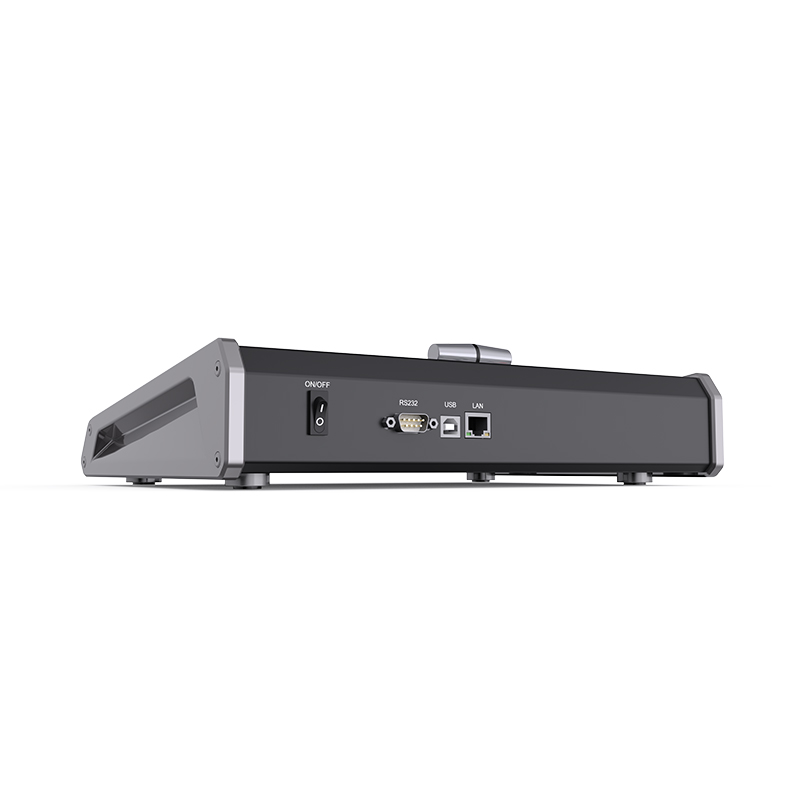

Control Interface

RJ45(support POE and NDI HX2), RS-232, RS-422/485

IP Control Protocol

Onvif, VISCA Over IP, VISCA TCP, NDI

Serial Port Protocol

VISCA, Pelco D, Pelco P

Power Supply

Input Voltage

12V

Input Current

0.25A

POE

802.3af

Rated Power

3W

General Specifications

Tally

Support up to eight channels

Operating Environment

Indoor

Operating Temperature

-10 -40

Storage Temperature

-20-60

Dimension

(W)332*(D)136*(H)58mm (Joystick height is not included)

(W)332*(D)136*(H)116mm (Joystick height is included)

Weight

0.8 kg
