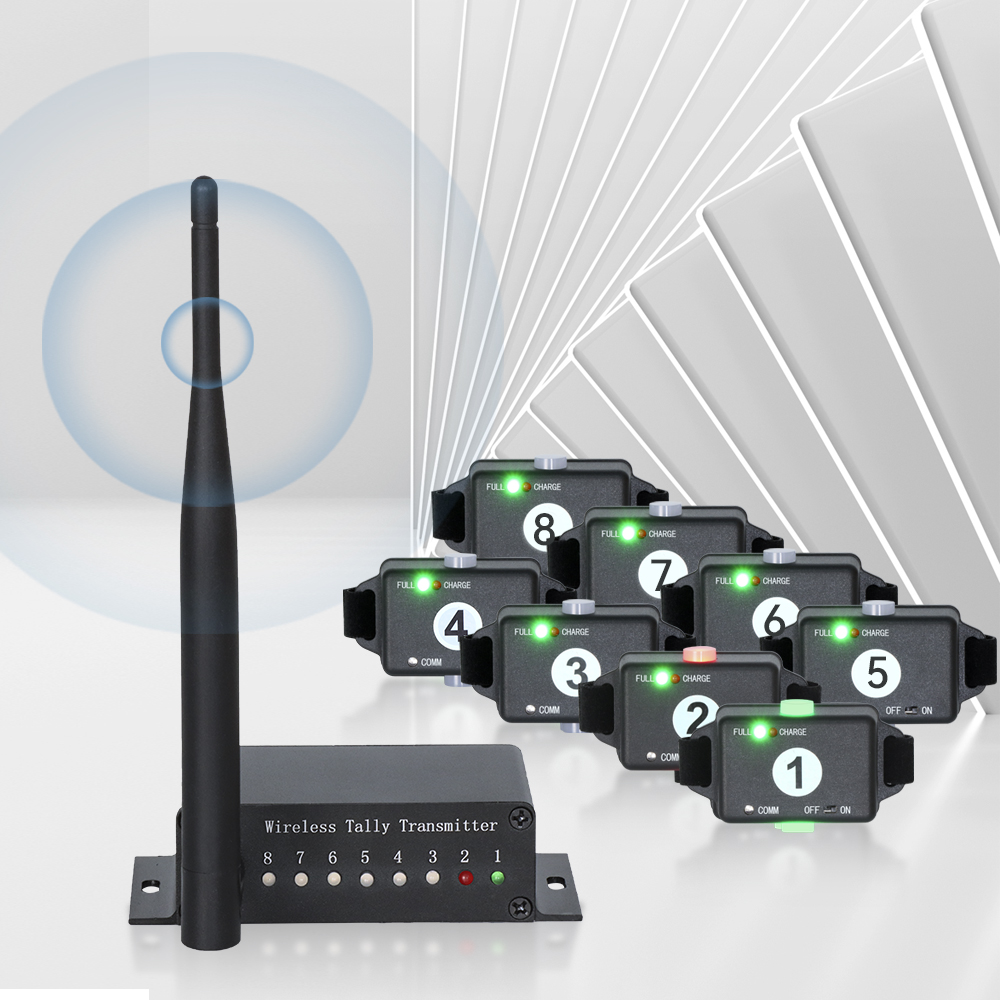

KT-TA4
Download
Products Description

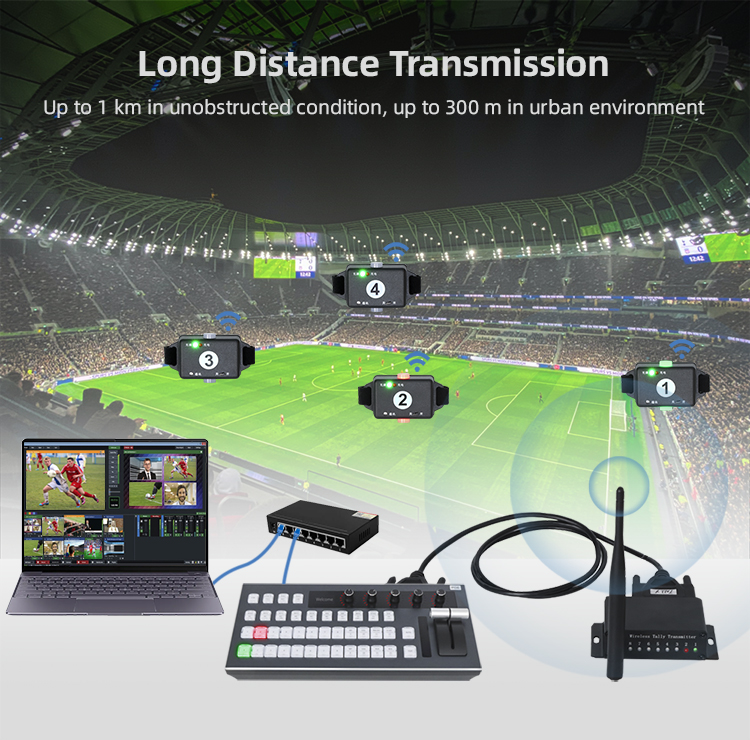

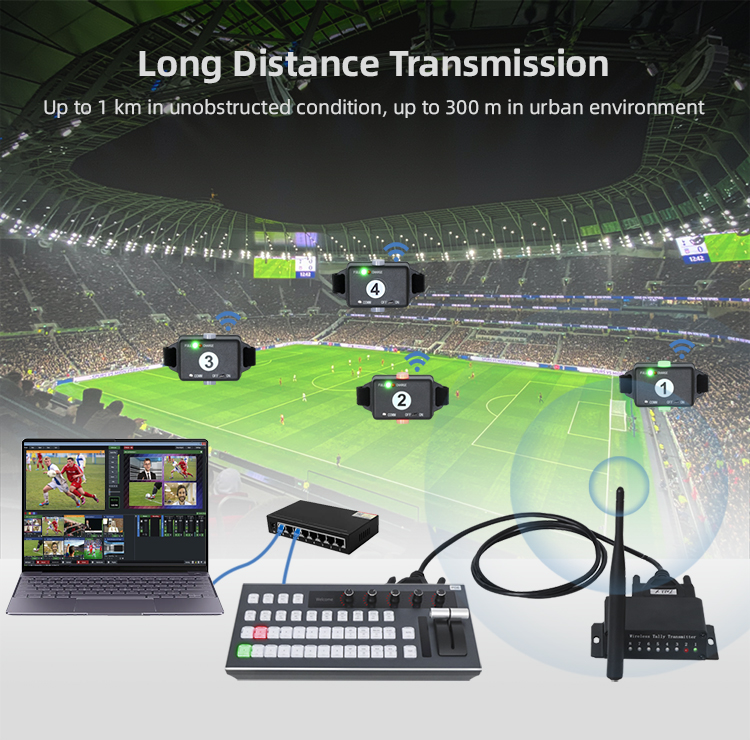

【Long-distance transmission, up to 1 km in an open area, and up to 300 meters in an urban environment】
【Low transmit power, no interference with other video equipment】

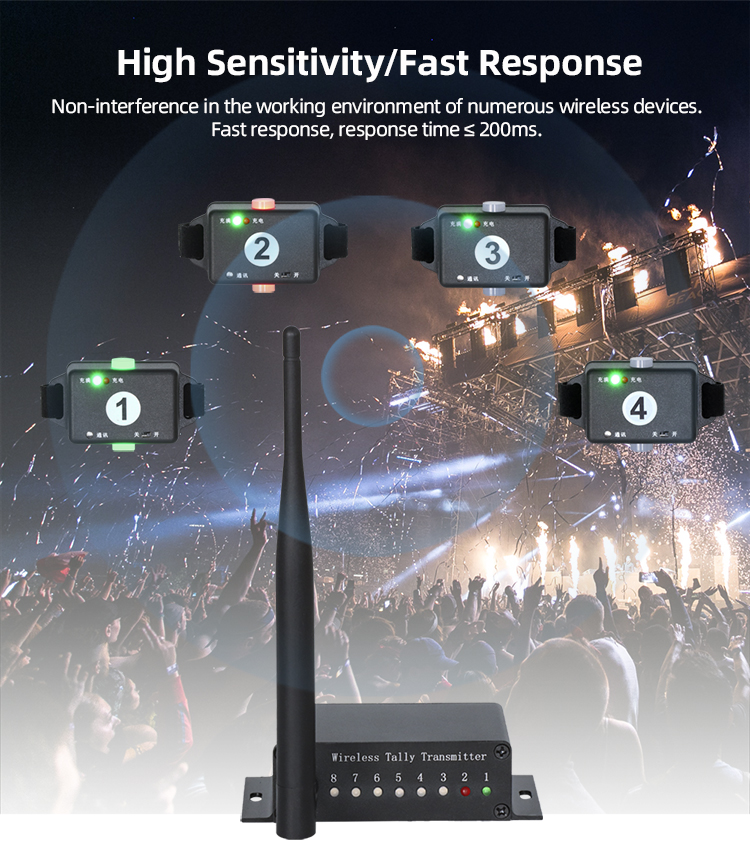

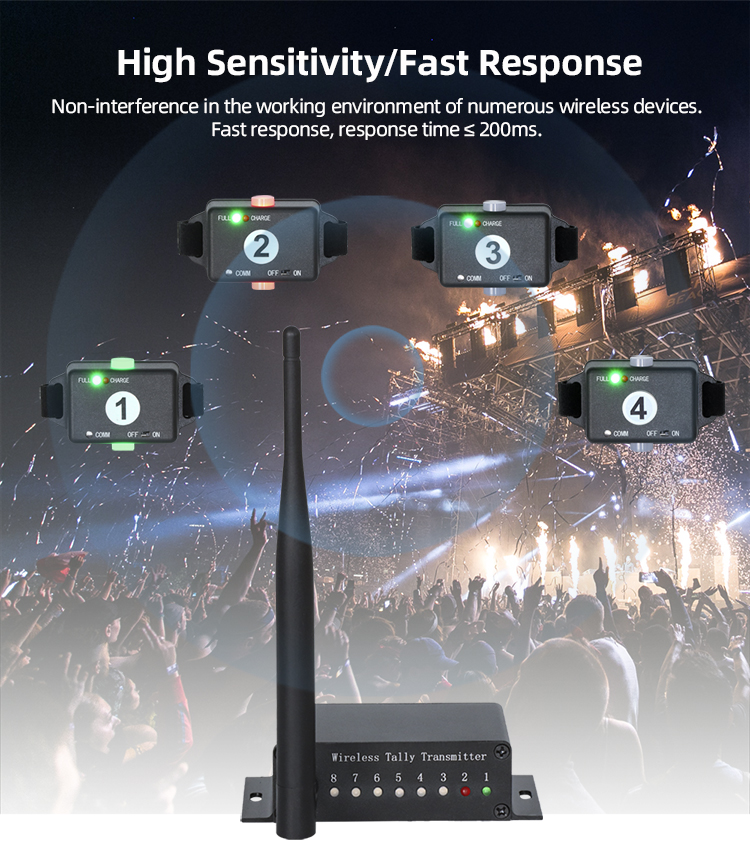

【High sensitivity, can not be interfered in the environment where many wireless devices work】
【≤200ms fast response, response time ≤ 200ms】

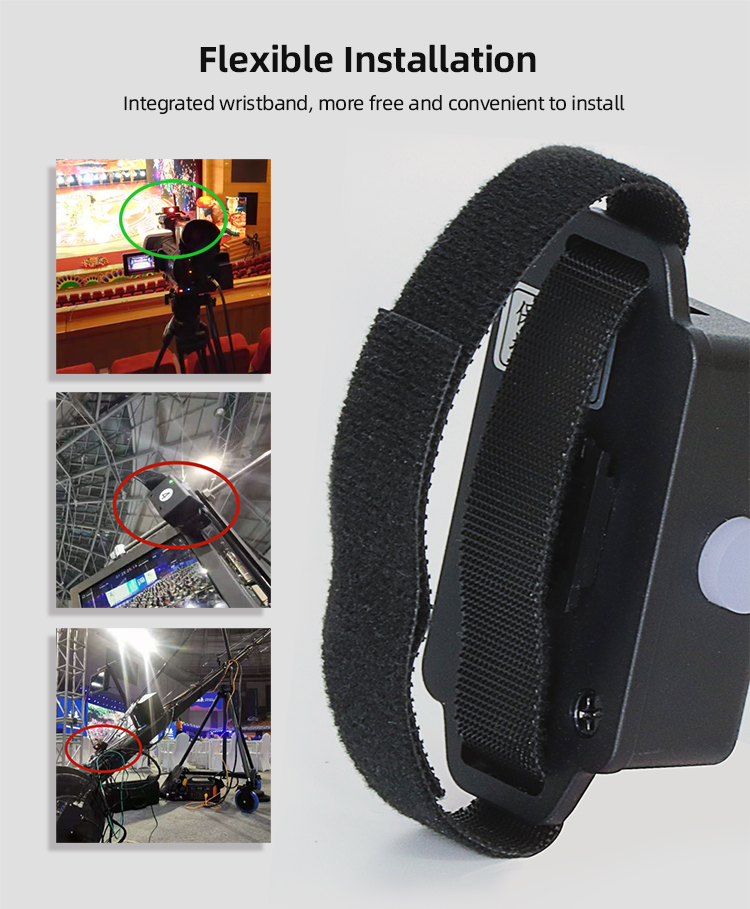

【The installation method is flexible and diverse, the hot shoe wrist strap is integrated, and the fixing method can be replaced freely, which is more convenient】

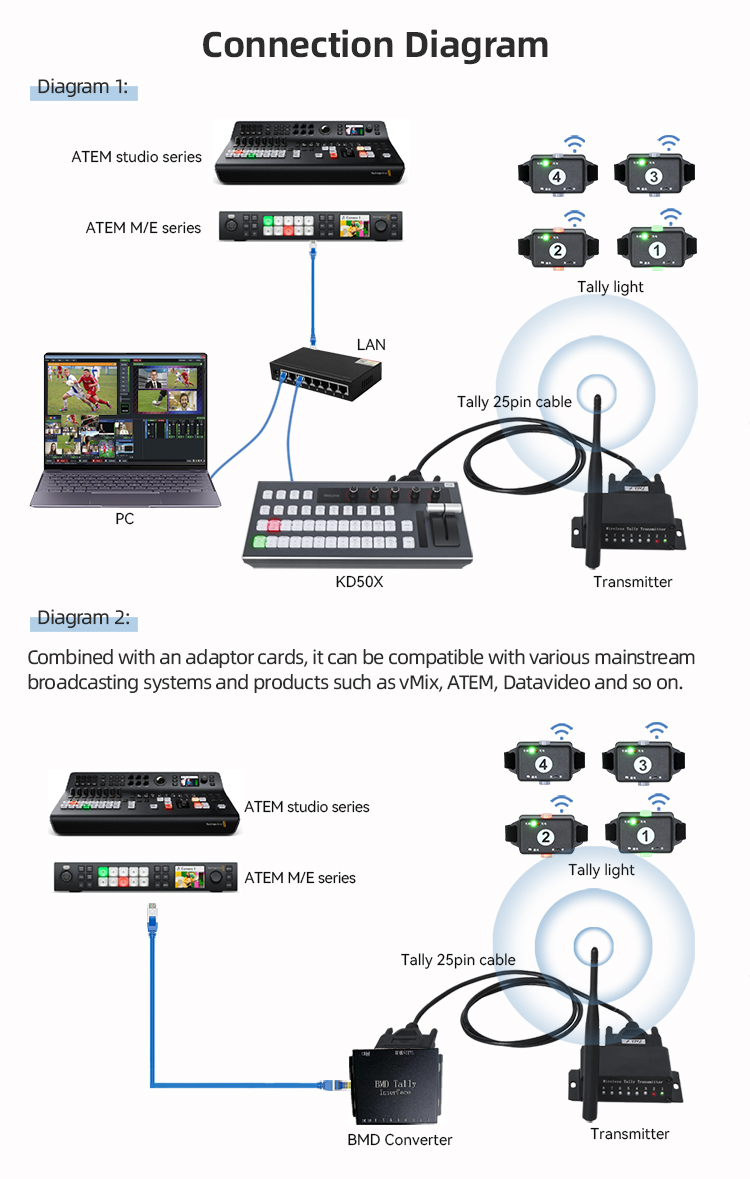

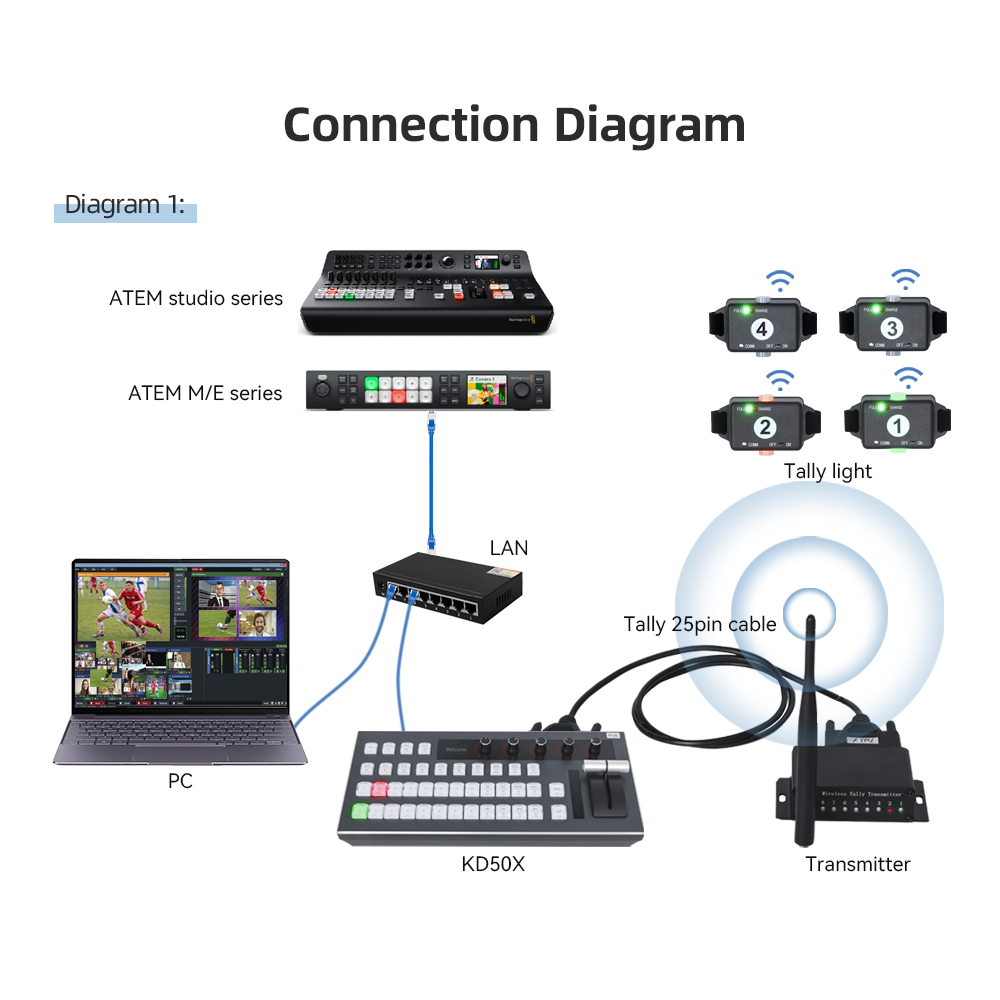

【Combined with the adapter card, it can be compatible with various mainstream broadcasting systems and products such as Vmix, ATEM, Datavideo and Roland etc】

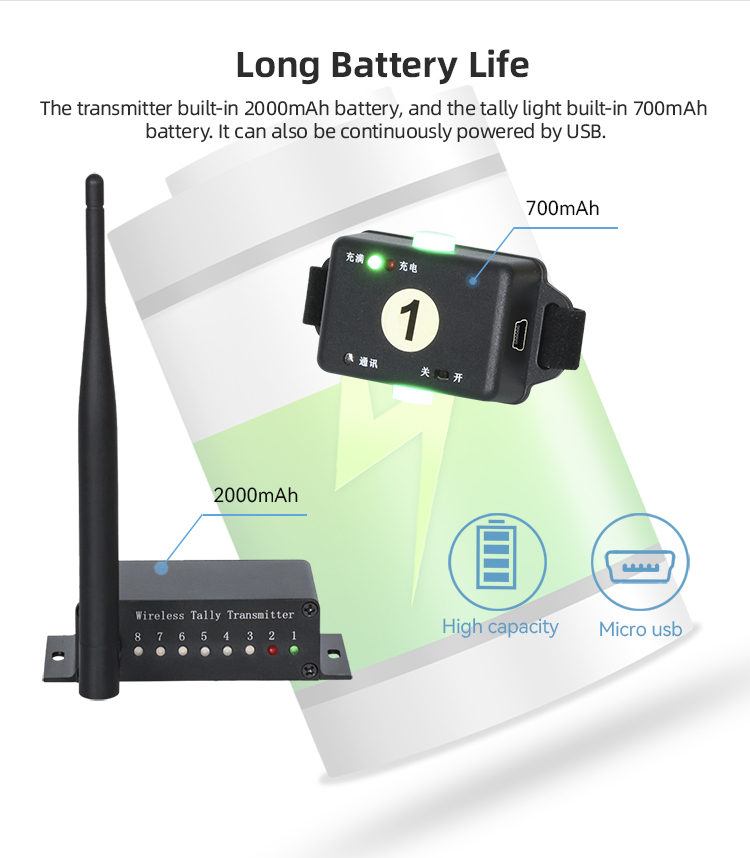

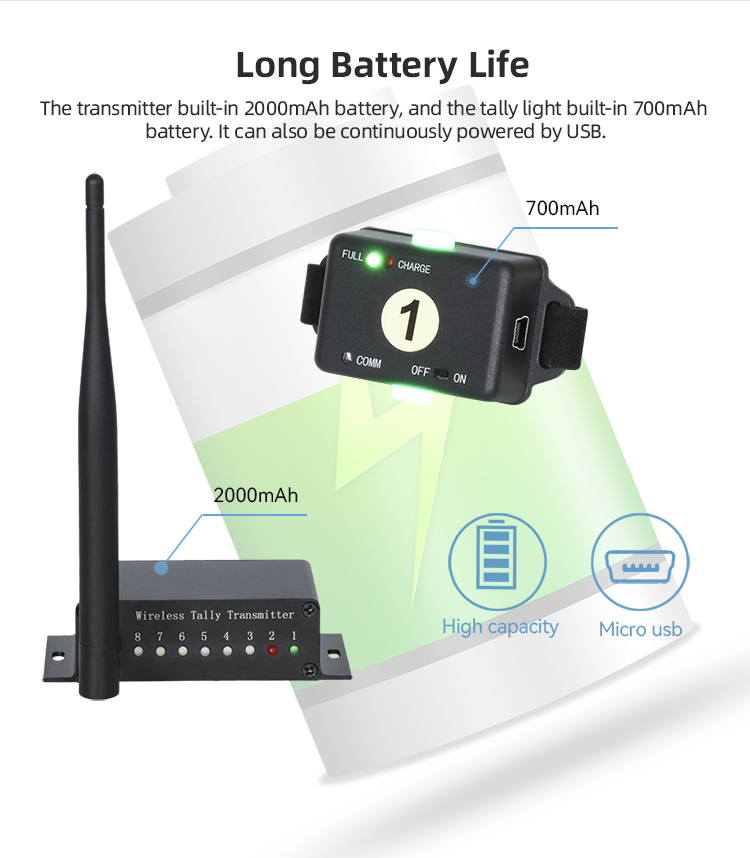

【Super long battery life, built-in 2000mAh battery in the host, 700mAh battery in Tally, and can also be continuously powered by USB to cope with all day working environments】
Details Images
|

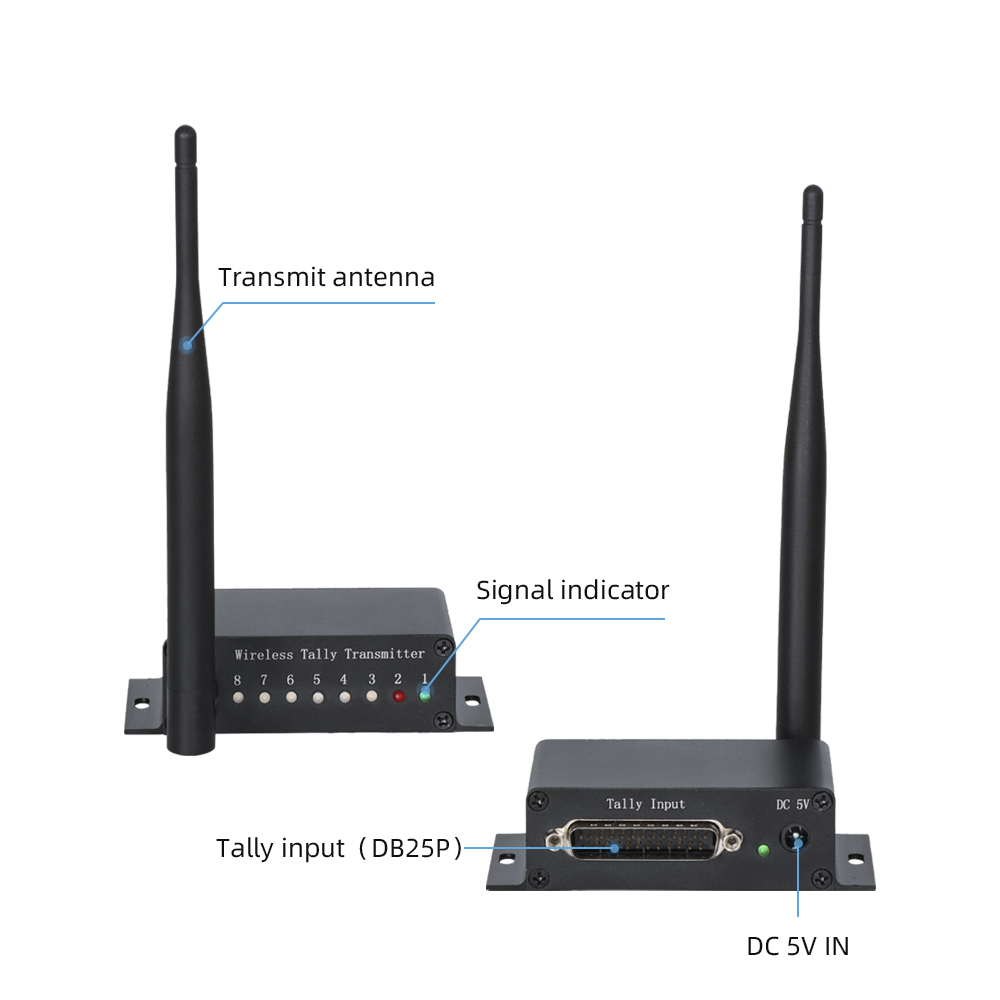

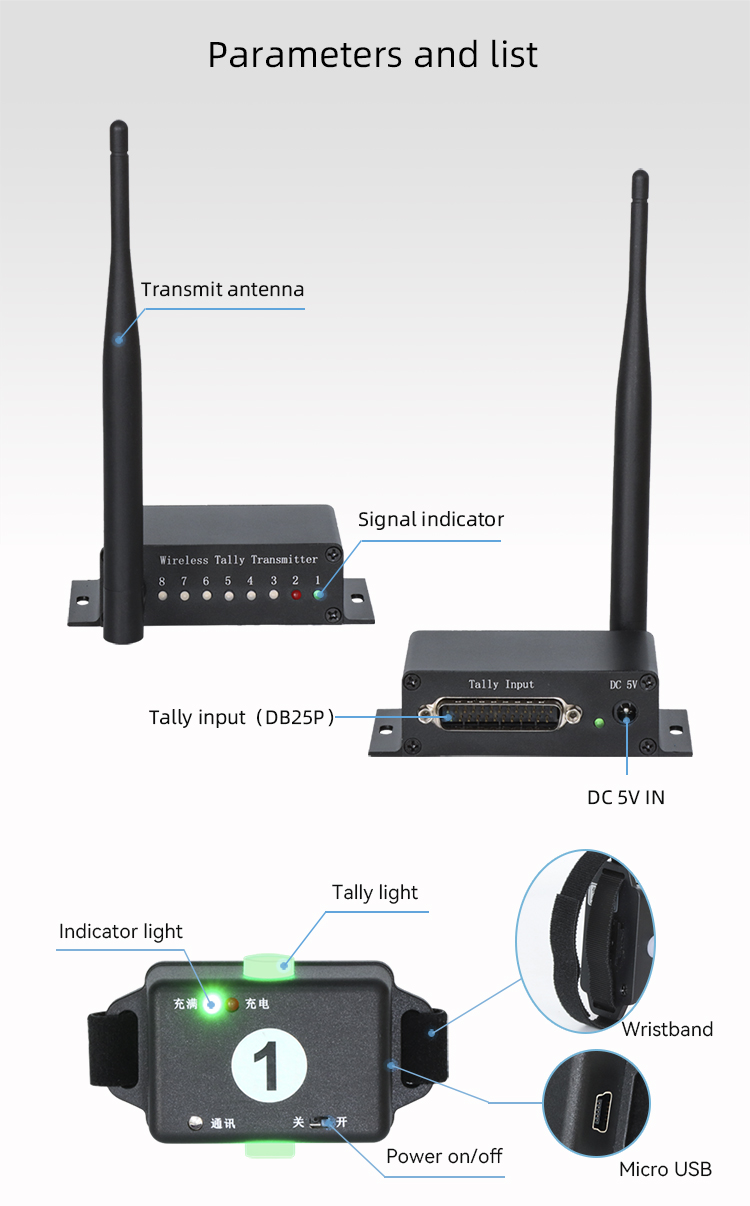

The Host |
|
|
Interface |
DB25 Port |
|
Communication Carrier Frequency |
433MHz spread spectrum |
|
Transmission Distance |
1 km in an open area, 300 meters away from the city |
|
Battery Specification |
Built-in 2000mAh battery, can last for 20 hours |
|
Charging Port |
Micro USB |
|
Charging Voltage |
DC 5V |
|
Recharging Current |
400mA |
|
Generating Power |
500mW |
|
Host Size |
About 65*105*17.9mm |
|
Antenna Size |
About 171mm |
|
Host Weight |
About 0.5kg |
|
Tally |
|
|
Indicator Light |
Two-color indicator light |
|
Installation Method |
Integrated hot shoe wrist strap |
|
Signal Indicator Status |
Blue indicator light: flickering after receiving the Tally signal from the host; red indicator light: always on when the battery is not charging, and the power is less than 40%; green indicator light: always on when the battery is not charging, and the battery is less than 80%. |
|
Charging port |
Micro USB |
|
Tally Size |
36*67.3*18.8mm |
|
Tally Weight |
0.2 kg |
Specifications
