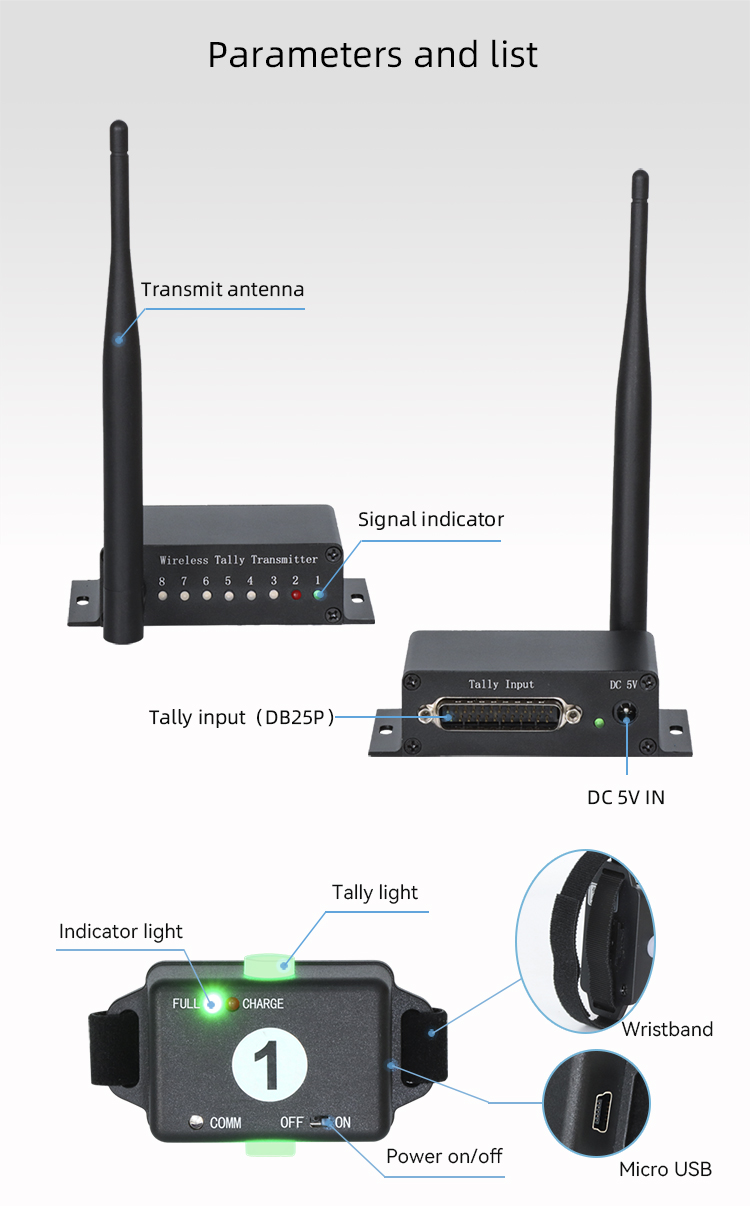

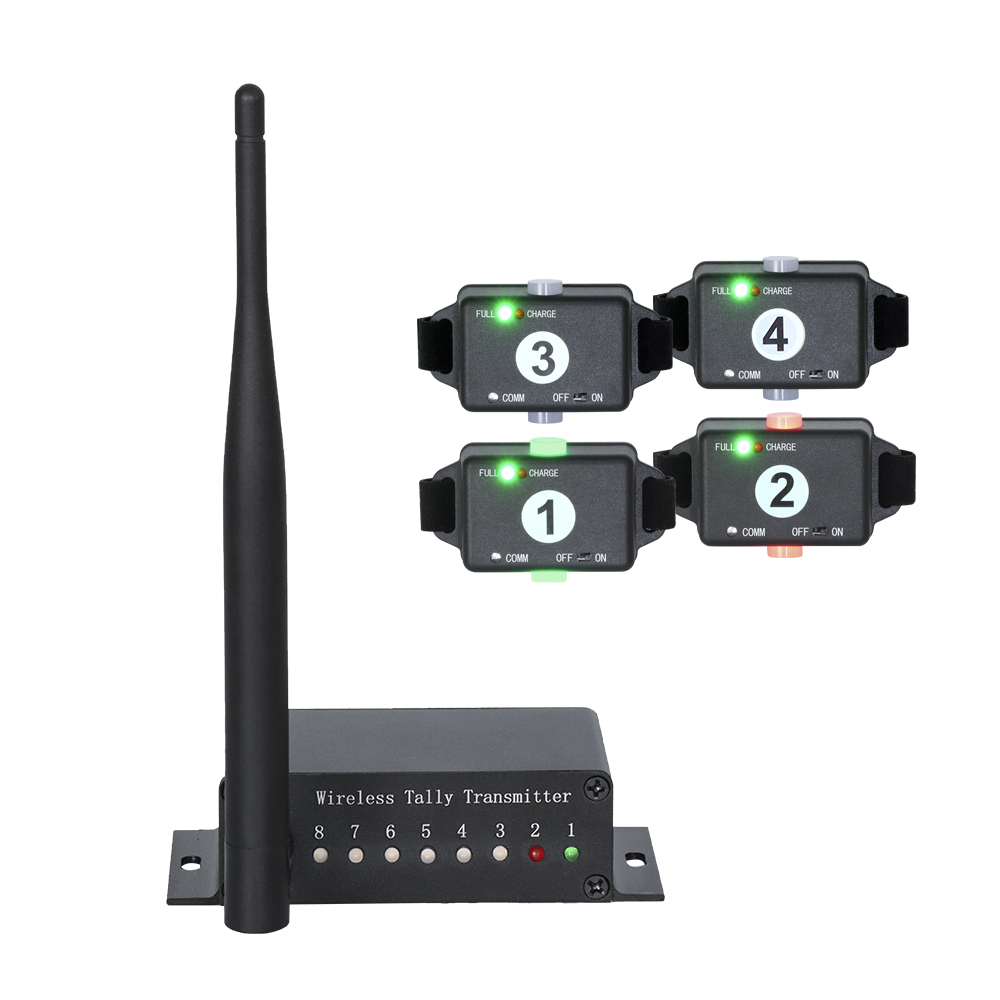

The Host

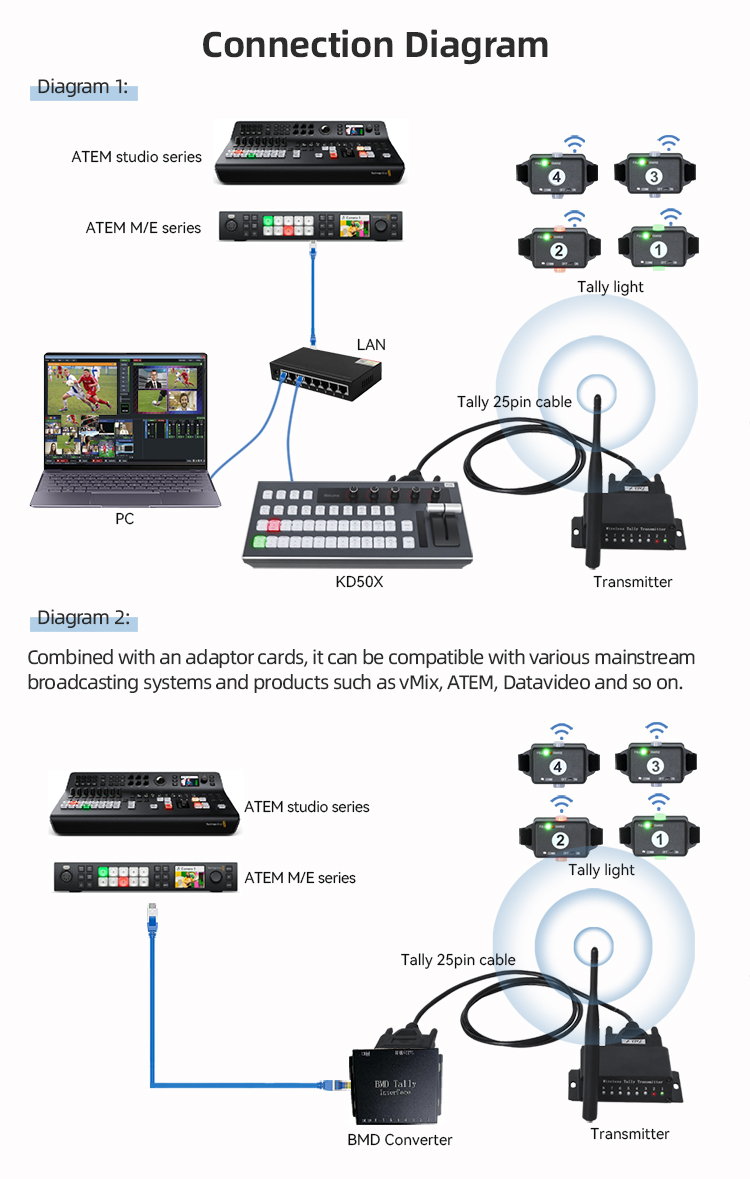

Interface

DB25 Port

Communication Carrier Frequency

433MHz spread spectrum

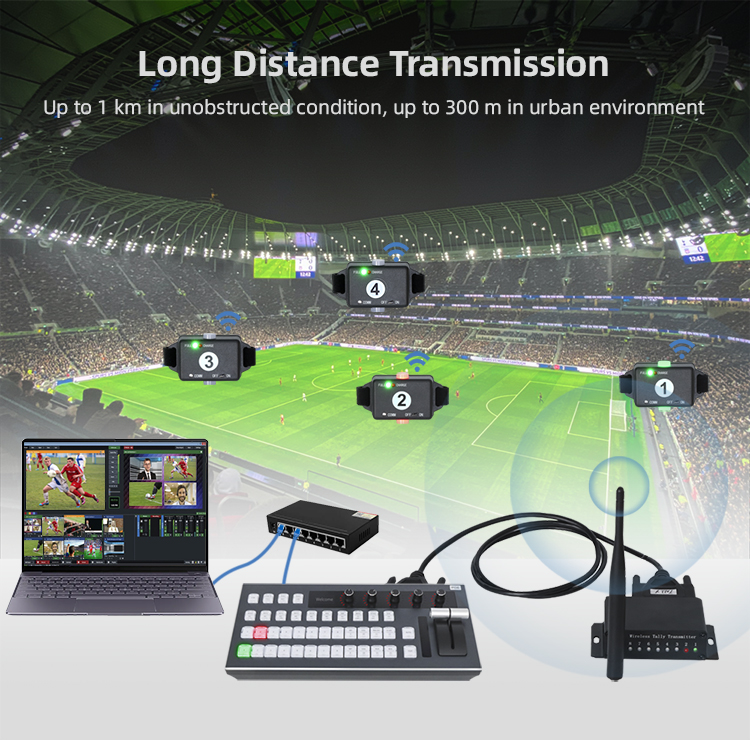

Transmission Distance

1 km in an open area, 300 meters away from the city

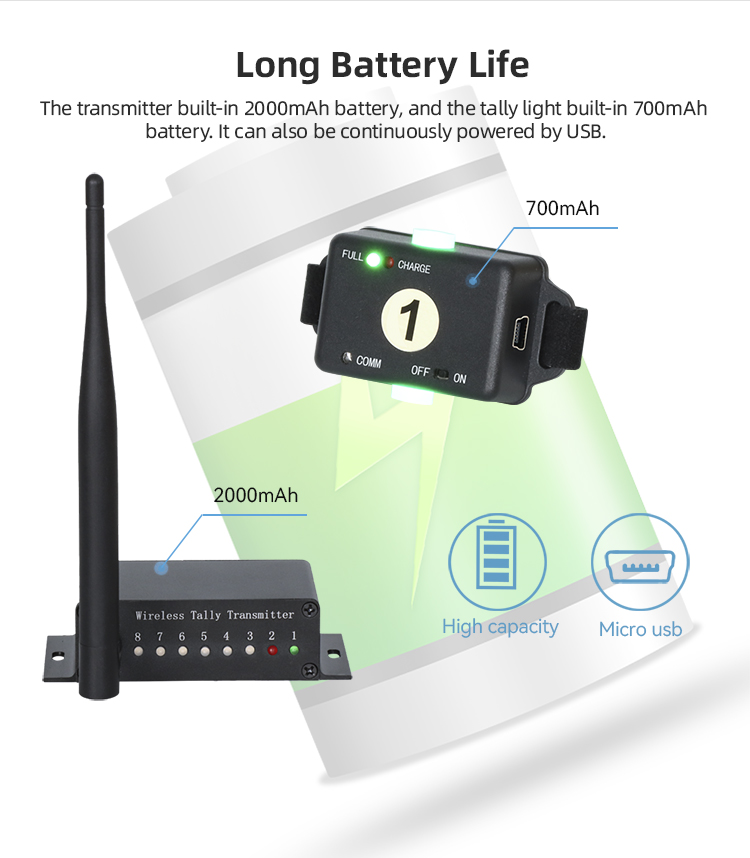

Battery Specification

Built-in 2000mAh battery, can last for 20 hours

Charging Port

Micro USB

Charging Voltage

DC 5V

Recharging Current

400mA

Generating Power

500mW

Host Size

About 65*105*17.9mm

Antenna Size

About 171mm

Host Weight

About 0.5kg

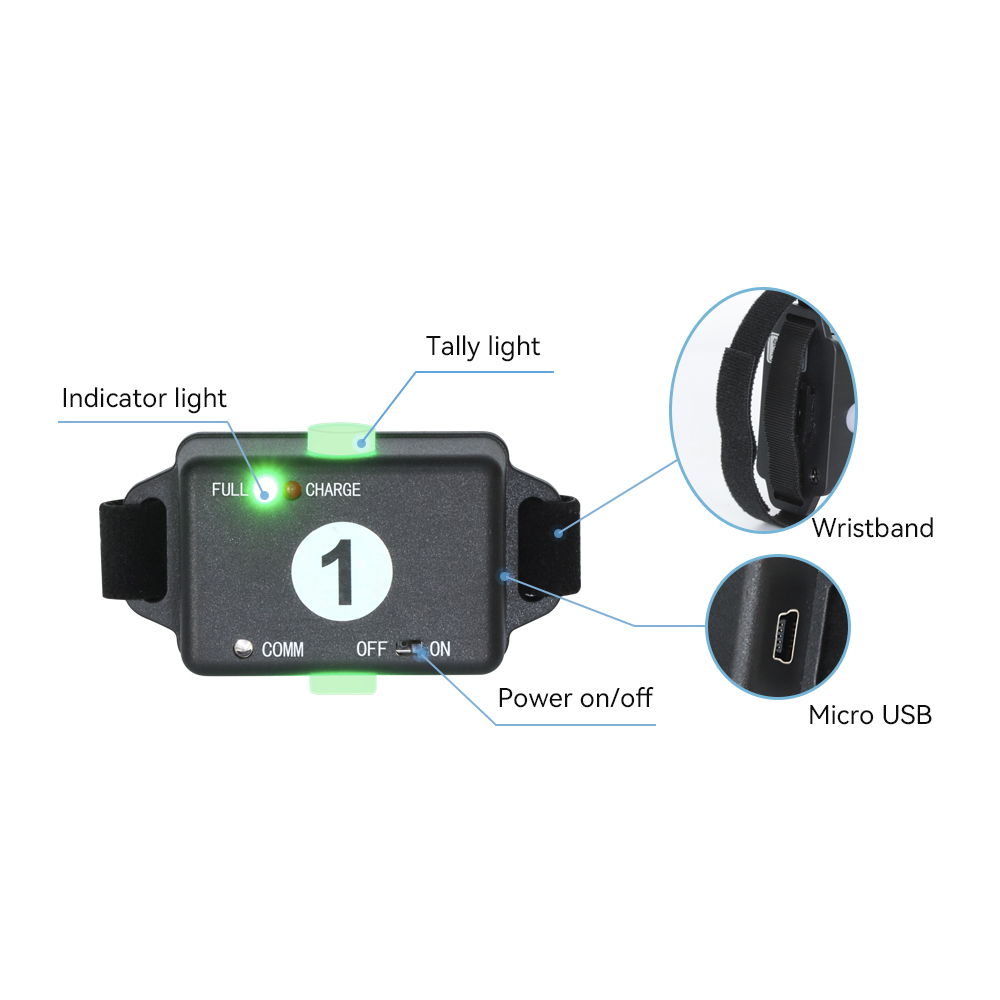

Tally

Indicator Light

Two-color indicator light

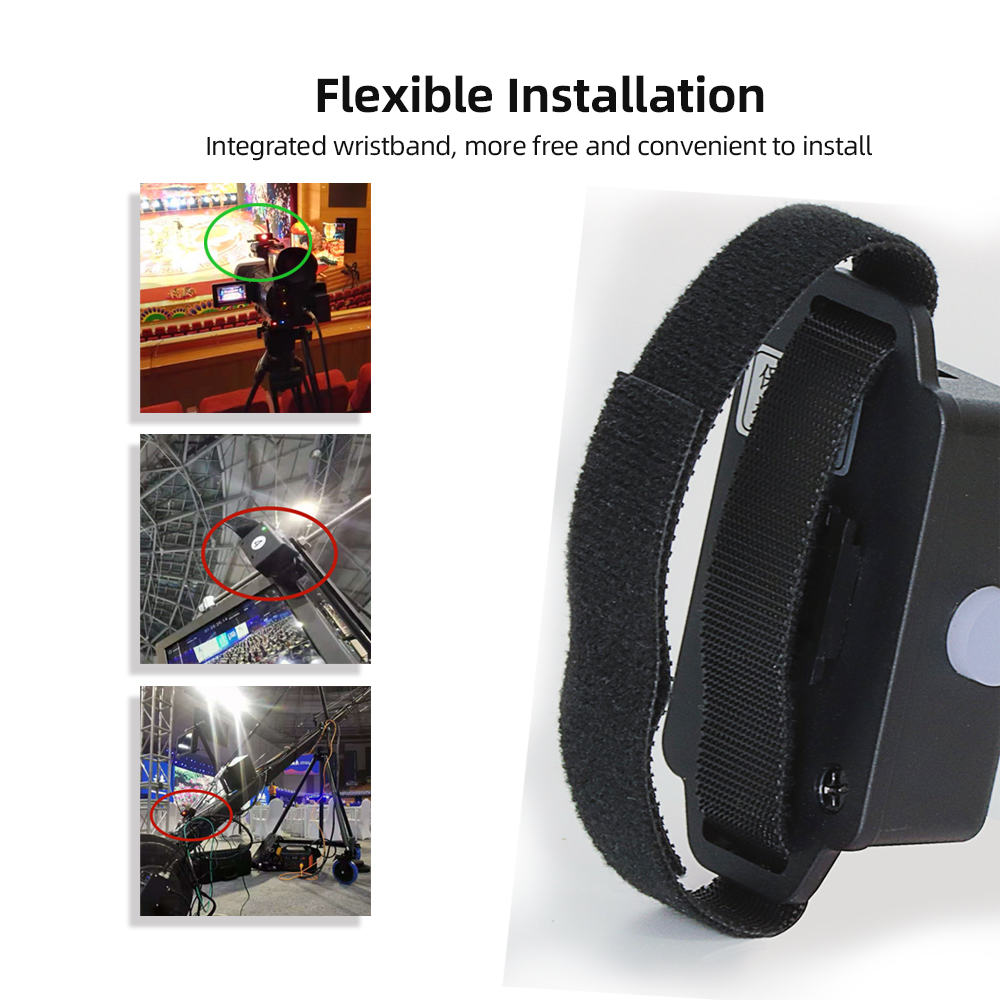

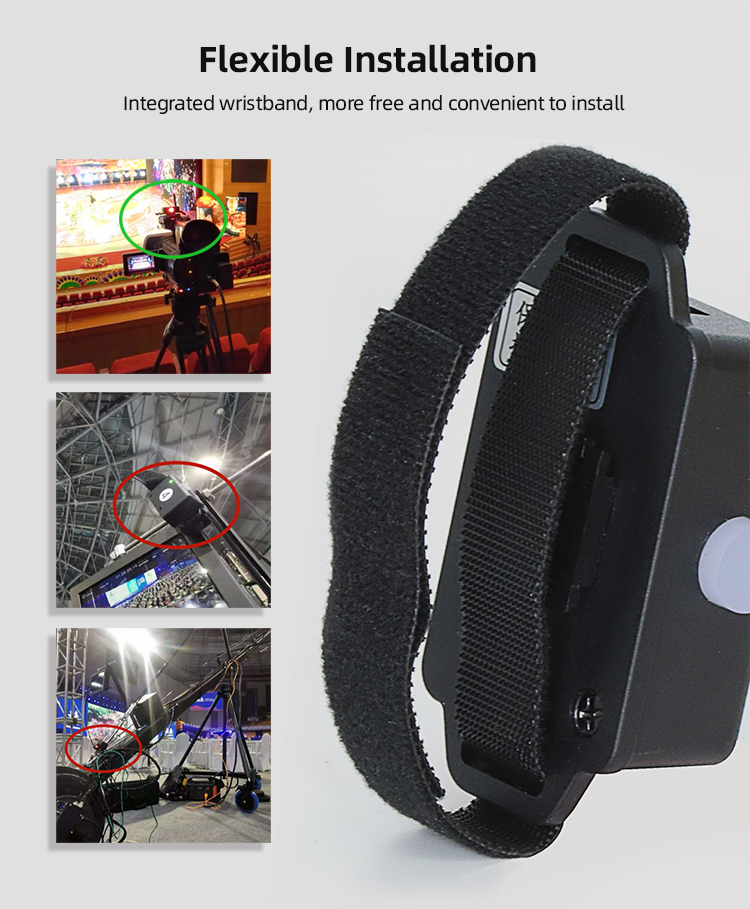

Installation Method

Integrated hot shoe wrist strap

Signal Indicator Status

Blue indicator light: flickering after receiving the Tally signal from the host; red indicator light: always on when the battery is not charging, and the power is less than 40%; green indicator light: always on when the battery is not charging, and the battery is less than 80%.

Charging port

Micro USB

Tally Size

36*67.3*18.8mm

Tally Weight

0.2 kg
