Image Parameters

Resolution

HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50
SDI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50

Image Sensor

SONY 1/2.8" CMOS

Pixels

8.50 Megapixels, 8.29 Effective Megapixels

Scan Mode

Line by line

Lens

20X Optical Zoom, f=5.2mm(W)~104mm(T)

Horizontal View Angle

58.7°(W)~3.2°(T)

Vertical View Angle

32.2°(W)~1.8°(T)

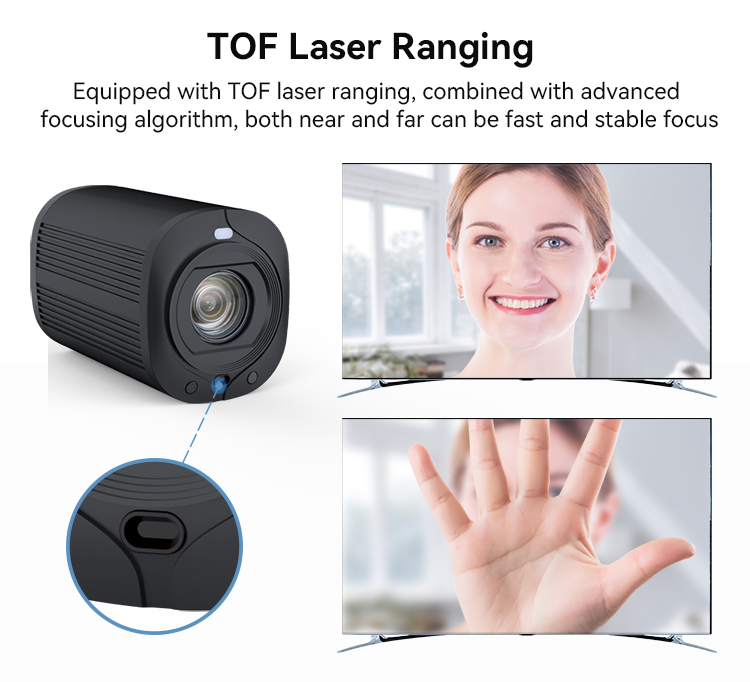

Focus System

Auto, Manual

Shutter Speed

1/25s ~ 1/10000s

Minimum Illumination

0.1 Lux @ (F1.5, AGC ON)

Exposure

Auto, Manual, Iris Priority, Shutter Priority, Brightness priority

White Balance

Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual

Backlight Compensation

Support

Digital Noise Reduction

2D&3D Digital noise reduction

S/N Ratio

≥50dB

Pan/Tilt

Preset Positions

9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC

Preset Accuracy

0.1°±10%

Flip

Support

POE

802.3af

USB

Protocol

UVC 1.1

Operating System

Window7 and above, MacOS, Linux, Android

Video Compression

YUY2, MJPEG

Resolution

1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 (USB defaults to 4K is optional)

Frame Rate

Max.30

UVC Control

Support

LAN

Protocol

TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional)

Video Compression

H.264, H.265

Code Stream

Main code stream*1, Sub code stream*1

Main Stream Resolution

3840*2160, 1920*1080

Sub Stream Resolution

640*480, 640*360, 352*288, 320*240, 176*144

Bitrate Control

VBR, CBR

Audio

Audio Compression

AAC

Audio Bit Rate

128kbps

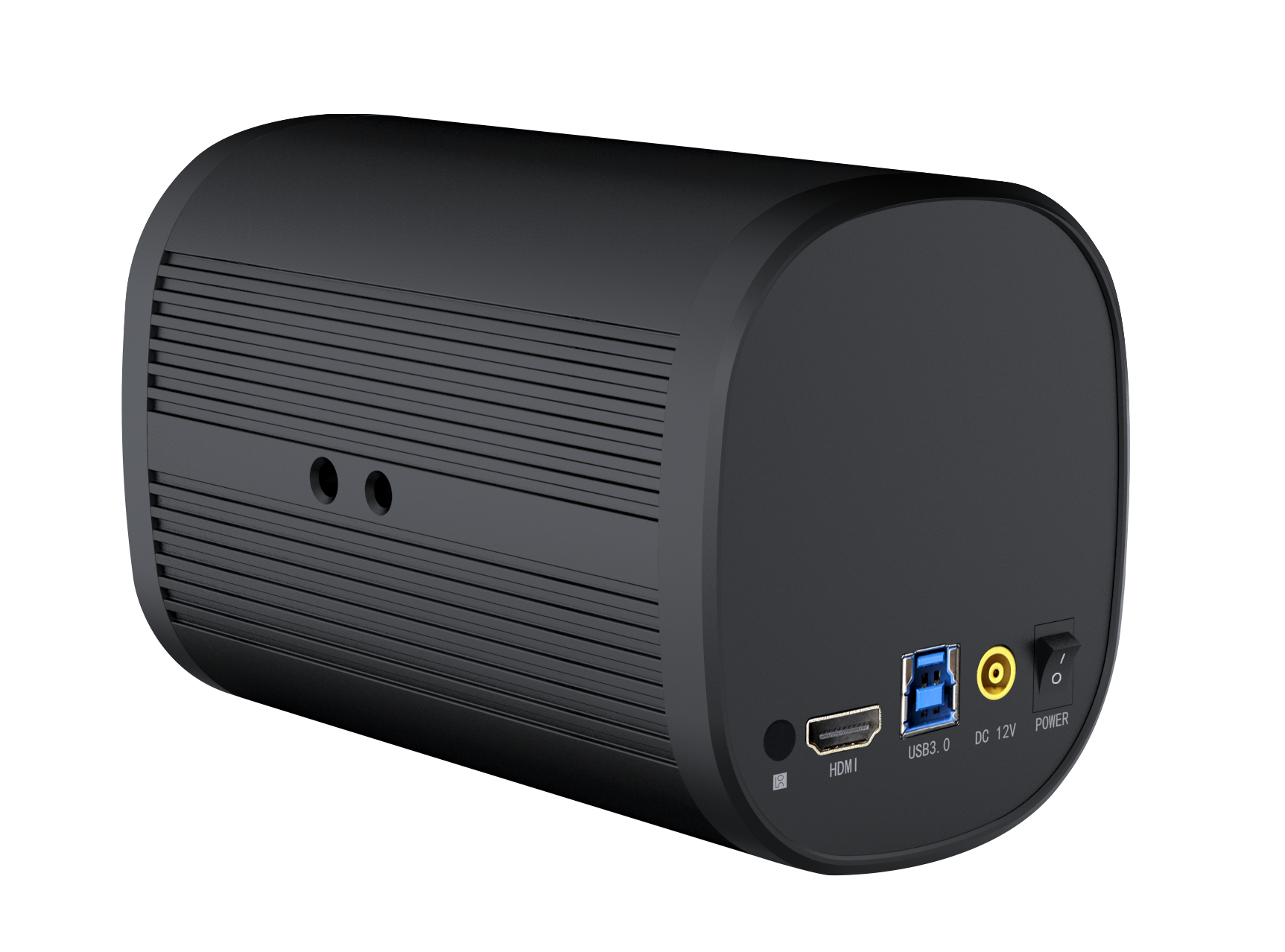

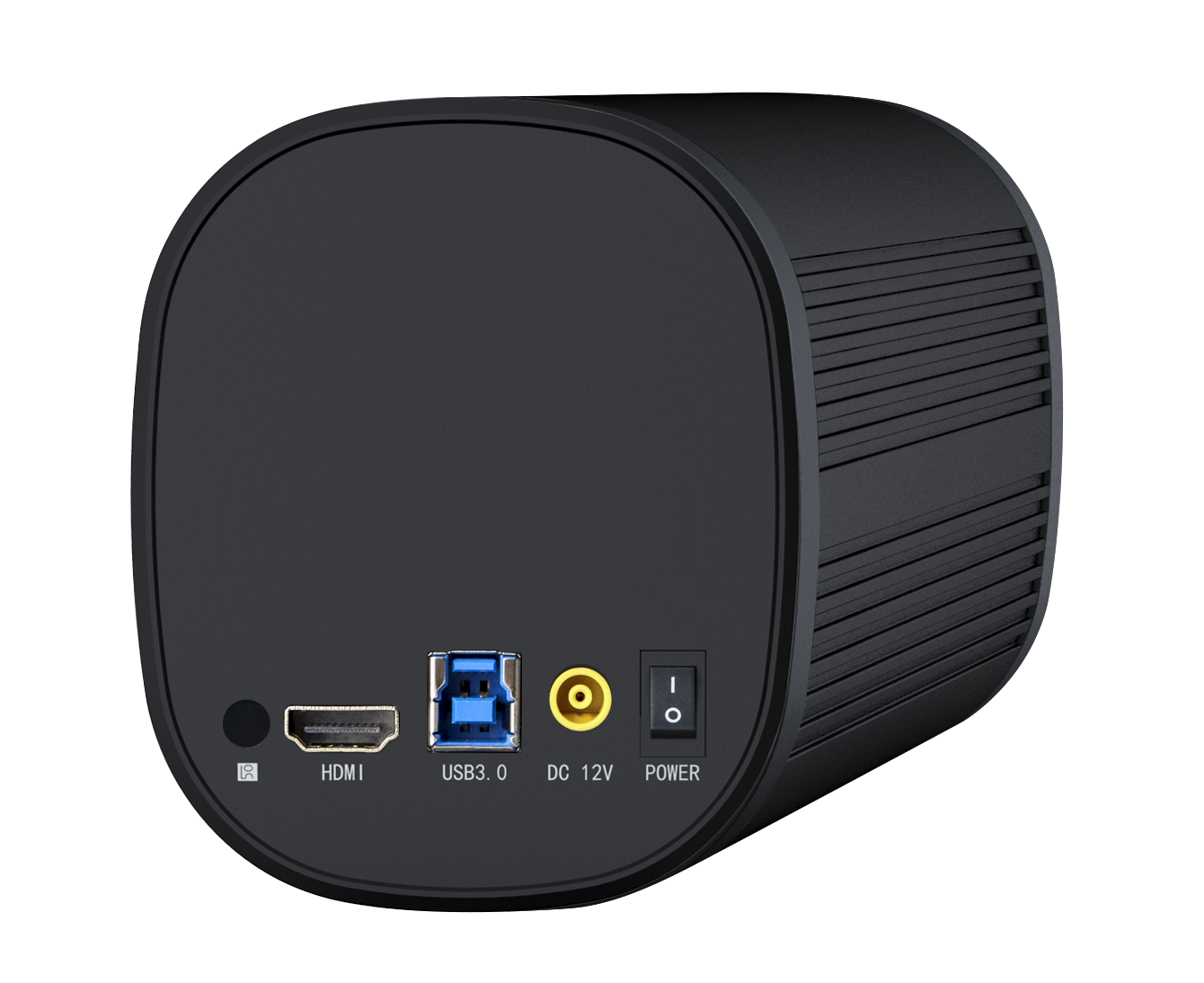

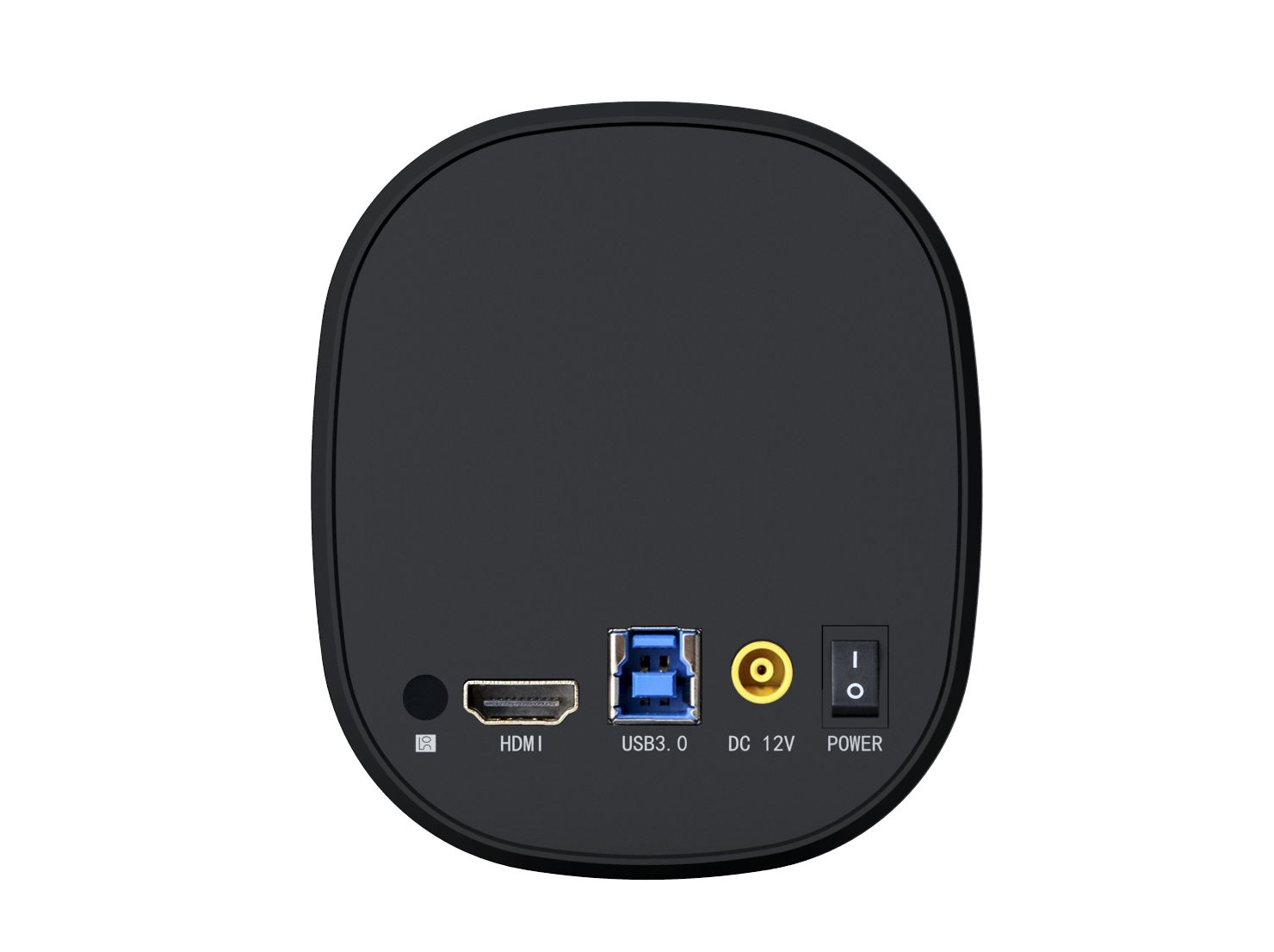

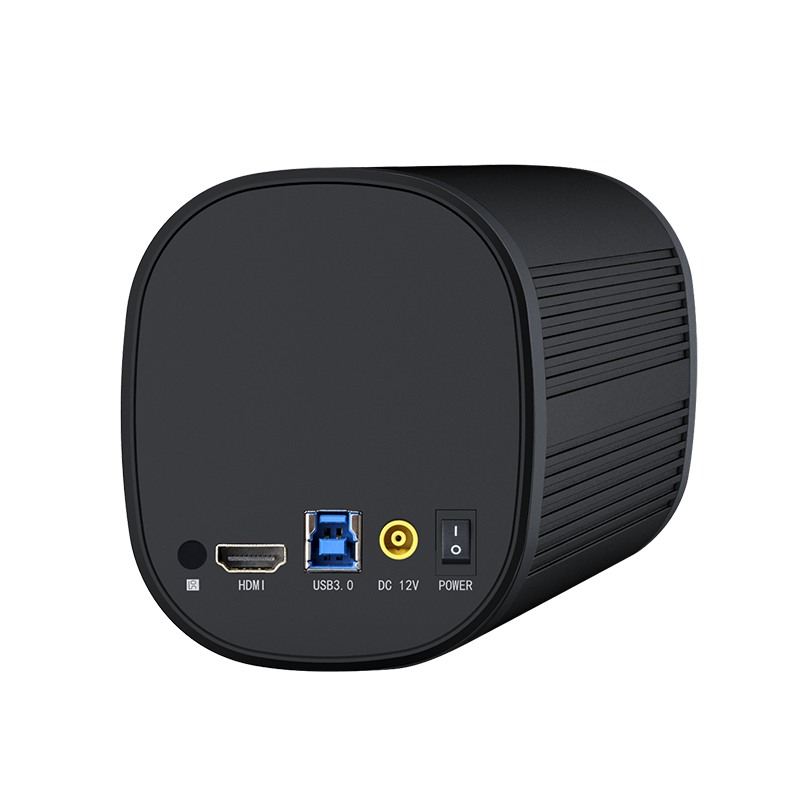

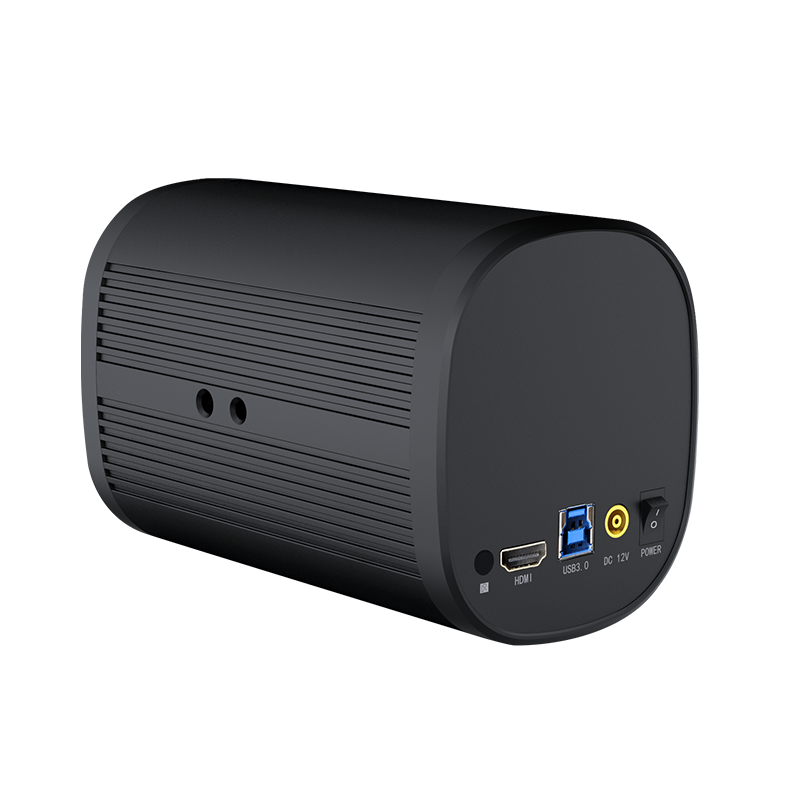

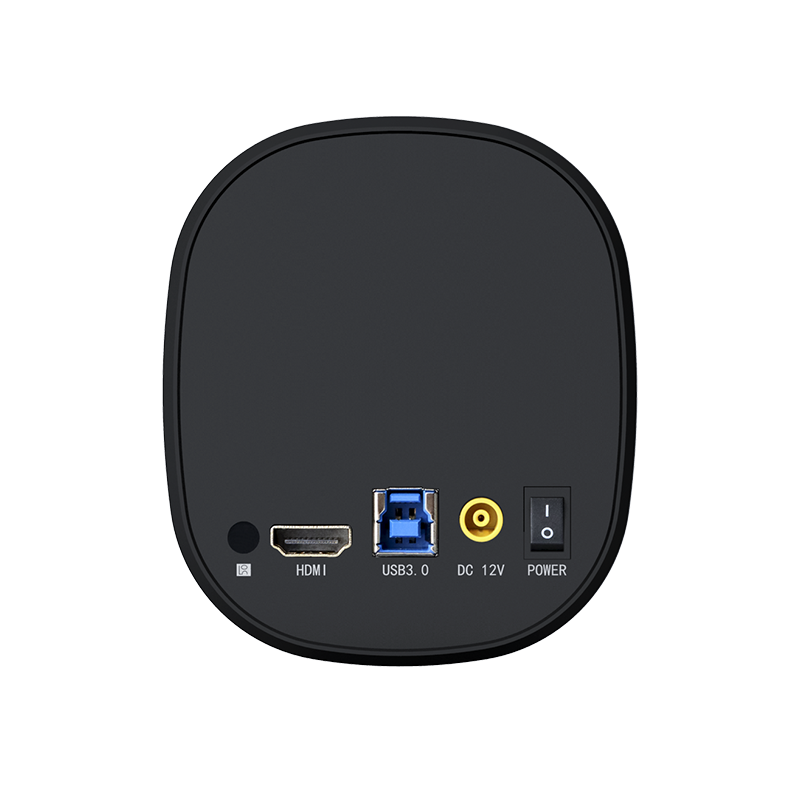

Interface

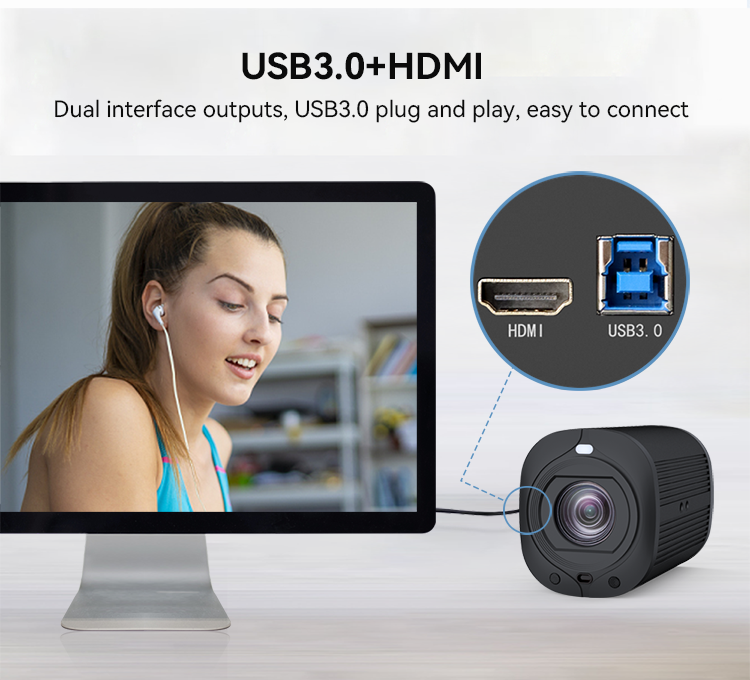

HDMI Interface

1 Line, HDMI: Version 1.4

SDI Interface

1 Line, 3G-SDI

USB Interface

1 Line, USB3.0, Type-B Socket

Network Interface

1 Line, RJ45: 10M/100M adaptive Ethernet port

Audio Interface

1 Line, Line In, 3.5mm

Serial Interface

1 Line RJ45 interface, support RS232/RS422/RS485: VISCA/Pelco-D/Pelco-P.

Power Interface

IEC 60130-10 Type A

General Specifications

Tally Light

Support

Input Voltage

DC 12V

Input Current

Max.3.0A

Power Consumption

Max.36W

Operating Temperature

0~40

Storage Temperature

-10~60

Color

Black

Dimension

(W)88*(D)167*(H)102mm

Weight

1.5kg

Accessories

DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, Serial port adapter cable, Bracket
