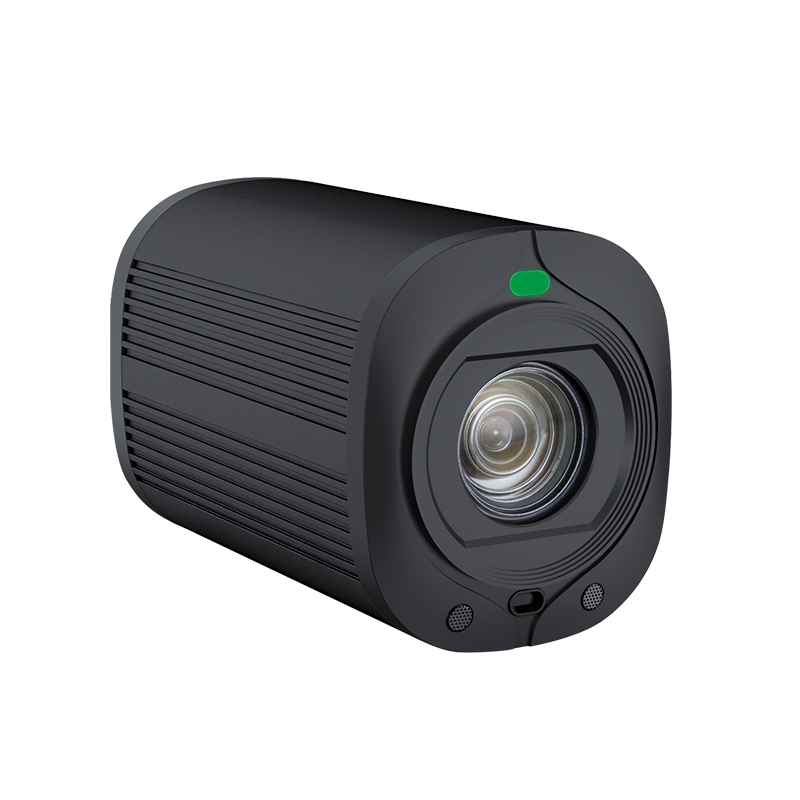

KT-S10DH/S10DHN
Download
Products Description
【4K Ultra-high-definition】
Applied SONY 1/2.8-inch 8.5 million high-quality CMOS image sensor with 8.29 million effective pixels, it can realize the maximum 4K30（3840x2160 ）ultra-high-definition resolution image output.
【20x Optical Zoom】
Equipped with a 20x optical telephoto lens, supports the mainstream horizontal viewing angle of 58.7°, satisfying video conferencing in large halls, blackboard writing in lecture halls.

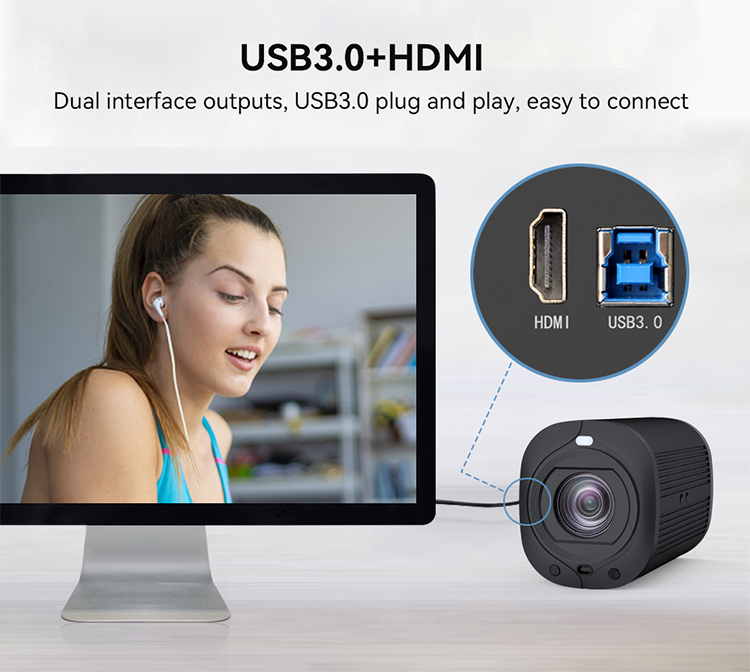

【USB3.0+HDMI+IP+3G-SDI Full Interfaces】
Compatible with mainstream video output interfaces.
Default version: HDMI+LAN can output 4K30 resolution at the same time.
Optional version: HDMI+USB3.0 can output 4K30 resolution at the same time.

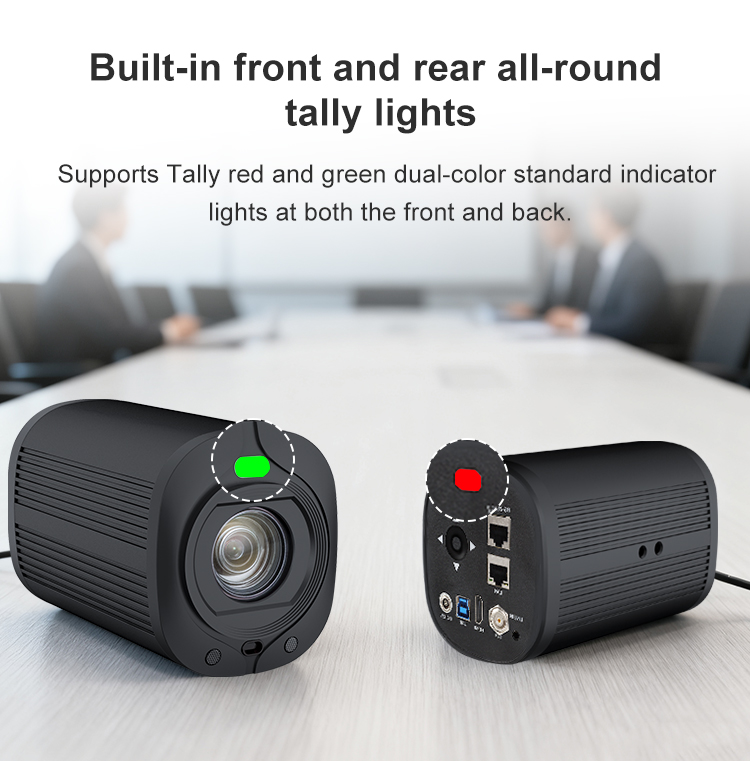

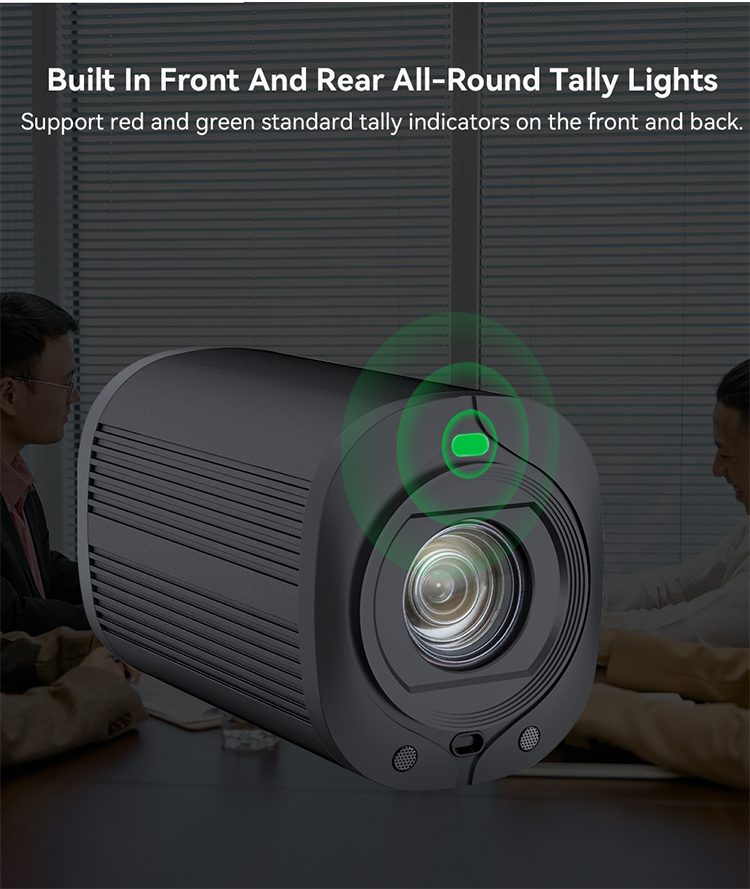

【Built-in Front and Rear All-round Tally Lights】
Supports red and green standard tally indicators on the front and back.
【Low Light】
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. 2D&3D digital noise reduction reduces image noise. In ultra-low light conditions, the picture can still be clean and clear, S/N Ratio of the image is higher than 50dB.
【2.4g Remote Control Signal】
2.4g remote control signal, achieves ultra-long-distance control.
【Various Video Compression Standards】
Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.
【Various Network Protocols】
Supports ONVIF, SRT, RTSP, RTMP and NDI® HX2 ect.
【Multiple Control Protocols】
Supports VISCA (including VISCA Over IP), PELCO P/D protocol, NDI®; automatically identify protocols.
【Rear Multi-dimensional Remote Control 5D Small Joystick】
Supports menu selection, zoom and other functions.

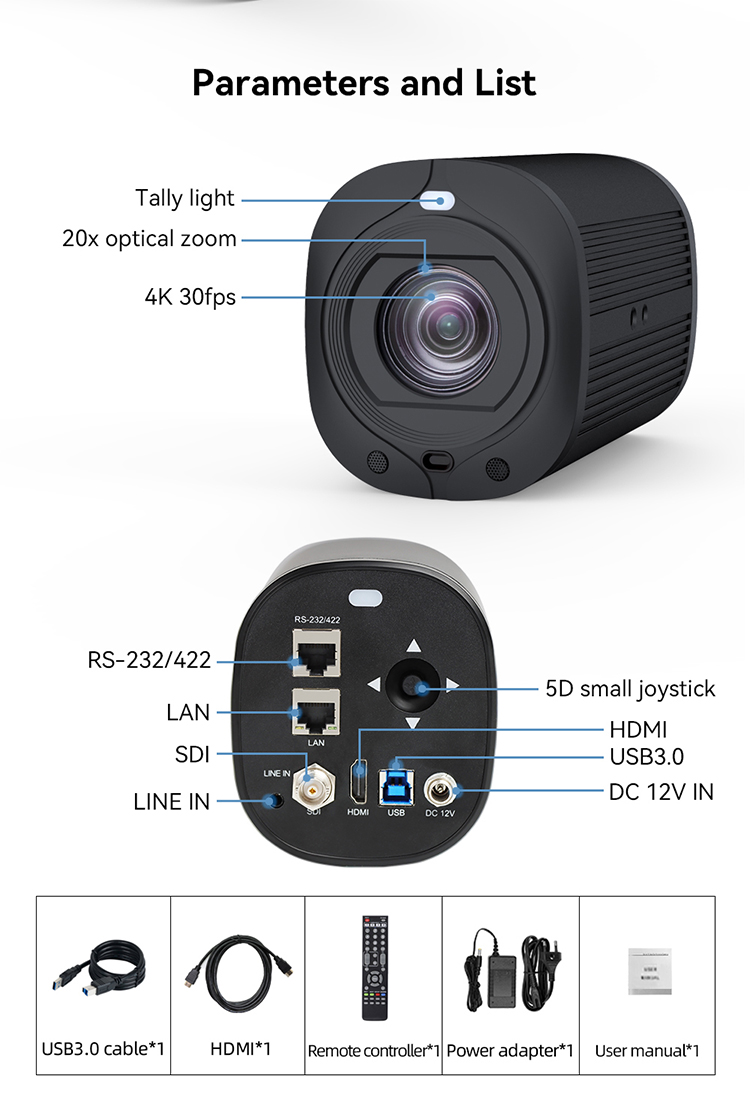

Details Images
|
Image Parameters |
|
|
Resolution |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
20X Optical Zoom, f=5.2mm(W)~104mm(T) |
|
Horizontal View Angle |
58.7°(W)~3.2°(T) |
|
Vertical View Angle |
32.2°(W)~1.8°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
0.1 Lux @ (F1.5, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Preset Positions |
9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
POE |
802.3af |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 (USB defaults to 4K is optional) |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 1920*1080 |
|
Sub Stream Resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

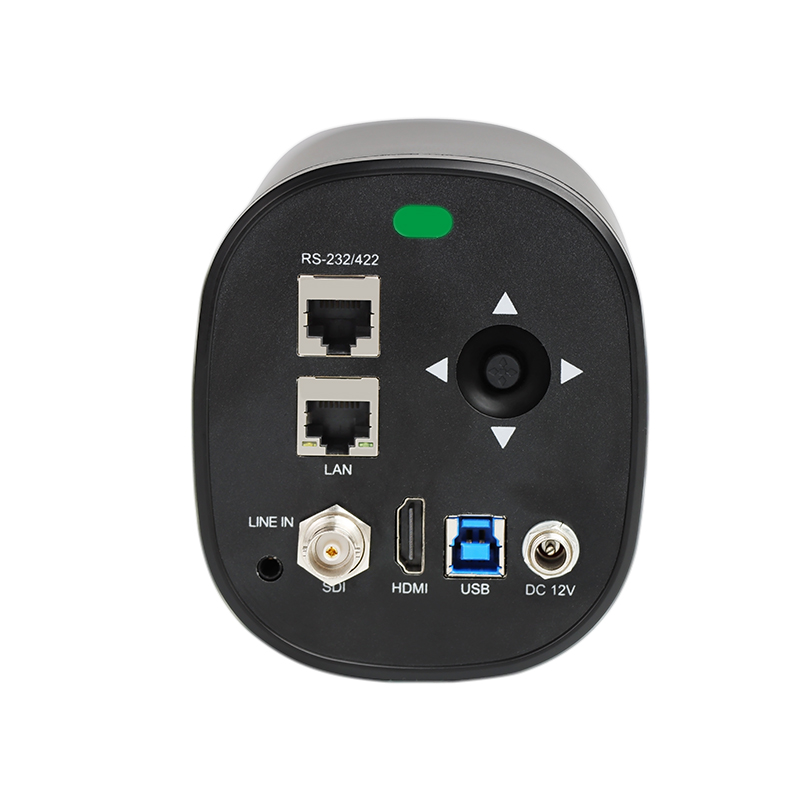

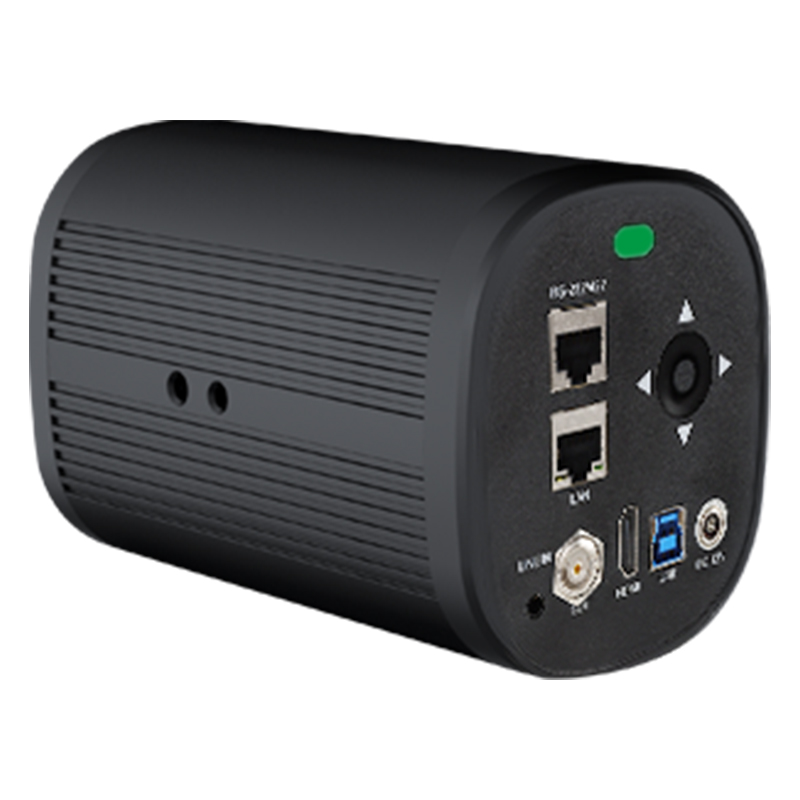

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line RJ45 interface, support RS232/RS422/RS485: VISCA/Pelco-D/Pelco-P. |
|
Power Interface |
IEC 60130-10 Type A |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.3.0A |
|
Power Consumption |
Max.36W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
(W)88*(D)167*(H)102mm |
|
Weight |
1.5kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, Serial port adapter cable, Bracket |
