KT-A31V
Download

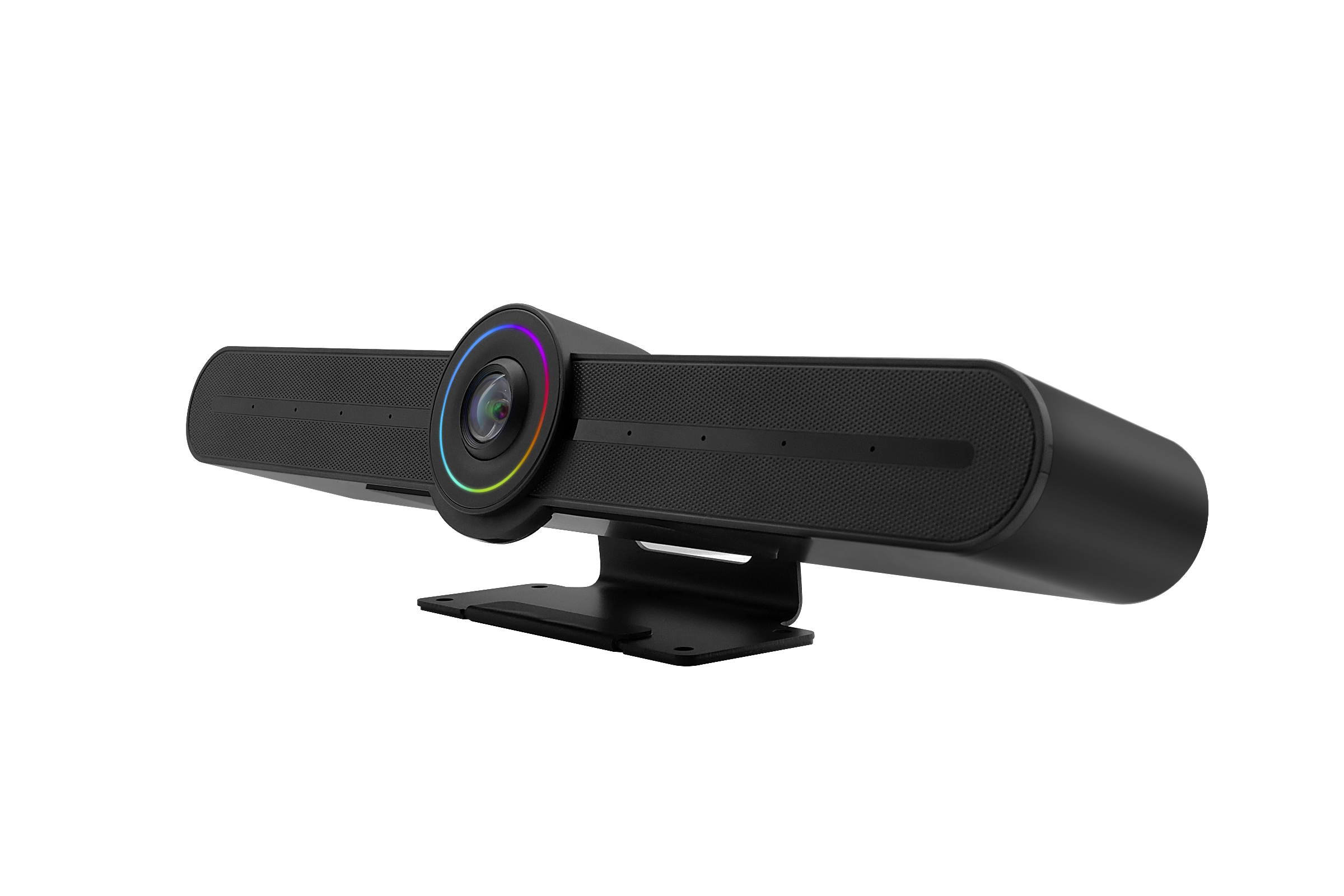

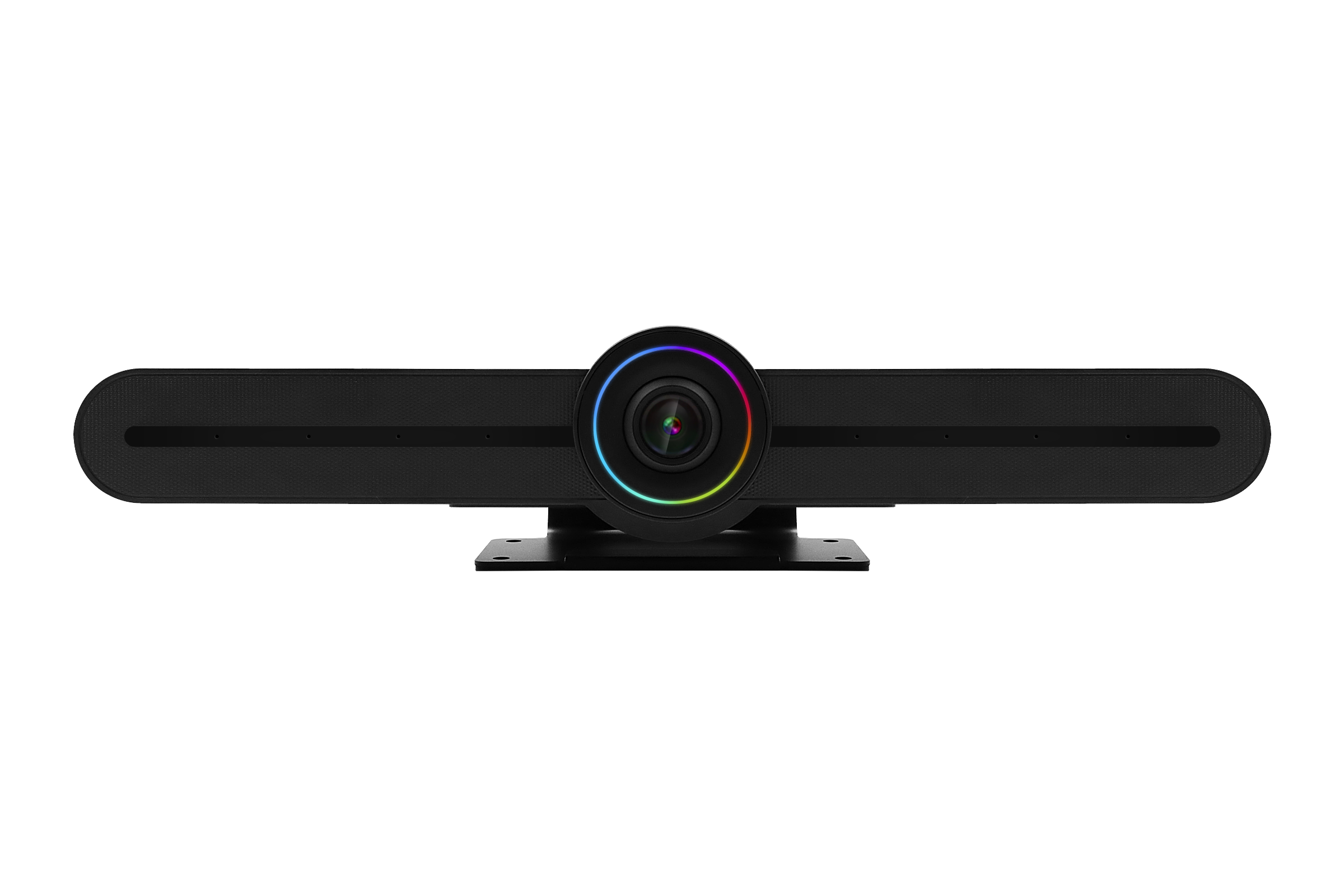

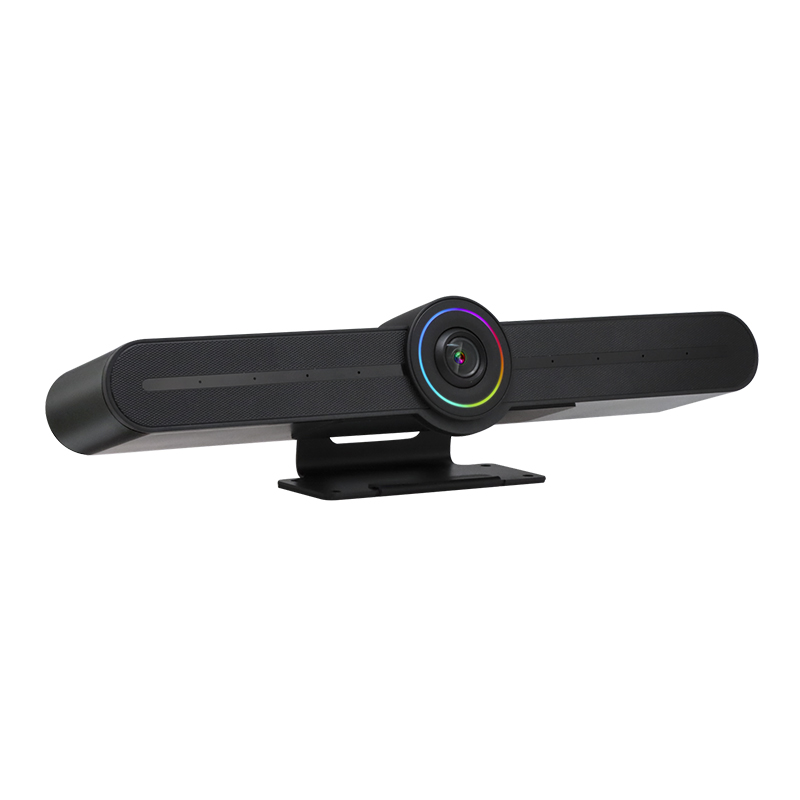

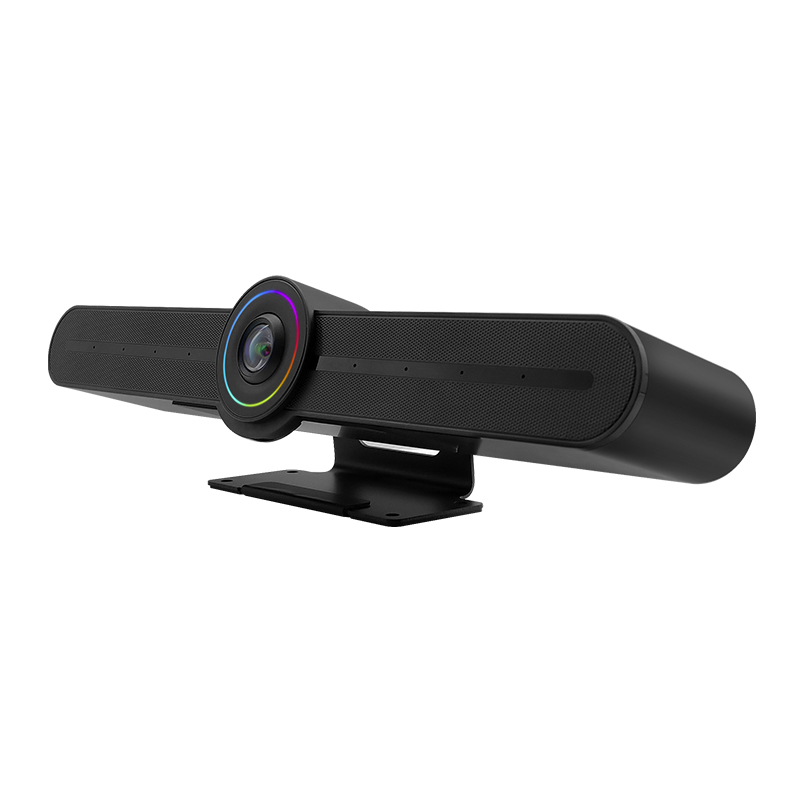

Integrated Design：
The integrated design of 4K Ultra HD camera, linear microphone array and full frequency loudspeaker reduces wiring and after- sale to make video communication easier.
4K Ultra HD:
With SONY 1/2.8” Progressive CMOS, 8 megapixel, superior quality sensor, it can achieve high-quality image in 4K (3840 * 2160) ultra-high resolution, compatible with 1080p, 720p and other resolutions. It can meet the needs of users for different video experience and provide clearer, real, smoother, and more accurate communication.
Mechanical PTZ Design:

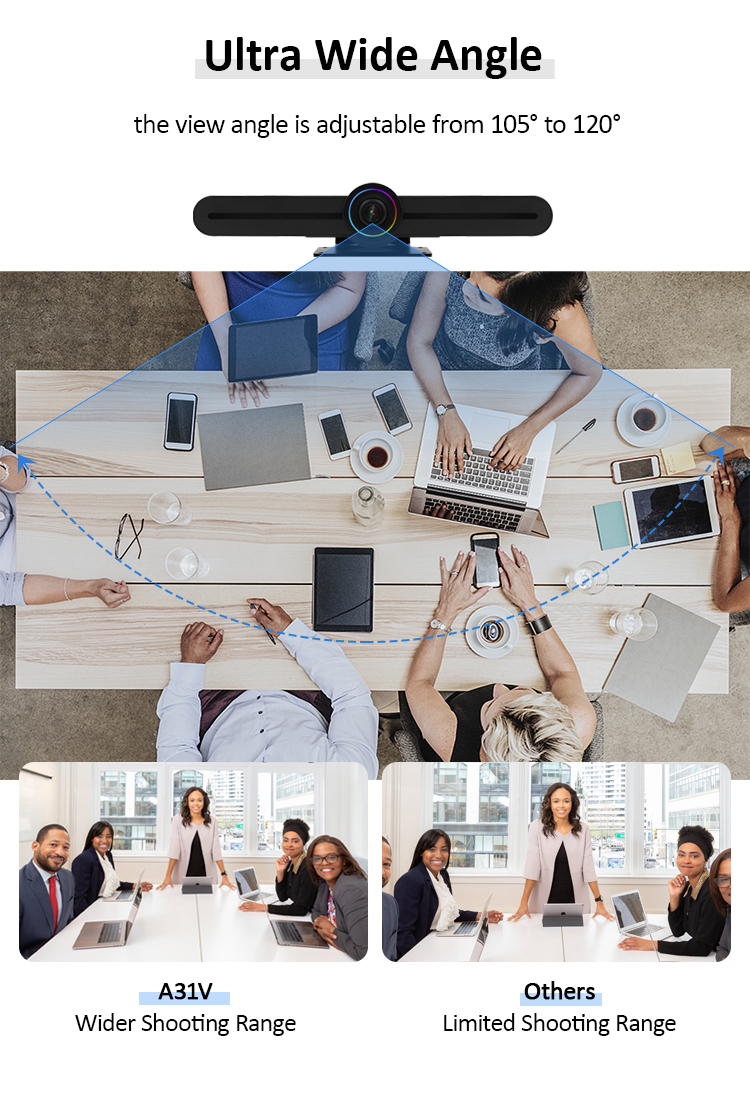

Supports the rotation function of micro-motion mechanical pan/tilt. With 105 degree large wide-angle, it can achieve the shooting range of 120 degree visual video.
Audio 3A Algorithm:
The built-in audio 3A algorithm and full-duplex dialogue can meet the communication needs of different scenarios, whether you are standing or sitting, it can make the communication clear.
Full Frequency Speaker:
Full-frequency and high-fidelity speakers with professional acoustic design can reduce the sound interference and provide extraordinary sound effects.
AI Intelligent Analysis:

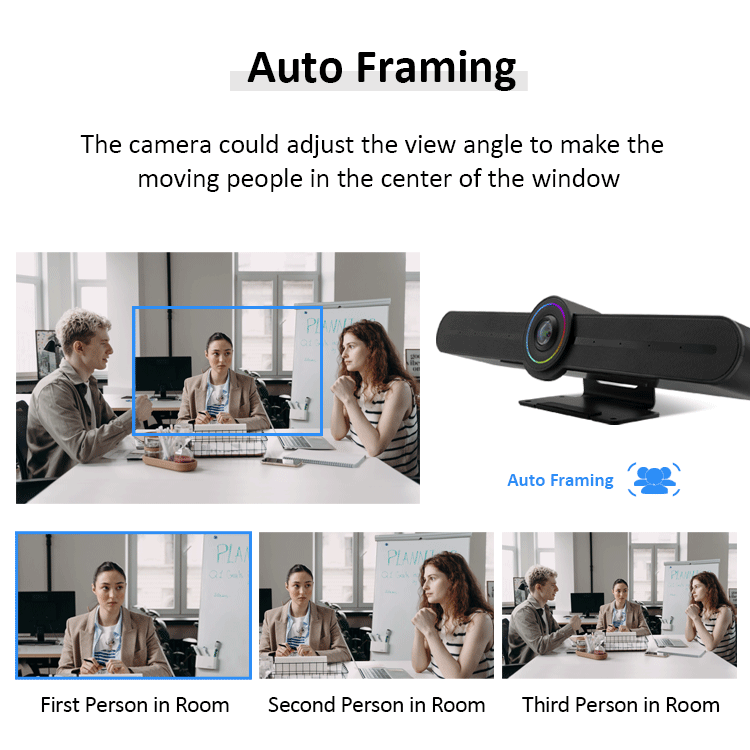

Built-in intelligent algorithm, identification of people, automatic zooming of participants, automatic tracking of speaker's voice, ensure that the speaker or actor is always on the screen.

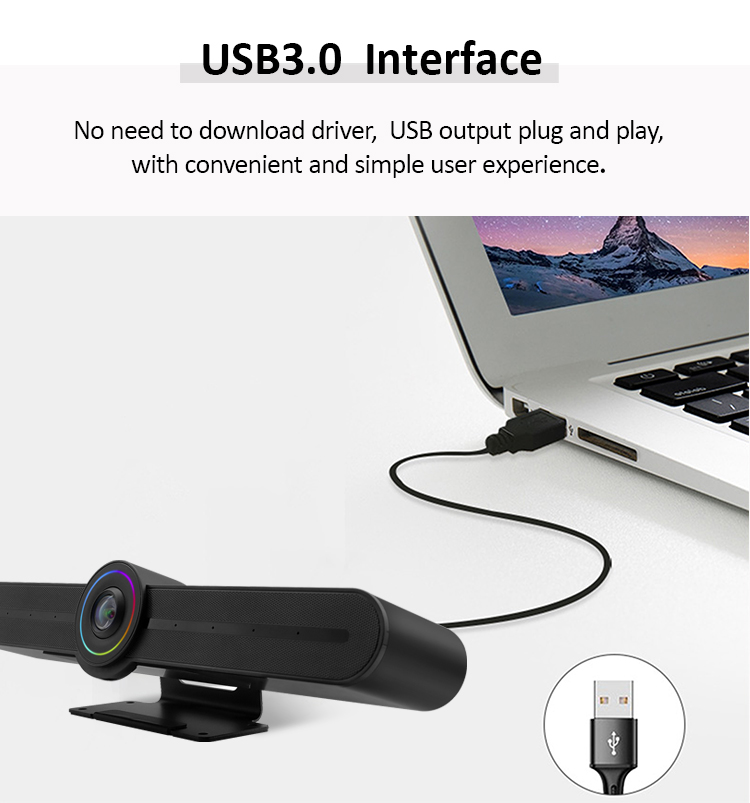

USB3.0 Plug and play:
The plug-and-play USB interface is directly connected to the computer, which can reduce wiring and make you use the camera once out of the box to lower the user's using threshold.
Application:
Designed for small and medium-sized meeting rooms, it provides flexible installation options such as desktop, wall mounting, and on the top of large screens, making it easier to be quickly deployed and installed in crowded meeting rooms
|

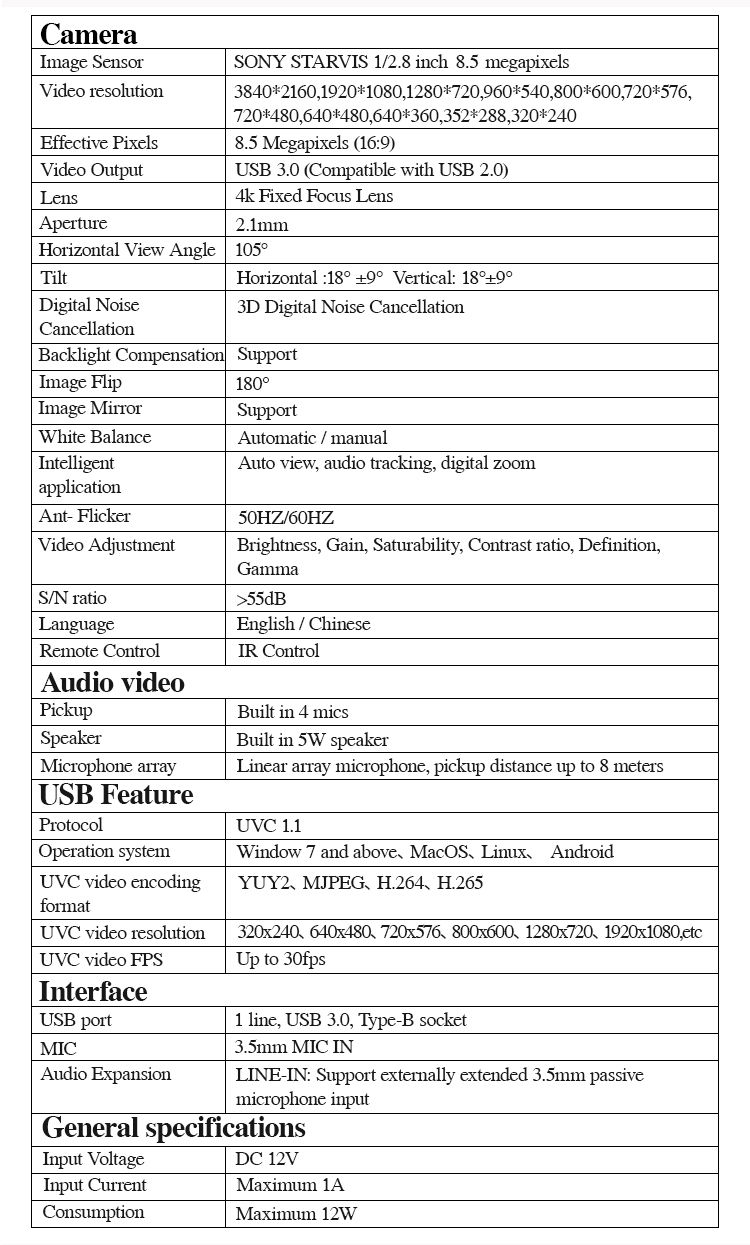

Image Parameters |
|
|
Resolution |
3840*2160, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
8.50 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
4K Fixed Focus Lens, f=2.1mm |
|
Horizontal View Angle |
105° |
|
Focus System |
Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Exposure |
Auto, Manual |
|
White Balance |
Auto, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Preset Positions |
2 preset positions |
|
Mechanical PTZ |
Horizontal/Vertical: 18°±9° |
|
AI |
|
|
Sound Tracking |
Support |
|
Auto Framing |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG, H.264 |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
Audio |
|
|
Sound Pickup |
Built in 4 mics, pickup distance up to 8 meters, built in 5W speaker |
|

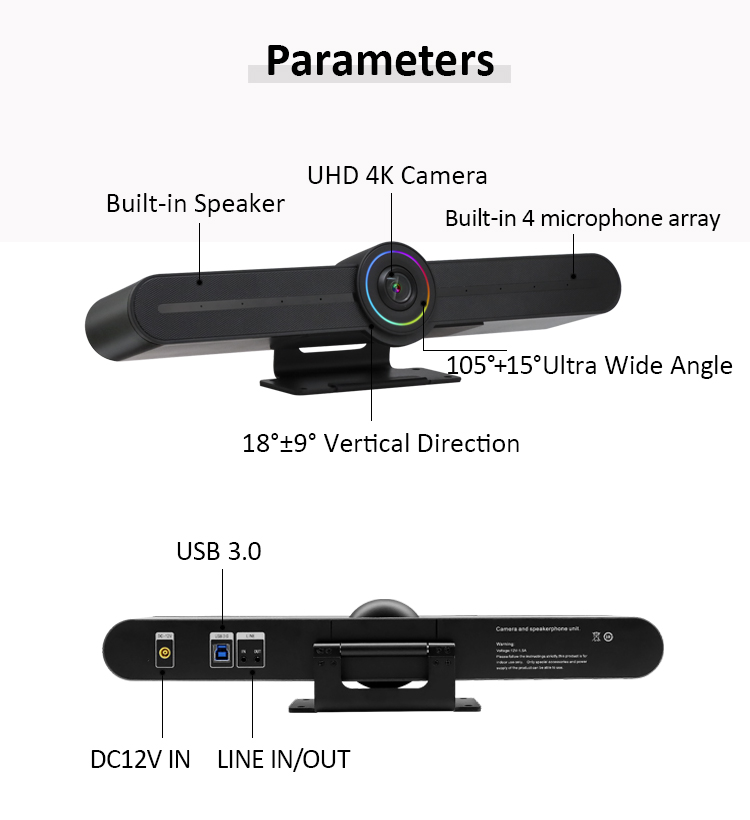

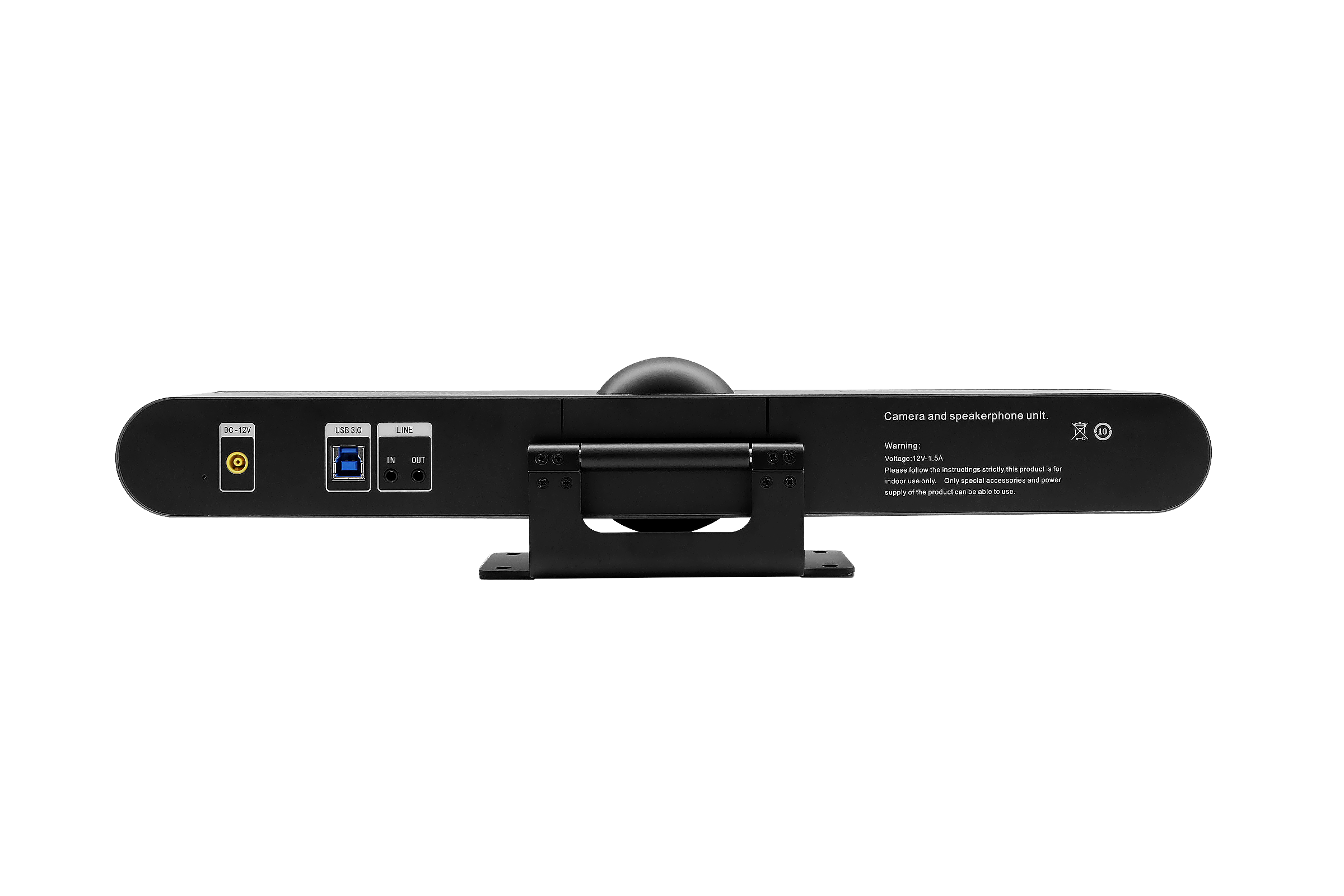

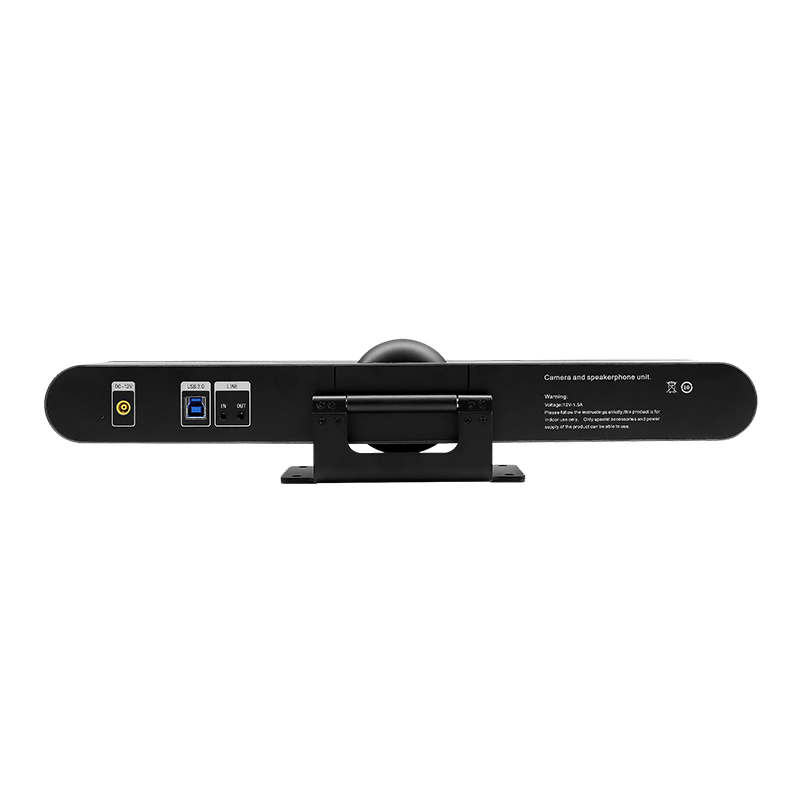

Interface |
|
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.0A |
|
Power Consumption |
Max.12W |
|
Color |
Black |
|
Dimension |
(W)400*(D)92*(H)82mm (Includes base) |
|
Weight |
1.0kg |
|

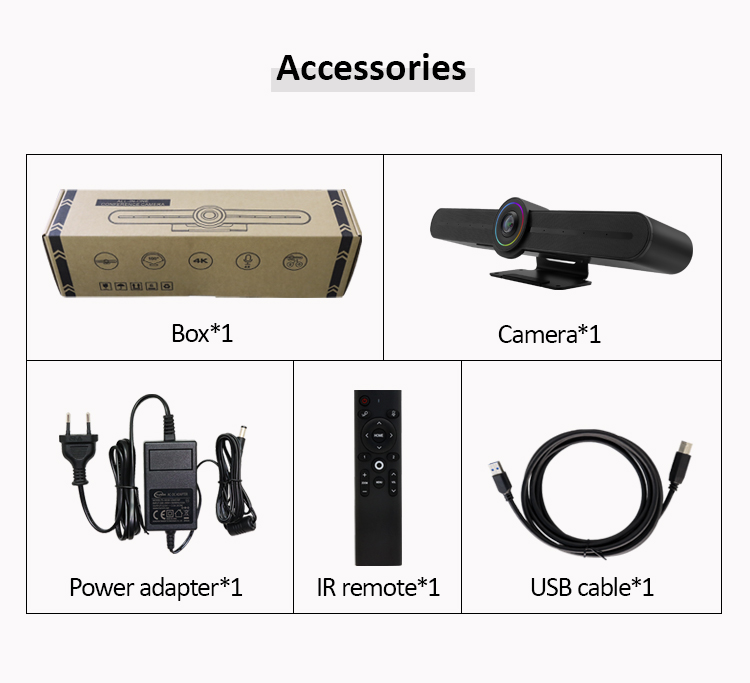

Accessories |

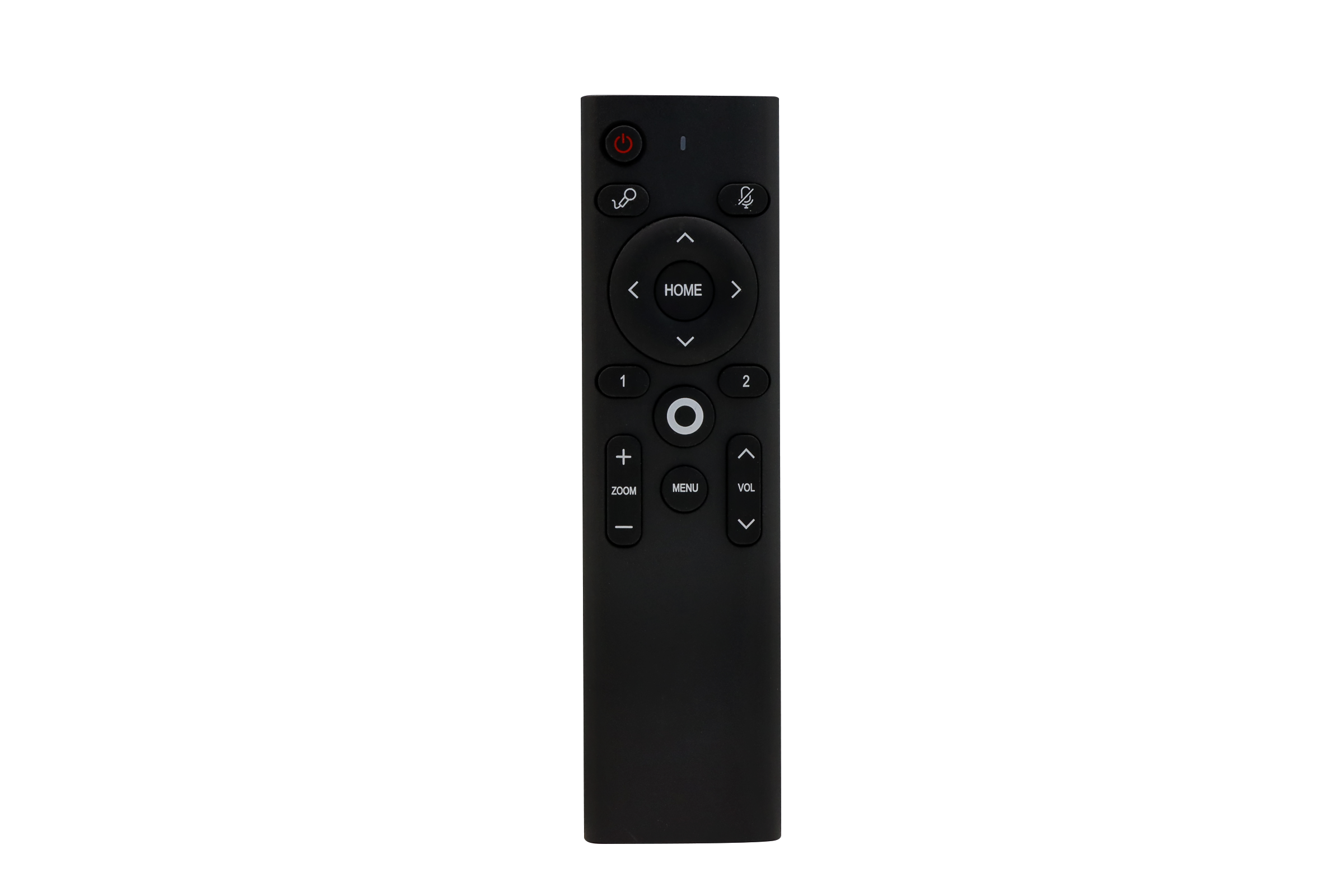

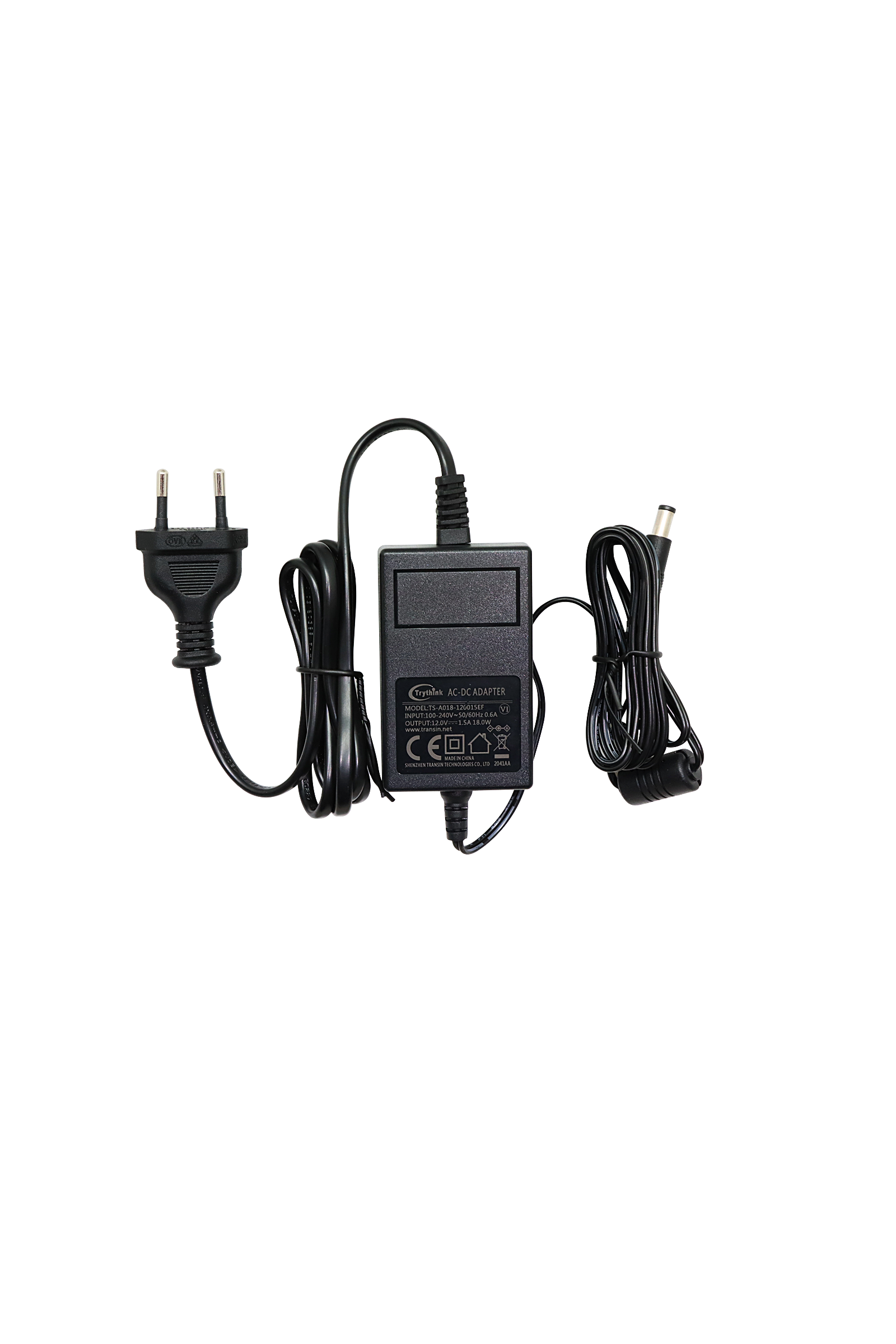

DC 12V power adapter, IR Remote, User manual, USB3.0 Cable |
Specifications
