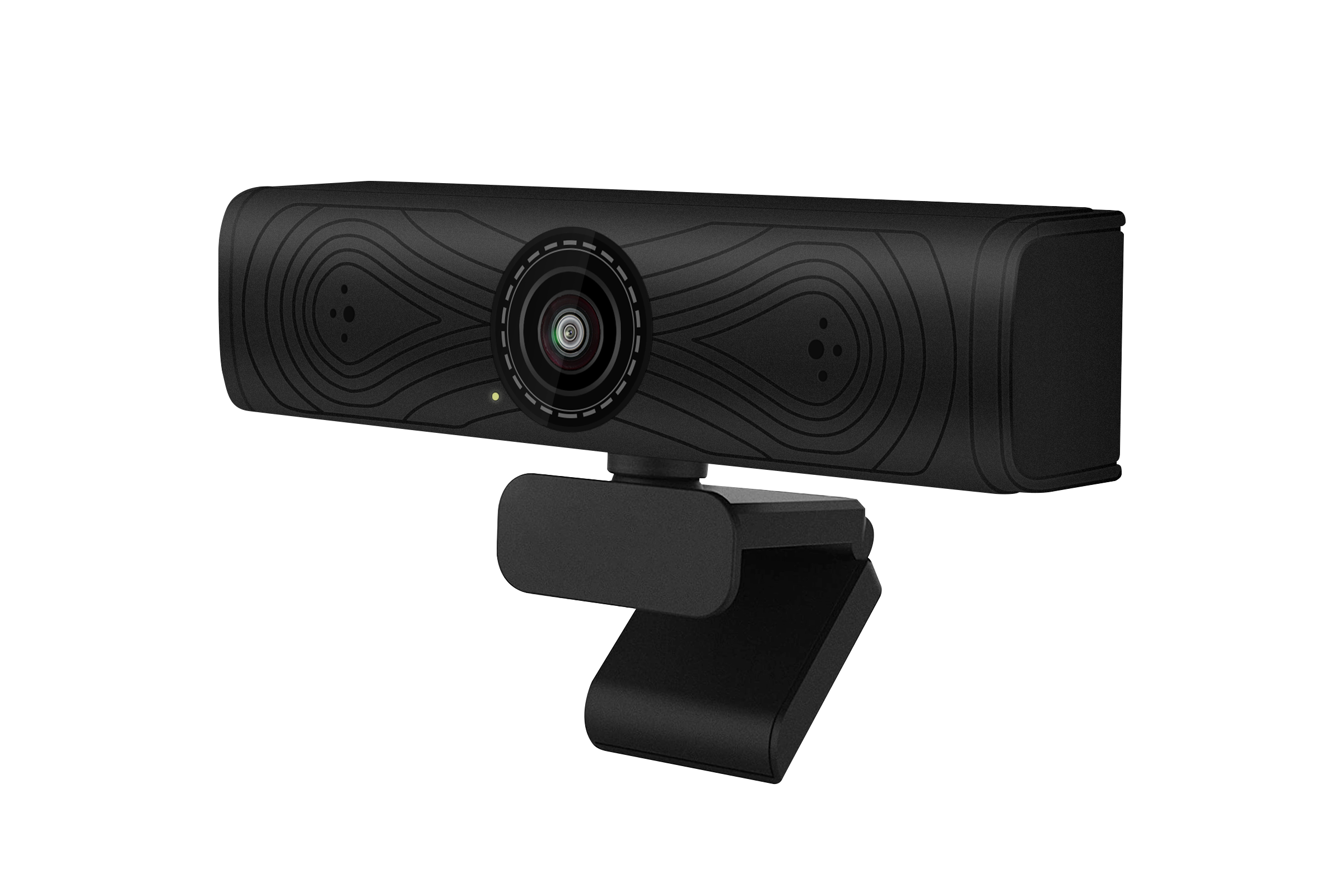

KT-A20
Download
Features
4K UHD Resolution:
With SONY 1/2.8” CMOS, 8.00 megapixels, superior quality sensor, it can achieve high-quality image in 4K (3840 * 2160) ultra-high resolution, compatible with 1080p, 720p and other resolutions. It can meet the needs of users for different video experience and provide clearer, real, smoother, and more accurate communication.
The New Generation Algorithm Supports Auto Framing Function:
With auto framing face detection function, it maintains the subject in the center during operation to ensure a satisfying visual experience and enhance meeting efficiency.

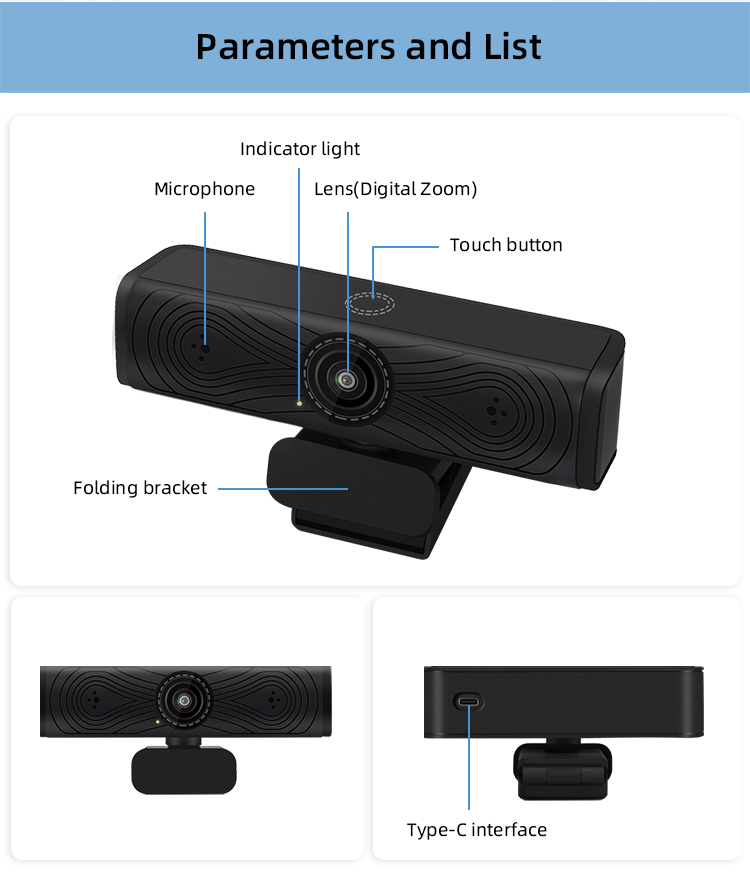

Touched Button:
Supports the on/off toggle of the AUTO framing and beauty functions, making it convenient for users to adjust options according to different scenarios.

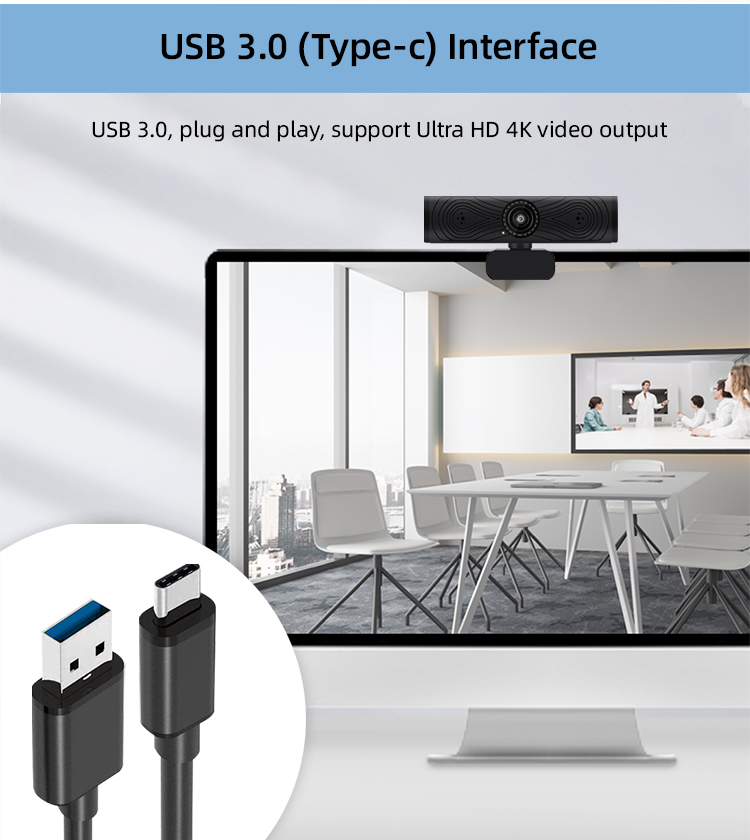

USB3.0 Interface:
UHD 4K video output, free-drive, plug and play.
Auto Framing / Beauty function:
Touch the button area on the top of the camera, long press 2 seconds to switch the auto framing function on/off (valid under 1080P/720P), double-click to switch the beauty function on/off.
Abundant Coding Formats:
Supports YUY2, MJPEG, H.264 and H.265 coding formats, reducing the pressure of HC’s encoding and decoding.
Multi-installation Methods:
The camera can be fixed on the top of the TV screen, PC/laptop display, or directly placed on the desktop.
Applications
Designed for personal or medium and small conference, multiple flexible installation methods such as put it on the desktop, hang it down the wall or screen etc, which can be easy to install in crowded meeting room.
|
Image Parameters |
|
|
Resolution |
3840*2160, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
8.00 Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
Fixed Focus Lens, f=2mm |
|
Horizontal View Angle |
ultra wide angle |
|
Focus System |
Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Exposure |
Auto |
|
White Balance |
Auto |
|
S/N Ratio |
≥50dB |
|
AI |
|
|
Auto Framing |
Support |
|
USB |
|
|
Protocol |
UVC 1.1, UAC1.0 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG, H.264 |
|
Frame Rate |
Max.30 |
|
Audio |
|
|

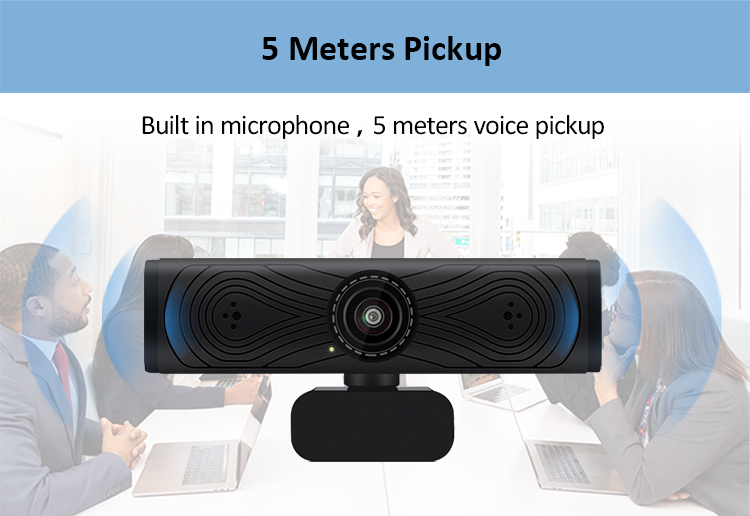

Sound Pickup |
5 meters |
|
Interface |
|
|
USB Interface |

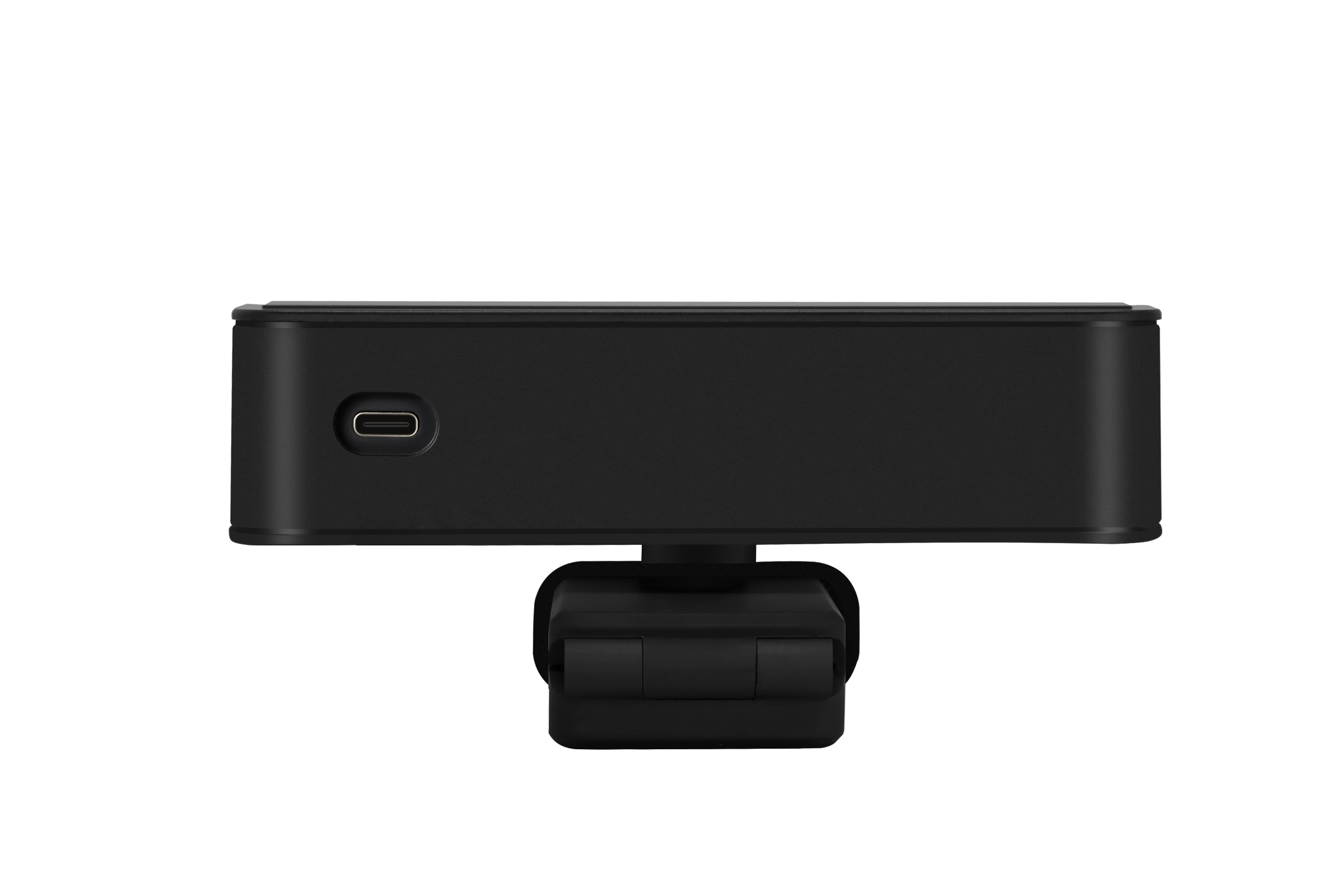

1 Line, USB3.0, Type-C Socket |
|
General Specifications |
|
|
Input Voltage |
DC 5V |
|
Input Current |
Max.1.0A |
|
Power Consumption |
Max.3.5W |
|
Operating Temperature |
-10~55℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
(W)133*(D)57*(H)59mm (Includes base) |
|
Weight |
0.1kg |
|
Accessories |
User manual, USB3.0 cable(Type-C) |
