Features

4K Ultra HD Resolution:

Applies SONY 1/2.8” Progressive CMOS sensor, 8.50 Megapixels, 4K (3840x2160) high resolution with frame rate up to 4K 30fps.

  20x Optical Zoom:

Applies high quality 8.50 megapixels 4K ultra wide-angle lens, 20x optical zoom, 16x digital zoom.

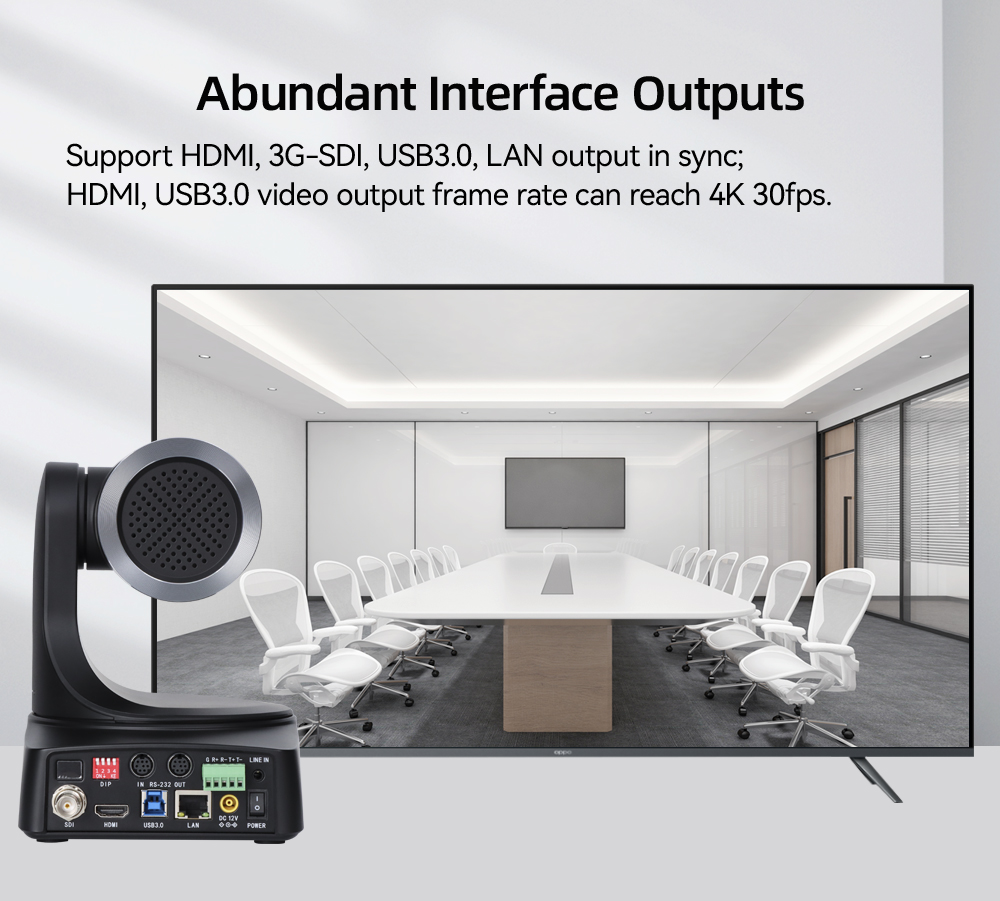

  Abundant Outputs for Rich Application Scenarios:

Supports HDMI, 3G-SDI, USB3.0, LAN output in sync, LAN supports POE(Optional).

Default version: Supports HDMI+LAN 4K synchronous output, USB3.0+SDI HD 1080 output.
Optional version: Supports HDMI+USB3.0 4K synchronous output, LAN+SDI HD 1080 output.

  Low Light:

Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applied 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 55dB.

IR Pass-through:

In addition to receiving signals from its dedicated remote control, it can also receive signals from users' infrared remote controls and transmit them to the video conferencing terminal through the VISCA IN port.

Multiple Video Compression Standards:

Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.

  Multiple Network Protocols:

Supports ONVIF, SRT, RTSP, RTMP, RTMPS and NDI®|HX2 (optional) protocols.

  Multiple Control Protocols:

Support VISCA ( VISCA Over IP ), PELCO P/D, NDI (optional) protocol, and automatically identifies protocols.

  Front Tally Display:

Supports tally status display, broadcast-level application scenarios.

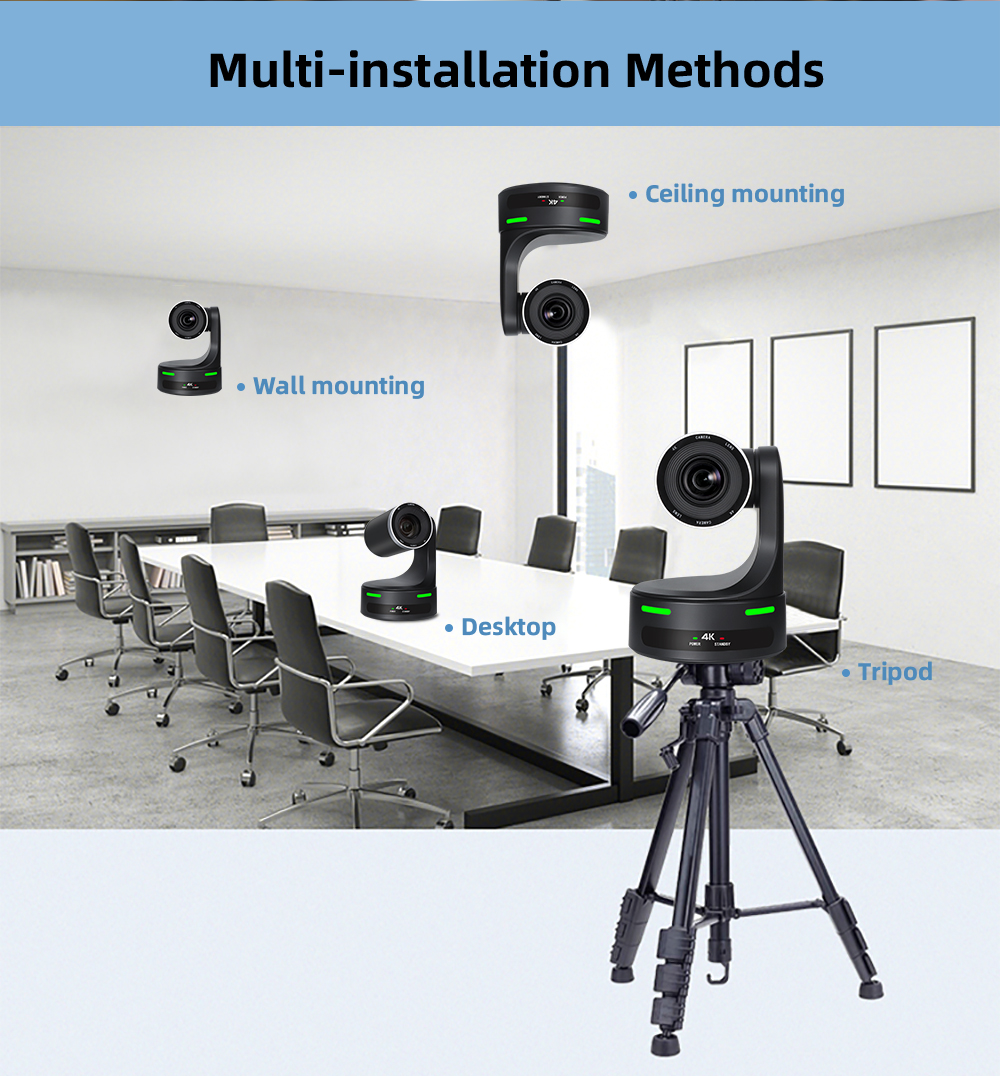

Multi-installation Methods:

Wall mounting, desktop or ceiling mounting.

Image Parameters

Resolution

HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50
SDI: 1080p60/59.94/50/30/29.97/25, 720p60/50

Image Sensor

SONY 1/2.8" CMOS

Pixels

8.50 Megapixels, 8.29 Effective Megapixels

Scan Mode

Line by line

Lens

20X Optical Zoom, f=5.2m(W)~104mm(T), F1.55~F3.13

Digital Zoom

16X

Horizontal View Angle

58.7°(W)~3.2°(T)

Vertical View Angle

32.2°(W)~1.8°(T)

Focus System

Auto, Manual

Shutter Speed

1/25s ~ 1/10000s

Minimum Illumination

0.1 Lux @ (F1.6, AGC ON)

Exposure

Auto, Manual, Iris Priority, Shutter Priority, Brightness priority

White Balance

Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual

Backlight Compensation

Support

Digital Noise Reduction

2D&3D Digital noise reduction

S/N Ratio

≥50dB

Pan/Tilt

Pan Angle

355°

Tilt Angle

-30°~+90°

Pan Speed

1°~80°/s

Tilt Speed

1°~60°/s

Preset Positions

9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC

Preset Accuracy

0.1°±10%

Flip

Support

Image Freeze

Support

POE

802.3af

USB

Protocol

UVC 1.1

Operating System

Window7 and above, MacOS, Linux, Android

Video Compression

YUY2, MJPEG

Resolution

1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 (USB defaults to 4K is optional)

Frame Rate

Max.30

UVC Control

Support

LAN

Protocol

TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional)

Video Compression

H.264, H.265

Code Stream

Main code stream*1, Sub code stream*1

Main Stream Resolution

3840*2160, 1920*1080

Sub Stream Resolution

640*480, 640*360, 352*288, 320*240, 176*144

Bitrate Control

VBR, CBR

Audio

Audio Compression

AAC

Audio Bit Rate

128kbps

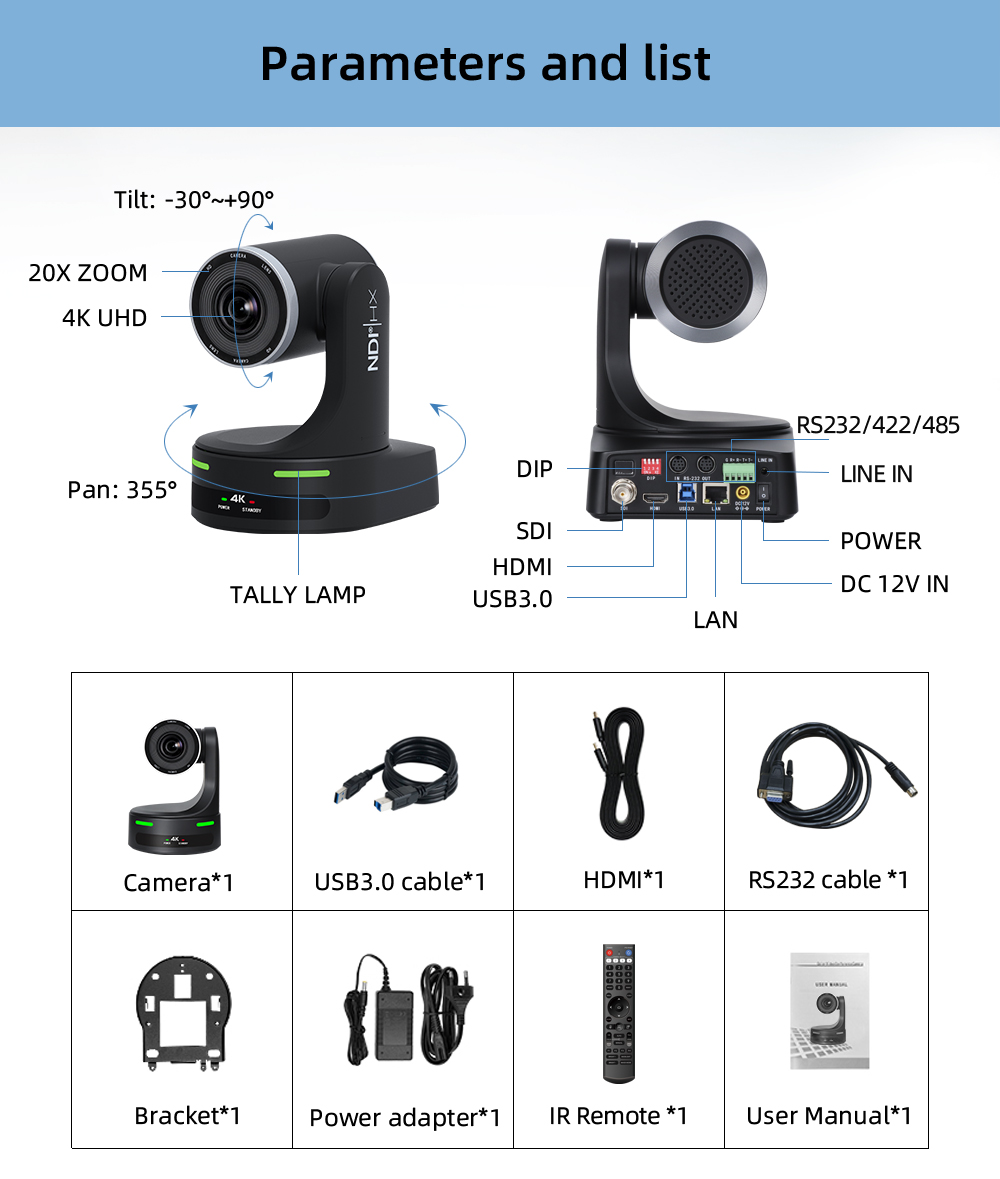

Interface

HDMI Interface

1 Line, HDMI: Version 1.4

SDI Interface

1 Line, 3G-SDI

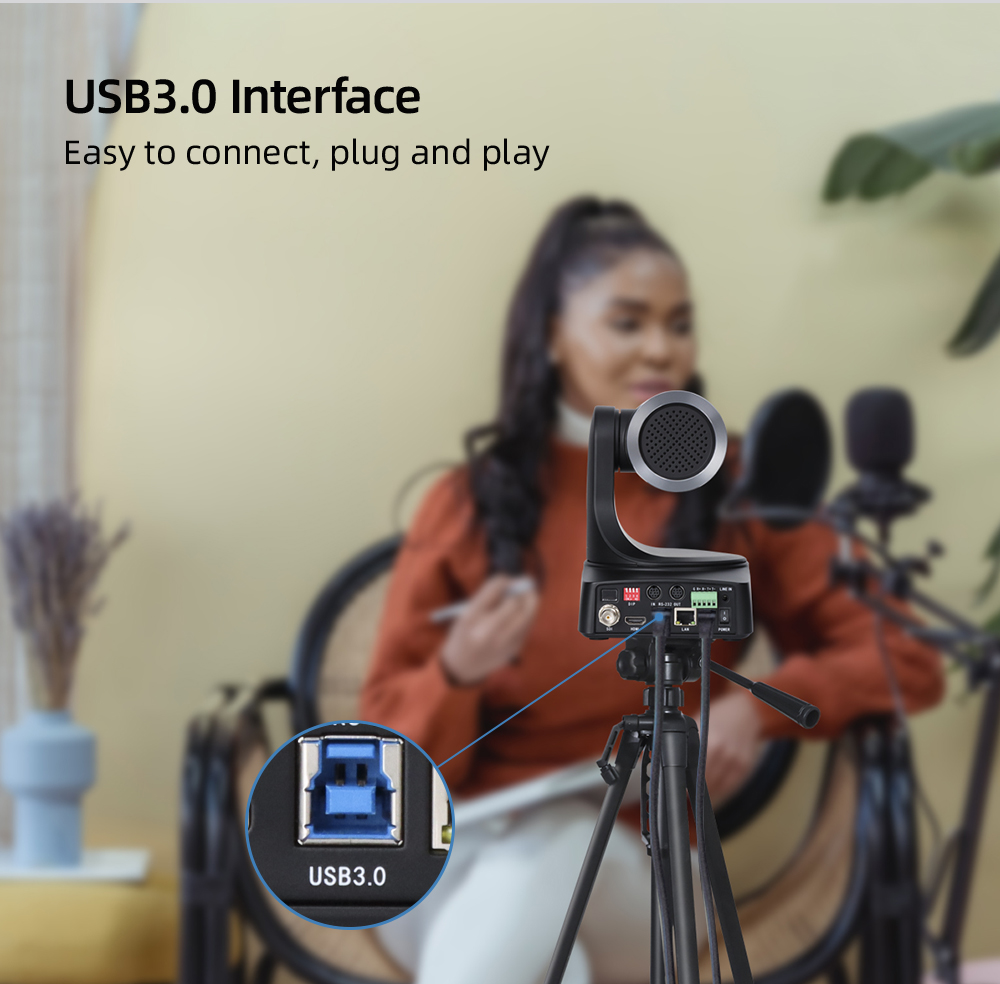

USB Interface

1 Line, USB3.0, Type-B Socket

Network Interface

1 Line, RJ45: 10M/100M adaptive Ethernet port

Audio Interface

1 Line, Line In, 3.5mm

Serial Interface

1 Line, RS232 IN/OUT: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol.
1 Line, RS422/485: 5-Core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol.

Power Interface

JEITA RC-5320A Type 4

General Specifications

Tally Light

Support

Input Voltage

DC 12V

Input Current

Max.1.0A

Power Consumption

Max.12W

Operating Temperature

0~40

Storage Temperature

-10~60

Color

Black, White (Optional)

Dimension

(W)134*(D)174*(H)187mm

Weight

1.2kg

Accessories

DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional)

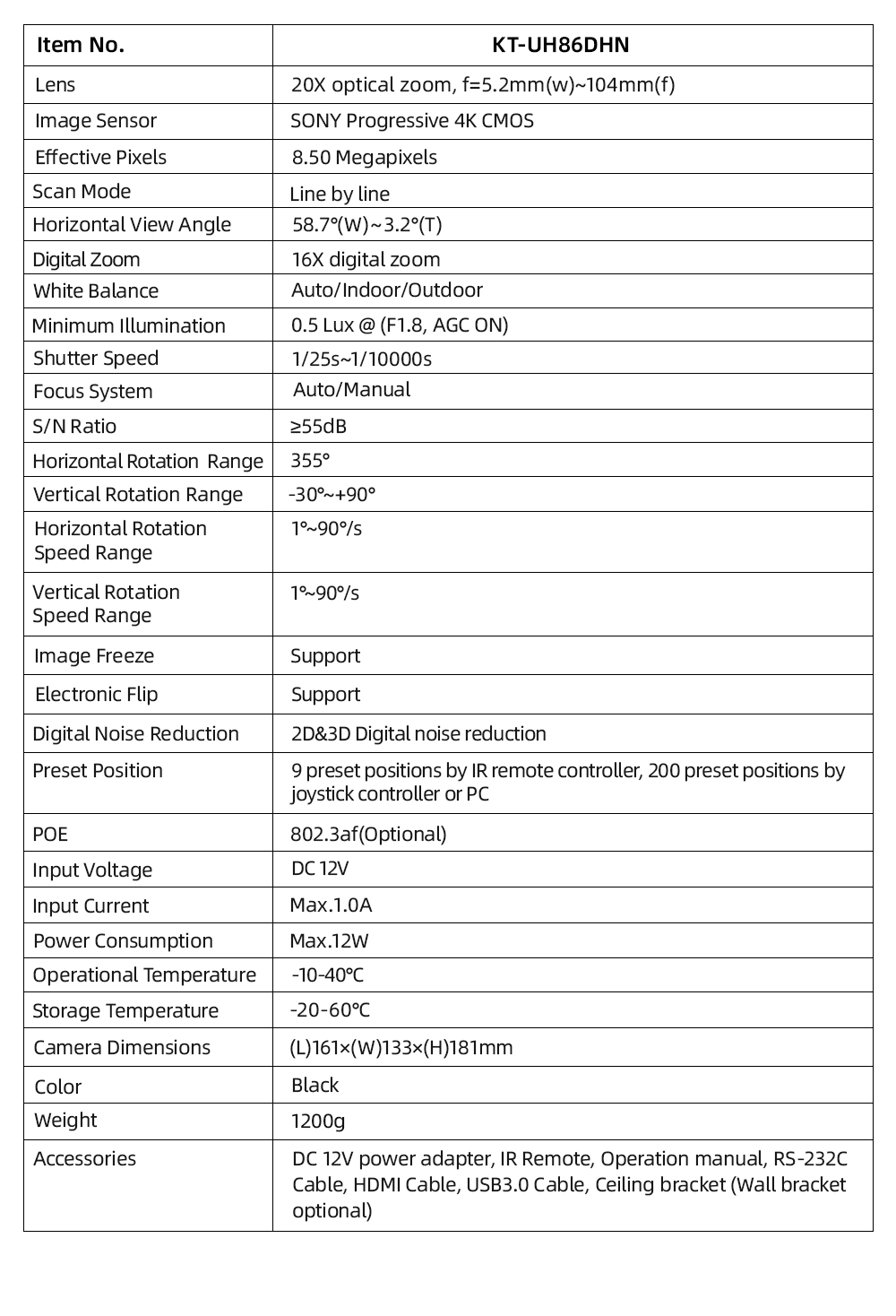

Specifications
KT-UH86DH/86DHN
