Features

1080P HD Resolution:

Applies SONY 1/2.8” Progressive CMOS sensor, 2.07 Megapixels, max.1920x1080 high resolution with frame rate up to 60fps.

Abundant Outputs for Rich Application Scenarios:

Supports HDMI, 3G-SDI, LAN, USB3.0 FHD 1080P output in sync.

Ultra High Frame Rate:

Video output frame rate can reach 1080P 60fps.

Optical Zoom Can be Chose:

HD86R: 12x optical zoom+16x digital zoom

HD86A: 20x optical zoom+16x digital zoom

HD86DB: 30x optical zoom+16x digital zoom

Low Light:

Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applied 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 55dB.

IR Pass-through:

In addition to receiving signals from its dedicated remote control, it can also receive signals from users' infrared remote controls and transmit them to the video conferencing terminal through the VISCA IN port.

Multiple Video Compression Standards:

Different interfaces support various video compression formats, such as YUY2, MJPG, H.265, and H.264, to meet different scenarios.

Multiple Network Protocols:

Support SRT, RTSP, RTMP, RTMPS and NDI®|HX2 (optional), and other network protocols.

Multiple Control Protocols:

Supports VISCA(including VISCA Over IP), PELCO P/D, Onvif, and  NDI®|HX2 (optional) control protocols, and automatically identifies protocols.

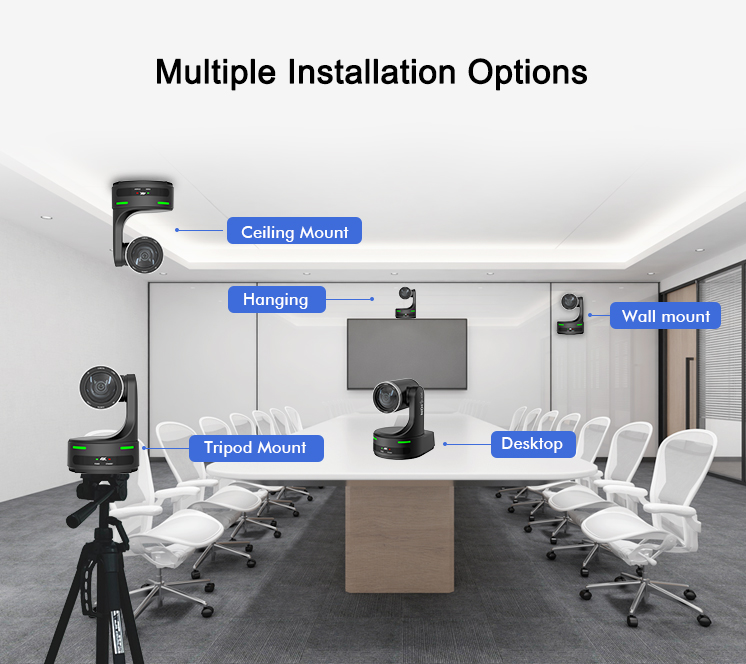

Various Installation Methods:

A variety of installation methods, desktop, ceiling, wall installation.

Image Parameters

Resolution

HDMI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50
SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50

Image Sensor

SONY 1/2.8" CMOS

Pixels

3.10 Megapixels, 2.07 Effective Megapixels

Scan Mode

Line by line

Lens

HD86R: 12X Optical Zoom, f=3.9m(W)~46.8mm(T)
HD86A: 20X Optical Zoom, f=5.2m(W)~104mm(T)
HD86DB: 30X Optical Zoom, f=5.2m(W)~156mm(T)

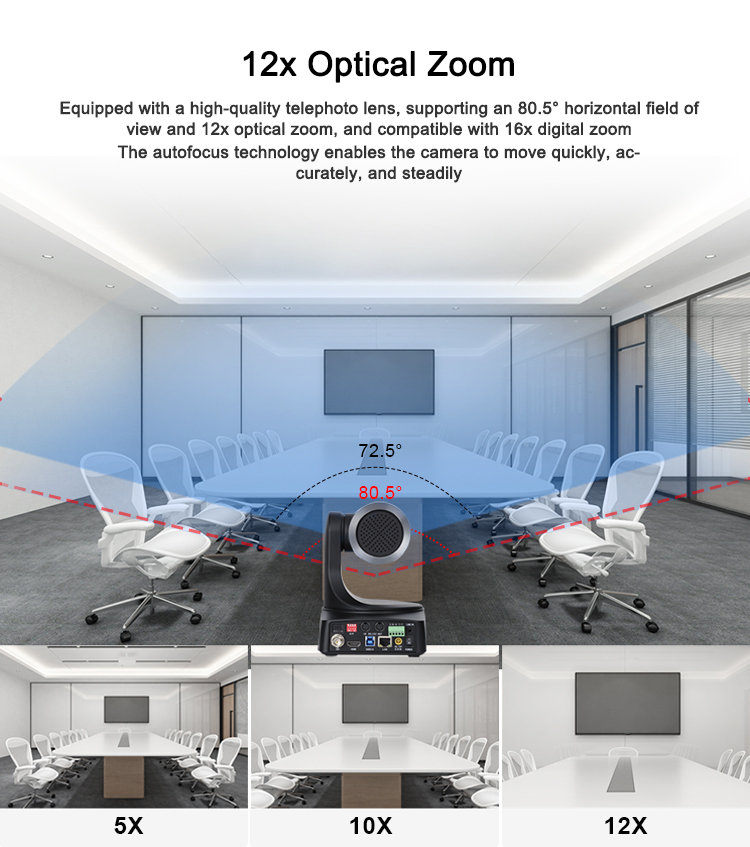

Horizontal View Angle

HD86R: 72.5°(W)~6.5°(T)
HD86A: 58.7°(W)~3.2°(T)
HD86DB: 58.1°(W)~2.14°(T)

Vertical View Angle

HD86R: 40.8°(W)~3.7°(T)
HD86A: 32.2°(W)~1.8°(T)
HD86DB: 34.1°(W)~1.2°(T)

Focus System

Auto, Manual

Shutter Speed

1/50s ~ 1/10000s

Minimum Illumination

HD86R: 0.1 Lux @ (F1.8, AGC ON)
HD86A: 0.1 Lux @ (F1.5, AGC ON)
HD86DB: 0.1 Lux @ (F1.3, AGC ON)

Exposure

Auto, Manual, Iris Priority, Shutter Priority, Brightness priority

White Balance

Auto, Indoor, Outdoor, One Push, Auto Tracking, Manual

Backlight Compensation

Support

Digital Noise Reduction

2D&3D Digital noise reduction

S/N Ratio

≥50dB

Pan/Tilt

Pan Angle

355°

Tilt Angle

-30°~+90°

Pan Speed

1°~80°/s

Tilt Speed

1°~60°/s

Preset Positions

9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC

Preset Accuracy

0.1°±10%

Flip

Support

Image Freeze

Support

POE

802.3af (Optional)

AI

Humanoid Tracking

Support (Only HD86A)

Auto Framing

Support (Only HD86A)

USB

Protocol

UVC 1.1

Operating System

Window7 and above, MacOS, Linux, Android

Video Compression

YUY2, MJPEG

Resolution

1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240

Frame Rate

Max.60

UVC Control

Support

LAN

Protocol

TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional)

Video Compression

H.264, H.265

Code Stream

Main code stream*1, Sub code stream*1

Main Stream Resolution

1920*1080, 1280*960, 1280*720, 720×576, 720*480, 640*480

Sub Stream Resolution

640*480, 640*360, 480*360, 352*288, 320*240, 176*144

Bitrate Control

VBR, CBR

Audio

Audio Compression

AAC

Audio Bit Rate

128kbps

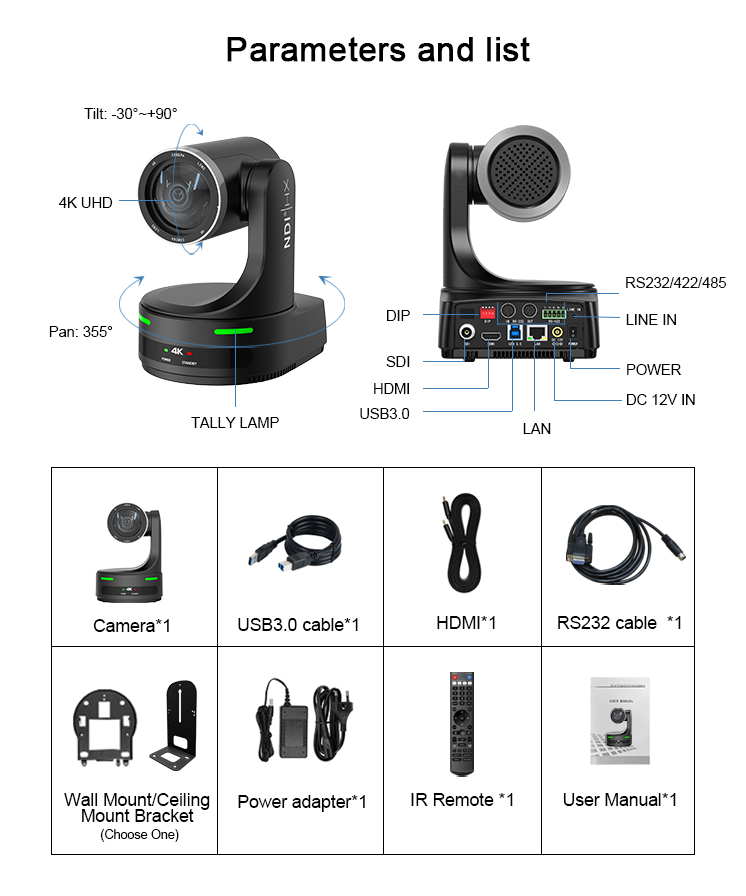

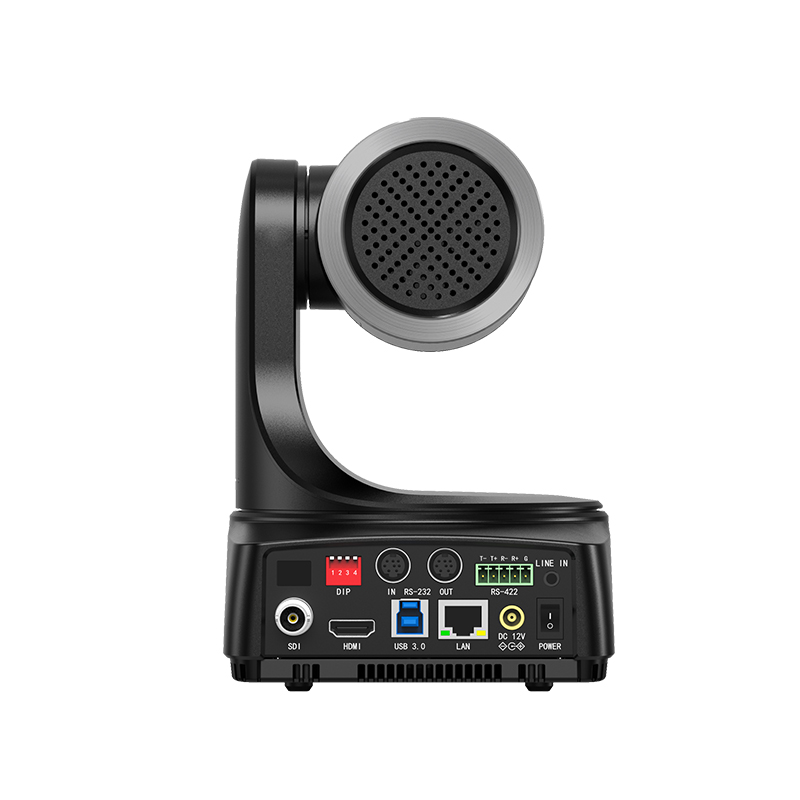

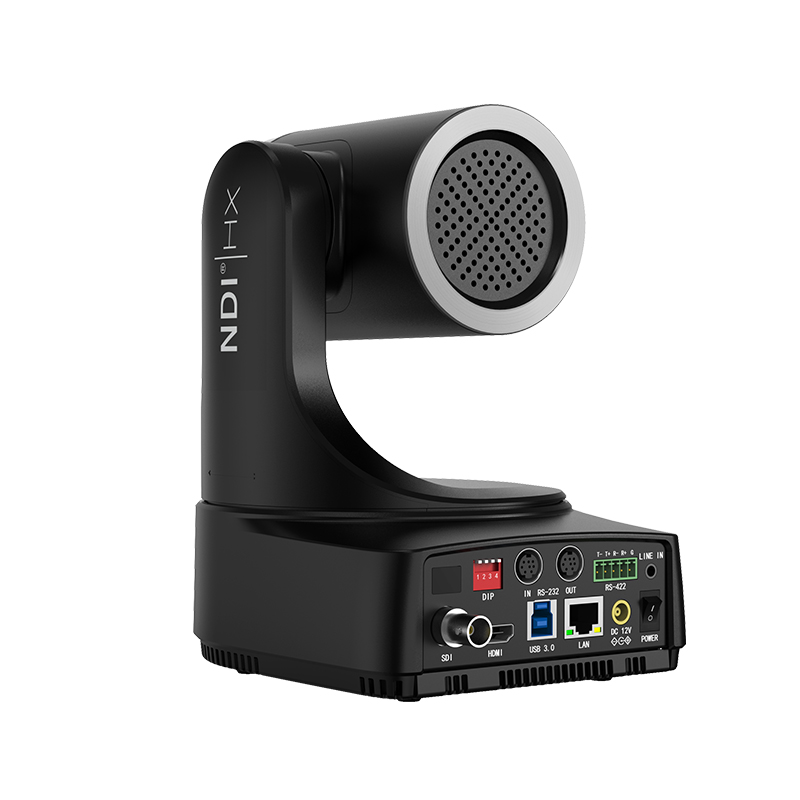

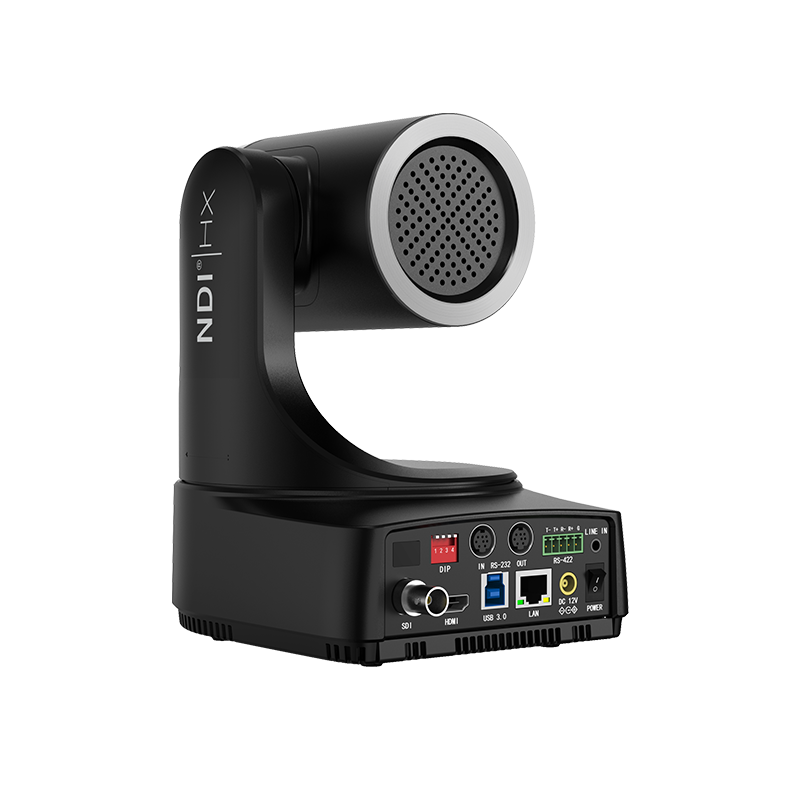

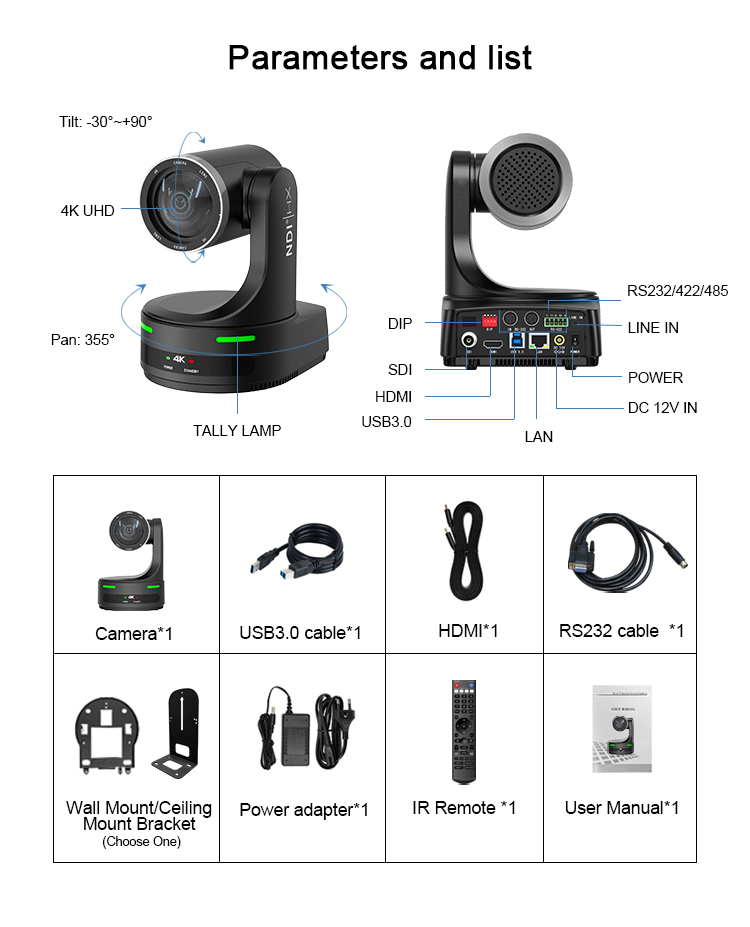

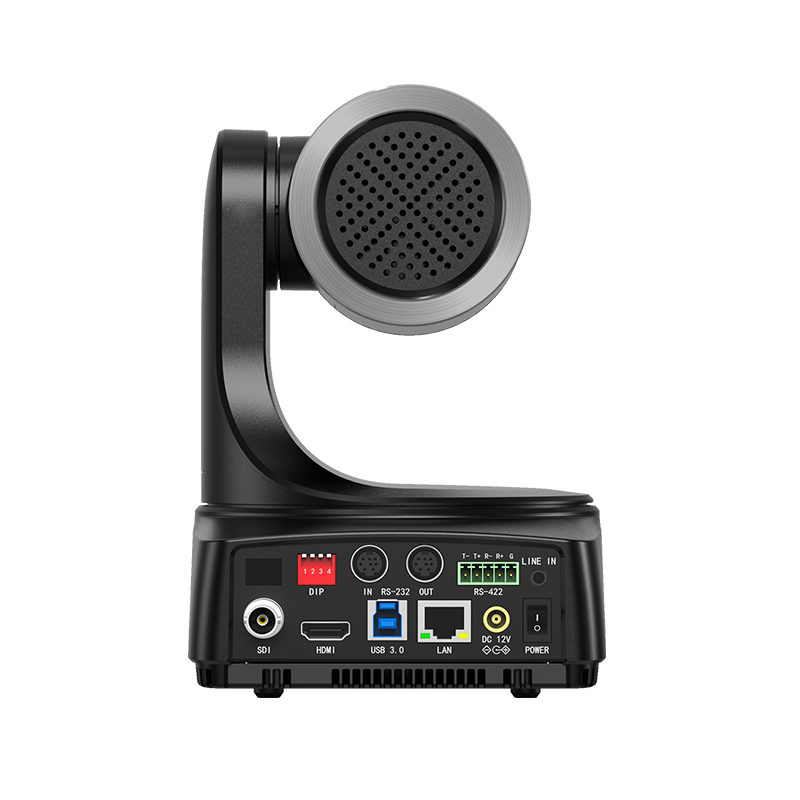

Interface

HDMI Interface

1 Line, HDMI: Version 1.4

SDI Interface

1 Line, 3G-SDI

USB Interface

1 Line, USB3.0, Type-B Socket

Network Interface

1 Line, RJ45: 10M/100M adaptive Ethernet port

Audio Interface

1 Line, Line In, 3.5mm

Serial Interface

1 Line, RS232 IN/OUT: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol.
1 Line, RS422/485: 5-Core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol.

Power Interface

JEITA RC-5320A Type 4

General Specifications

Tally Light

Support

Input Voltage

DC 12V

Input Current

Max.1.5A

Power Consumption

Max.18W

Operating Temperature

0~40

Storage Temperature

-10~60

Color

Black, White (Optional)

Dimension

(W)134*(D)174*(H)187mm

Weight

1.2kg

Accessories

DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional)
