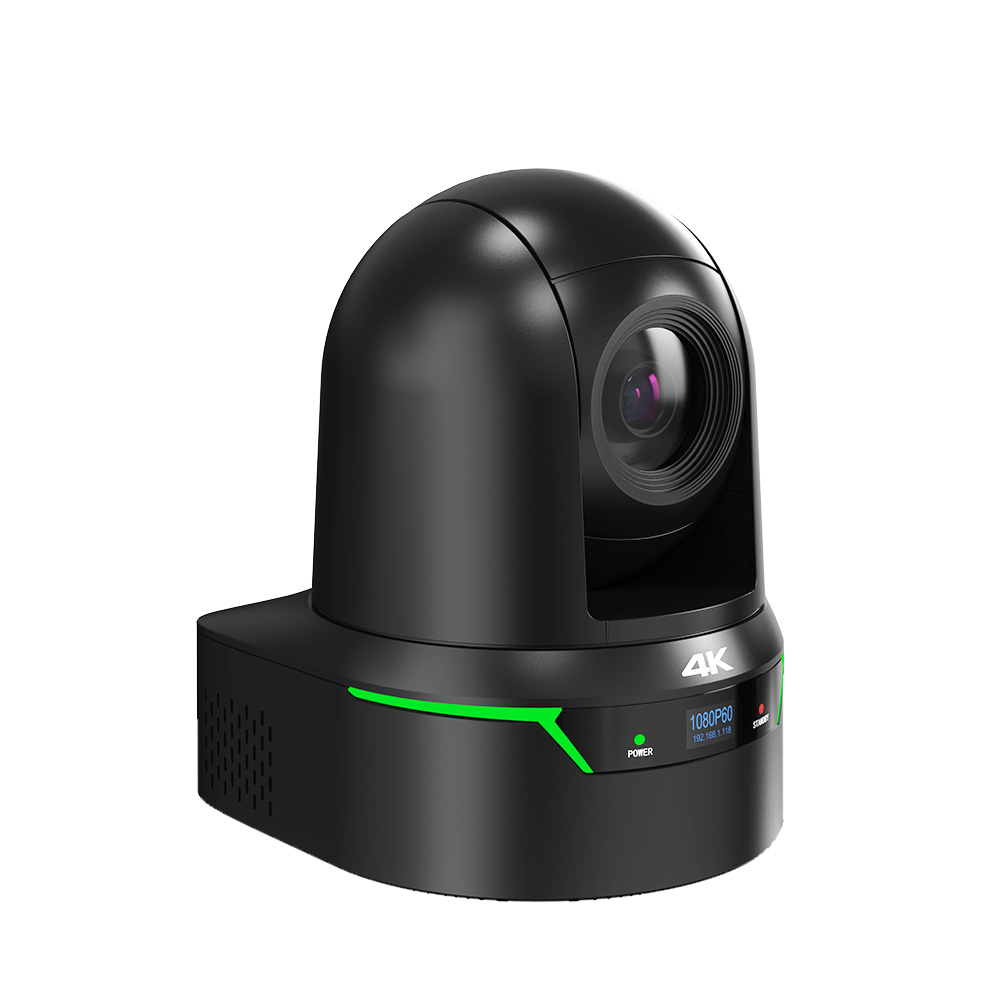

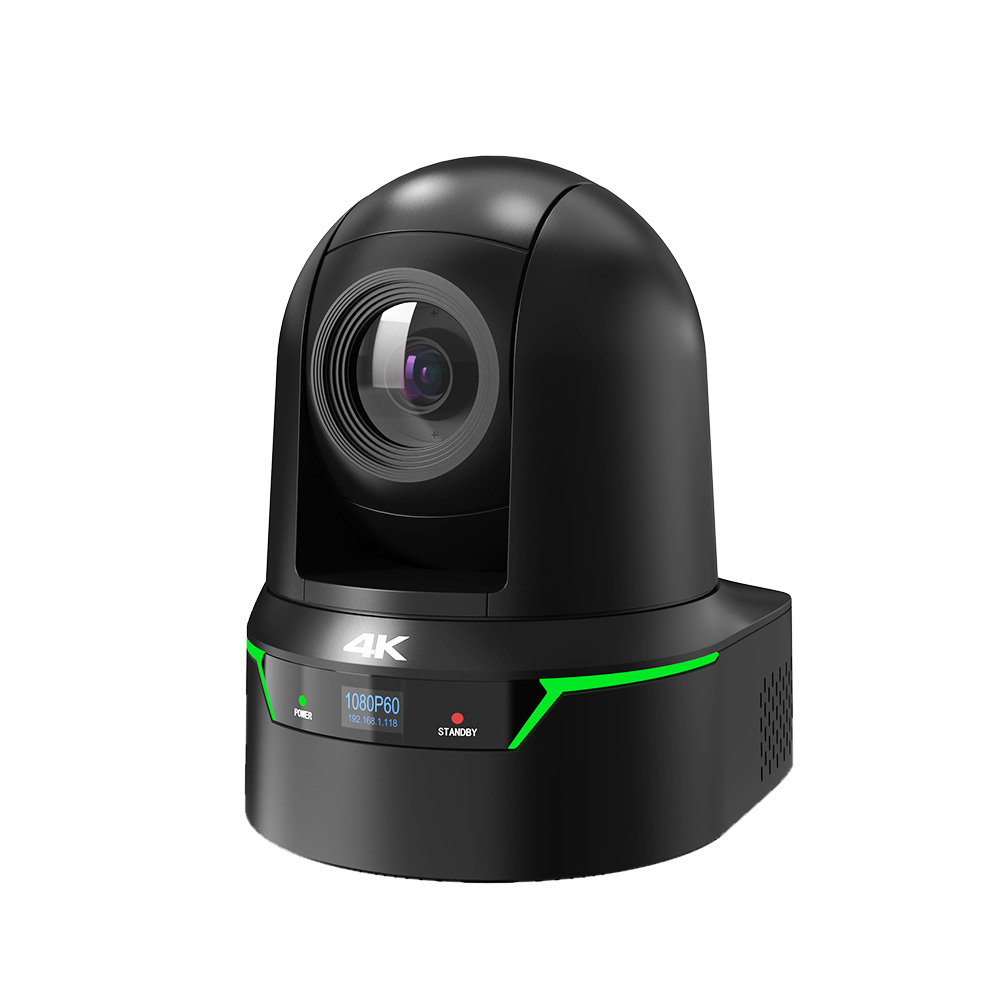

UH7110-25
Download

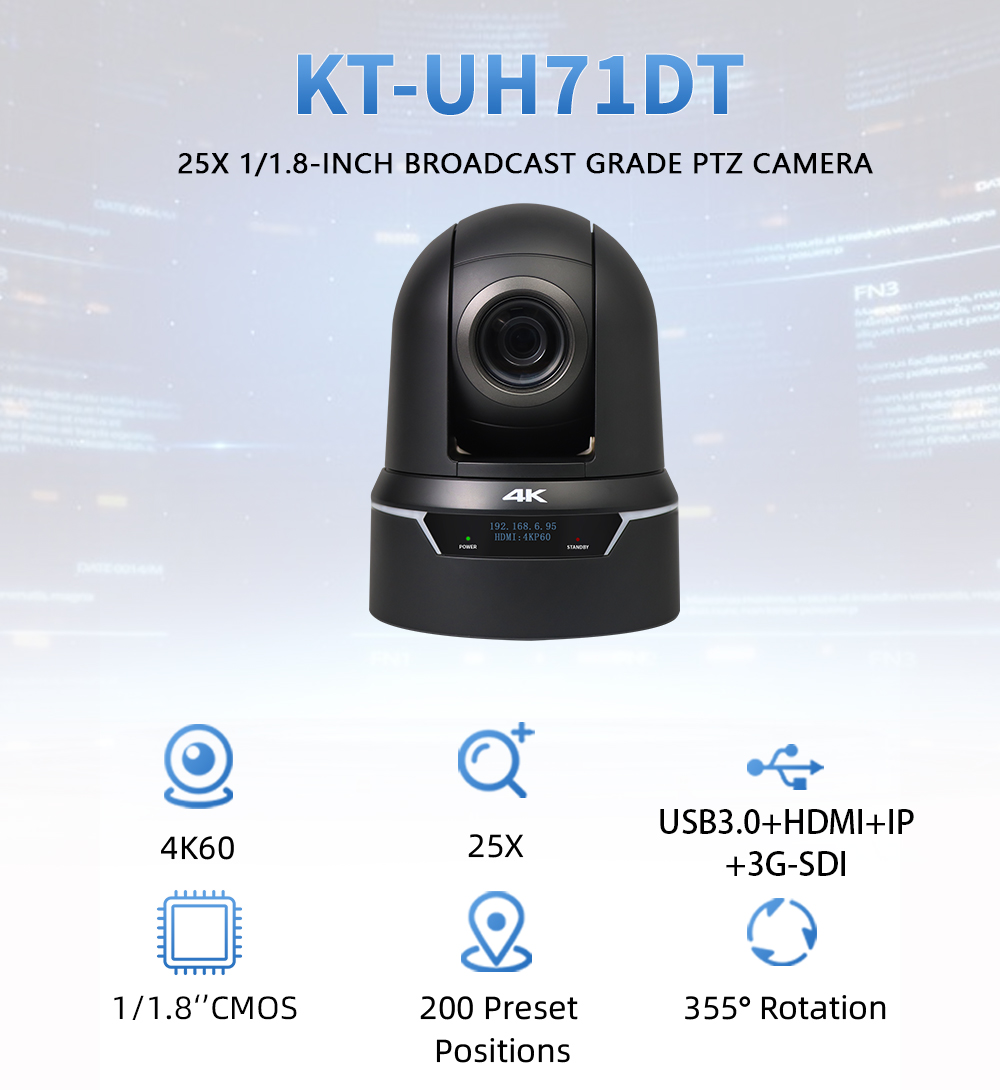

Products Description
[4K 60fps Imaging for More Realistic and Detailed Visual Performance]
Powered by a new-generation SONY 1/1.8-inch high-quality CMOS sensor with enhanced light sensitivity, it performs reliably in various challenging lighting conditions. It supports up to 4K@60fps ultra HD output, delivering both high image quality and smooth motion performance. The combination of ultra HD resolution and high frame rate ensures more fluid dynamic visuals and a more accurate, lifelike reproduction of scene details and textures.

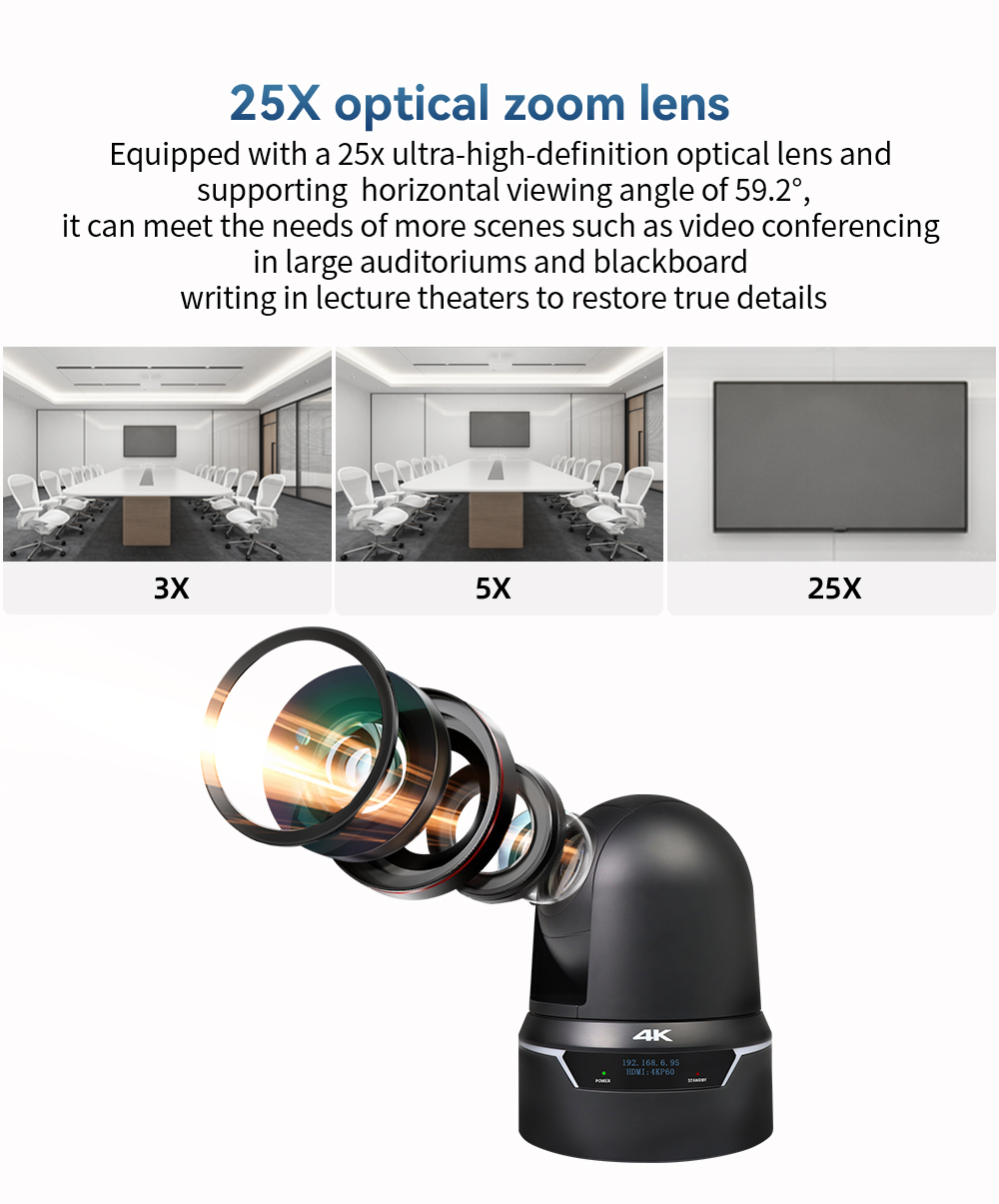

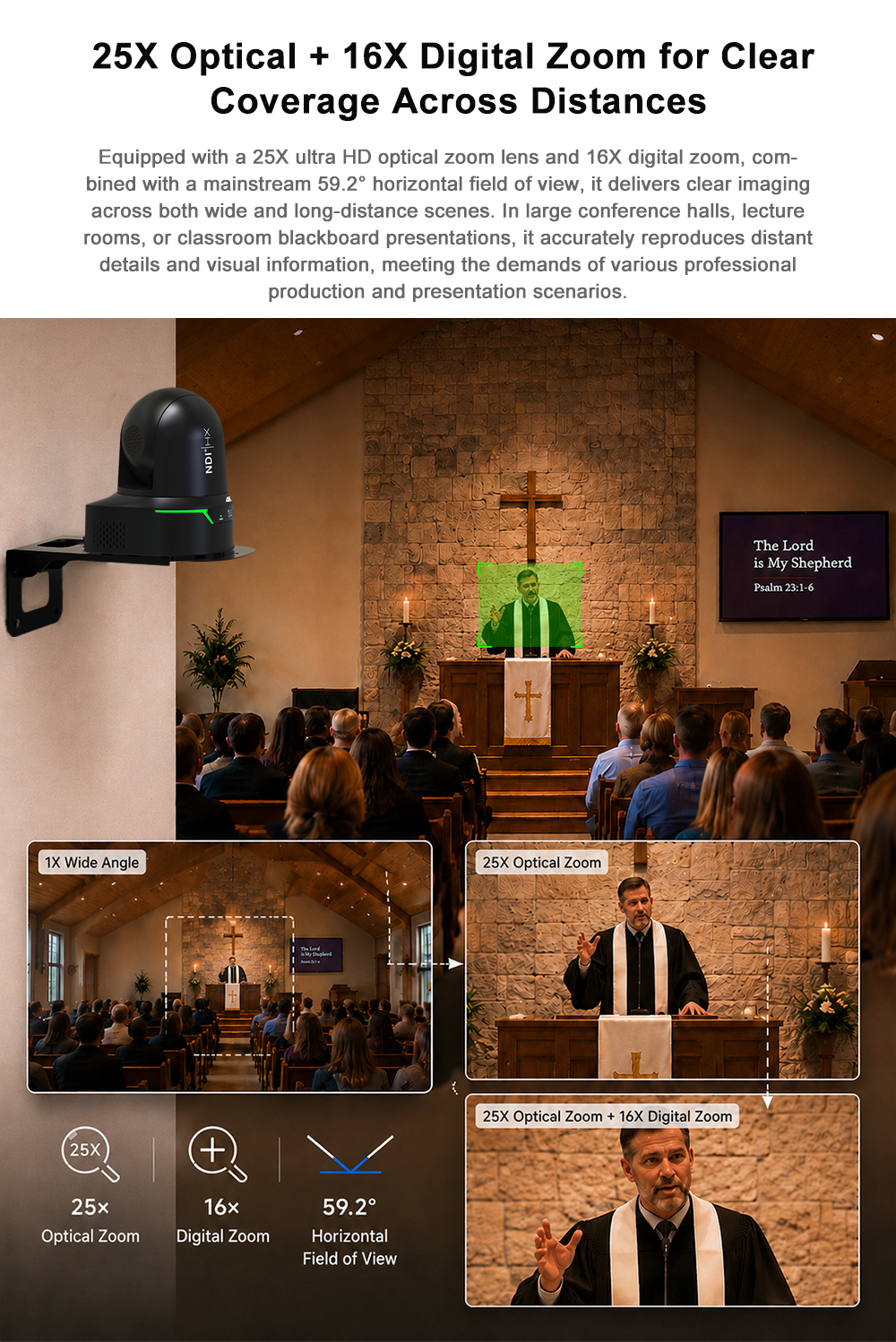

[25X Optical + 16X Digital Zoom for Clear Coverage Across Distances]
Equipped with a 25X ultra HD optical zoom lens and 16X digital zoom, combined with a mainstream 59.2° horizontal field of view, it delivers clear imaging across both wide and long-distance scenes. In large conference halls, lecture rooms, or classroom blackboard presentations, it accurately reproduces distant details and visual information, meeting the demands of various professional production and presentation scenarios.

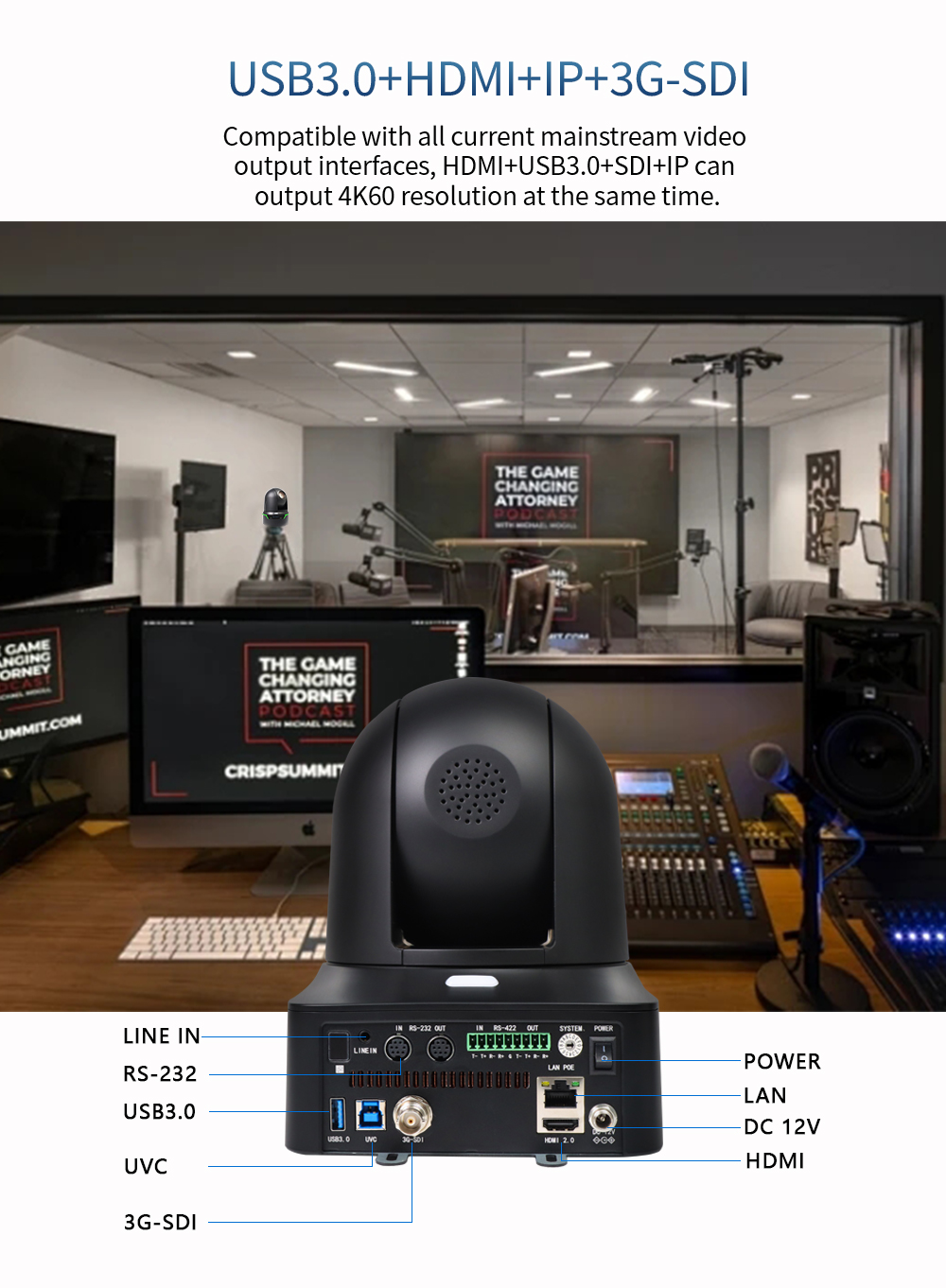

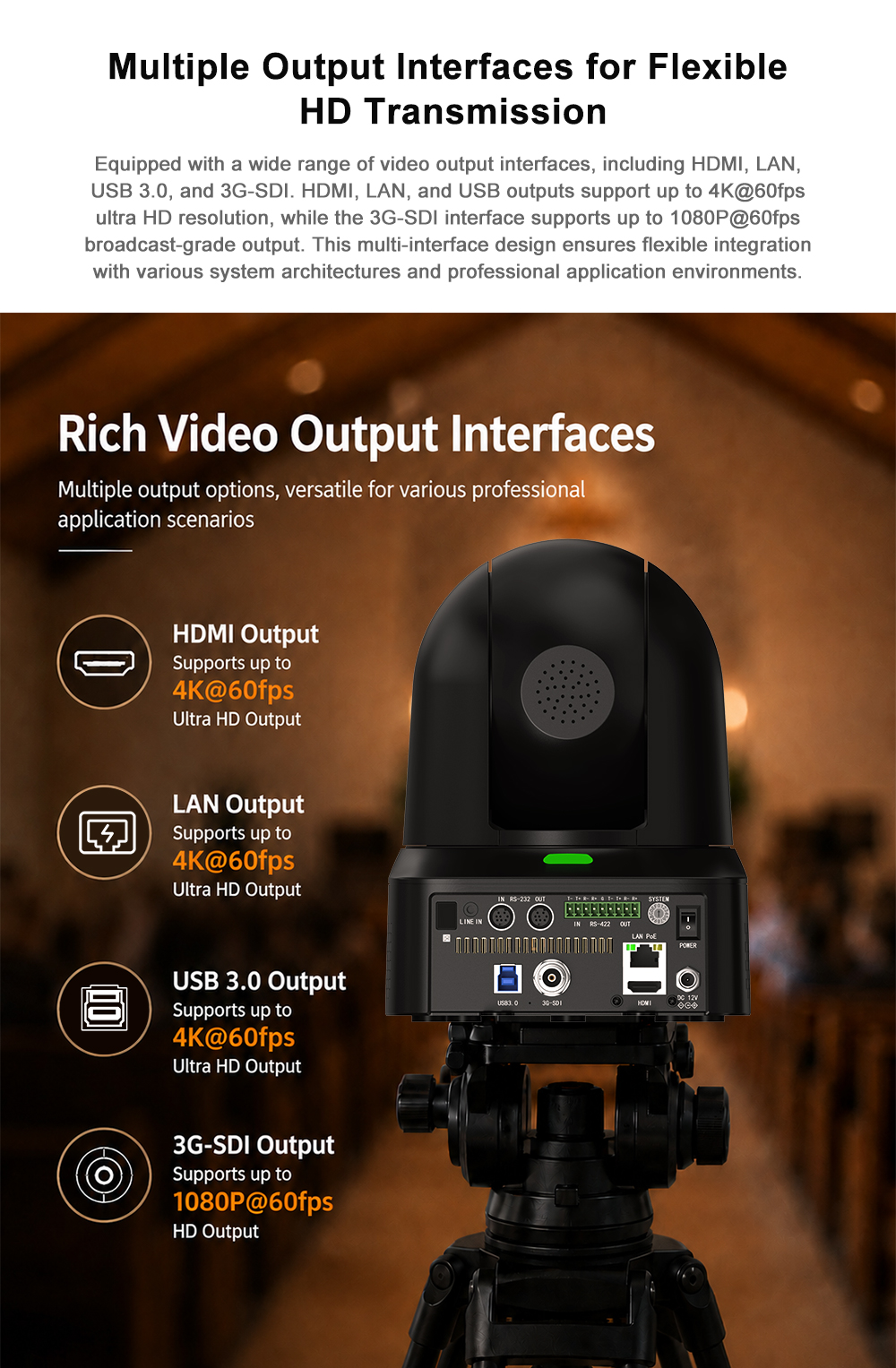

[Multiple Output Interfaces for Flexible HD Transmission]
Equipped with a wide range of video output interfaces, including HDMI, LAN, USB 3.0, and 3G-SDI. HDMI, LAN, and USB outputs support up to 4K@60fps ultra HD resolution, while the 3G-SDI interface supports up to 1080P@60fps broadcast-grade output. This multi-interface design ensures flexible integration with various system architectures and professional application environments.
[Privacy Masking for Real-Time Protection of Sensitive Content]
The system can detect multiple faces in the live video feed in real time and automatically apply mosaic (pixelation) masking to facial regions once detected. While maintaining normal video capture and transmission, it effectively protects personal privacy information, making it suitable for applications such as medical environments and other scenarios with strict privacy protection requirements.
[Free-D Real-Time Spatial Data Output for Precise Virtual Production]
Built-in Free-D protocol enables real-time camera spatial data output, allowing accurate synchronization and control of dynamic shooting angles and perspectives. It provides reliable positioning data for virtual studios, AR expansion, and mixed reality production, ensuring seamless integration between real and virtual environments and enhancing overall immersive production quality.

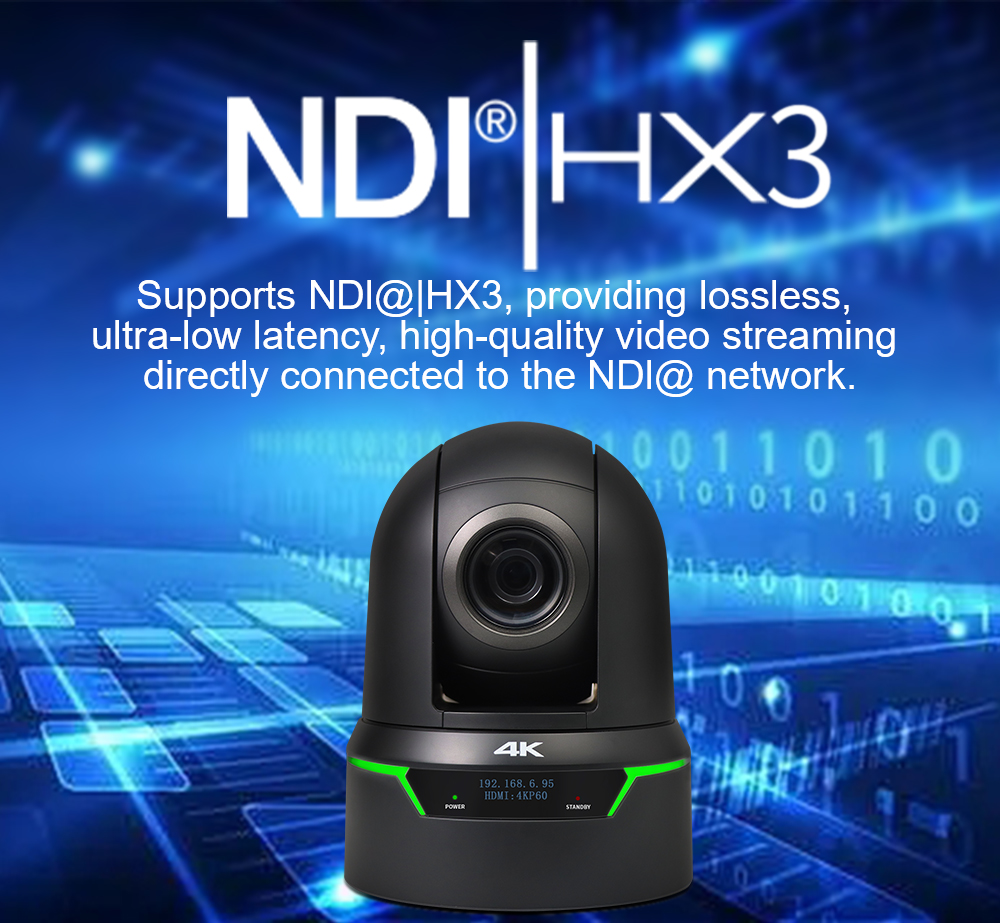

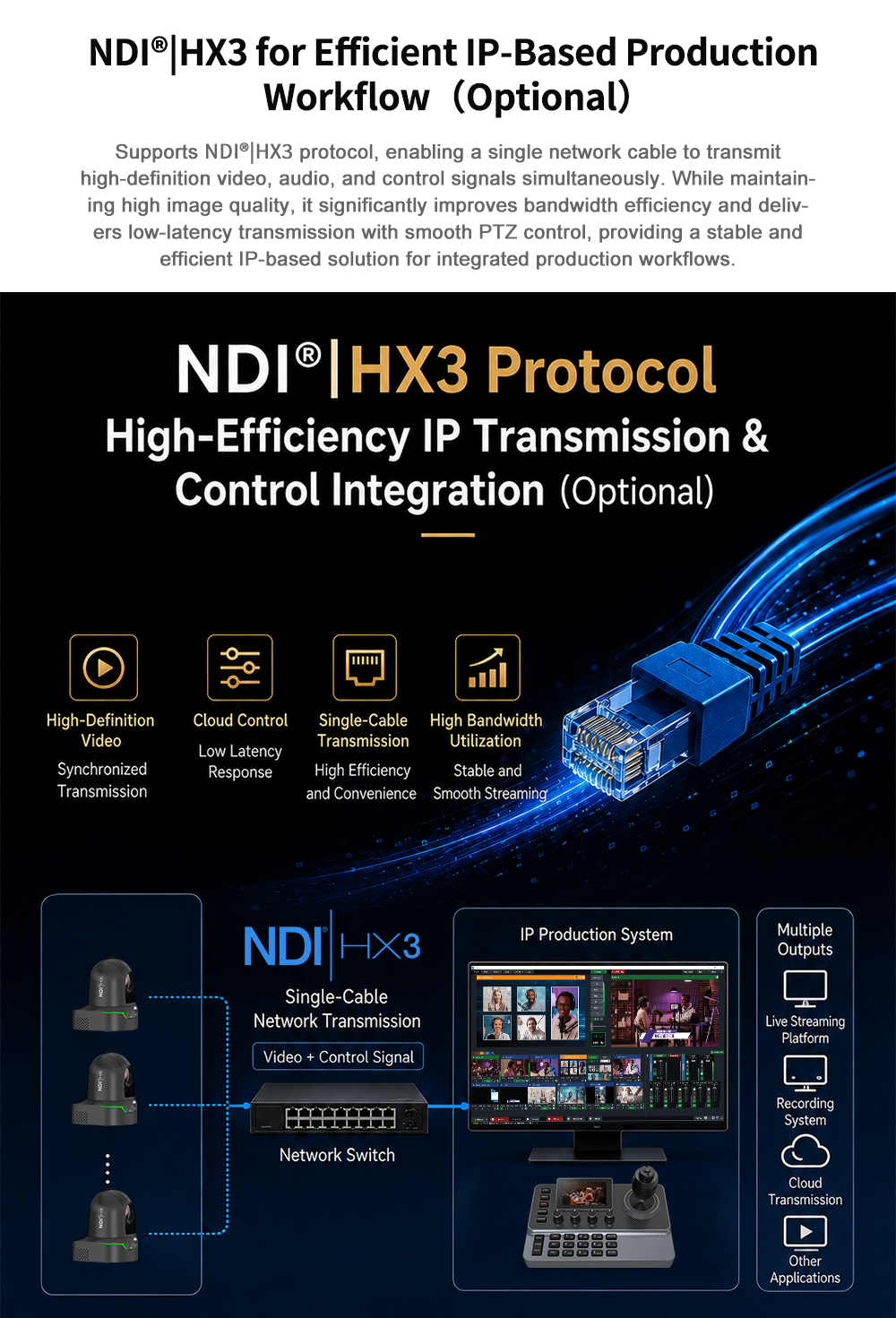

[NDI®|HX3 for Efficient IP-Based Production Workflow（Optional）]
Supports NDI®|HX3 protocol, enabling a single network cable to transmit high-definition video, audio, and control signals simultaneously. While maintaining high image quality, it significantly improves bandwidth efficiency and delivers low-latency transmission with smooth PTZ control, providing a stable and efficient IP-based solution for integrated production workflows.

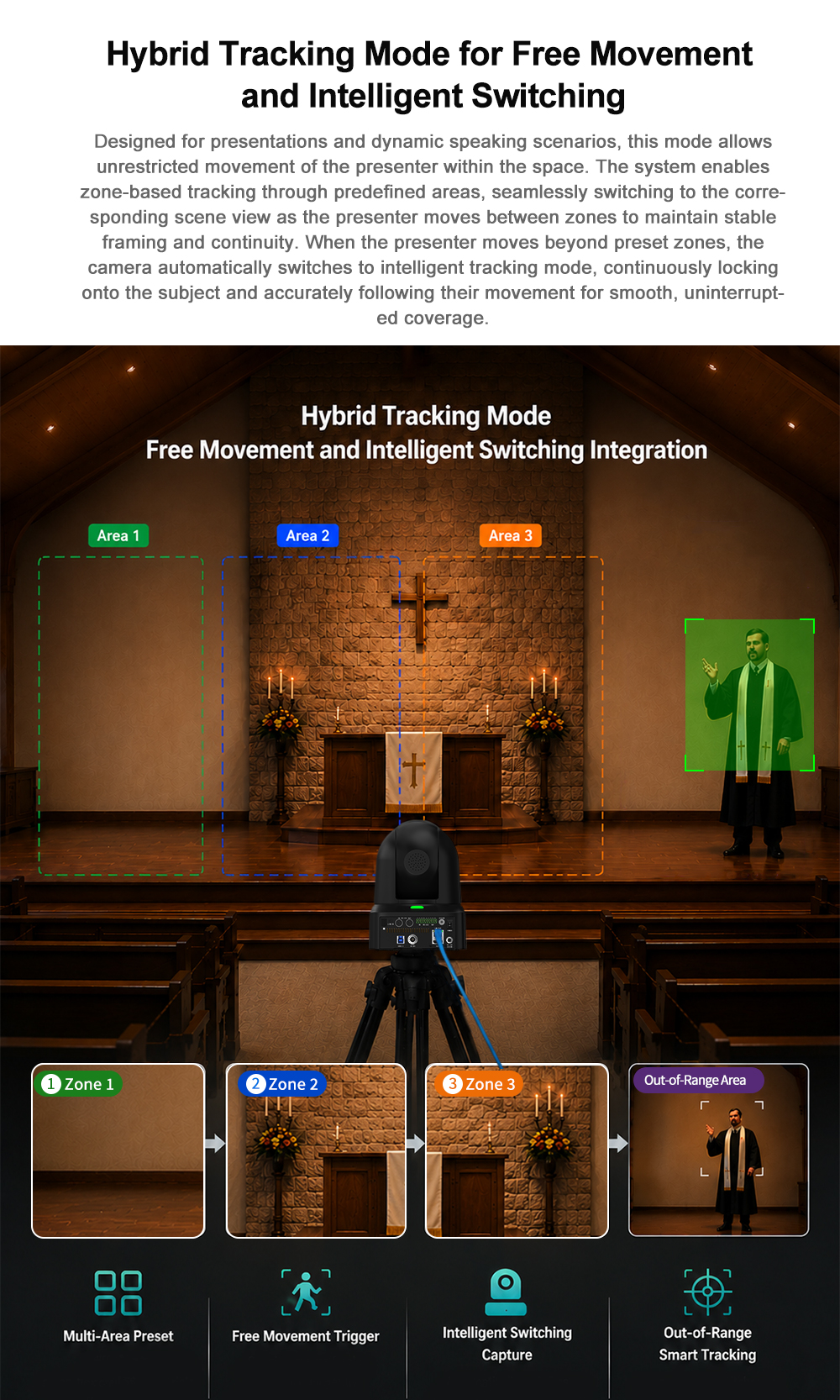

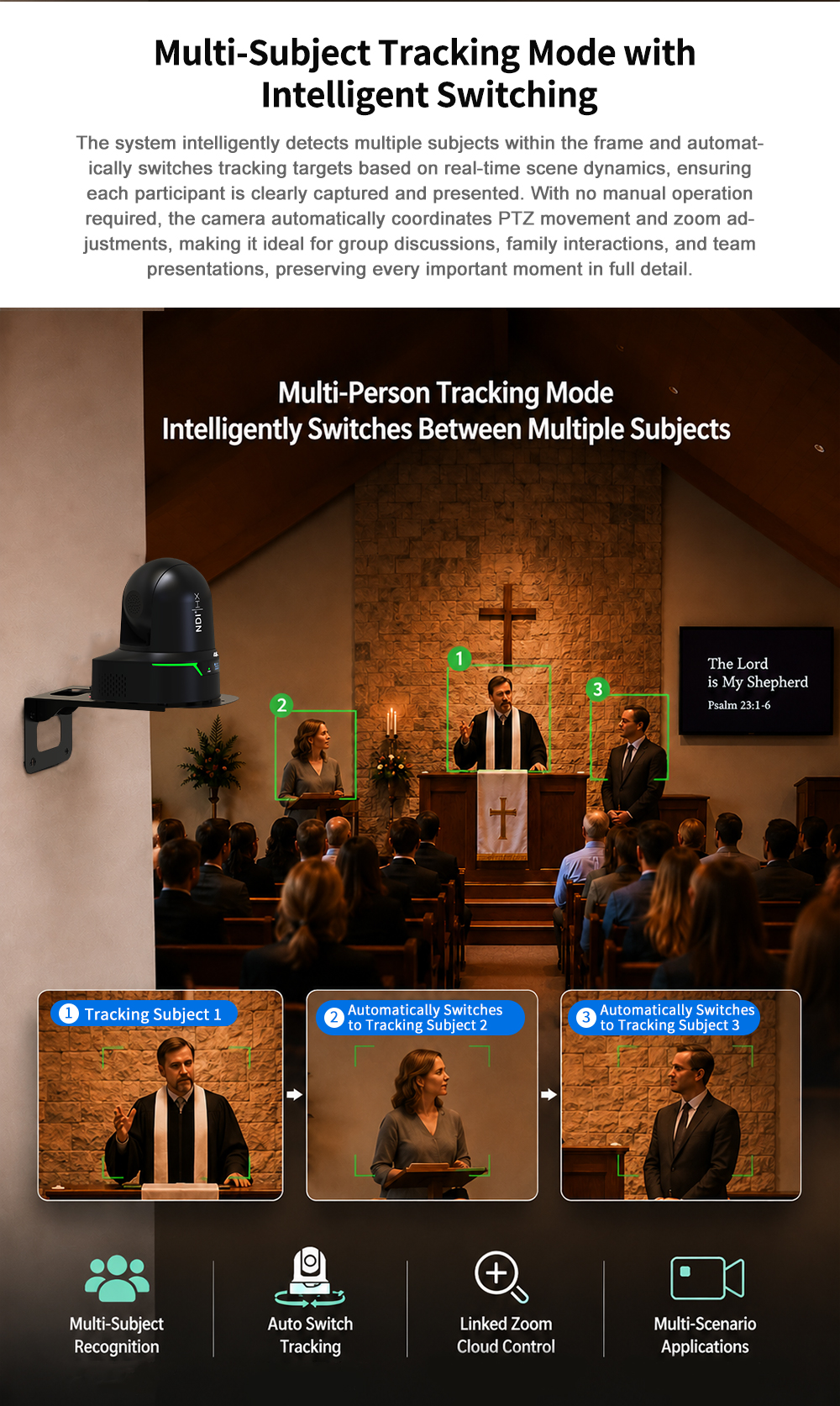

[AI tracking]
Multi-mode AI algorithm tracks people and gestures for automatic framing, reducing manual operation in lectures, meetings, and classrooms.
[Multi-Format Encoding and Multi-Protocol Support for Seamless Integration]
Supports multiple video encoding formats including YUY2, MJPG, H.264, and H.265, enabling flexible operation under different image quality and bandwidth conditions. It also supports a wide range of network protocols such as ONVIF, SRT, RTSP, RTMP/RTMPS, and FreeD, covering both live streaming and professional production workflows. For control, it is compatible with VISCA, ONVIF, PELCO P/D, and NDI protocols, with automatic protocol detection to simplify system integration and unified device management.
Details Images
|
Camera parameters |
||
|
Sensor |
1/1.8-inch SONY CMOS sensor, approximately 8.29 million effective pixels |
|
|
Zoom |
Optical zoom |
25X |
|
Digital zoom |
16X |
|
|
Lens |
f=7.1(wide-angle)~171.95mm(telephoto)，F1.61~F5.19 |
|
|
Horizontal field of view |
59.2°(W)~2.5°(T) |
|
|
Vertical field of view |
34.6°(W)~1.4°(T) |
|
|
Output format |
HDMI |
3840*2160 p60/59.94/50/30/29.97/25；1920*1080 p60/59.94/50/30/29.97/25；1280*720 p60/59.94/50；1920*1080 i60/59.94/50 |
|
3G-SDI |
1920*1080 p60/59.94/50/30/29.97/25；1280*720 p60/59.94/50；1920*1080 i60/59.94/50 |
|
|
USB |
MJPEG: 3840*2160,2560*1440,1920*1080,1280*720,960*540,480*270, 384*216, 320*180, 256*144； |
|
|
YUY2: 1920*1080, 1280*720, 960*540, 640*360, 480*270, 384*216, 320*180, 256*144； |
||
|
NV12: 1920*1080,1280*720,960*540,640*360,480*270,384*216,320*180,256*144 |
||
|
Gimbal |
||
|
Preset |
Remote controls: 10, Keyboards: 255, Accuracy: 0.1° ±10% |
|
|
Gimbal Acceleration Curve |
Gentle，Standard，Swift |
|
|
Horizontal rotation angle |
-174°～ +174° |
|
|
Vertical rotation angle |
-30°～ +90° |
|
|
Horizontal rotation speed |
0.01°～ 180°/S |
|
|
Vertical rotation speed |
0.01°～ 180°/S |
|
|
Image Parameters |
||
|
Noise reduction |
2D & 3D |
|
|
Exposure |
Automatic, Manual, Aperture Priority, Shutter Priority |
|
|
White Balance |
Auto, Indoor, Outdoor, One-touch White Balance, Auto Tracking, Manual, Color Temperature |
|
|
Low light |
0.1Lux |
|
|
Anti-flicker |
Off, 50Hz, 60Hz |
|
|
Focusing method |
Automatic, Manual |
|
|
Gamma |
Standard, Linear, Pattern, Custom |
|
|
Inversion/Image Freeze |
Support |
|
|
Backlight compensation |
Support |
|
|
Flip/Mirror |
Support |
|
|
Defog |
Support |
|
|
Shutter |
1/60S ～ 1/10000S |
|
|
S/N Ratio |
≥50dB |
|
|
Online streaming |
||
|
Video encoding format |
H.264, H.265,MJPEG |
|
|
Rate Control |
Variable bit rate, constant bit rate |
|
|
Bitrate |
Stream 0 3840*2160, 1920*1080, 1280*720 |
|
|
Stream 1 640*360 |
||
|
Stream 2 1920*1080, 1280*720 |
||
|
Supported Protocol |
TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, VISCA Over IP, Free D, NDI（Optional） |
|
|
Audio information |
||
|
Compression Standard |
AAC |
|
|
Audio Bitrate |
128kbps |
|
|
AI composition |
||
|
Smart Tracking |
Single-person tracking, multi-person tracking, Zone tracking, hybrid tracking, gesture recognition |
|
|

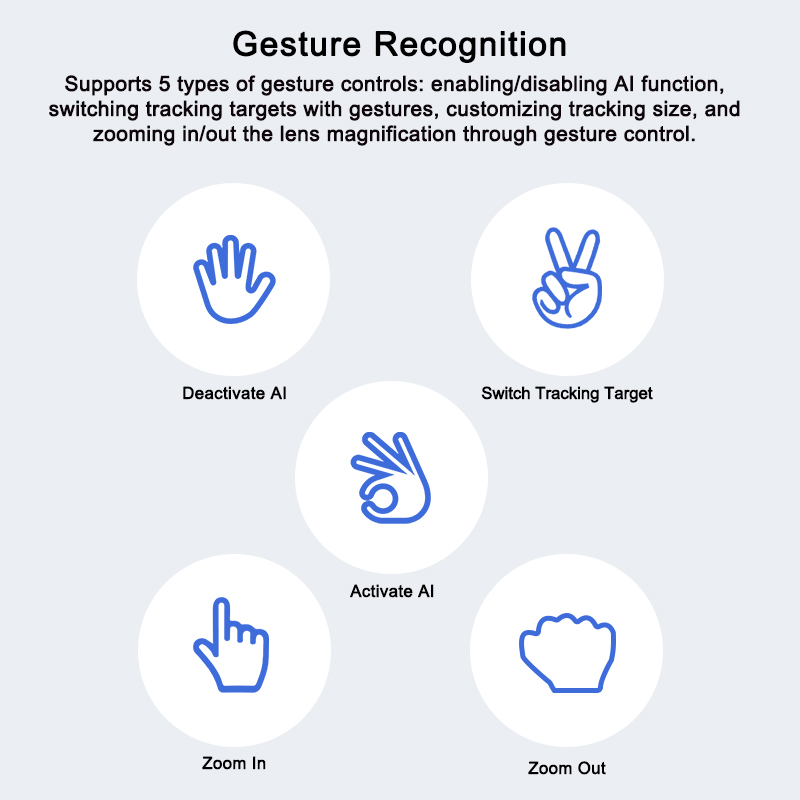

Gesture recognition |
Turn on/off, switch target,Zoom In,Zoom Out |
|
|
Composition size |
Half body / Full body |
|
|
Composition mode |
Custom, Center, Left, Right |
|
|
Composition position |
Current position, preset position, initial position |
|
|
Pan Lock |
Support(Only Single-person tracking) |
|
|
Tilt Lock |
Support(Only Single-person tracking) |
|
|
Zoom Lock |
Support(Only Single-person tracking) |
|
|

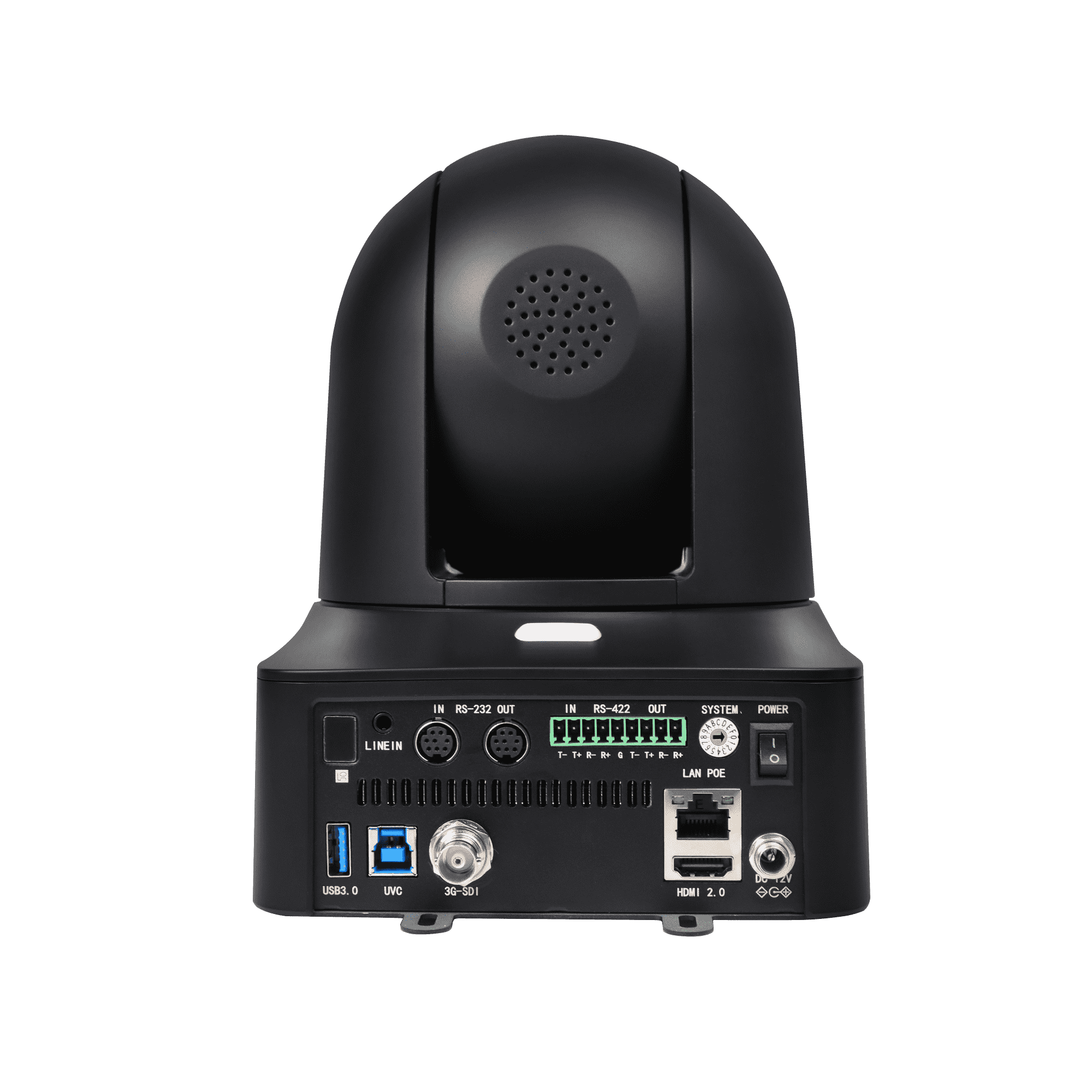

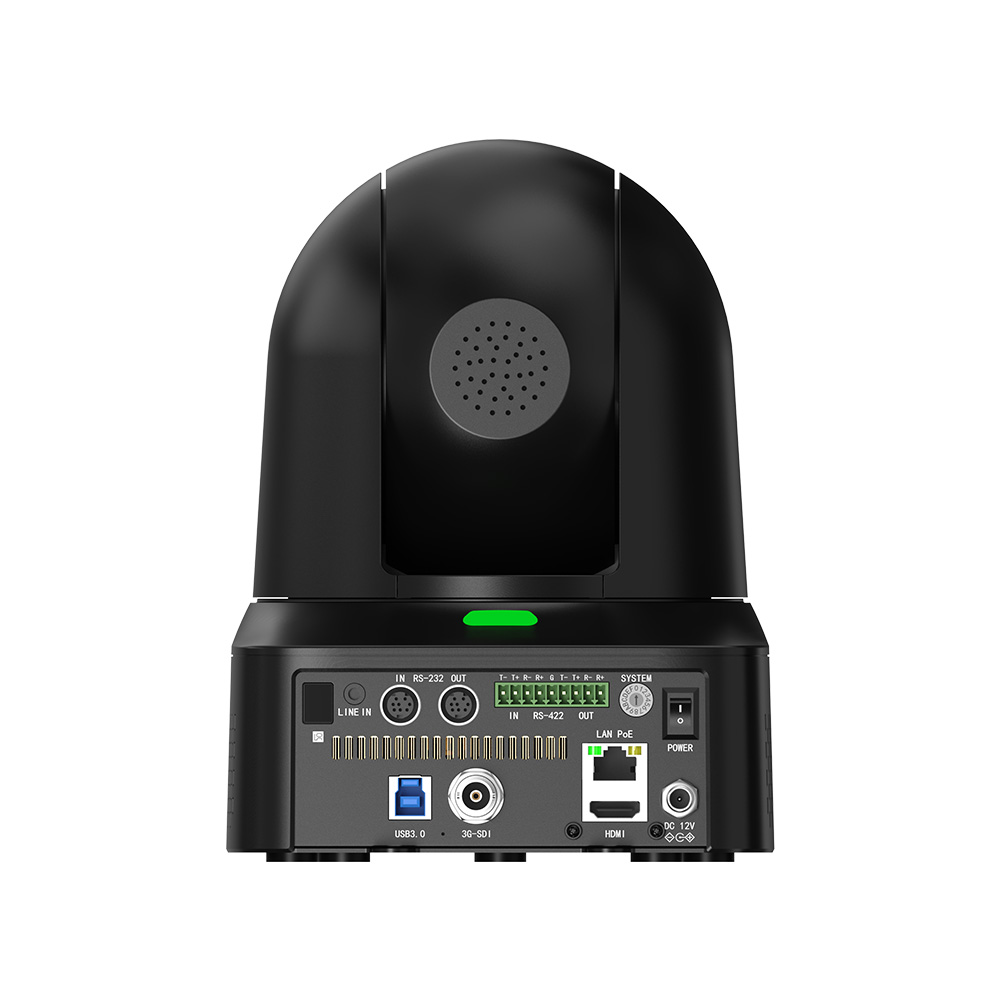

Input/Output |
||
|
HDMI port |
HDMI: Version 2.0 *1 channel |
|
|
USB port |
USB3.0，Type-B port *1 channel |
|
|
SDI port |
3G-SDI*1 channel |
|
|
Communication Interface |
RS422:9 Phoenix connector,maximum distance 1200 meters，VISCA/Pelco-D/Pprotocol *1 channel； RS232 IN/OUT: 8-pin mini DIN, maximum distance 30 meters, VISCA/Pelco-D/P protocol *1 channel |
|
|
Network Interface |
RJ45: 1000M adaptive Ethernet port ×1 channel (Supports PoE+ (IEEE 802.3at)) |
|
|
Audio Interface |
3.5mm Line In audio port ×1 channel |
|
|
Power connector |
IEC 60130-10 Type A |
|
|
Basic Parameters |
||
|
Input voltage |
DC 12V |
|
|
Input current |
Up to 1.5A |
|
|
Operating Temperature |
0～40℃ |
|
|
Power consumption |
Up to 18W |
|
|
Color |
Black、White（Optional） |
|
|
Specifications |
158*193*208mm |
|
|
Weight |
1.9KG |
|
|
Accessory List |
DC 12V power adapter、IR remote control、 user manual、RS-232 serial cable (optional)、HDMI cable (optional)、HDMI bracket、USB 3.0 video cable、wall mount/ceiling mount bracket (choose one) |
|
