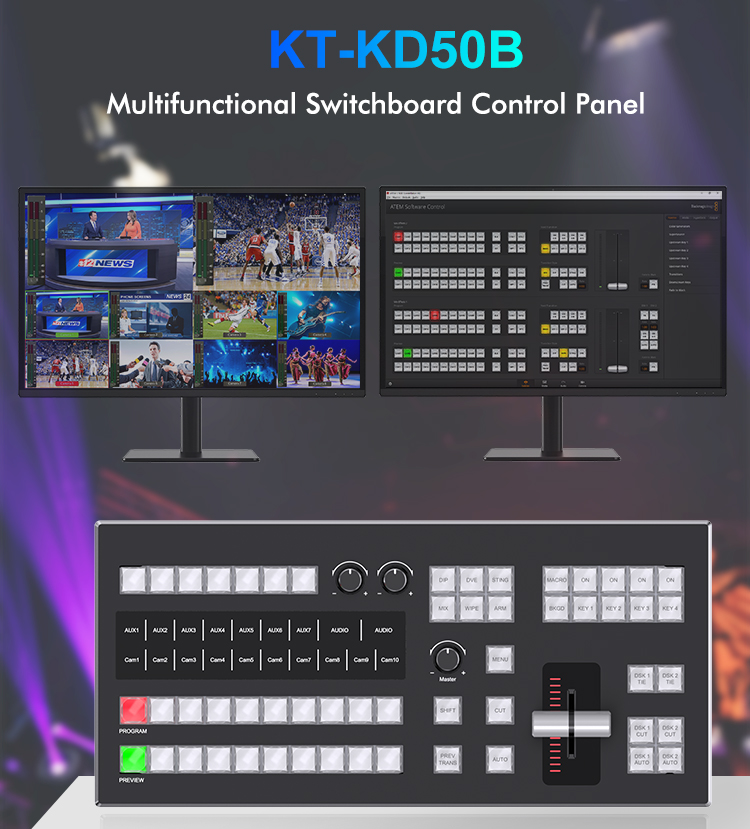

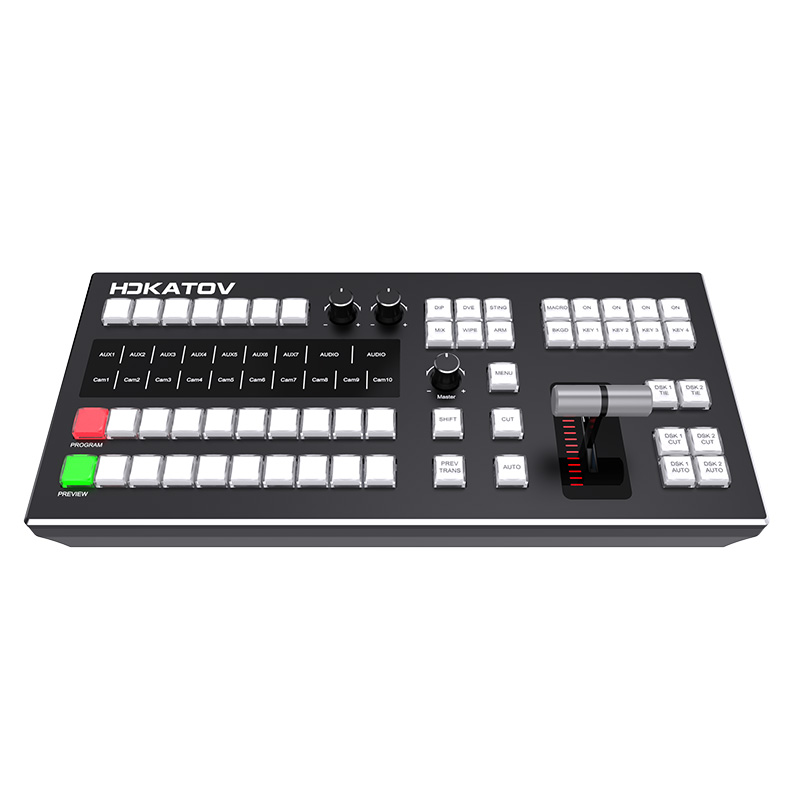

KT-KD50B ATEM Control Panel with LCD Display|10-channel PGM + 10-channel PVW live switching| Custom Buttons & T-Bar | LAN Control for BMD 1M/E-4M/E | Church/Radio and Television/eSports

Products Description

[Integrated hardware design]

Easy-to-use fully embedded system with a streamlined structure, integrating director switching, audio adjustment and transition effects.

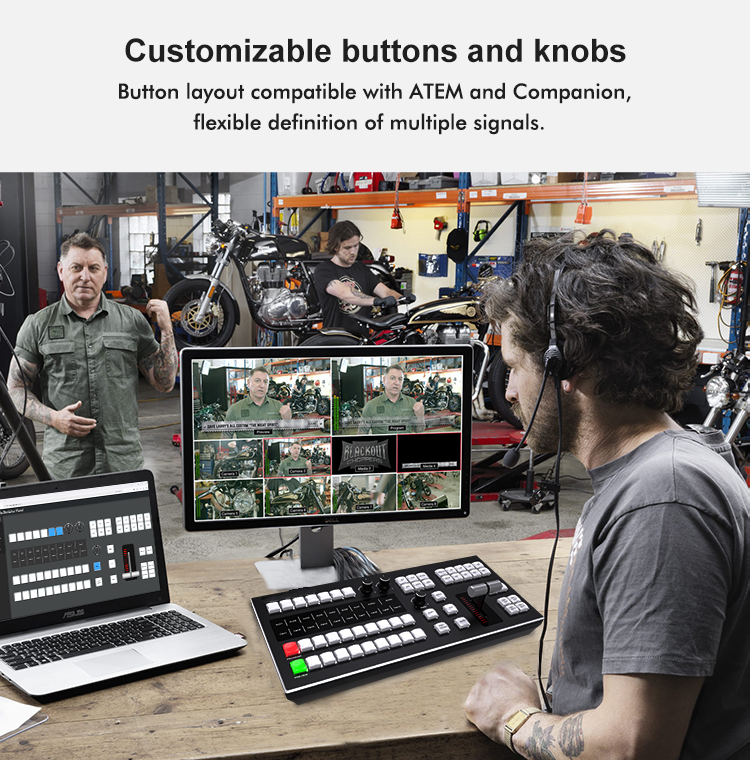

[New upgraded functions, custom buttons and knobs to play more effects]

Connect to ATEM switcher/Bitfocus companion software via LAN, customizable functions supported by buttons and knobs, allowing for personalized configurations to create a unique broadcasting experience, real-time display of button functions on the screen.

[Built-in LCD display]

Customize functions for display buttons and knobs, and provide a display menu interface for changing switcher IP settings through the on-screen menu.

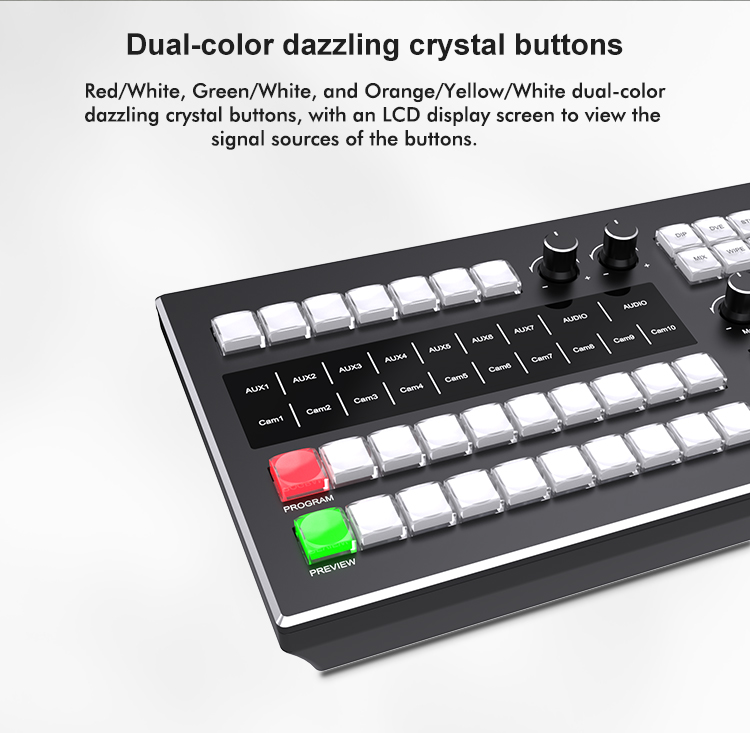

[Multi-functional system control integration, tri-color crystal buttons]

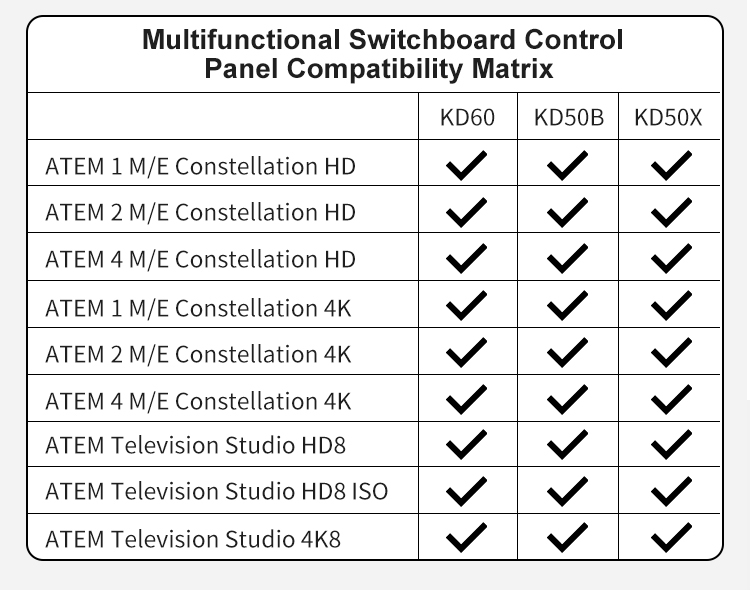

Supports basic corresponding functions of BMD ATEM Constellation and Television Studio series 1 M/E – 4 M/E products, with red, green, and orange-yellow tri-color crystal buttons for clear director seat effects.

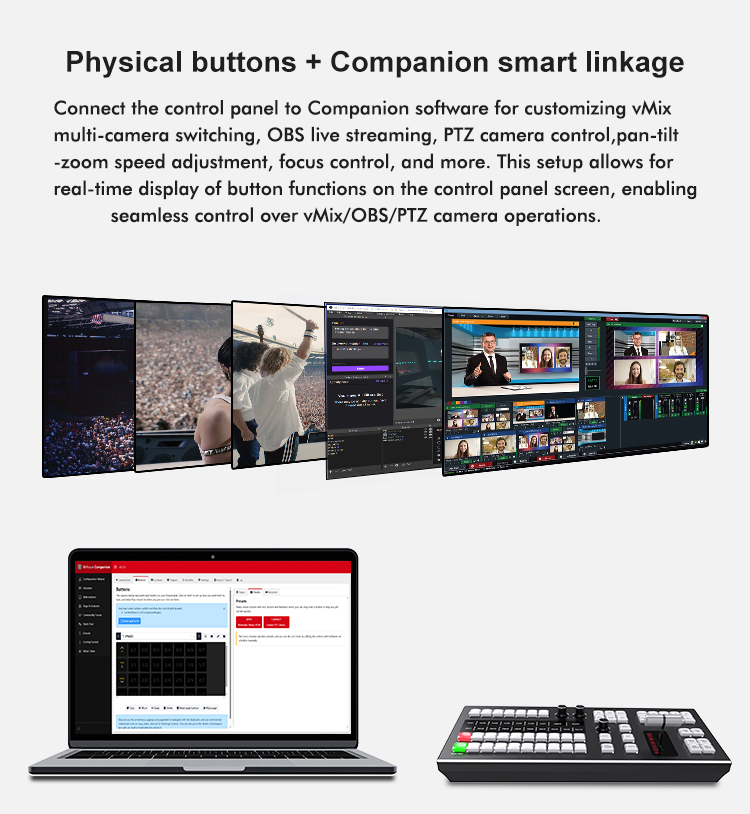

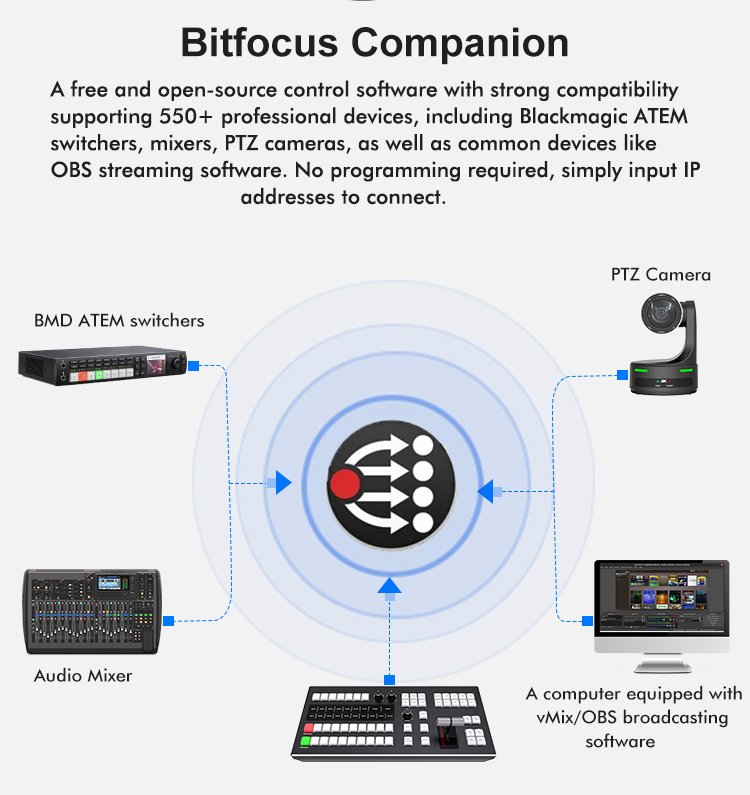

[Control panel + Companion smart linkage]

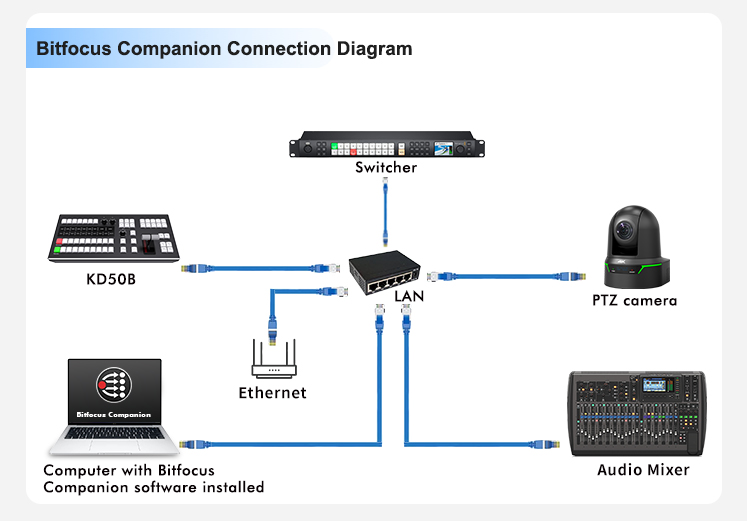

The control panel connects to the Companion software, allowing for custom vMix multi-camera switching, OBS live streaming, camera PTZ control, PTZ speed adjustment, zoom and focus control, enabling control over vMix/OBS/PTZ cameras.

[High quality aluminum alloy T-BAR faders]

Aluminum alloy high-quality T-BAR fader, combined with a nine-level LED light progress bar, is very director-style.

 [Multi-Signal Control: 20 Live & 40 Managed Channels]

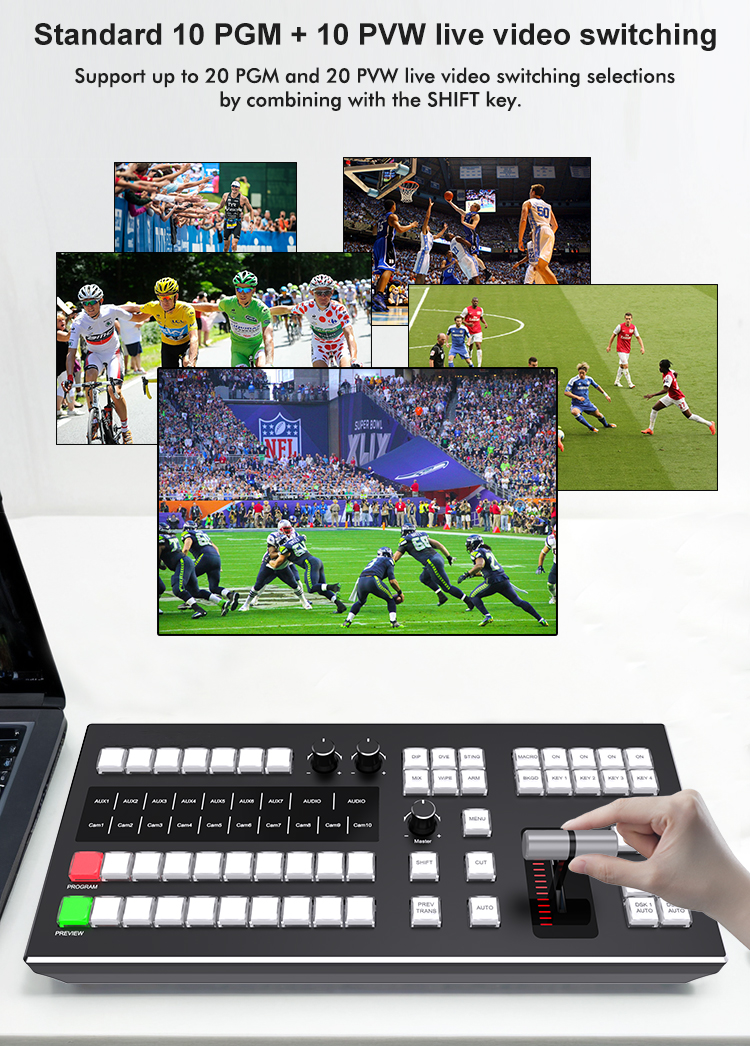

20-PGM/20-PVW switching via SHIFT keys - supports 10+10 quick switching and 40-input web management (direct 20-channel control, expandable to 40 inputs).

[Transition Control]

Each transition effect has a dedicated button for full control over the transition effects. The CUT button executes a direct cut transition, while the AUTO button uses the selected transition effect such as DIP, DVE, STING, MIX, WIPE, ARM, allowing quick access to transition effect buttons.

[Audio custom adjustment function]

Customized audio settings support multi-channel audio control functions such as Audio, XLR, MIC, MP, etc.

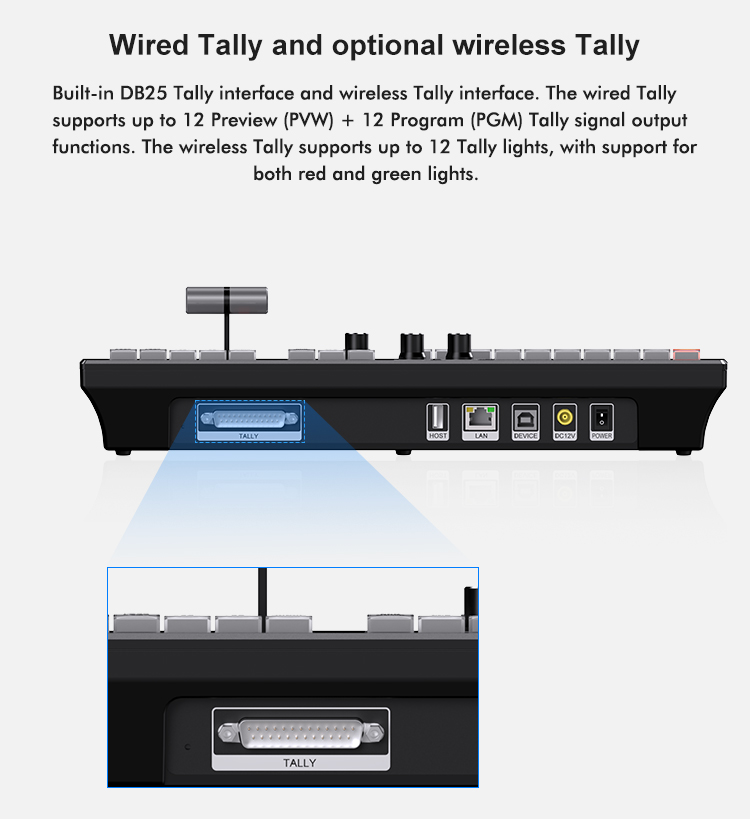

[Support wired tally and wireless tally (optional) output functions]

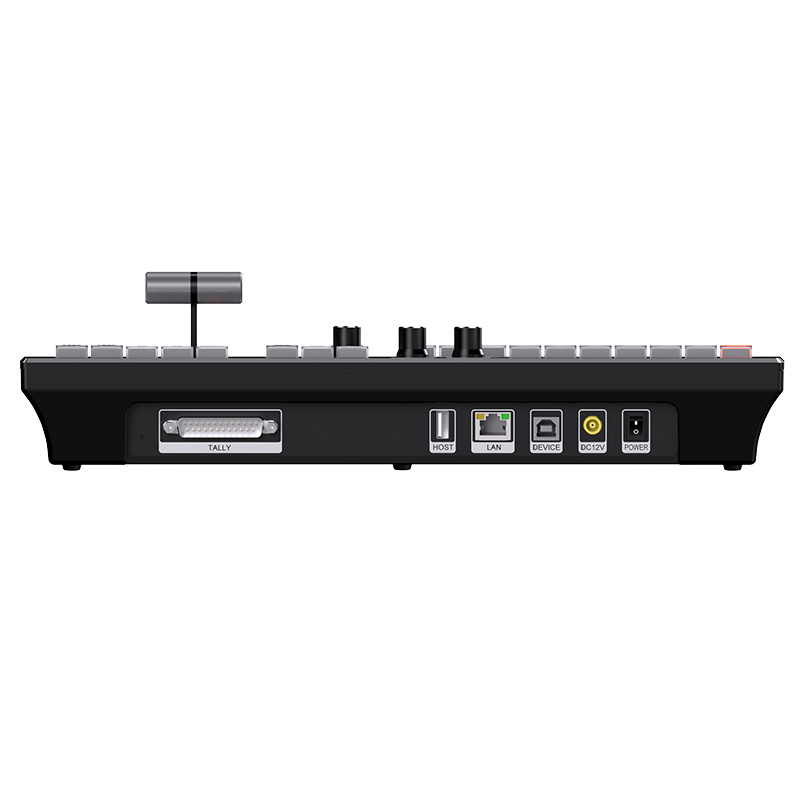

Built-in DB25 tally interface and wireless tally interface. Wired tally supports up to 12 PVW + 12 PGM tally signal outputs. Wireless tally supports up to 12 tally lights, including red and green lights.

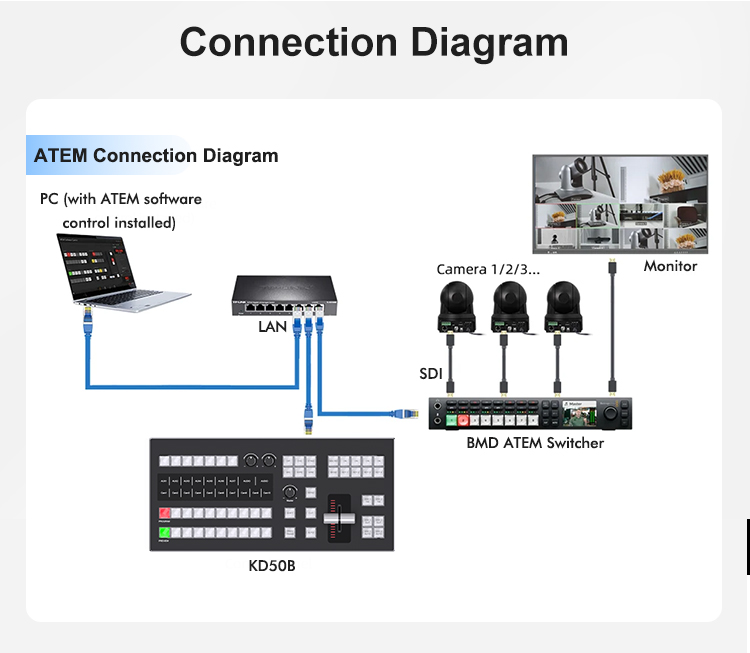

[Supports LAN interface connection, simple and convenient]

Support LAN connection for BMD ATEM 1 M/E – 4 M/E switchers.

[All-aluminum alloy panel]

The anodized aluminum alloy panel is processed to show the product quality.

[Intuitive WEB backend interface]

By remotely accessing the WEB backend interface, you can easily drag and drop the required functions to the button position to achieve customized button functions. At the same time, it supports device upgrades through the WEB backend to ensure that the system is always up to date.

Details Images

Application Field

Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,

Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.
