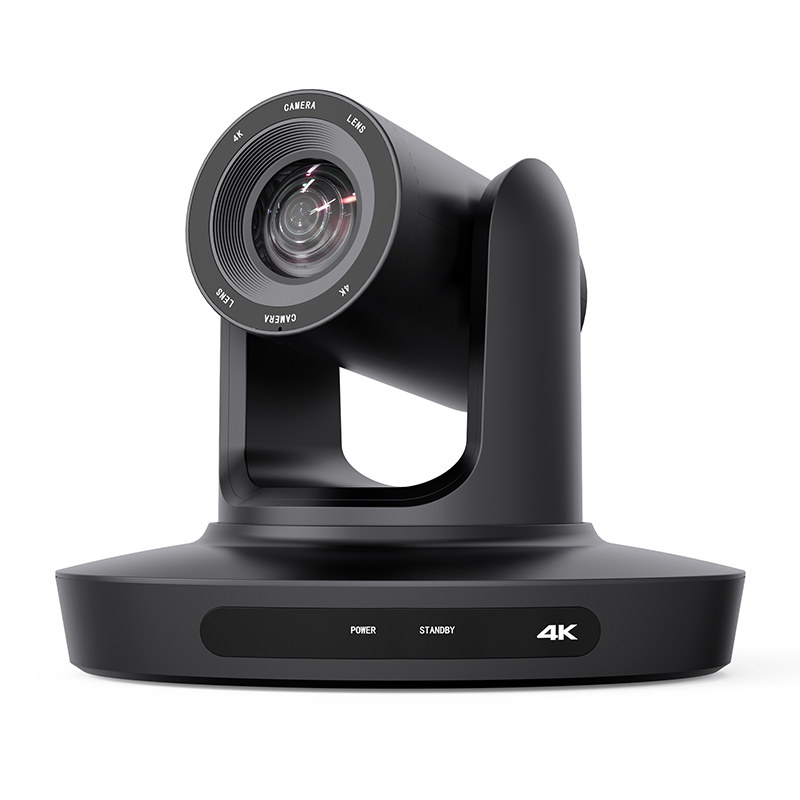

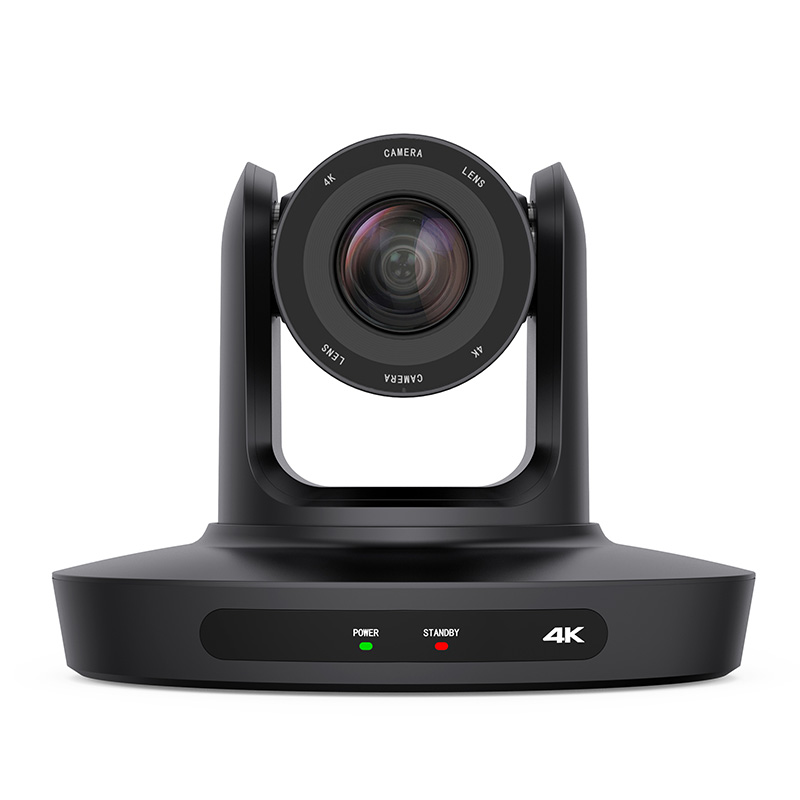

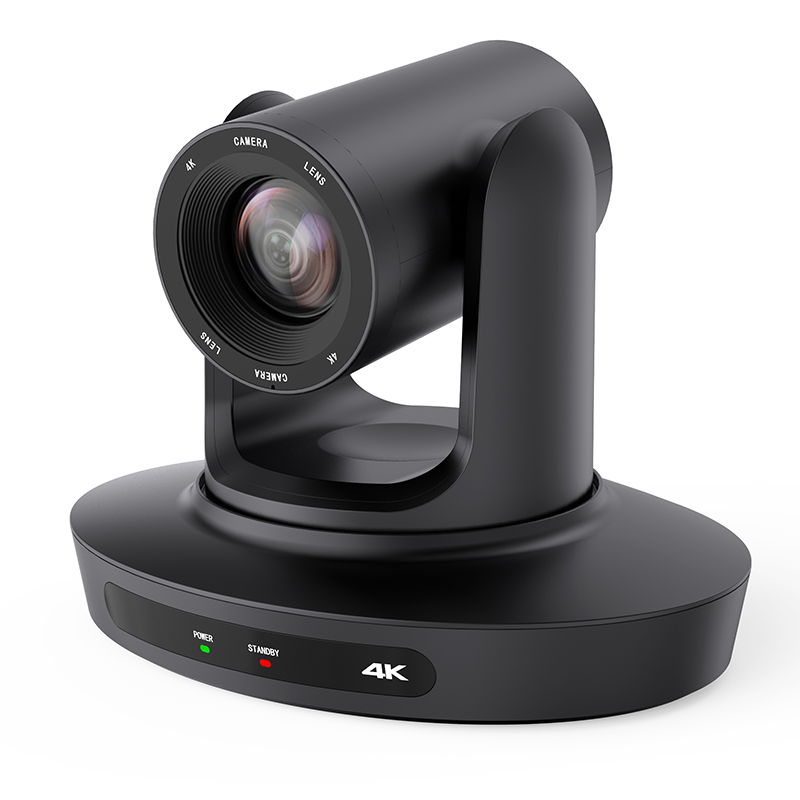

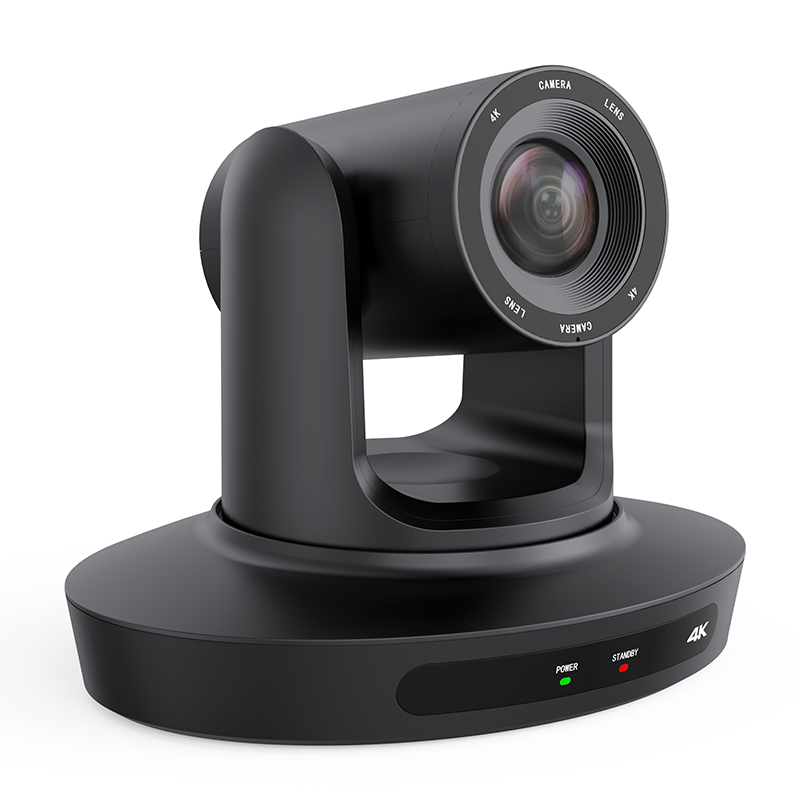

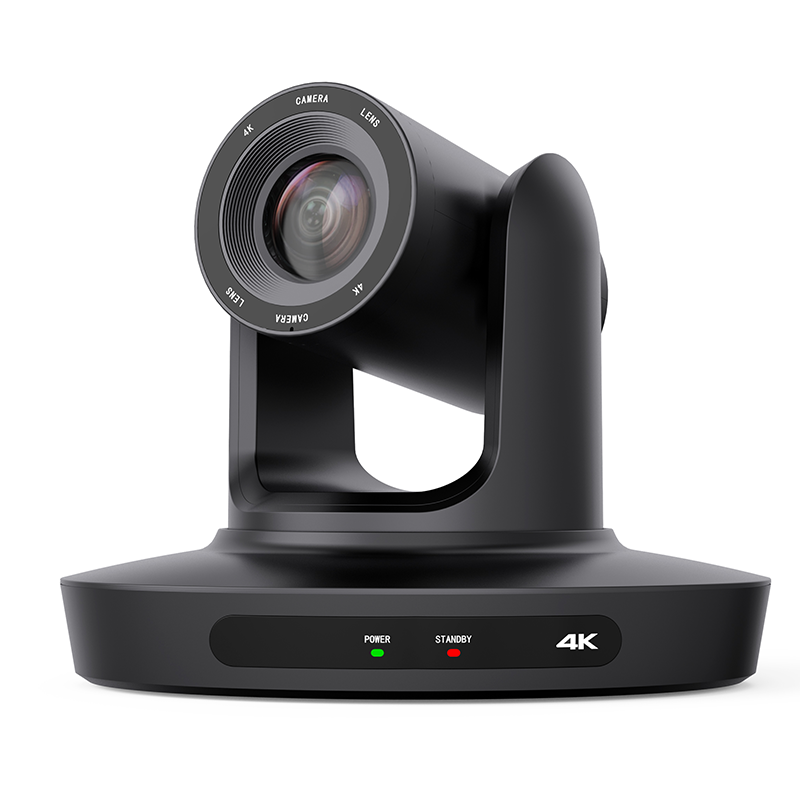

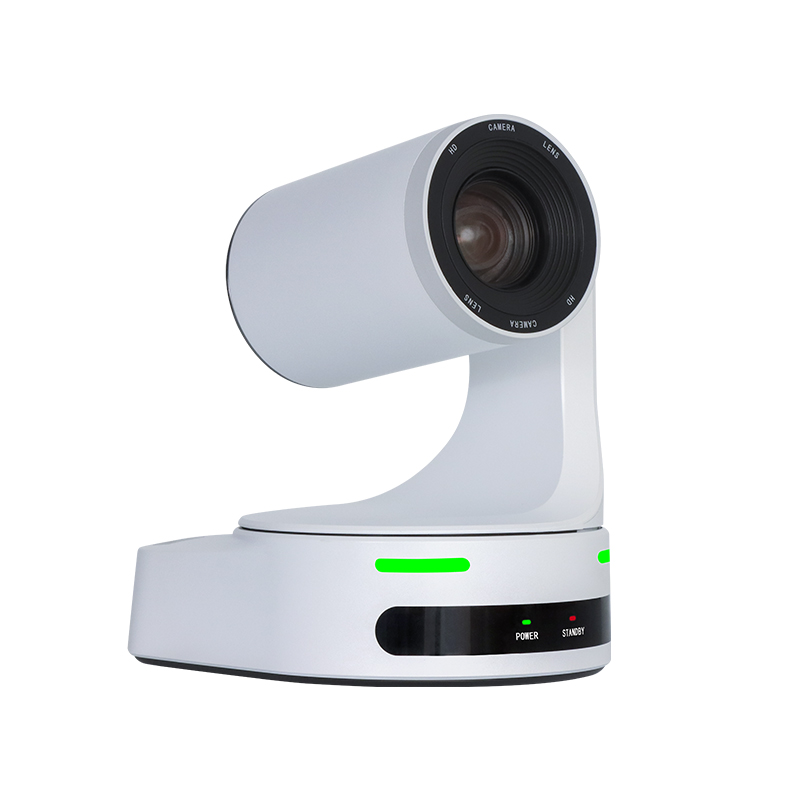

PTZ Camera 4K,AI Auto Tracking USB3.0/LAN/HDMI PTZ Camera 10X Optical Zoom with PoE Live Streaming Camera for Church Worship,OBS
Products Description

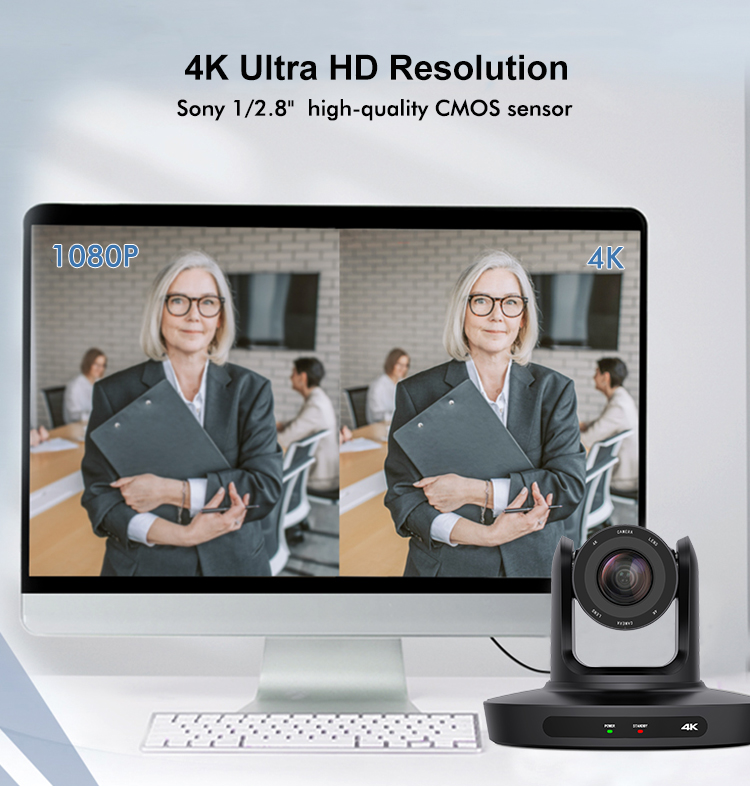

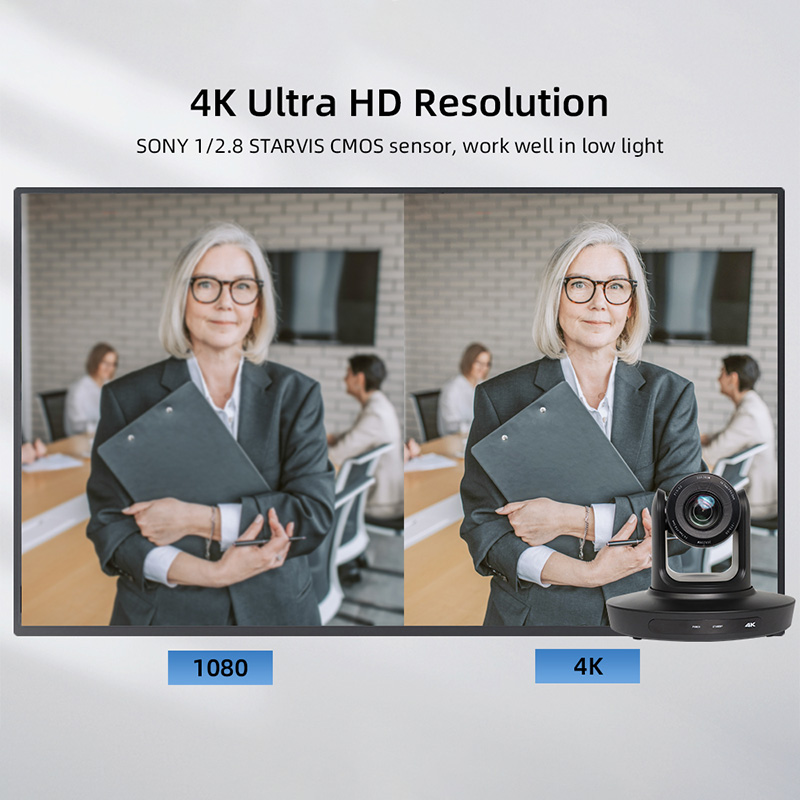

4K Ultra HD Resolution:
Applies SONY 1/2.8” Progressive CMOS sensor, 8.50 Megapixels, max. 4K (3840x2160) high resolution with frame rate up to 4K 30fps.

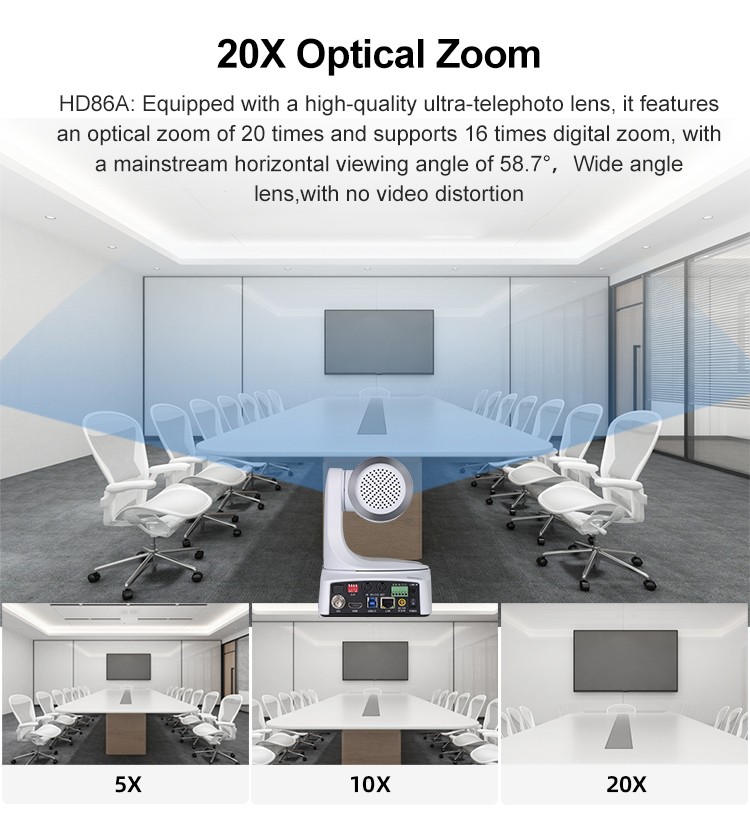

10x, 12x, 20x Optical Zoom Lens:.
UH45GQ: 10x optical zoom, 67.8 distortion-free horizontal viewing angle.
UH45GF: 12x optical zoom, 72.5 distortion-free horizontal viewing angle.
UH45GH: 20x optical zoom, 58.7 distortion-free horizontal viewing angle..

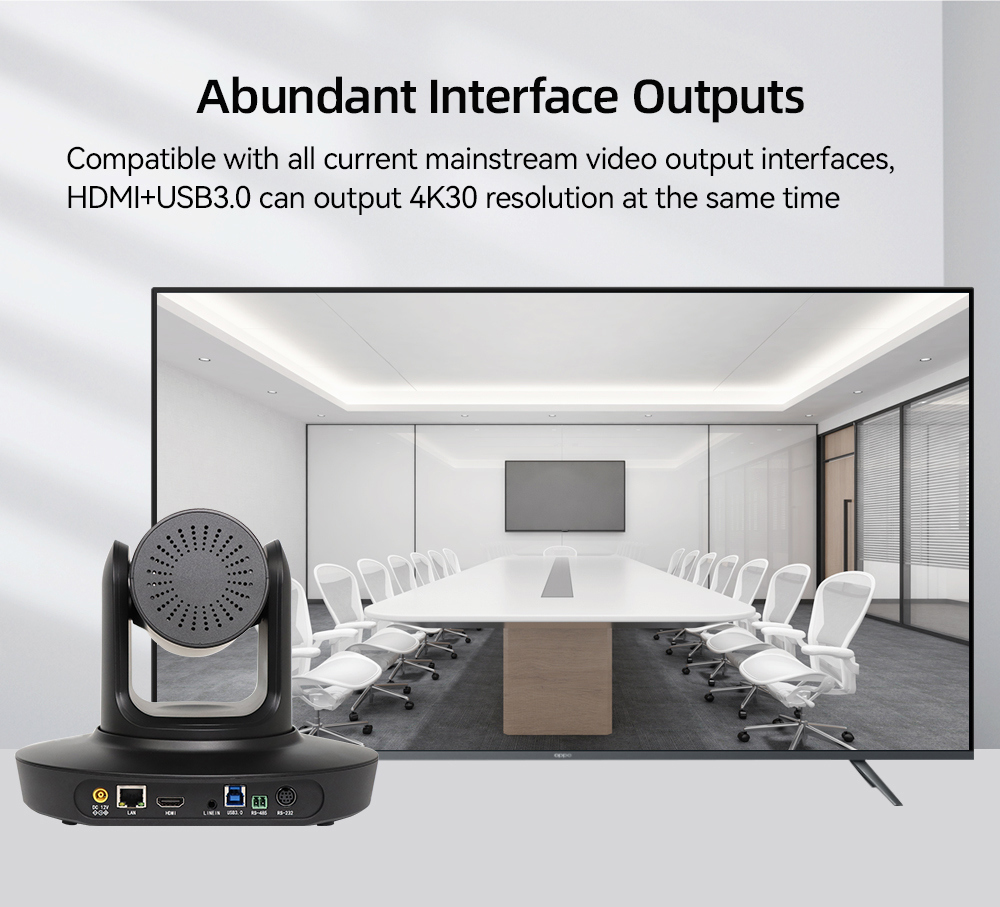

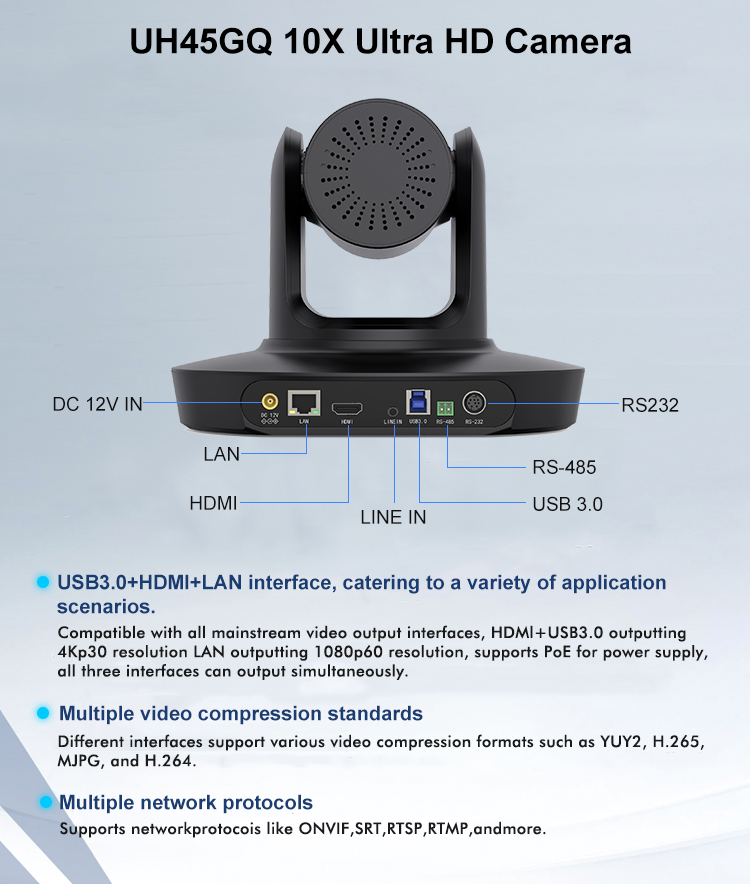

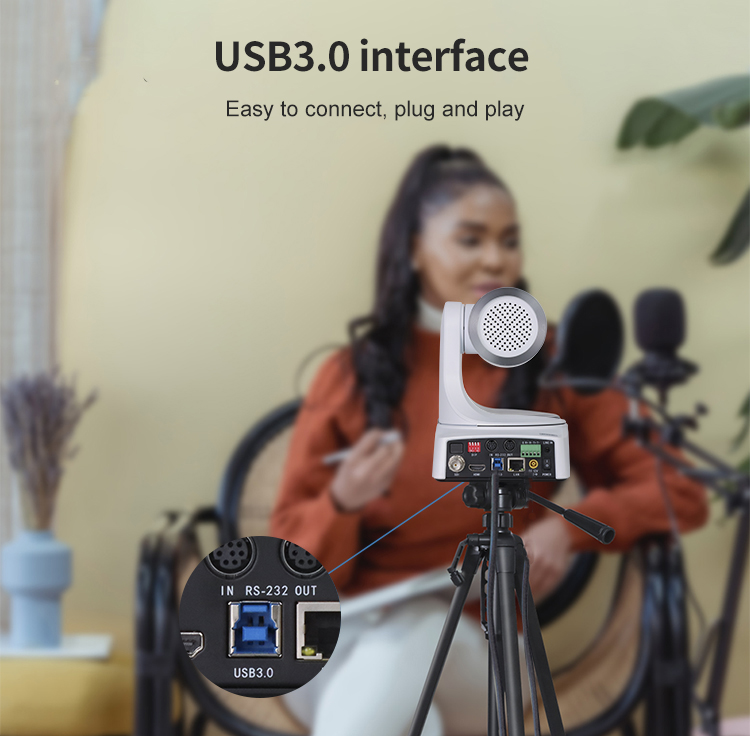

USB3.0+HDMI+LAN Interface, Rich Application Scenarios:
Compatible with all mainstream video output interfaces, supporting simultaneous output of ultra-high-definition 4K via HDMI and USB3.0, as well as high-definition 1080P via LAN.
Low Light:
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. At the same time, 2D&3D digital noise reduction is applied to greatly reduce image noise. Even in ultra-low light conditions, the picture can still be kept clean and clear, and the image signal-to-noise ratio is higher than 45dB.
IR Remote Control Signal Transparent Transmission Function:
In addition to receiving its own infrared remote control signal, it can also receive the signal from consumer’s infrared remote control and send it to the video conference terminal through the VISCA port.
Multiple Video Compression Standards:
Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.
Multiple Network Protocols:
Support ONVIF, SRT, RTSP, RTMP protocols.
Multiple Control Protocols:
Supports VISCA(VISCA Over IP), PELCO P/D protocol, automatically identifies protocol.

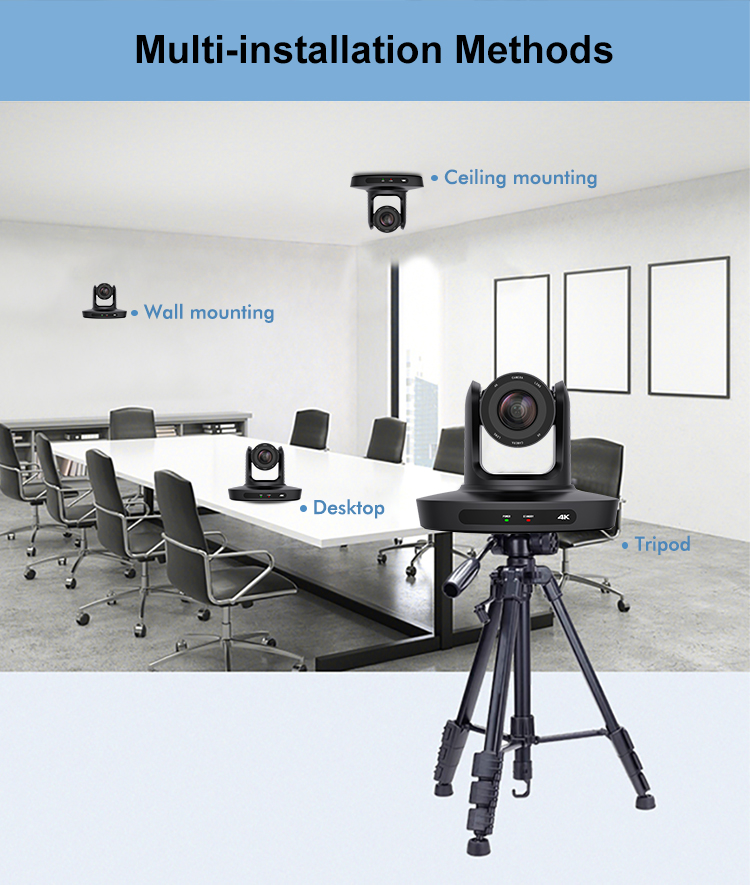

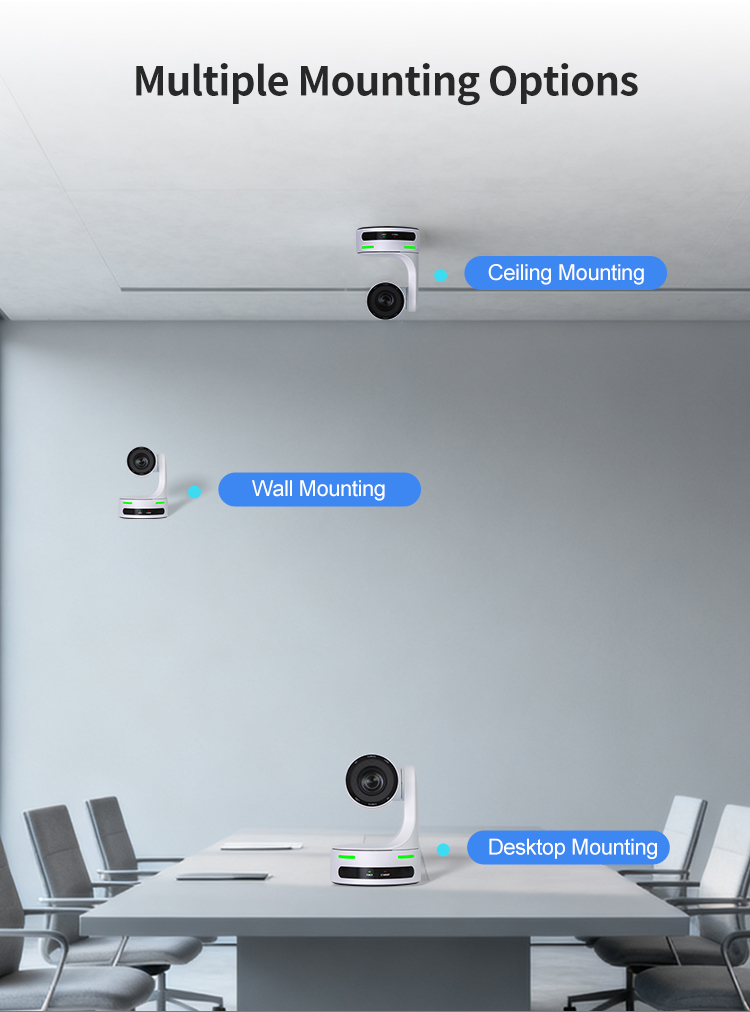

Multi-installation Methods:
Wall mounting, desktop or ceiling mounting.
New generation AI human tracking algorithm:
Supports AI tracking and Auto framing functions.
(*Note: When AI tracking and Auto framing functions are enabled, HDMI supports 1080p60 resolution output, USB 3.0 supports 1080P30 resolution output, there is no video output via LAN, and HDMI and USB 3.0 can output simultaneously.)
Details Images
Application Field
Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,
Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.
Related Category
4K PTZ Camera,FHD PTZ Camera,NDI PTZ Camera,Webcam,Education Tracking Camera,Video Conferencing System,
Live HD Camera,Integrated Audiovisual Intelligent Endpoint,Integrated HD Camera,Speakerphone,Cam Controller,
Video Switcher,Ptz Controller,Control Panel
|

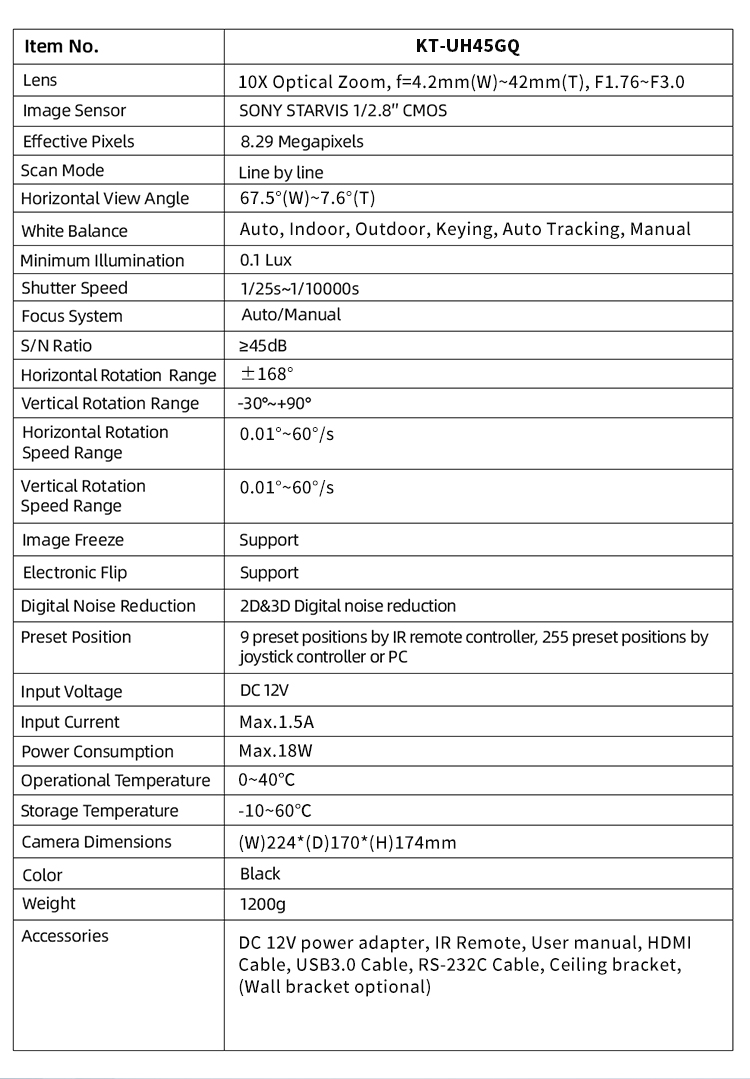

Image Parameters |
|
|
Resolution |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
UH45GQ: 10X Optical Zoom, f=4.2mm(W)~42mm(T), F1.76~F3.0
UH45GF: 12X Optical Zoom, f=4.1mm(W)~49.2mm(T), F1.8~F2.68 |
|

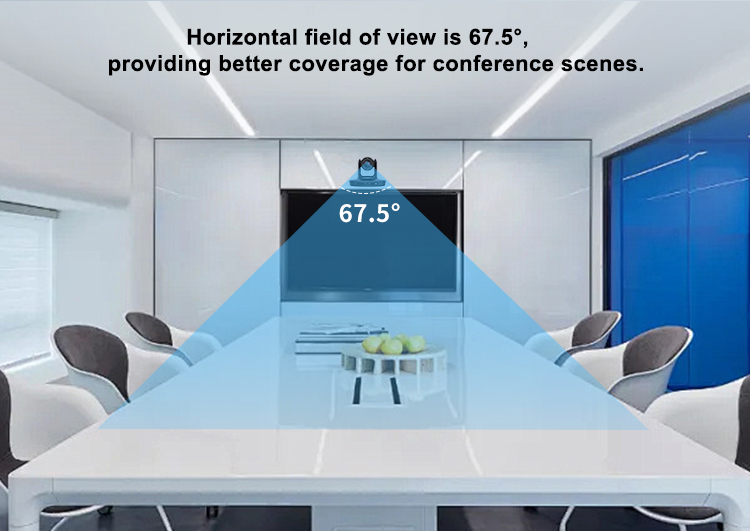

Horizontal View Angle |
UH45GQ: 67.5°(W)~7.6°(T)
UH45GF: 72.5°(W)~6.57°(T) |
|
Vertical View Angle |
UH45GQ: 40.2°(W)~4.3°(T)
UH45GF: 42.06°(W)~3.76°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
UH45GQ: 0.1 Lux @ (F1.8, AGC ON)
UH45GF: 0.1 Lux @ (F1.8, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
±168° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~60°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
POE |
802.3af |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1 |
|
Main Stream Resolution |
1920*1080 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

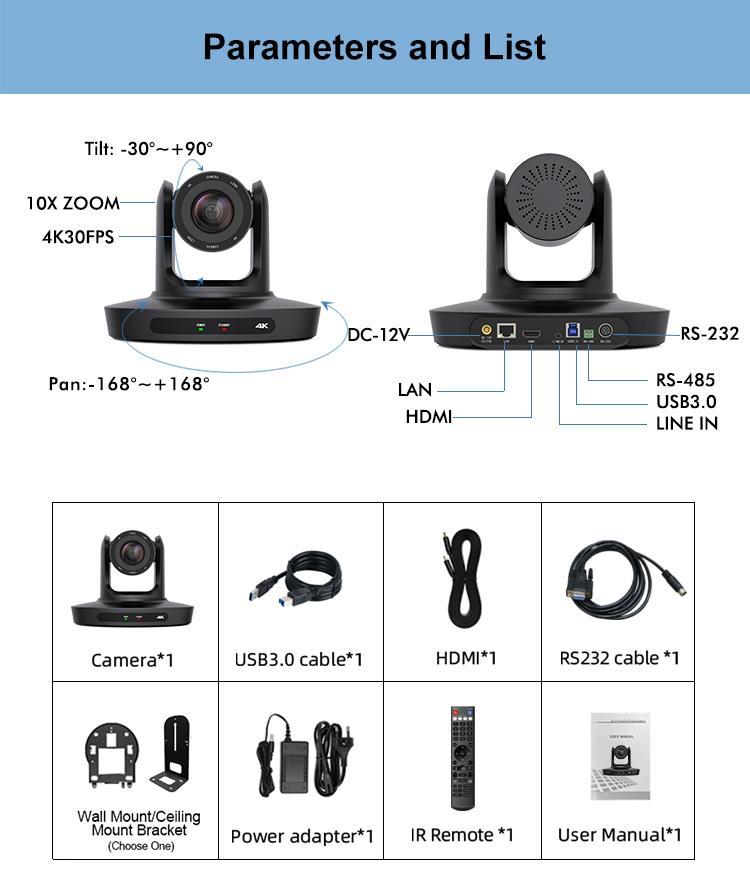

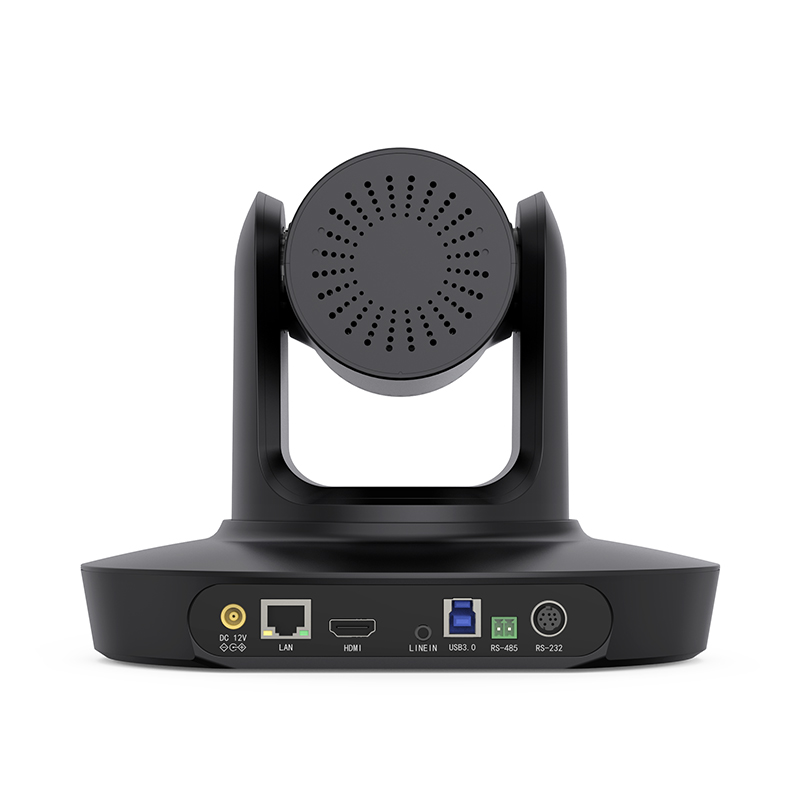

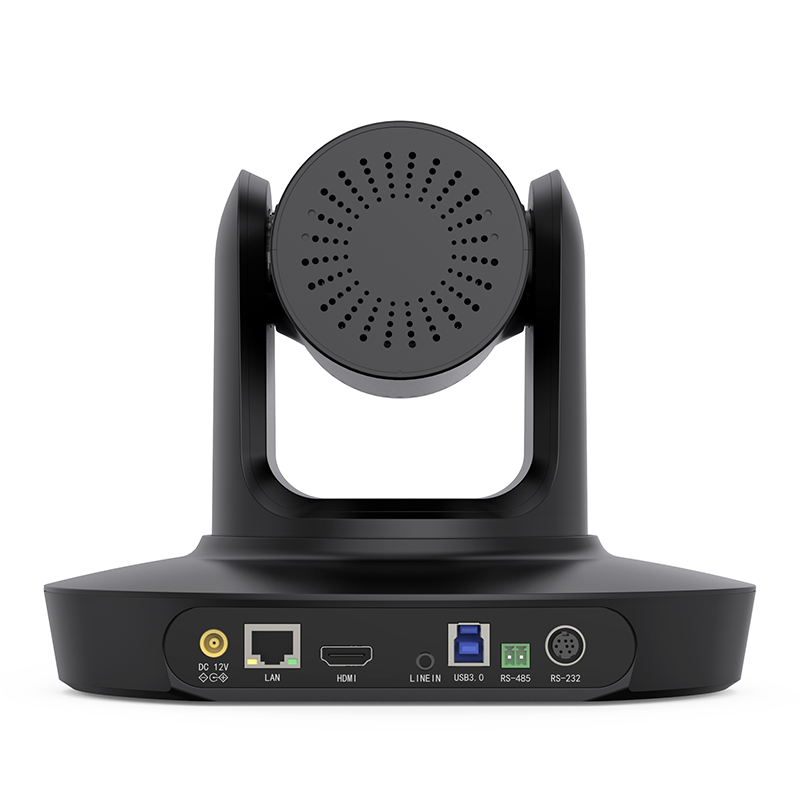

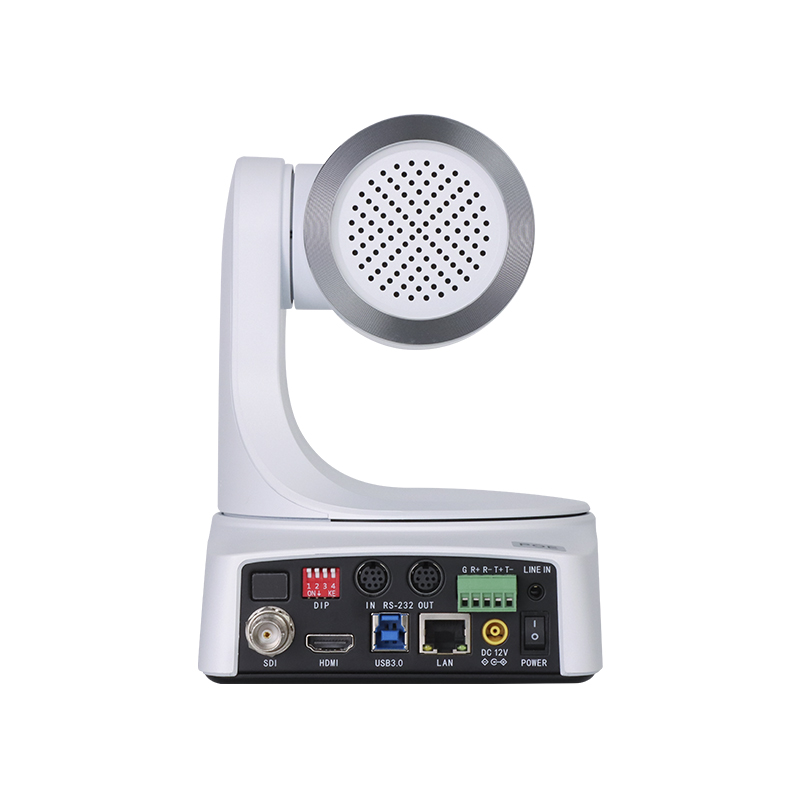

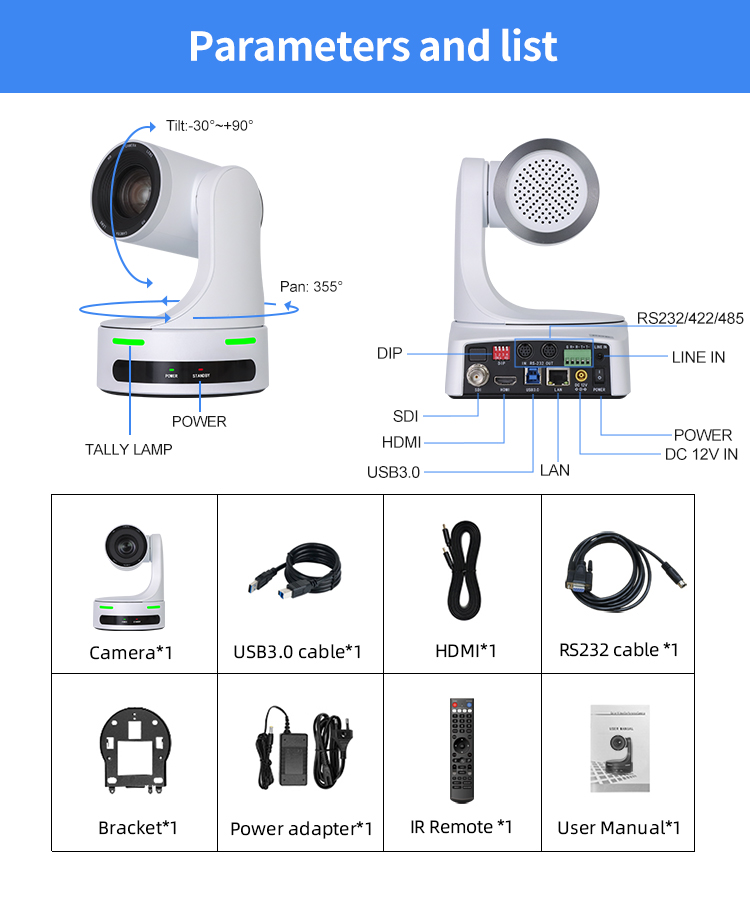

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power Consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
(W)224*(D)170*(H)174mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
