Features

4K Ultra HD Output:

Using a new generation of SONY 1/1.8-inch high-quality CMOS, it can achieve maximum 4K60 ultra-high-definition resolution broadcast and image output, and record larger scenes.


25X Optical Zoom Lens:

Equipped with a 25x ultra-high-definition optical lens and supporting the mainstream horizontal viewing angle of 59.2°, it can meet the needs of more scenes such as video conferencing in large auditoriums and blackboard writing in lecture theaters to restore true details.


USB3.0+HDMI+IP+SDI Full interfaces, Rich Application Scenarios:

Compatible with all current mainstream video output interfaces, HDMI+USB3.0+IP can output 4K60 resolution at the same time.


Low Light:

The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. At the same time, 2D & 3D digital noise reduction is applied to significantly reduce image noise. Even under ultra-low light conditions, the image can still be kept clean and clear, and the image signal-to-noise ratio is higher than 50dB.


Infrared Remote Control Signal Transparent Transmission Function:

In addition to receiving its own infrared remote control signals, it can also receive signals from user’s infrared remote control and send them to the video conferencing terminal through the VISCA port.


Multiple Video Compression Standards:

Different interfaces support multiple video compression formats such as YUY2, H.265, MJPG, and H.264.


Multiple Network Protocols:

Supports ONVIF, SRT, RTSP, RTMP, NDI®|HX2, NDI®|HX3 and other network protocols.


Multiple Control Protocols:

Supports VISCA (including VISCA Over IP), PELCO P/D protocols, and automatically identifies protocols.


AI Intelligence:

After the upgrade, it supports AI automatic tracking and automatic framing functions

Image Parameters

Resolution

HDMI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25,

1080i60/59.94/50,720p60/50

12G-SDI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25,

1080i60/59.94/50, 720p60/50

3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50

Image Sensor

SONY 1/1.8" CMOS

Pixels

8.50 Megapixels, 8.29 Effective Megapixels

Scan Mode

Line by line

Lens

25X Optical Zoom , f=7.1(W)~171.95mm(T), F1.61~F5.19

Digital Zoom

16X

Horizontal View Angle

59.2°(W)~2.5°(T)

Vertical View Angle

34.6°(W)~1.4°(T)

Focus System

Auto, Manual

Shutter Speed

1/50s ~ 1/10000s

Minimum Illumination

0.1Lux

Exposure

Auto, Manual, Iris Priority, Shutter Priority, Brightness priority

White Balance

Auto, Indoor, Outdoor, Keying, Auto Tracking

Backlight Compensation

Support

Digital Noise Reduction

2D&3D Digital noise reduction

S/N Ratio

≥50dB

Pan/Tilt

Pan Angle

-175°~+175°

Tilt Angle

-30°~+90°

Pan Speed

0.1°/S~120°/S

Tilt Speed

0.1°/S~120°/S

Preset Positions

9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC

Preset Accuracy

0.1°±10%

Flip

Support

Image Freeze

Support

POE+

Support, 802.3at

USB

Protocol

UVC 1.1, UAC1.0

Operating System

Window7 and above, MacOS, Linux, Android

Video Compression

YUY2, MJPEG

Resolution

MJPEG: 3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240
YUY2: 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240

Frame Rate

Max.60

UVC Control

Support

LAN

Protocol

TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional), NDI®HX3 (Optional)

Video Compression

H.264, H.265

Code Stream

Main code stream*1, Sub code stream*1

Main Stream Resolution

3840*2160, 1920*1080, 1280*720

Sub Stream Resolution

640*480, 640*360, 352*288, 320*240, 176*144

Bitrate Control

VBR, CBR

Audio

Audio Compression

AAC

Sampling Rate

48K, 44.1K

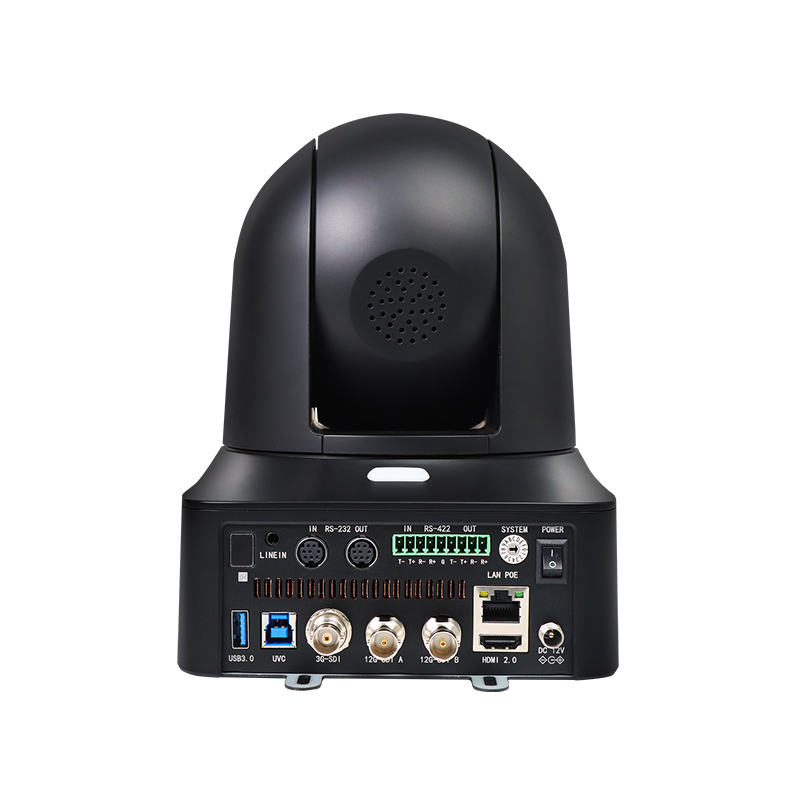

Interface

HDMI Interface

1 Line, HDMI: Version 2.0

SDI Interface

1 Line, 3G-SDI
2 Line, 12G-SDI

USB Interface

1 Line, USB3.0, Type-B Socket

Network Interface

1 Line, RJ45: 1000M adaptive Ethernet port

Audio Interface

1 Line, Line In, 3.5mm

Serial Interface

1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol.
1 Line, RS422/485: 9-Core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol.

Power Interface

IEC 60130-10 Type A

General Specifications

Tally Light

Support

Input Voltage

DC 12V

Input Current

Max.1.3A

Power Consumption

Max.9.5W

Operating Temperature

0~40

Storage Temperature

-10~60

Color

Black, White (Optional)

Dimension

(W)158*(D)193*(H)208mm

Weight

2.0kg

Accessories

DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional)

Specifications
KT-UH71KT
