KT-UH62FQ/KT-UH62FQN
Download
Features
4K Ultra HD output:
Applies SONY full-module lens, 8.51 Megapixels, 1/2.5-inch STARVIS 4K CMOS, 4K (3840x2160) high resolution with frame rate up to 4K 30fps, super clear restoration of details.

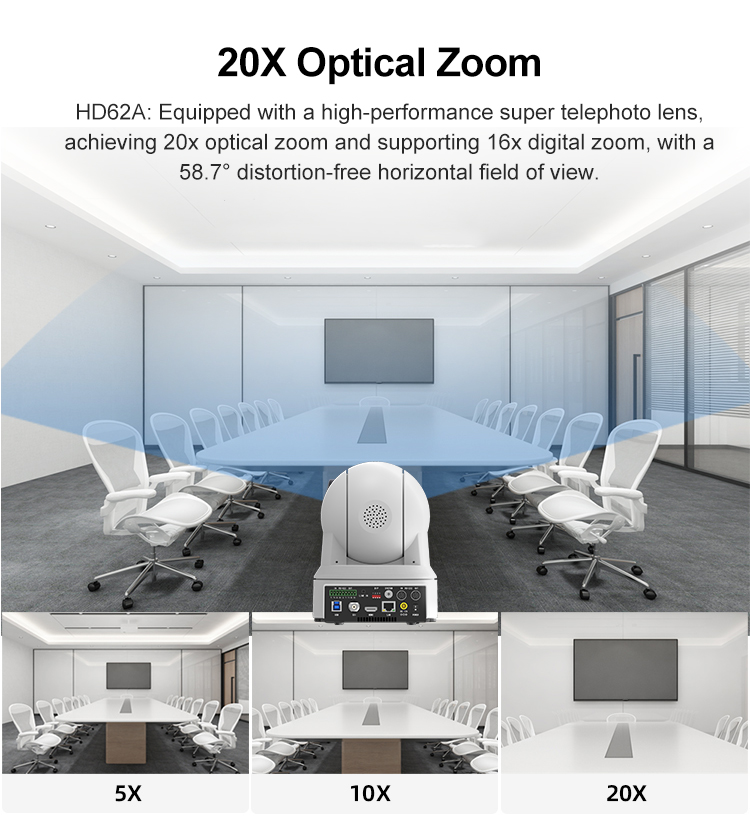

20x Optical Zoom Lens+70.2° Horizontal Angle :
Applies high-quality SONY Exmor R 20X optical zoom lens, horizontal viewing angle 70.2°, providing a truly “distant" and "broad" viewing experience.

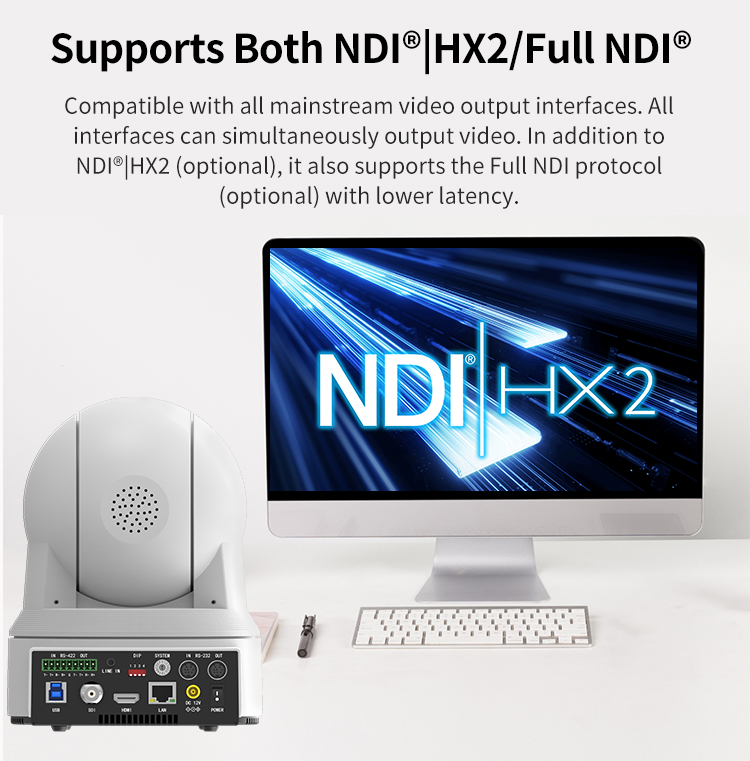

Supports Full NDI® and NDI®|HX2 Protocol to Achieve Lossless Image Output :
Compared with the NDI® HX series protocol, Full NDI® supports 1080p60 and 4K30 resolution , higher bandwidth picture transmission. This model also supports the NDI®|HX2 protocol.

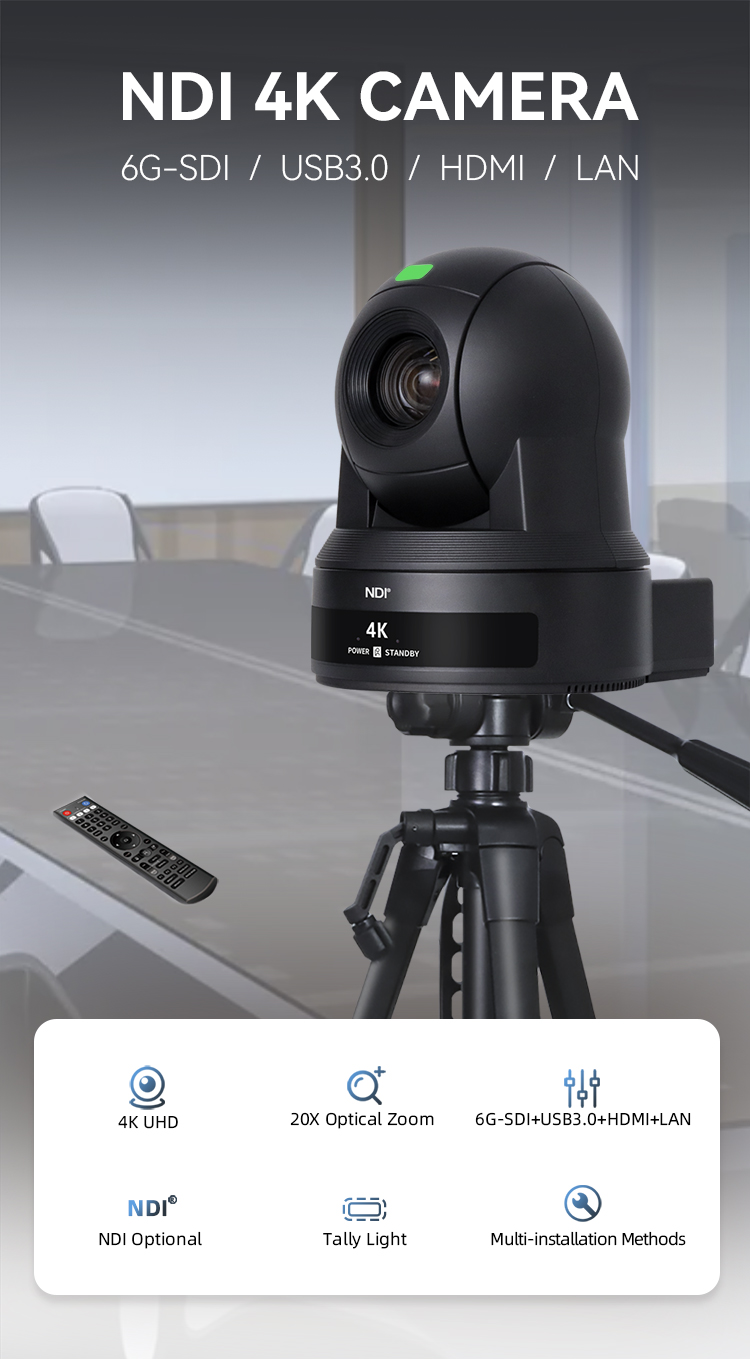

6G-SDI Full Interfaces Broadcast PTZ Camera :

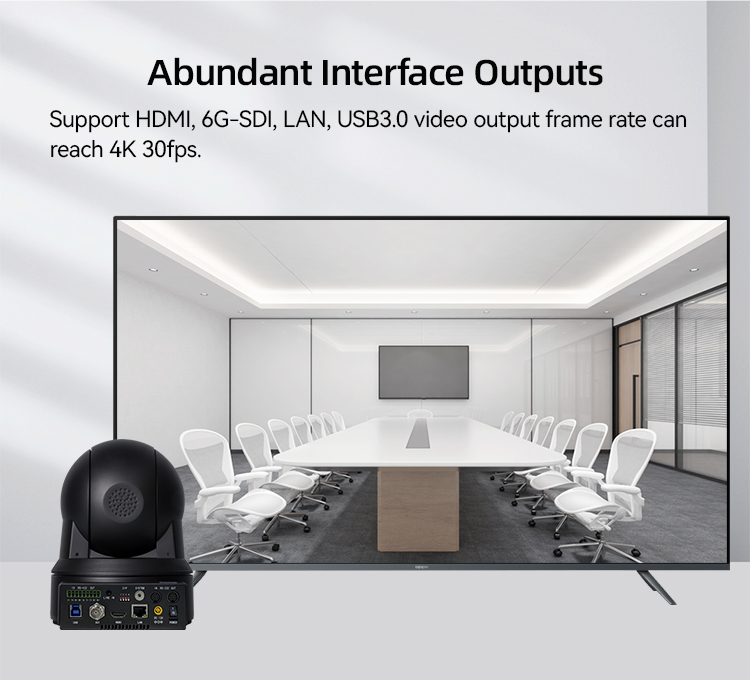

Fully supports HDMI+6G-SDI+LAN+USB3.0 video output interface, LAN interface supports POE+.
*Either USB or LAN outputs 4K 30fps.
Built-in Standard Two-color Tally Indicator Light :
The two-color tally light can be controlled through VISCA (VISCA over IP), NDI control protocols, suitable for recording and broadcasting scenes with multiple cameras.
Low Light :
The new ultra-high S/N ratio CMOS image sensor can effectively reduce image noise. 2D&3D digital noise reduction, greatly reduce image noise. Even in ultra-low light conditions, the picture can still be kept clean and clear, and the image S/N ratio is higher than 50dB.
Infrared Transparent Transmission:
In addition to being able to receive its own dedicated remote control signal, it can also receive user infrared remote control signals and send them to the terminal through the VISCA IN port.
Various Network Protocols
Supports ONVIF, SRT, RTSP, RTMP, RTMPS, NDI®|HX2, Full NDI®and other network protocols.
Multiple Control Protocols
Supports VISCA (including VISCA Over IP), PELCO P/D, NDI® protocols, and automatically identifies protocols.
Various Installation Methods
A variety of installation methods, desktop, ceiling, wall installation.
New generation AI human tracking algorithm:
Upgraded to support AI intelligent tracking and automatic framing functions.
|
Image Parameters |
|
|
Resolution |
HDMI: 4K30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY FCB-CR8530 Original Module |
|
Pixels |
8.51 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
20X Optical Zoom, f=4.4mm(W)~88.4mm(T), F2.0~F3.8 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
70.2°(W)~4.1°(T) |
|
Vertical View Angle |
33°(W)~1.8°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
0.4 Lux @ (F2.0, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
355° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~80°/s |
|
Tilt Speed |
1°~60°/s |
|

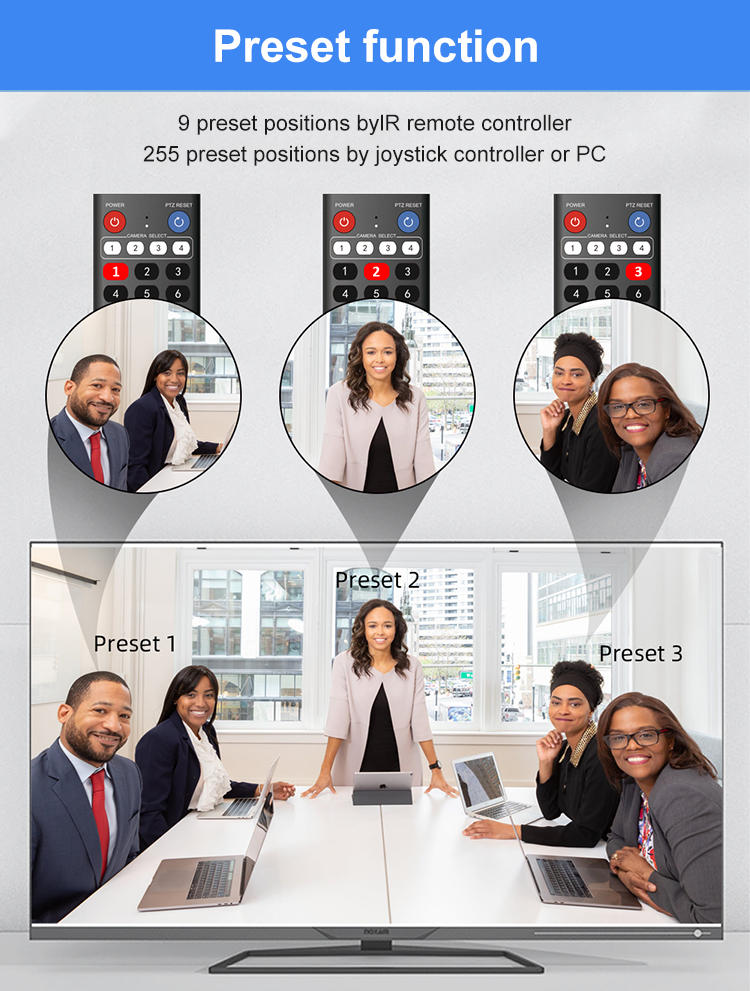

Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
POE+ |
Support, 802.3at |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional), Full NDI® (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
1920*1080 |
|
Sub Stream Resolution |
640*480, 640*360, 480*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

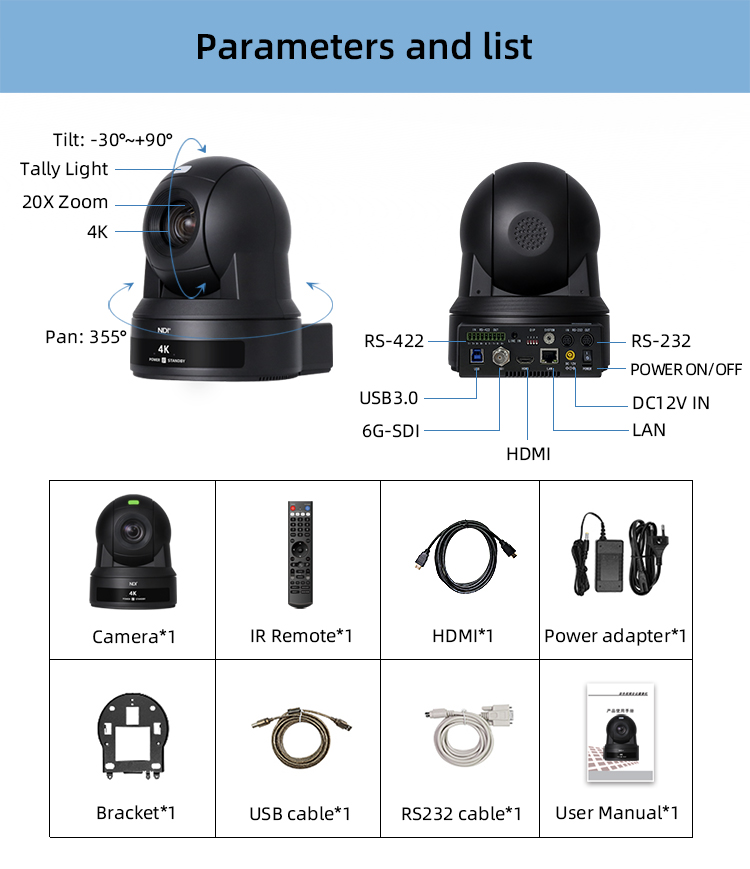

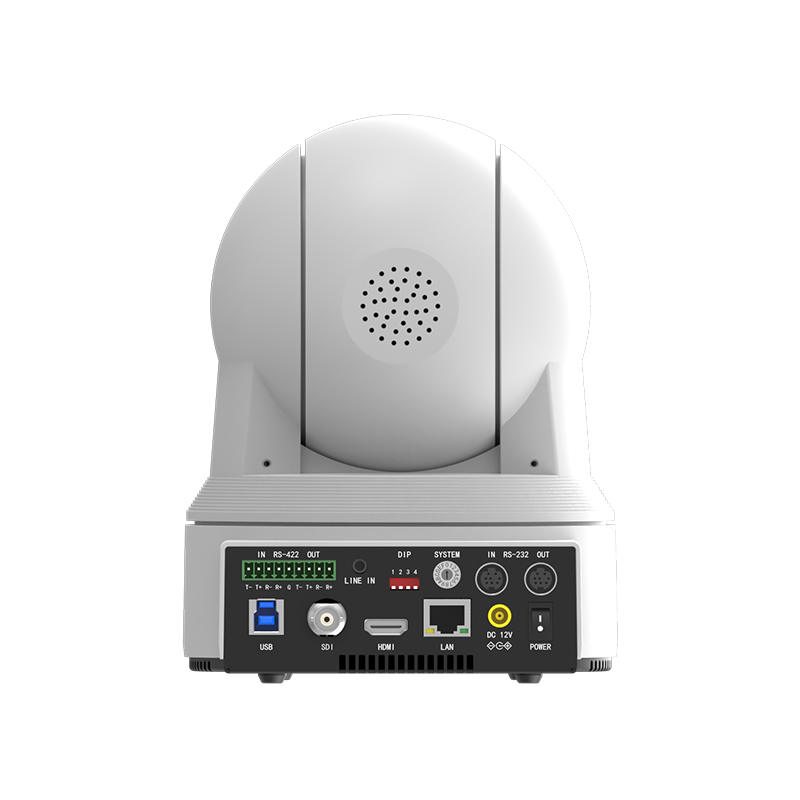

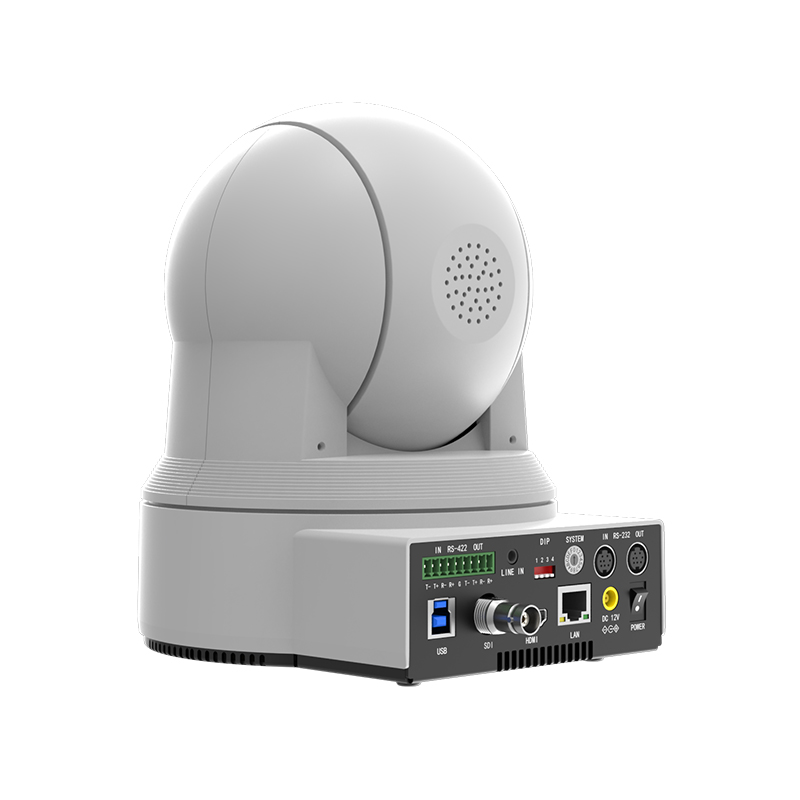

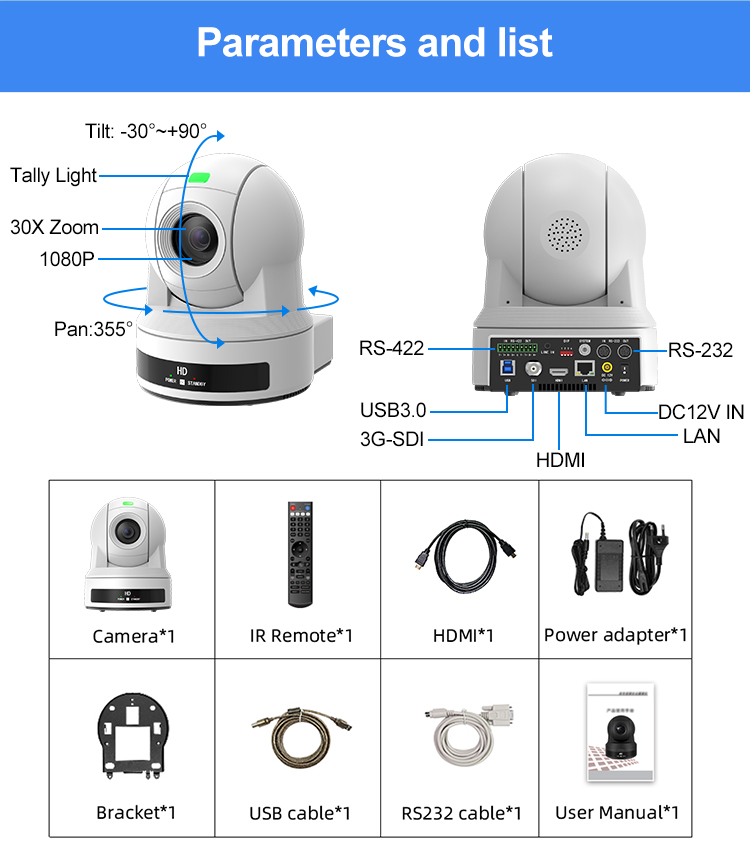

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 6G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.0A |
|
Power Consumption |
Max.12W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Dimension |
(W)126*(D)189*(H)198mm |
|
Weight |
1.3kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
