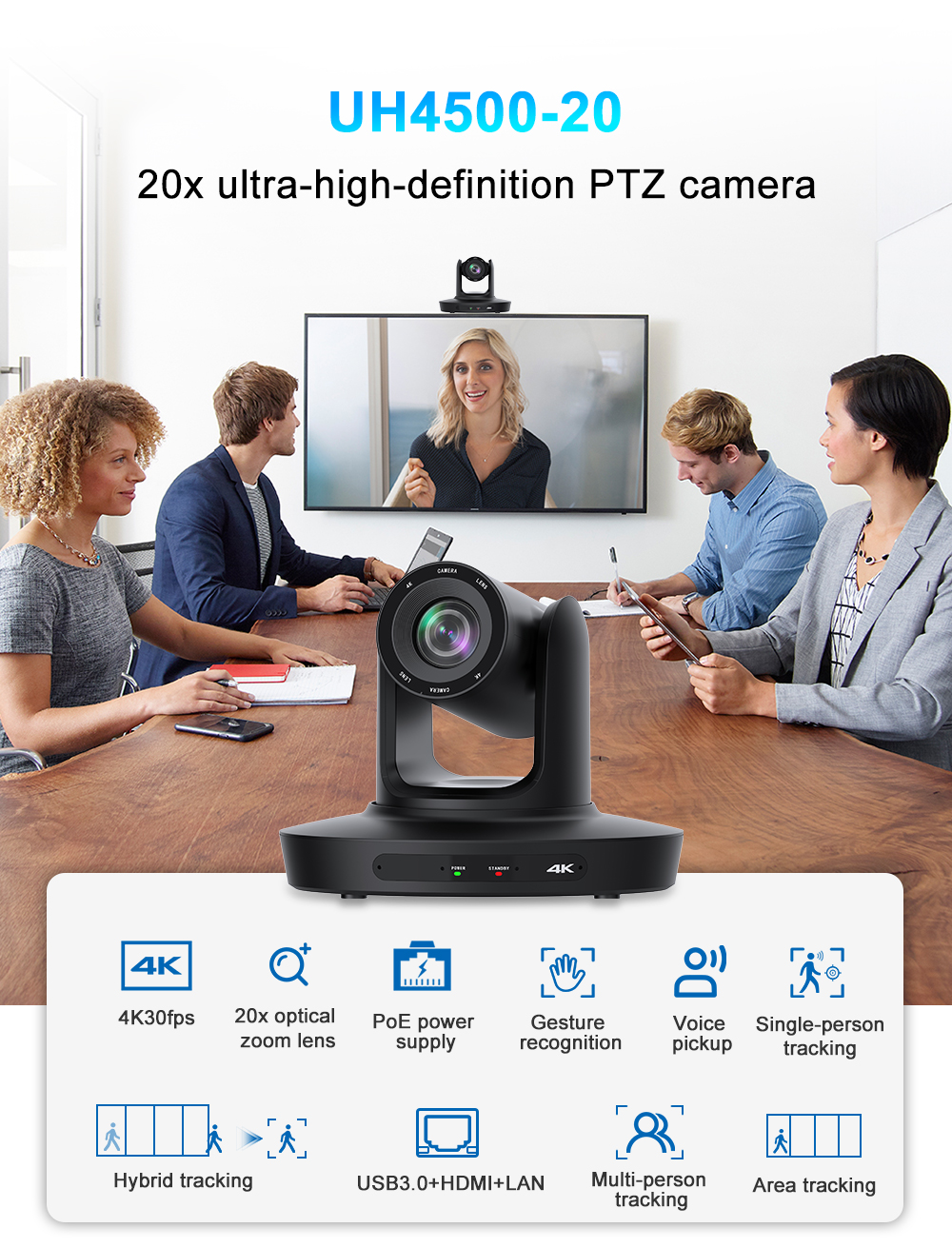

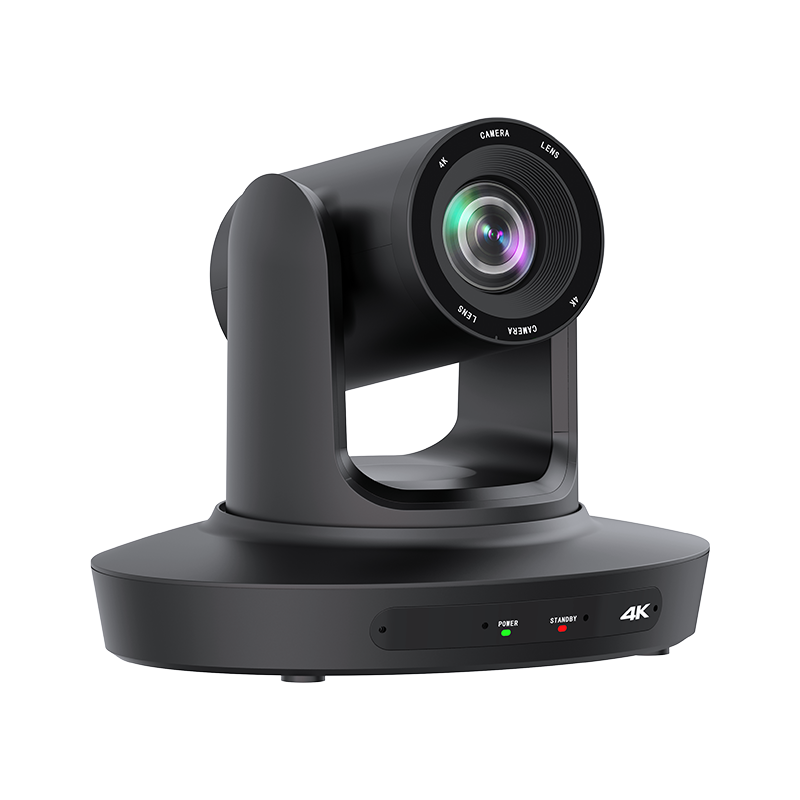

Products Description

[4K30fps]
USB3.0+HDMI+LAN
20x optical zoom lens
PoE power supply
Voice pickup
Gesture recognition

Single-person tracking + multi-person tracking + area tracking + hybrid tracking

[4K Ultra HD Resolution]

Equipped with a SONY 1/2.8-inch 8.5-megapixel high-quality image sensor, boasting 8.29 million effective pixels, it delivers stunning images with a maximum resolution of 3840x2160.

[Supports multiple language switching]

The camera features a built-in interface in 11 commonly used languages, which can be switched at any time, allowing users worldwide to quickly understand the menus and operating logic. This ensures that every operator can quickly find the functions they need and efficiently complete debugging and control tasks.

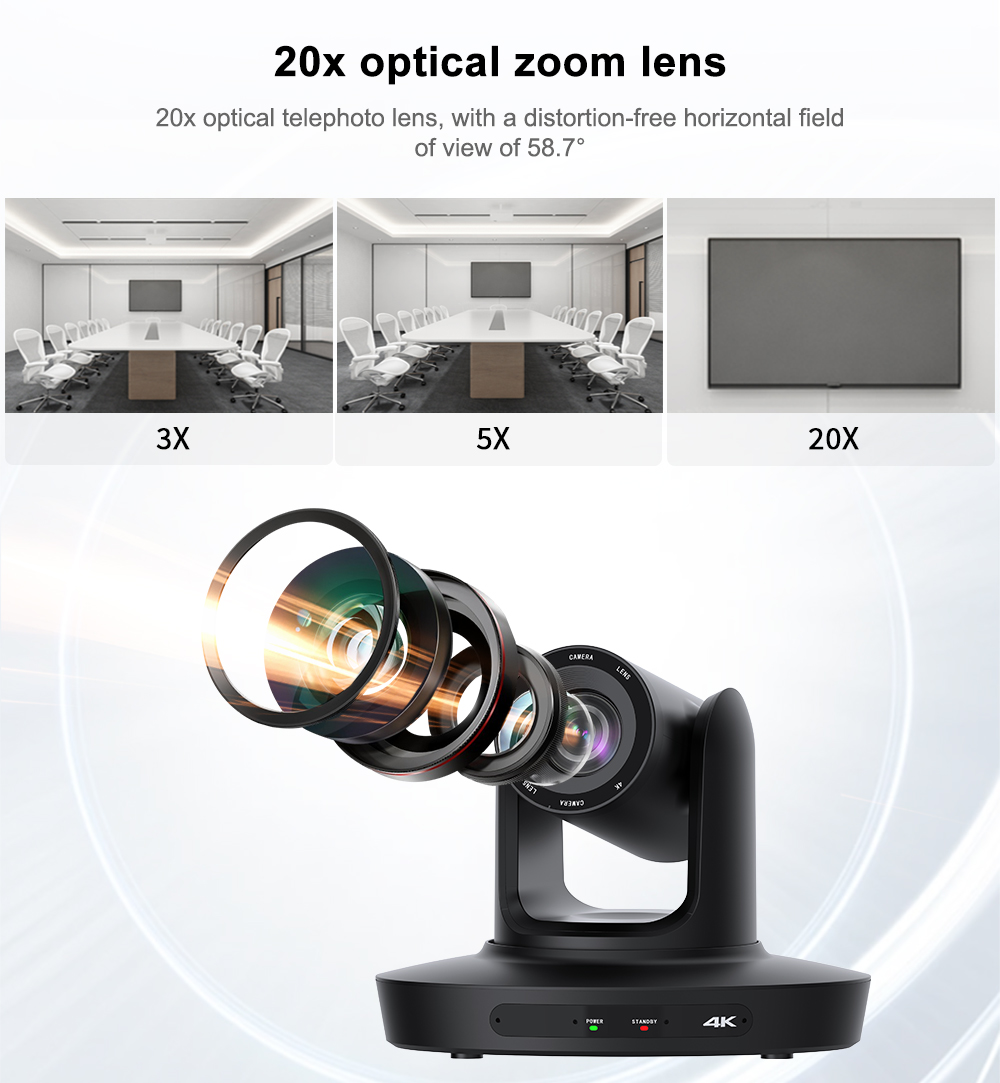

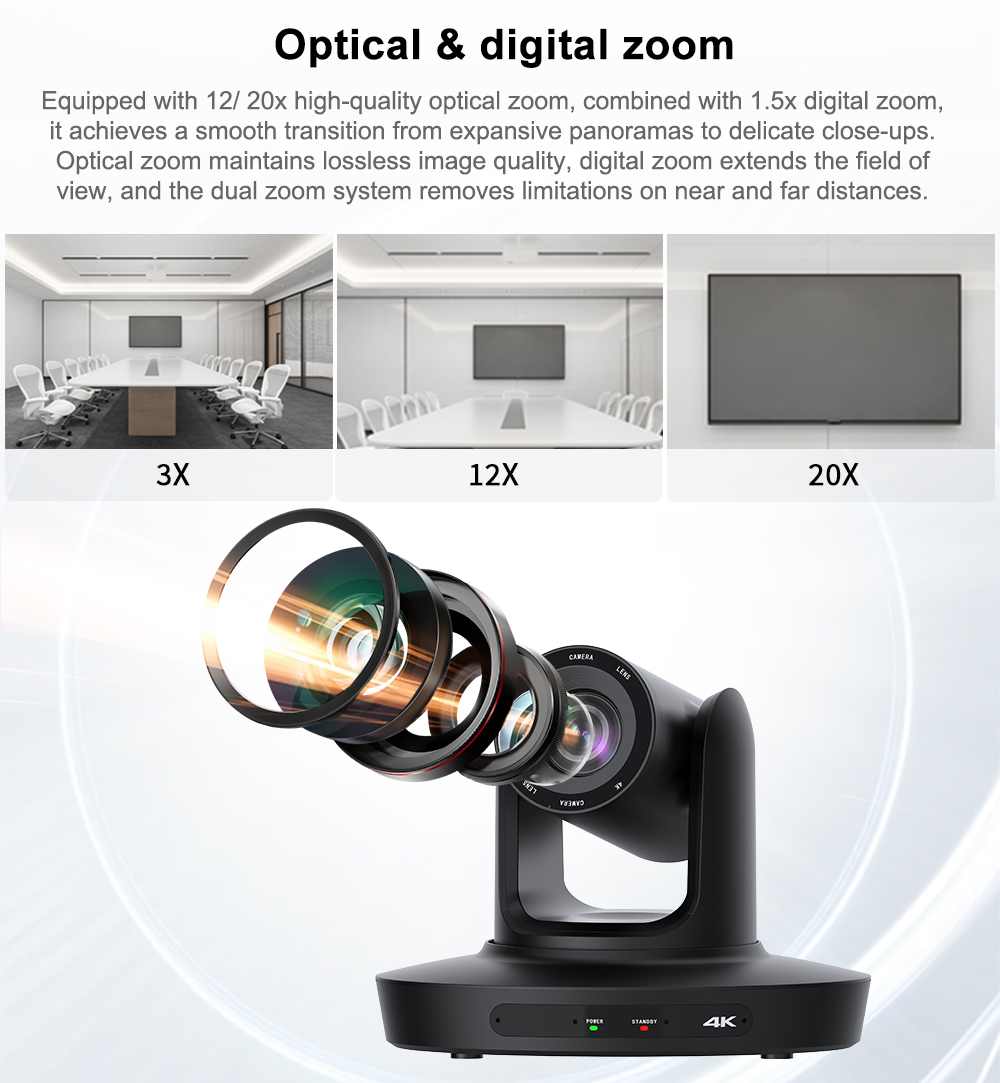

[Optical & digital zoom]

Equipped with 12/ 20x high-quality optical zoom, combined with 1.5x digital zoom, it achieves a smooth transition from expansive panoramas to delicate close-ups. Optical zoom maintains lossless image quality, digital zoom extends the field of view, and the dual zoom system removes limitations on near and far distances.

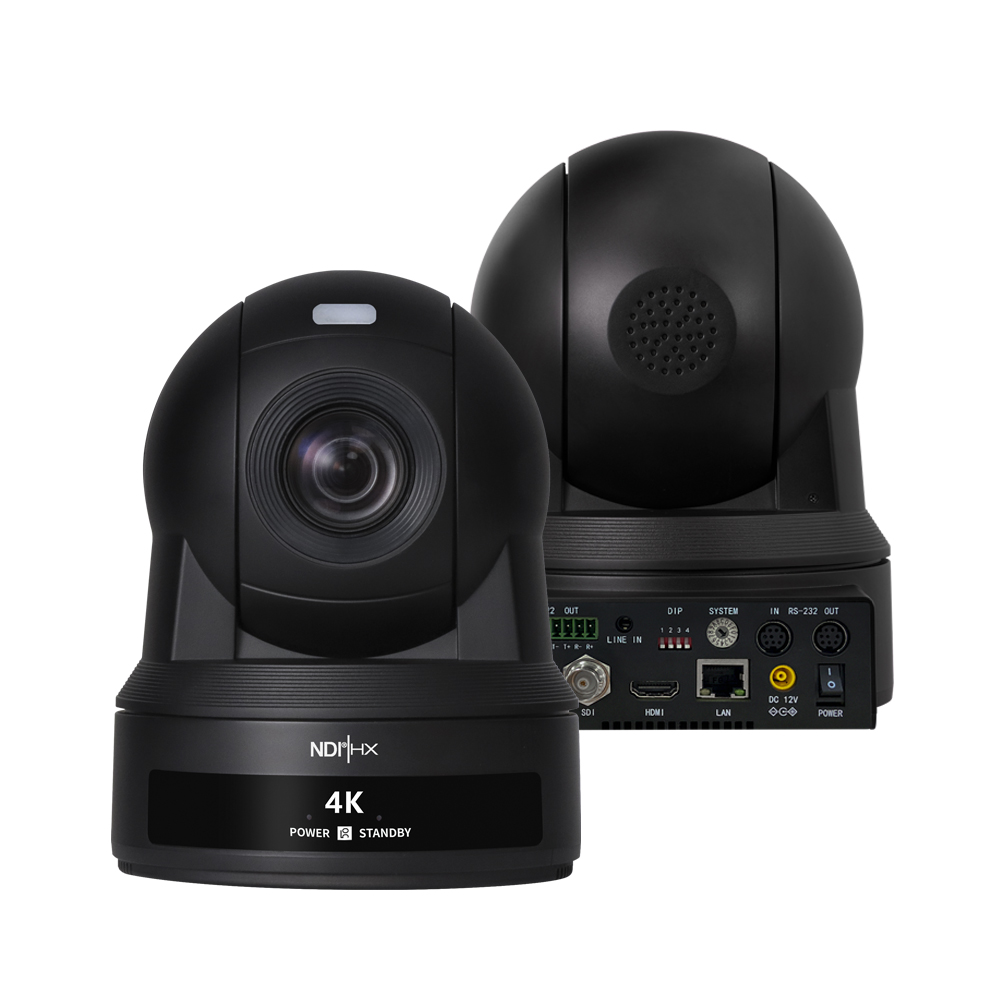

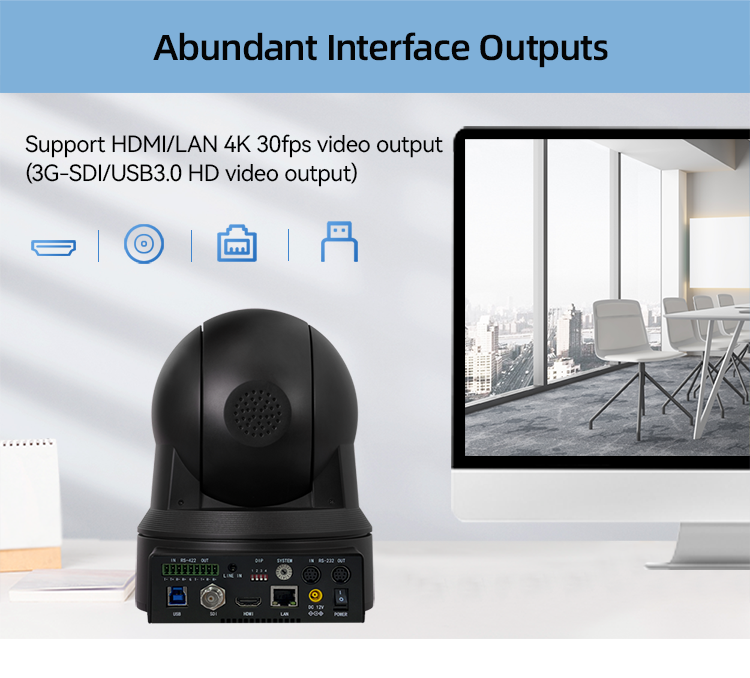

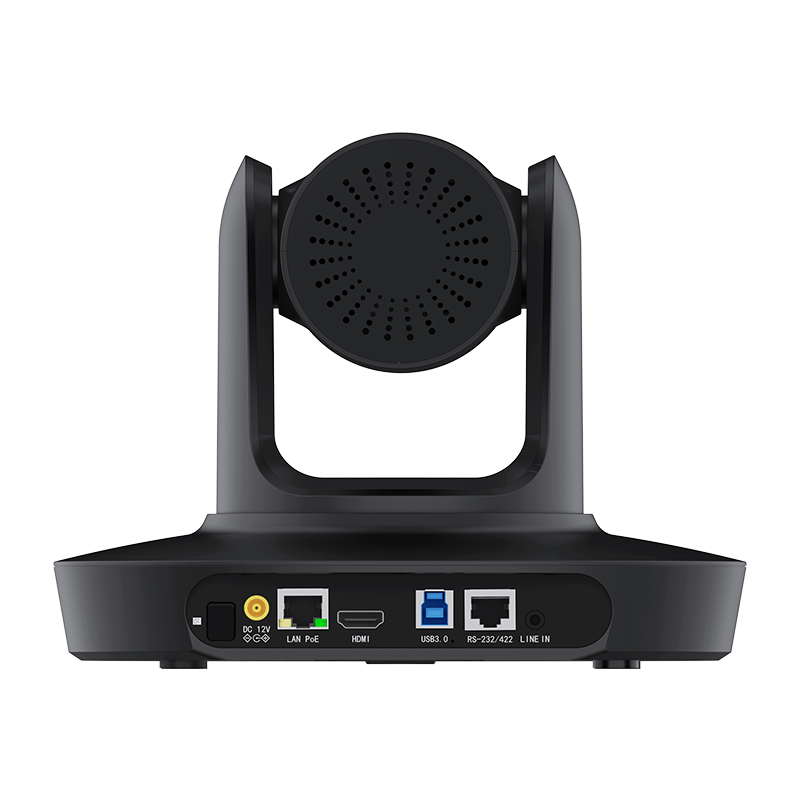

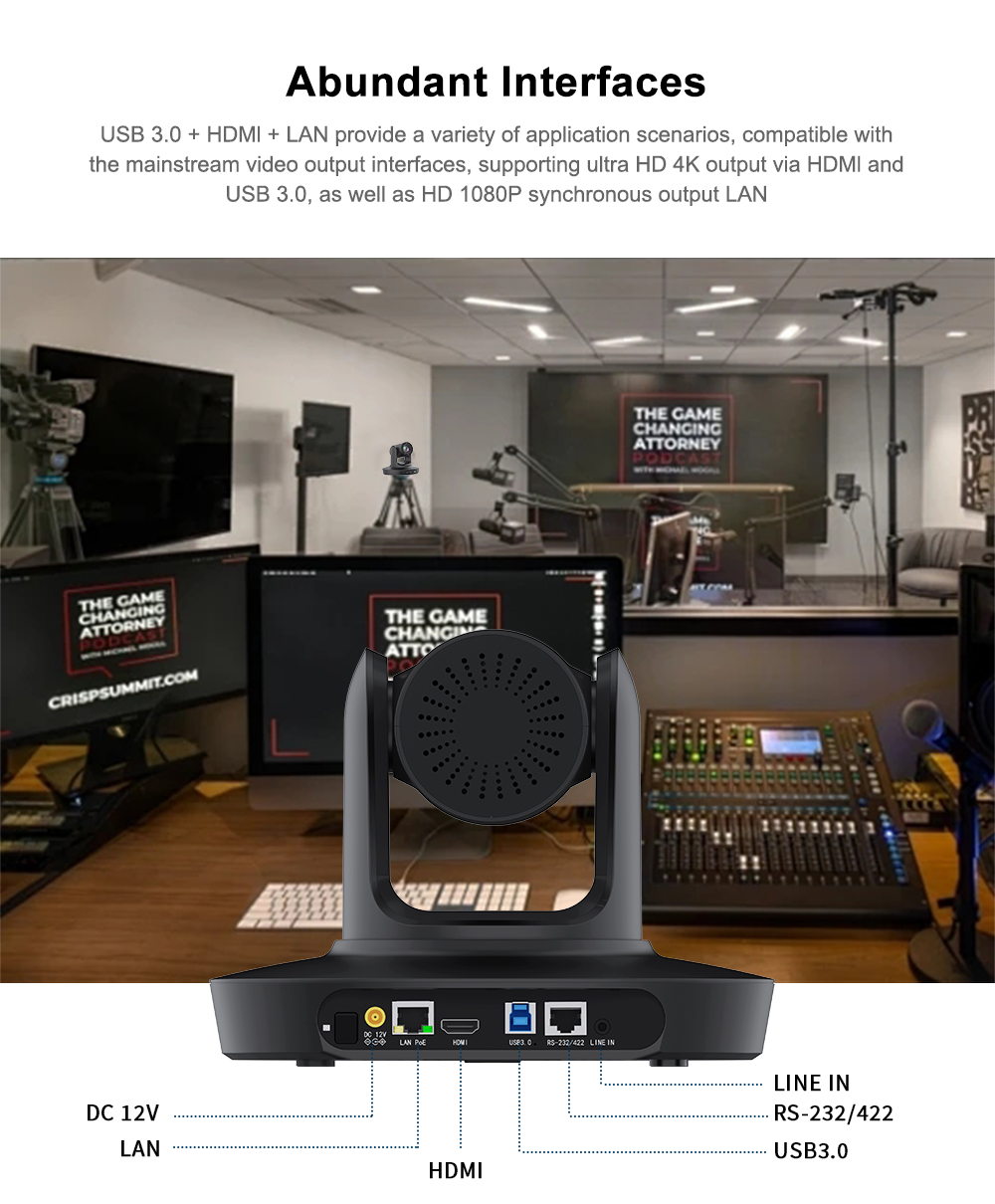

[Abundant Interfaces]

Featuring USB 3.0, HDMI, and LAN interfaces, this device offers versatile application scenarios. It is compatible with mainstream video output interfaces, supporting simultaneous 4K ultra-high-definition output via HDMI and USB 3.0, and 1080P high-definition output via LAN. (Note: When HDMI and USB are simultaneously outputting 4K, there will be no output from the LAN interface.)

[Gesture recognition]

supports 5 gesture controls: enable/disable intelligent tracking, Enable/disable smart tracking,Zoom in/out

[Single Person Tracking Mode:]

Preset exclusive tracking targets. Once a person enters the frame, the camera instantly locks on and follows automatically, ensuring the subject is always centered in the shot. It intelligently adjusts the pan-tilt angle to capture the subject’s movement and scene interaction. Ideal for live streaming, course recording, and mobile presentations, ensuring every moment is perfectly captured.

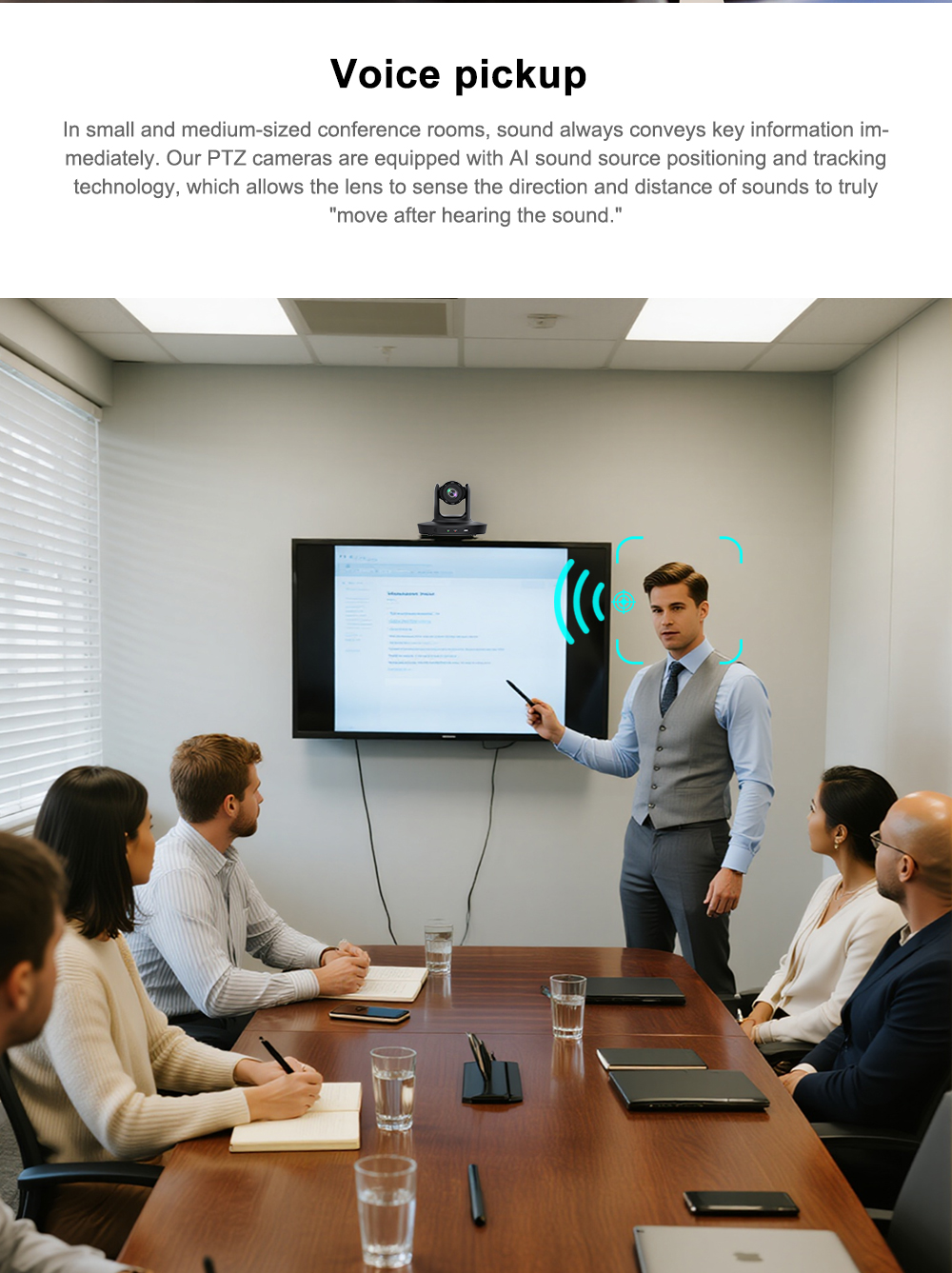

[Voice pickup]

In small and medium-sized conference rooms, sound always conveys key information immediately. Our PTZ cameras are equipped with AI sound source positioning and tracking technology, which allows the lens to sense the direction and distance of sounds to truly "move after hearing the sound."

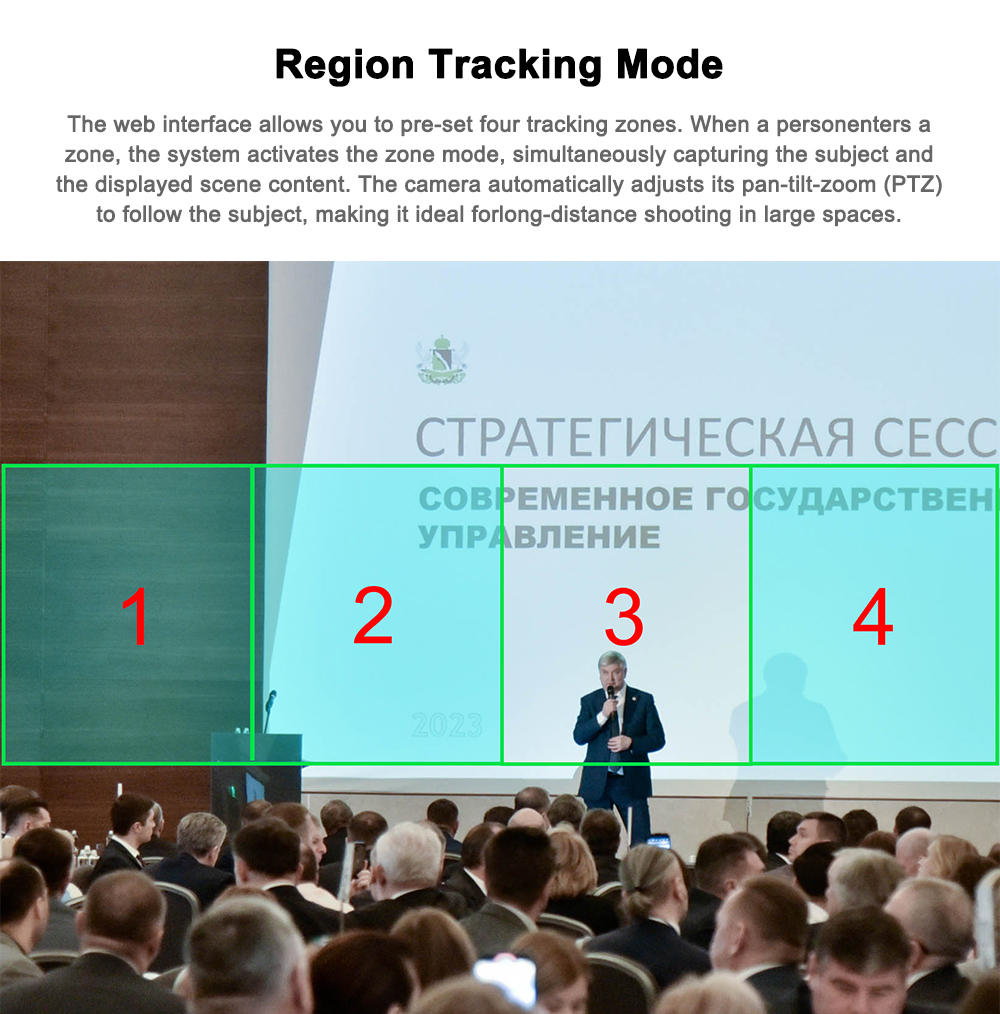

[Region Tracking Mode]

The web interface allows you to pre-set four tracking zones. When a person enters a zone, the system activates the zone mode, simultaneously capturing the subject and the displayed scene content. The camera automatically adjusts its pan-tilt-zoom (PTZ) to follow the subject, making it ideal for long-distance shooting in large spaces

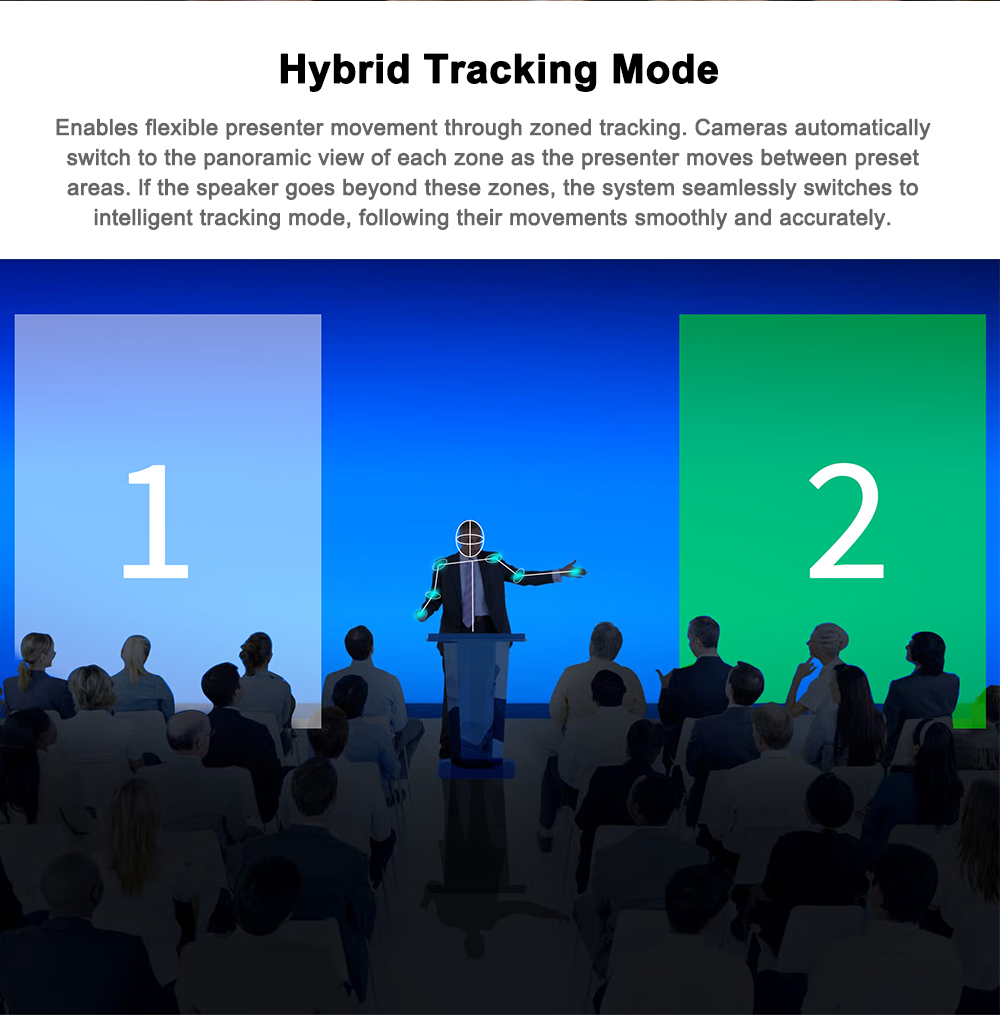

[Hybrid Tracking Mode]

Unleash the speaker's freedom of movement. Mixed mode supports unrestricted movement for presenters. Zoned tracking is achieved through preset areas, allowing cameras to seamlessly switch to the panoramic view of the corresponding zone as the speaker moves between them. Should the speaker move beyond these preset areas, the camera automatically adapts, switching to intelligent tracking mode to effortlessly and precisely follow their dynamic movements.

[Multi-Person Tracking Mode:]

Smartly recognizes multiple subjects within the frame, automatically switching tracking targets to ensure each person is clearly presented. No need for manual adjustments— the camera autonomously adjusts pan-tilt and focus. Perfect for group discussions, family interactions, and team presentations, ensuring every highlight in group settings is captured without missing a moment.

[Supports FreeD protocol for on-site VR/AR video production]

Using FreeD technology, camera positioning data is output in real time to advanced VR (virtual reality) or AR (augmented reality) systems via network to create realistic studio sets. FreeD-compatible commands support the integration of camera systems into virtual studios/virtual sets without the need for encoders.

[Paired with a new CMOS image sensor and noise reduction algorithm.]

Equipped with a brand-new, ultra-high signal-to-noise ratio CMOS image sensor, this device significantly reduces image noise in low-light conditions. The integration of 2D and 3D digital noise reduction further minimizes image artifacts, ensuring clean and clear visuals even in extremely low illumination. With an image signal-to-noise ratio exceeding 50dB, it redefines low-light imaging standards, achieving unprecedented clarity.

[Supports multiple network and control protocols.]
Supports multiple network protocols
Supports network protocols such as ONVIF, SRT, RTSP, and RTMP.
Supports multiple control protocols

Supports VISCA (including VISCA Over IP) and PELCO P/D protocols, with automatic protocol recognition.

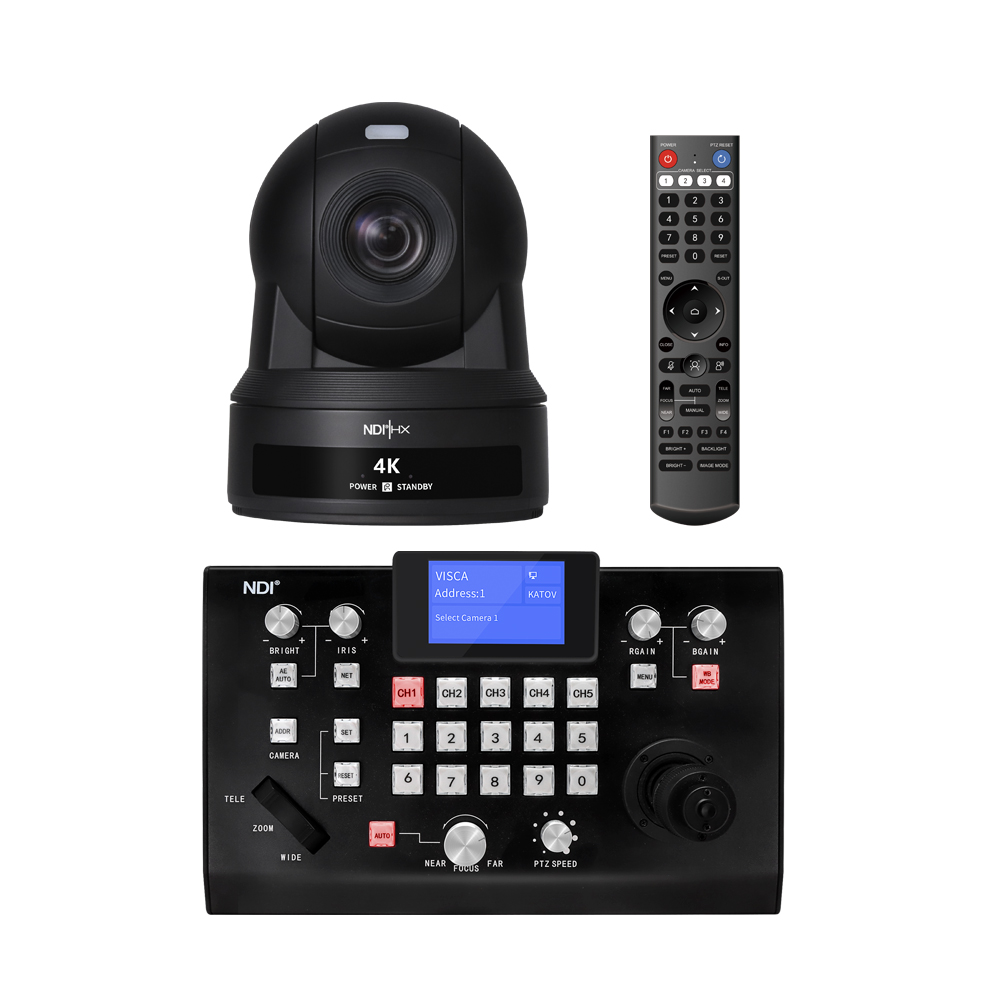

[IR remote control switches preset positions.]

Effortlessly command the entire space with a remote control that supports 9 preset positions, allowing seamless switching between multiple pre-configured locations.

[Application Scenarios]
Video conferencing
Lecture halls
Churches
Telemedicine
Live streaming

Online education


Details Images


Camera Parameters

Sensor

1/2.8-inch SONY CMOS Sensor, approximately 8.29 million effective pixels

Zoom

Optical Zoom

12/20X

Digital Zoom

1.5X

Lens

12x  : f=4.1mm(Wide angle)49.2mm(Narrow angle)    20X : f=5.2mm(Wide angle)104mm(Narrow angle)

Horizontal Field of view

12X : 72.5°(W)6.57°(T)      20X : 58.7°(W)3.2°(T)

Vertical Field of view

12X : 42.06°(W)3.67°(T)     20X : 32.2°(W)1.8°(T)

Output Format

HDMI

3840*2160  p30/29.97/251920*1080  p60/59.94/50/30/29.97/251280*720 p60/59.94/50

USB

MJPEG:  3840*21602560*14401920*10801280*720960*540640*360480*270384*216320*180256*144

YUY2:   1920*10801280*720

NV12:   1920*10801280*720

Gimbal

Preset

Remote Controls: 10, Keyboards: 255, Accuracy: 0.1°±10%

Gimbal Acceleration Curve

GentleStandardFast

Horizontal Rotation Angle

-168°+168°

Vertical Rotation Angle

-30°+90°

Horizontal Rotation Speed

0.01°90°/S

Vertical Rotation Speed

0.01°90°/S

Image Parameters

Noise reduction

2D & 3D

Exposure

Automatic, Manual, Aperture Priority, Shutter Priority

White Balance

Auto, Indoor, Outdoor, One-touch White Balance, Auto Tracking, Manual, Color Temperature

Low light

0.1Lux

Anti-flicker

Off50Hz,60Hz

Focusing Method

Automatic, Manual

Gamma

Standard, Linear, Pattern, Custom

Inversion/Image Freeze

Support

Backlight Compensation

Support

Flip/Mirror

Support

Defog

Support

Shutter

1/30S 1/10000S

S/N Ratio

50dB

Online Streaming

Video Encoding Format

H.264, H.265

Rate Control

Variable bit rate, Constant bit rate

Bitrate

Main stream  1920*1080 p301280*720 p30

Supported Protocol

TCP/IPHTTPRTSPRTMPRTMPSSRTONVIF, DHCPVISCA Over IPFree-D

Audio Information

Compression Standard

AAC

Audio Bitrate

128kbps

Microphone

4-microphone Array, Capable of Sound Localization up to 6 Meters Away

AI Composition

Smart Tracking

Single-Person Tracking, Multi-Person Tracking, Area Tracking, Hybrid Tracking, Gesture Recognition,Voice Tracking

Gesture Recognition

Turn On/Off, Switch Target,Zoom InZoom Out

Composition Size

Half Body / Full Body

Composition Mode

Custom, Center, Left, Right

Composition Position

Current Position ,Preset Position , Initial Position

Horizontal Lock

Support

Pitch Lock

Support

Zoom Lock

Support

Input/Output

HDMI Port

HDMI:Version 1.4 *1 Channel

USB Port

USB3.0Type-B Socket *1 Channel

Audio Interface

3.5mm Line In audio port *1 Channel

Communication Interface

RJ45 Interface, Supports RS232/RS422: VISCA/Pelco-D/P Protocol *1 Channel

Network Interface

RJ45:10M/100M adaptive Ethernet port *1 Channel (Supports PoE (IEEE 802.3af))

Power Connector

JEITA RC-5320A Type 4

Basic Parameters

Input Voltage

DC 12V

Input Current

Up to 1.5A

Operating Temperature

040℃

Power Consumption

Up to 18W

Color

Black

Specifications

240*162*173mm

Weight

1.3KG

Accessory List

DC12V Power Adapter, IR Remote Control, User Manual, USB 3.0 Video Cable, RS-232 Serial Cable (Optional), HDMI Cable (Optional), Bracket


Specifications
UH4500-20
