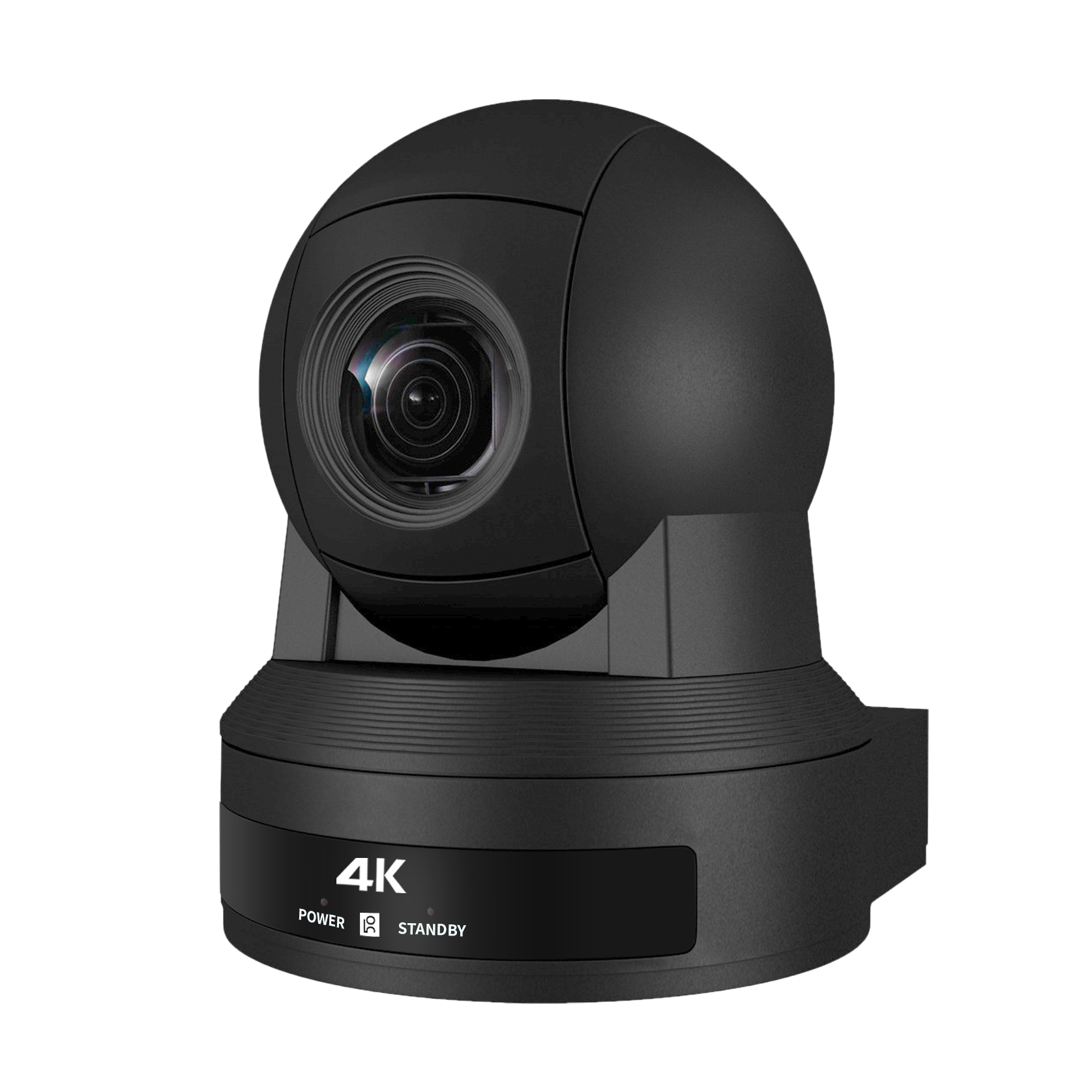

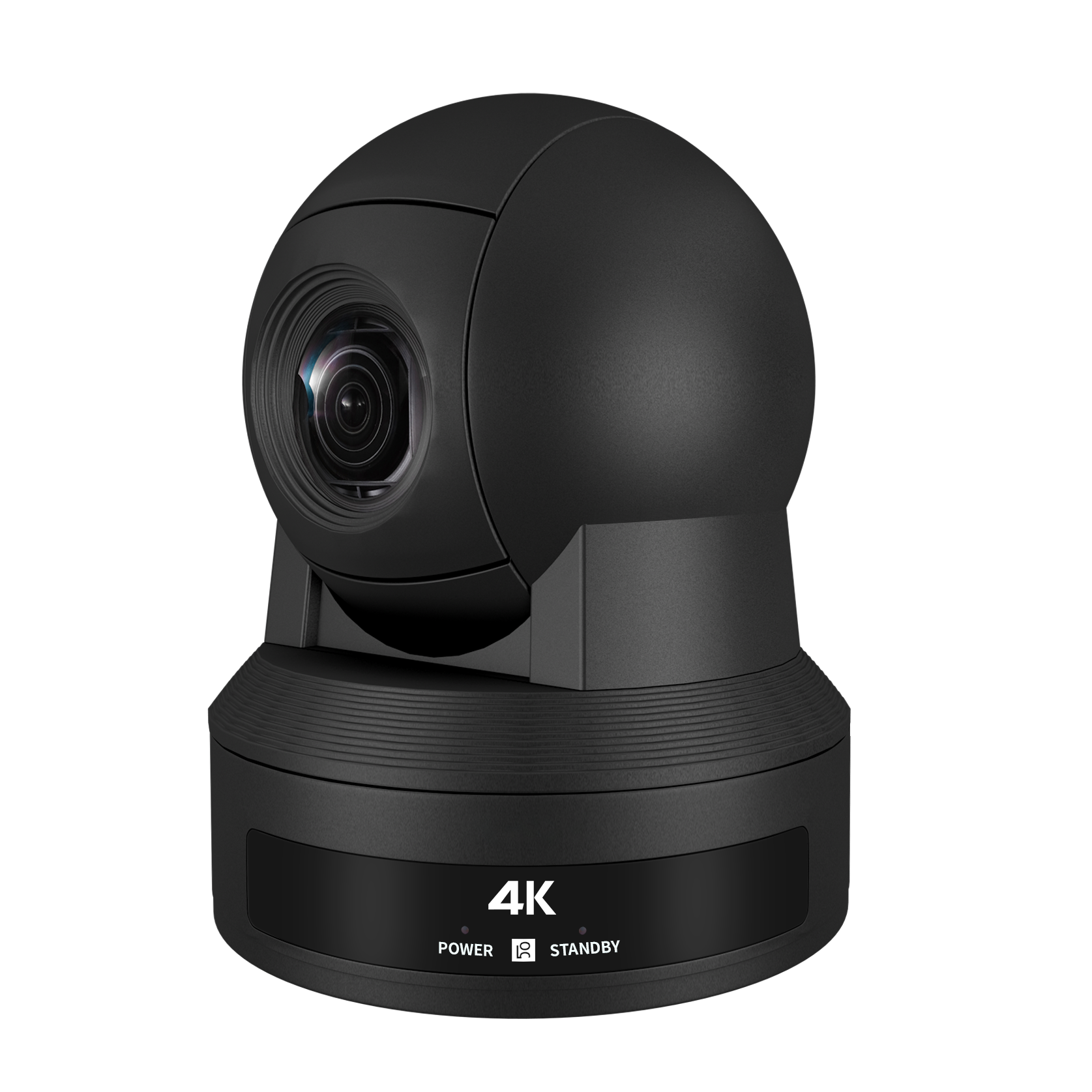

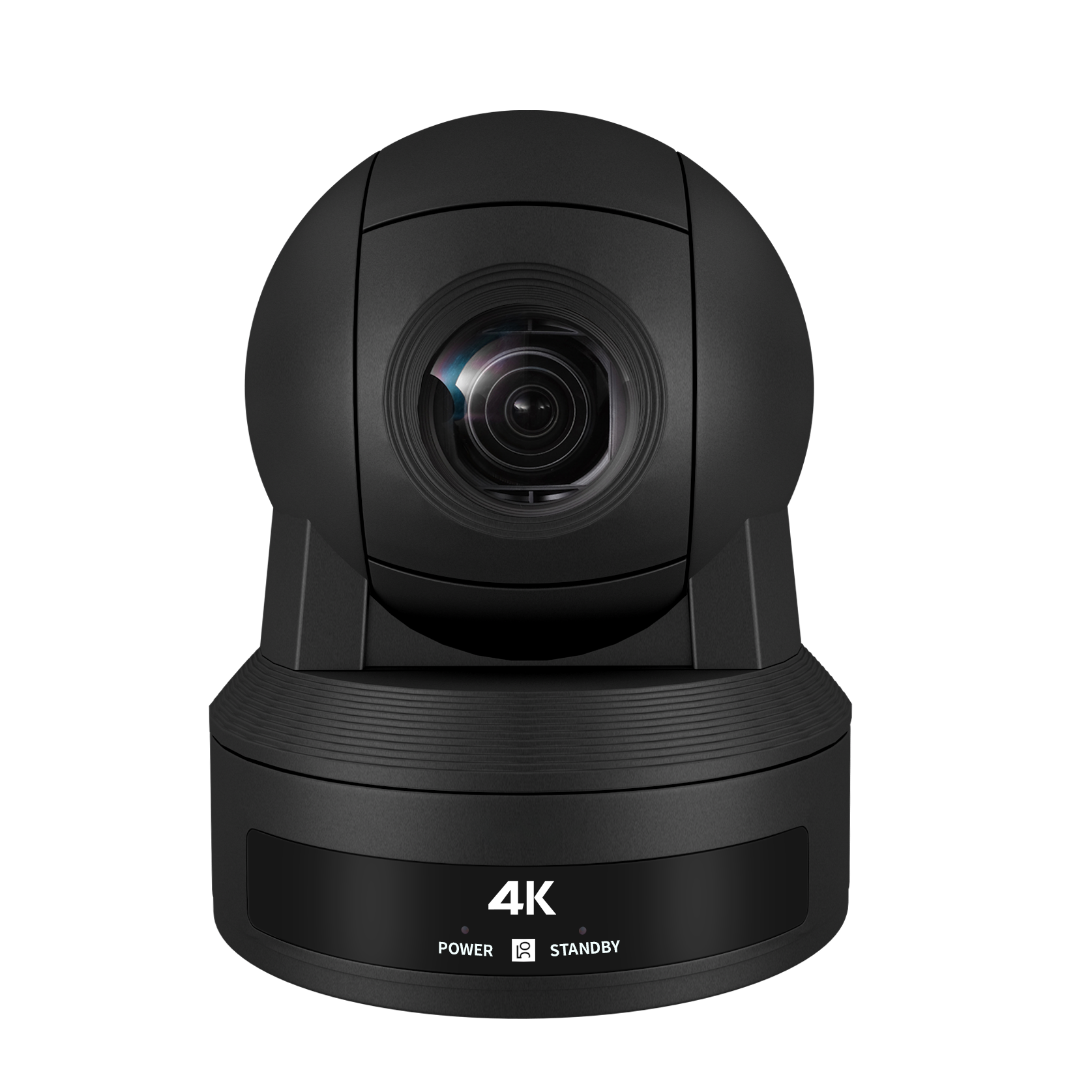

KT-UH61RKN
Download
4K NDI PTZ Camera, 20X Optical Zoom AI AutoTracking NDI|HX2 Camera with USB3.0 3GSDI HDMI LAN Outputs,Video Conference Camera Works with Zoom,OBS,TikTok,YouTube,etc
Products Description
4K Ultra HD Resolution:
Applies SONY 1/2.8” Progressive CMOS sensor, 8.50 Megapixels, 4K (3840x2160) high resolution with frame rate up to 4K 30fps.

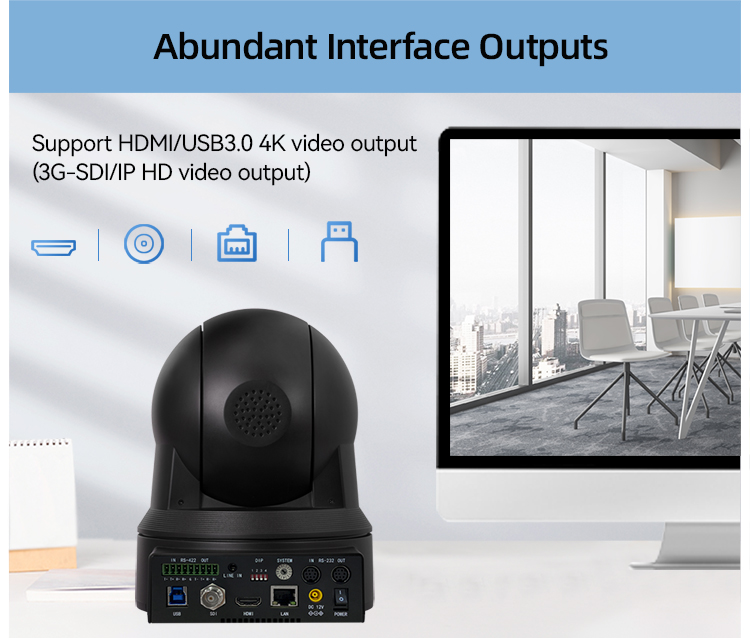

USB3.0+HDMI+LAN+3G-SDI Full Interface, Rich Application Scenarios:
Default Version: Supports synchronized Ultra HD 4K output via HDMI and USB3.0, and synchronized Full HD 1080 output via LAN and 3G-SDI.
Optional Version: Supports synchronized Ultra HD 4K output via HDMI and LAN, and synchronized Full HD 1080 output via USB3.0 and 3G-SDI.
Ultra High Frame Rate:
Support HDMI, LAN, video output frame rate can reach 4K 30fps.
12x Optical Zoom+16x Digital Zoom:
UH61RK/UH61RKN: Applies high quality 8.50 megapixels 4K ultra wide-angle lens, 12x optical zoom, 16x digital zoom.
Low Light:
Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applied 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 55dB.
Remote Control

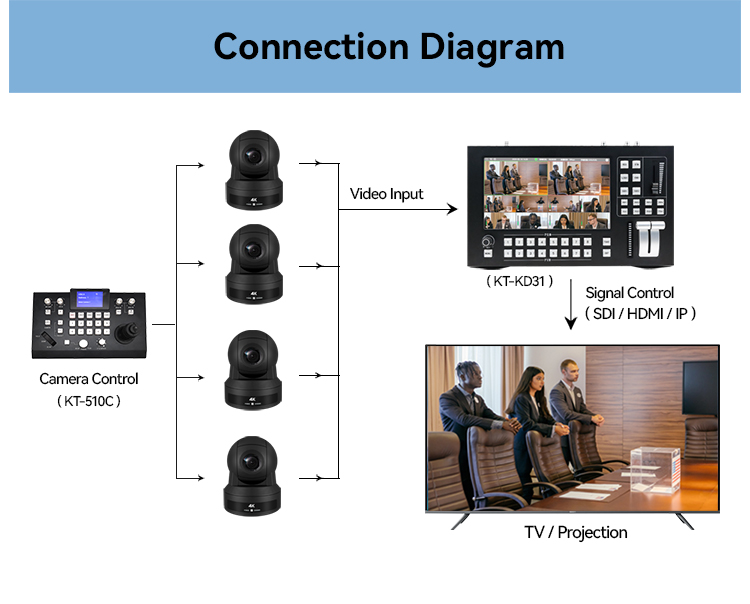

Uses RS232, RS422/RS485 serial ports to control multiple cameras with daisy chain.
Multiple Video Compression Standards:
Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.
Multiple Network Protocols:

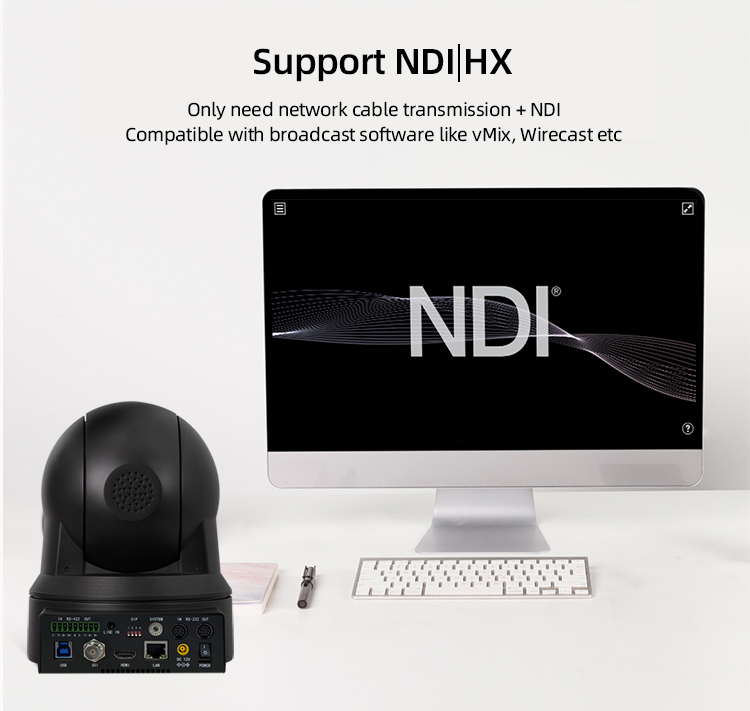

Supports network protocols including ONVIF, SRT, RTSP, RTMP, RTMPS, NDI®|HX2 (optional).
Multiple Control Protocols:
Supports VISCA (including VISCA Over IP), PELCO P/D, NDI (optional) protocols, with automatic protocol recognition.
Multi-installation Methods:
Wall mounting, desktop or ceiling mounting.
New generation AI human tracking algorithm:
Upgraded to support AI intelligent tracking and automatic framing functions.
Details Images
Application Field
Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,
Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.
Related Category
4K PTZ Camera,FHD PTZ Camera,NDI PTZ Camera,Webcam,Education Tracking Camera,Video Conferencing System,
Live HD Camera,Integrated Audiovisual Intelligent Endpoint,Integrated HD Camera,Speakerphone,Cam Controller,
Video Switcher,Ptz Controller,Control Panel
|
Image Parameters |
|
|
Resolution |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
12X Optical Zoom, f=3.9mm(W)~46.8mm(T),F1.6~F2.8 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
72.5°(W)~6.5°(T) |
|
Vertical View Angle |
40.2°(W)~4.3°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
0.1 Lux @ (F1.6, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
355° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~80°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE |
802.3af |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 (USB defaults to 4K is optional) |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 1920*1080 |
|
Sub Stream Resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

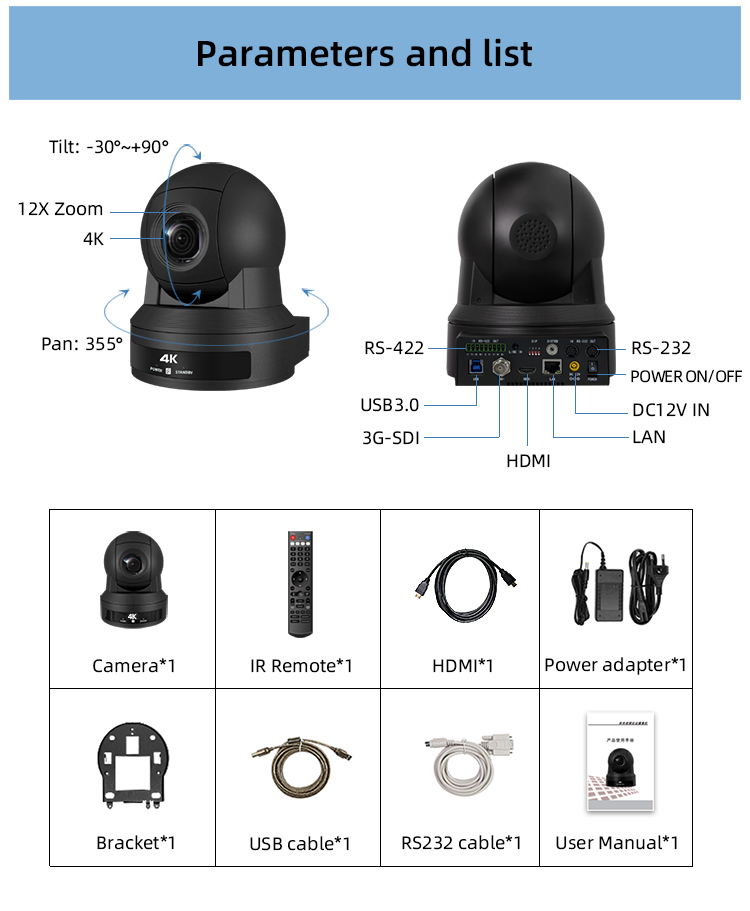

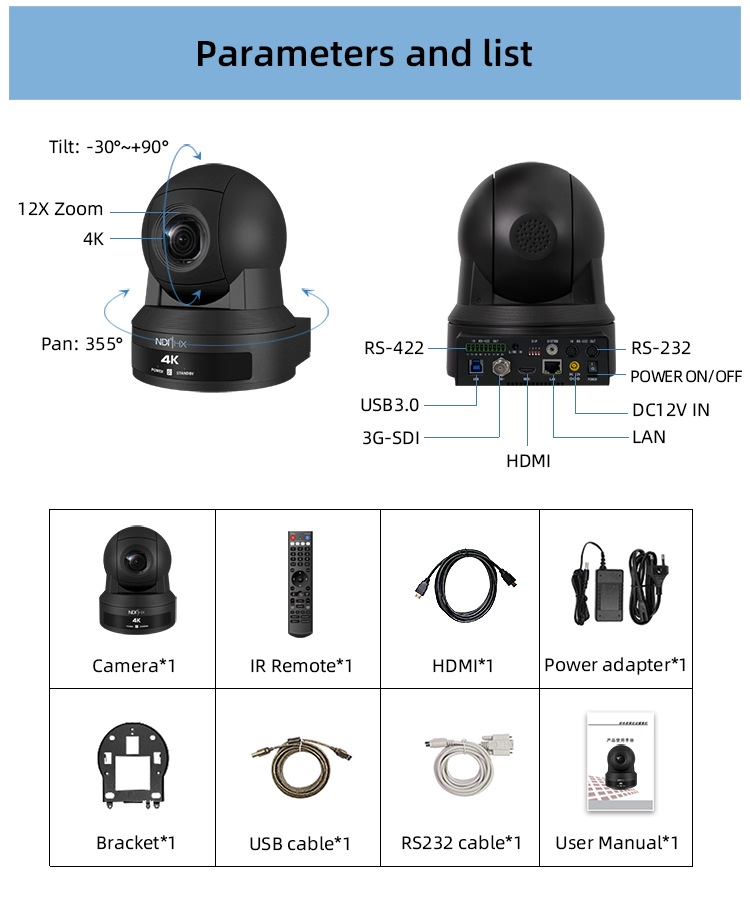

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.0A |
|
Power Consumption |
Max.12W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Dimension |
(W)151*(D)187*(H)192mm |
|
Weight |
1.3kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
