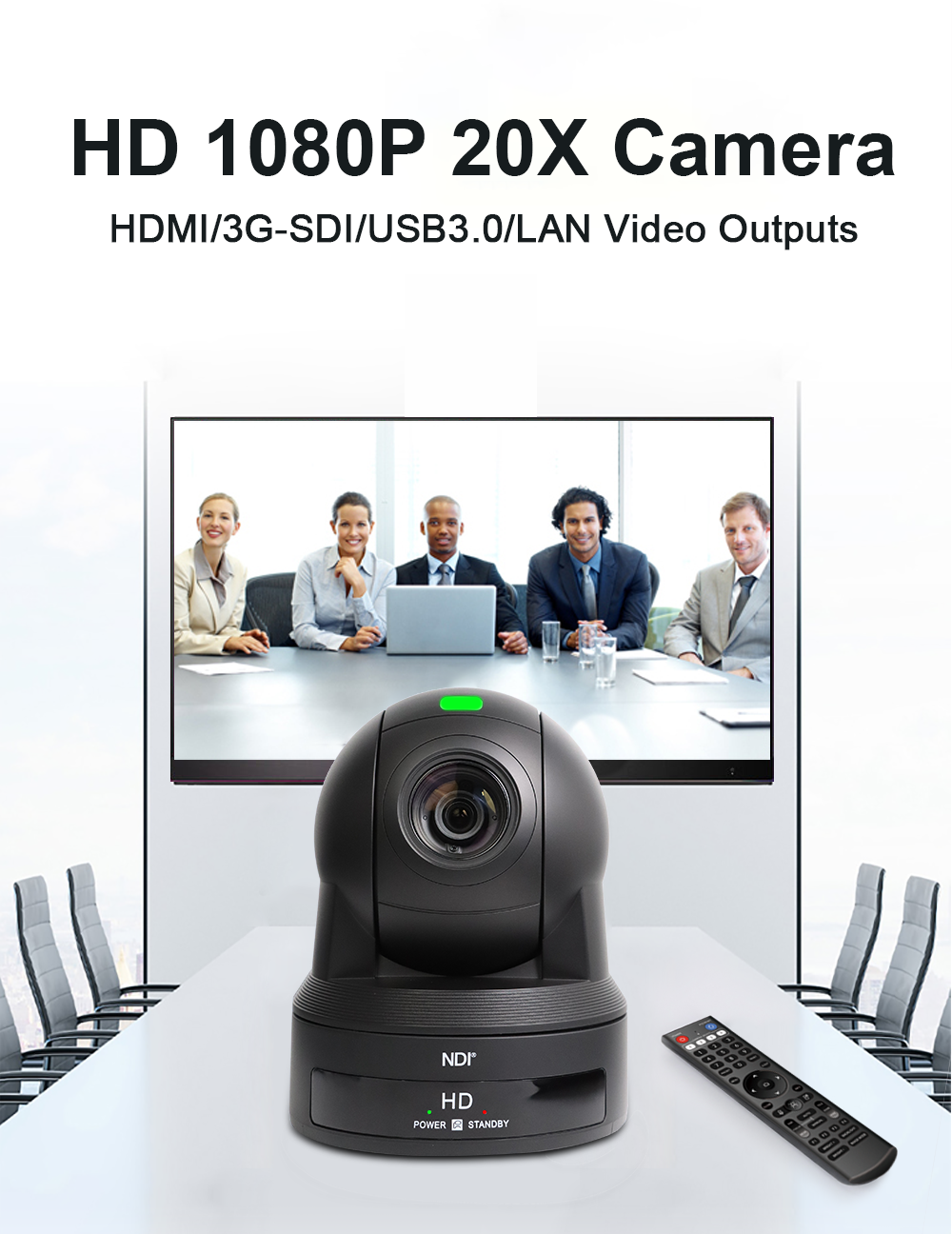

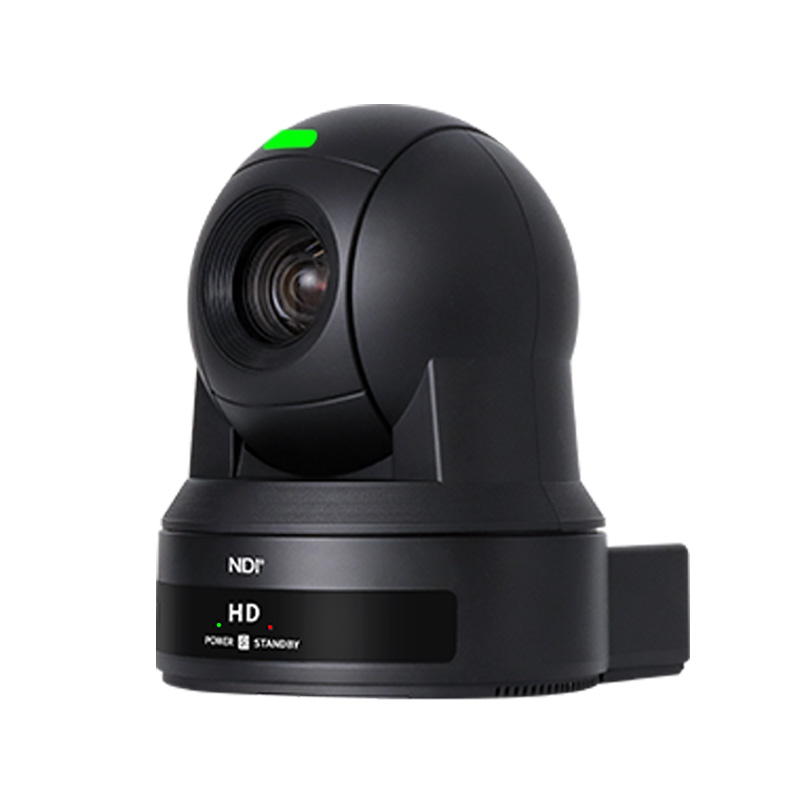

KT-HD62A/62AN
Download
Products Description
【1080P HD Resolution】
Applies SONY 1/2.8” CMOS sensor, 2.07 Megapixels, max.1920x1080 high resolution with frame rate up to 60fps.
【20X Optical Zoom】
KT-HD62A/AN: 20x optical zoom+16x digital zoom, 58.7°distortion-free horizontal view angle.

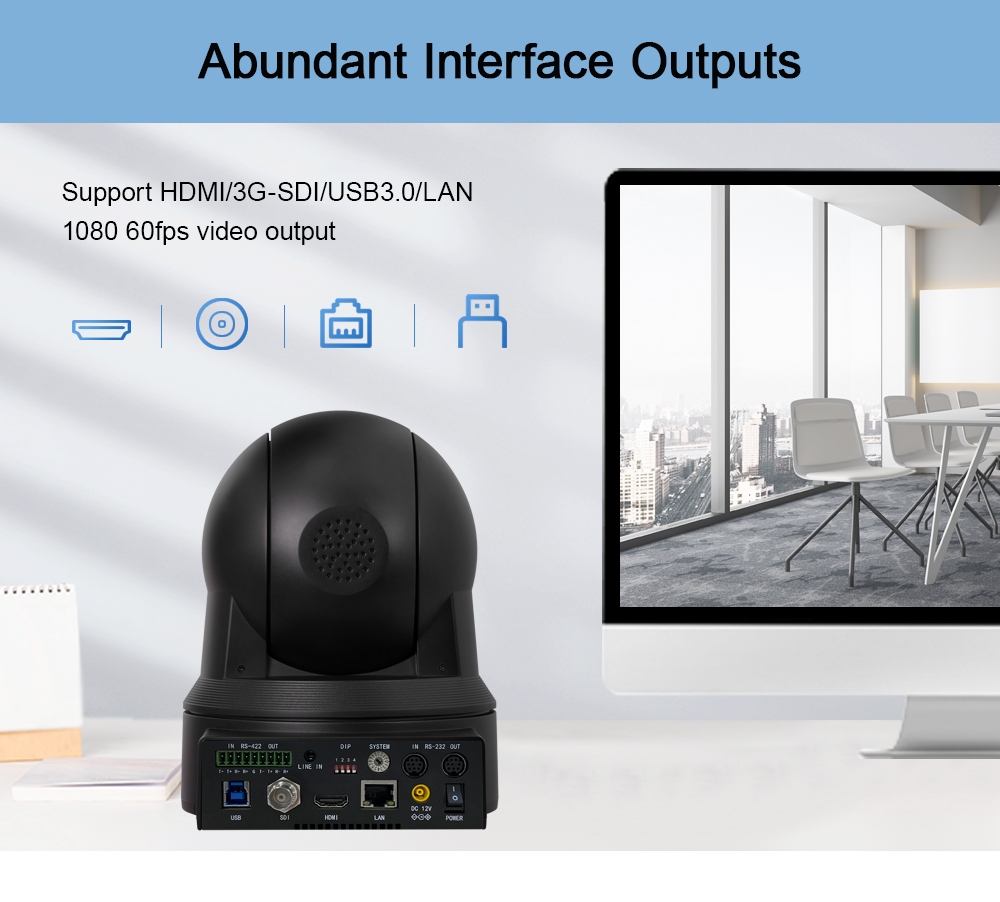

【USB3.0+HDMI+LAN+3G-SDI Full interfaces, Rich Application Scenarios】
USB3.0+HDMI+LAN+3G-SDI full interfaces, support up to 60 frames of 1080p full HD image output, rich application scenarios.

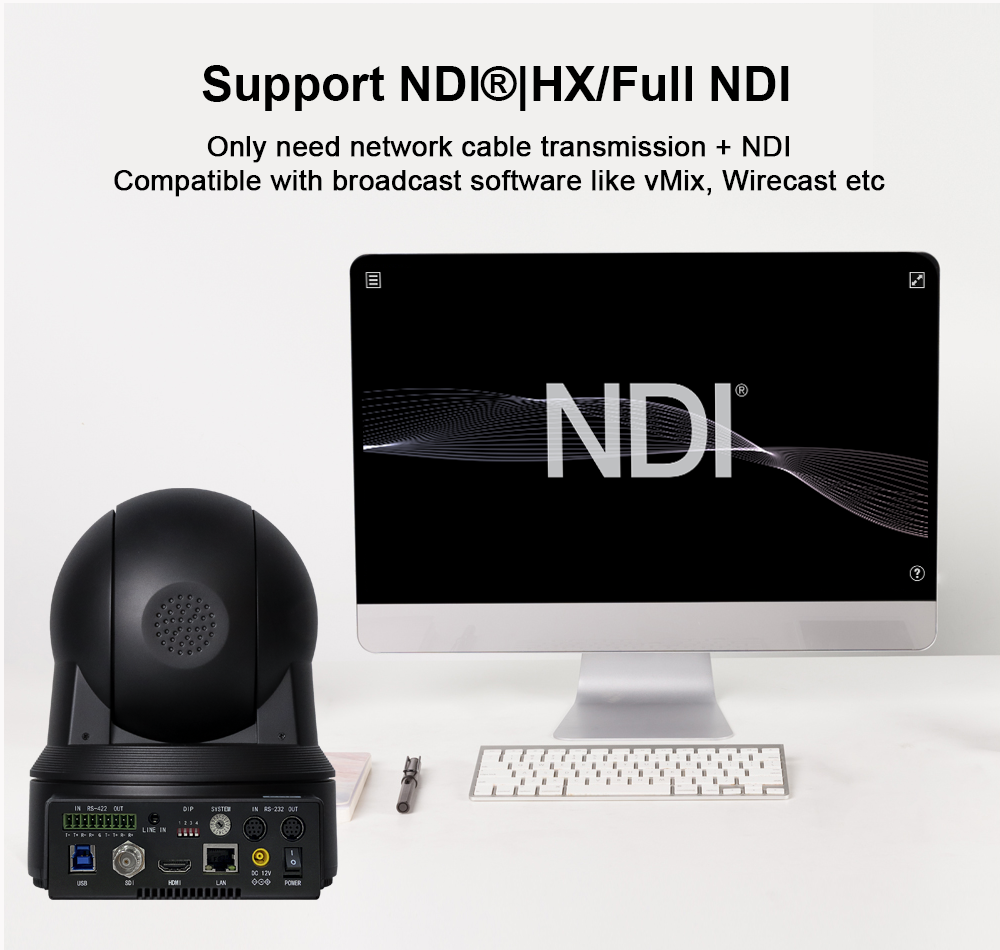

【Supports Both NDI®|HX2/Full NDI®】
Compatible with all video outputs of current mainstream. All interfaces can output video at the same time.In addition to NDI®|HX2(optional), it can supports Full NDI® protocol(optional) with lower delay.
【Low Light】
Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applied 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 50dB.

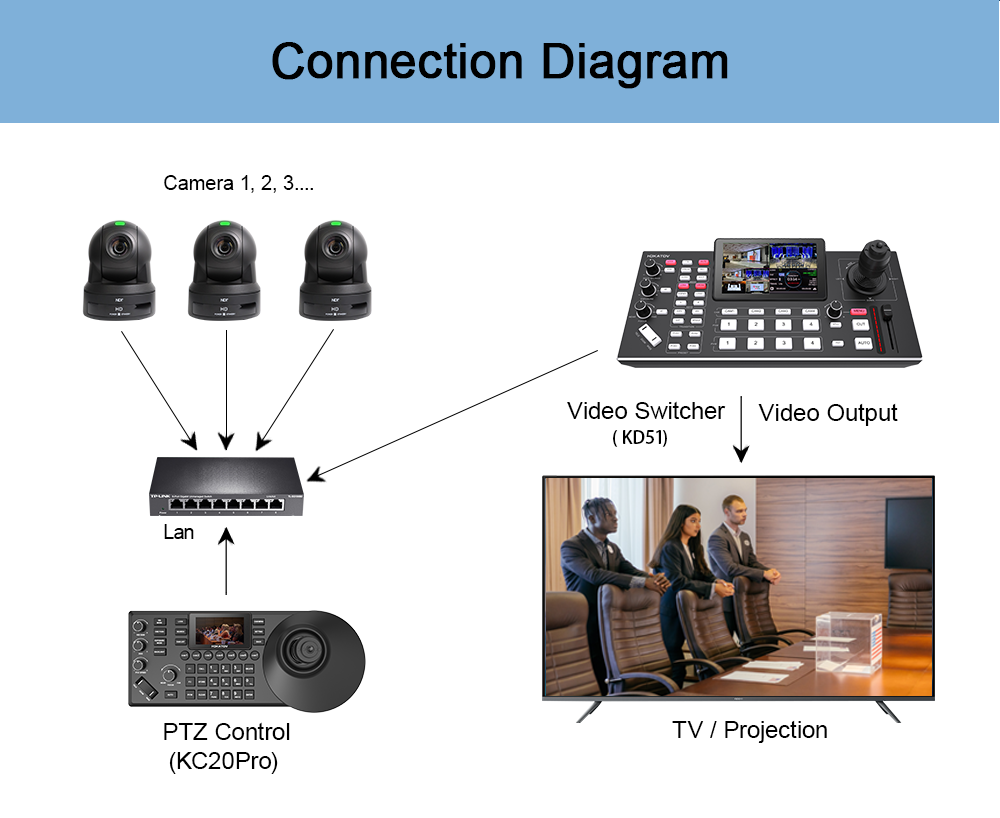

【Remote Control】
Uses RS232, RS422/RS485 serial ports to control multiple cameras with daisy chain.
【Signal Transparent Transmission Function of Infrared Remote Controller】
Apart from receiving its own infrared remote controller’s signals, it can also receive signals from the consumer’s infrared remote controller and send to video conference terminal via VISCA IN port.
【Various Video Compression Standards】
Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.
【Various Network Protocols】
Supports ONVIF, SRT, RTSP, RTMP, RTMPS, NDI®|HX2 (optional) and other network protocols.
【Multiple Control Protocols】
Supports VISCA (including VISCA Over IP), PELCO P/D, NDI® (optional) protocol, and automatically identifies protocols.
【Various Installation Methods】
A variety of installation methods, desktop, ceiling, wall installation.
【New generation AI human tracking algorithm】
Upgraded to support AI intelligent tracking and automatic framing functions.
Details Images
Application Field
Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,
Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.
Related Category
4K PTZ Camera,FHD PTZ Camera,NDI PTZ Camera,Webcam,Education Tracking Camera,Video Conferencing System,
Live HD Camera,Integrated Audiovisual Intelligent Endpoint,Integrated HD Camera,Speakerphone,Cam Controller,
Video Switcher,Ptz Controller,Control Panel
Core keywords
HD Video Conference Camera,Best video conference camera ,Conference room camera,Zoom Certified Camera,Teams Compatible Camera,Education Video Conference Camera,Church Streaming Camera ,20x Optical Zoom Camera
|

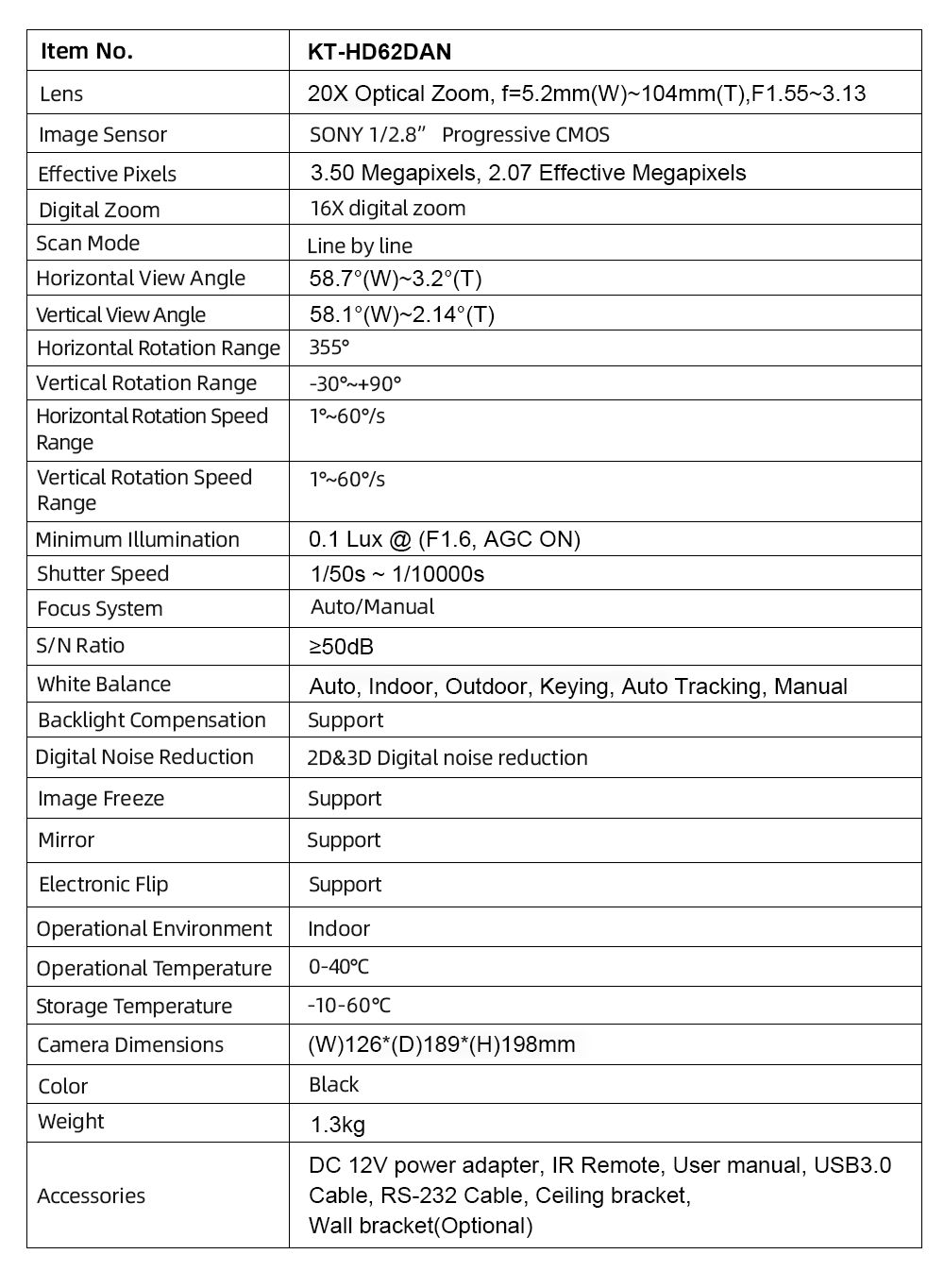

Image Parameters |
|
|
Resolution |
HDMI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
3.50 Megapixels, 2.07 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
HD62A: 20X Optical Zoom, f=5.2mm(W)~104mm(T),F1.55~3.13 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
HD62A: 58.7°(W)~3.2°(T) |
|
Vertical View Angle |
HD62A: 32.2°(W)~1.8°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
0.1 Lux @ (F1.3, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
355° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~80°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE |
802.3af |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional), Full NDI® (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
1920*1080, 1280*960, 1280*720, 720*576, 720*480, 640*480 |
|
Sub Stream Resolution |
640*480, 640*360, 480*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

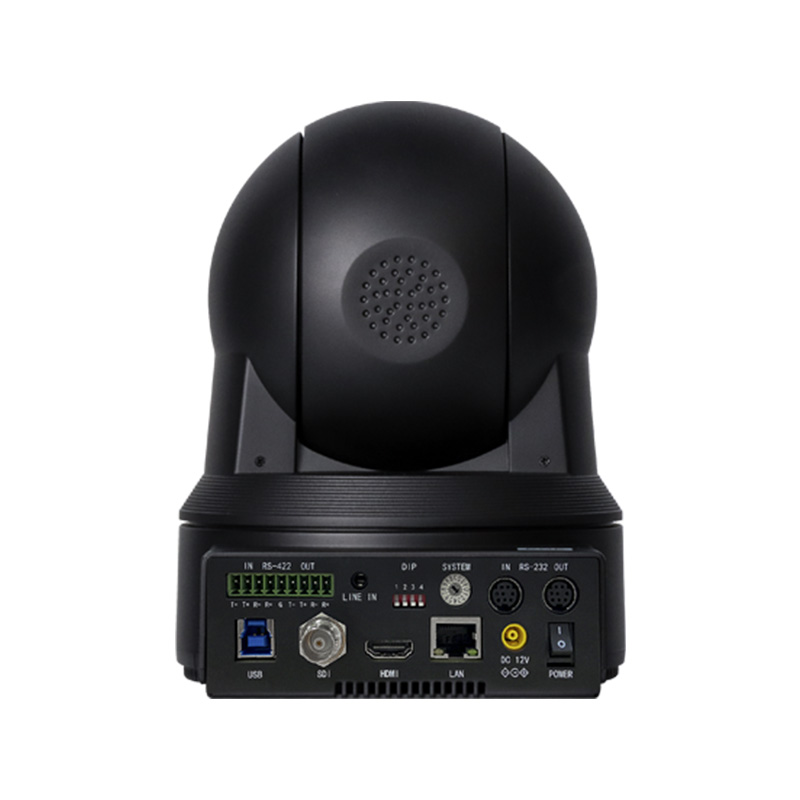

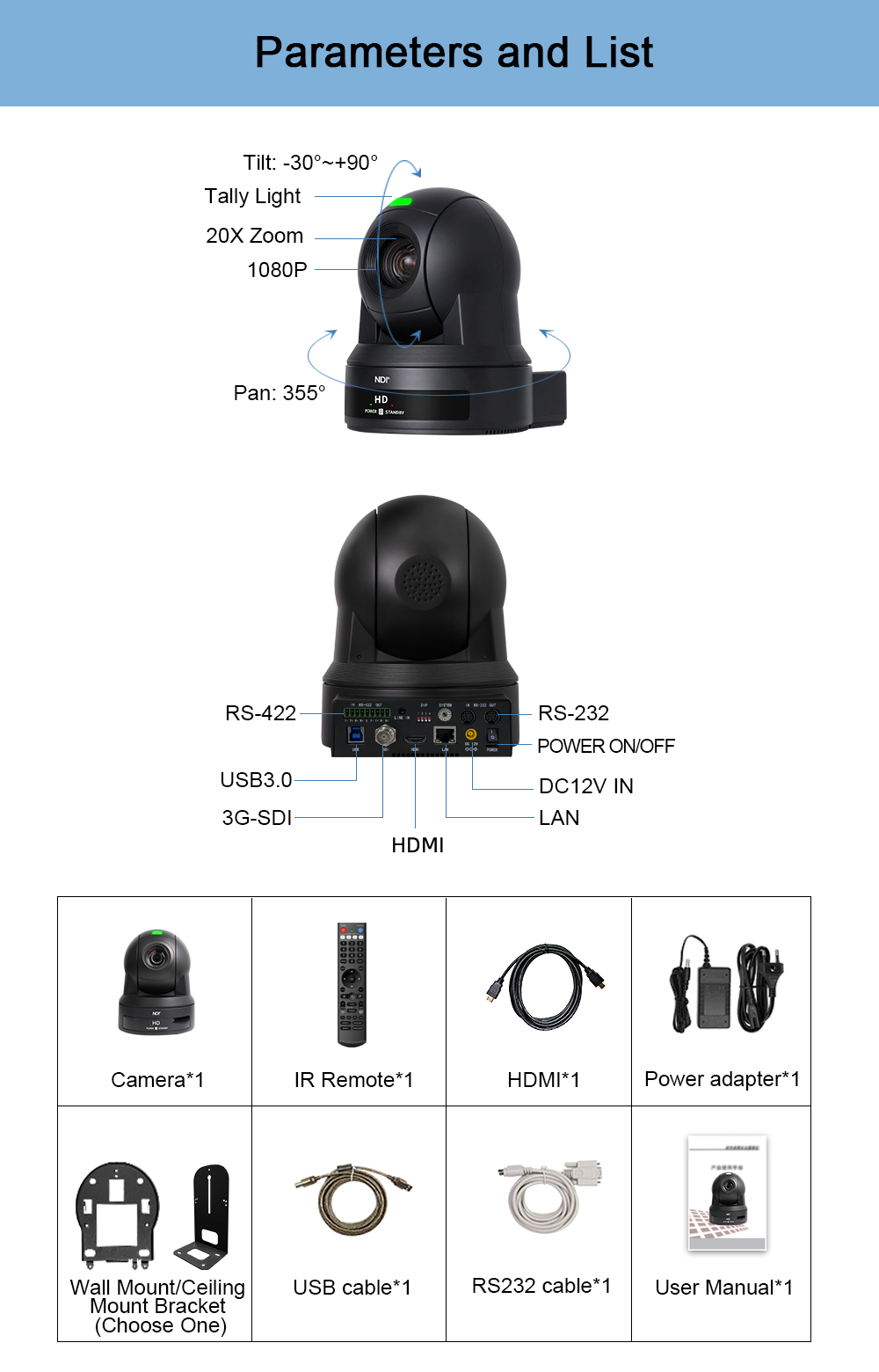

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power Consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Dimension |
(W)126*(D)189*(H)198mm |
|
Weight |
1.3kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
