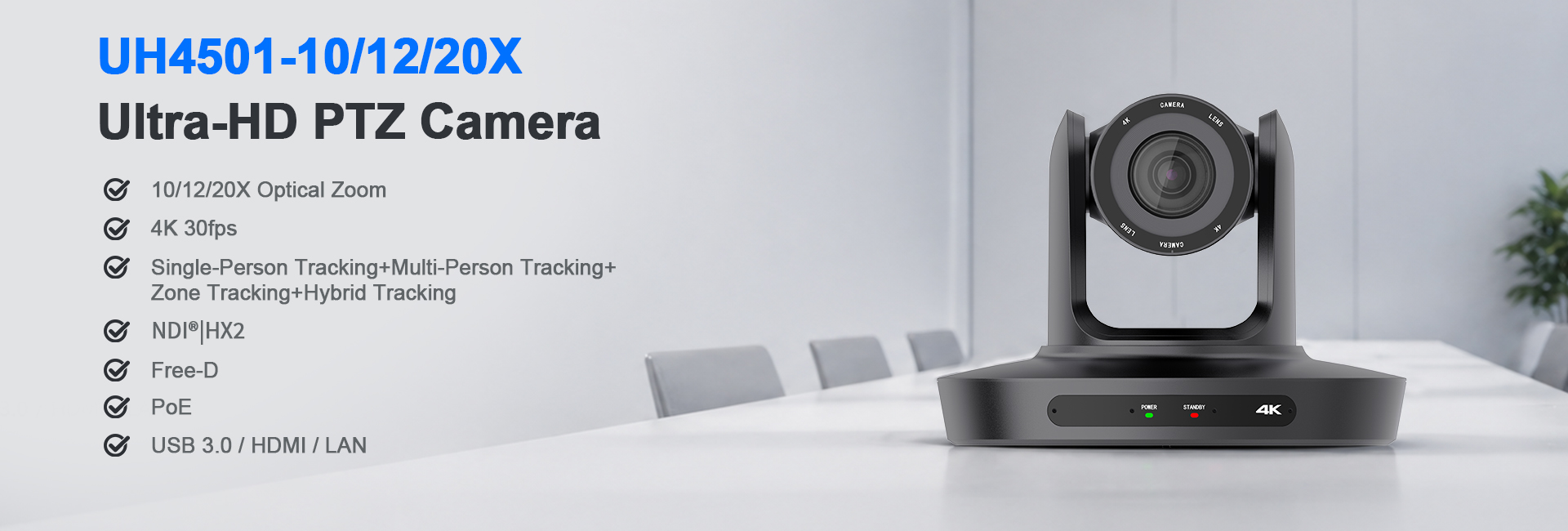

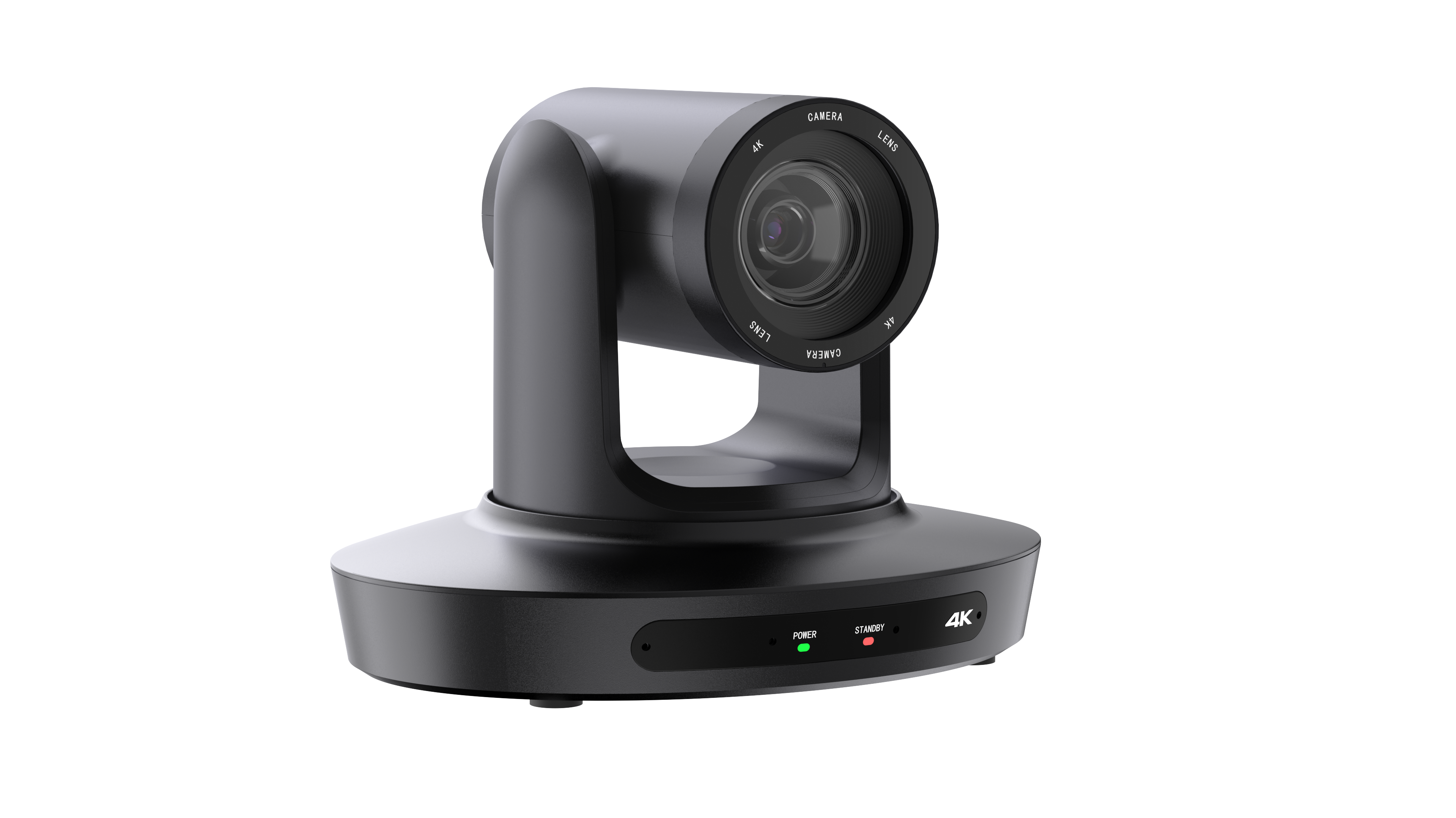

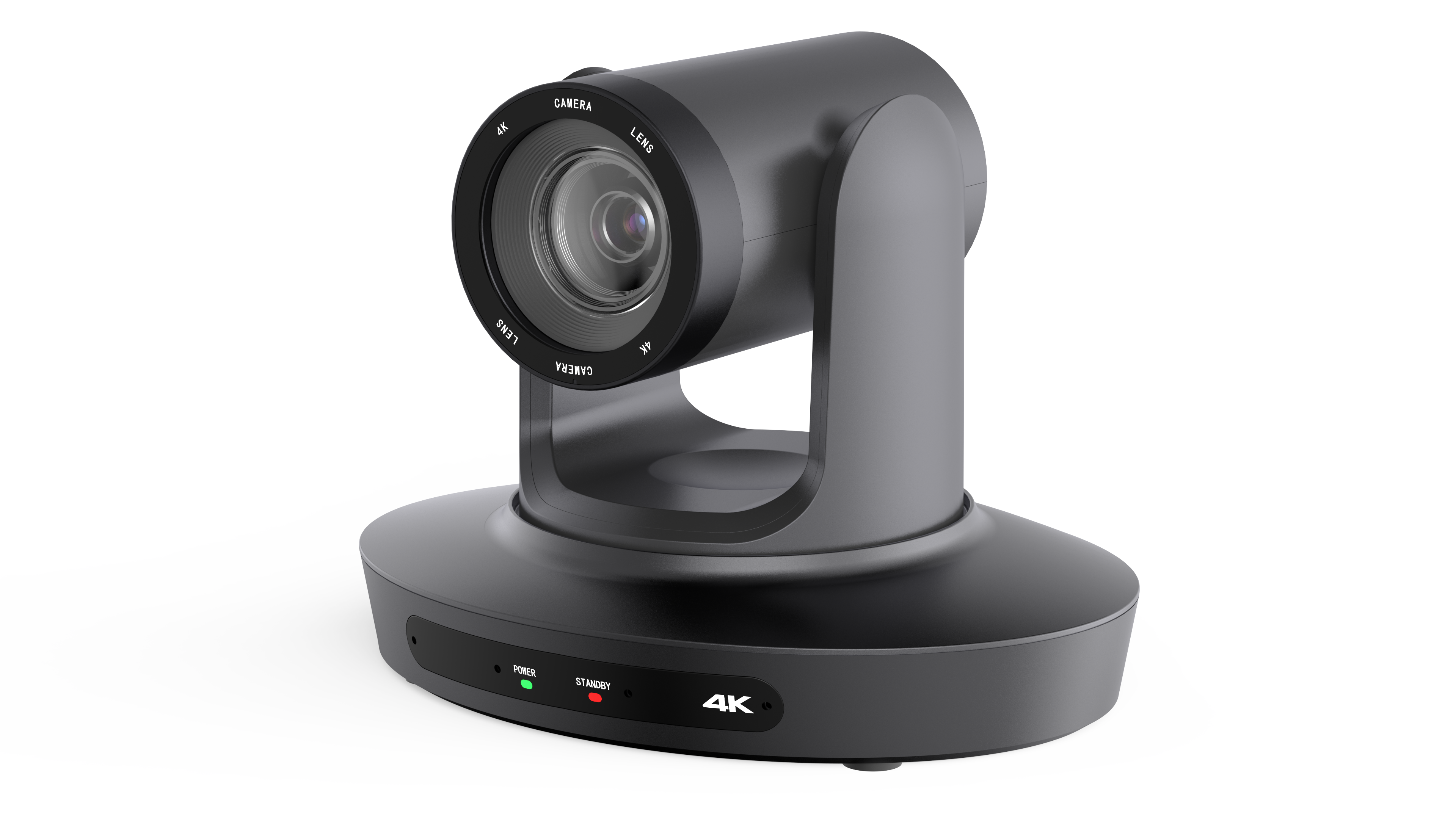

KT-UH45GH
Download

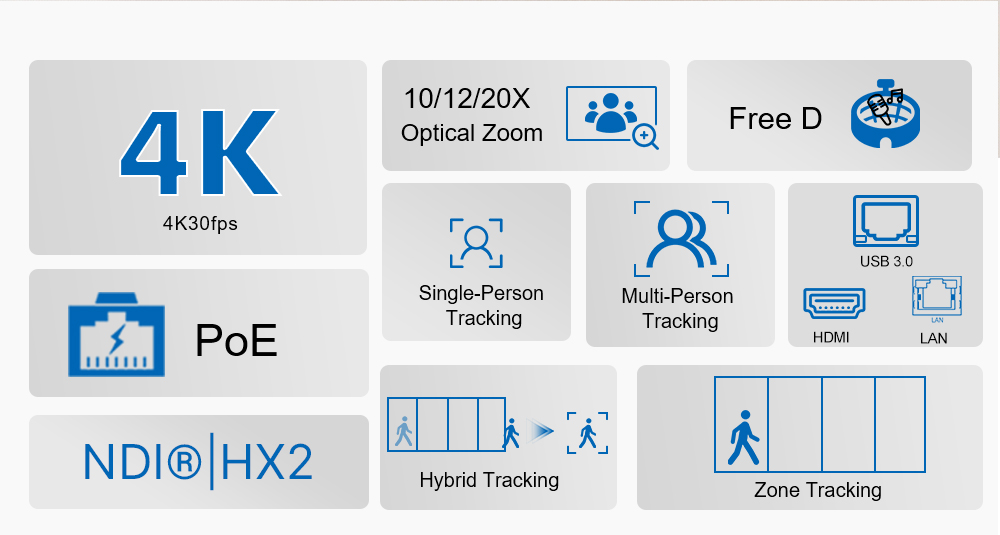

Features

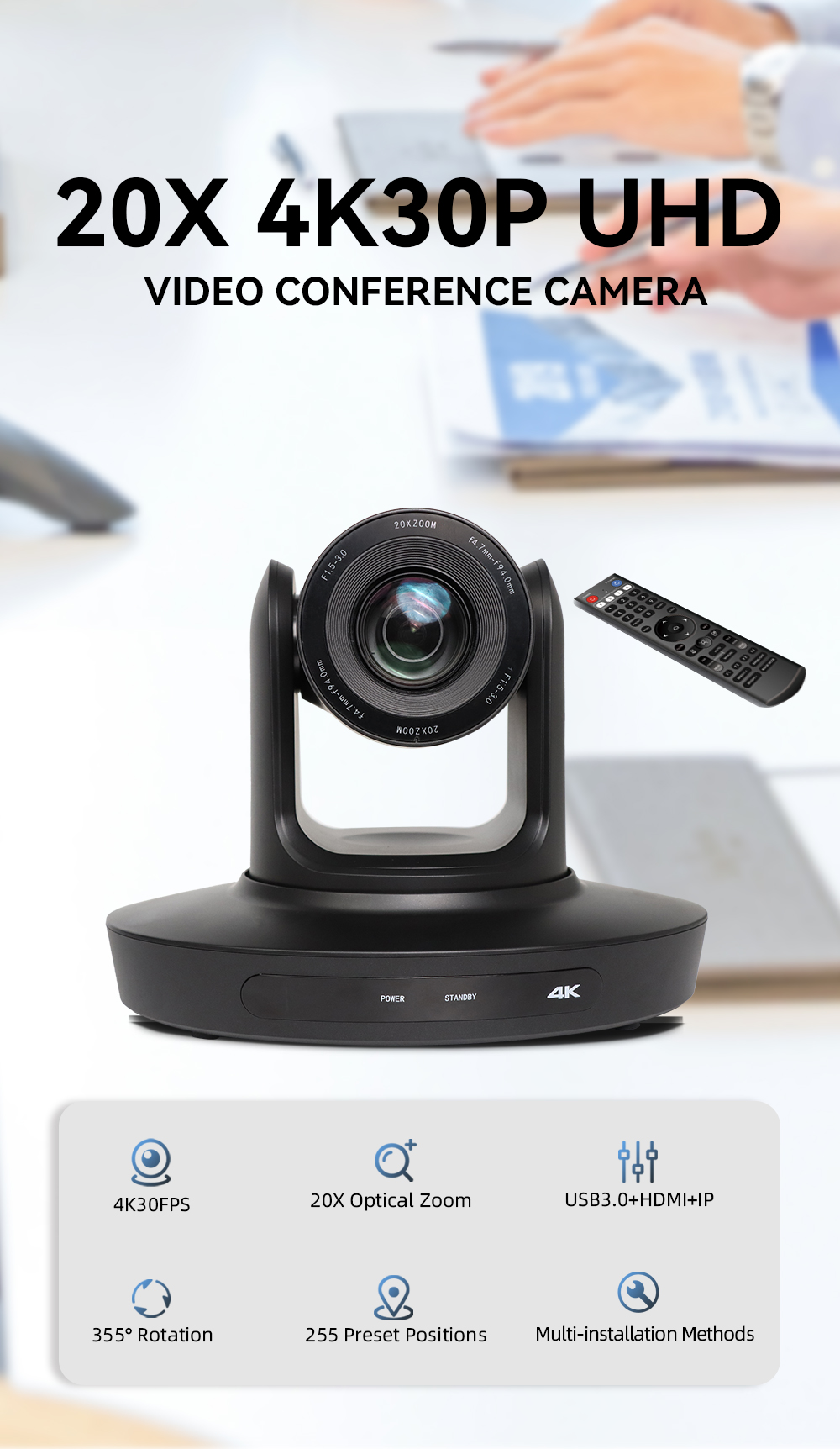

4K Ultra HD Resolution:
Applies SONY 1/2.8” Progressive CMOS sensor, 8.50 Megapixels, max. 4K (3840x2160) high resolution with frame rate up to 4K 30fps.
10x, 12x, 20x Optical Zoom Lens:.
UH45GQ: 10x optical zoom, 67.8 degree wide angle.
UH45GF: 12x optical zoom, 70.28 degree wide angle.
UH45GH: 20x optical zoom, 58.7 degree wide angle .

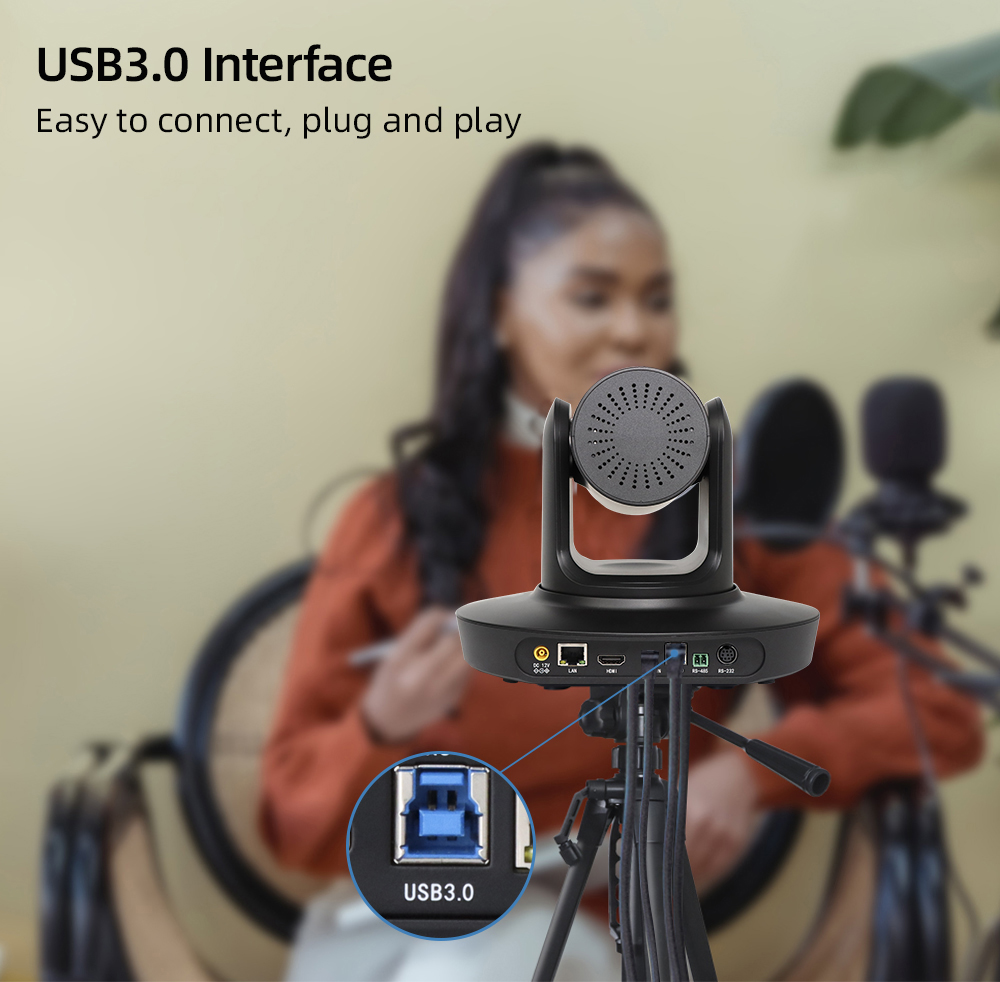

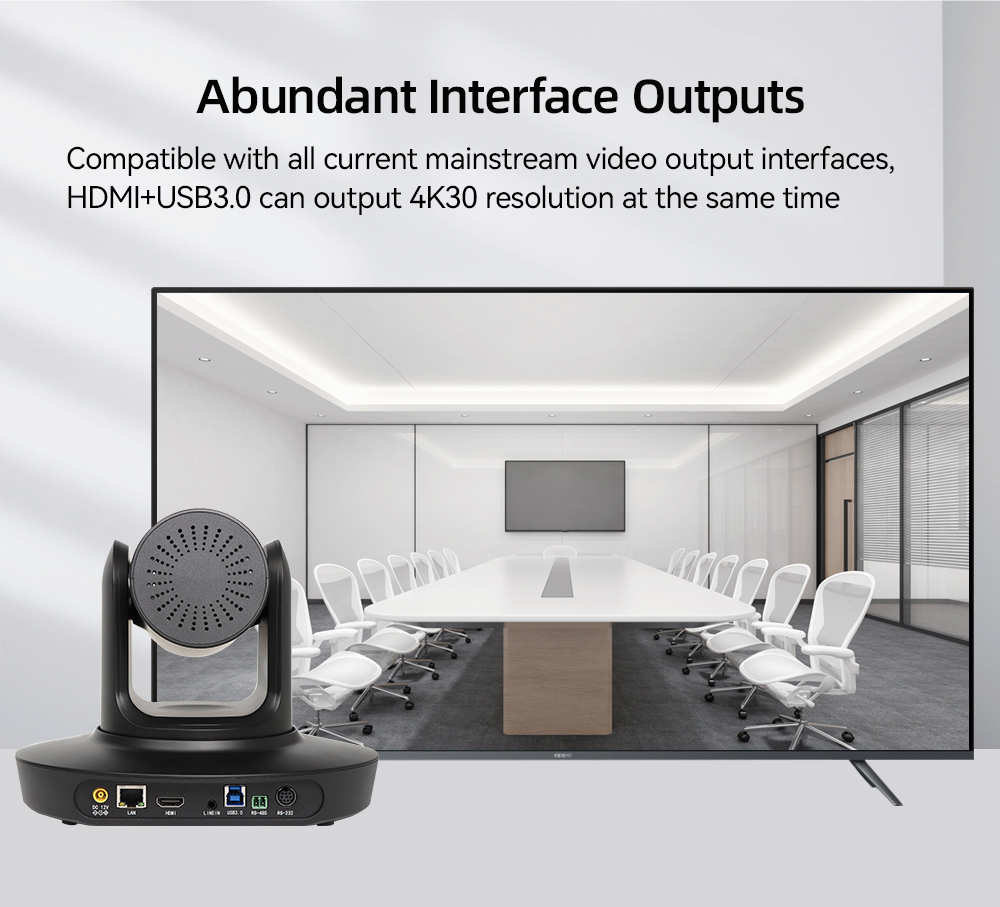

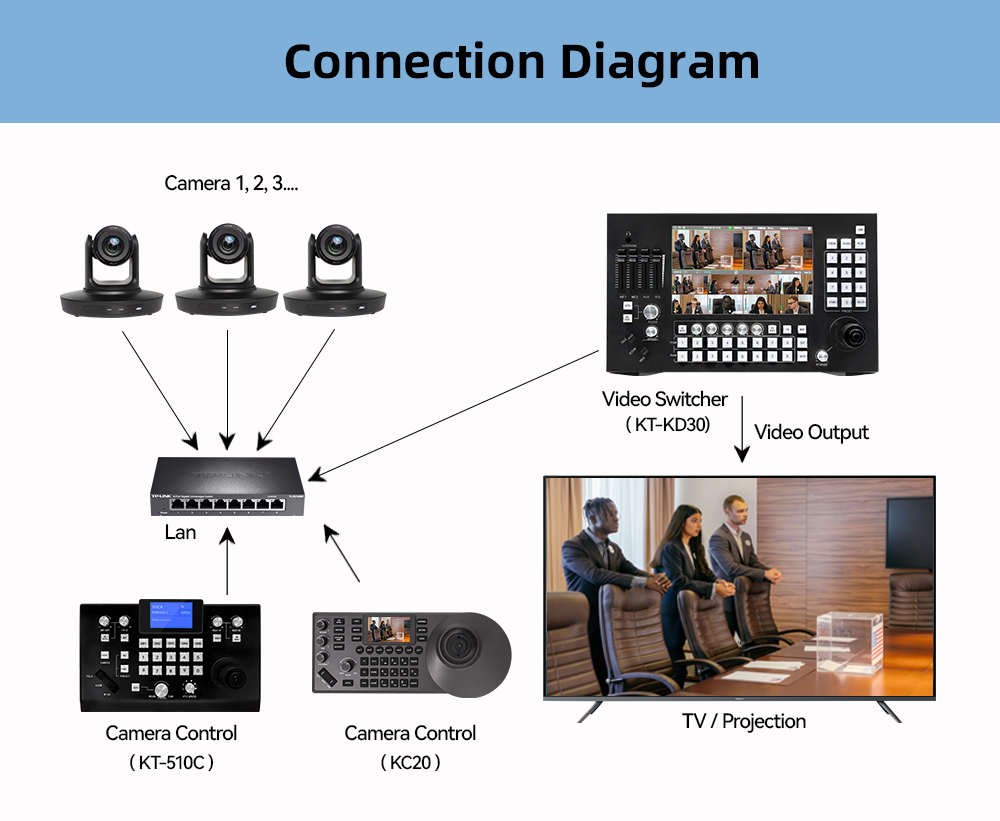

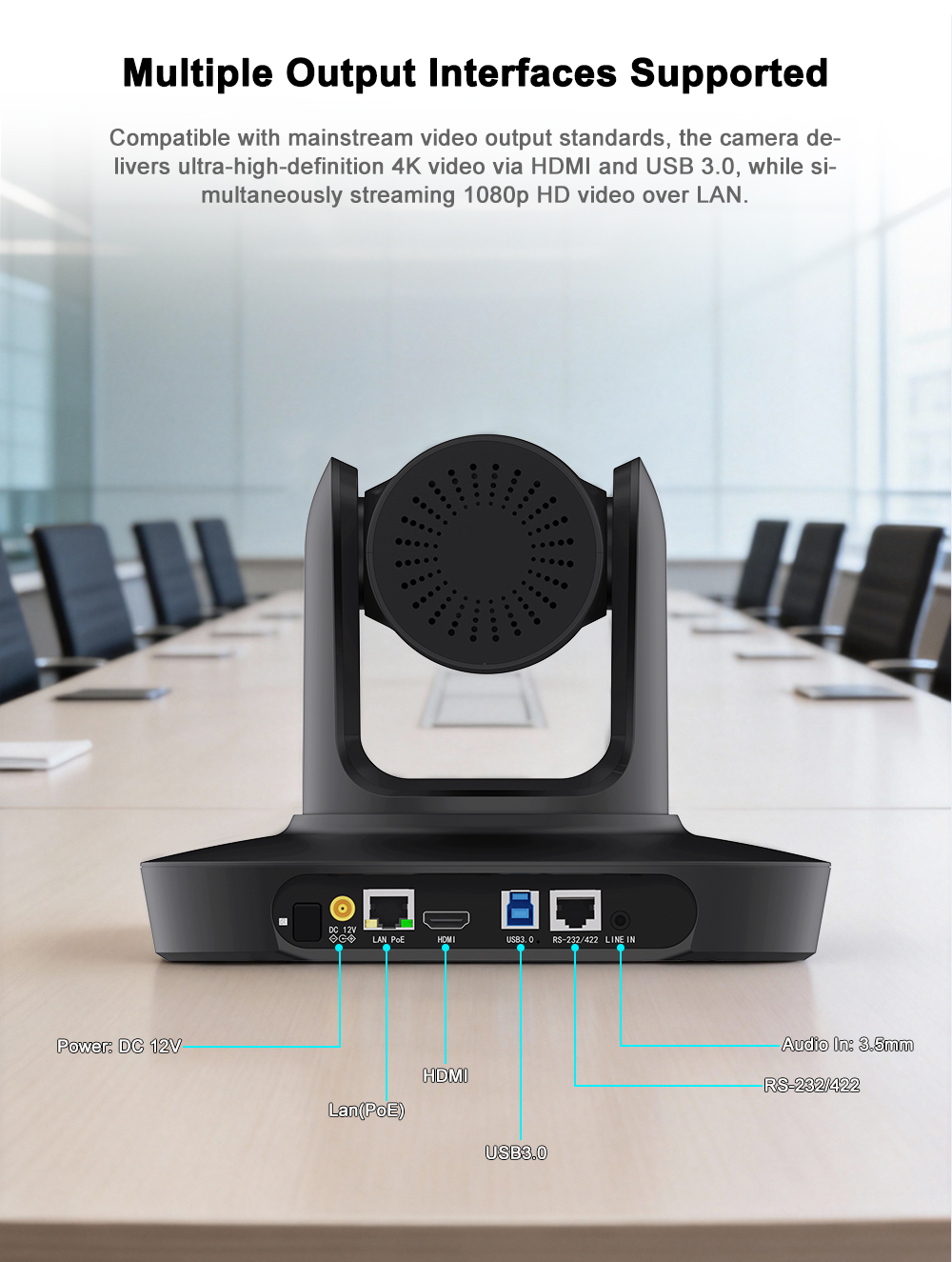

USB3.0+HDMI+IP Interface, Rich Application Scenarios:
Compatible with all current mainstream video output interfaces, Supports HDMI and USB 3.0 for synchronous output of ultra-high-definition 4K and HD 1080P IP video.
Low Light:
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. At the same time, 2D&3D digital noise reduction is applied to greatly reduce image noise. Even in ultra-low light conditions, the picture can still be kept clean and clear, and the image signal-to-noise ratio is higher than 45dB.
IR Remote Control Signal Transparent Transmission Function:
In addition to receiving its own infrared remote control signal, it can also receive the signal from consumer’s infrared remote control and send it to the video conference terminal through the VISCA port.
Multiple Video Compression Standards:
Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.
Multiple Network Protocols:
Support ONVIF, SRT, RTSP, RTMP protocols.
Multiple Control Protocols:
Supports VISCA(VISCA Over IP), PELCO P/D protocol, automatically identifies protocol.

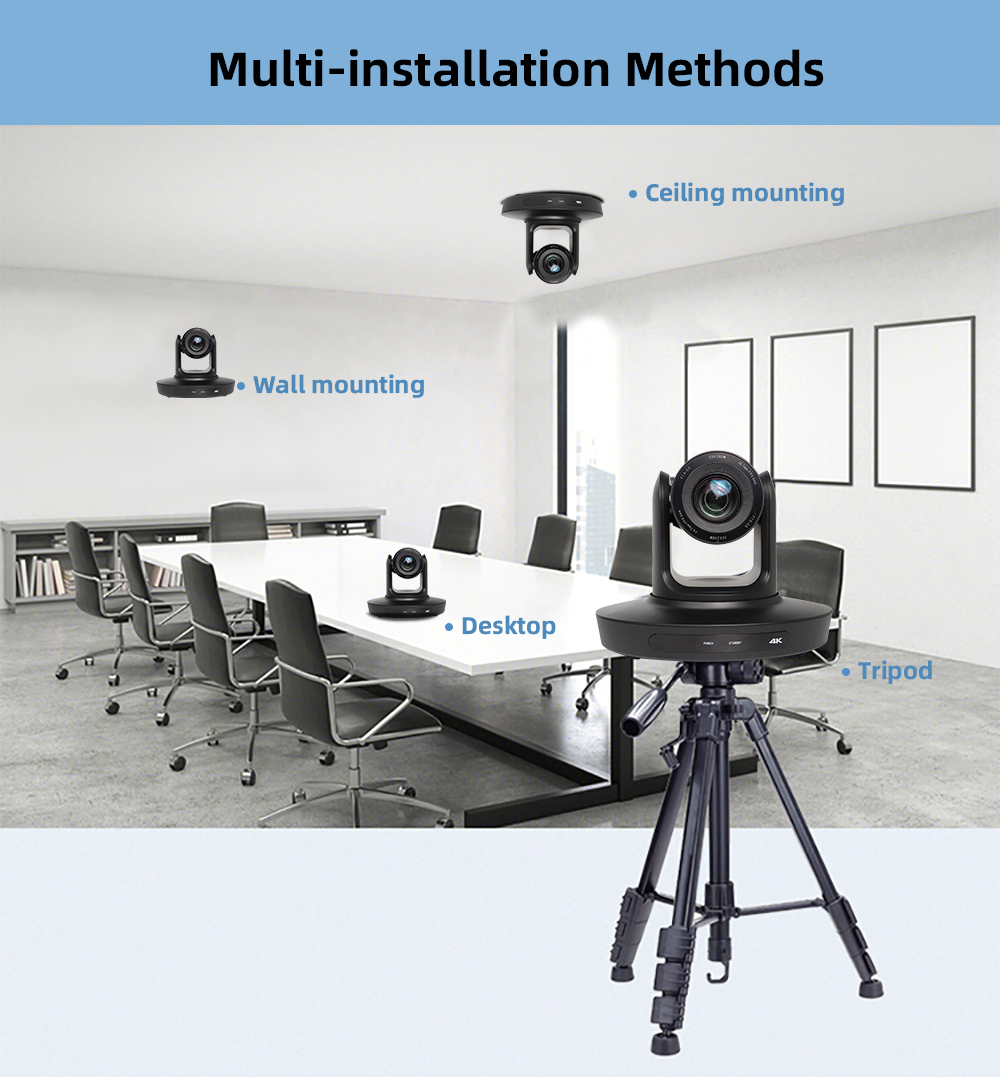

Multi-installation Methods:
Wall mounting, desktop or ceiling mounting.

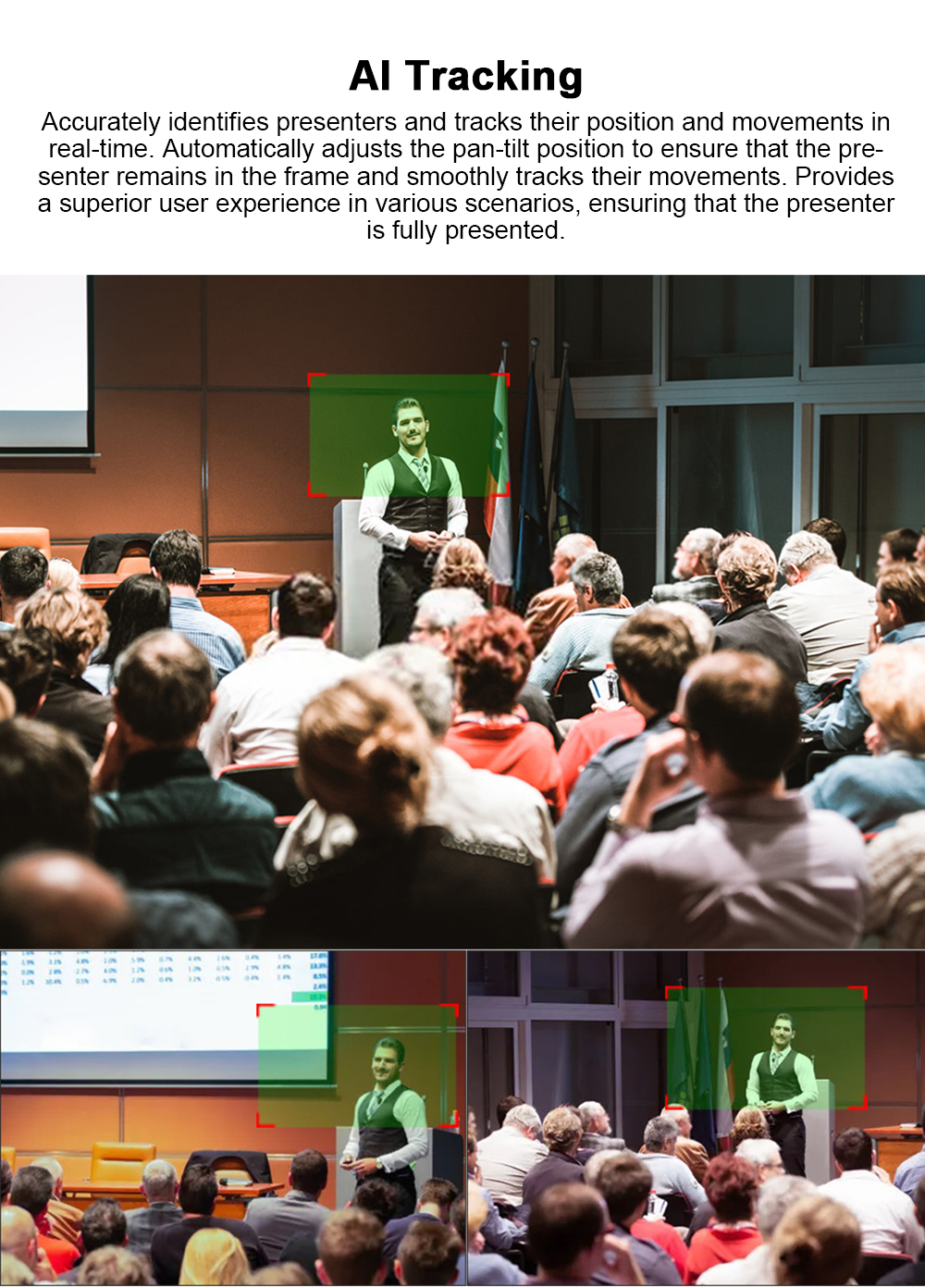

AI Intelligence:

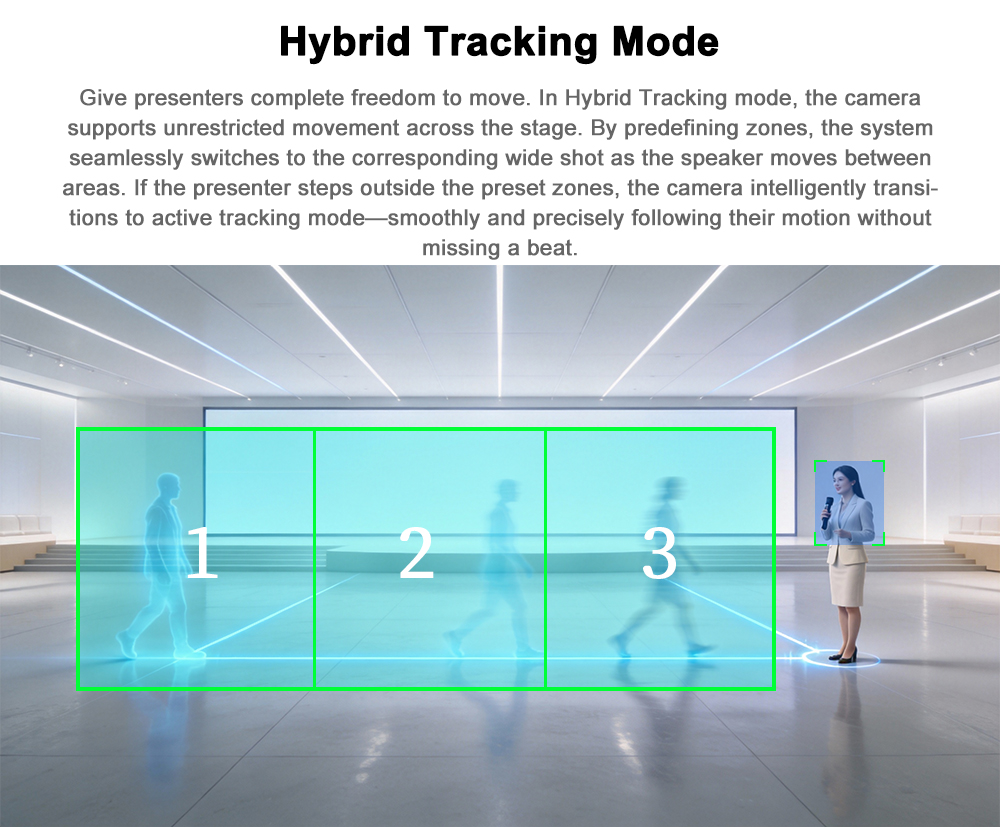

Supports AI tracking and Auto framing functions.
|
Image Parameters |
|
|
Resolution |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
UH45GQ: 10X Optical Zoom, f=4.2mm(W)~42mm(T), F1.76~F3.0
UH45GF: 12X Optical Zoom, f=4.1mm(W)~49.2mm(T), F1.8~F2.68 |
|
Horizontal View Angle |
UH45GQ: 67.5°(W)~7.6°(T)
UH45GF: 70.28°(W)~6.57°(T) |
|
Vertical View Angle |
UH45GQ: 40.2°(W)~4.3°(T)
UH45GF: 42.06°(W)~3.76°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
UH45GQ: 0.1 Lux @ (F1.8, AGC ON)
UH45GF: 0.1 Lux @ (F1.8, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
±168° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~60°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
POE |
802.3af (Optional) |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1 |
|
Main Stream Resolution |
1920*1080 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

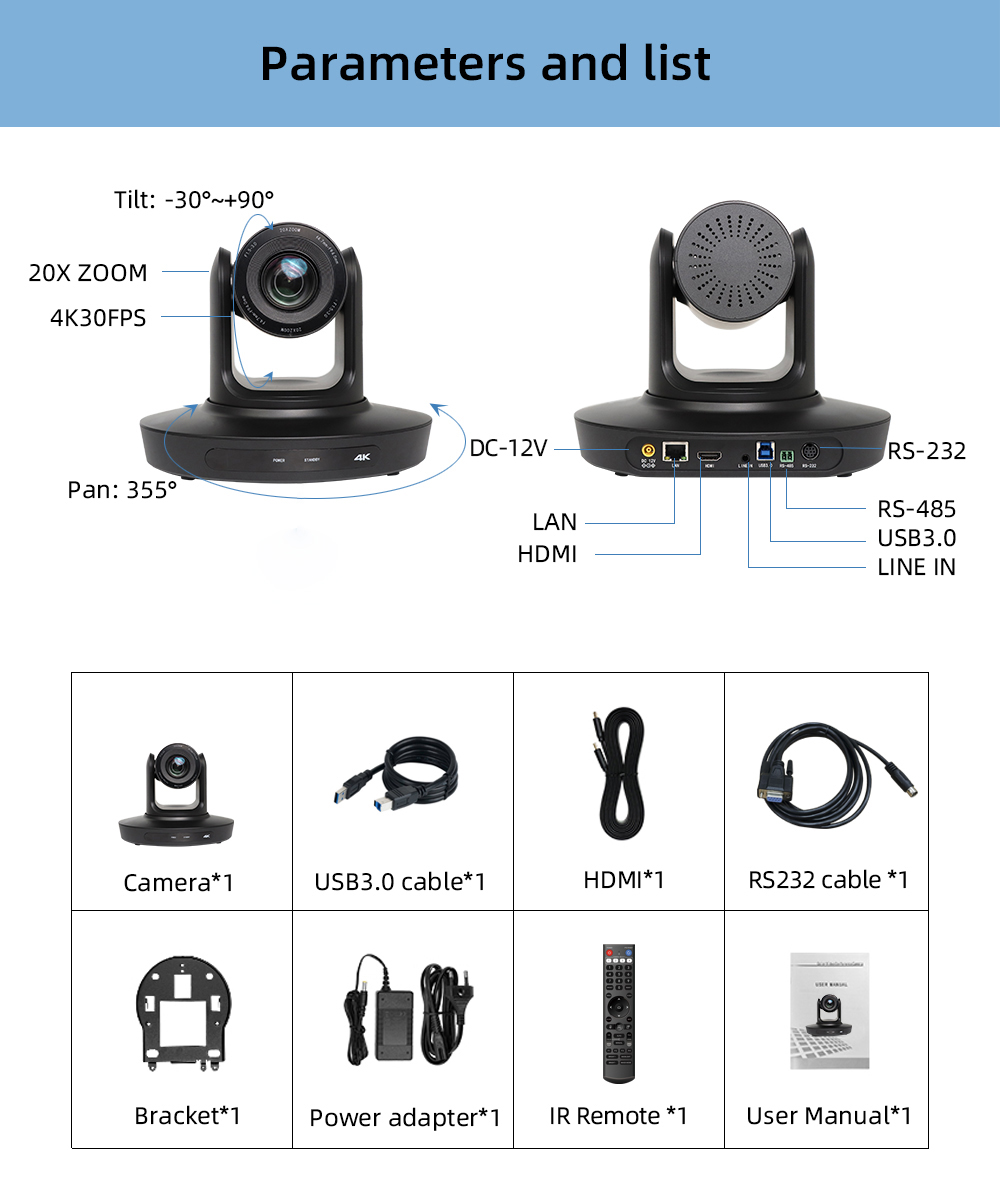

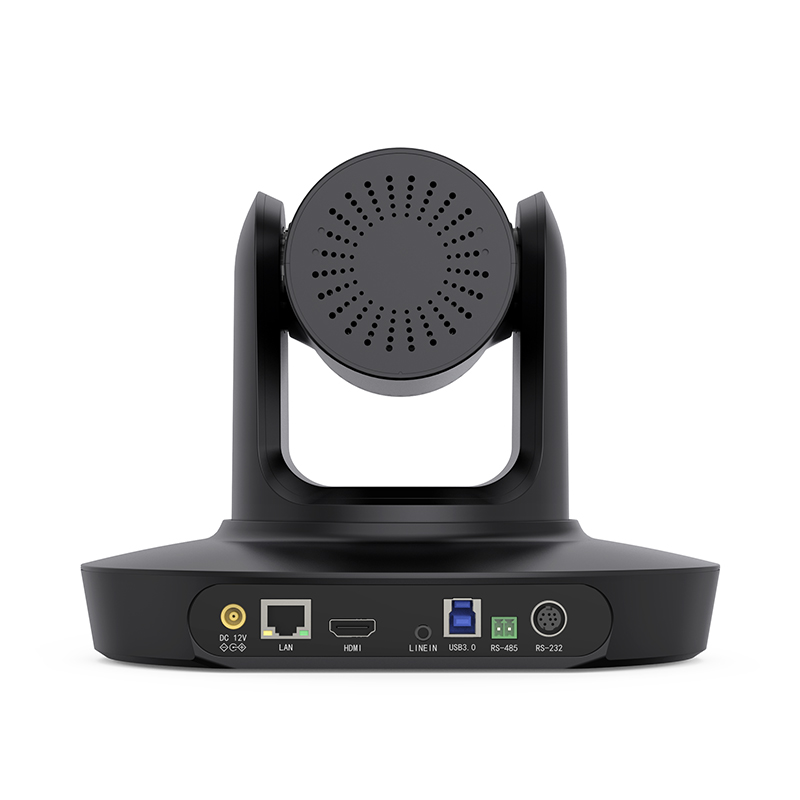

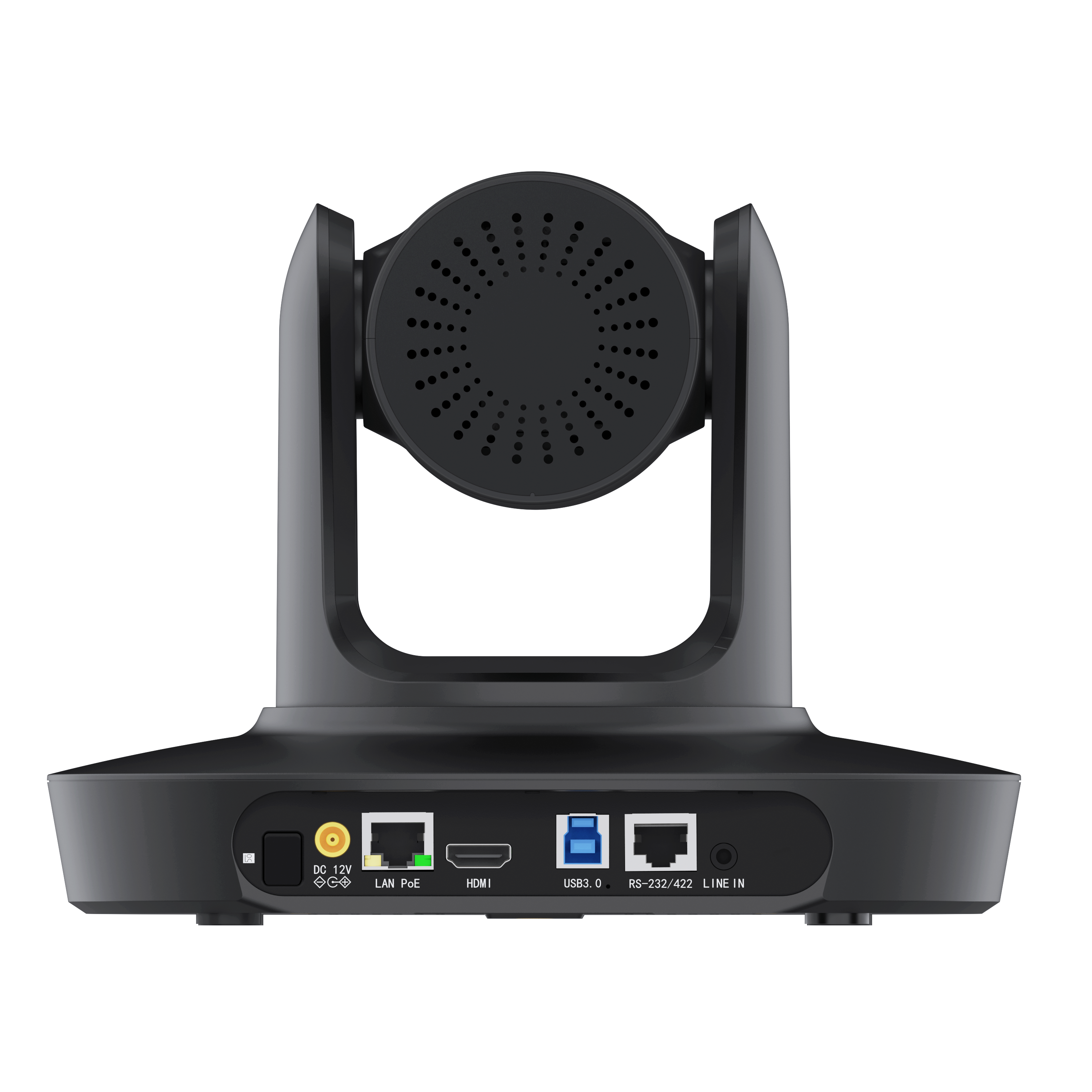

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power Consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
(W)224*(D)170*(H)174mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
