Features
1080P Full HD video output:
HW40UM /40UW: utilize a next-generation 1/3-inch high-quality COMS sensor;
HW40US: employs a next-generation 1/2.8-inch high-quality CMOS sensor;
Both can achieve premium images with a maximum resolution of 1920*1080.
The industry's first WIFI 6 technology wireless transmission camera:
It is the first time to adopt the wireless transmission technology of WIFI 6. Compared with the current common application of WIFI 5, it has the characteristics of greater bandwidth, suitable for more terminals, strong anti-interference, lower power consumption, wider coverage and higher protection, transmission Speed is increased by 40%.
Wireless WIFI 6 supports 4K picture output:
External dual-band WiFi 6 USB3.0 dongle ( optional ), supports H40U series upgrade up to 4K effect, including higher picture quality mode and longer transmission distance mode, can be applied to different modes according to the use environment, the longest transmission distance in distance mode up to 50 meters ( no shelter ), The best transmission distance in picture quality mode is within 10-15 meters.
* The maximum theoretical speed of wifi 6 can reach 9.6Gps, which is nearly 3 times that of wifi 5, and the signal stability is further improved.
Wireless camera one-to-two cascading function:
The newly upgraded WiFi 6 also enables wireless cascading of two cameras using a single WiFi dongle. Through a USB3.0 wireless dongle, it outputs separate video signals from two cameras, allowing for a streamlined connection that delivers an industry-innovative multi-camera experience.
*The one-to-two function cannot achieve 4K video output.
A variety of drawing mode to be choose:
Wired and wireless drawing mode can be selected according to the needs.
Supports an external USB type a expansion interface:
USB Type A expansion port can be used according to the needs, and external products such as microphones can be installed to further increase product application scenarios.

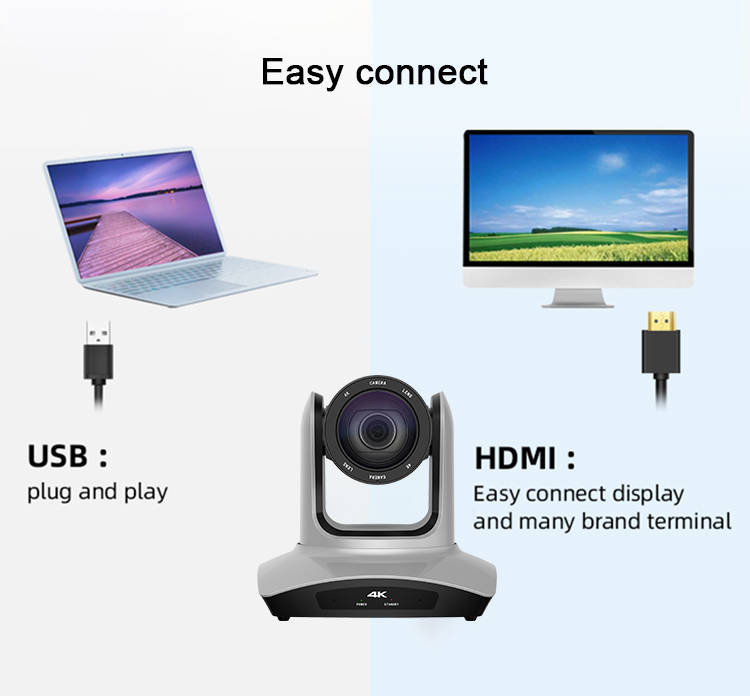

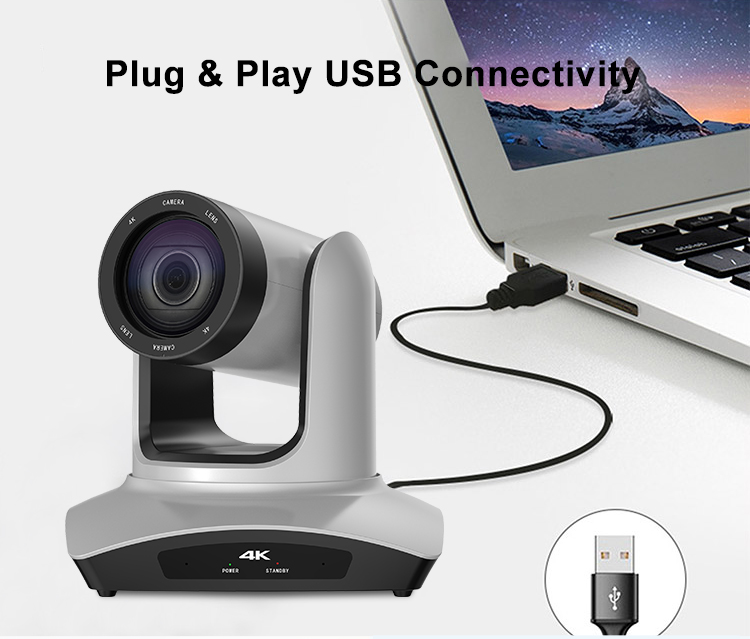

USB 2.0 interface:
Support full HD 1080p video output.
Remote control:
Using RS232 and RS422/485 serial ports, it can cascade control multiple cameras.
Low Light:
Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applying 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 55dB.
Multiple encoding formats:
USB 2.0 supports YUY2, MJPEG, H265, and H264 encoding formats, reducing the pressure on host encoding and decoding.
Multiple Control Protocols:
Support VISCA, PELCO P/D protocol, support automatic identification protocol.

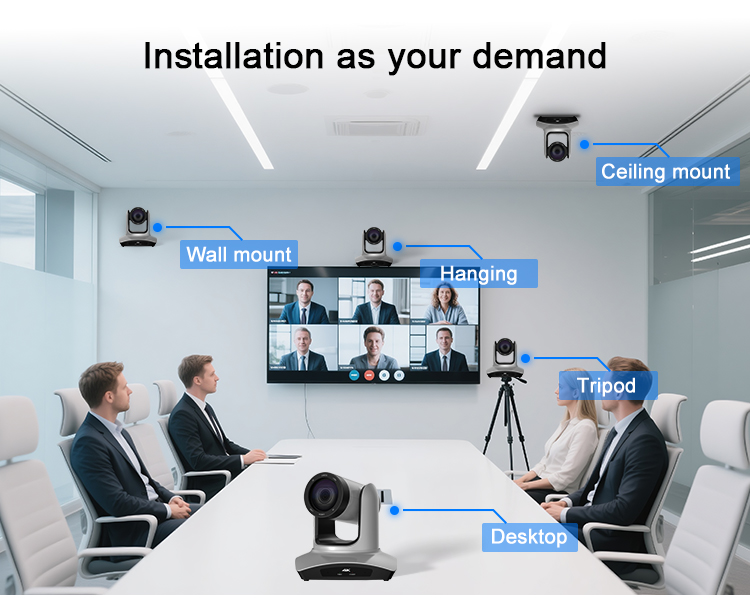

Multi-installation Methods:
Wall mounting, desktop or ceiling mounting
|
Image Parameters |
|
|
Resolution |
USB: 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Image Sensor |
HW40UM: SONY 1/3" CMOS |
|
Pixels |
HW40UM/UW: 2.19 Effective Megapixels |
|
Scan Mode |
Line by line |
|

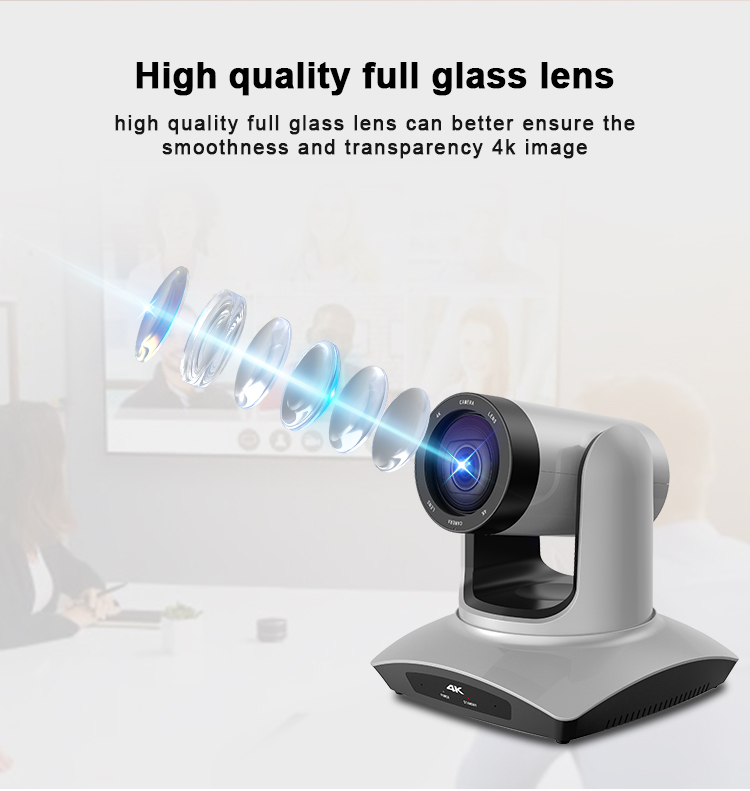

Lens |
HW40UM: Fixed Focus Lens, f=2.26mm,F1.8 |
|
Digital Zoom |
HW40UM/UW：4X |
|
Horizontal View Angle |
HW40UM: 108° |
|
Vertical View Angle |
HW40UM: 61° |
|
Focus System |
HW40UM: Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
HW40UM: 1.5 Lux |
|
Exposure |
Auto, Manual |
|
White Balance |
Auto, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|

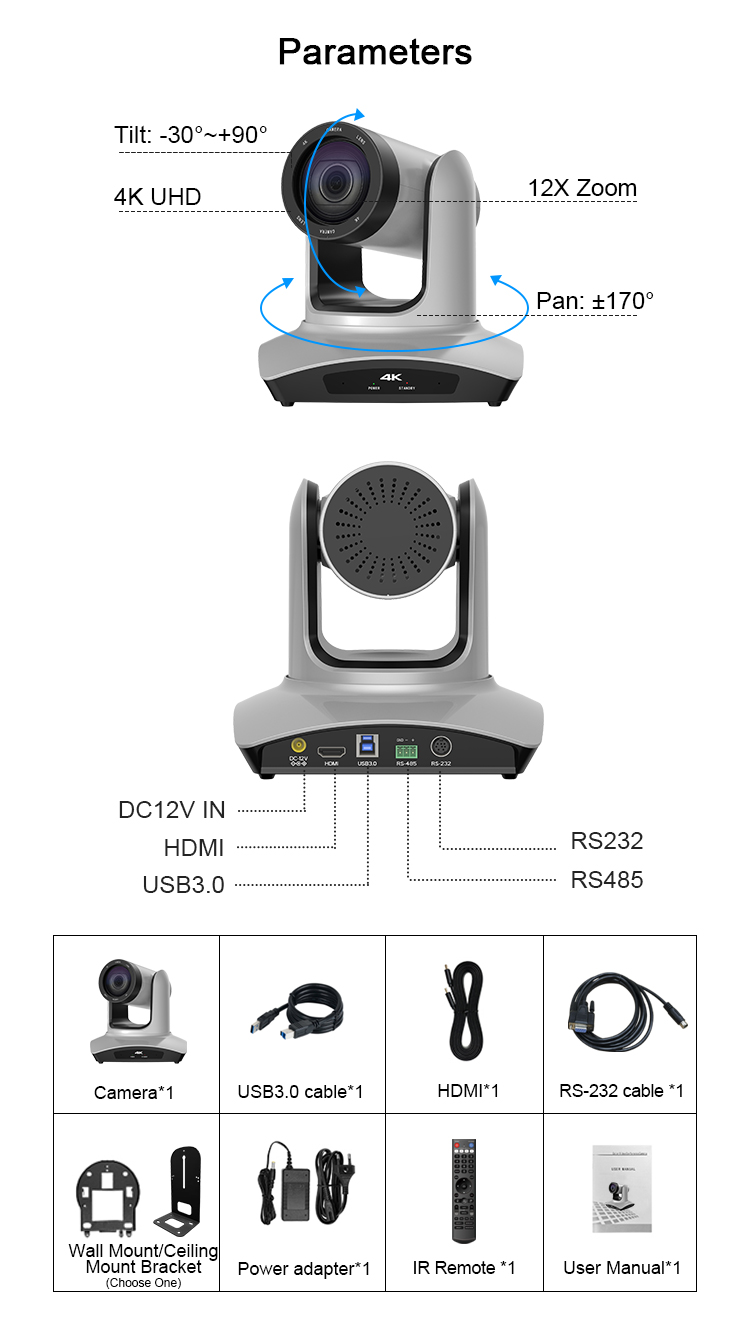

Pan/Tilt |
|
|
Pan Angle |
±170° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~60°/s |
|
Tilt Speed |
1°~60°/s |
|

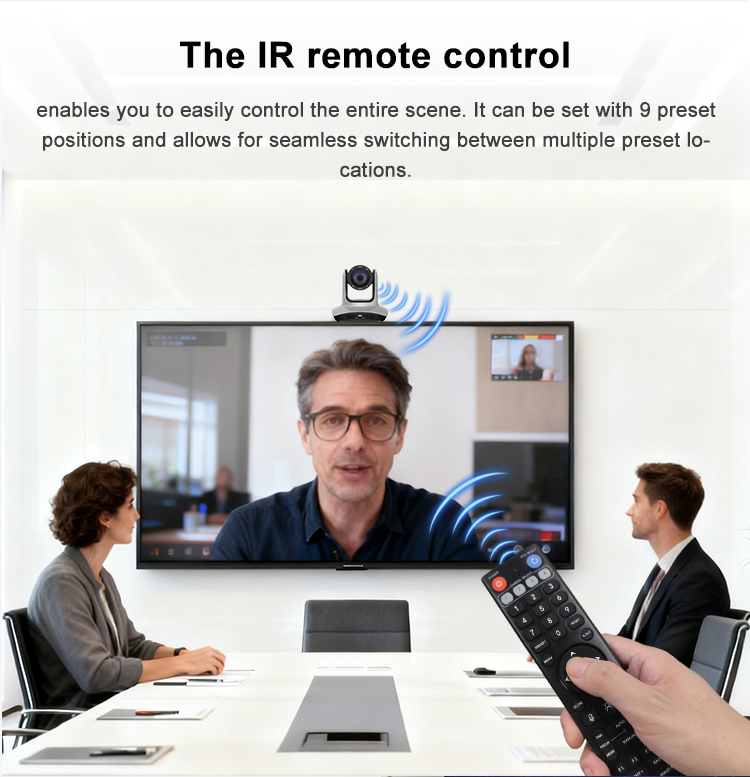

Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG, H.264 |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|

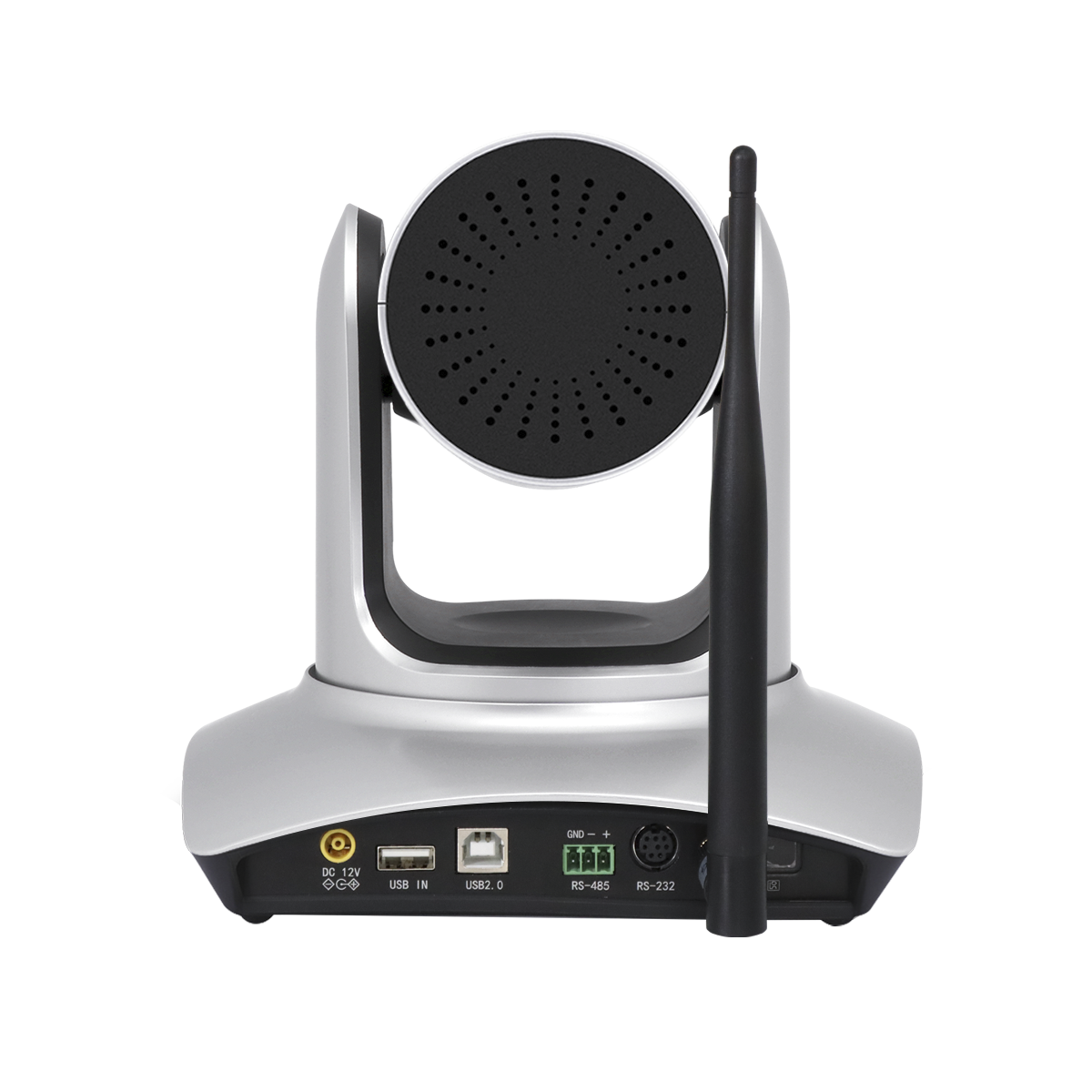

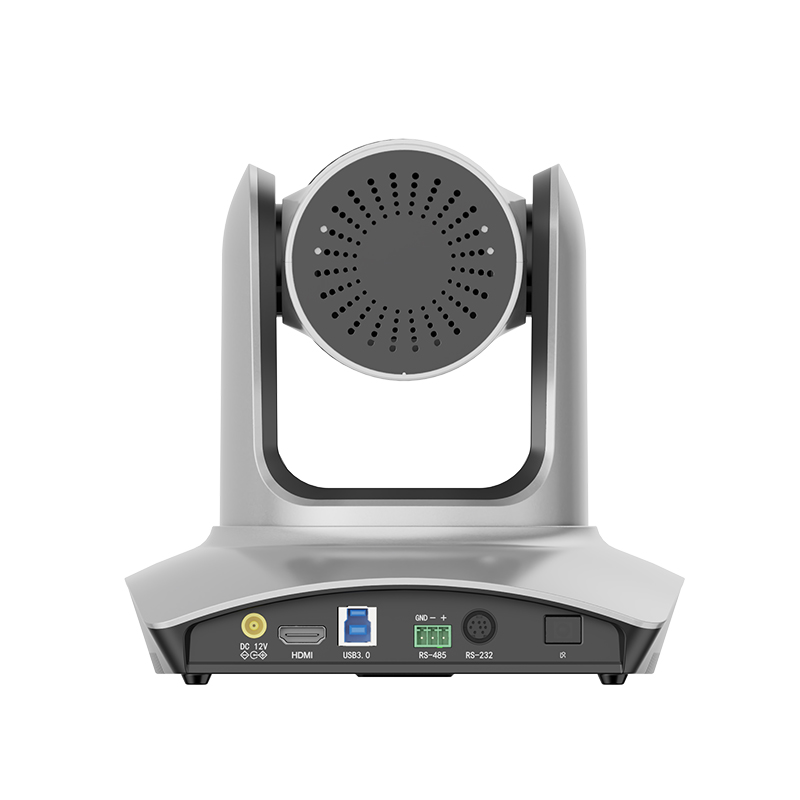

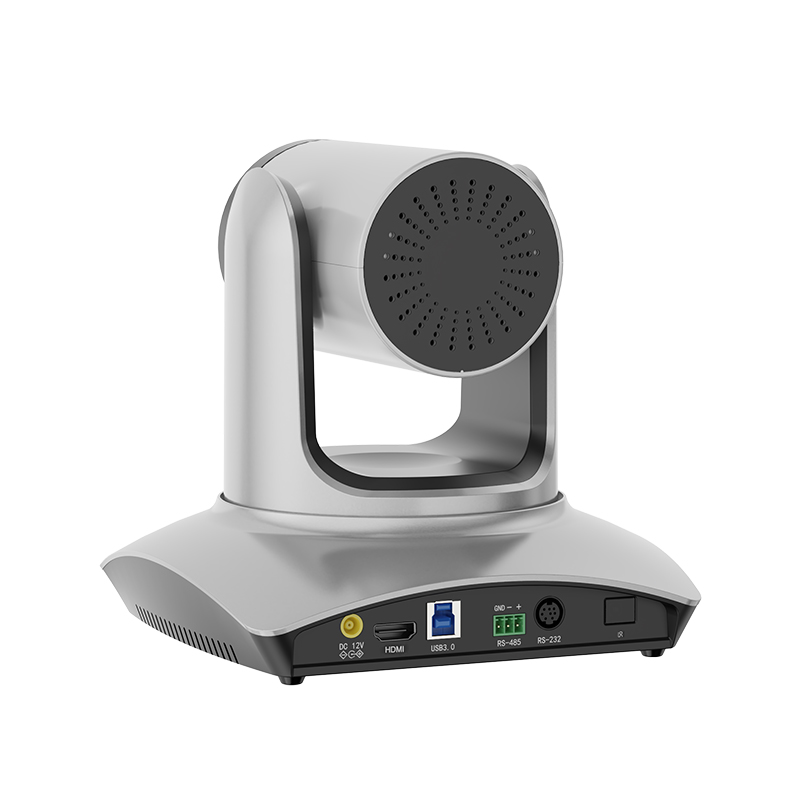

Interface |
|
|
USB Interface |
1 Line, USB2.0, Type-A Socket |
|
Serial Interface |
1 Line, RS232 IN: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.0.7A |
|
Power Consumption |
Max.8W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Silver |
|
Dimension |
(W)180*(D)180*(H)175mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB2.0 Cable, Ceiling bracket, Wall bracket(Optional) |
WiFi Dangle Specifications
|
USB Specifications |
|
|
Protocol |
UVC1.1 |
|
USB Version |
USB 3.0 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
UVC Video Coding Format |
YUY2, MJPEG |
|
UVC Video Frame Rate |
Up to 30FPS |
|
Wireless Parameters |
|
|
Band |
2.4GHz/5.8GHz |
|
Power Consumption |
5V/0.4A |
|
Wireless Network Standard |
IEEE 802.11b/g/n 1T1R |
|
WIFI Image Output |
|
|
MJPEG |
3840*2160,1920*1080,1280*720,960*540,800*600,640*360,720*576,720*480,640*480,352*288,320*240 |
|
YUY2 |
1920*1080,1280*720,960*540,800*600,640*360,720*576,720*480,640*480,352*288,320*240 |
|
Other |
|
|
Use Environment |
Recommended indoor |
|
Use Distance |
2.4G is recommended to be used within 50 meters, and 5.8G is recommended to be used within 15 meters |
|
Operating Temperature |
-10~40℃ |
|
Camera Dimensions |
(L)275×(W)25.15×(H)12.6mm（with antenna） |
|
Color |
Black/ White |
|
Weight |
About 0.3kg |
