HDKATOV Keyboard Controller KC20 4D RS422/RS232/RJ45 Joystick Video Conference Broadcast Church Live Streaming
Products Description

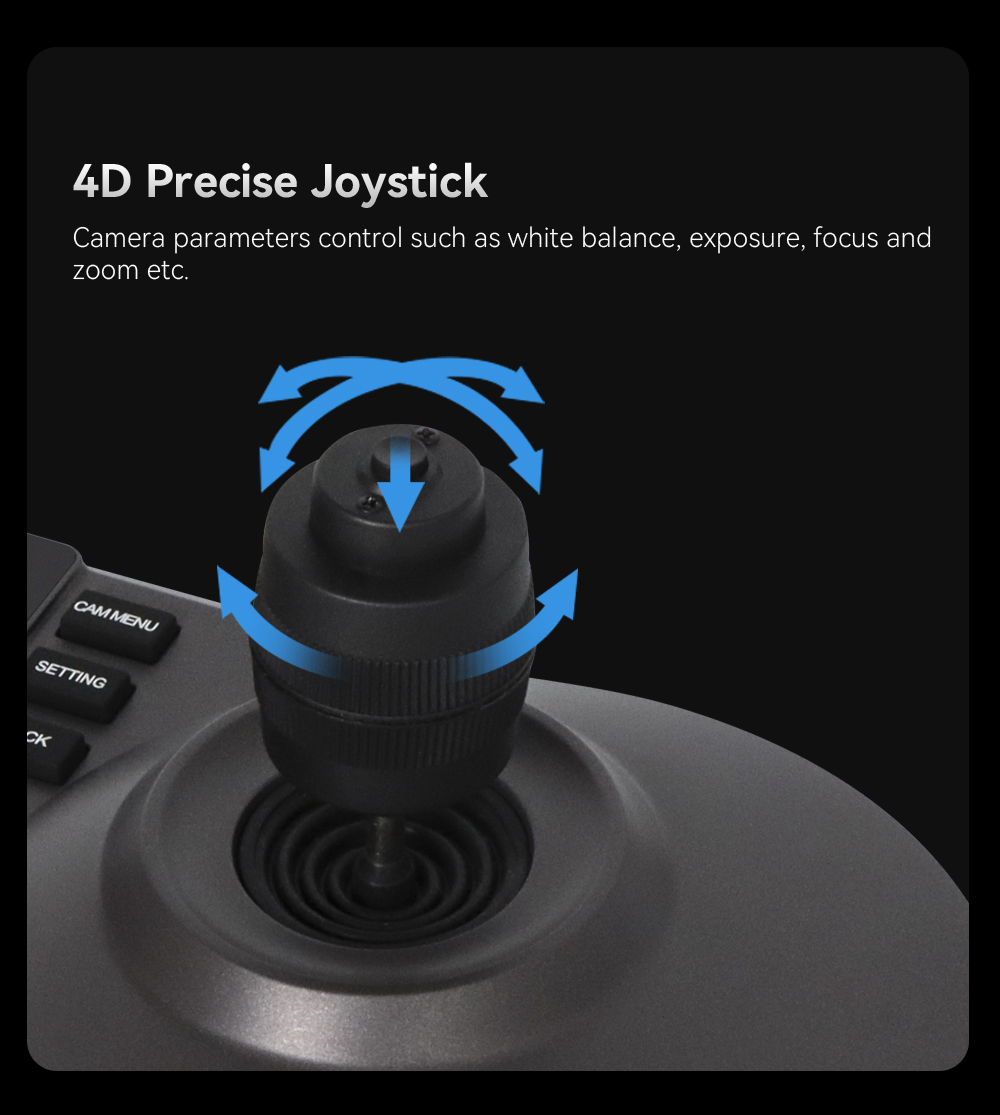

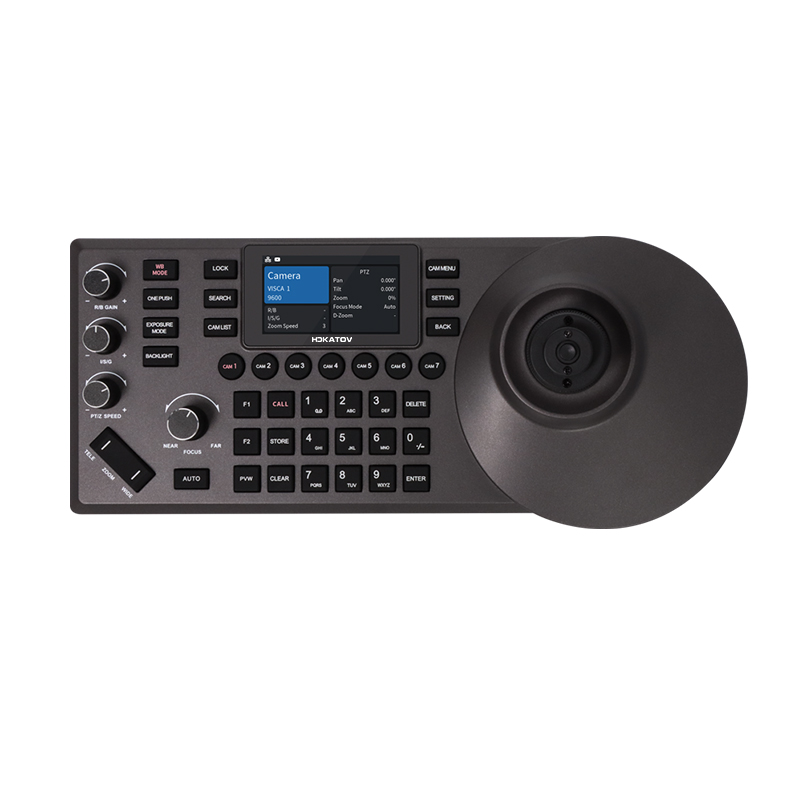

【4D precise Joystick+3D knobs+ergonomic zoom button】
Camera parameters control such as white balance, exposure, focus and zoom etc.

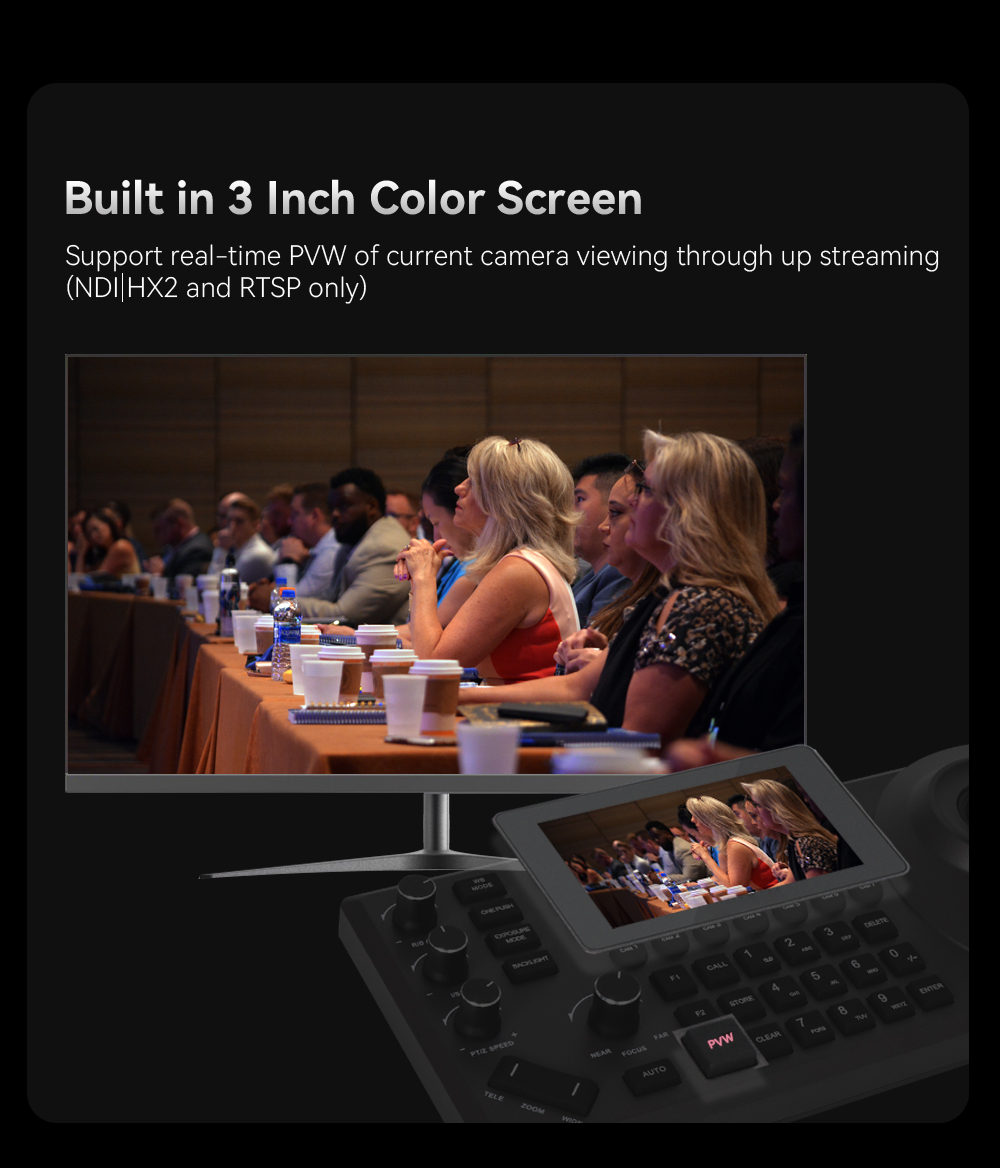

【Built-in 3-inch color screen】
Support real-time PVW of current camera viewing through up streaming (NDI|HX2 and RTSP only).

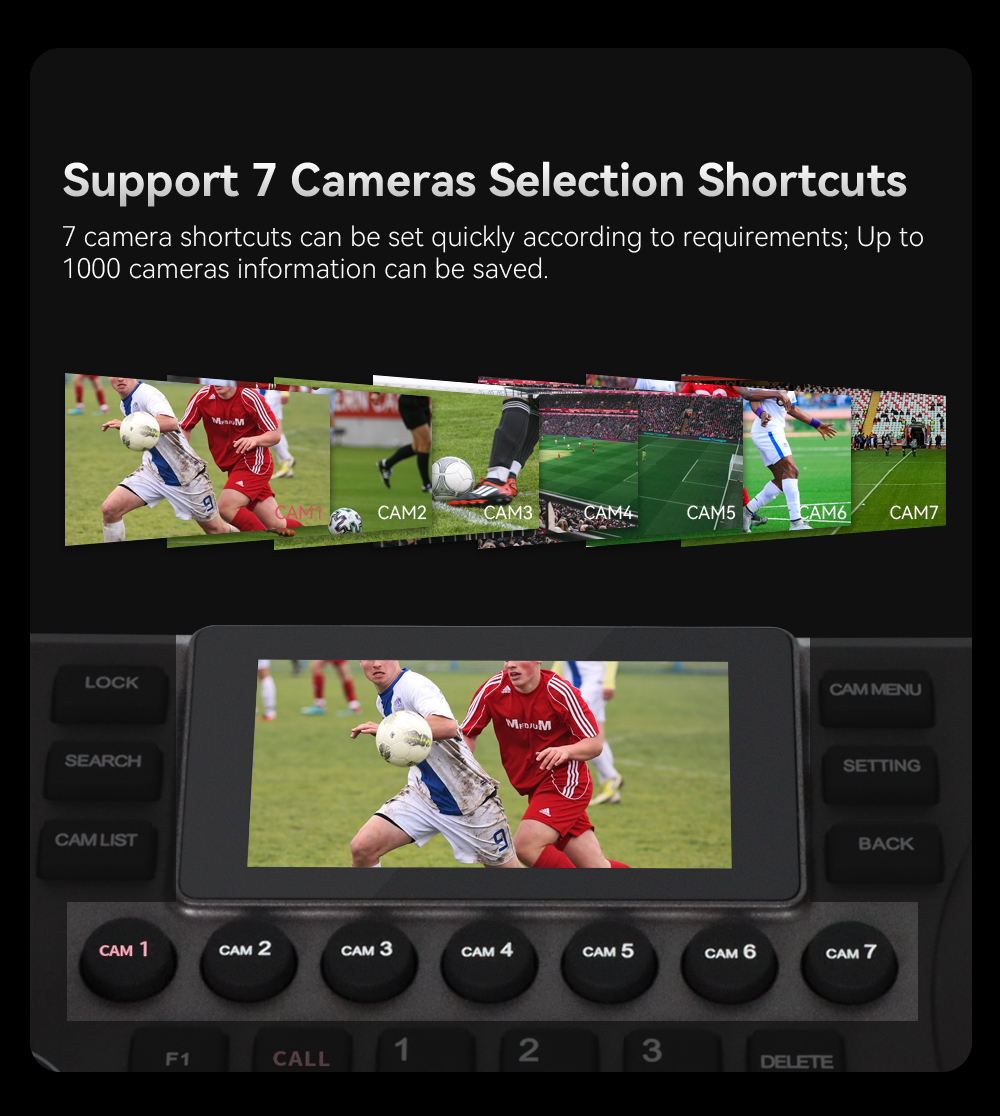

【Support 7 cameras selection shortcuts】
7 camera shortcuts can be set quickly according to requirements; Up to 1000 cameras information can be saved.

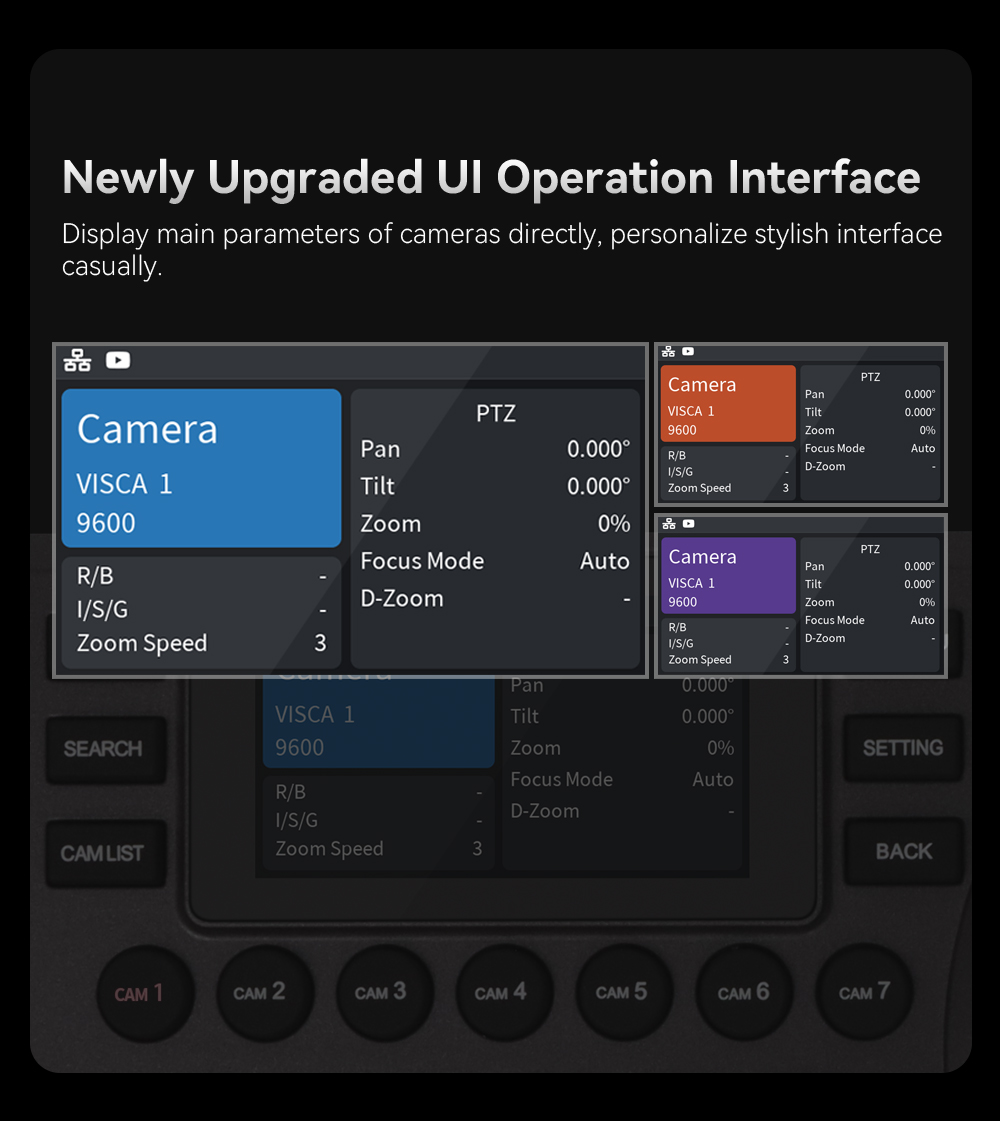

【Newly upgraded UI operation interface】
Display main parameters of cameras directly, personalize stylish interface casually.

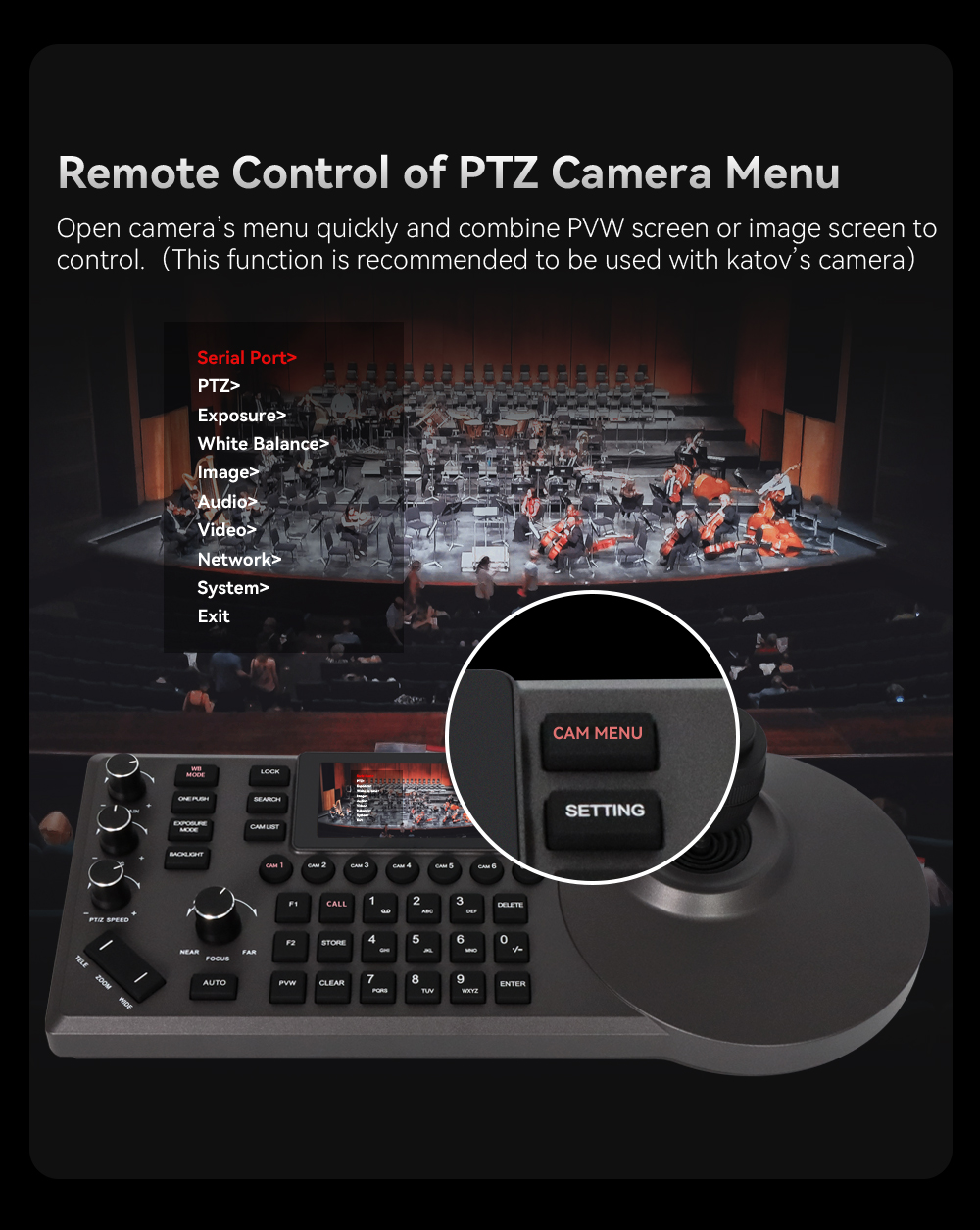

【Remote control of PTZ camera menu】
Open camera’s menu quickly and combine PVW screen or image screen to control.
* This function is recommended to be used with our camera.

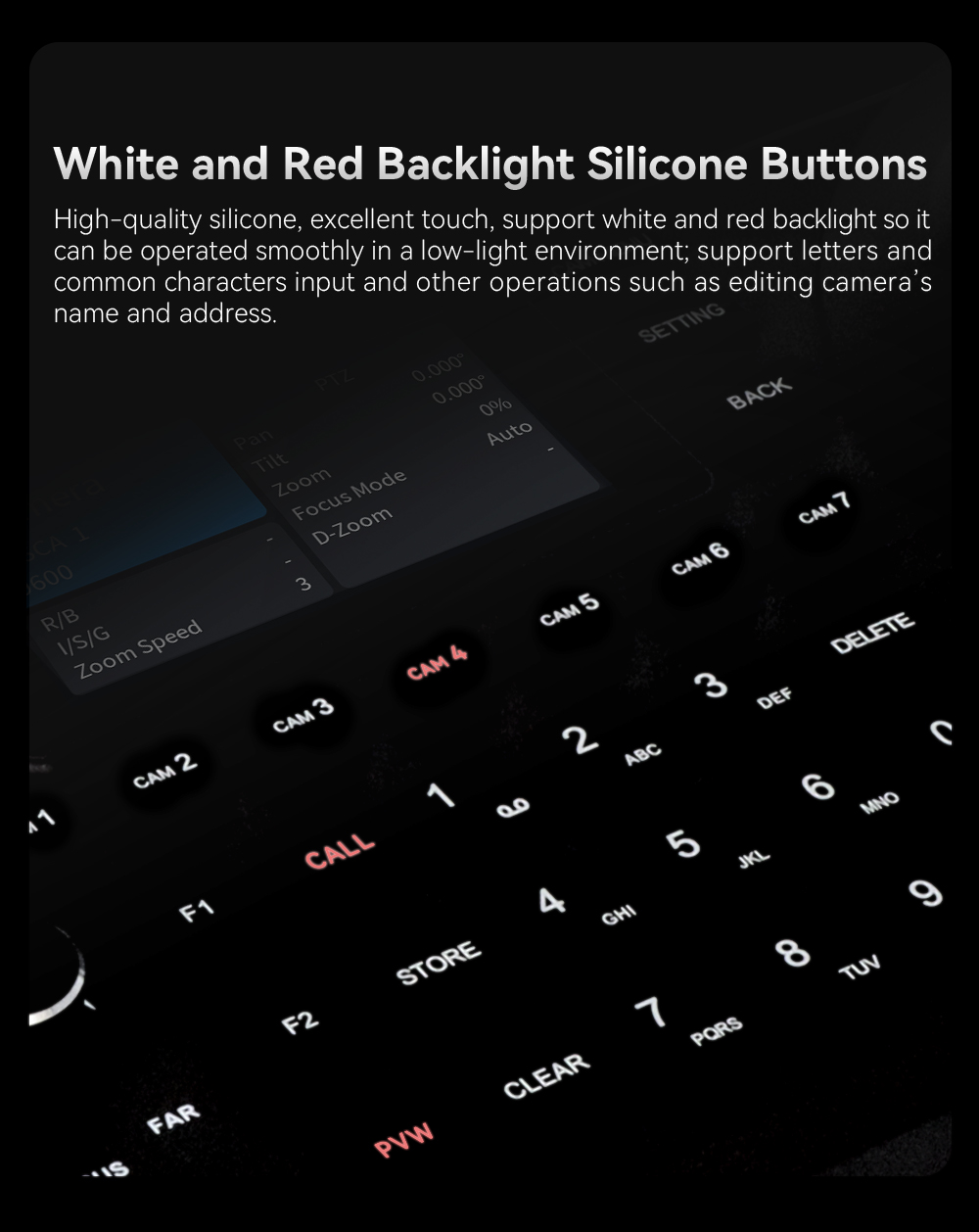

【White and red backlight silicone buttons】
High-quality silicone, excellent touch, support white and red backlight so it can be operated smoothly in a low-light environment; support letters and common characters input and other operations such as editing camera’s name and address.

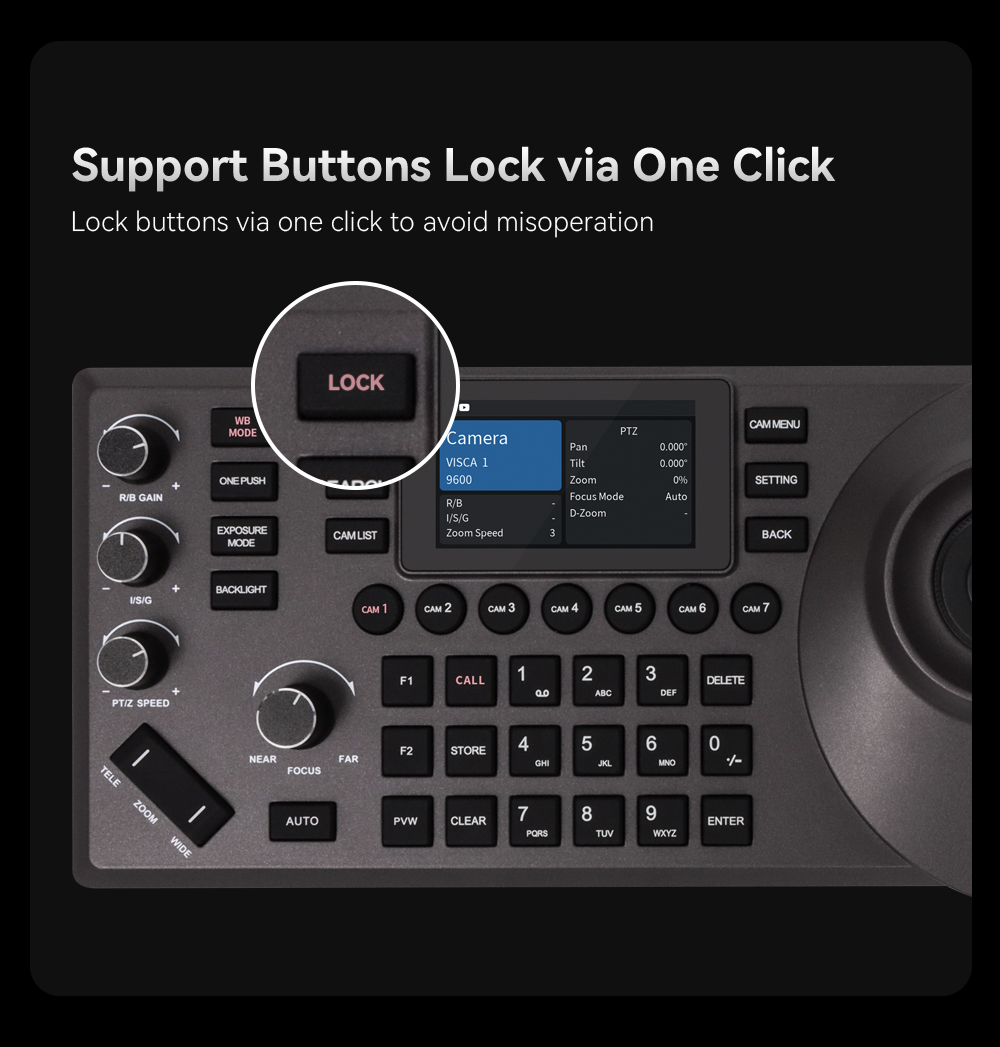

【Support buttons lock via one click】
Lock buttons via one click to avoid misoperation.

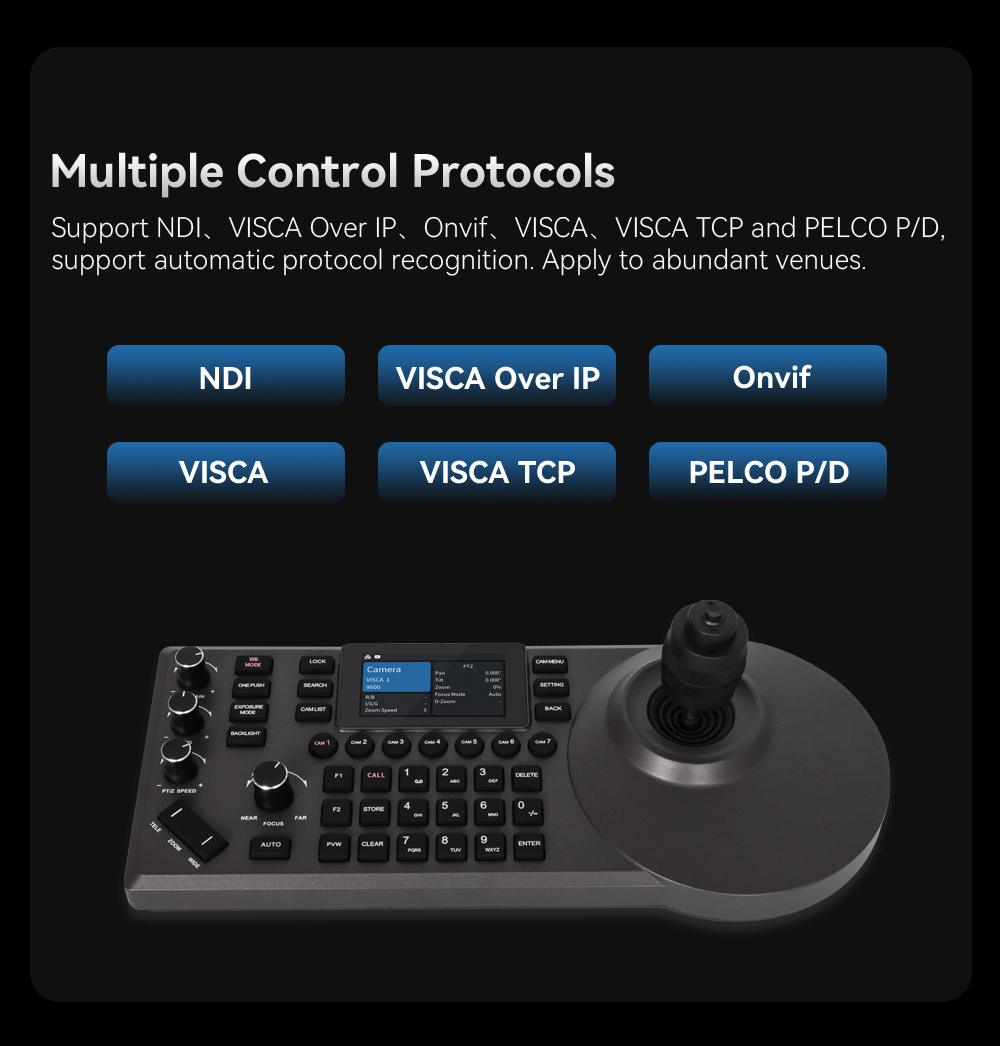

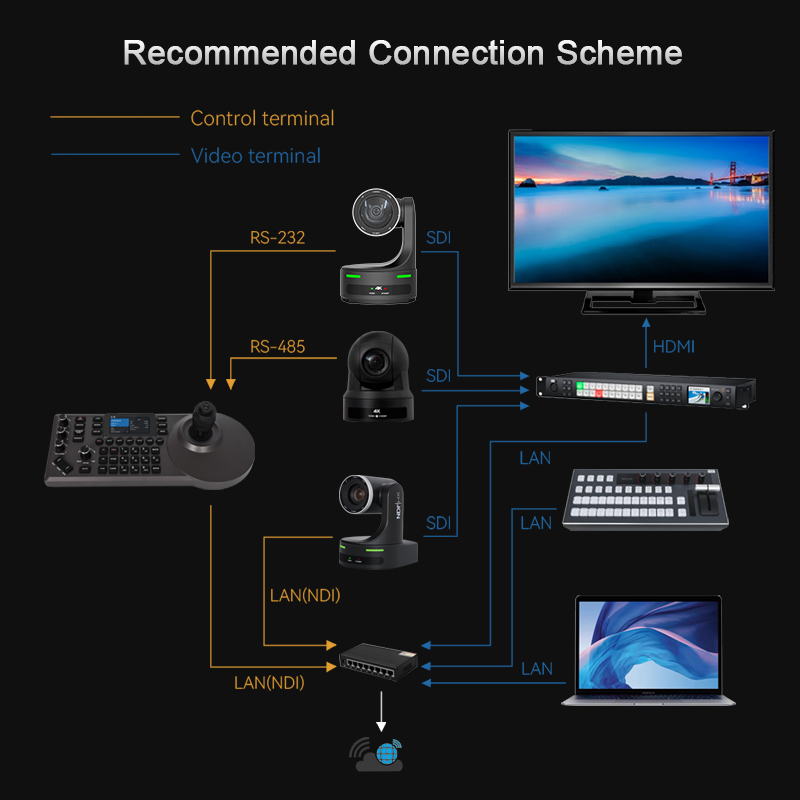

【Multiple control protocols, apply to abundant venues】
Supports VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, Onvif, and NDI® (optional) control protocols, with automatic protocol recognition.
* Additional licenses are required to upgrade the NDI function, please consult the manufacturer for details.

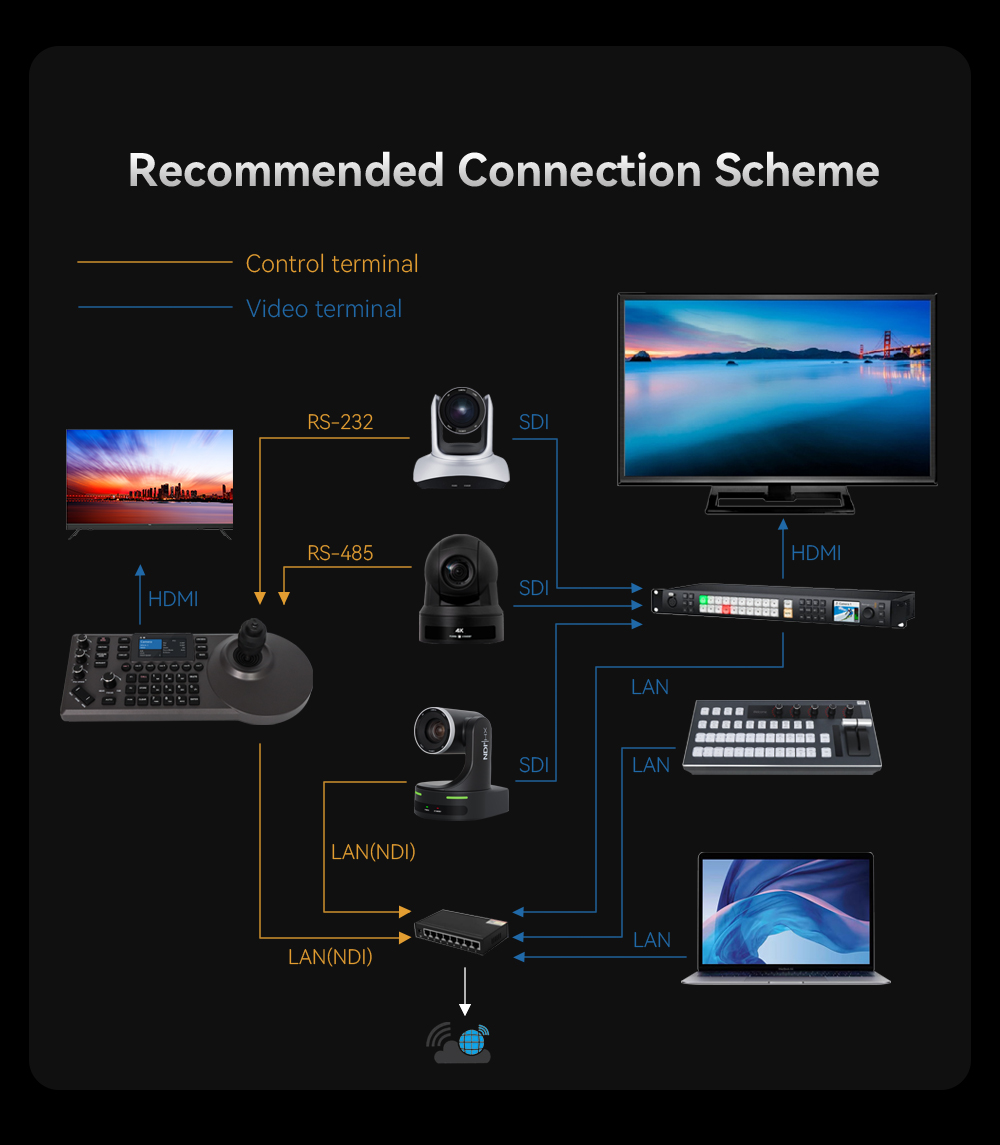

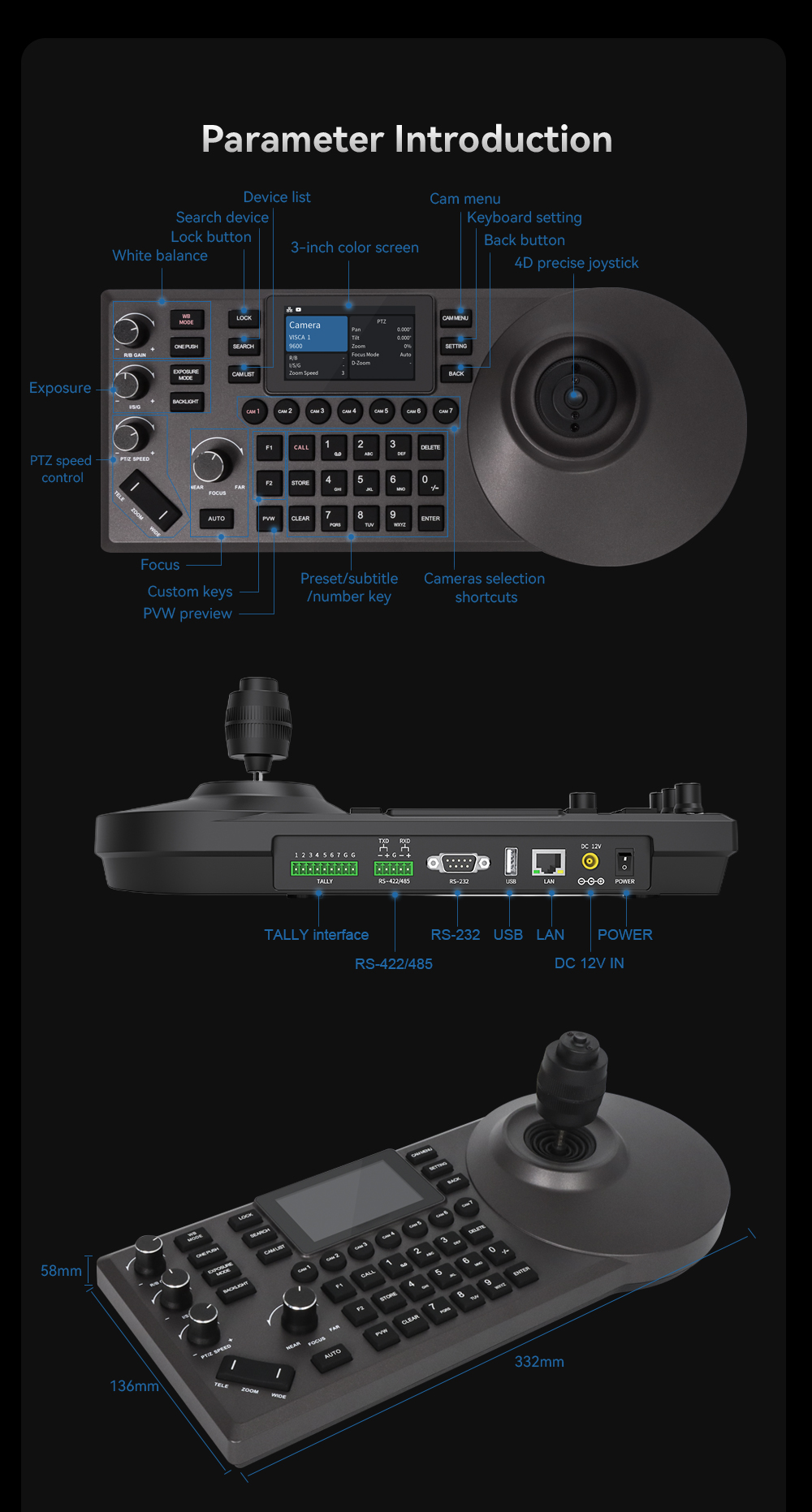

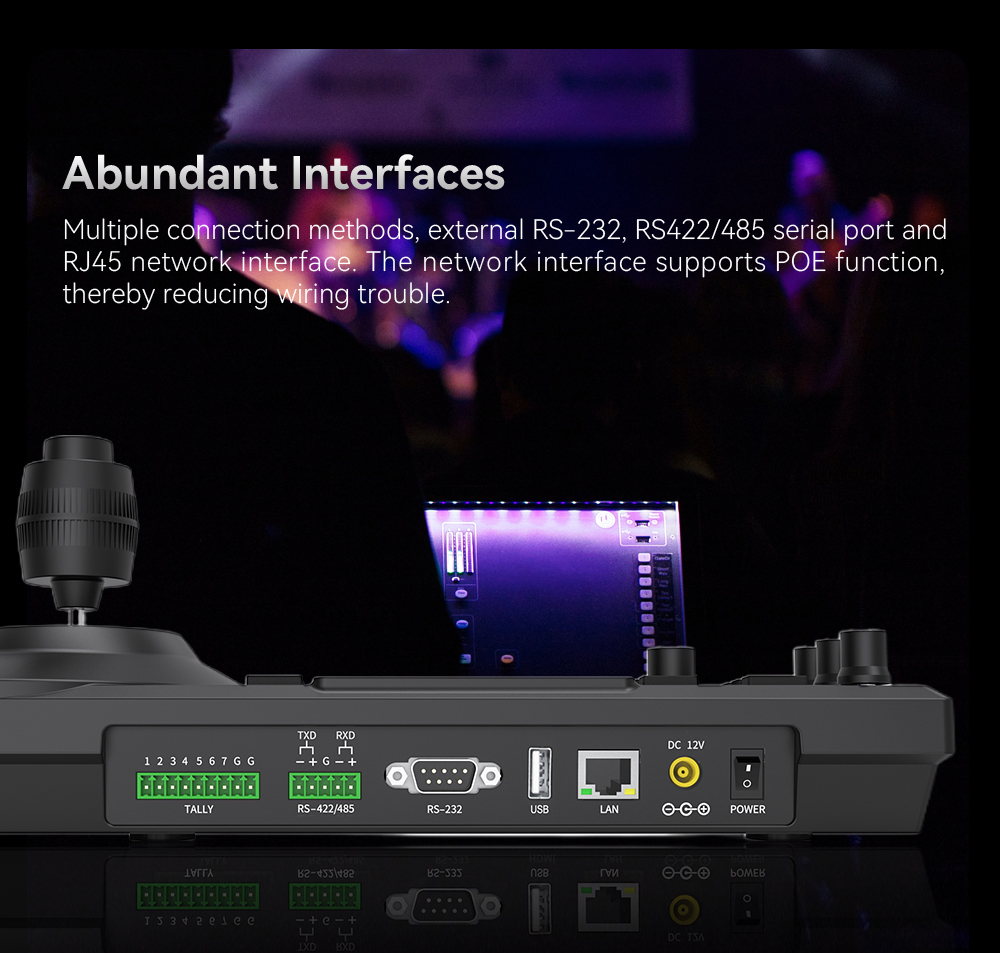

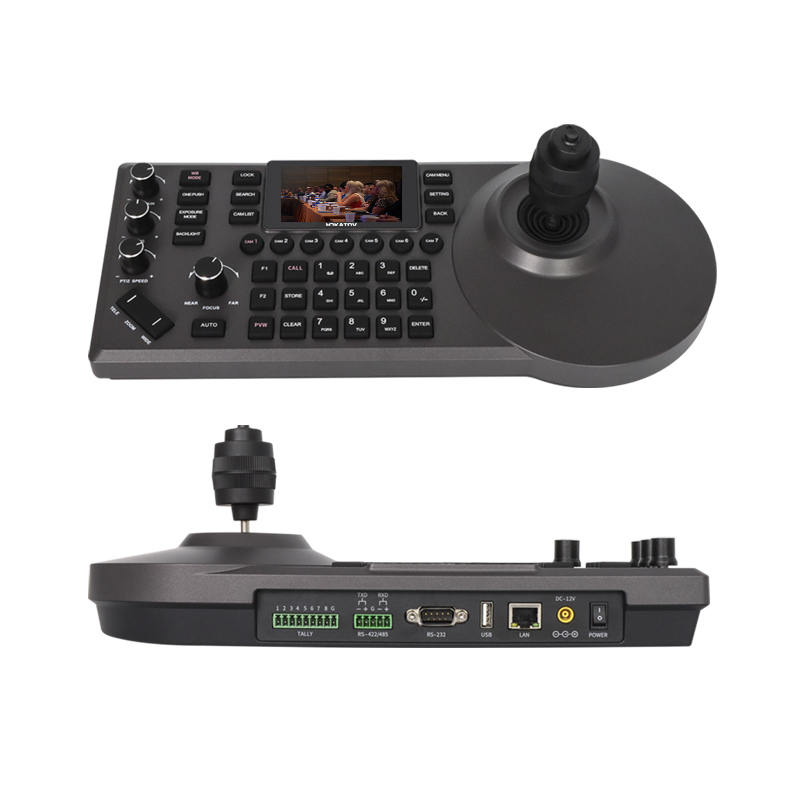

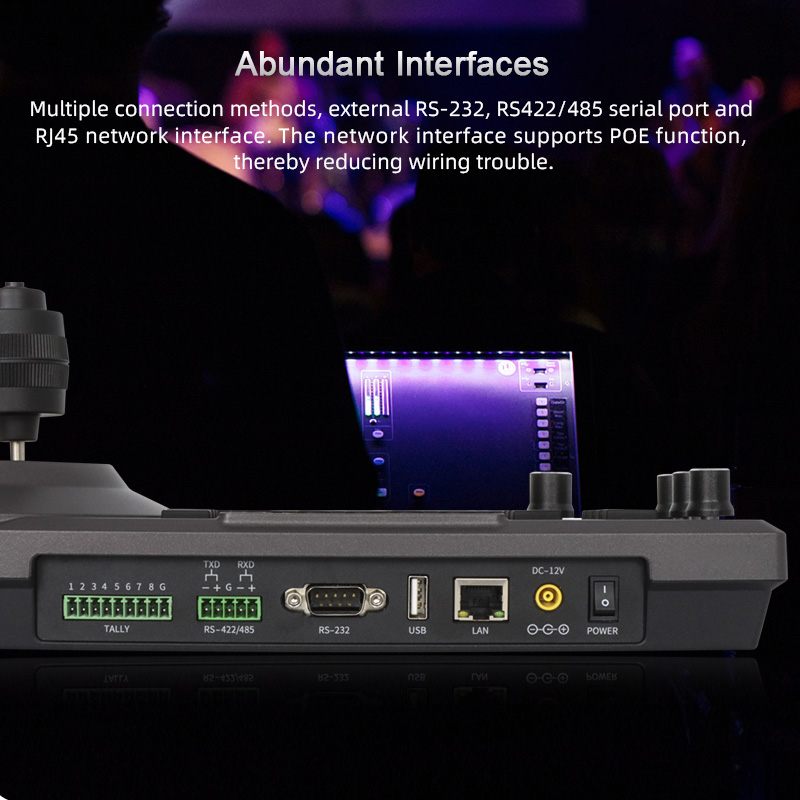

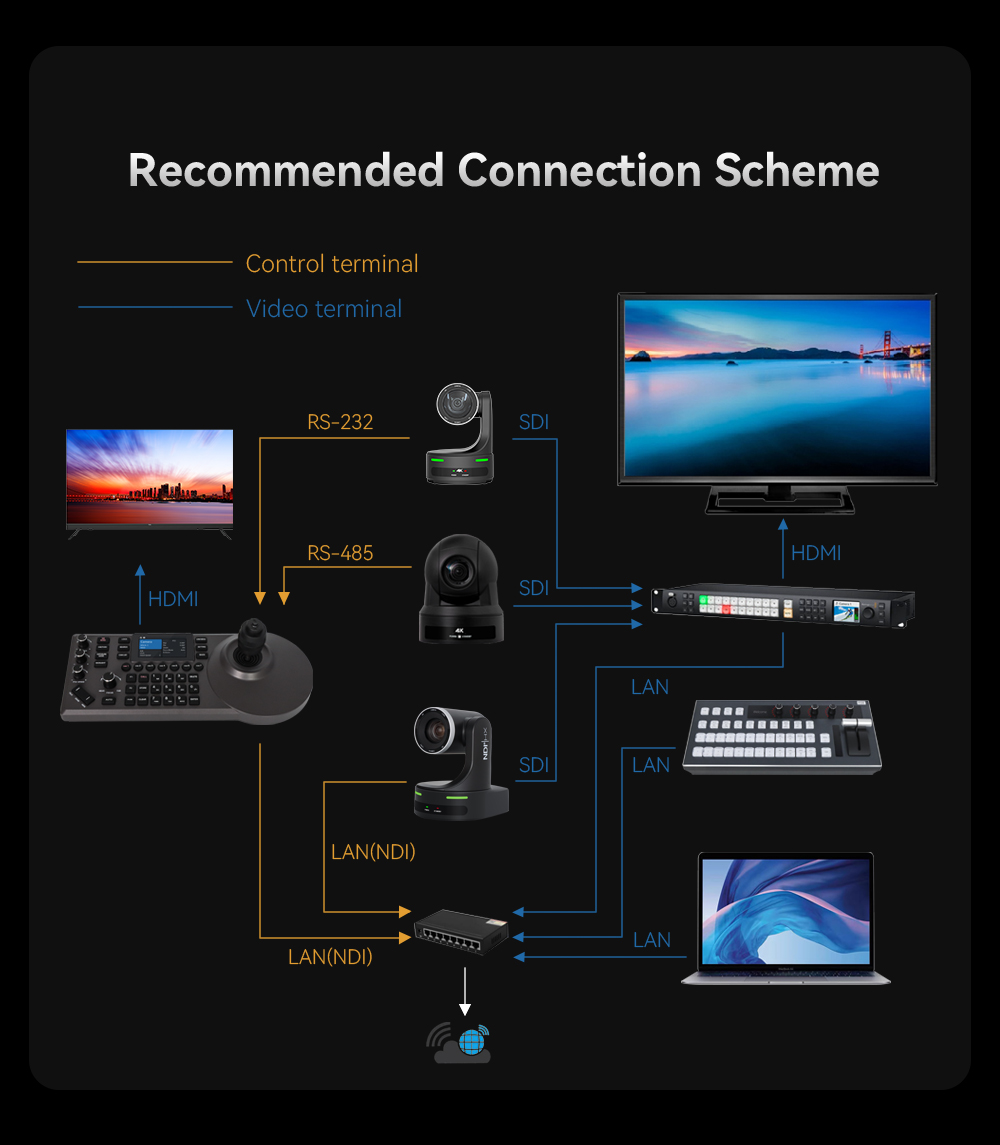

【Abundant interfaces, multiple connection methods】
External RS-232, RS422/485 serial port and RJ45 network nterface. The network interface supports POE function, thereby reducing wiring trouble.

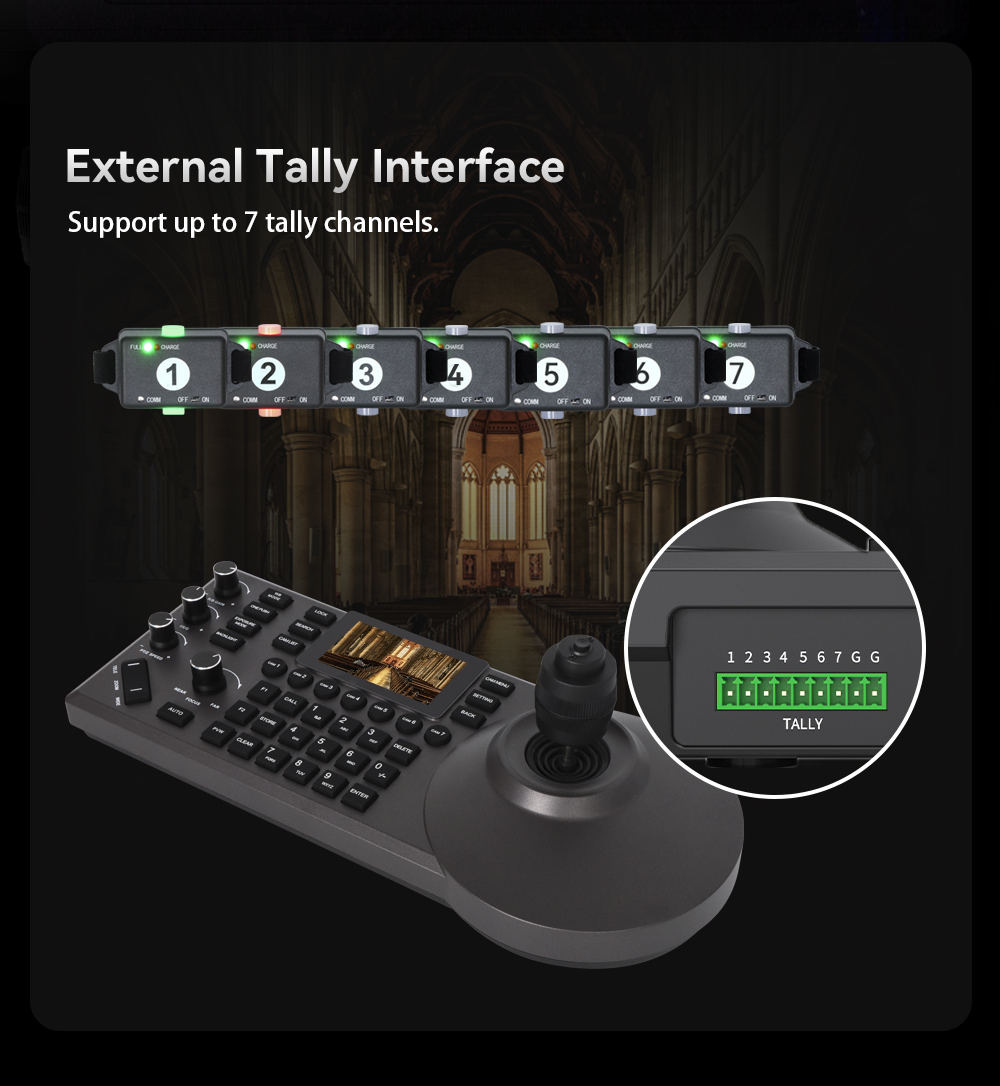

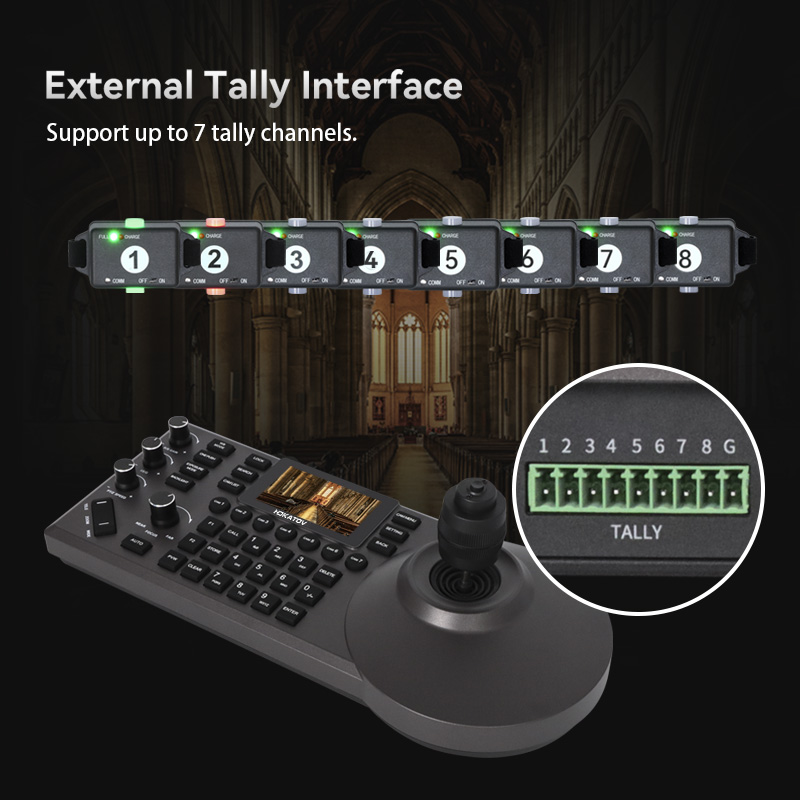

【External tally interface】
Support up to 7 tally channels.

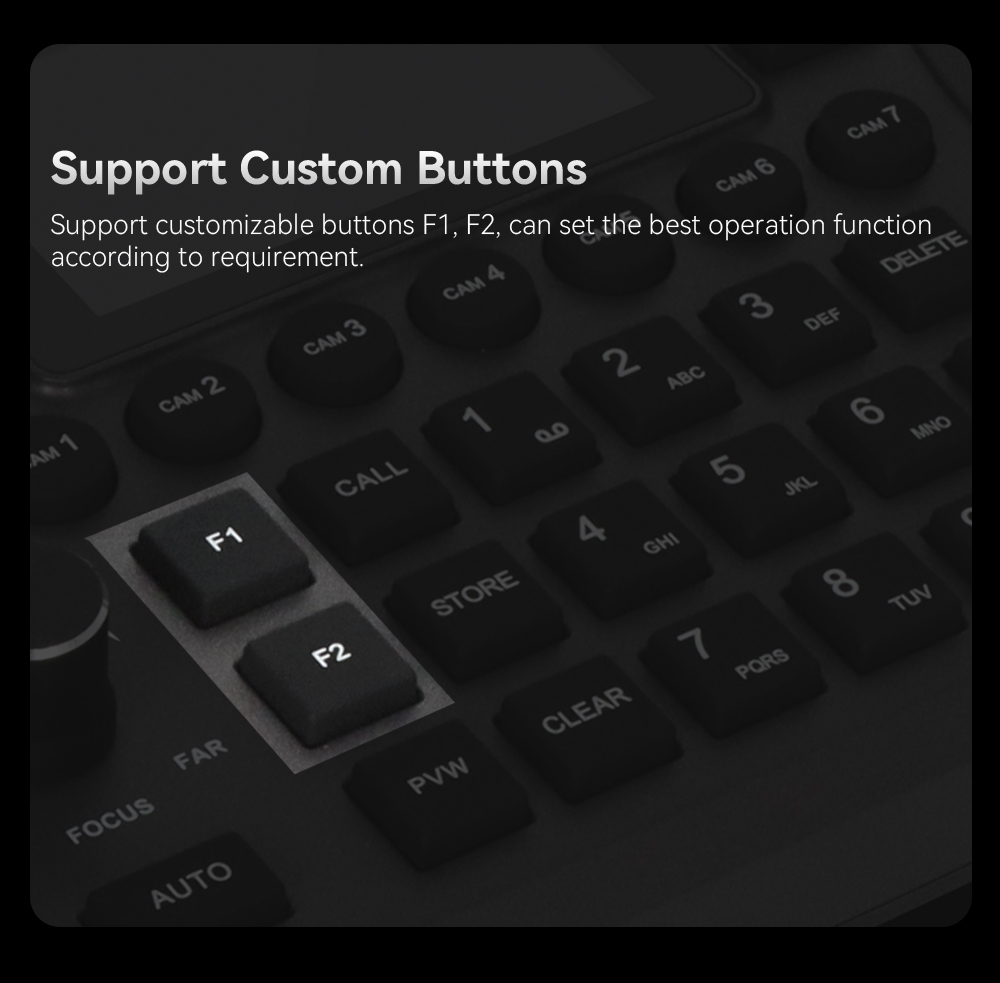

【Support customizable buttons】
Supports custom F1, F2, PVW buttons that can be tailored to the user's preferences for optimal functionality.
Details Images
Details Images
Application Field
Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,
Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.
Related Category
4K PTZ Camera,FHD PTZ Camera,NDI PTZ Camera,Webcam,Education Tracking Camera,Video Conferencing System,
Live HD Camera,Integrated Audiovisual Intelligent Endpoint,Integrated HD Camera,Speakerphone,Cam Controller,
Video Switcher,Ptz Controller,Control Panel
Core Keywords
PTZ controller,Camera control panel,NDI controller,Live production switcher,4D joystick camera control,POE PTZ controller,Broadcast camera switcher,Studio production controller,7-camera shortcut controller,PTZ Joystick Controller ,PTZ controller, vmix controller, ptz controller joystick,Live production switcher,4D joystick camera controller,Broadcast camera switcher,Church PTZ Controller,Studio PTZ Controller

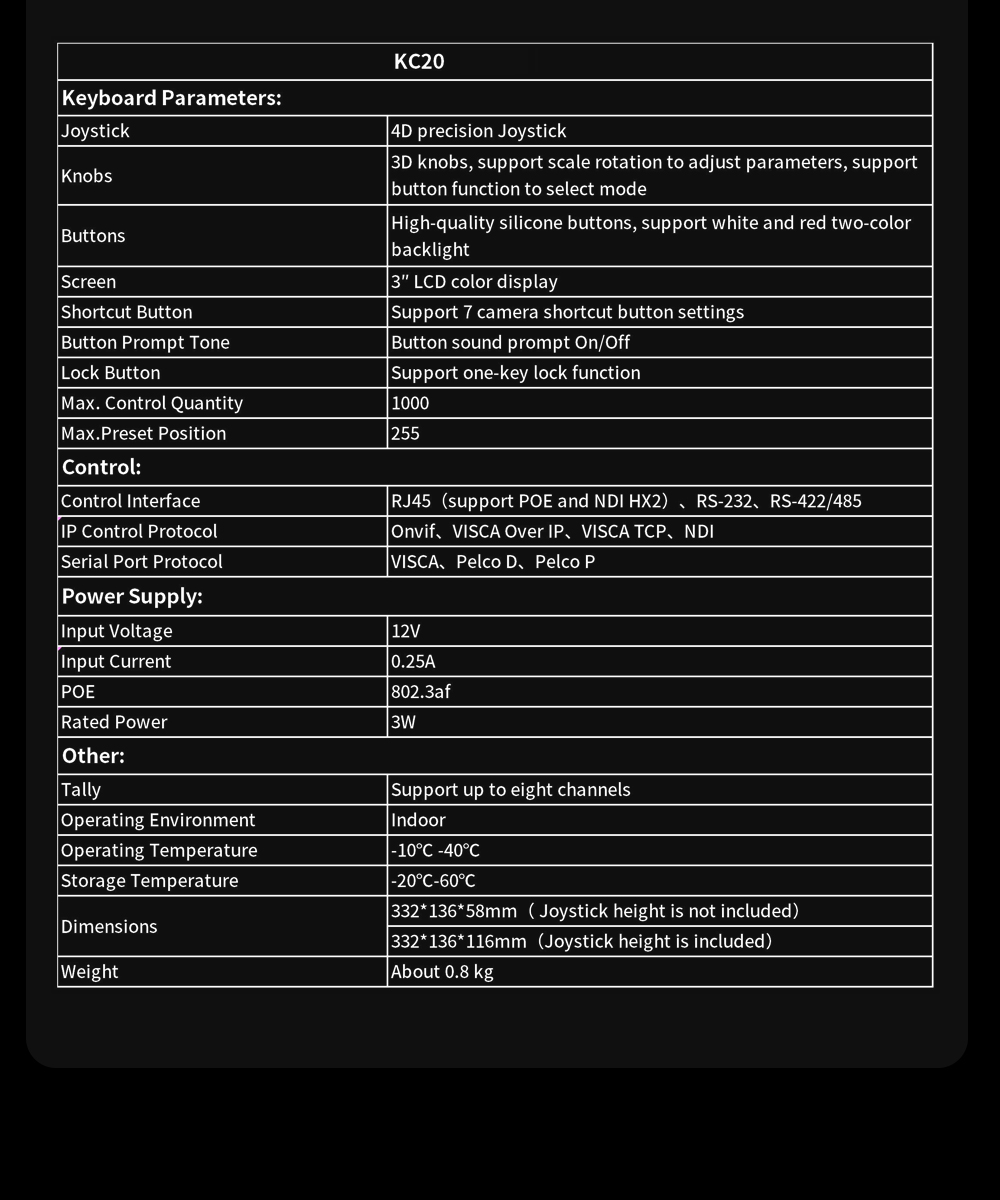

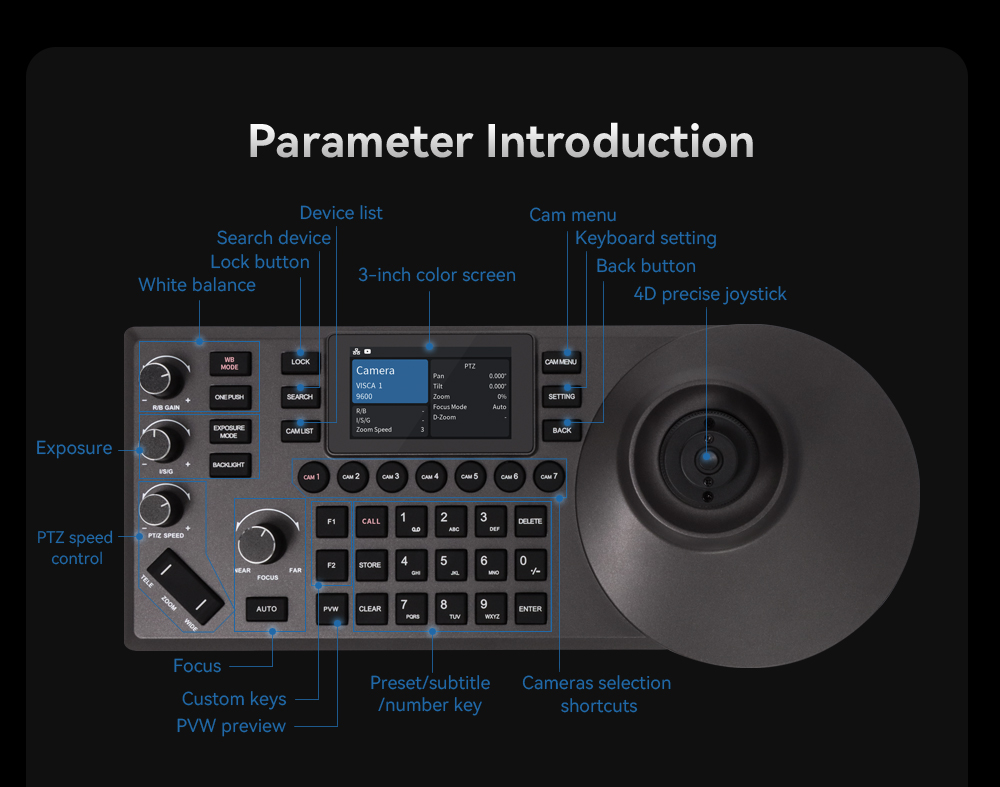

Keyboard Parameters |
|
Joystick |
4D precision Joystick |
Knobs |
3D knobs, support scale rotation to adjust parameters, support button function to select mode |
Buttons |
High-quality silicone buttons, support white and red two-color backlight |
Screen |
3″ LCD color display |
Shortcut Button |
Support 7 camera shortcut button settings |
Button Prompt Tone |
Button sound prompt On/Off |
Lock Button |
Support one-key lock function |
Max. Control Quantity |
1000 |
Max.Preset Position |
255 |
Control |
|
Control Interface |
RJ45 (supports POE and NDI®|HX2 optional), RS-232, RS-422/485 |
IP Control Protocol |
Onvif, VISCA Over IP, VISCA TCP, NDI® (optional) |
Serial Port Protocol |
VISCA, Pelco D, Pelco P |
Power Supply |
|
Input Voltage |
12V |
Input Current |
0.25A |
POE |
802.3af |
Rated Power |
3W |
General Specifications |
|
Tally |
Supports up to 7 channels at most. |
USB Interface |
Upgrade using an external USB flash drive. |
Operating Environment |
Indoor |
Operating Temperature |
-10°C~40°C |
Storage Temperature |
-20°C~60°C |
Dimension |
(W)332*(D)136*(H)58mm (Joystick height is not included) (W)332*(D)136*(H)116mm (Joystick height is included) |
Weight |
0.8 kg |
