KC50/KC50N
Download
Products Description

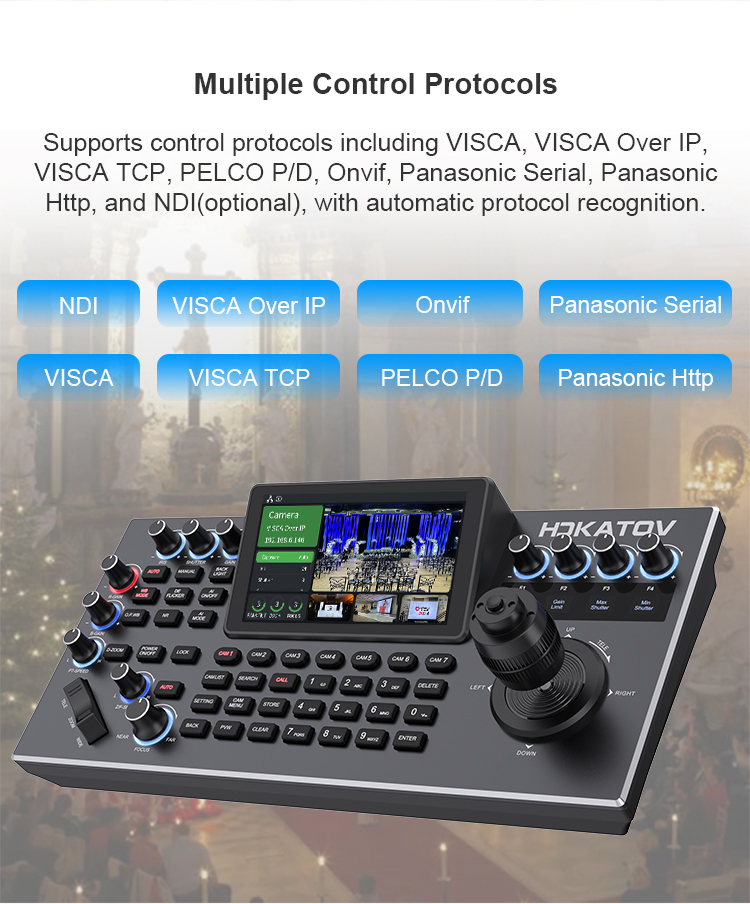

【Multiple Control Protocols for Versatile Applications】
Supports VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, Onvif, Panasonic Serial, Panasonic Http, and NDI®|HX3 (optional) protocols with auto-detection, ensuring seamless compatibility with a wide range of PTZ cameras and diverse application scenarios.

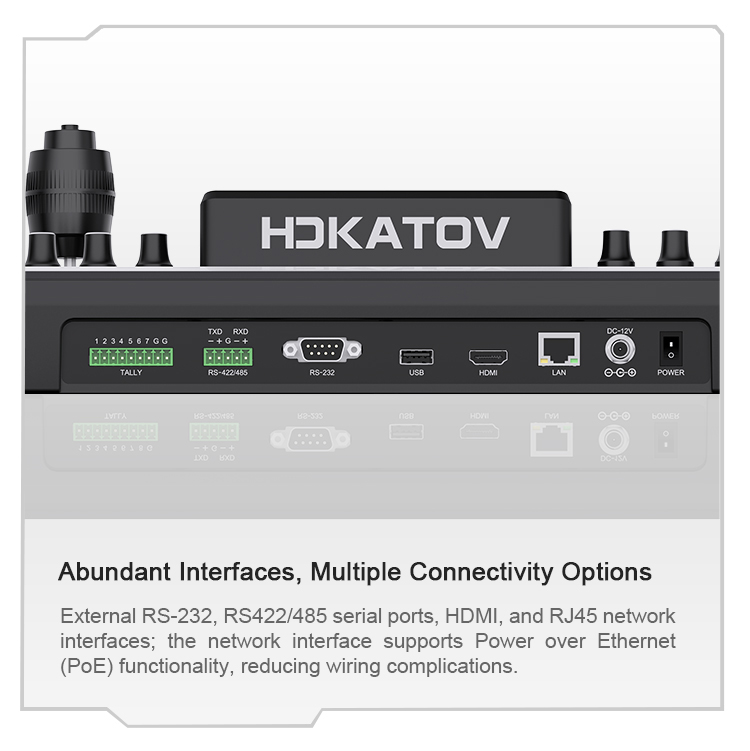

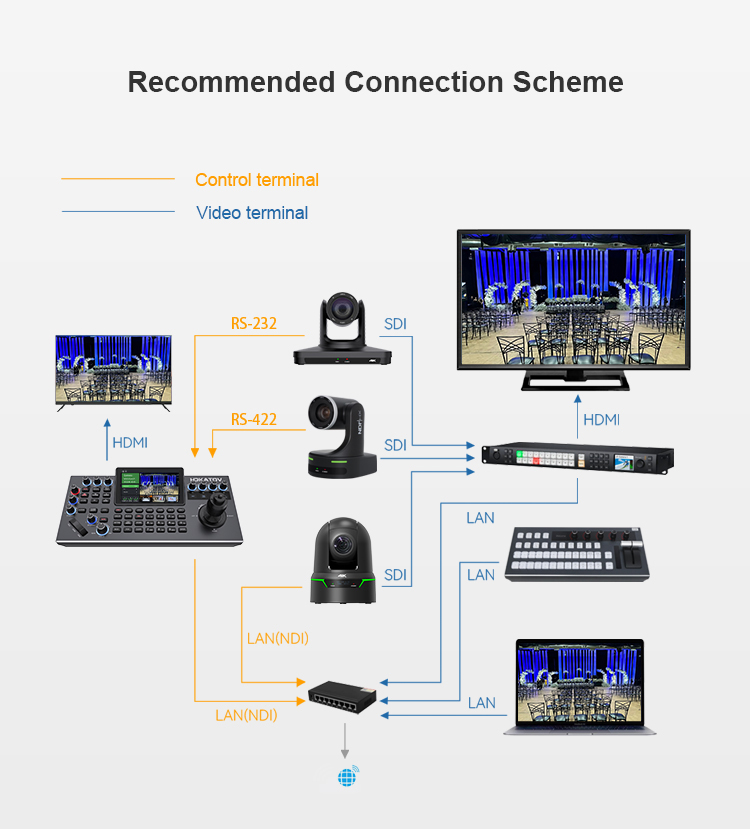

【Comprehensive Interfaces with Multiple Connectivity Options】

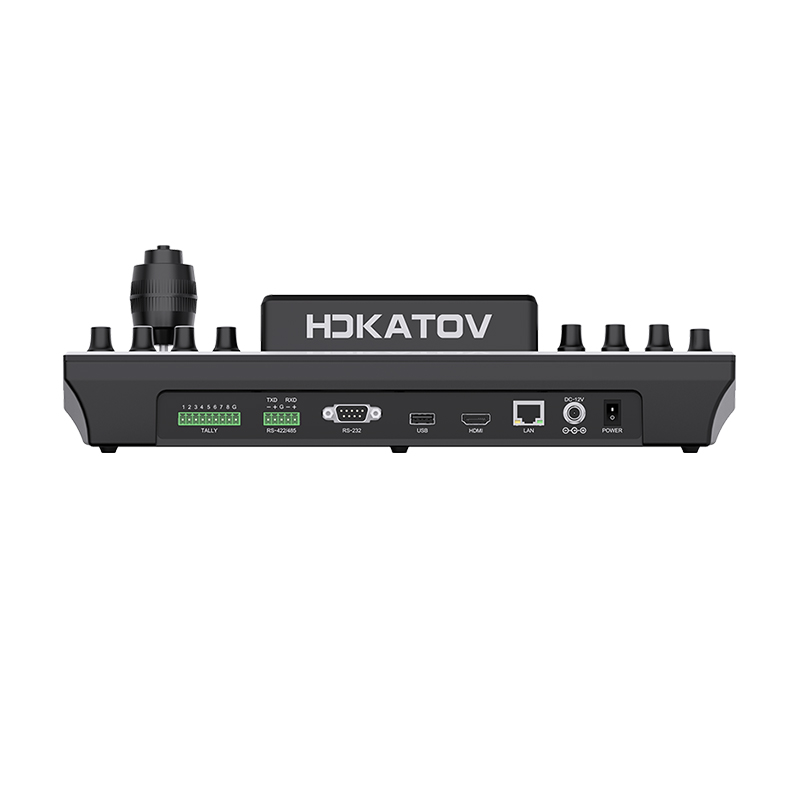

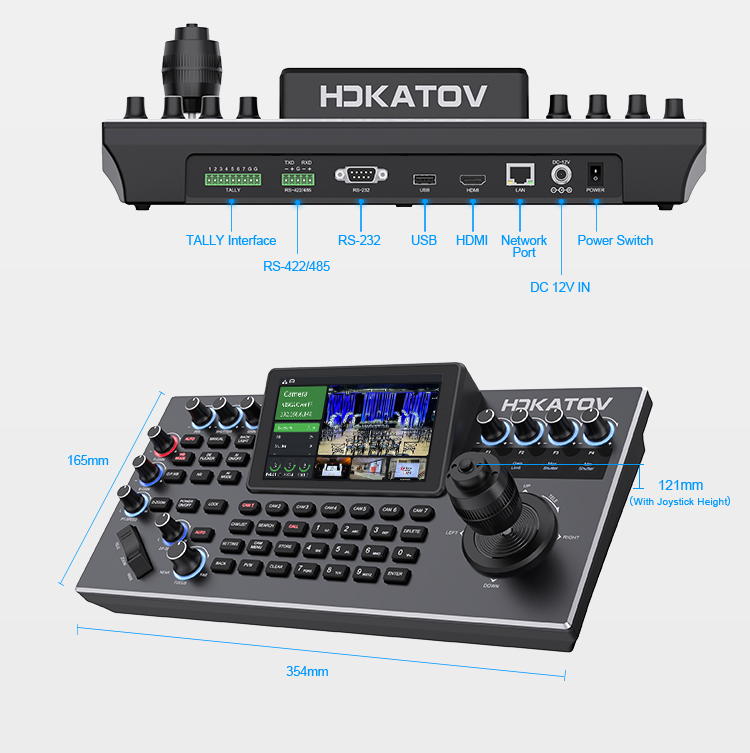

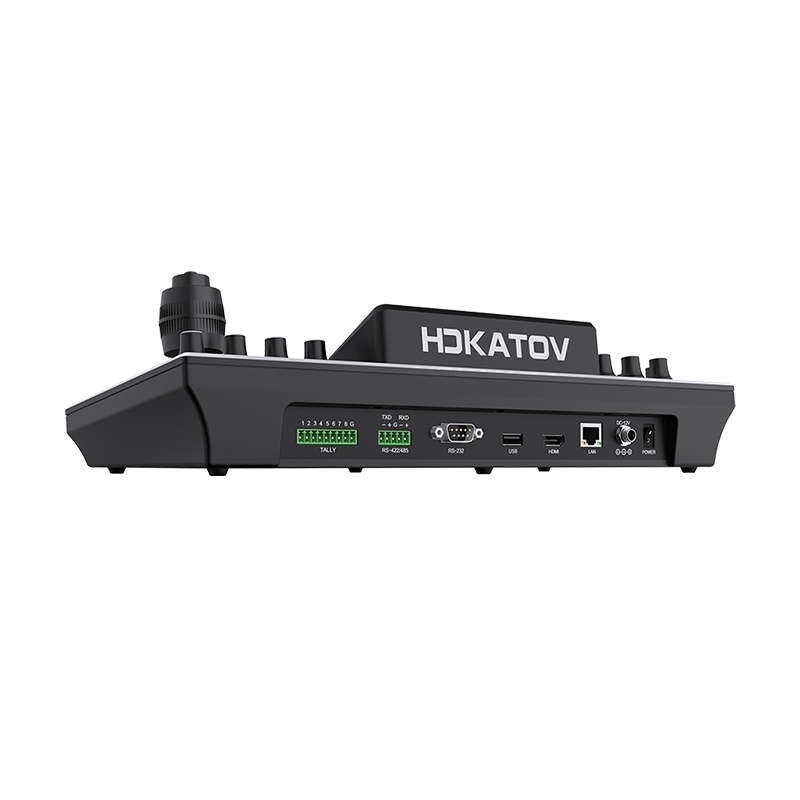

HDKATOV KC50/KC50N features RS-232, RS-422/485 ports, HDMI, and RJ45 network interfaces with PoE support, enabling data and power transmission over a single cable, simplifying installation and adapting to diverse setups.

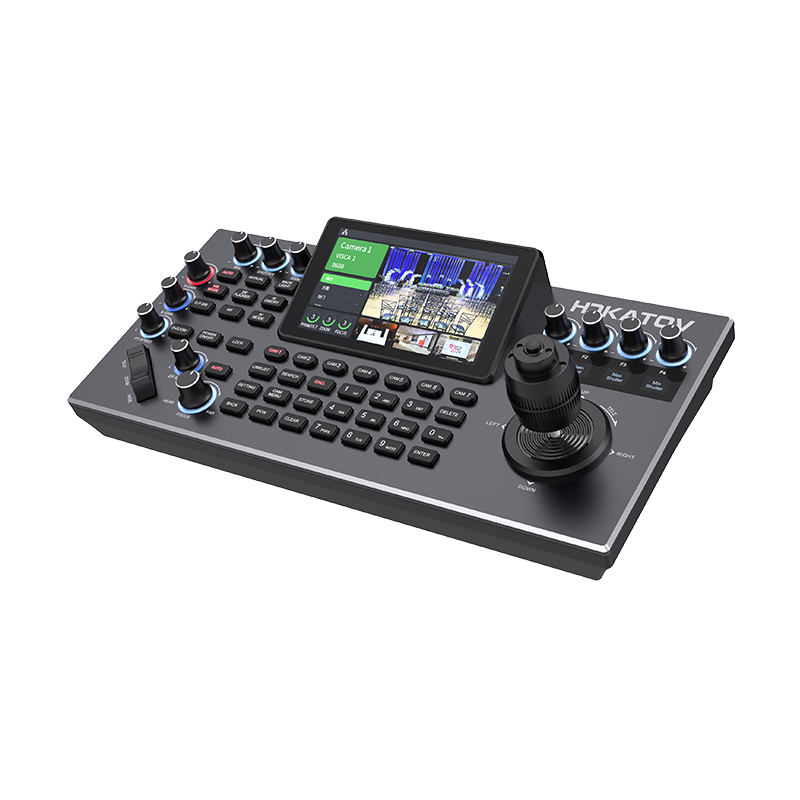

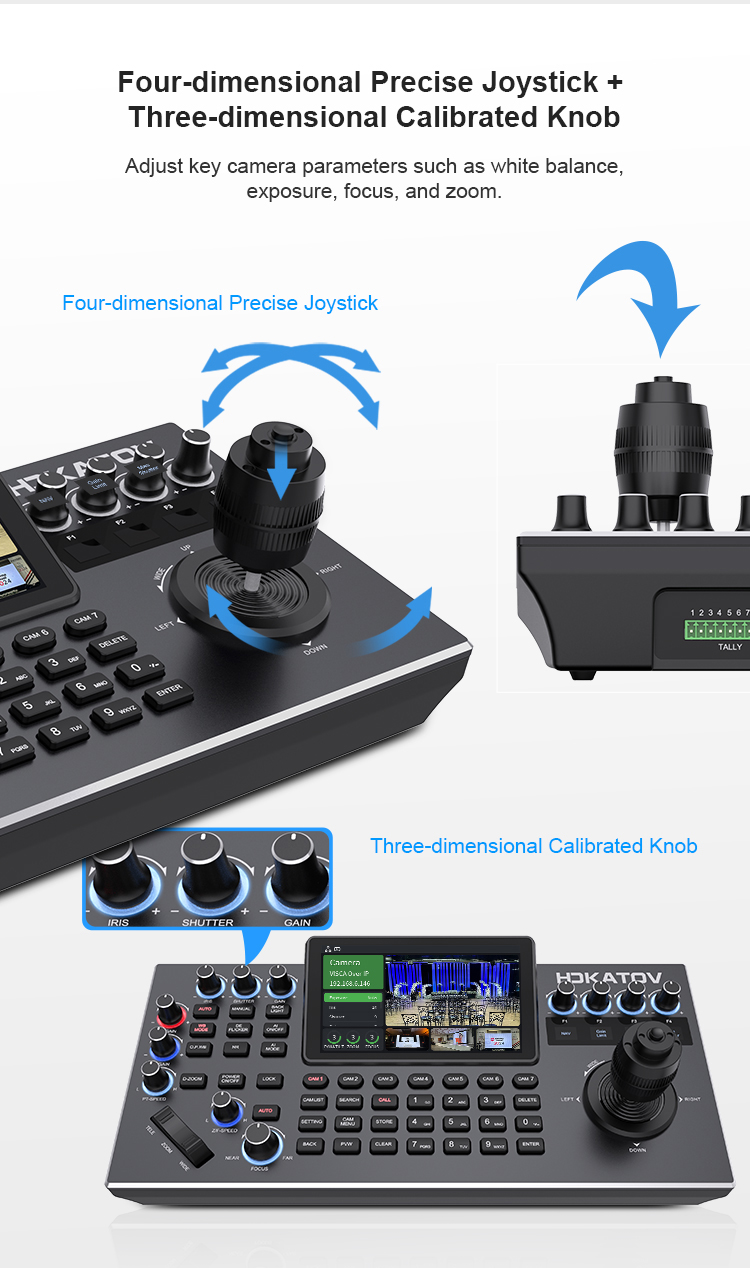

【Precision 4D Joystick + 3D Knobs + Ergonomic Zoom Key】
Achieve smooth PTZ control with rapid adjustments of key camera parameters including white balance, exposure, focus, and zoom.

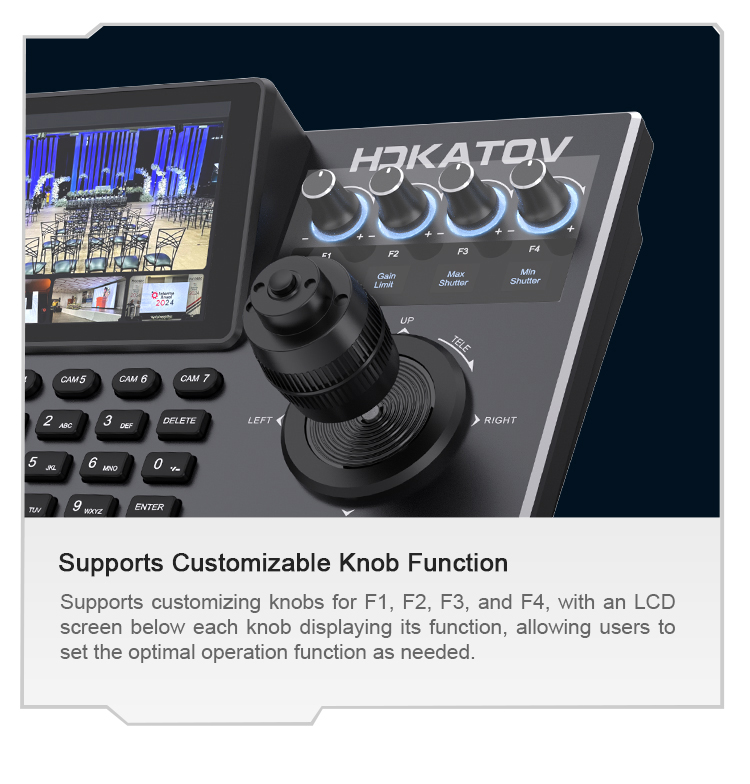

【Customizable Knob Functions】
F1, F2, F3, F4 programmable knobs with LCD displays underneath each knob allow flexible configuration for optimal user operation.

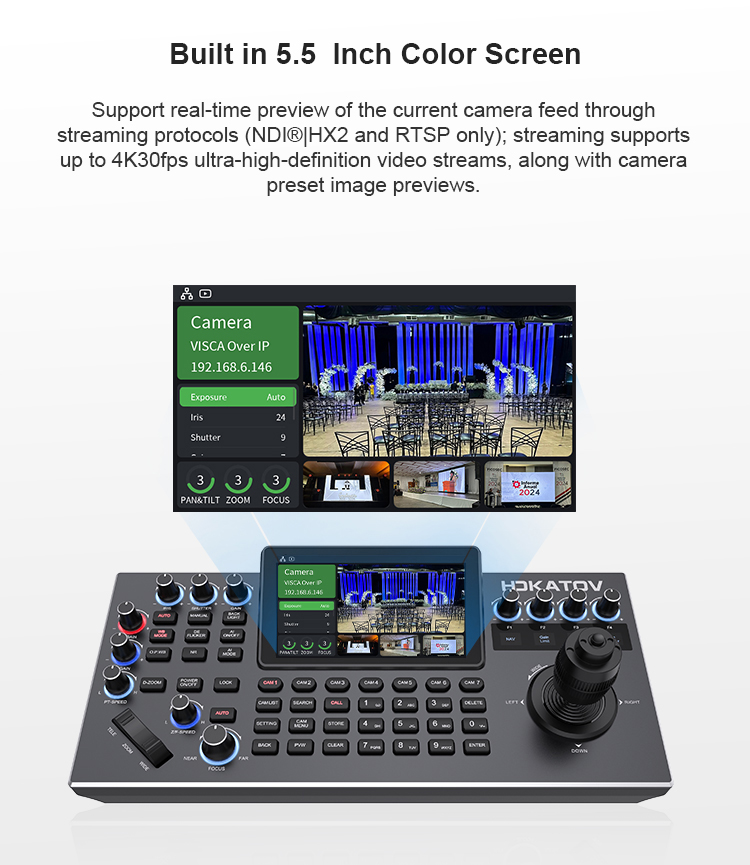

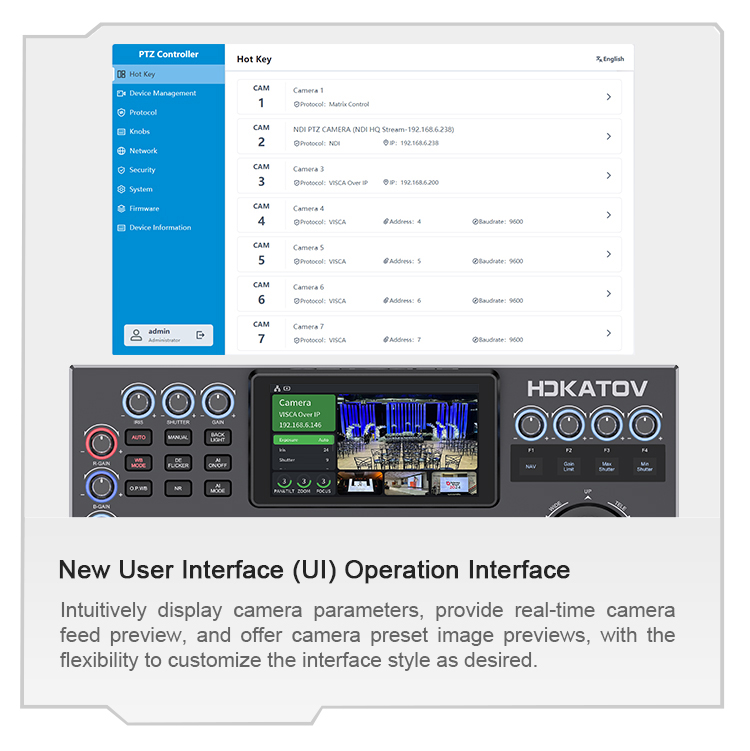

【5.5-Inch Ultra HD Display】

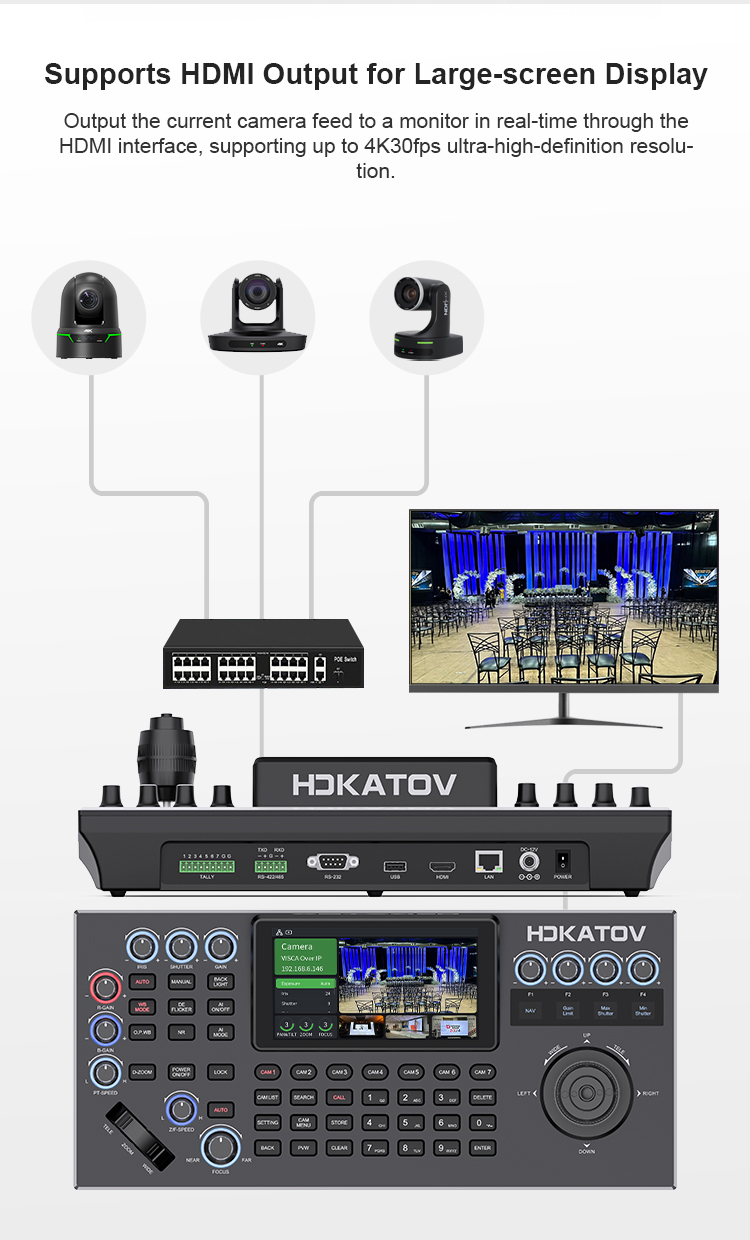

Supports live preview of the controlled camera via streaming protocols (NDI®|HX3 and RTSP only), up to 4Kp30 resolution, with preset position preview for intuitive and efficient operation."

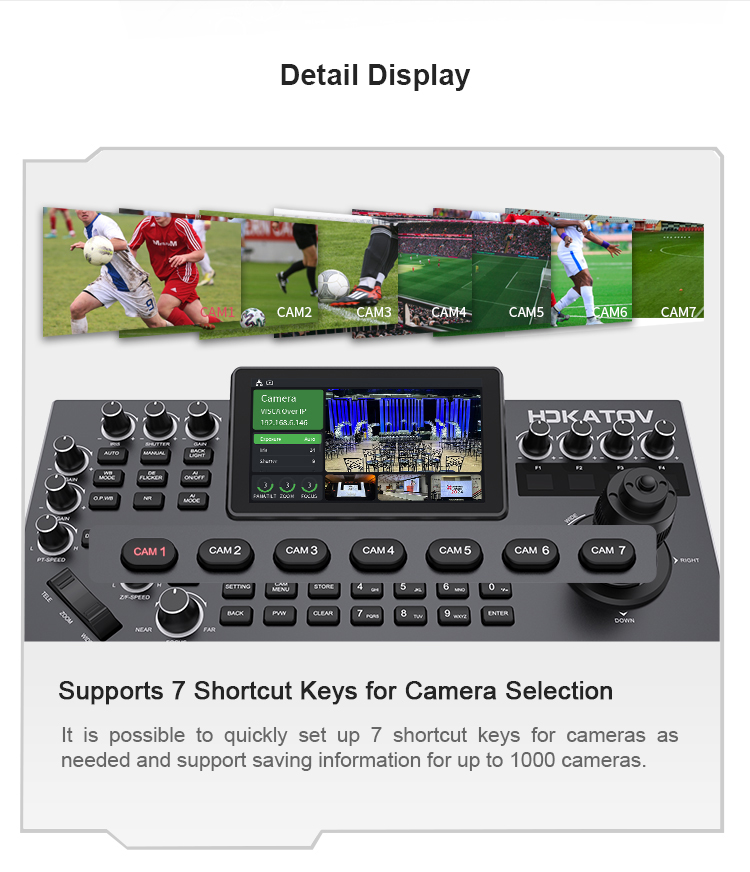

【7 camera selection shortcut keys】
HDKATOV KC50/KC50N features 7 customizable camera selection shortcut keys, allowing users to switch control targets with ease and handle multi-camera shooting or large-scale live productions effortlessly.

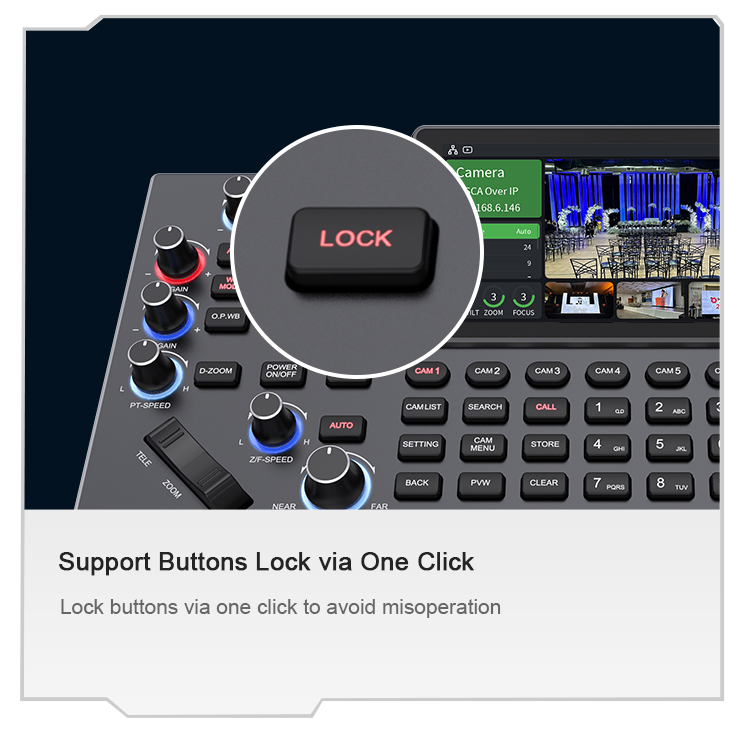

【One-Touch Lock for Reliable Operation】
HDKATOV KC50/KC50N PTZ Camera Control Keyboard features a one-touch lock button, effectively preventing accidental operation and ensuring every command is executed accurately. Ideal for single-user or multi-camera setups, it enhances workflow efficiency and operational safety.
【Powerful Preset & Multi-Camera Control】
HDKATOV KC50/KC50N supports up to 255 camera presets and stores up to 1,000 camera profiles. It can control up to 7 cameras via VISCA and up to 255 cameras via Pelco D/P protocol (protocol-limited).

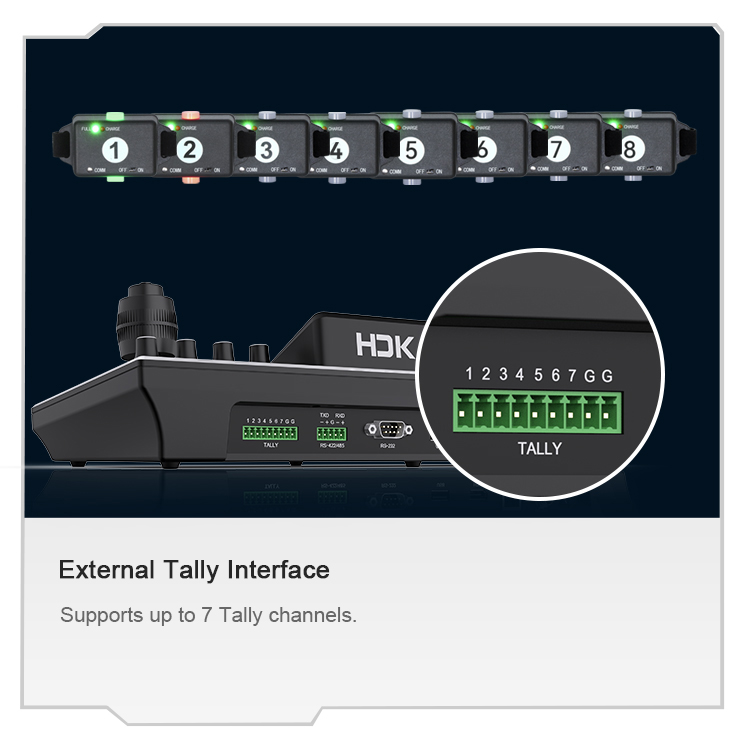

【External Tally Interface for Clear Camera Status】
HDKATOV KC50/KC50N PTZ Camera Control Keyboard supports up to 7 tally channels, enabling real-time camera status display. Perfect for multi-camera live productions and large studios, it helps operators quickly monitor each camera, enhancing workflow efficiency and production accuracy.
Details Images
|
Specifications |
|
|
Joystick |
4D precision joystick |
|
Knob |
3D knob, support scale rotation to adjust the parameters, support customized functions |
|
Preview |
Supports real-time preview of the camera feed and preview of preset position images. |
|

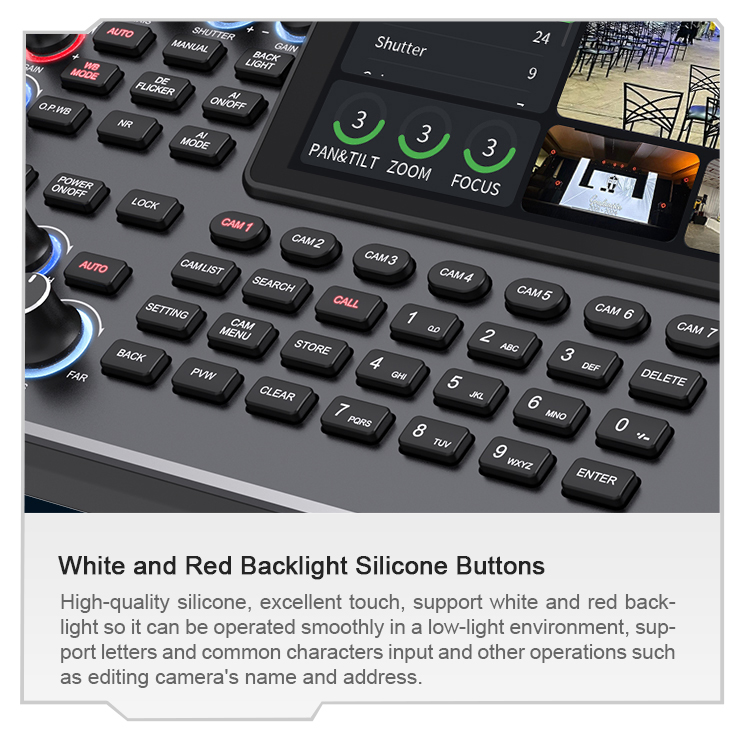

Silicone Buttons |
High-quality silicone buttons support white and red two-color backlight |
|
Screen |
5.5” LCD color display |
|
Display |
The HDMI interface supports displaying output at 4Kp30 Ultra HD resolution |
|
Shortcuts |
Support 7 camera shortcut settings |
|
Sound |
The sound of the button prompts on/off |
|
Lock |
Support one-click locking function |
|
Max. No. of cameras can be saved |
1000 |
|
Max. No. of preset positions can be saved |
255 |
|
Customized Knob |
|
|
Navigation |
Support |
|
Gain Limit |
Support |
|
Max. shutter speed |
Support |
|
Min. shutter speed |
Support |
|
Auto exposure speed |
Support |
|
Exposure compensation |
Support |
|
BLC |
Support |
|
IR switch filter |
Support |
|
ND filter |
Support |
|
WBC speed |
Support |
|
Gama curve |
Support |
|
Gama offset |
Support |
|
Gama Pattern |
Support |
|
AI Gesture Recognition |
Support |
|
AI Bounding Box Display |
Support |
|
Track Record |
Support |
|
Track Call |
Support |
|
Track Delete |
Support |
|
Camera |
Support |
|
User instructions |
Support |
|
Control |
|
|
Control interface |
RJ45(Support POE and NDI®| HX3 (Optional)), RS-232, RS-422/485 |
|
IP control protocol |
Onvif, VISCA Over IP, VISCA TCP, Panasonic Serial、Panasonic Http,NDI® ( Optional ) |
|
Serial port control protocol |
VISCA, Pelco D, Pelco P |
|
Power Supply |
|
|
Input Voltage |
12V |
|
Input Current |
0.7A |
|
POE |
802.3af |
|
Rated power |
8.4W |
|
Other |
|
|
Tally |
Support up to 7 channels |
|
HDMI Interface |
External Display Device |
|
USB Interface |
Upgrade using an external USB flash drive |
|
Usage Environment |
Indoor |
|
Working Temperature |
-10℃-40℃ |
|
Storage Temperature |
-20℃-60℃ |
|
External Dimensions |
354*165*121mm (including joystick height) |
|
Net Weight |
1.5kgs |
