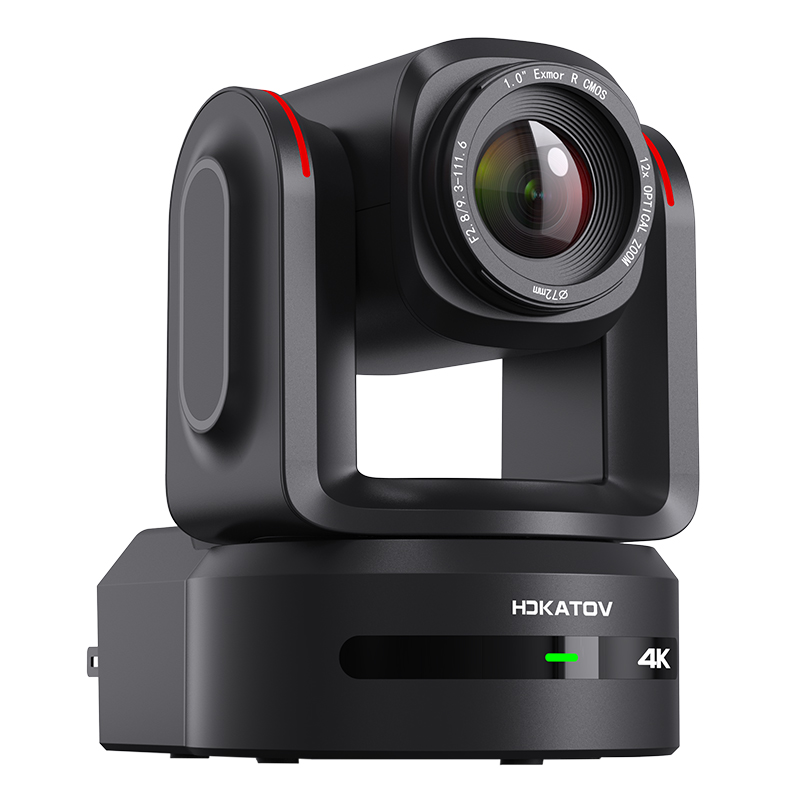

KT-BC10HU/BC10HUN
Download
Products Desciption
【4K Ultra HD Output】
Adopting the new generation SONY 1- inch high-quality " Exmor R" CMOS sensor, it can achieve maximum 4K30 ultra- high-definition resolution broadcasting and image output, and even larger scene recording.
【12X Optical Zoom Lens】
Equipped with a 12x Sony full-module lens, it supports the mainstream horizontal viewing angle of 64 °, which can satisfy more scenarios such as large-scale broadcasting scenes, large-scale performances, church live broadcasts, etc. to restore real details.

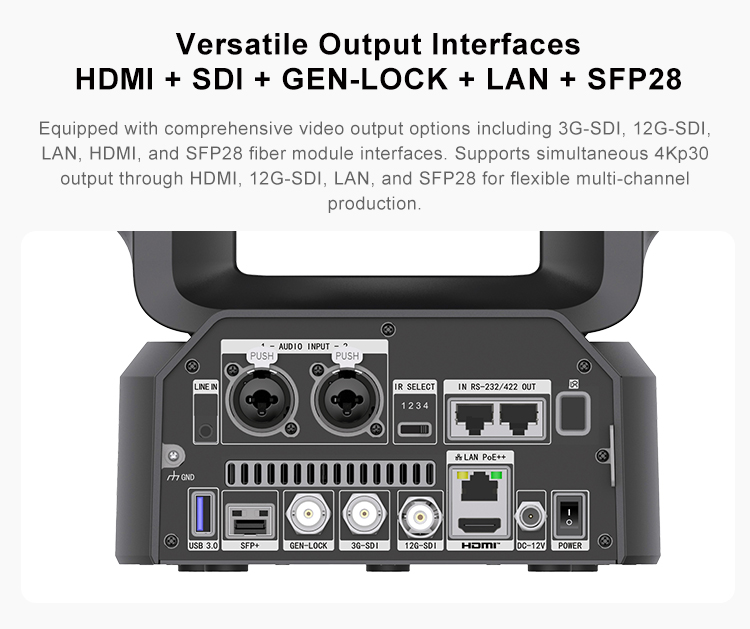

【HDMI+SDI+GEN-LOCK+LAN+ SFP28, Rich Application Scenarios】
Rich video output interfaces, including 3G-SDI, 12G-SDI, LAN , HDMI and SFP28 optical module outputs, HDMI+12G-SDI+LAN+ SFP28 can output 4KP30 resolution simultaneously. The GEN-LOCK interface enables multiple cameras to capture and transmit videos with the same clock signal to achieve video synchronization.
【Low Light】
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise in low-light conditions. At the same time, 2D & 3D digital noise reduction is applied to significantly reduce image noise, keeping the picture clean and clear even in ultra-low light conditions, with an image signal-to-noise ratio of more than 50dB

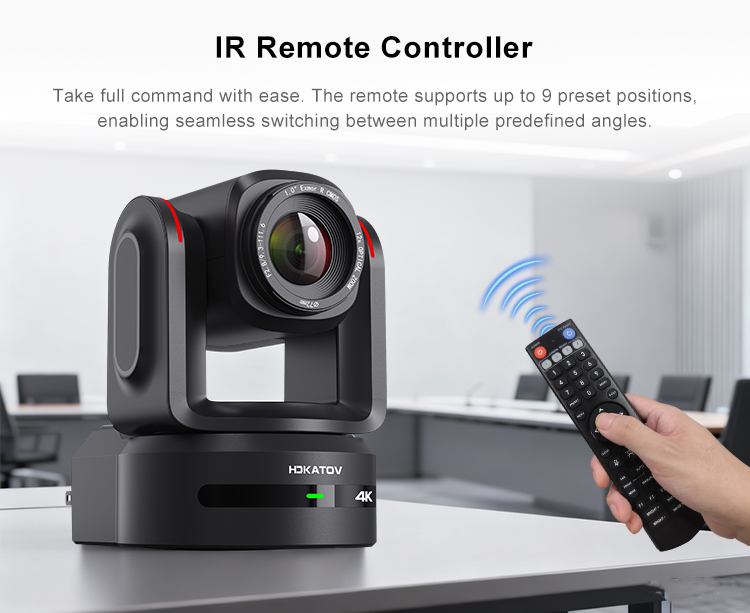

【Infrared Remote Control Signal Transparent Transmission Function】
In addition to receiving its own infrared remote control signals, it can also receive signals from consumer infrared remote controls and send them to the video conferencing terminal via the VISCA port.
【Multiple Video Compression Standards】
Different interfaces support multiple video compression formats such as YUY2, H265, MJPG, and H 264 .
【Multiple Network Protocols】
Support ONVIF, SRT, RTSP, RTMP, NDI® | HX, FULL NDI and other network protocols;
【Multiple Control Protocols】
Supports VISCA (including VISCA Over IP), PELCO P/D, and NDI® protocols, and supports automatic identification of protocols .
Details Images
|
Image Parameters |
|
|
Video Format |
HDMI: 4K30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 12G-SDI: 4K30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY FCB-ES8230 original module |
|
Pixel |
20.5 megapixels |
|
Scanning Method |
Line by Line |
|
Lens |
12X Optical Zoom, f= 29mm (wide angle) ~ 348 mm (narrow angle), F 2.8 ~ F4.5 |
|
Digital Zoom |
16X |
|
Horizontal View Angel |
64 °(W) |
|
Focus Mode |
Automatic, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
0.1Lux |
|
Exposure |
Auto, Manual, Aperture Priority, Shutter Priority, Brightness Priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D & 3D digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Electronic Image Stabilization |
Support |
|
PTZ |
|
|
Pan Angle |
-167 °~ + 167 ° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
0.1°/S~120°/S |
|
Tilt Speed |
0.1°/S~120°/S |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE++ |
802.3bt Type 3 |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif , DHCP, VISCA Over IP, NDI®|HX, FULL NDI |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720 |
|
Sub Stream Resolution |
1280*720, 960*540, 640*360 |
|
Bit Rate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression Standards |
AAC |
|
Sampling Rate |
48K and 44.1K |
|

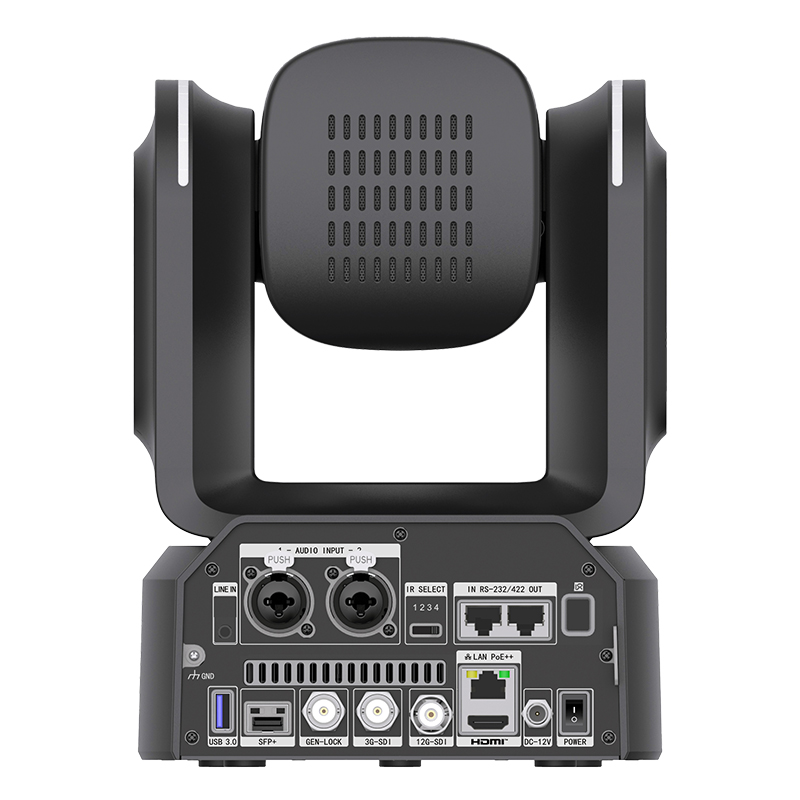

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 2.0 |
|
SDI Interface |
1 Line, G EN-LOCK
1 Line, 3G-SDI |
|
Optical Module Interface |
1 Line, Fiber(SFP28) |
|
USB Interface |
1 Line, USB 3.0, Type- A socket |
|
Network Interface |
1 Line, RJ45: 1000M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm audio interface 2 Line, AUDIO INPUT, X LR audio port |
|
Serial Interface |
1 Line, RS232 IN/OUT, up to 30 meters, VISCA/ Pelco -D/ Pelco -P protocol |
|
Power Interface |
IEC 60130-10 Type A |
|
General Specifications |
|
|

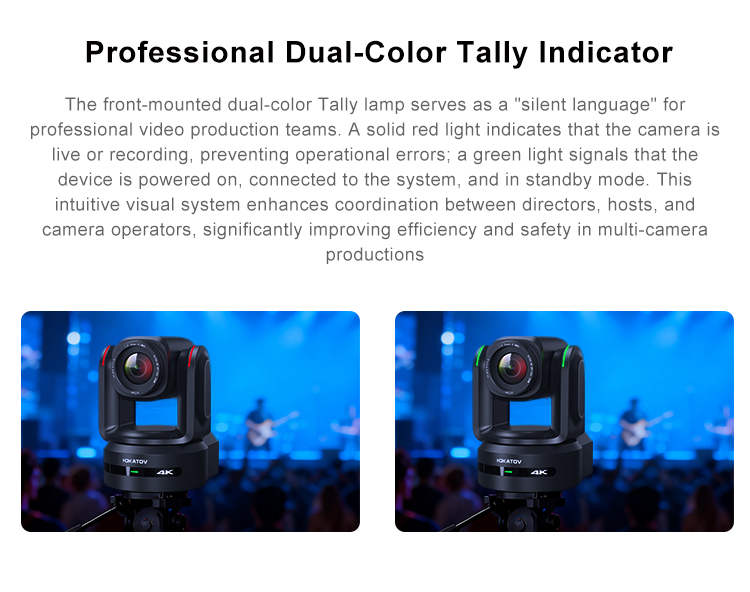

Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max 1.3A |
|
Power Consumption |
Max. 15.6 W |
|
Phantom Power |
48V |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
black |
|
Dimension |
(W) 189 * (D) 230 * (H) 259 mm |
|
Weight |
4.15 kg |
|
Accessories |
DC12V power adapter, IR remote control, operating instructions, HDMI video cable, RS-232 serial cable, bracket |
