KT-A40
Download

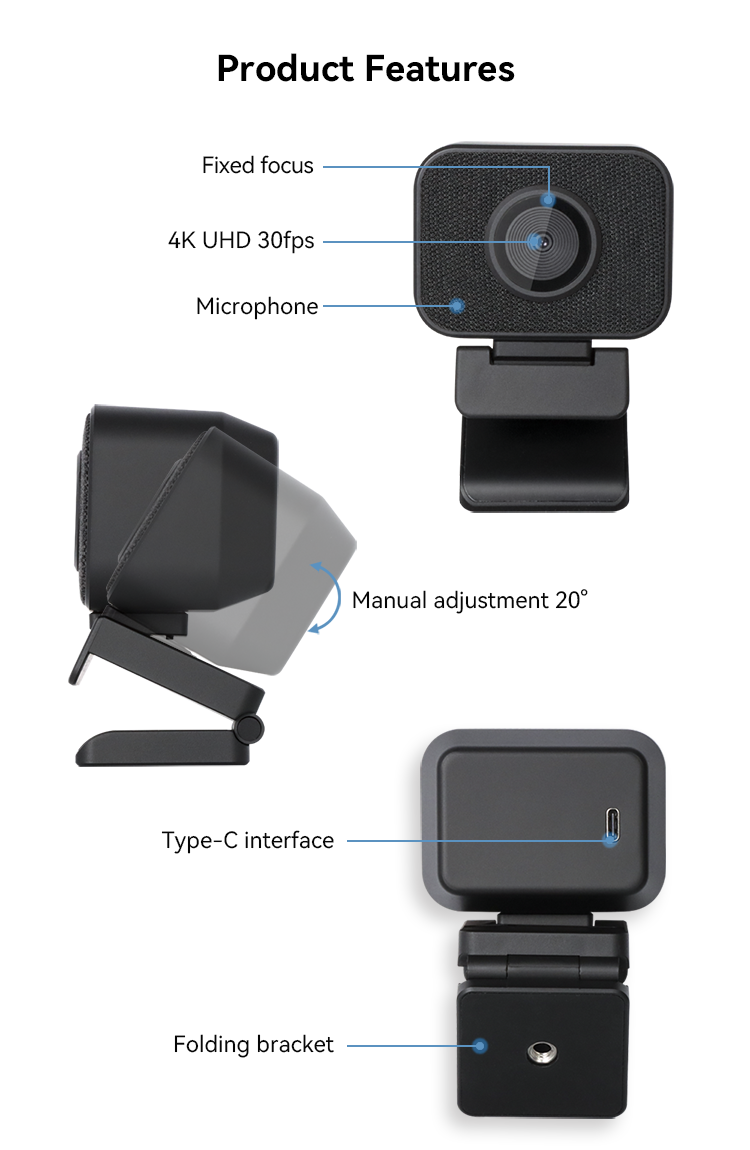

Features

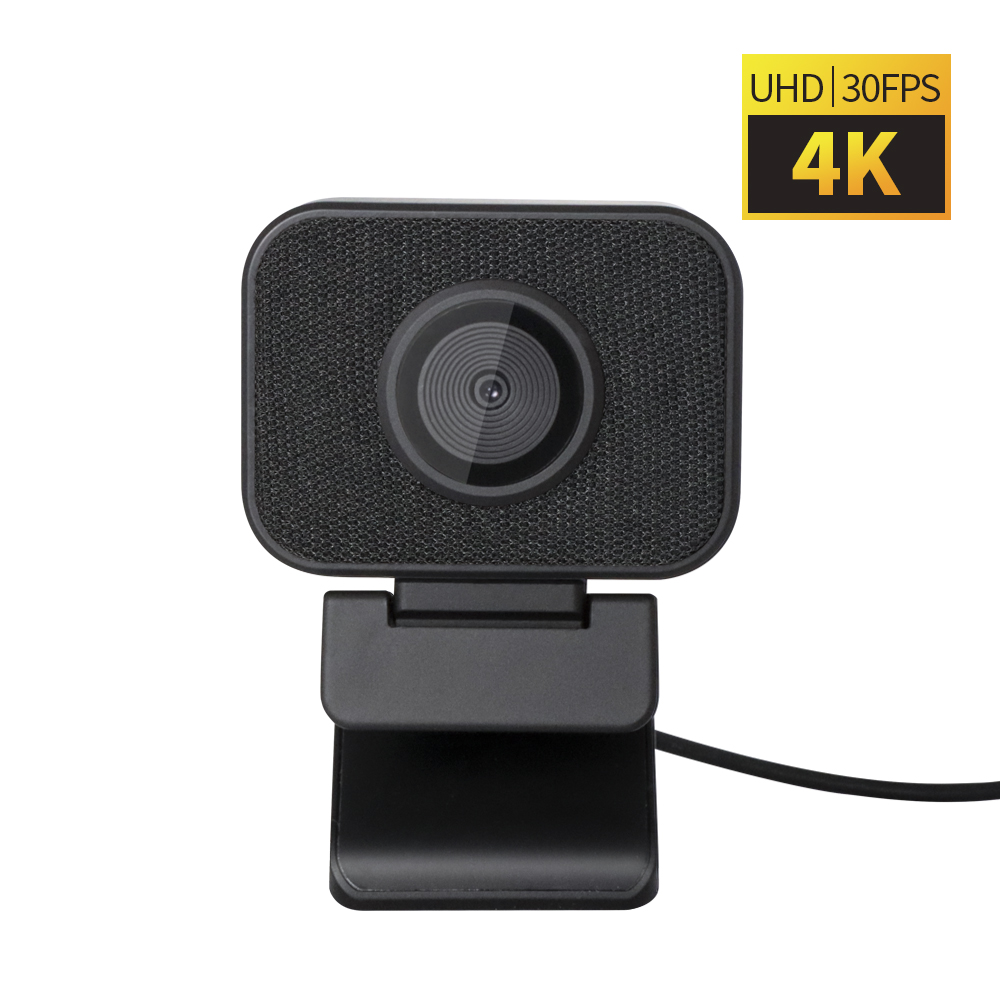

1.4K Ultra HD Picture Output:
Using a new generation of 12 megapixel 4K CMOS, up to a 76.3° field of view, it can achieve a maximum 4k ultra-high-definition resolution, showing clear, sharp and vivid pictures without missing every detail.

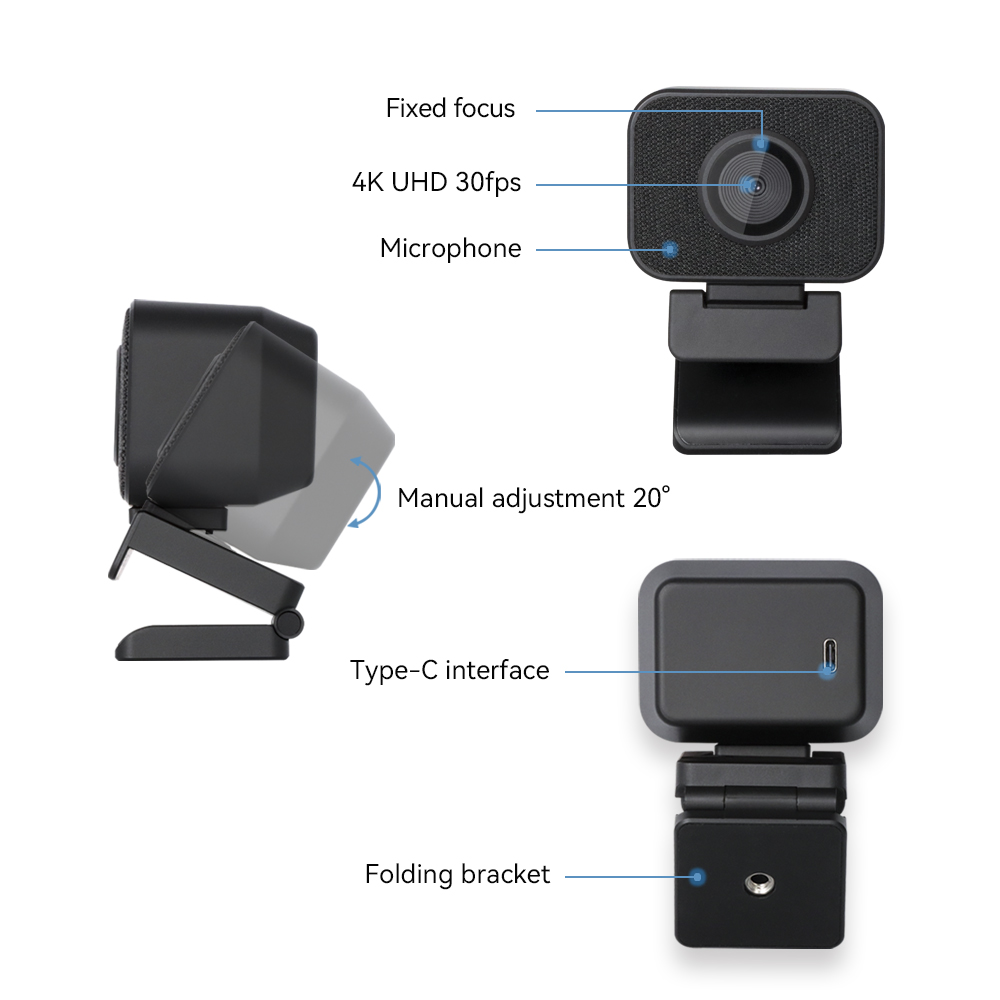

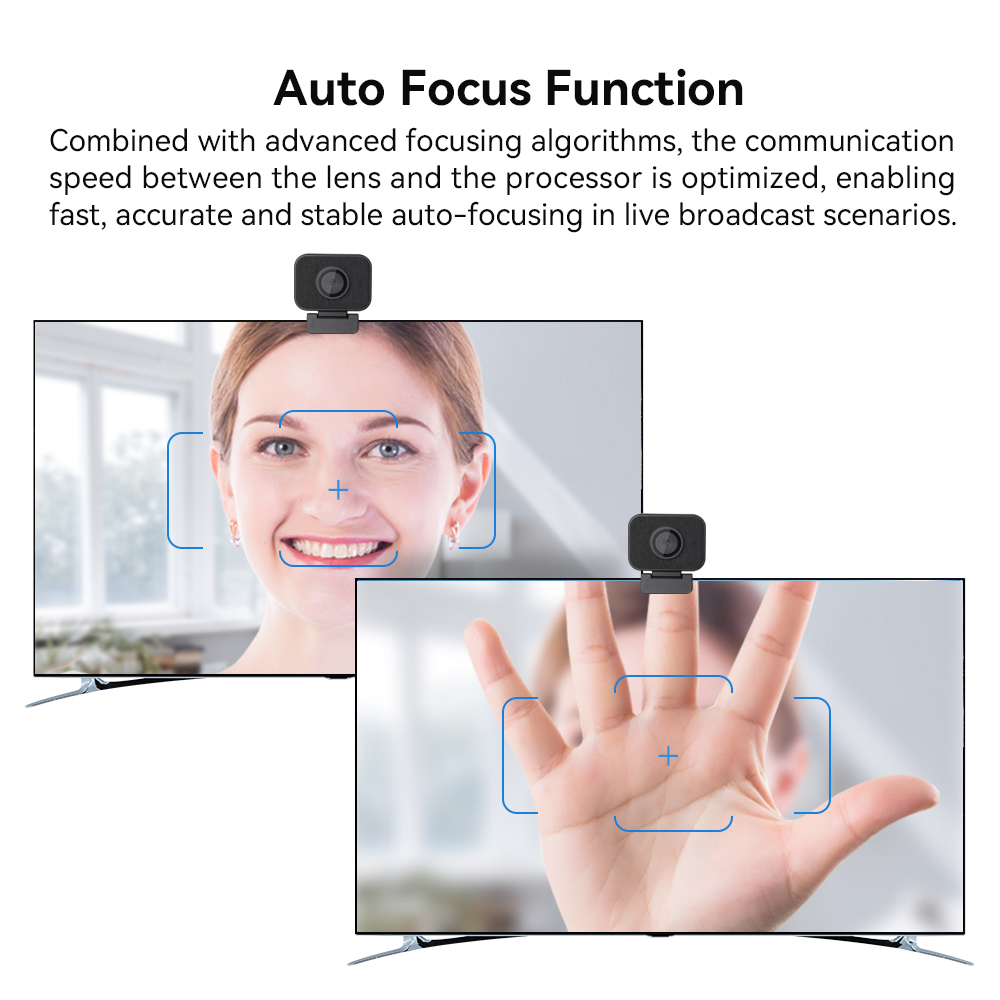

2.Fast Focus at Close Range:
Combined with advanced focusing algorithms, the communication speed between the lens and the processor is optimized, enabling fast, accurate and stable auto-focusing in live broadcast scenarios.

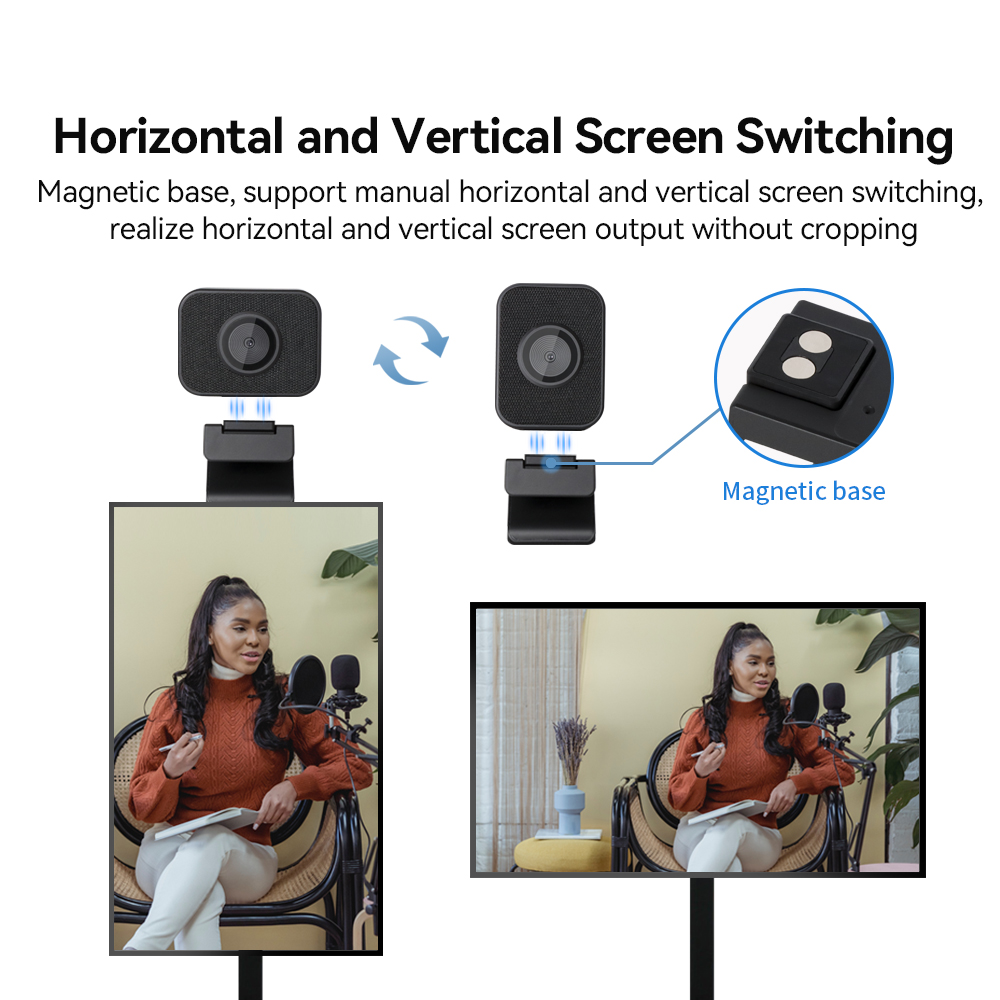

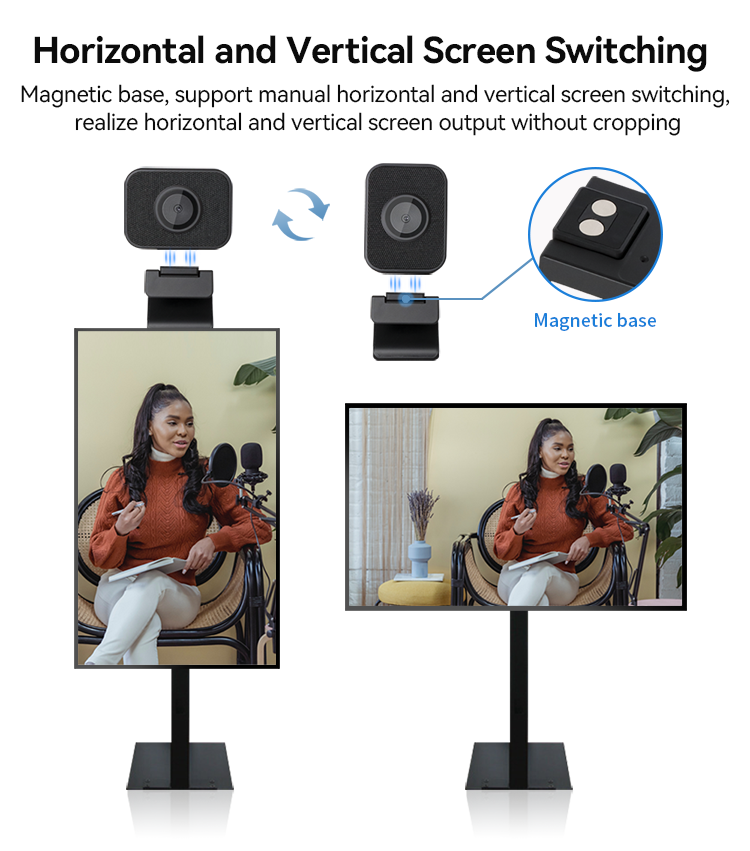

3.Innovative Magnetic Horizontal and Vertical Screen Installation:
Innovative magnetic base, just one suction, easy to switch, fully enjoy the horizontal and vertical screen display effect without cropping in live broadcast.

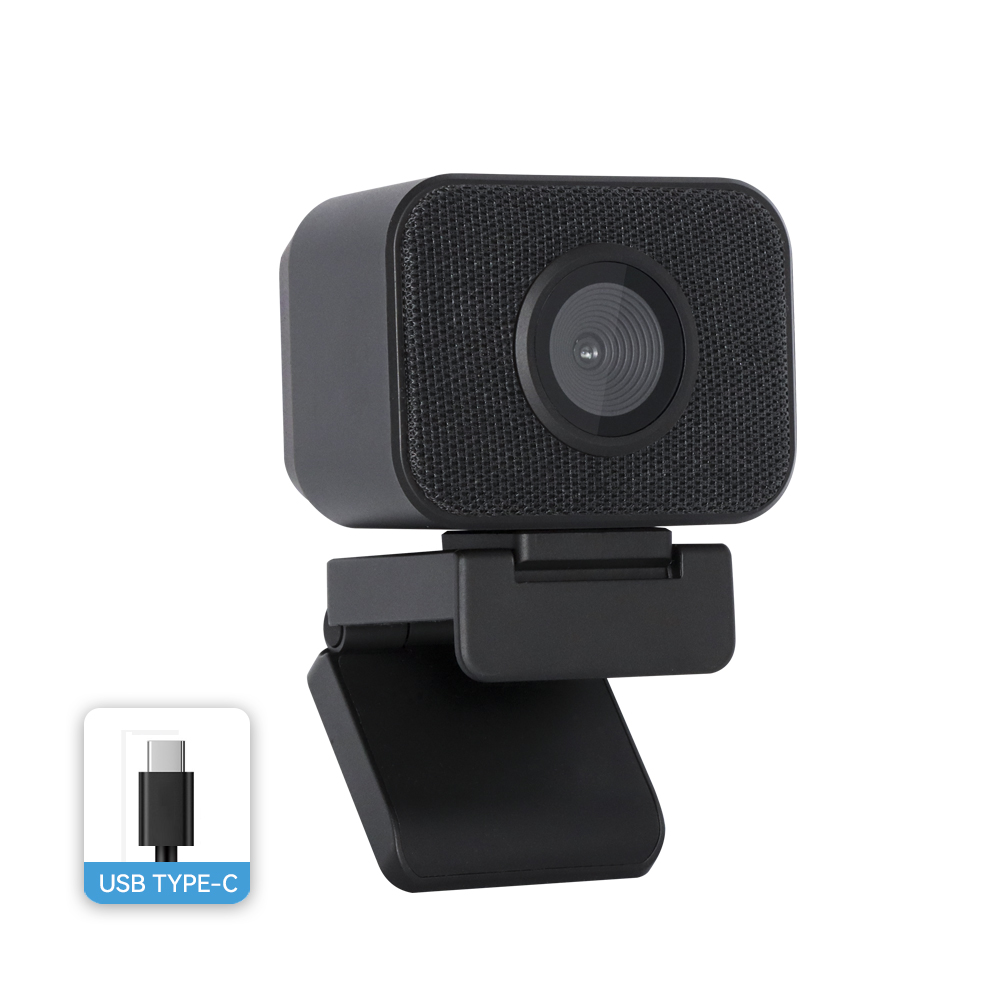

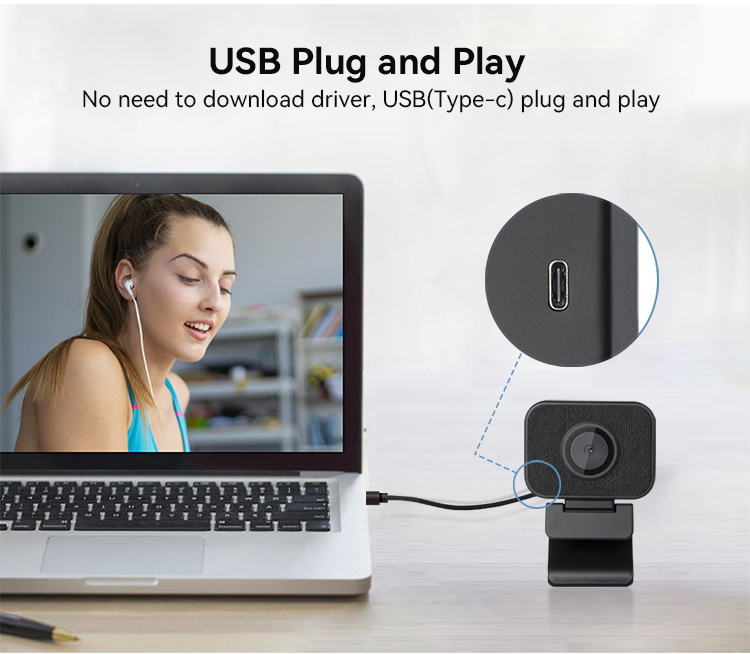

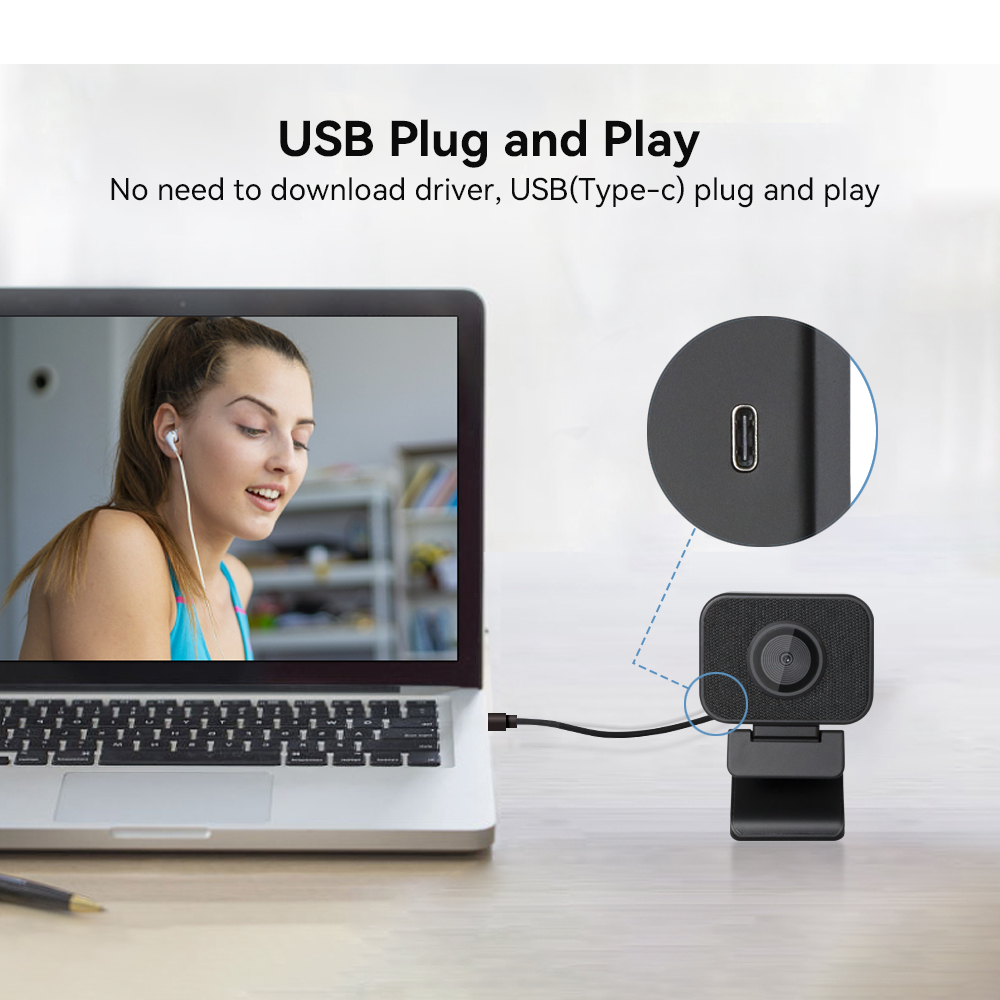

4.Supports USB Type C Interface, Plug and Play:
Supports USB Type C 2.0 interface, plug and play, wonderful start broadcast will not be used, etc.
5.Built-in Green Power Indicator:
Built-in green power indicator, wonderful start, remind at any time.
6.Supports Multiple Video Formats, More Extensive Application:
Support MJPEG and YUY2 video formats, and its application scenarios are further expanded.
7.1/4 Universal Screw, Increase Product Extensibility:
The 1/4 universal screw on the bottom of the bracket is compatible with most bracket devices on the market, bringing more installation possibilities.
|
Image Parameters |
|
|
Resolution |
MJPEG: |
|
Image Sensor |
Samsung 1/2.8" CMOS |
|
CMOS |
12.00 Megapixels |
|
Camera Effective Pixels |
8.29MP |
|
Scan Mode |
Line by line |
|
Lens |
4K Fixed Focus Lens, f=3.96mm |
|
Horizontal View Angle |
76.3° |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s~ 1/10000s |
|
Minimum Illumination |
0.5 Lux @ (F1.8, AGC ON) |
|
Exposure |
Auto, Manual |
|
White Balance |
Auto, Manual |
|
Backlight Compensation |
Support |
|
S/N Ratio |
≥50dB |
|
Horizonta/Vertical Screen |
Support magnetically horizontal and vertical installation, no need cutting horizontal and vertical screen output |
|
USB |
|
|
Protocol |
UVC 1.1 |
|

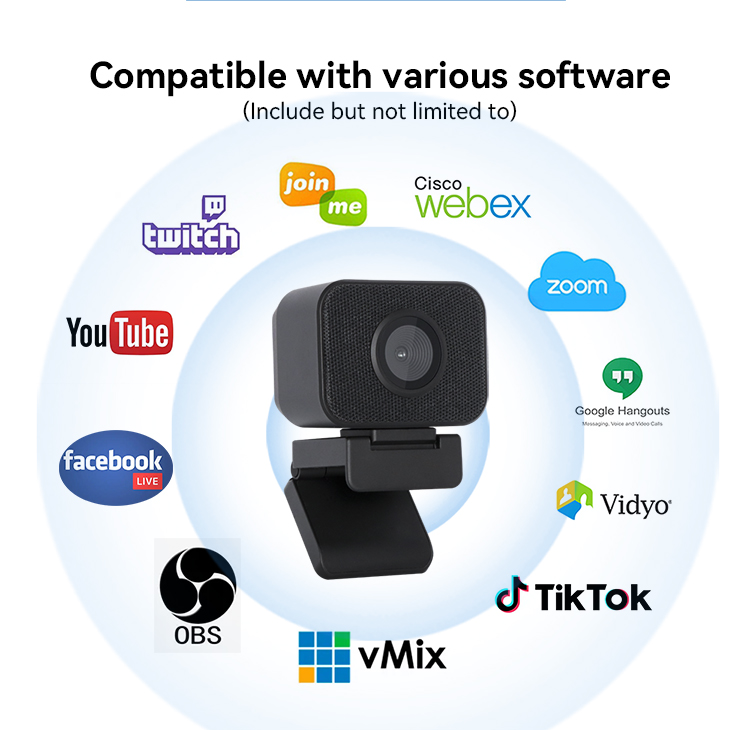

Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Frame Rate |
Max.30 |
|
Audio |
|
|
Sound Pickup |
Built in 1 mic, pickup distance up to 1-2 meters |
|
Interface |
|
|
USB Interface |
1 Line, USB2.0, Type-C Socket |
|
General Specifications |
|
|
Input Voltage |
DC 5V |
|
Input Current |
Max.0.5A |
|
Power Consumption |
Max.2.5W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Dimension |
(W)71*(D)56*(H)76mm (Includes base) |
|
Weight |
0.5kg |
|
Accessories |
User manual, USB2.0 cable(Type-C) |
